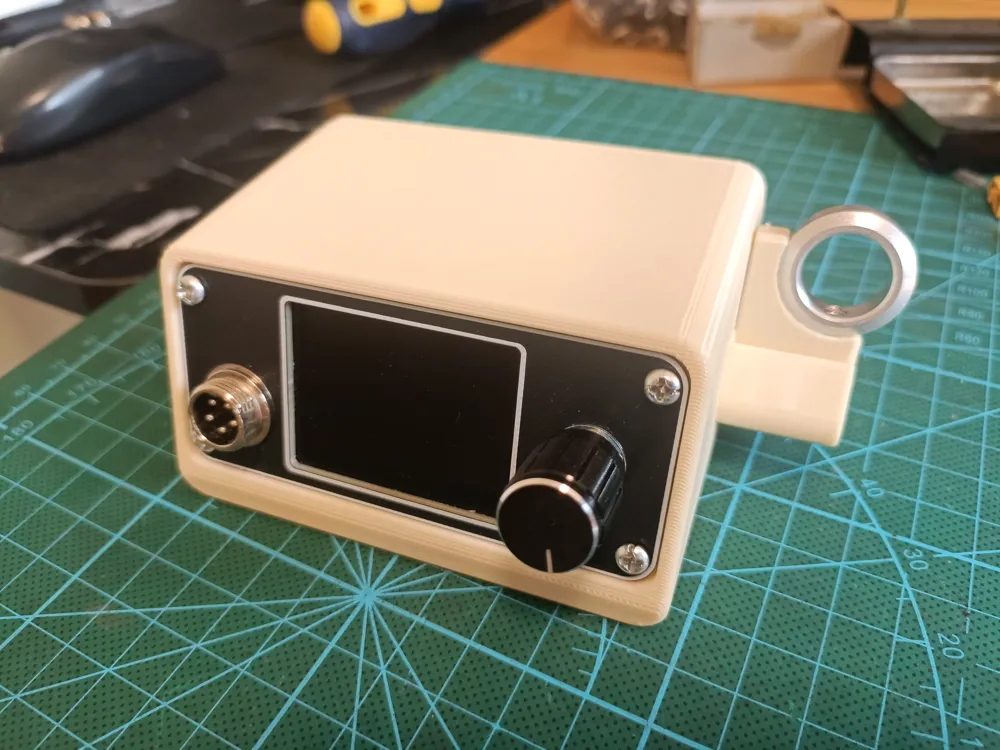

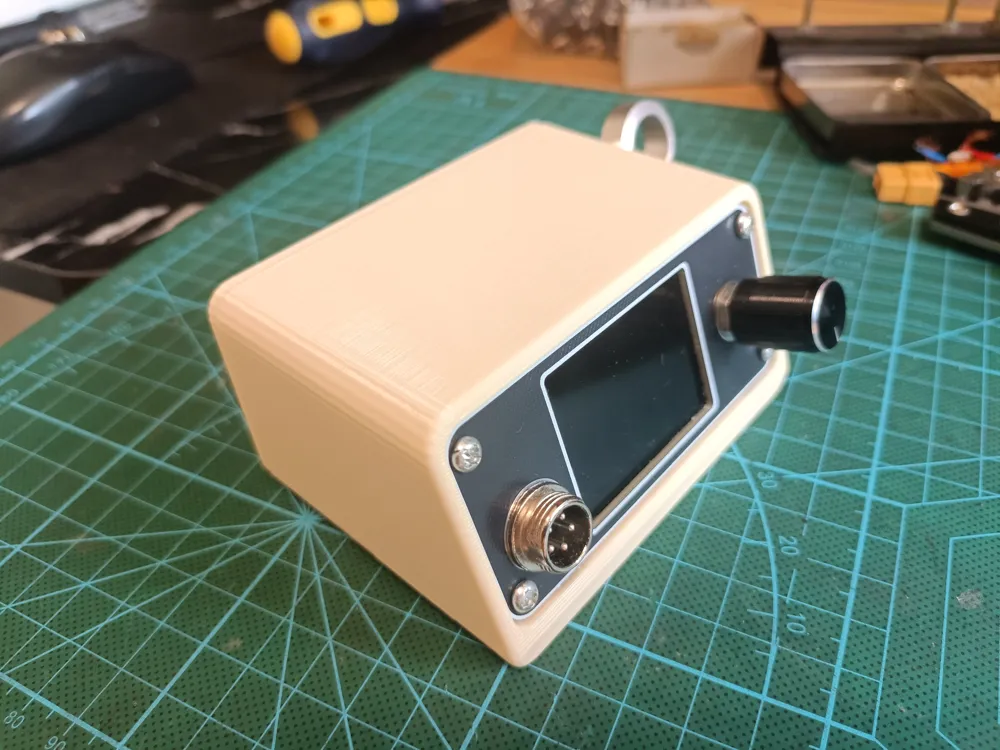

Mini Open-Source Soldering Station, Technician No. 9 Soldering Station, T12 JBC245 JBC210 Soldering Iron
Print Profile(4)
Description

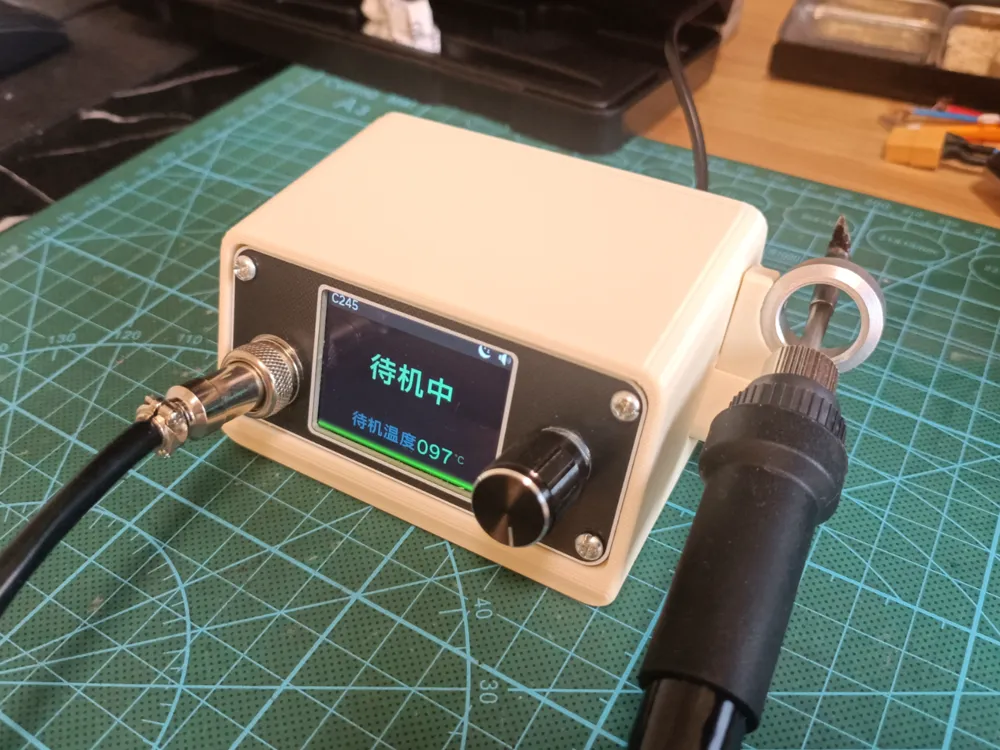

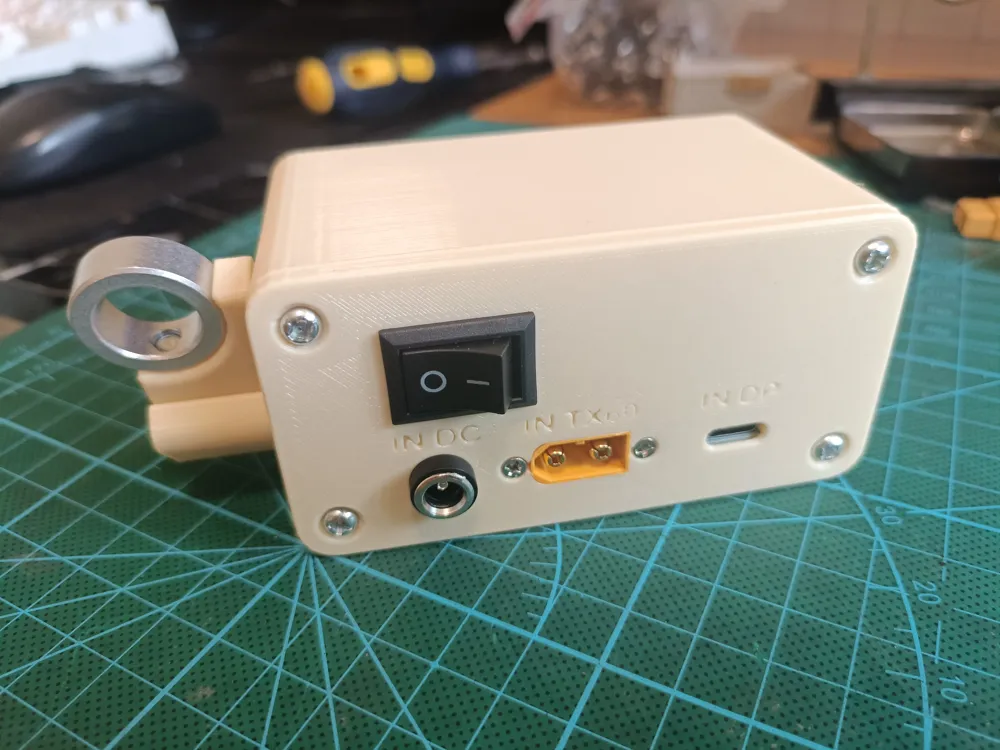

Adapted for #9 open-source soldering station, supports sleep function, DC/TX60/PD 3 input interfaces
Parts list

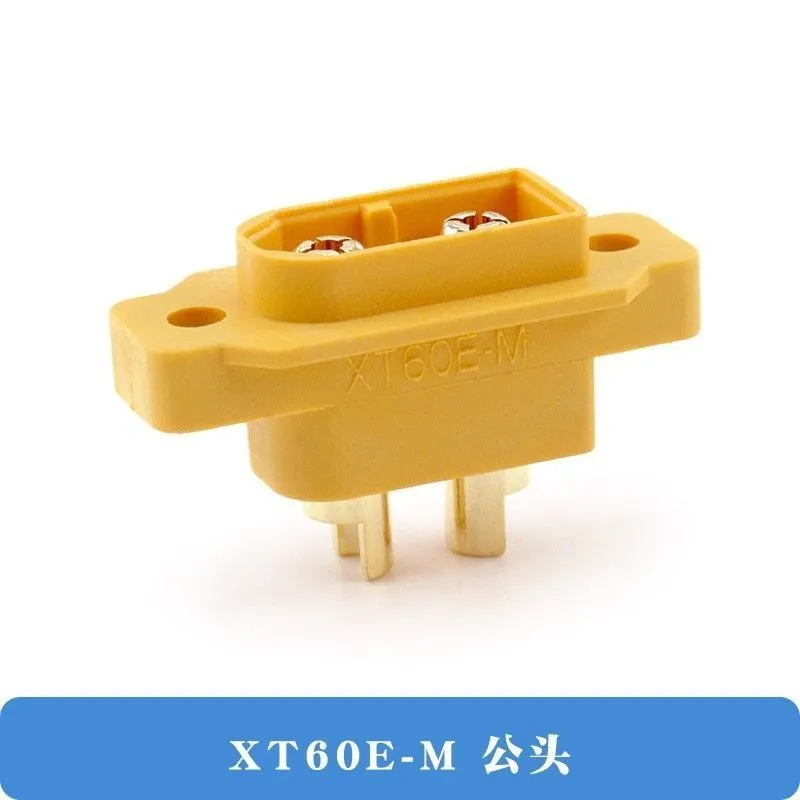

- XT60E-M male connector x1

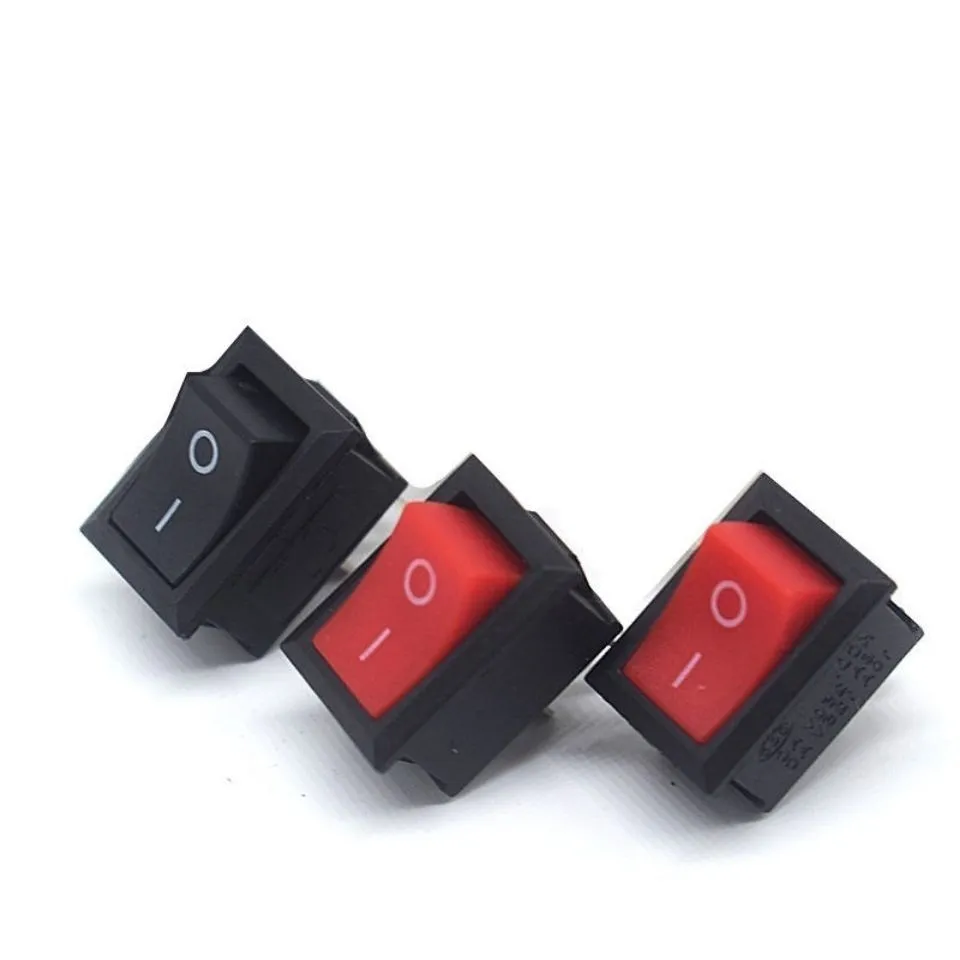

- KCD1 rocker switch x1
- DC female connector 5.5x2.1 x1
- PD decoy module x1

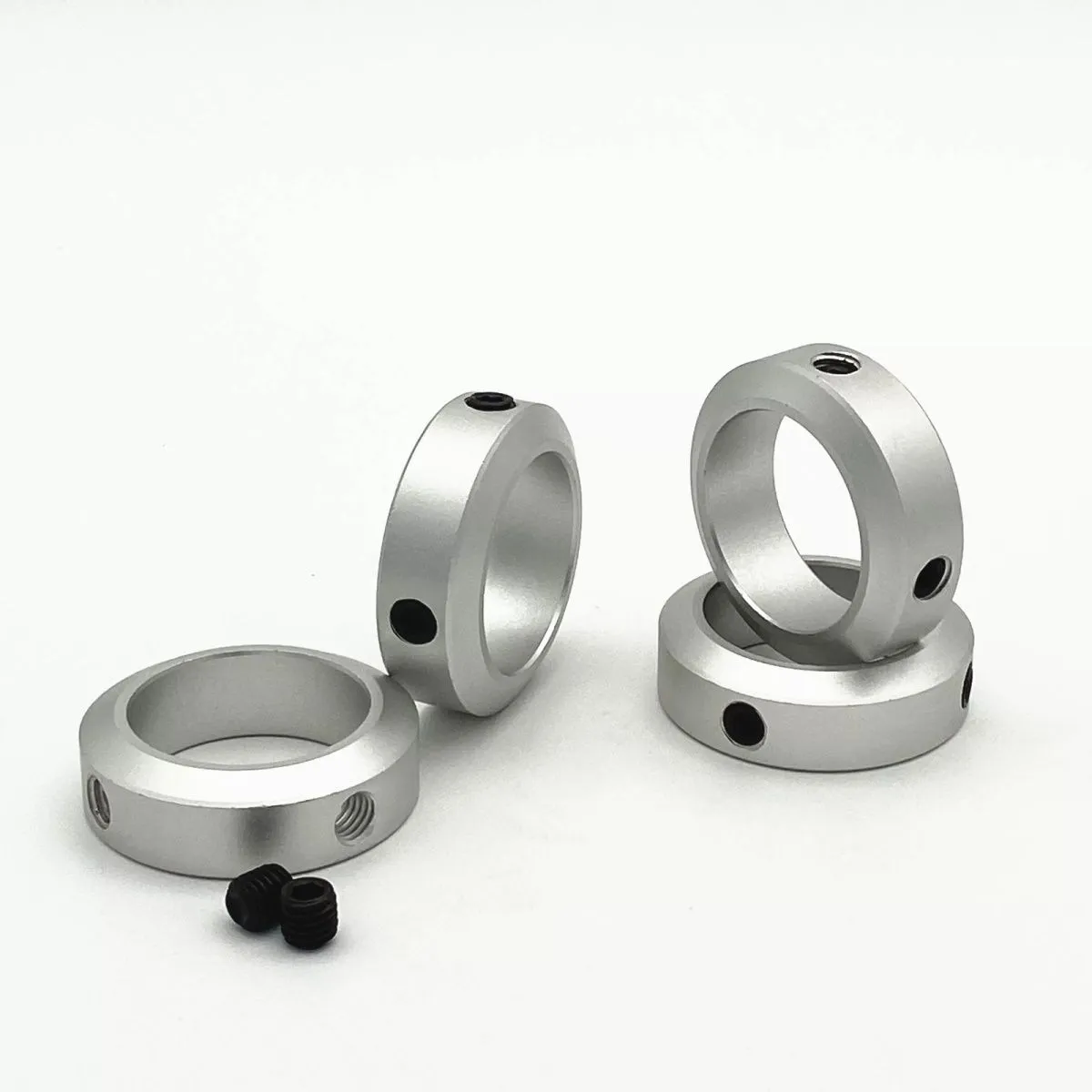

- Fixing ring inner 14 outer 21 thickness 8mm x1
- M3x20 screws x4 (for fixing panel)
- M3x6 screws x4 (for fixing back cover)
- M5x10 screws x2 (for fixing ring)
- M5x20 screw x1
- M5 nut x1
- Diode 20A10 x1 (for protecting PD decoy module)
Changelog

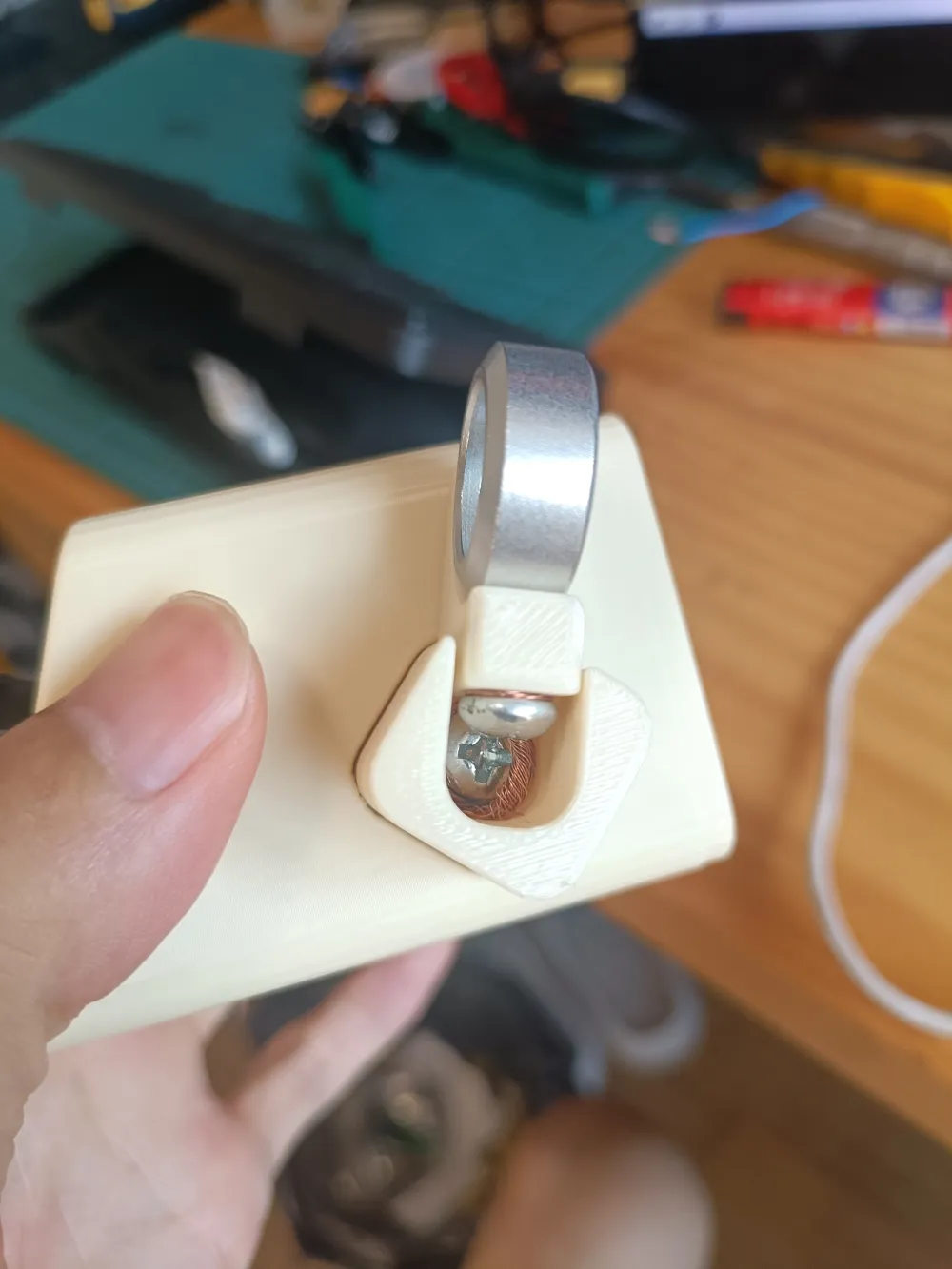

2025-10-08: Added sleep base compatible with "inner 13 outer 22 thickness 8mm fixing ring", see print profile
2025-10-27: Added sleep base compatible with "inner 12 outer 20 thickness 8mm fixing ring", see print profile
2025-12-14: Added back cover for high-current DC female connector, see print profile
