Description

This model is a custom support ring designed to hold plants in place within the hydroponic system originally created by https://makerworld.com/en/models/1342992-modular-hydroponics-tower-v2#profileId-1443795 Several users in the reviews of the original project requested this feature, so I designed it from scratch and tested it successfully with my 3D printer. Works perfectly as a complement to the original design of @ThatRobotGuy . I strongly recommend to print with PETG. I will upload a bigger diameter in the near future.

  • Infill: 15–20%
  • Supports: Not required
  • Material: PLA / PETG (strongly suggest PETG)
  • Layer height:0.2 mm

Notes

  • Works best when placed on the top layer of the Modular Hydroponics Tower V2.

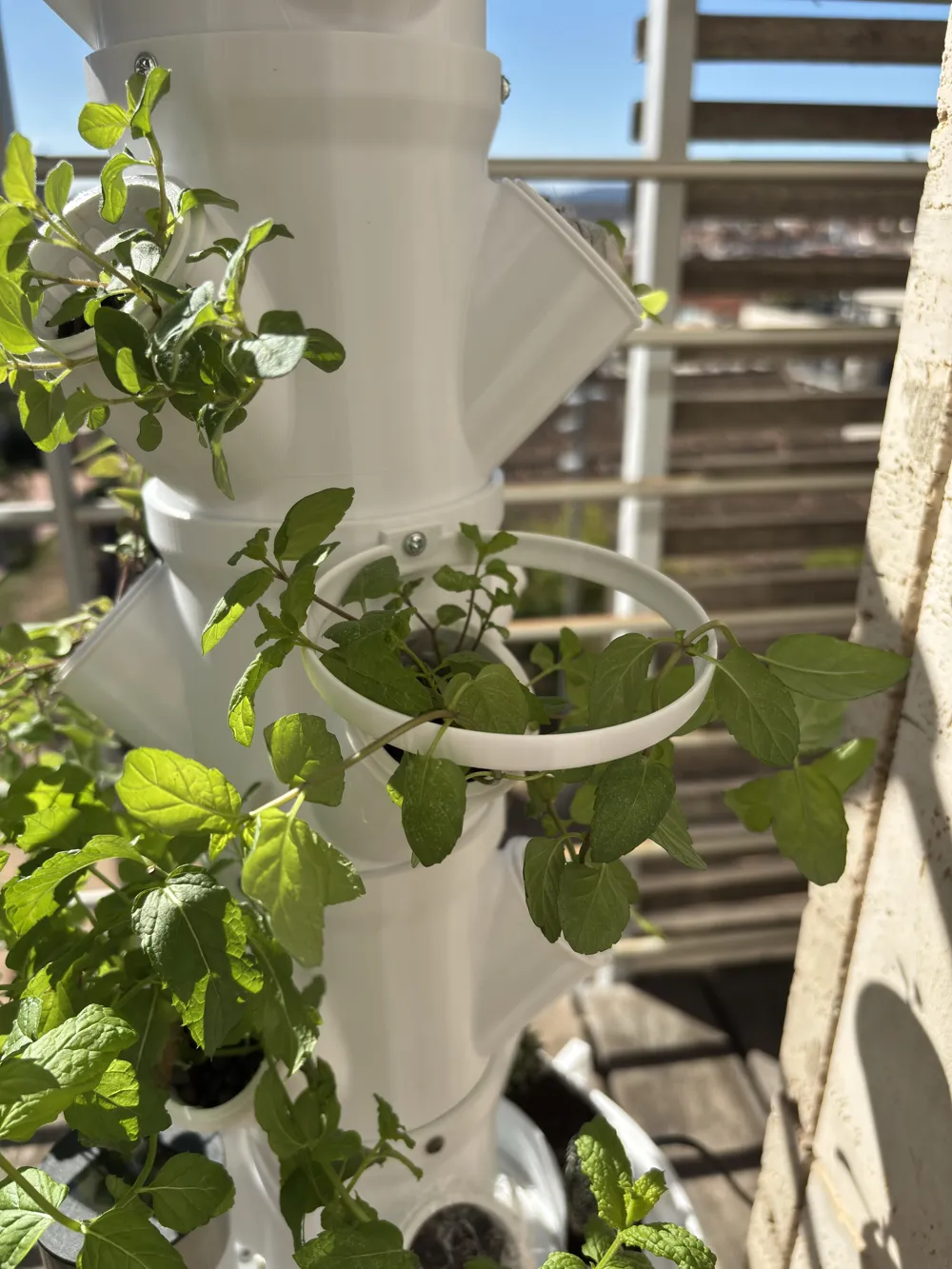

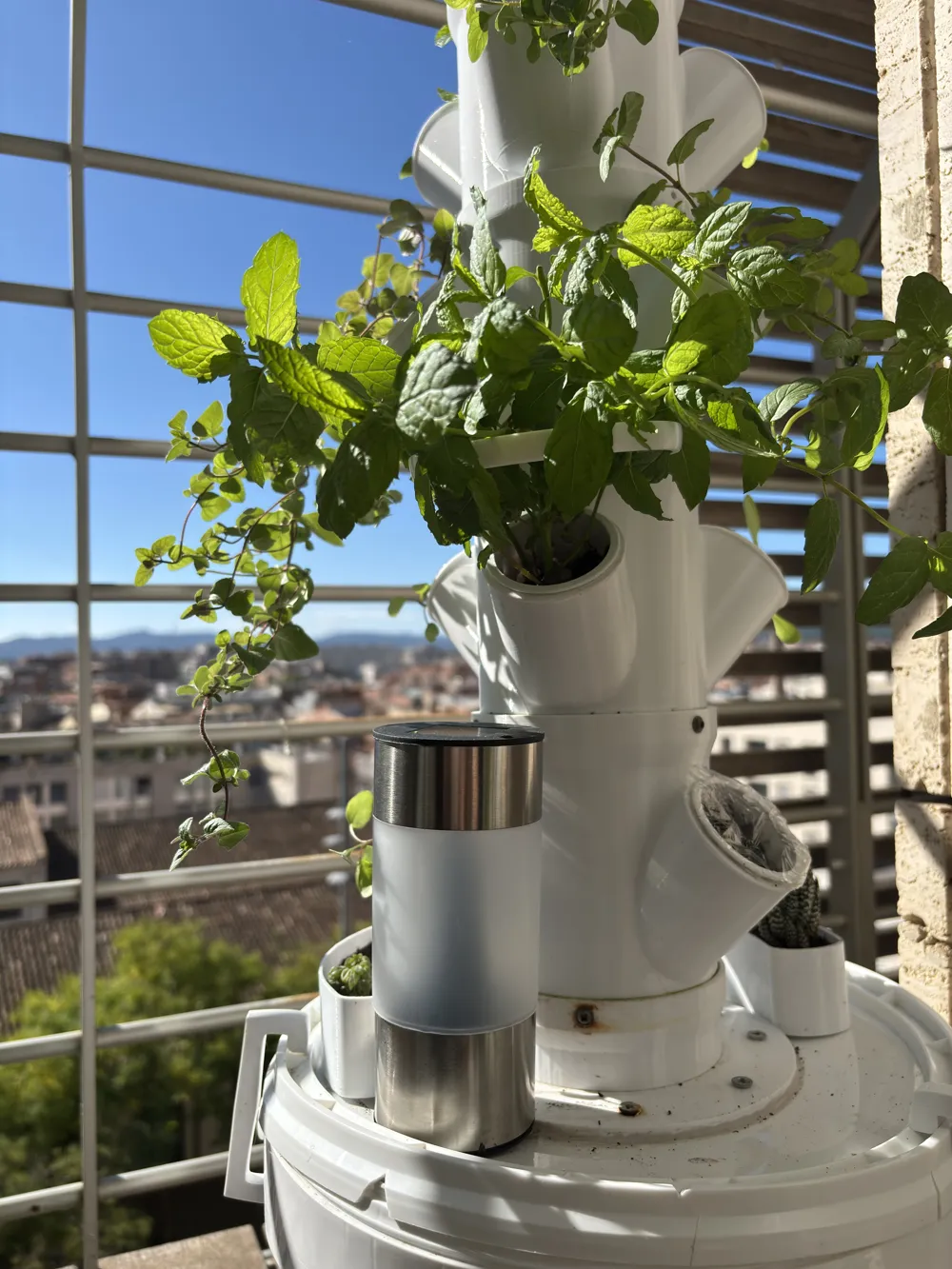

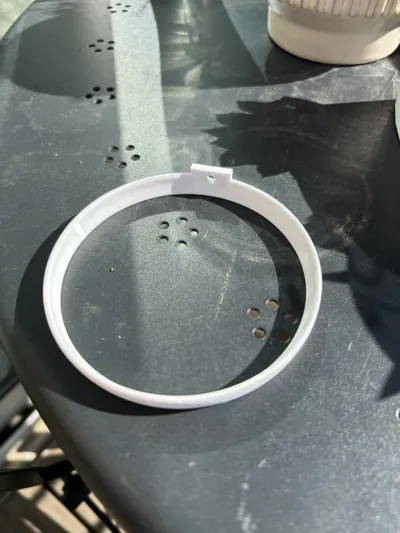

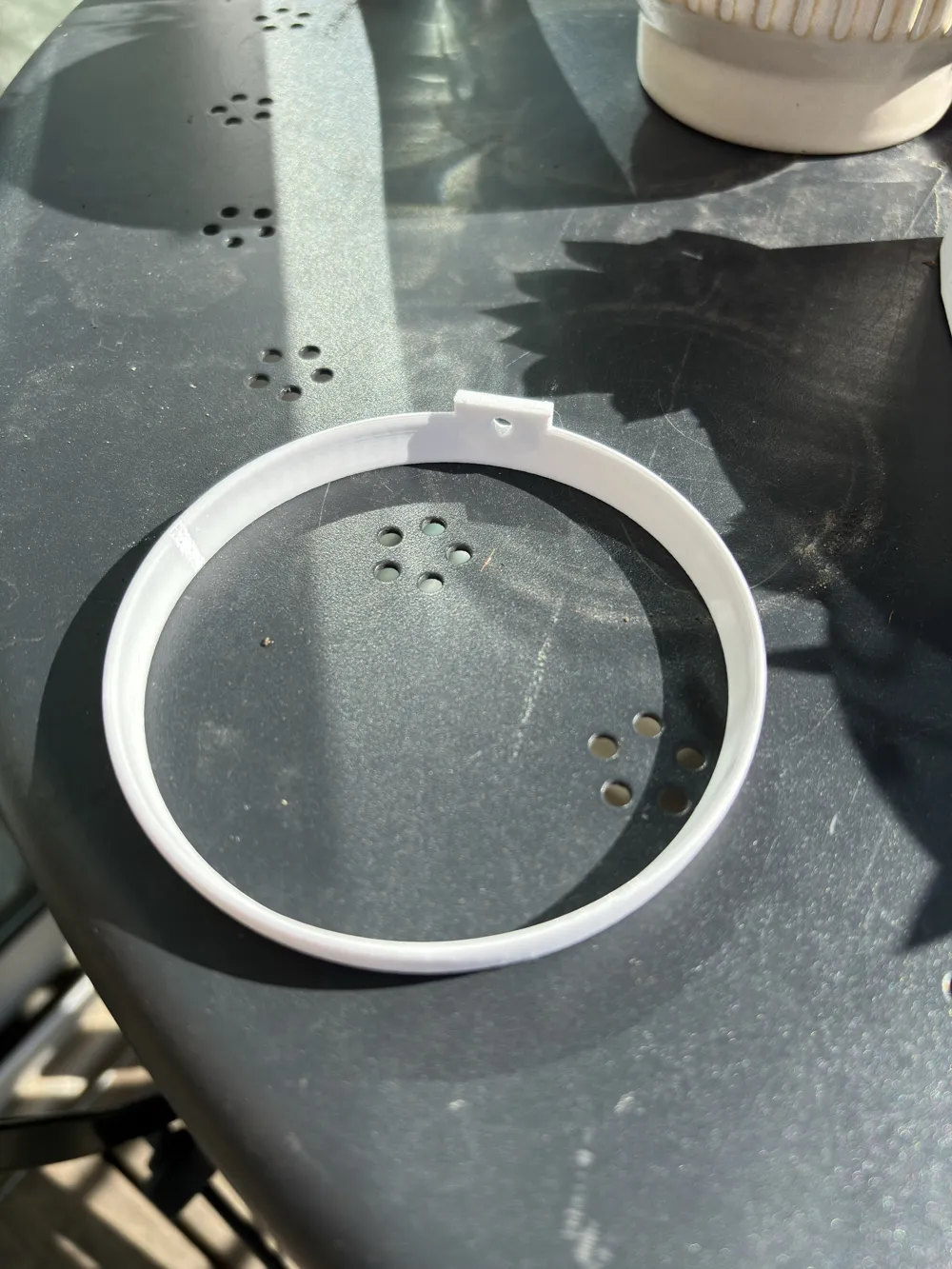

  • Printed and tested successfully (see photos).


Assembly guide:

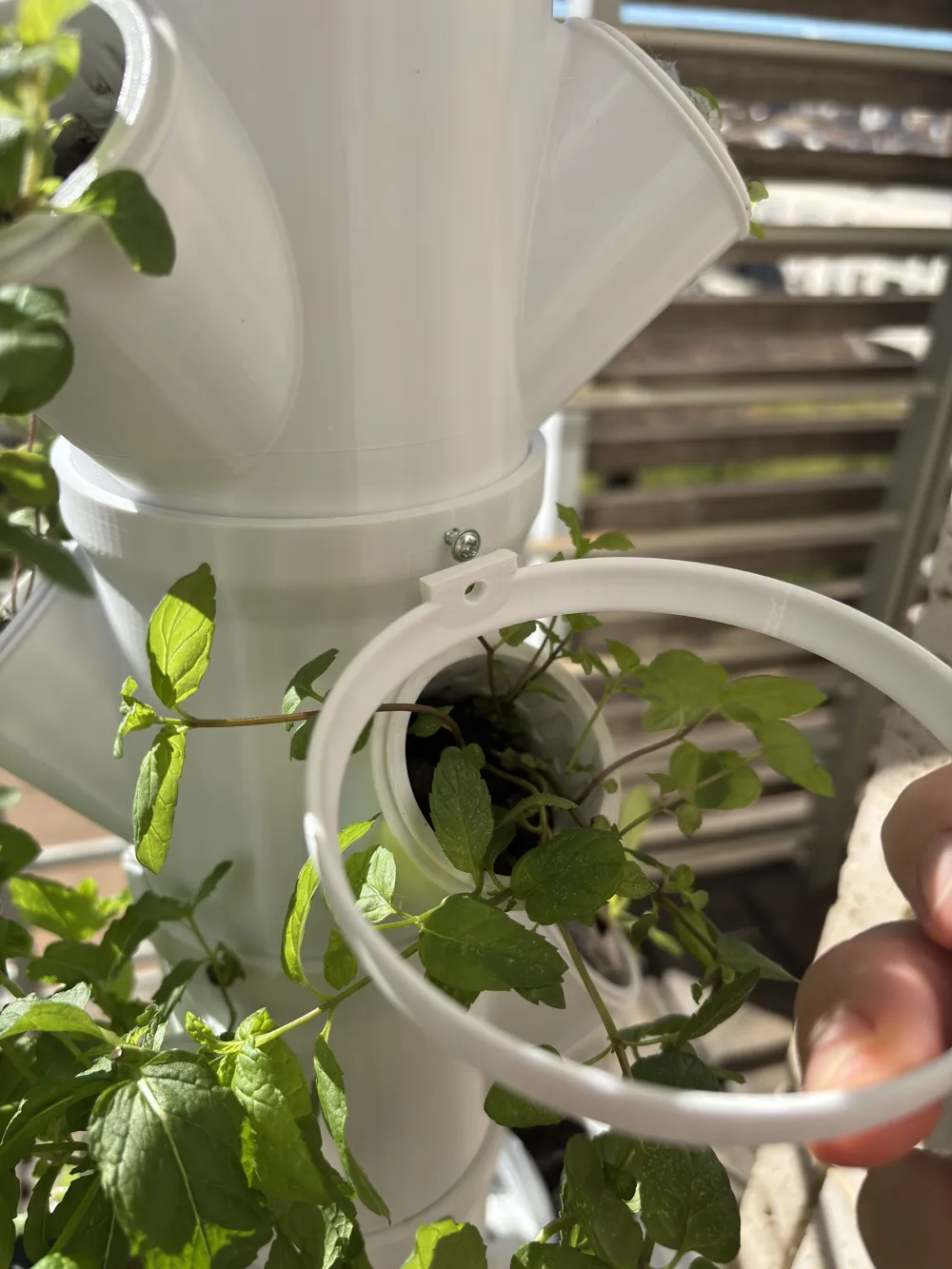

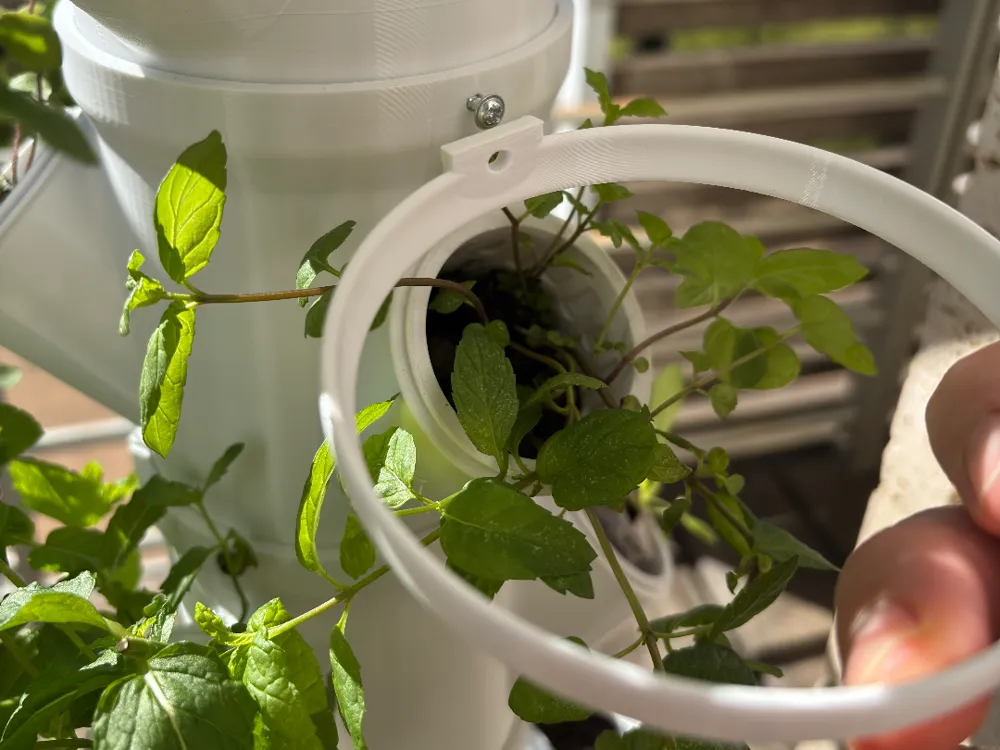

Simply remove one of the three screws holding the top layer of the original hydroponic tower. Place the support ring in position and fasten it again using the same screw.

Feedback and suggestions are welcome. If you improve or remix it, please share it back with the community!
