Perfect replacement for official spool! Lightweight version filament spool (150g) | saves filament, easy to store, innovative filament locking solution

Overview

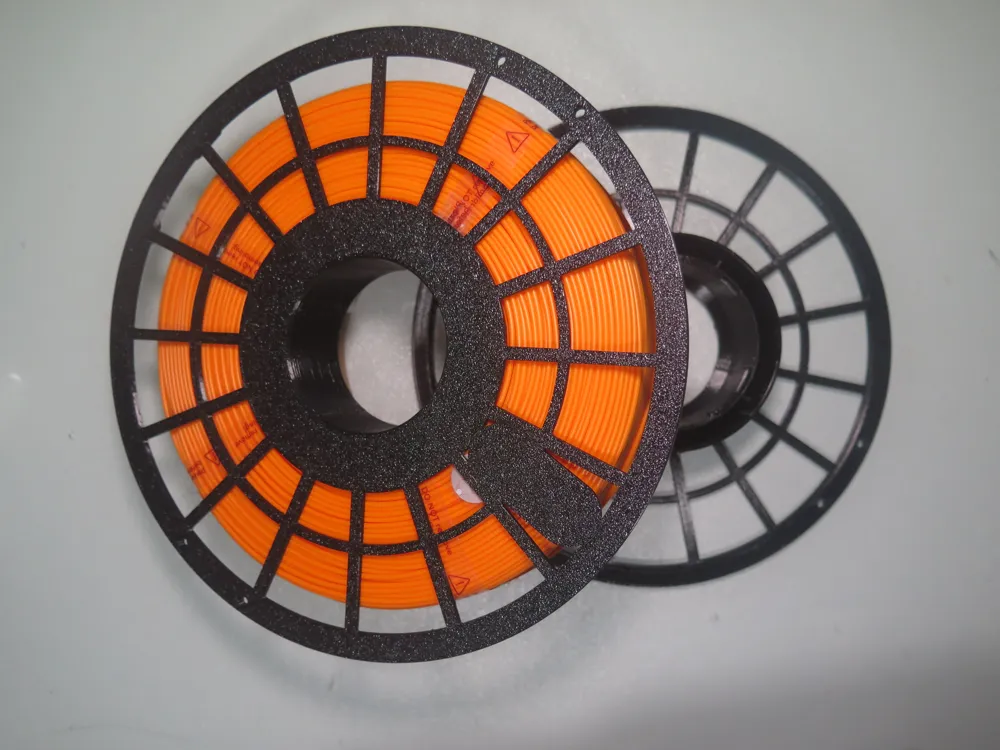

This series is a new, optimized remix of the Bambu Lab official filament spool, including three models: a 170mm (small size) optimized for the A1 mini printing platform and a 200mm (full size) designed for standard AMS lightweighting. Through innovative structural design and topological optimization, extreme lightweighting (126g-150g vs official 235g) has been achieved while ensuring usability, significantly reducing filament and printing time costs. It integrates an original internal filament lock solution, completely solving the problems of filament damage and inconvenient storage caused by traditional spooling methods

Core Design Features & Key Advantages

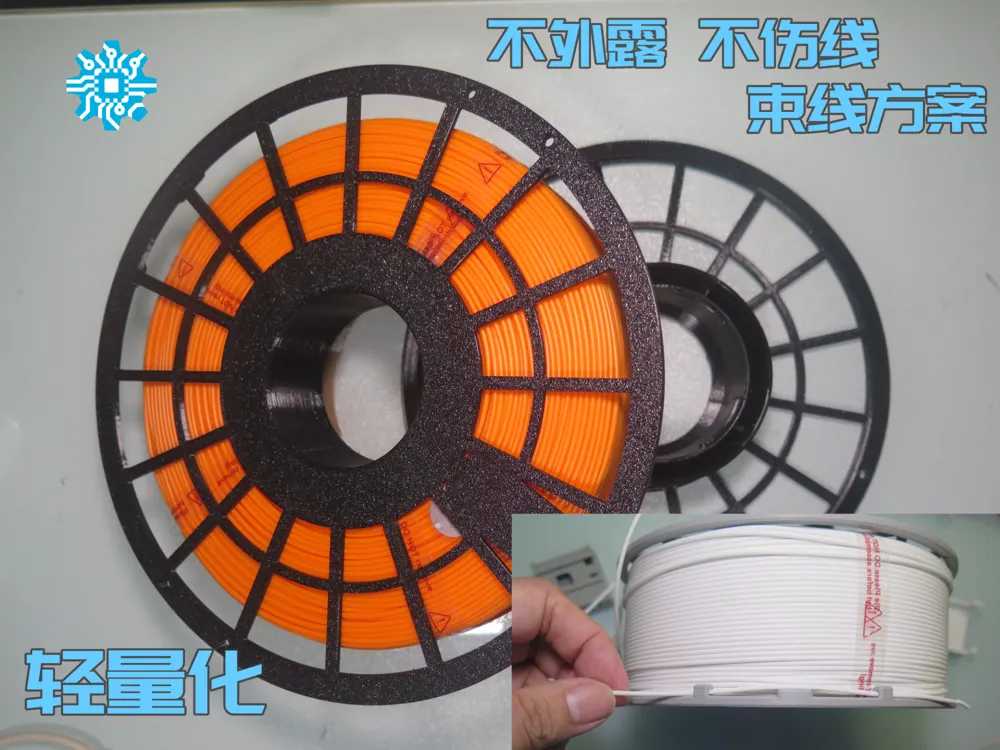

• Precision Weight Reduction: Structural reshaping through topological optimization, with hollowing and thin-wall treatment in non-critical areas. The 170mm small size version offers two options: 145g (strength version) and 126g (lightweight version), while the 200mm full size version is optimized to 150g. This represents a weight reduction of over 35% compared to the official filament spool, significantly improving printing efficiency
• Platform Compatibility Optimization:

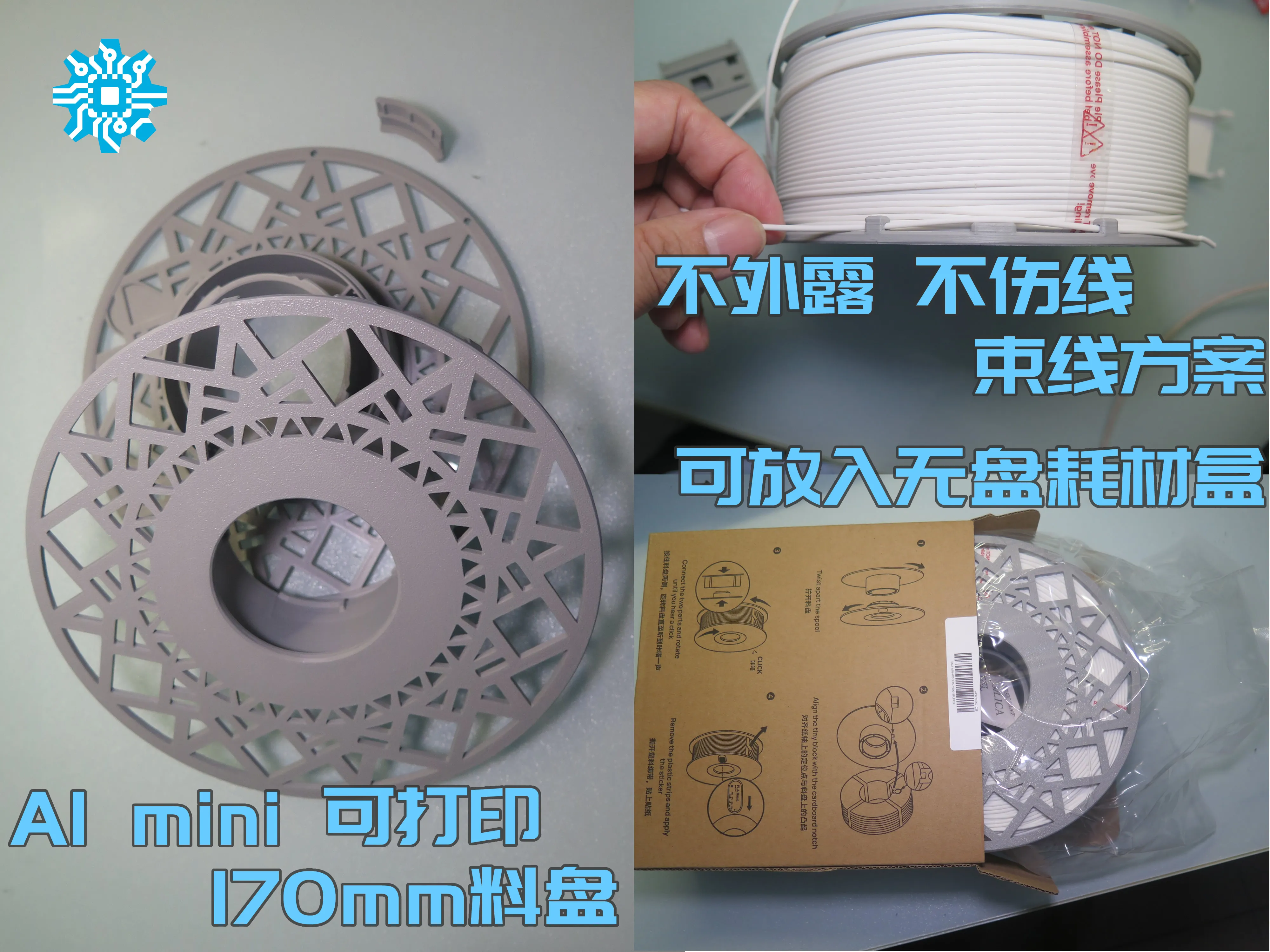

  • 170mm Small Size: Its design diameter perfectly fits the Bambu A1 mini's 180x180mm build plate, addressing the pain point that official full-size filament spools cannot be printed on the A1 mini. It is also specifically designed for external spool holders and AMS Lite, and is not compatible with AMS/AMS 2 Pro. The spool diameter is precisely calculated to perfectly hold filament, enabling 'full spool' storage, and can be directly placed back into the original filament packaging box along with the spool, saving space and avoiding spool disassembly

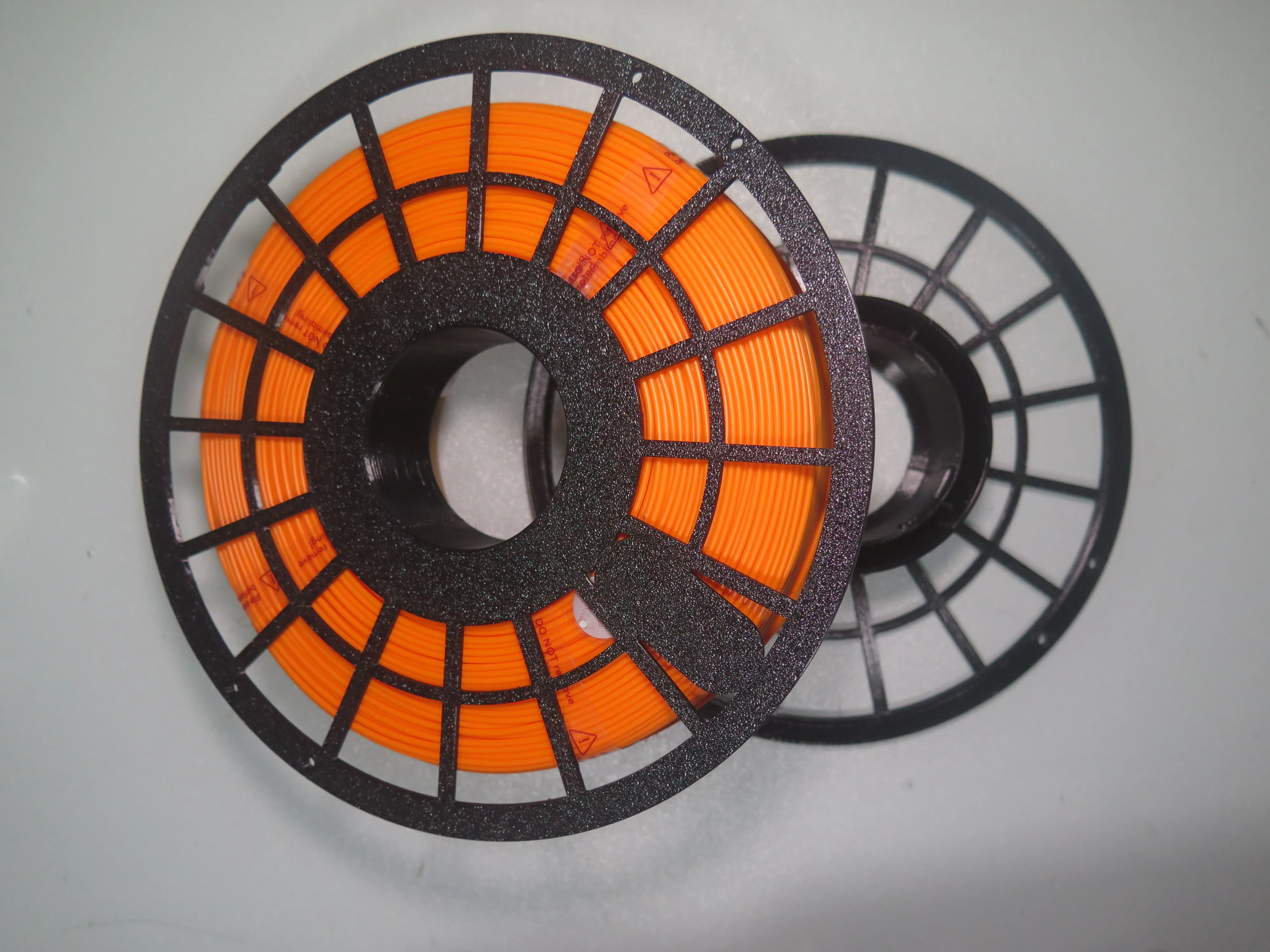

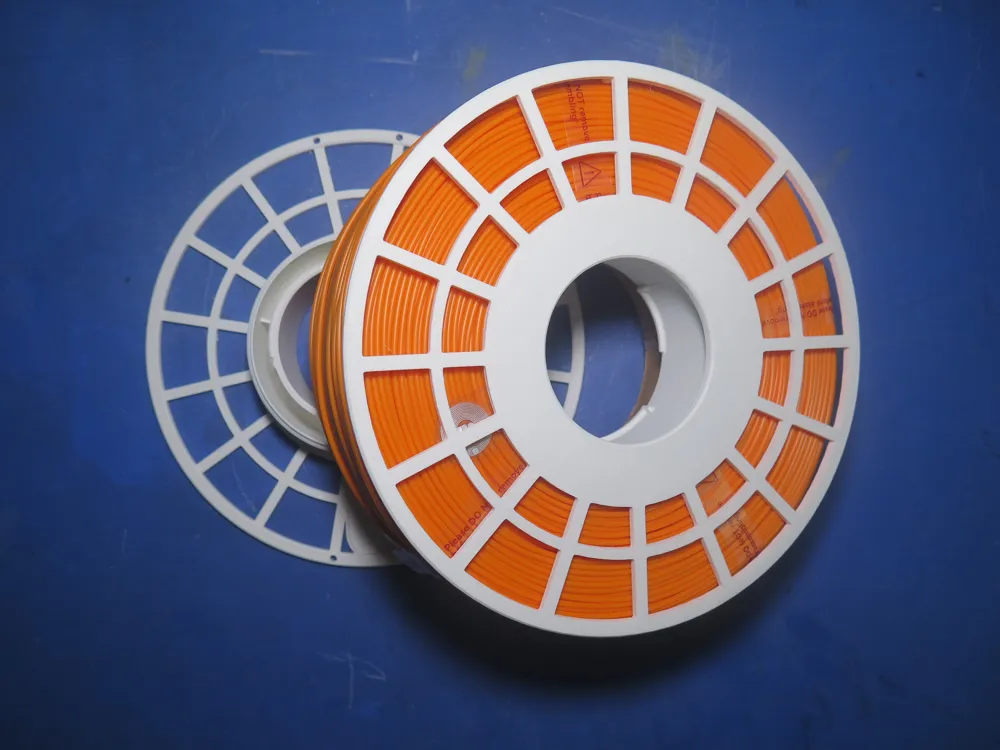

  • 200mm Full Size: Optimized for standard AMS systems, focusing on lightweight design and filament saving, with sufficient strength for daily use
• Innovative Internal Filament Lock: Completely overturns the traditional "external threading and looping back" method of filament locking.

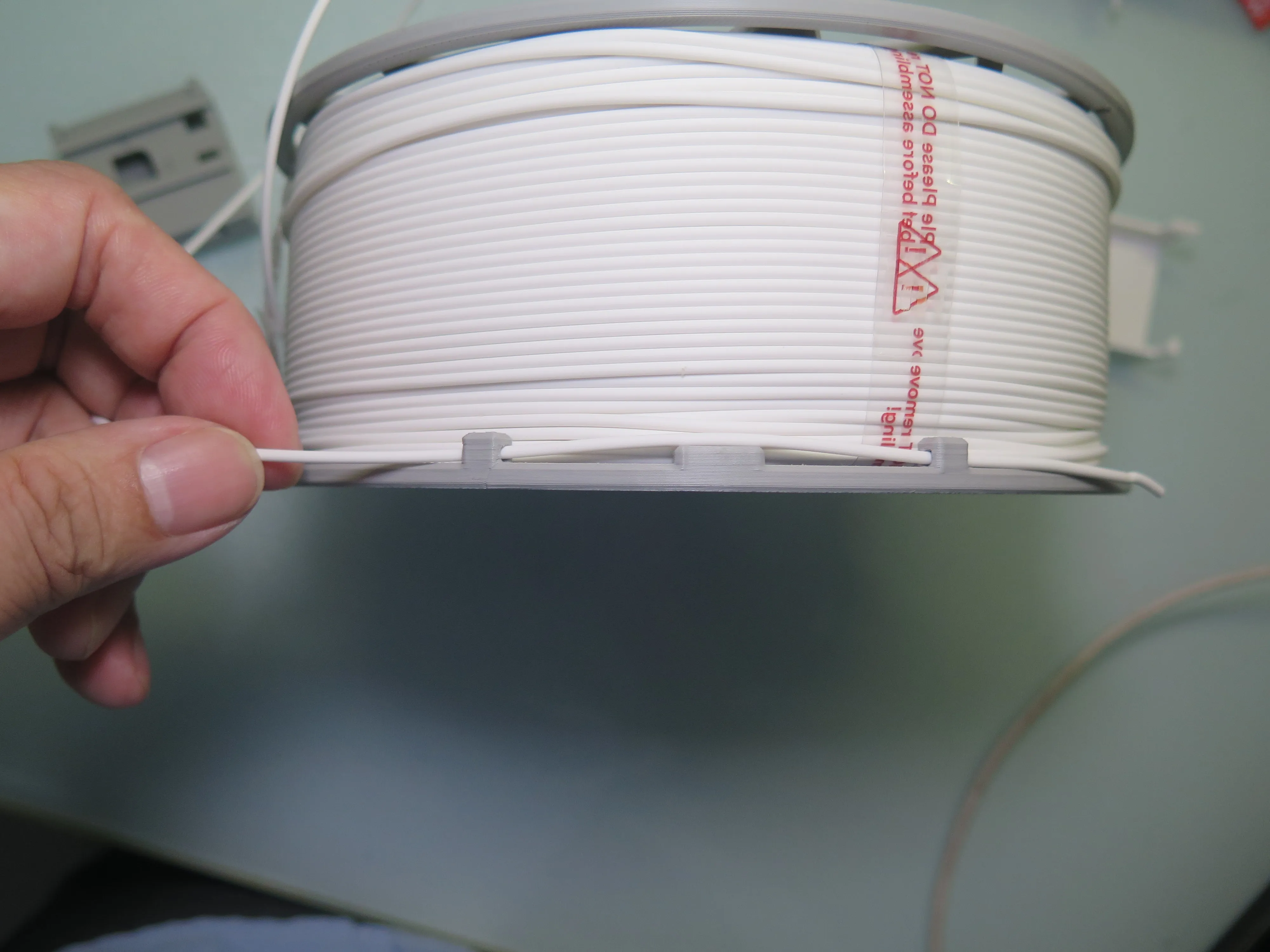

  • Three bumps are designed on the inner edge of the filament spool. The two at the ends are guide blocks, with a 2.5mm filament lock hole integrated in the center; the middle one is a resistance block
  • Operation logic: Thread the filament through the lock holes of the end guide blocks in sequence, and press it under the central resistance block. The filament end is effectively secured by precisely calculated physical resistance, eliminating the need for bending
  • Core advantages: The filament locking process is entirely completed inside the spool, with zero exposed filament ends, allowing for perfect stackable storage; it prevents filament bending, physically eliminating filament damage caused by locking; the operation is more convenient and intuitive

Model Specifications & Selection Guide

• 170mm Strength Version (145g): Recommended as the primary choice. Achieves the best balance between weight and strength, with high durability. Tailored for A1 series users
• 170mm Lightweight Version (126g): Pursues ultimate lightness and filament saving. Its strength meets the requirements of most usage scenarios. Provides the most economical printing solution for A1 series users
• 200mm Full Size Version (150g): Suitable for standard AMS users. Optimizes filament usage and is a cost-effective alternative to the official filament spool

Printing Suggestions

• Material: It is recommended to use PLA or PETG for printing to ensure the toughness and durability of the structure
• Layer height: A 0.2mm layer height is recommended for optimal surface finish and structural strength
• Infill: The model has been optimized for strength; print with default settings
• Platform note: The 170mm version can be perfectly printed on the A1 mini (180x180mm platform)

Compatibility Specifications

• The 170mm version is compatible with Bambu Lab AMS Lite and official external spool holders
• The 200mm version is compatible with standard Bambu Lab AMS / AMS 2 Pro systems

170mm Version Link

170mm Lightweight Spool (fits in original packaging without tray), designed for A1 mini and AMS Lite, innovative non-exposed filament lock solution

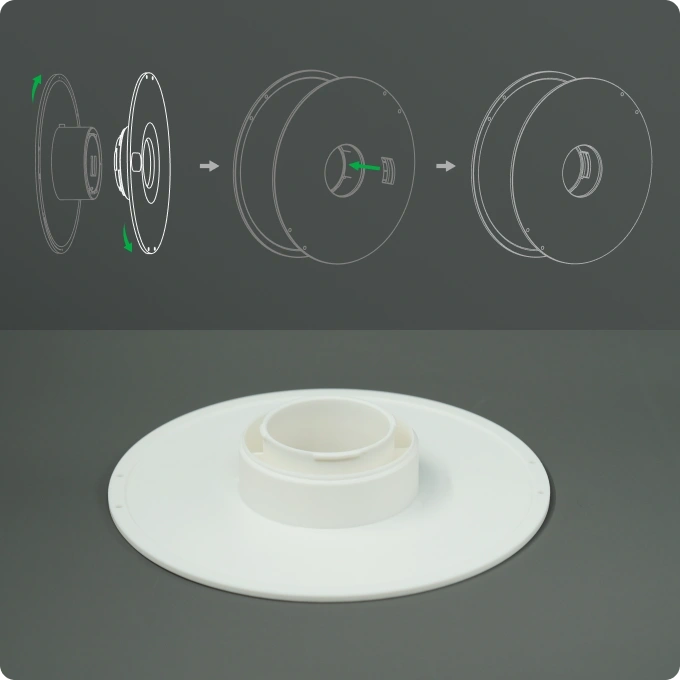

Assembly Video

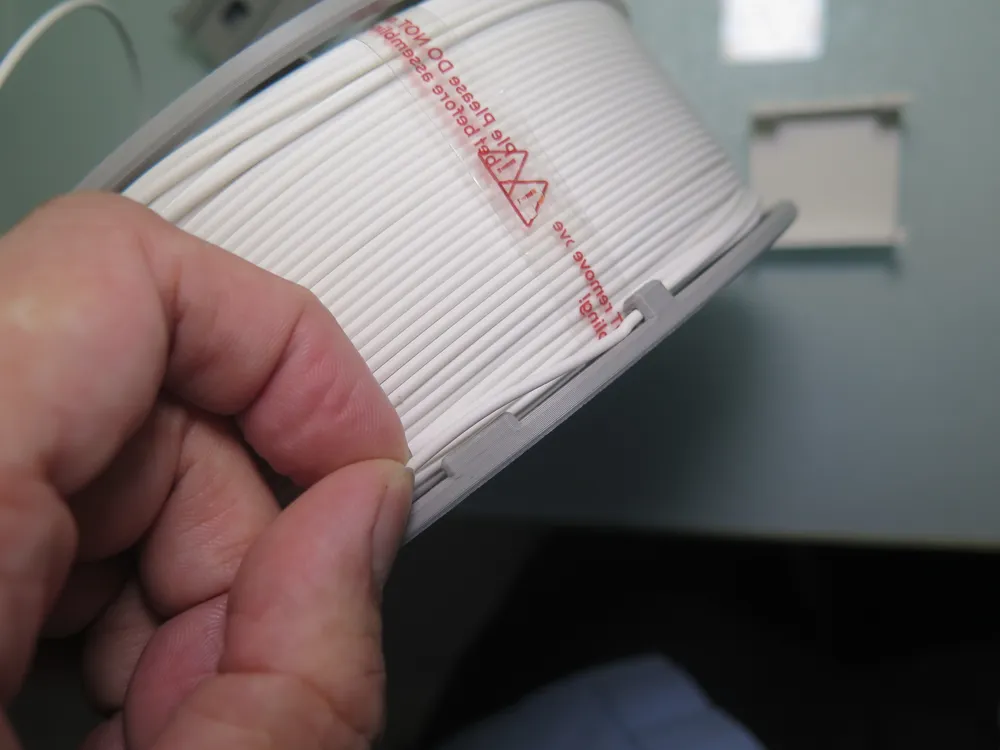

Innovative Locking Solution

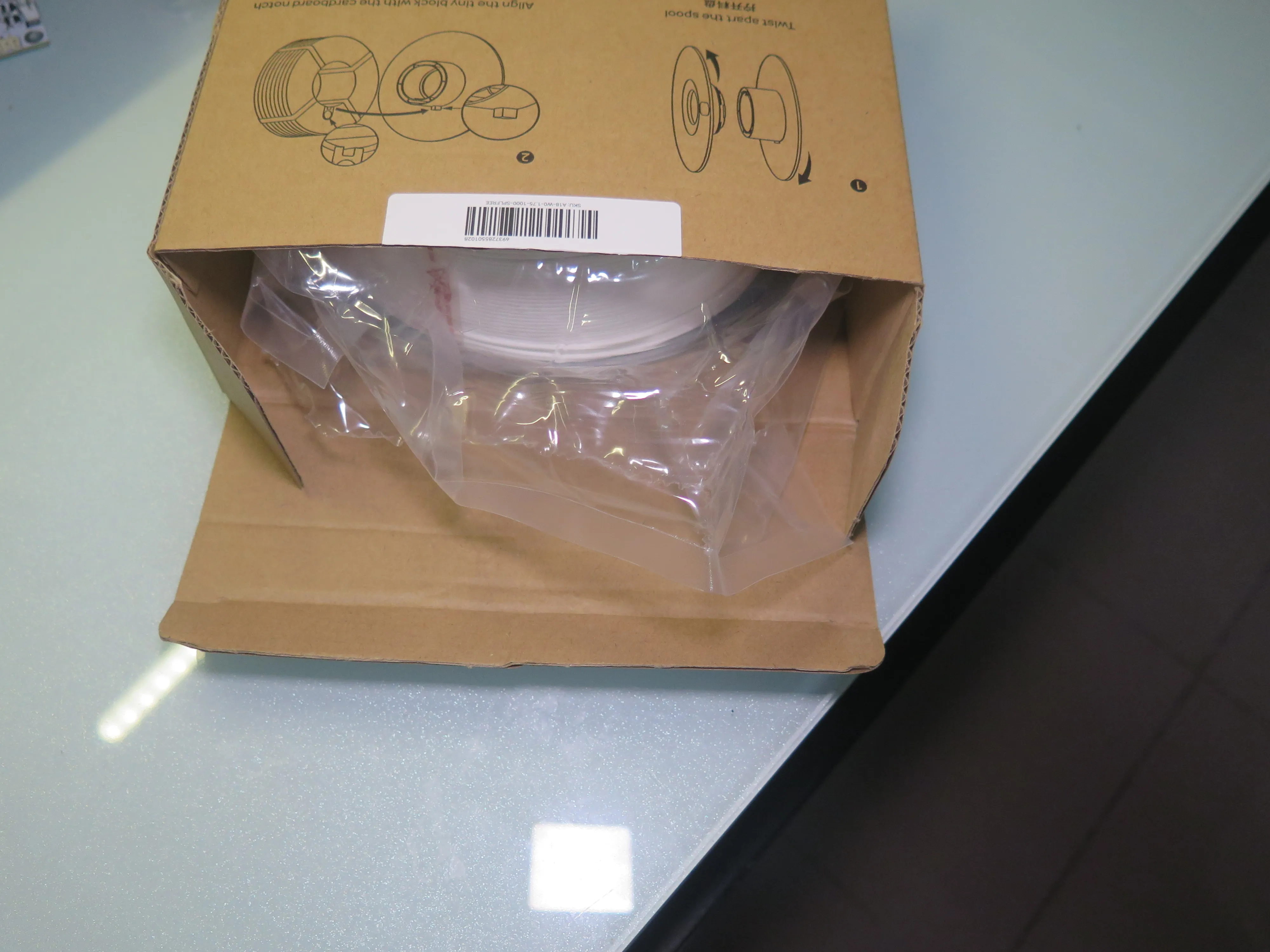

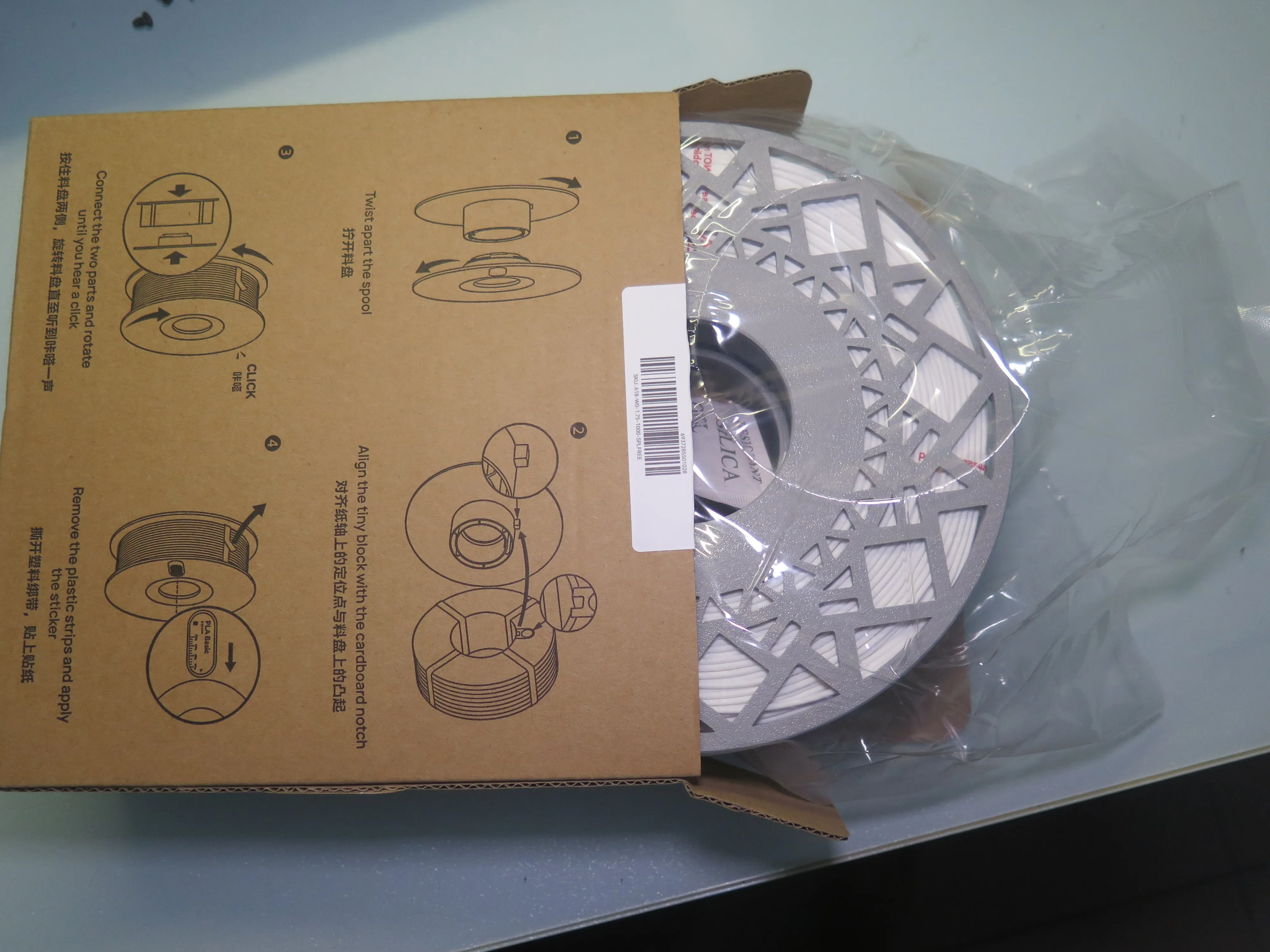

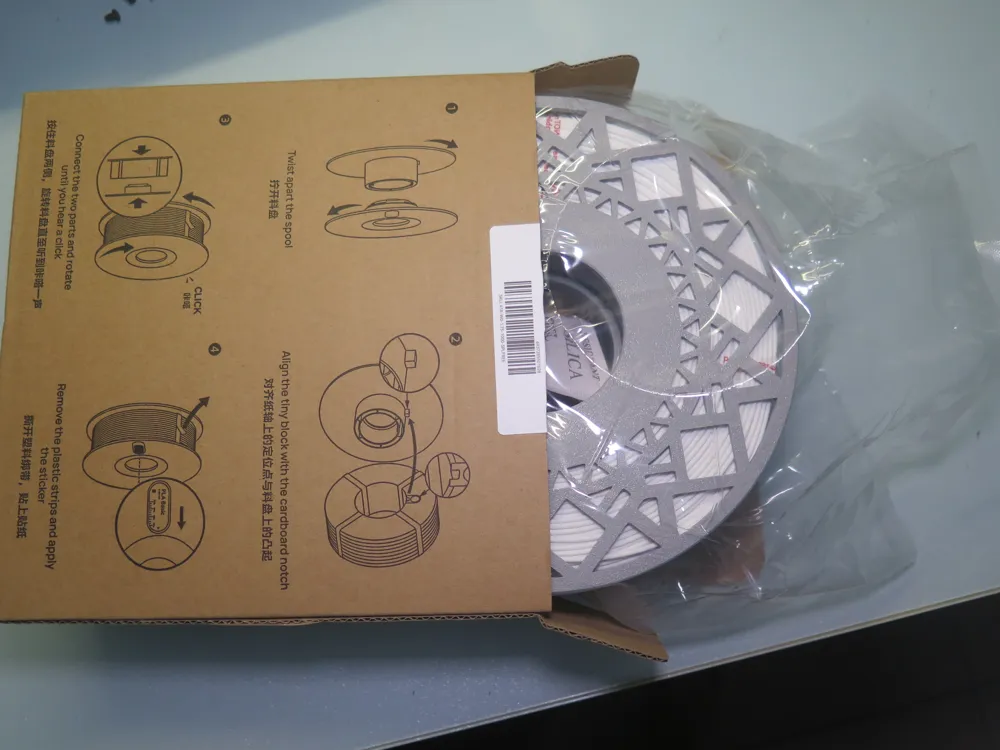

Easy Return to Original Box
