DIN Rail Mounts for Arduino Uno & Relay PCB
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
32 min
1 plate
Open in Bambu Studio
Boost
25
67
0
0
154
74
Released
Description

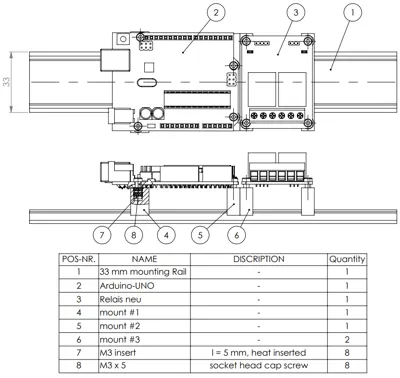

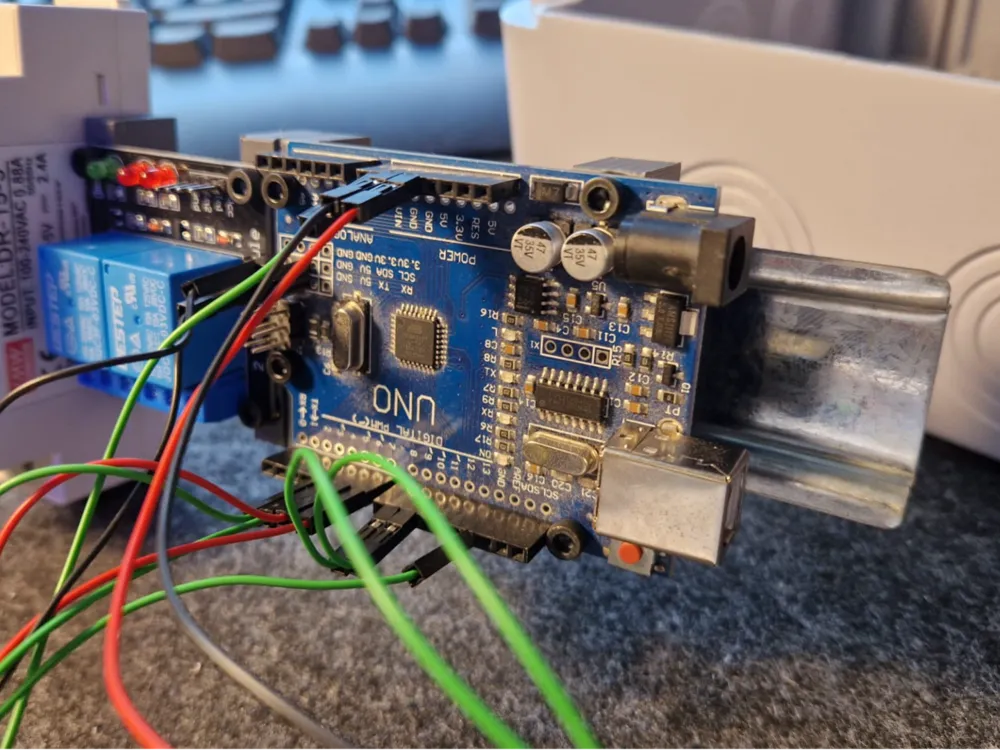

I designed custom DIN rail mounts that make it easy to securely install an Arduino Uno and a Relay PCB inside distribution boxes or control cabinets.
Key benefits:
- Quick installation: snaps directly onto the DIN rail, no drilling required.
- Clean & organized: keeps your wiring tidy and professional.
- Versatile: compatible with Arduino Uno and standard relay boards.
Perfect for home automation, prototyping, and control applications where space and reliability matter.
