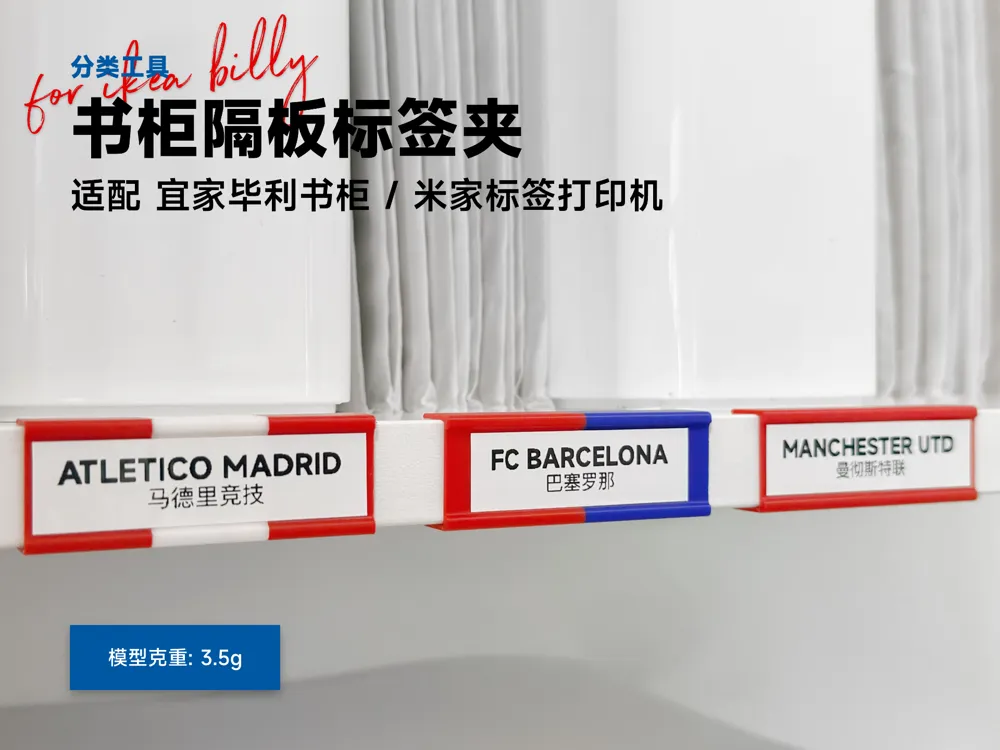

IKEA BILLY Bookshelf Accessories Shelf Label Clip (compatible with Mijia label printer)

Version History:

• Version 1.0: [Basic label clip model generation] Meets the basic functional requirements for bookshelf classification (There might be an issue with the label clip not firmly gripping the shelf, requiring double-sided tape for secondary fixing. Subsequent updates will attempt to optimize this) (Updated 2025/09/02)

Design Concept:

• I have a need to store jersey prints. For convenient storage, I need to categorize the prints by different clubs and seasons. I tried several storage methods and finally decided to use the space on IKEA BILLY bookshelf shelves for label classification
• The top/bottom/front thickness of the label clip is 0.1cm, with only some rounded corner designs added at the turns. The design is simple but not simplistic. The thickest part is only 0.2cm, making it very material-efficient overall, yet not too thin to be unusable. It can be adjusted or disassembled as needed at any time
• Due to vertical printing, although a single model only weighs 3.5 grams, the printing time will still be slightly longer. It is recommended to print one first to check the effect (printing a single one takes about half an hour). If satisfied, then batch print according to actual needs (printing 10 takes about 1 hour and 53 minutes, averaging less than 12 minutes per piece, and the average gram weight will also be slightly reduced)

Compatibility Instructions:

• Label clip: Compatible with IKEA BILLY bookshelf (or other bookshelf shelves with a thickness of 2cm)
• Label: Compatible with Mijia label printer (or other labels with a height no more than 1.5cm and a length no more than 6cm)

Model Configuration:

• Dimensions: The model width is 6cm, so the maximum label print length should not exceed 6cm (normally, labels this long are rarely printed, covering most usage scenarios)
• Filament: A single label clip requires ≈3.5 grams of filament (the configuration already includes an outer brim, and it can be printed directly using the Bambu Handy App)
