DSPIAE style Airbrush Holder / Airbrush Rack

Print Profile(1)

All
A1 mini
H2D
X1E
H2D Pro
X1 Carbon
P1P
P1S
H2S
A1
X1
P2S
H2C
X2D
A2L

0.2mm layer, 4 walls, 30% infill
0.2mm layer, 4 walls, 30% infill
Designer
4.8 h
3 plates
4.6(11)

Open in Bambu Studio
Boost
77
219
14
0
238
131
Released

Description

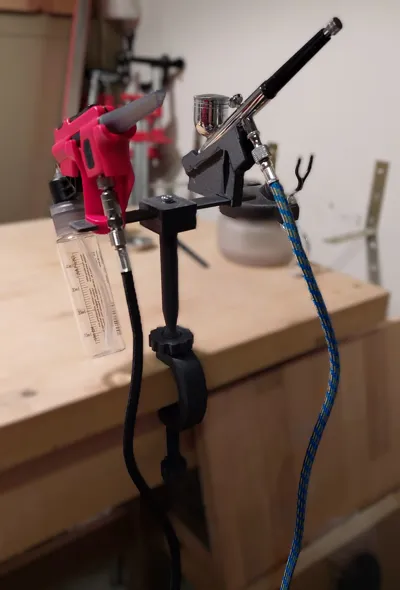

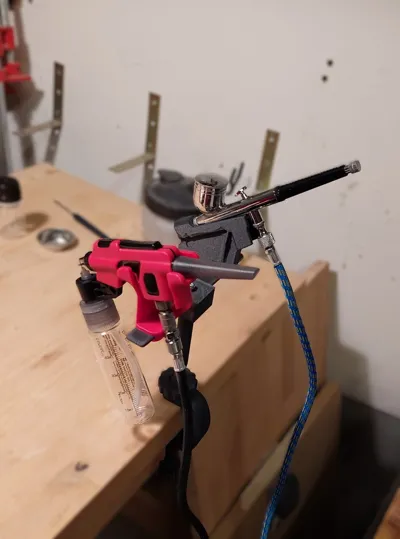

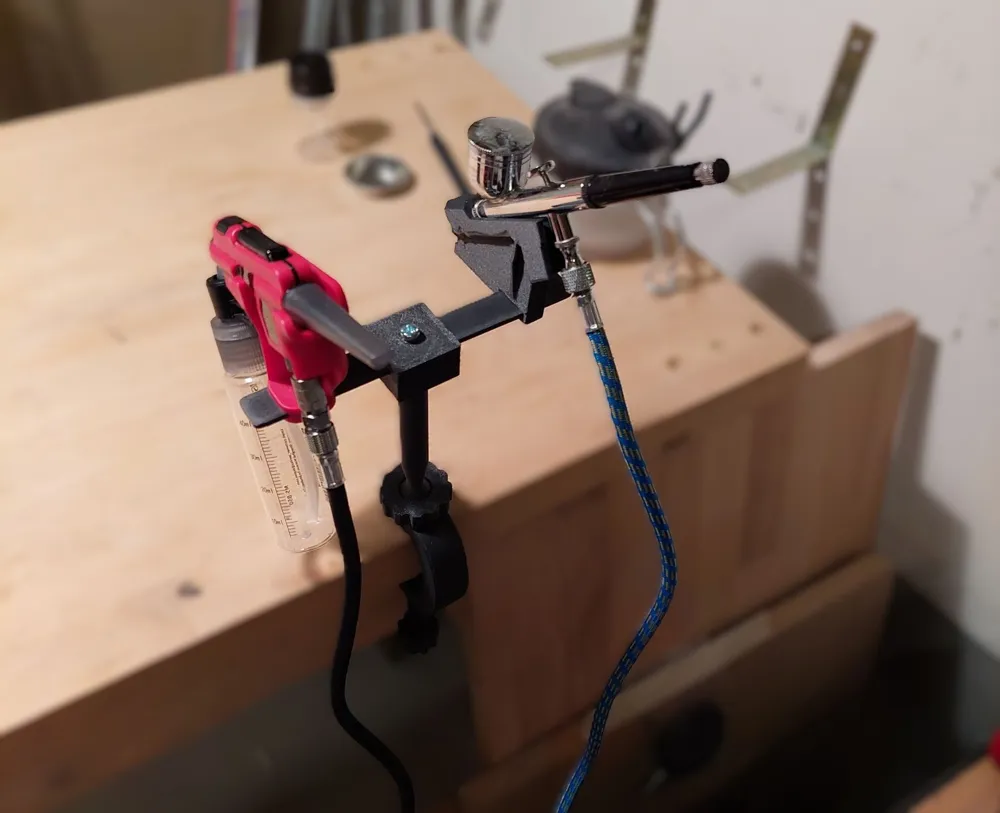

I like DSPIAE's products, but I thought their airbrush rack (PT-AR) was a bit expensive for what it is. So naturally I spend double the amount in filaments prototyping and a whole bunch of time to create a copy of it.

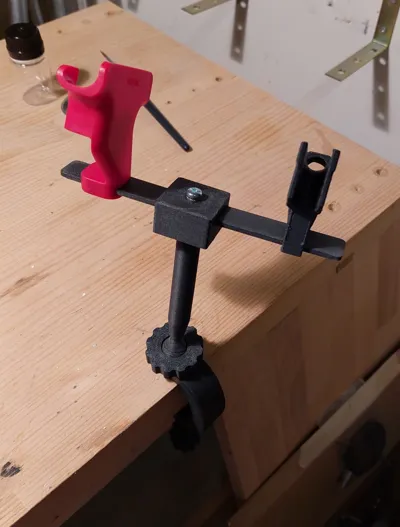

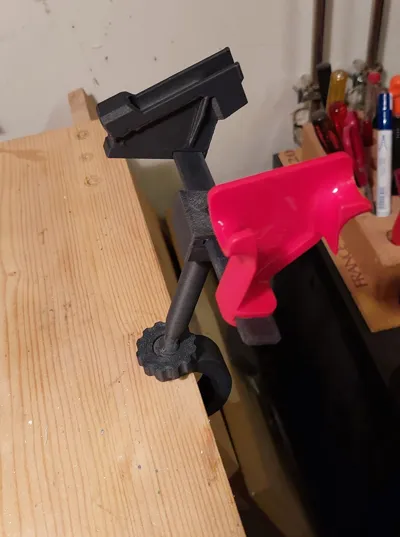

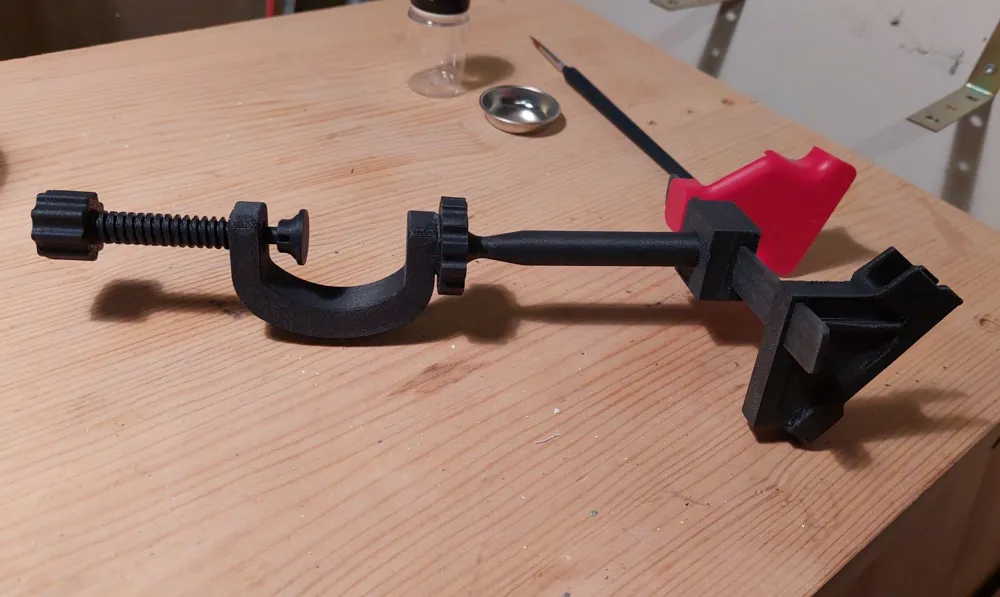

It consists of a clamp remixed from Heiko_Hoffmann2000 going into the actual airbrush holder/rack. Due to the clamps design you can move and turn it however you want.



It works decently well, but you may have to sand some parts after printing due to tolerances or where the bridges/overhangs were a bit droopy.

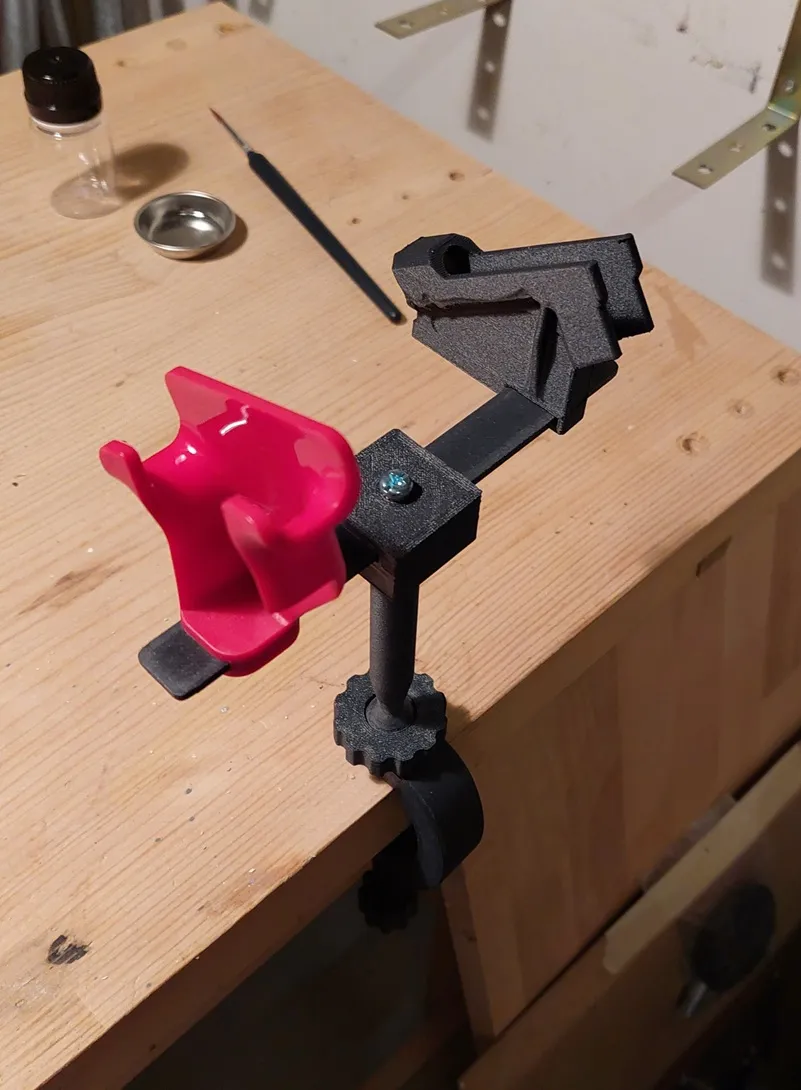

I included a spot for a 4mm M5 heat insert so you can fixate the horizontal rod better with a short M5 screw, but it is not really necessary. It should work without it.
