3 jaw chuck
Print Profile(1)
Description

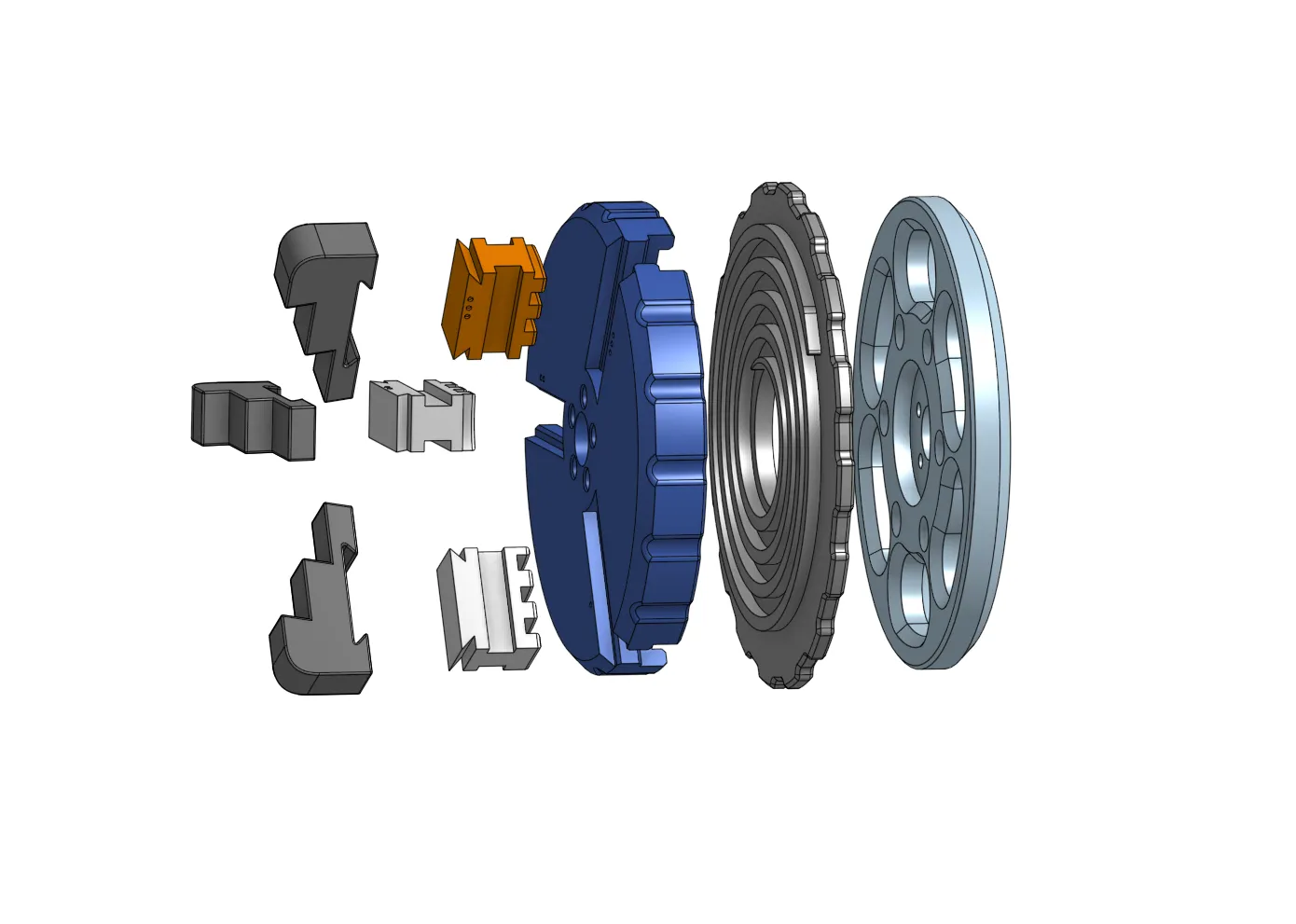

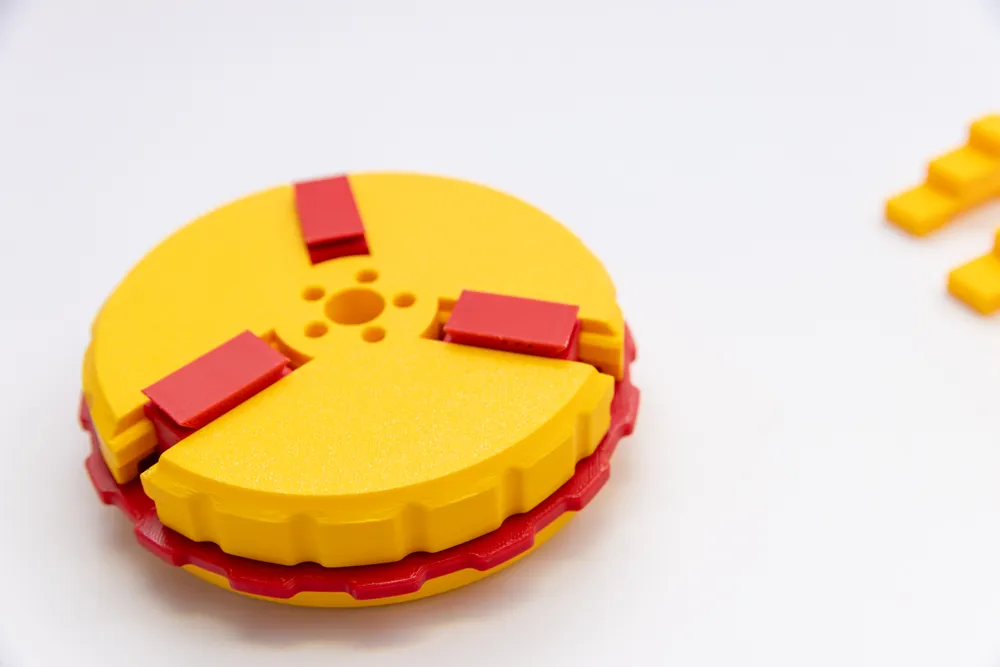

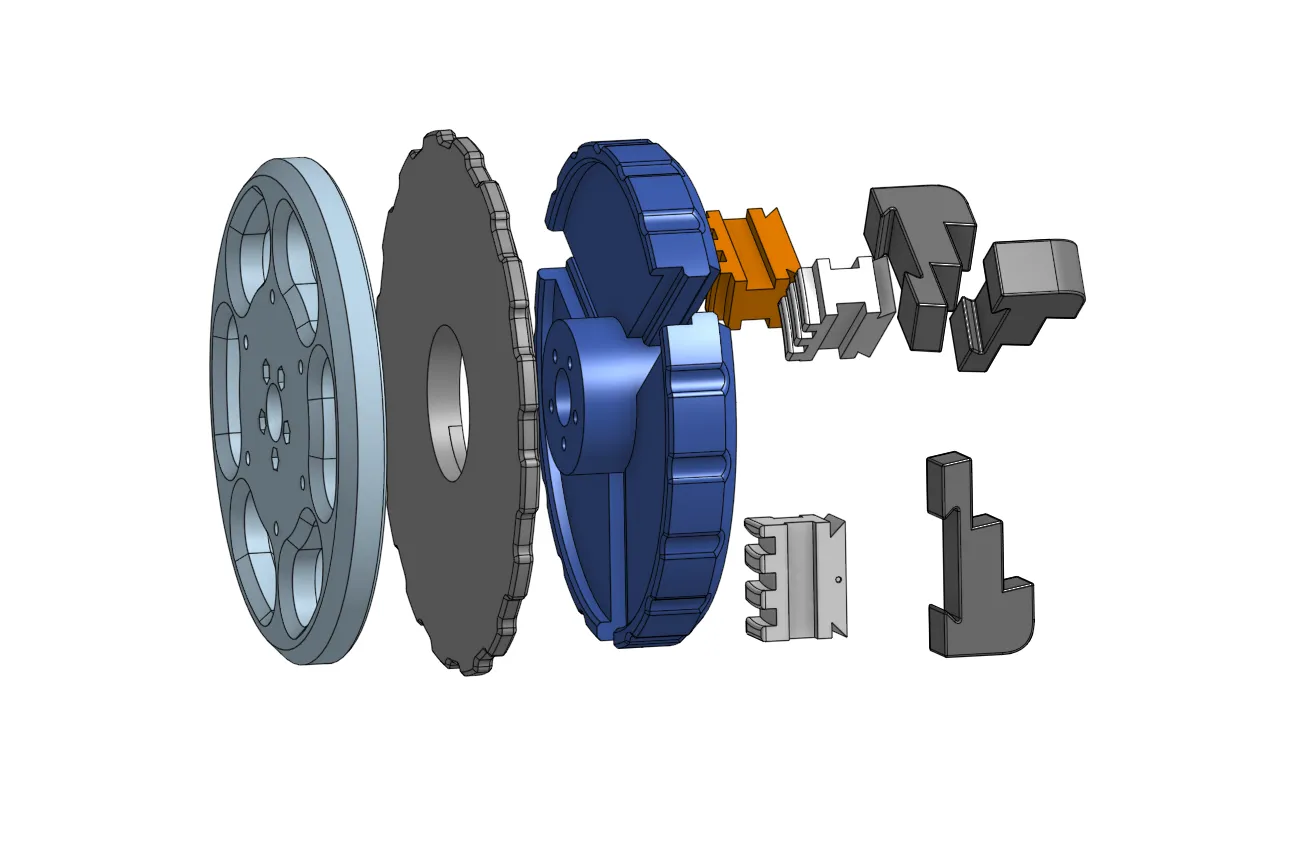

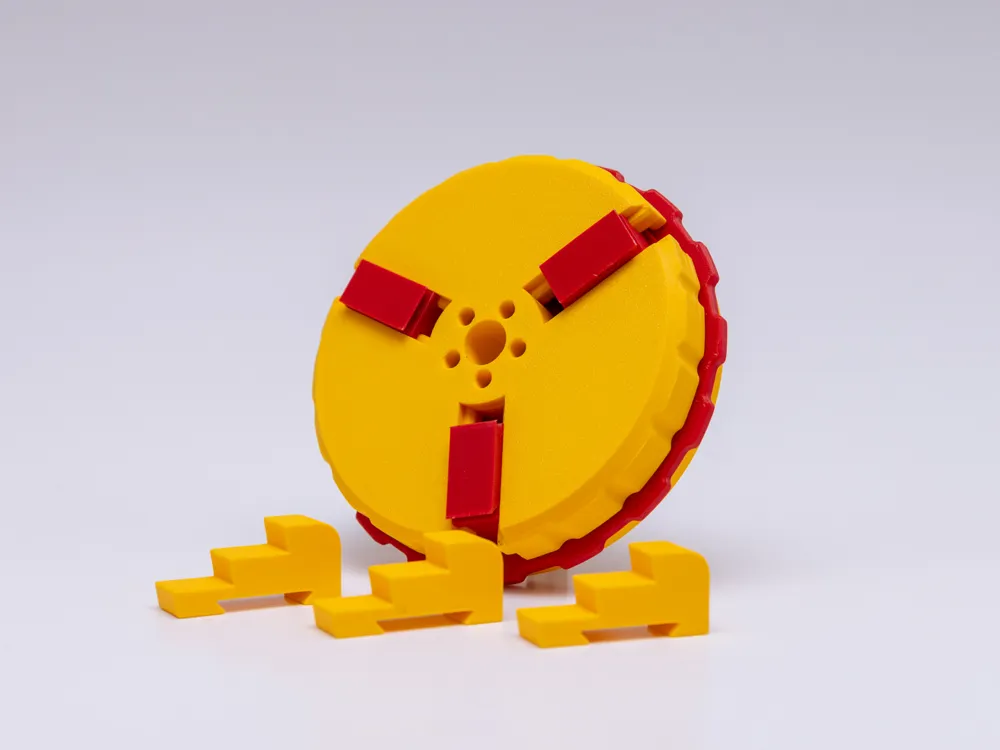

3D printable 3 jaw chuck. Made it for my laser rotary attachment.
Easy to assemble.

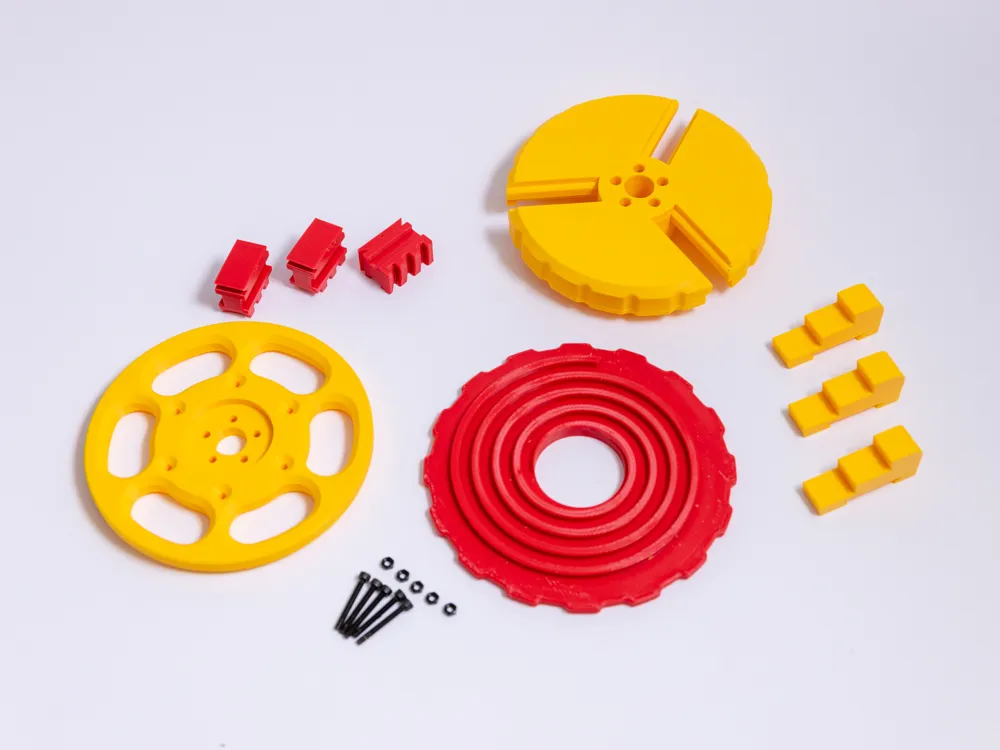

Hardware needed:
5x m3x25mm internal hex bolts
5x m3 nuts

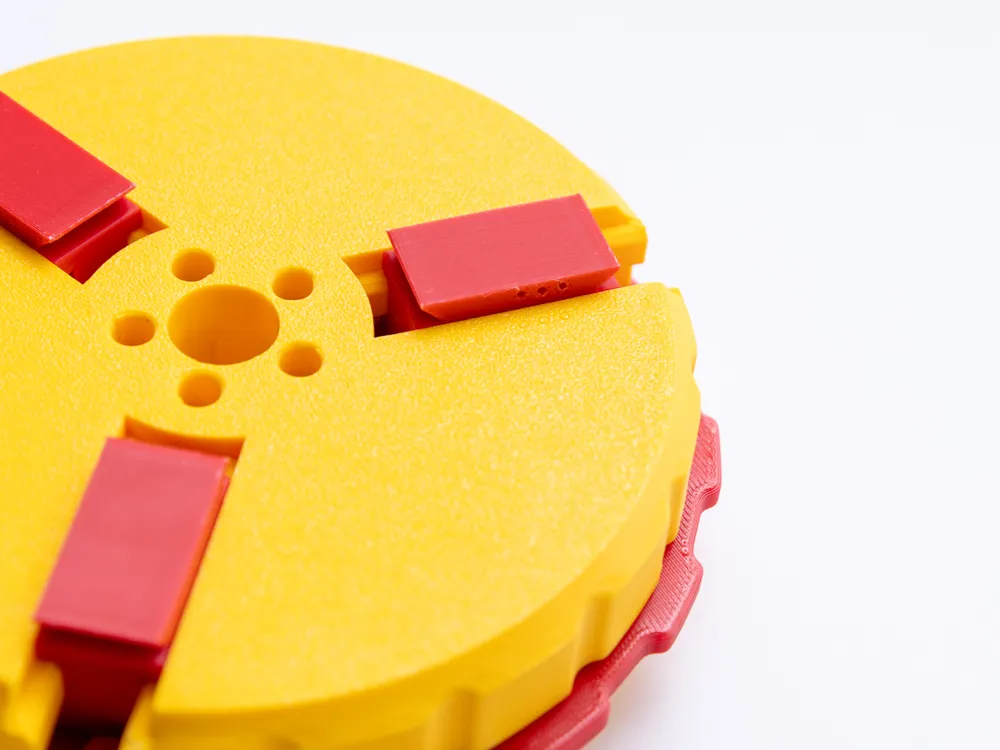

There are little dots on sides of jaw holders and on the front plate. Jaw holder with 1 dot will go to the slot with 1 dot and so on.

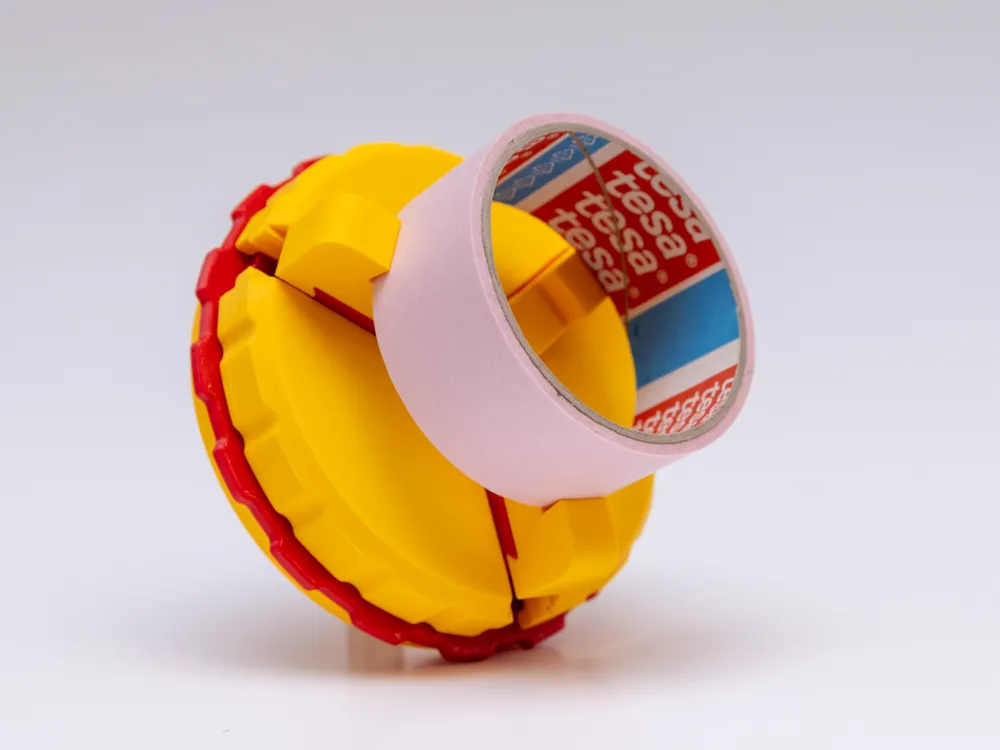

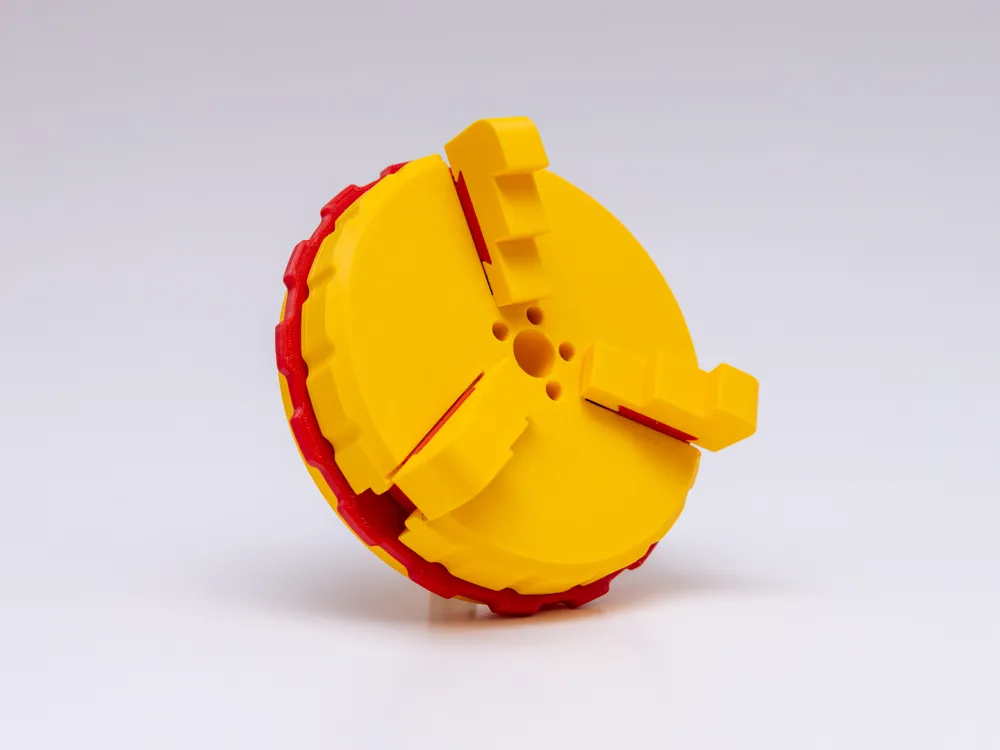

Jaws are removable and can be customized to hold special shaped objects.

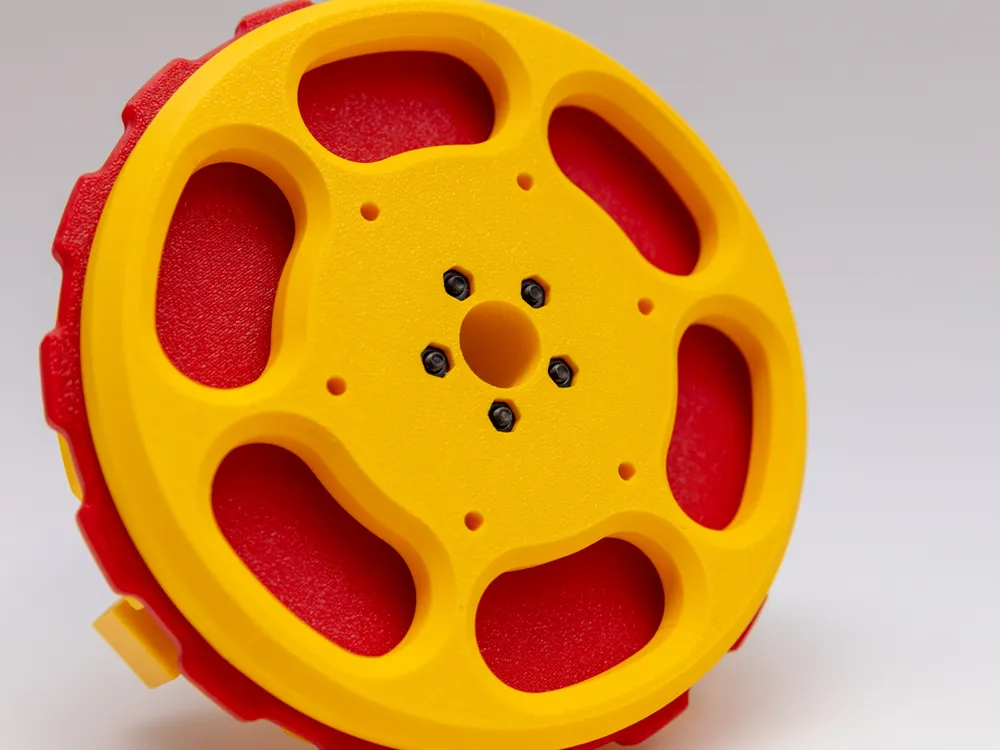

Back plate has circular pattern of 6 bolts for attachment. Diameter 60mm.
