Drumstick Holder (Ultimate Drumstick Holder V4)
Print Profile(2)
Description
Boost Me (for free)
🚀 A BOOST is the spark powering my 3D projects and designs! 🚀 It costs you nothing, but your support keeps my creativity thriving. Deep thanks for your backing! 💪
Enjoyed this? Like 👍 and ➕ Follow for more designs from ZeroDev
Membership
✅ Commercial License Available Sell physical prints of this model legally via my ZeroDev Membership.
Introduction
Introducing the Ultimate Drumstick Holder V4, a fully adjustable, modular, hardware-free universal clamp system,
improved after 40+ hours of redesign based on community feedback (V2, V3).
To be printed in parts and snapped together to fit any drum setup, NO AMS REQUIRED.
Notice:
Before printing remember that layer adhesion can change a lot depending on your printer calibration,
nozzle temperature, and even the filament brand/quality and filament moisture.
So it’s a good idea to check your printer and filament, and also do not modify the print profile.
See “Assemby Guide” for additional suggestions about model strength.
Key Features and Innovations
This design is an universal tool for all drummers, eliminating screws or tools while boosting compatibility and functionality:
- 100% Hardware-Free Installation: Secures firmly without any external hardware or glue required. Just snap it together for super-quick, effortless setup,
- Built‑in drumkey slot: never miss the damn thing again…
- Stronger, better: Improved strength, easier adjustment, 80% of components now print‑in‑place, plus a built‑in drumkey holder.
- Universal Compatibility: New adjustable universal clamp fits poles from 19mm to 38mm, compatible with acoustic drums, e-drums, v-drums, practice pads, and more.
- Full 360° Adjustability: Extensive range of motion while ensuring a secure attachment. You can rotate and adjust it in any direction for convenient access, regardless of your kit's configuration.
- Modular and Expandable Design: Combine various components, shapes, colors, and extensions to personalize and expand for up to two holders, allowing for creative printing options!

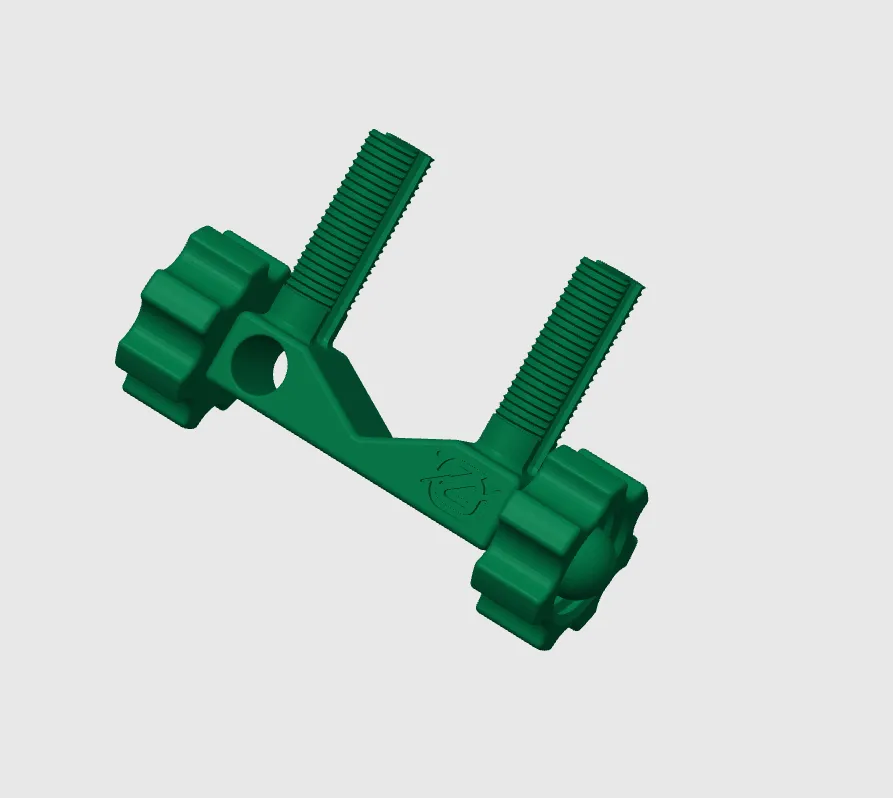

Universal Clamp Options
To improve adaptability, the print profile includes two clamp sizes for a precise fit across various setups (thanks @wesyarber for the valuable input). Choose the size that best suits your equipment:
Double Small clamp (19mm - 28mm) | Ideal for narrower poles, including practice pads, hi-hat, stands, various drum kit hardware (e.g., Tama,Yamaha, etc. stands). This option is perfect for acoustic kits where space is limited. designed for poles with diameters of 19 mm, 25 mm, and 28 mm. |
Double Large clamp (19mm - 55mm) | Ideal for accommodating thicker poles found on e-drums and v-drums (e.g.: Roland, Yamaha, etc.), it supports poles with diameters ranging from 19 mm to 25 mm. |
Single Small clamp (19mm - 28mm) | deal for narrower poles, including practice pads, hi-hat, stands, various drum kit hardware (e.g., Tama,Yamaha, etc. stands). This option is perfect for acoustic kits where space is limited. designed for poles with diameters of 19 mm, 25 mm, and 28 mm, but with a single connector |
Single Large clamp (19mm - 55mm) | Ideal for accommodating thicker poles found on e-drums and v-drums (e.g.: Roland, Yamaha, etc.), it supports poles with diameters ranging from 19 mm to 25 mm, but with a single connector |
Holder Shape Options
This version comes with different holder desings for ultimate flexibility: rounded rectangle (compact, for classic reach), rounded 65Ø (for extra pairs), round 80Ø and star-shaped (for expanded capacity). Pick, mix, or swap them to perfectly match your needs.
Accessory Options
I'm adding accessories regularly, feel free to reach out in the comments or by PM.
More accessories coming soon. If there's something you'd like to see, drop it in the comments!
Here's the current list of available accessories:
Headphone Holder
| Snaps onto the same universal clamp. Keeps your headphones within reach during e-drum practice, no extra hardware needed. |
Drumkey Holder
| Built into the base clamp. Never lose your drum key again. |
Universal Microphone Holder
| A separate model using the same universal clamp system, if you want to expand your setup to mic stands too. |
Assembly Instructions
Print the modular parts separately ( clamp, pin, holders, handles ) then snap them together.
Clamp it to your pole, tweak the tension, and slot in the holders, all in 4 simple steps: see instructions below.
Changelog
20260223: Improved overall clamp strength, Fixed pin infill, New single clamps
20251205: V4 released! Improved strength, easier adjustment, 80% of components now print‑in‑place, plus a built‑in drumkey holder.
20251125: Added new Headphone holder accessory
20250925: V3 released! complete redesing now fully adjustable, hardware-free, modular with universal clamp
Enjoy! and share back your builds!
