Waist-Level Finder
Print Profile(1)
Description
Boost Me (for free)
It's not easy for a high school student to create this, please boost me if you like it

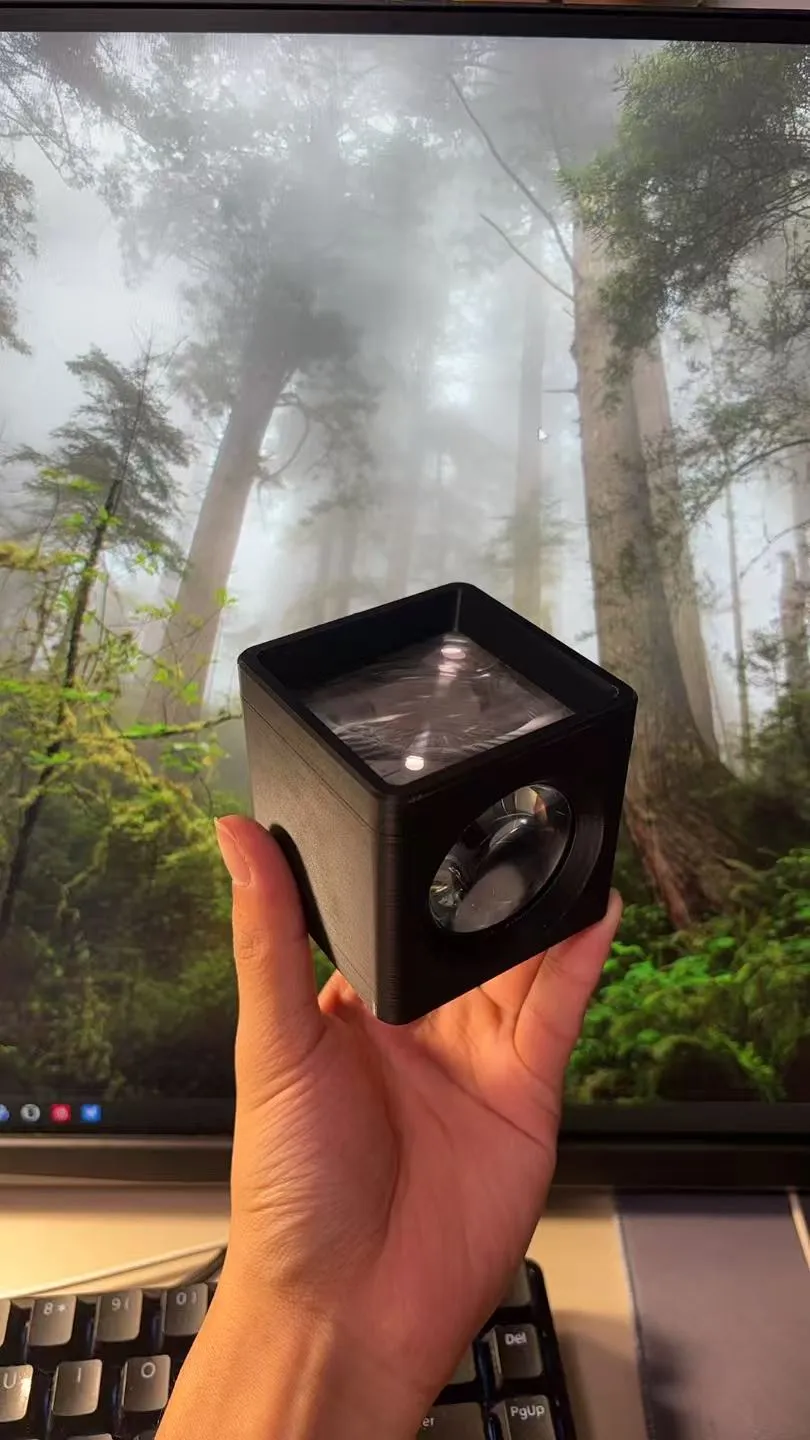

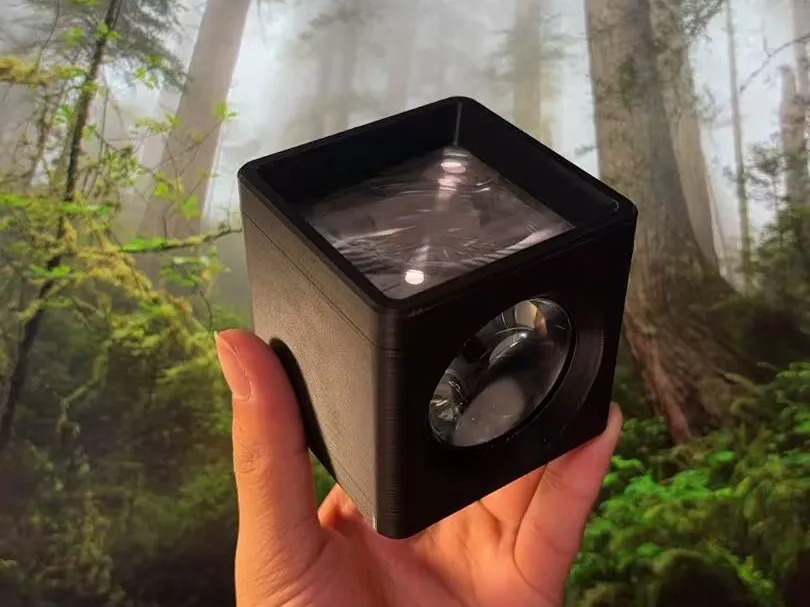

This is the waist-level viewfinder I designed

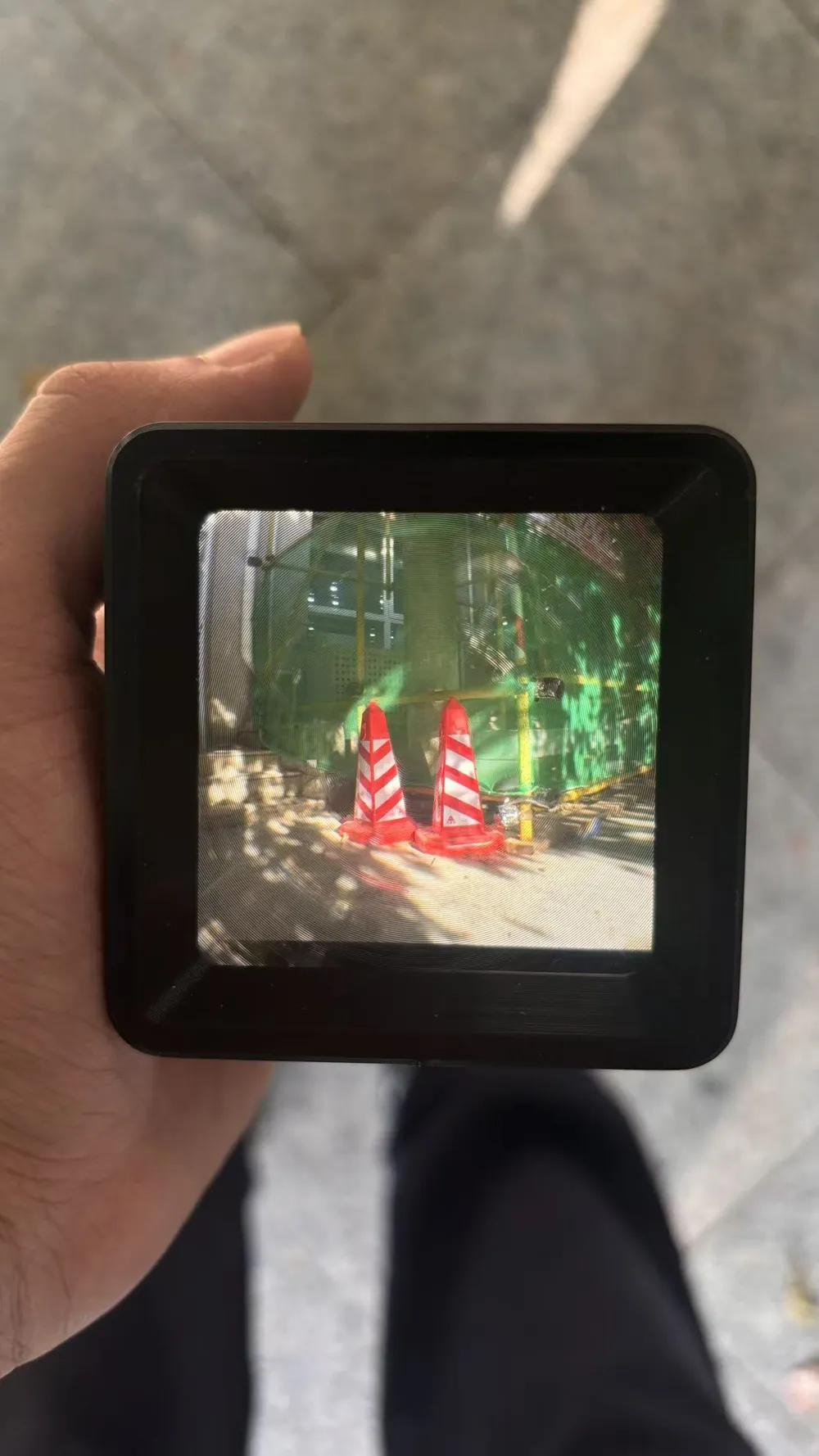

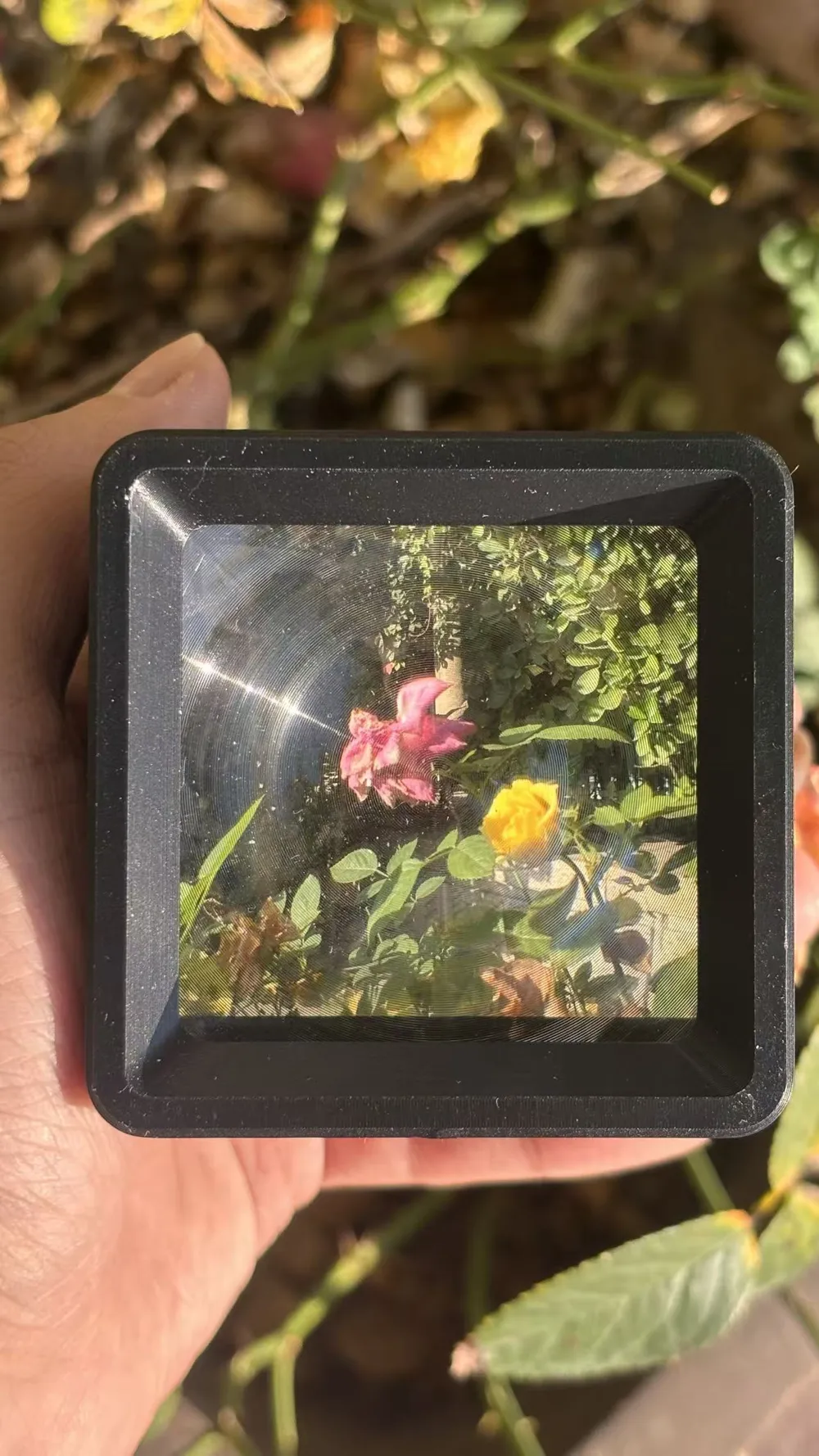

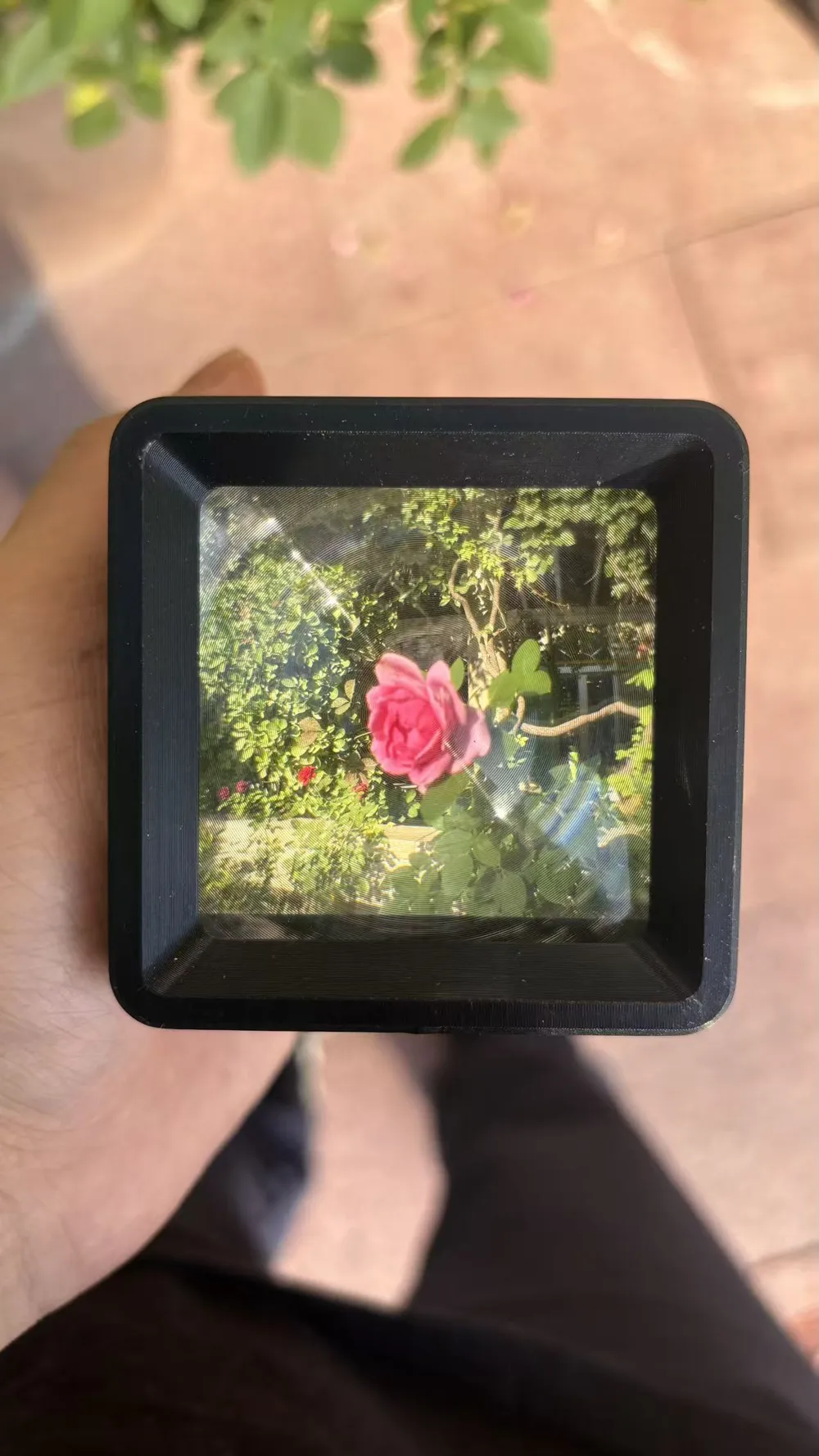

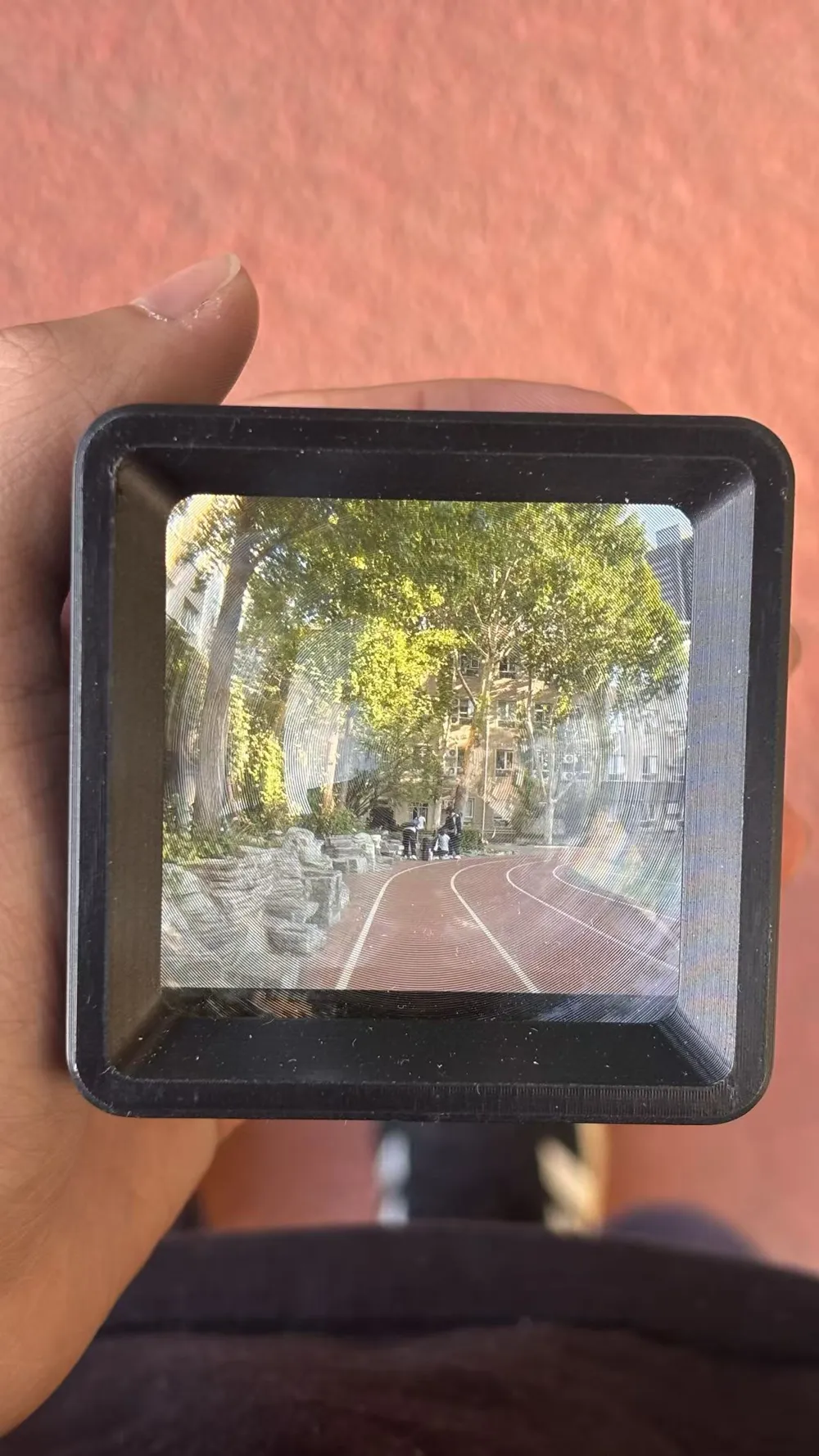

You can observe the world from a different perspective through the viewfinder
Required materials: 60mm×60mm square mirror
60mm×60mm 50mm focal length Fresnel lens
40mm diameter biconvex lens
Compared to other models with 50mm square mirrors and 30mm lenses, this model achieves higher clarity and uses a larger Fresnel lens, making the texture less noticeable when observing
When assembling, ensure the textured side of the Fresnel lens faces upwards
Both the mirror and the top cover connection require glue for fixation
Grooves for heat set inserts are also reserved at the bottom of the model, allowing it to be compatible with universal camera accessories
