Description
Storage and display box for Arknights game merchandise passes
2025.11.13 - Added optimized print profiles:
1. The top cover and base plate have adjusted heights and tolerances, making the top cover easier to open

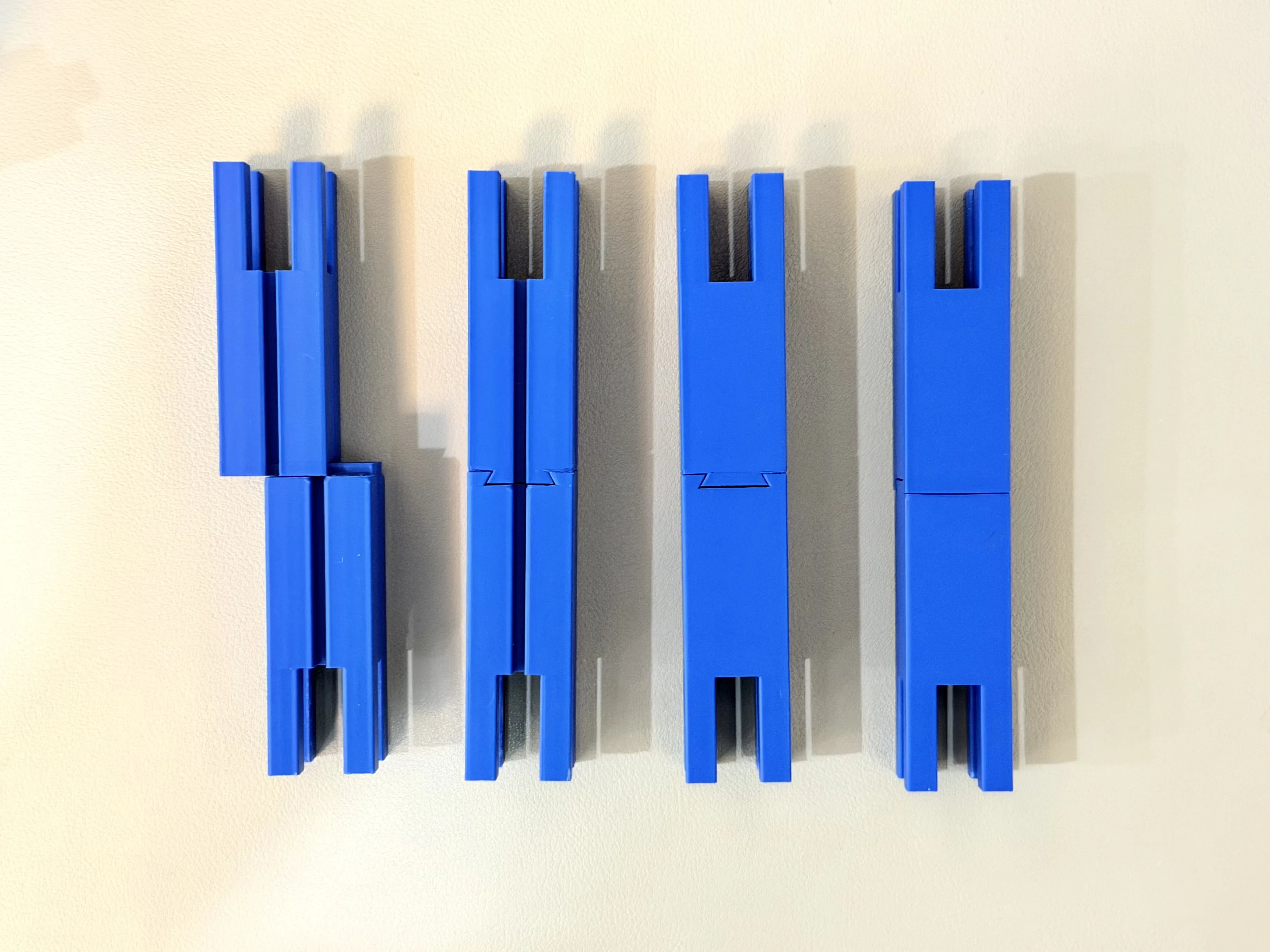

2. Some people reported difficulty fitting the dovetail joints on the pillars, so they were flattened and changed to be glued. A single drop of 9406 super glue can easily bond them, and the tested strength is very good. If you prefer not to use super glue, you can reprint the old version of the pillars
Materials and Printing Notes:
For prints with large areas or patterns, PETG is not recommended. For other parts, PLA / PETG can be used
All patterns on this model are located at the bottom. For a better appearance, it is recommended to print the patterned parts using a 0.2mm nozzle + low temperature/smooth build plate (0.4mm + PET can also be used, but it will be relatively rougher)
Item List:

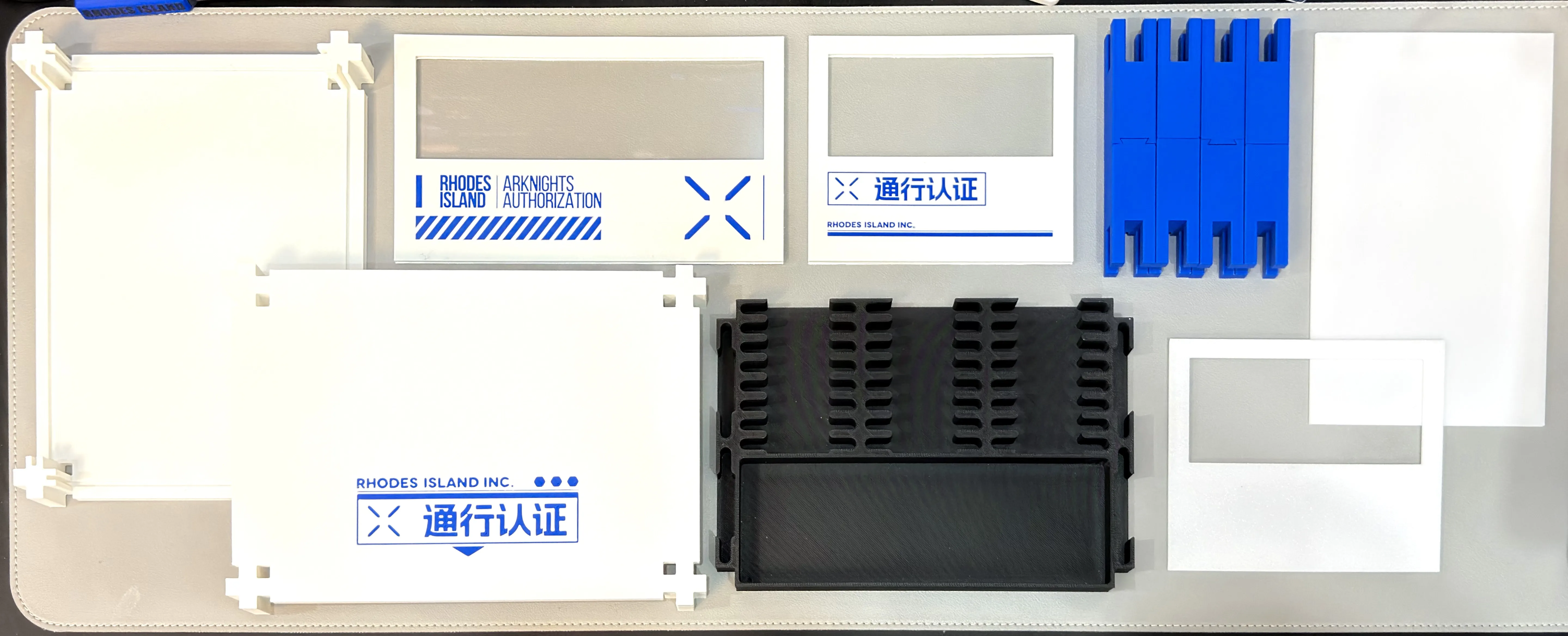

Total: Base plate*1 Inner slot*1 Pillars*4 (2 assemblies) Side panels*4 (two with text, two without text) Top cover*1

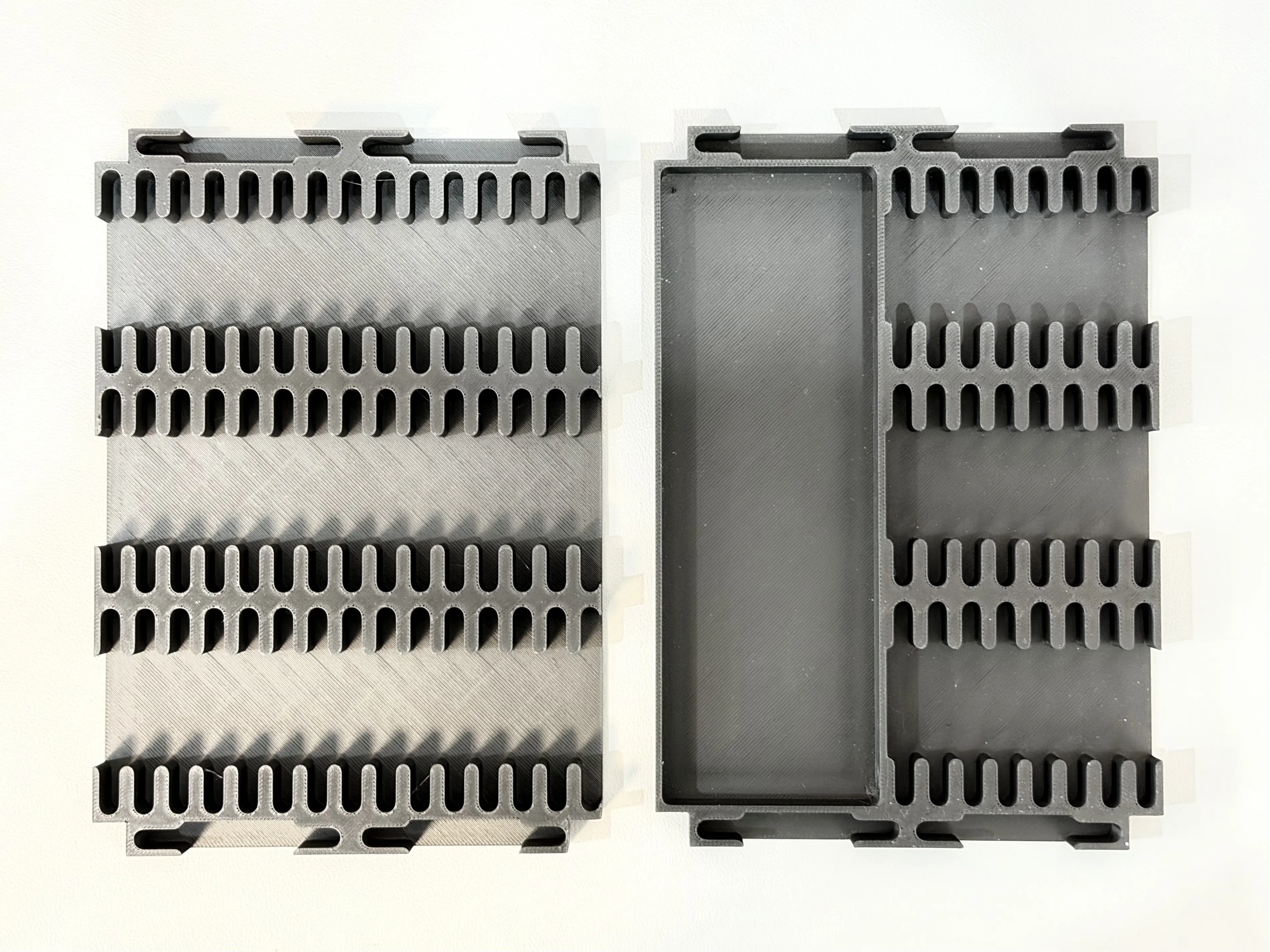

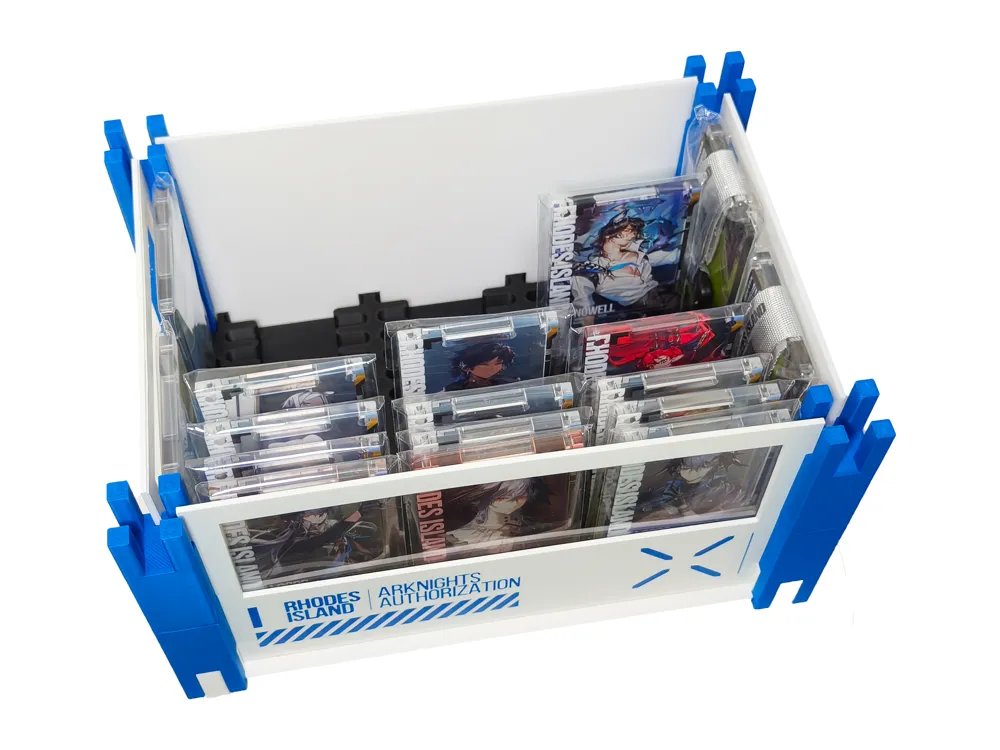

The inner slot offers two options:
All for passes (left) One empty slot for pass lanyards (right)
Note: The inner slots for the passes are designed based on the size of the original self-sealing bags, bare placement is not recommended
Assembly Guide:

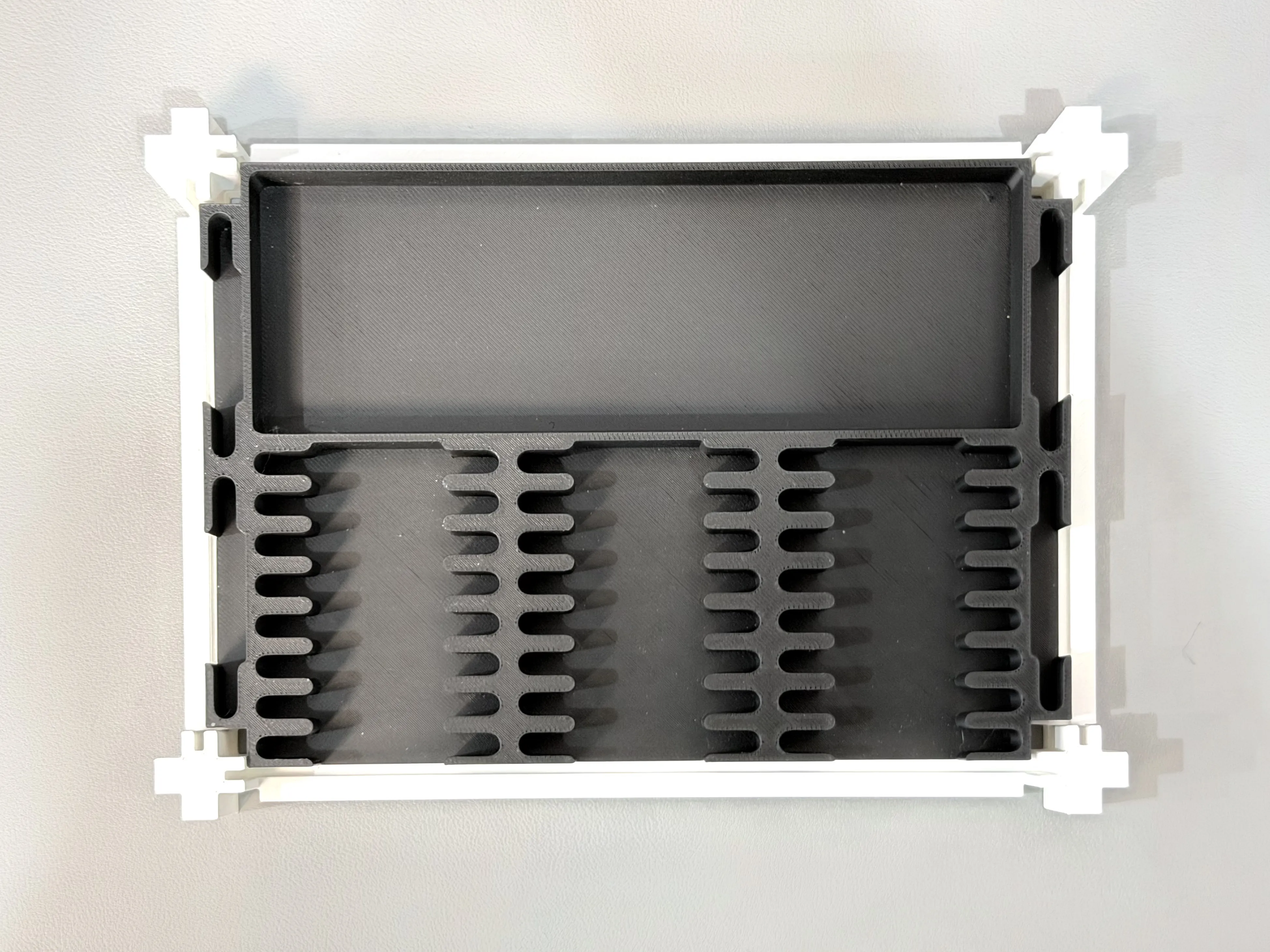

1. Place the inner slot on the base plate

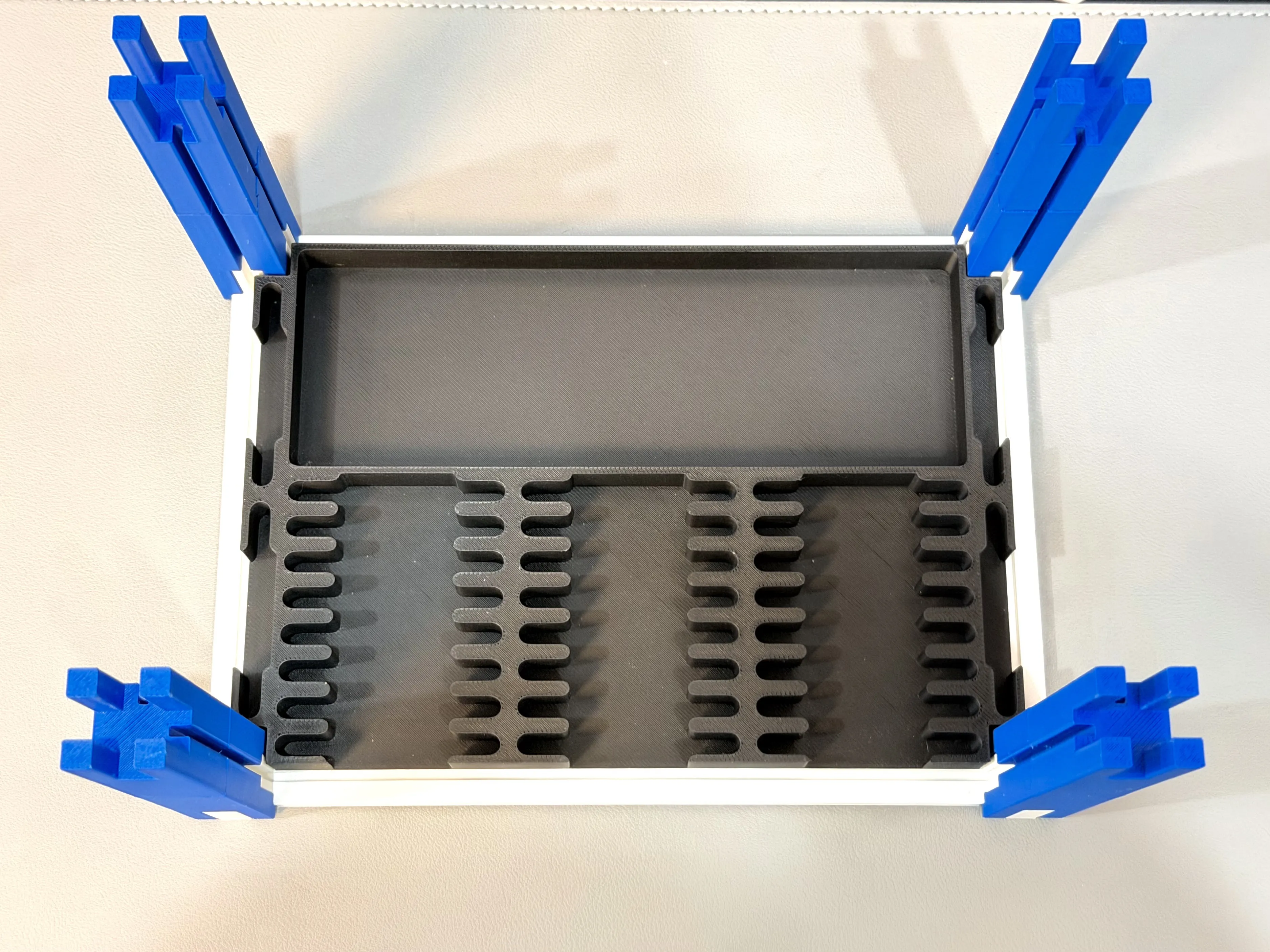

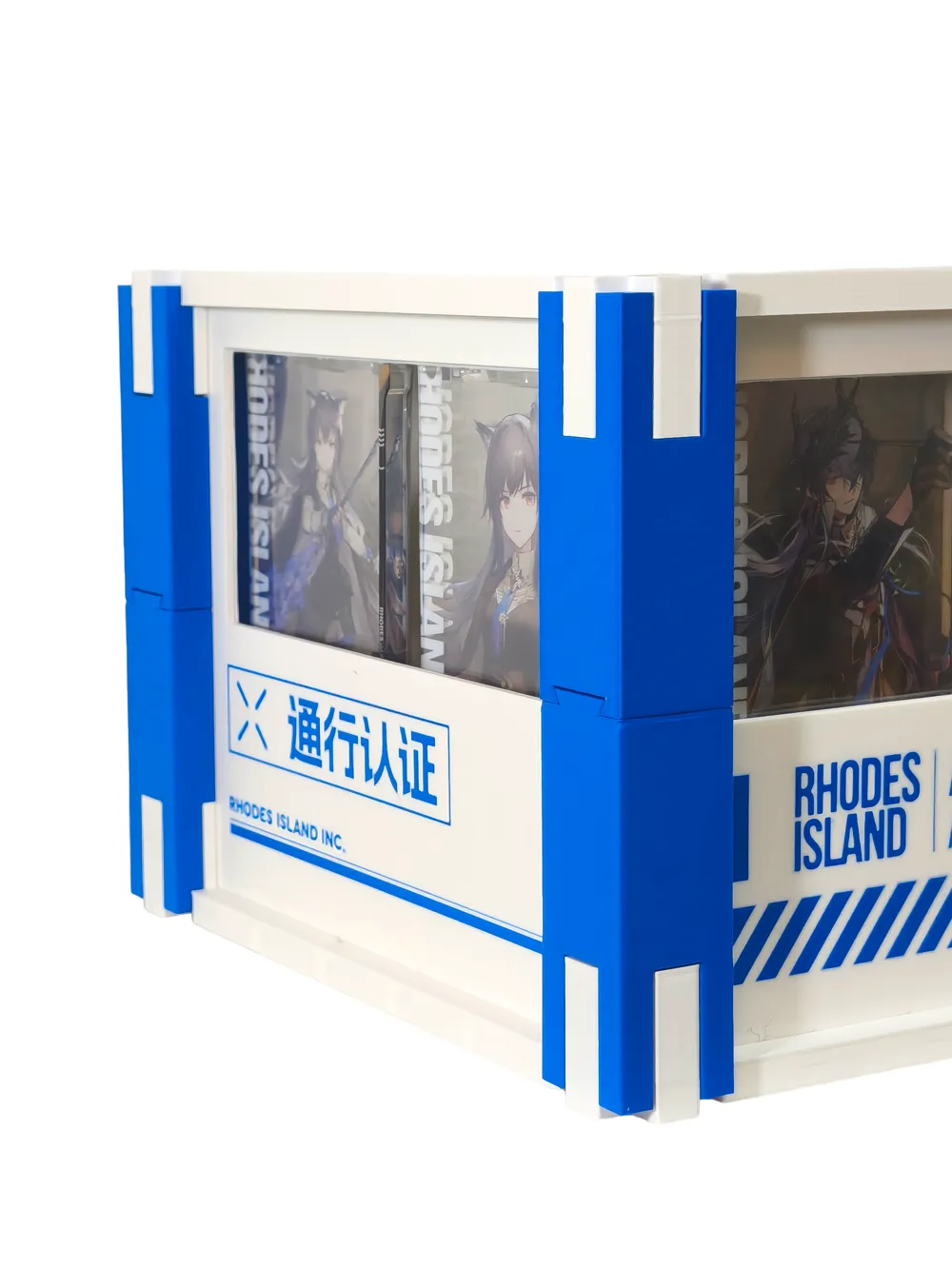

2. Join the pillars using dovetail joints and insert them into the base (note the direction)

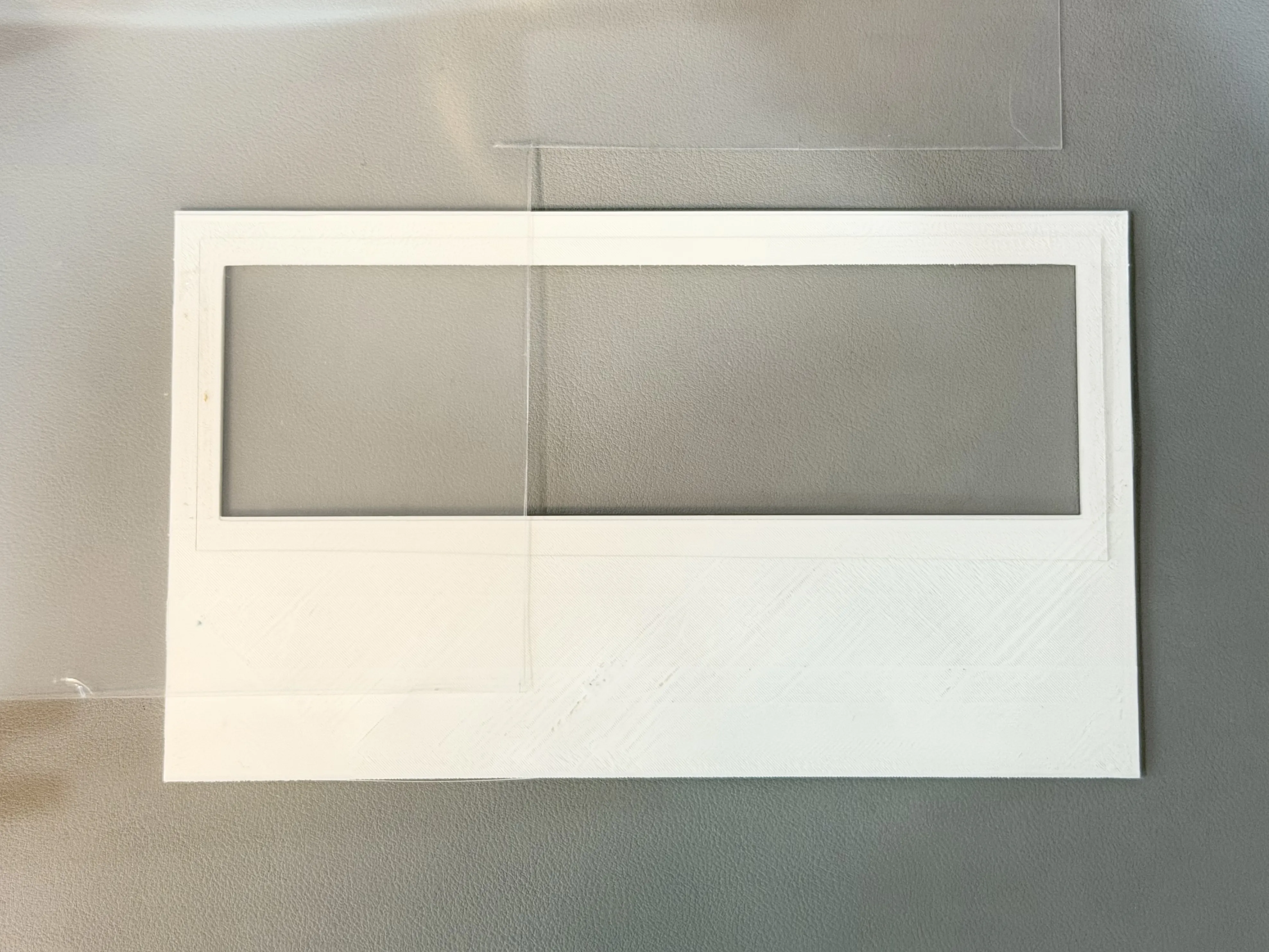

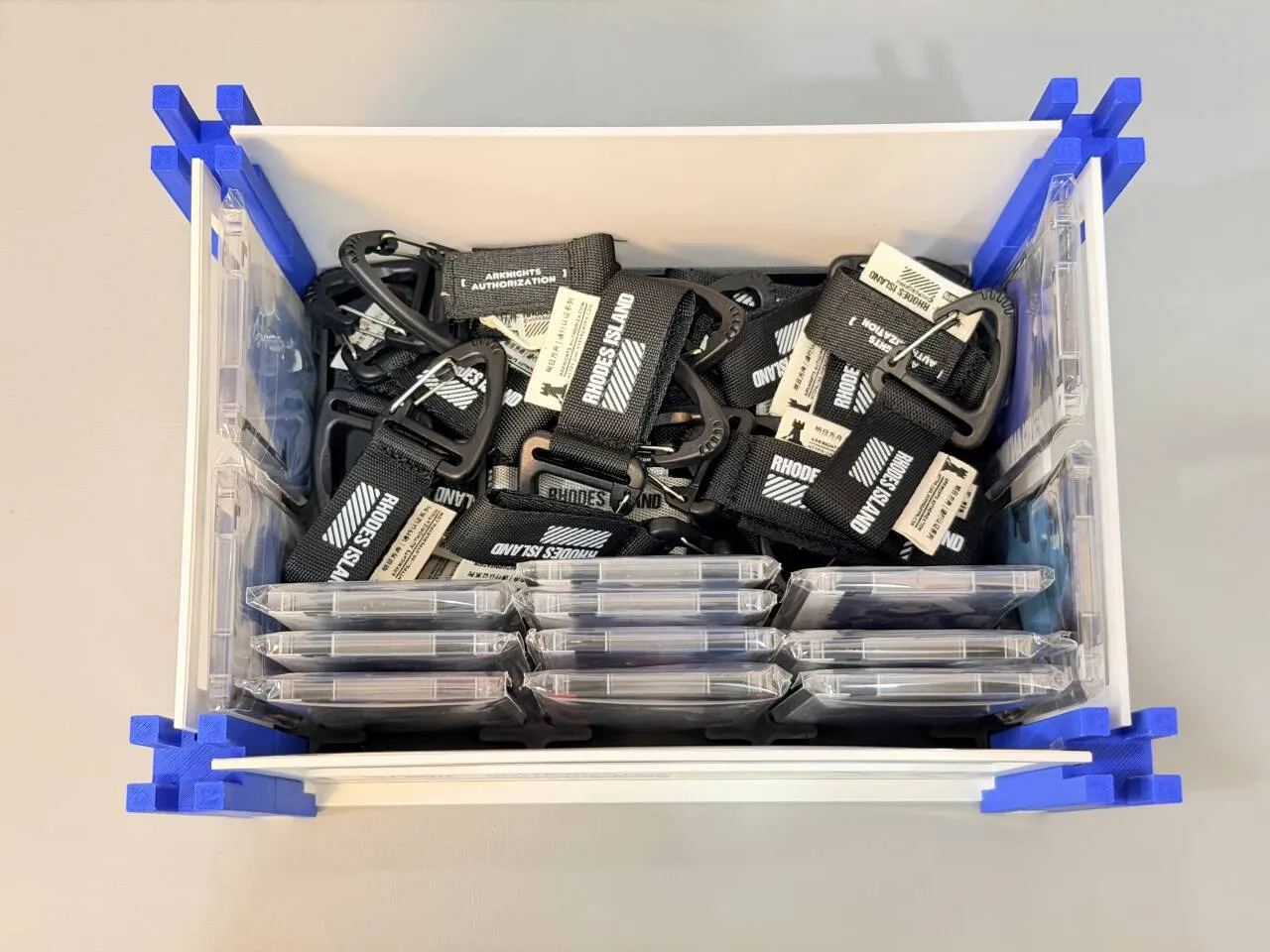

3. Adhere a PVC transparent film to the hollowed-out areas of the printed side panels (optional if no sealing is required), place the passes and lanyards into the inner slot, and insert the side panels into the base

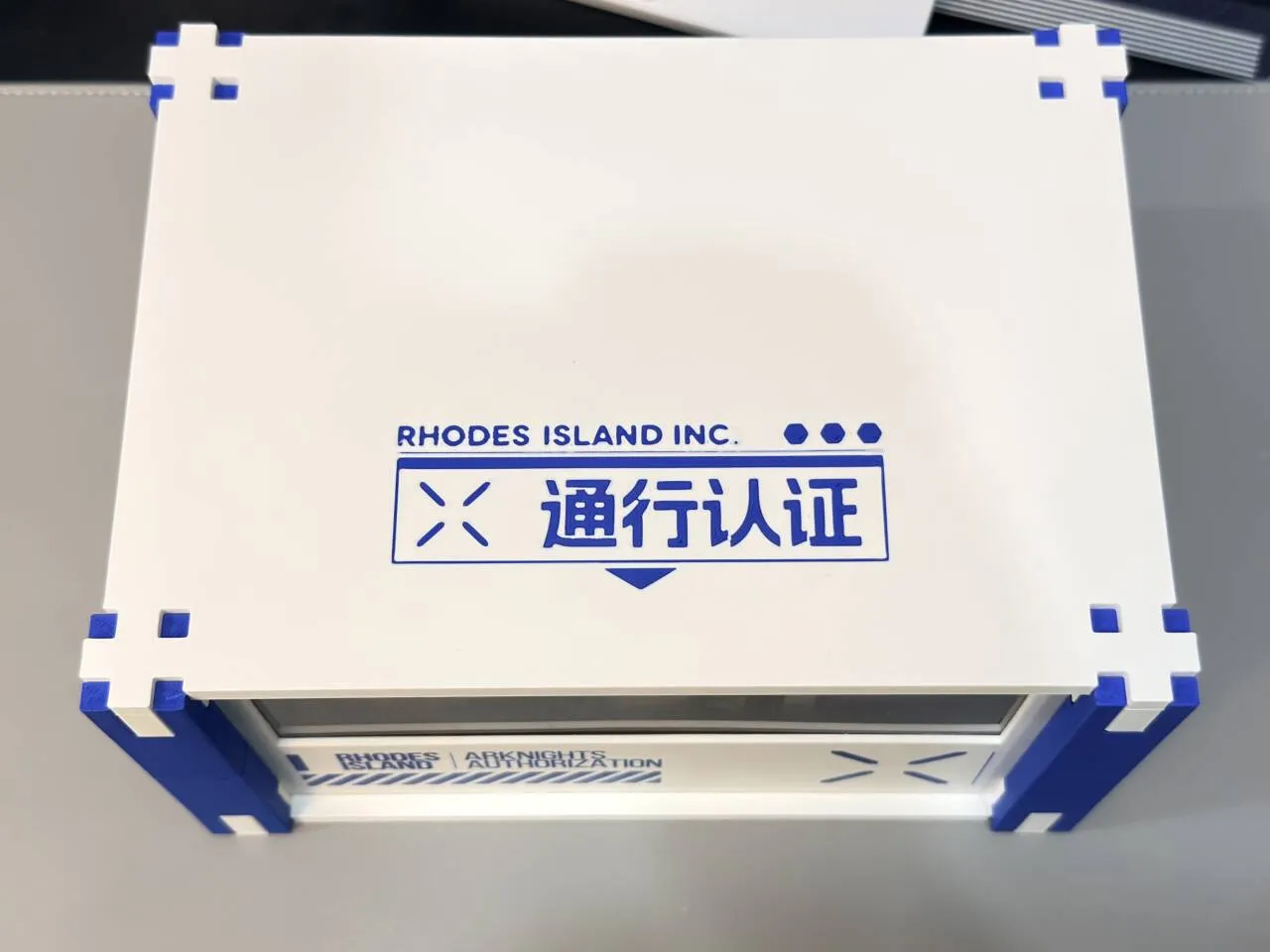

4. Place the top cover, finished
*This 3D printed model is for personal learning and exchange only, reselling or paid sharing in any form is prohibited
You are also welcome to help improve the model's shortcomings and discover more side panel designs~
