ISOFIX SYSTEM for umbrella, documents, bags, etc
Print Profile(20)
Description
Membership
If you like to sell my model, please subscribe for 10$/ Month

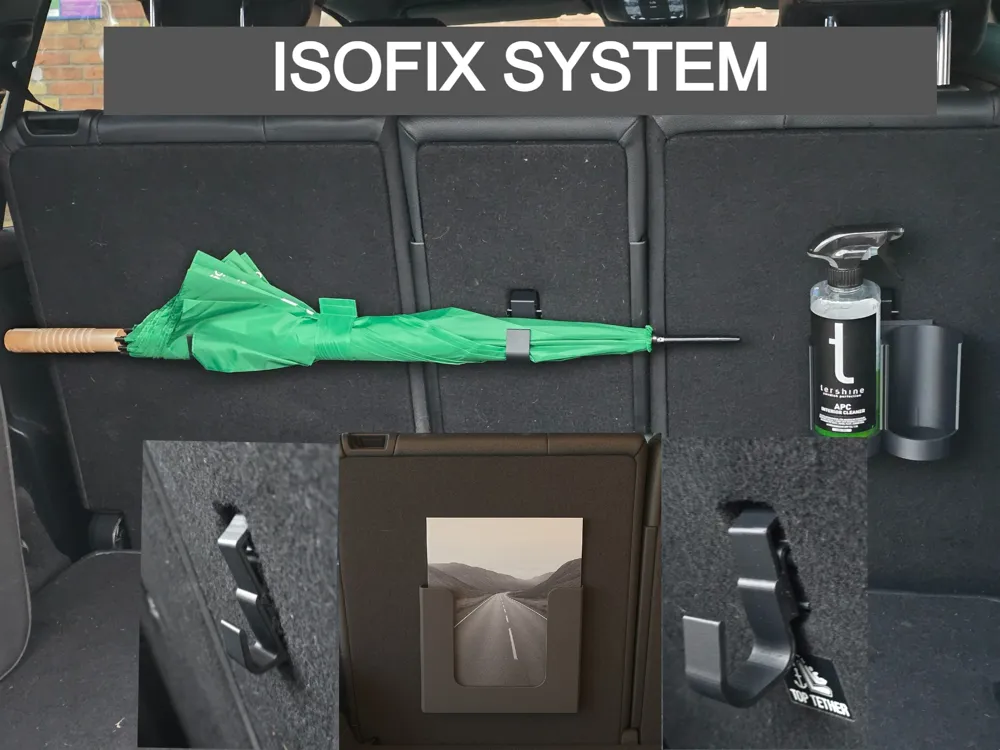

I’ve designed and created universal holders that fit perfectly into the ISOFIX (TOP TETHER) mounts in your car’s trunk.

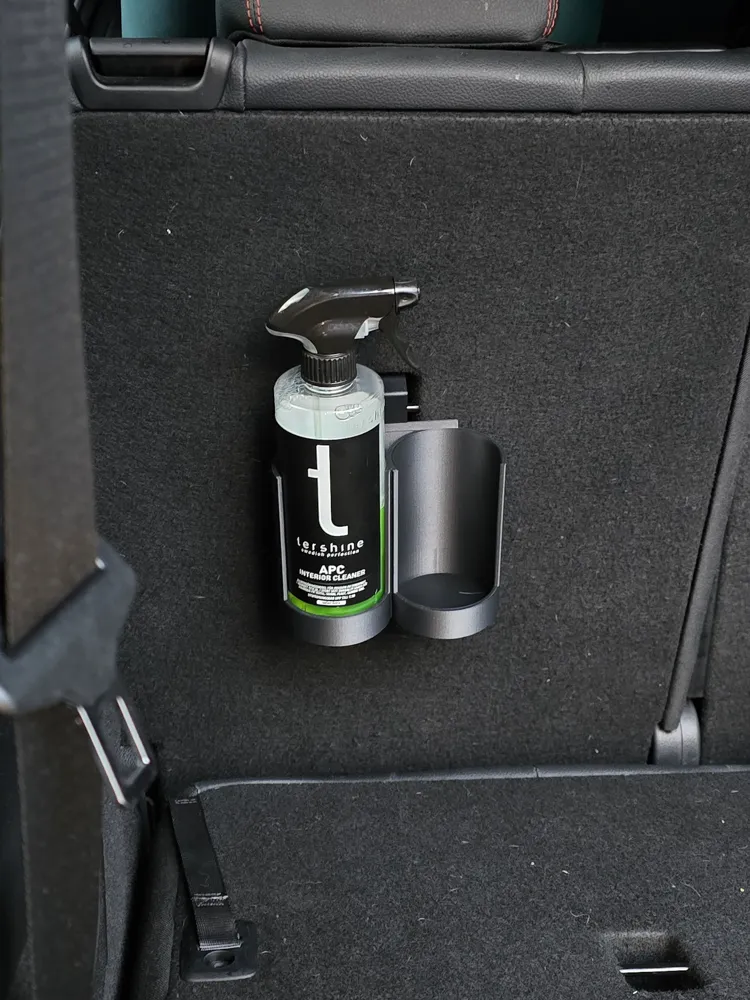

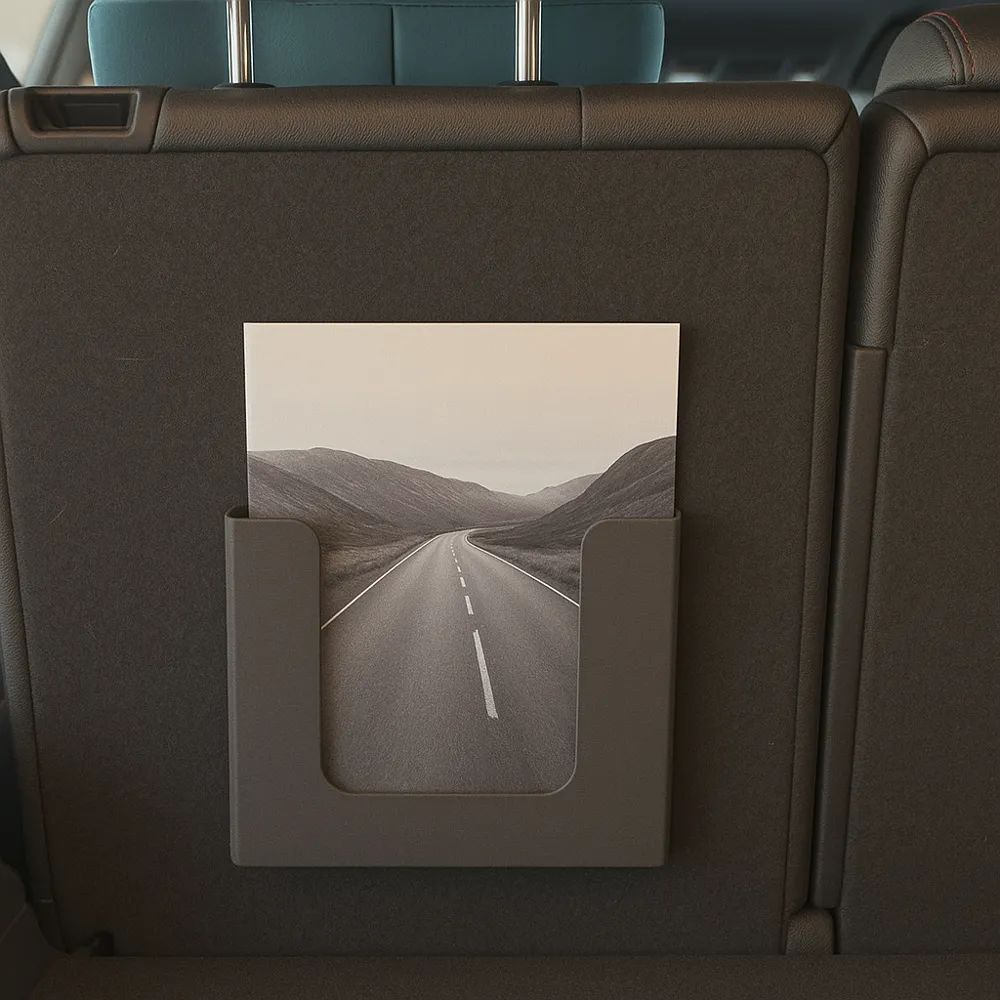

Use them to hang car care bottles, brochures, umbrellas, or to secure your grocery bags—keeping everything neatly in place and preventing it from sliding around while you drive.
Boost Me (for free)
Boosting is FREE but it helps us makers run this hobby. i put a lot of effort into this and would really appreciate it if you supported my work and future updates
How-To

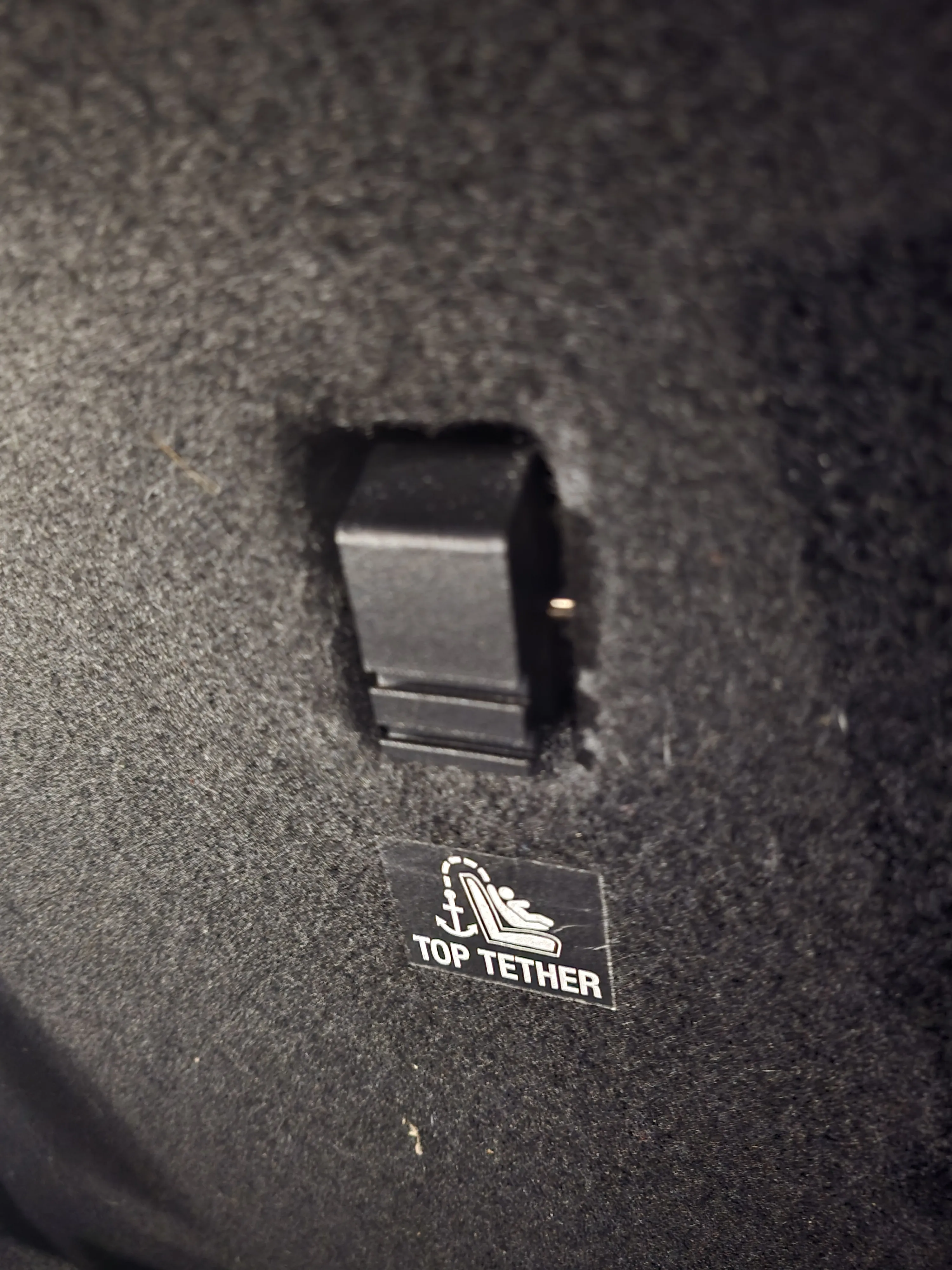

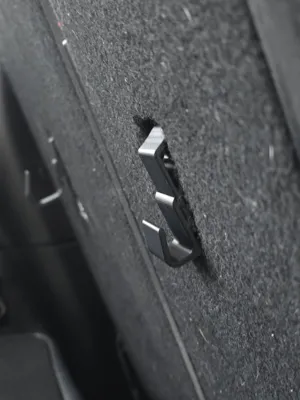

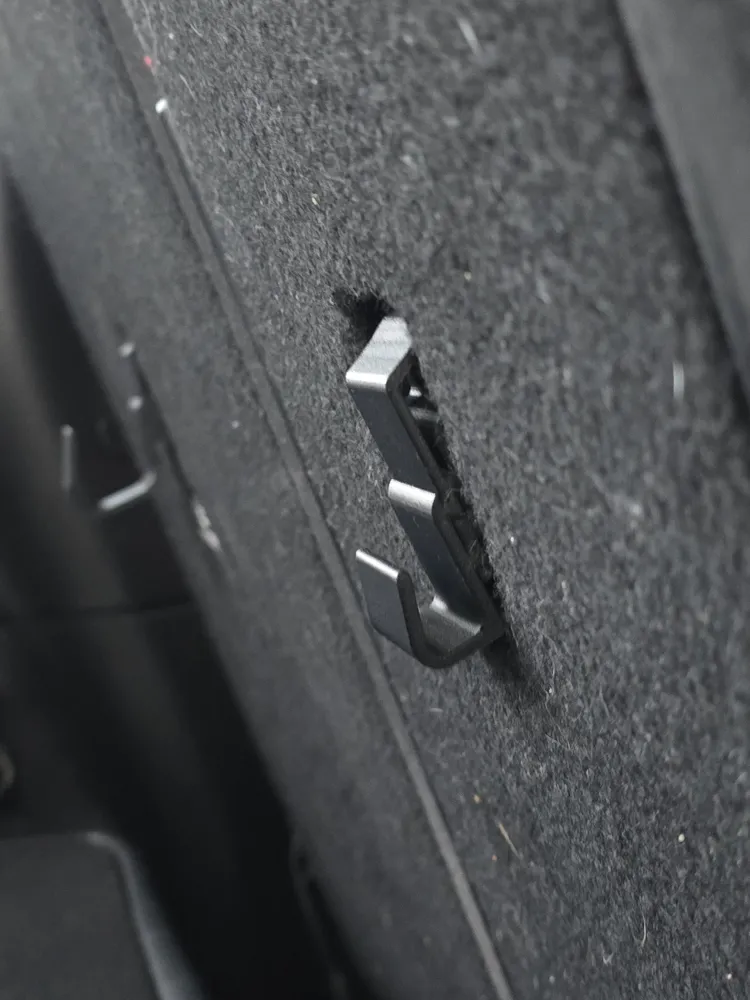

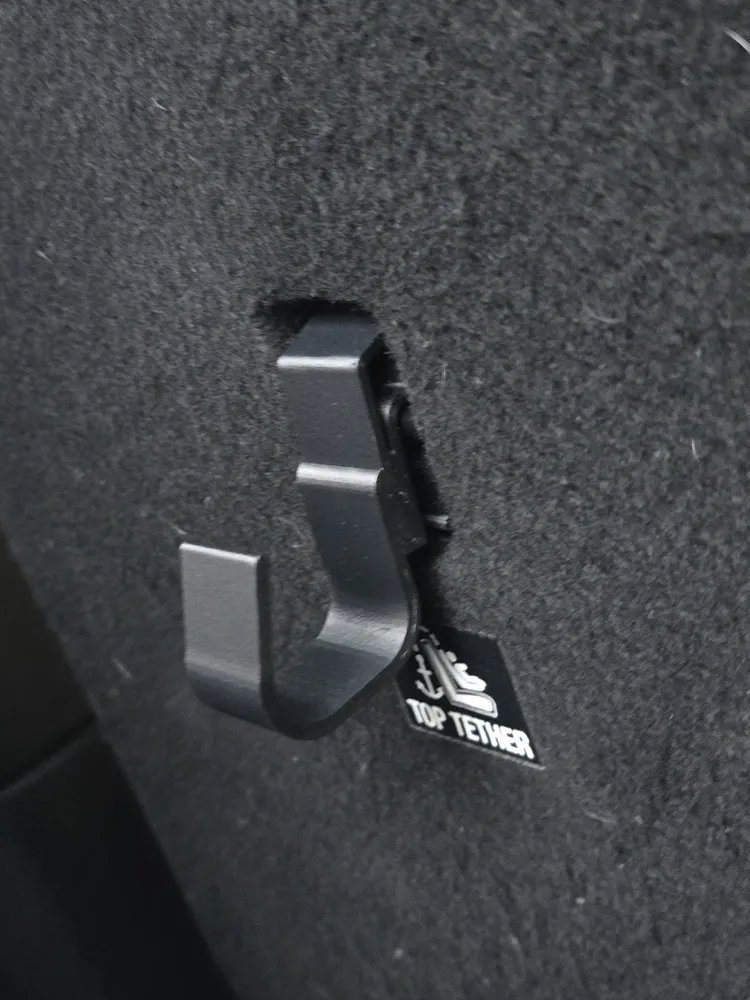

- Use the BASE firstly and slide it onto the Top Tether/ISOFIX

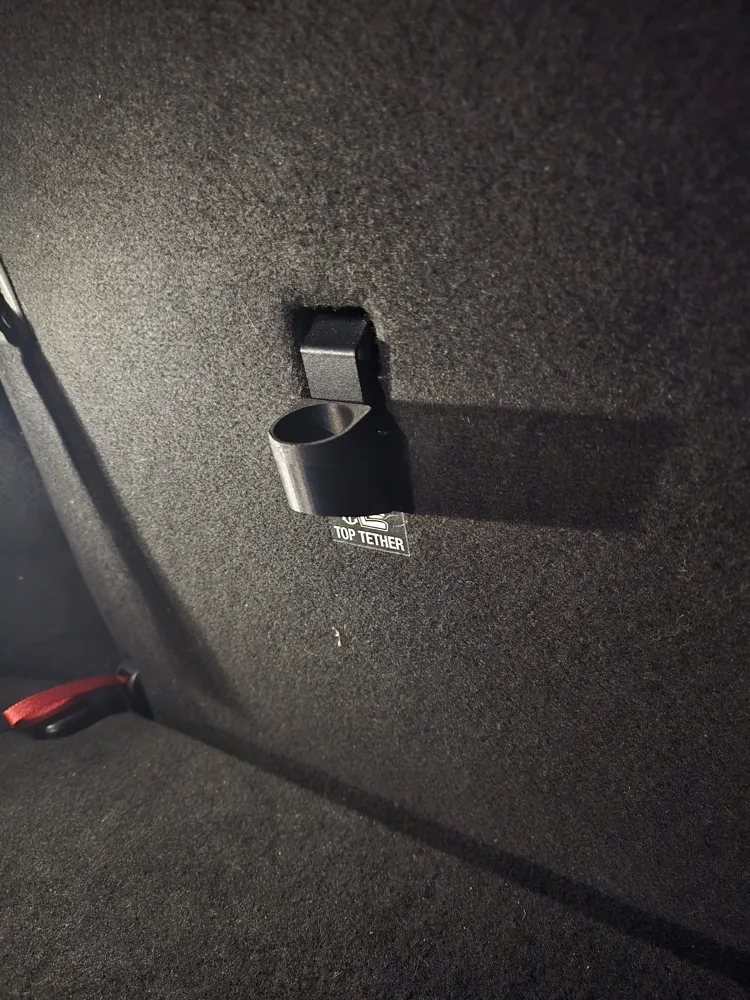

Print the Hook/ Holder you like and slide it in to the Base
If you like to attach rifles, or other heavy things i reccomend using the right and left 2020T profile adapter and buy the needed length for your trunk.
Then use regular V-slot nuts for 2020T profiles to hang wathever you like the most.
Happy Printing ;)
UPDATES:
2026-05-04
- New variant - Print profile for a shorter base (for cars with approx 25x25mm top tether hole) One version for top mounted hangers and one for side mounted. This is a separate print profile. Should be tested for BMW IX1
2026-03-22
- New variant “10mm Extended protuding 25mm wide BASE” - A deeper version for those of you with a plastic trim around the “Top Tether / Isofix”
Some cars has a longer distance between trunk wall and top tether steel pin. (Print profile "All-Files"
2025-11-10
- New variant “17mm BASE” - A slim version for those of you with a plastic trim around the “Top Tether / Isofix”
Some cars has a narrower space, this BASE is for you. (Print profile "All-Files"
2025-10-11
- NEW base with added top mount option
- Short umbrella hangers for 1 and 2 umbrellas.
2025-10-06
- Shoe hook (one pair) - Did just include it in the “All Files print profile”

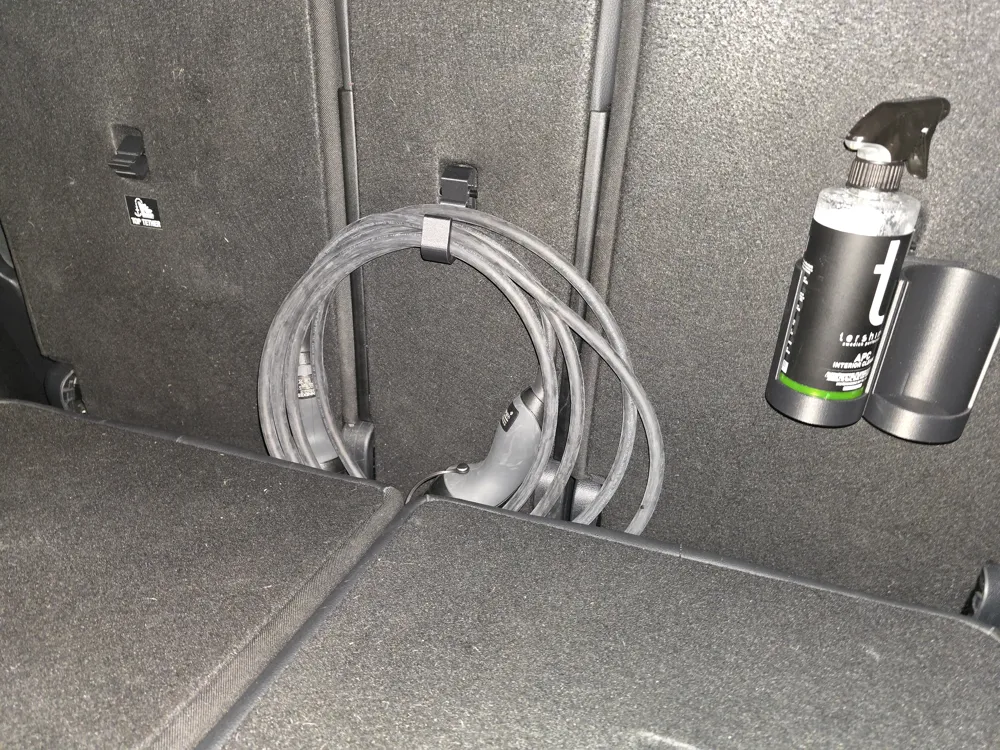

- Bigger EV cable hook - for longer cables

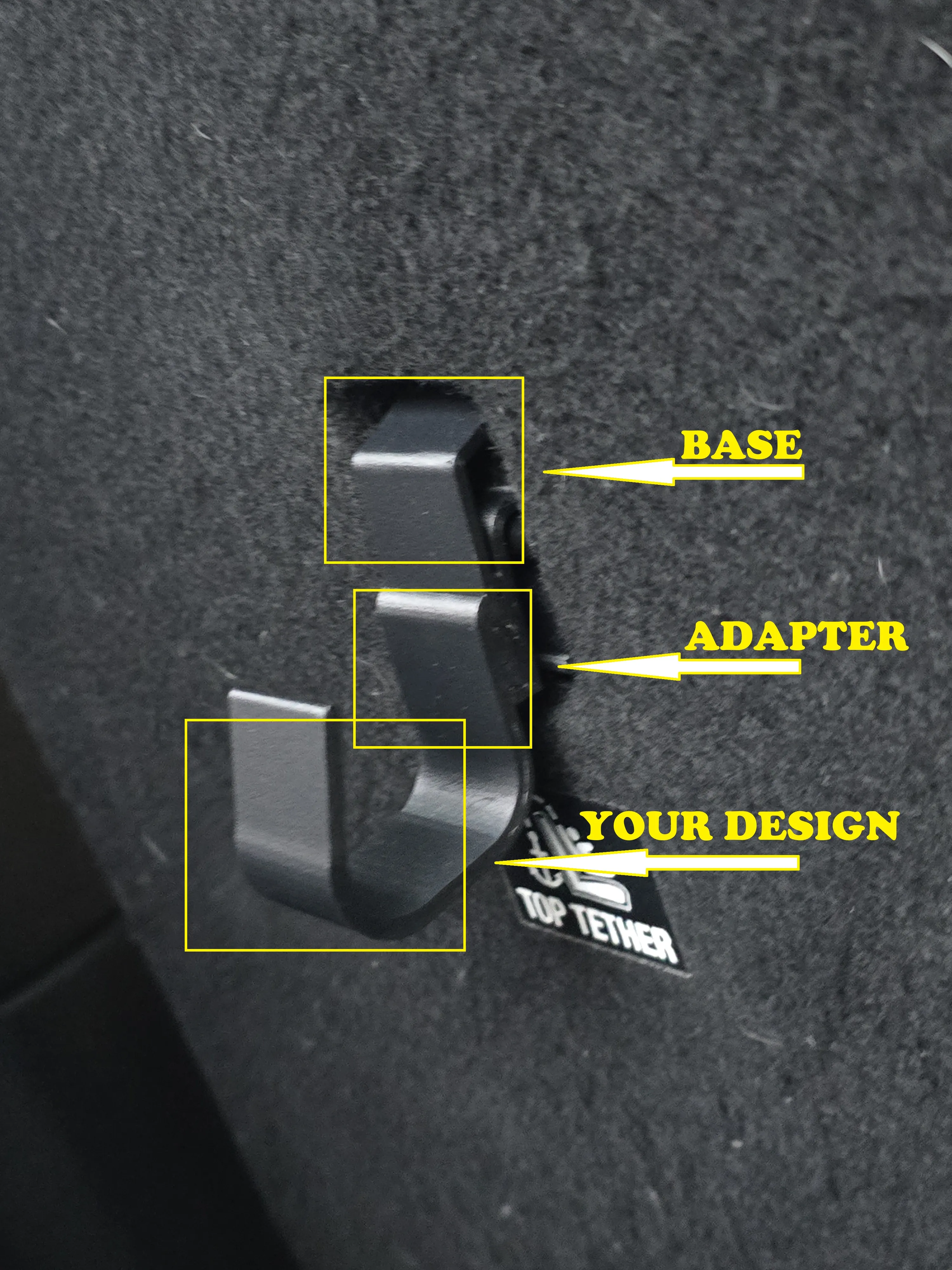

Adapter model for you guys that like to create your own hangers:
Both .STEP and .3MF, please share your custom hangers if you like and i can upload them if you like to expand this system.
https://makerworld.com/sv/models/1853004-remix-adapter-isofix-system-hangers-top-tether#profileId-1981061
2025-09-29

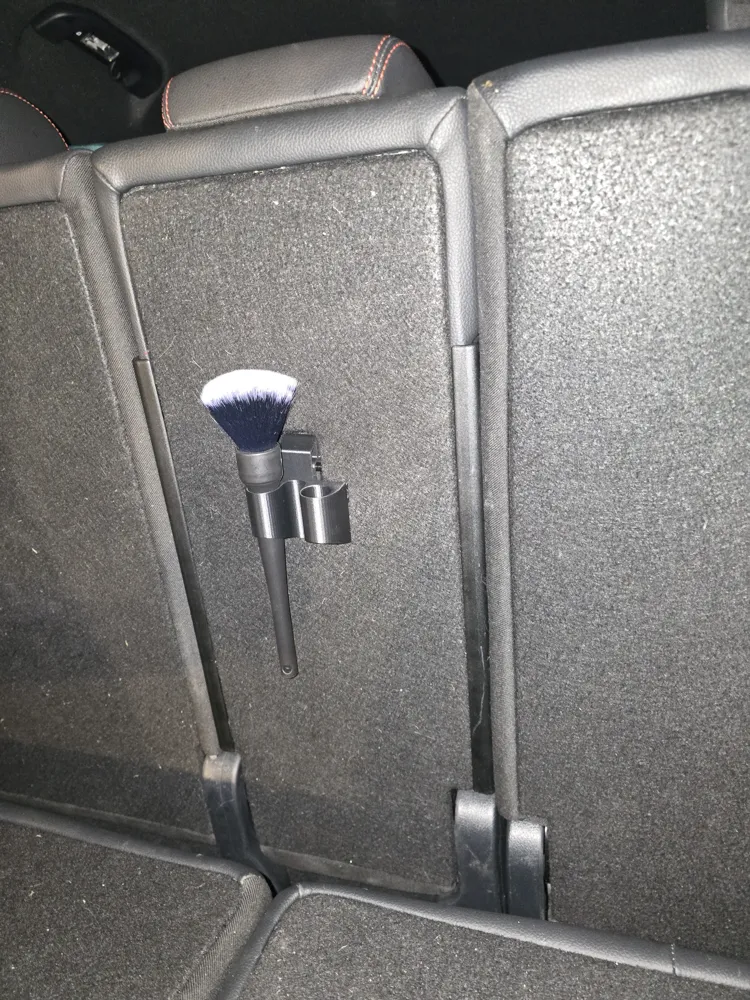

- Detailing brush 20mm x2

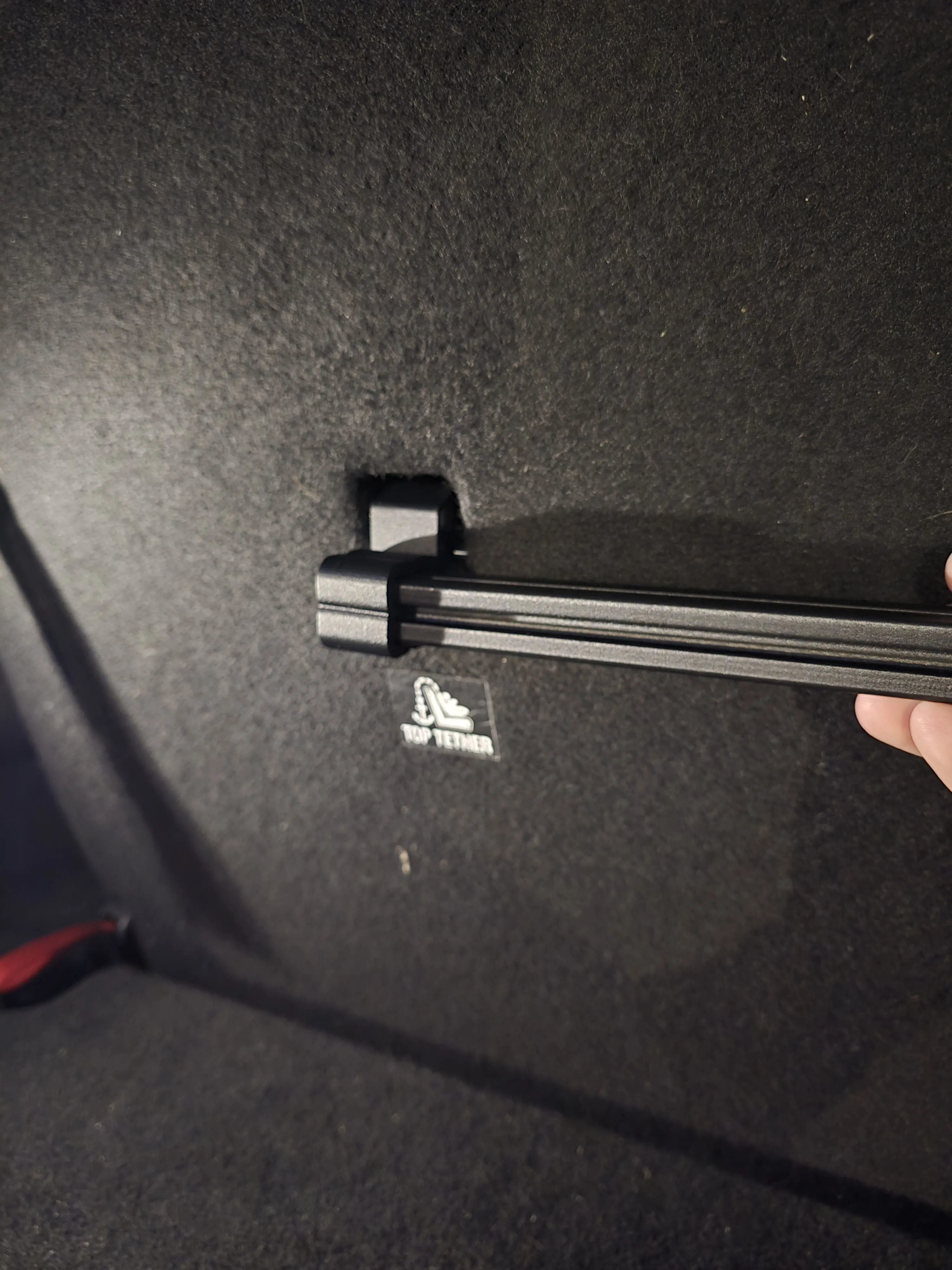

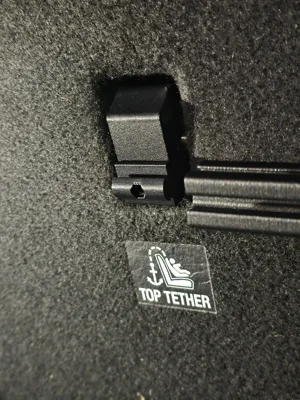

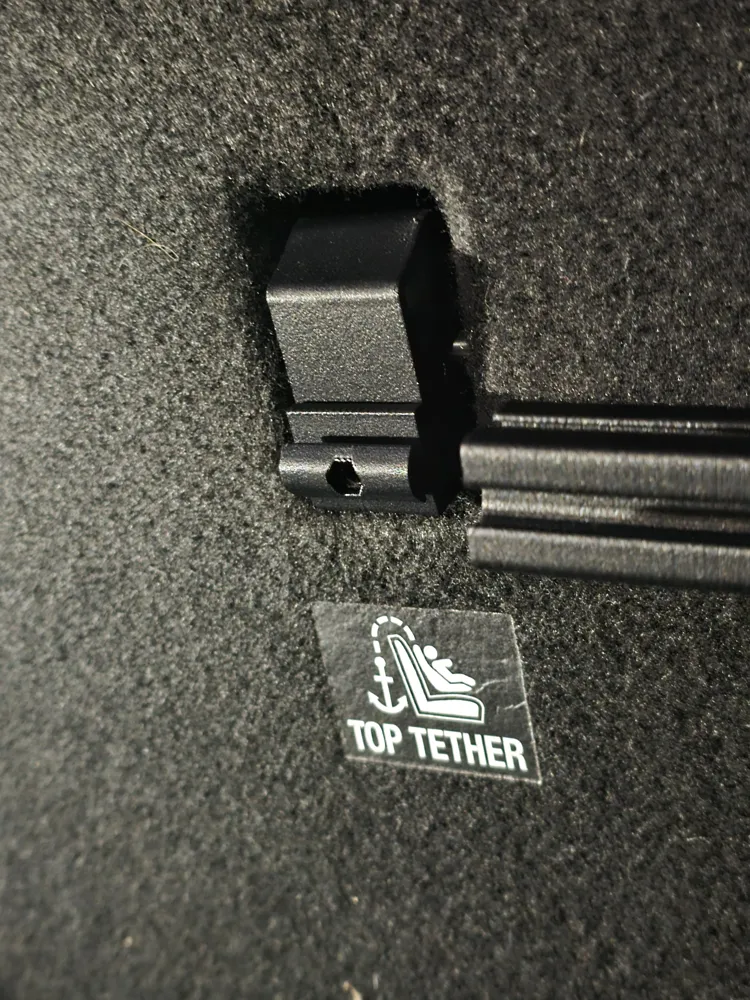

- 2020T slot adapters to attach 2020T profile centered at the base
- 2020T slot adapters to attach 2020T to use multiple holders at a 2020T profile
- 2020T slot Profile ( you should buy the real thing in ALU)
- Updated golf ball hanger, works perfect now.
2025-09-28

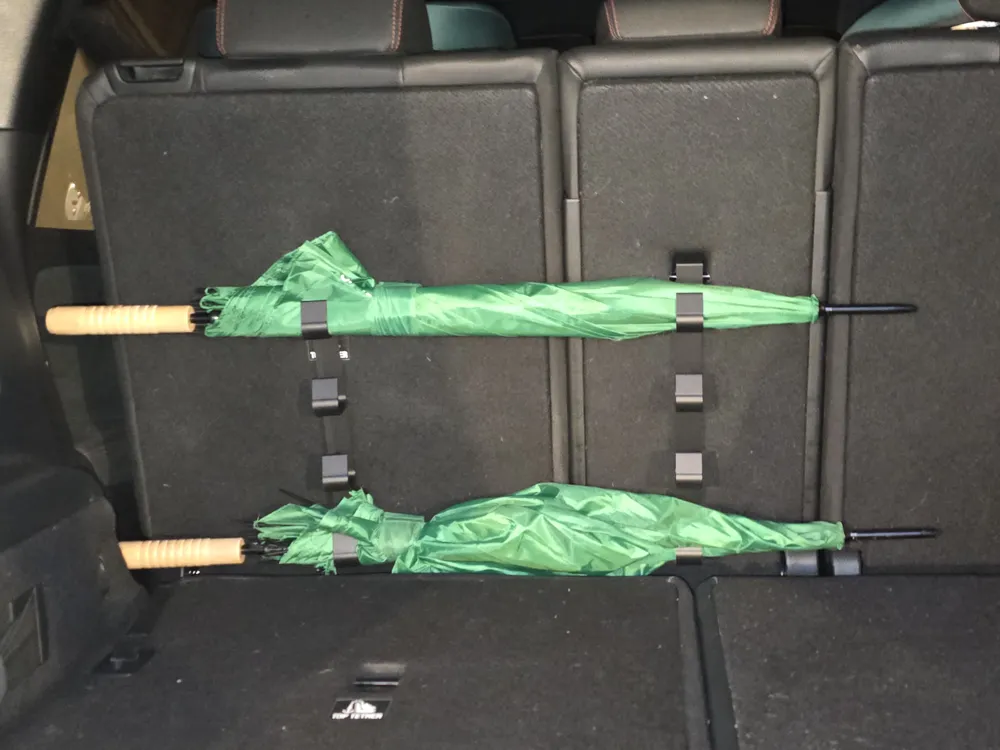

- Hooks for multiple umbrellas, 2, 3 and 4

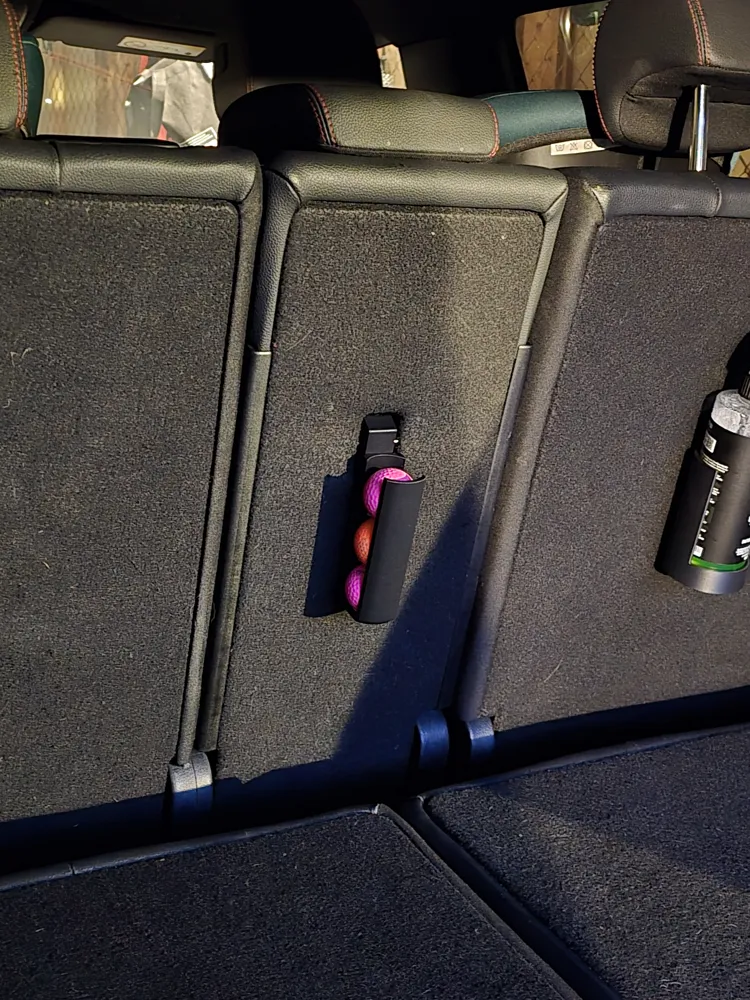

- Hanger for 3x golf balls (Beta, needs testing)
- EV cable hanger that is 10mm wider than umbrella hanger and 4mm thicker
- Flashlight hanger (upp to 28-29mm handle)
- T-Slot 2020T profile hanger, left and right.
This is for you that would like to use the whole length to make you own hangers for
Tools
Pistols
Rifles
Or anything you want.
Here you need a 2020 T-Slot aluminium rail in suitable length.
