Swapmod HeavyRamp

This is a modification for the paid Swapmod system: https://makerworld.com/en/models/898264-swapmod-automation-for-a1-mini-public-parts#profileId-856718

Hi

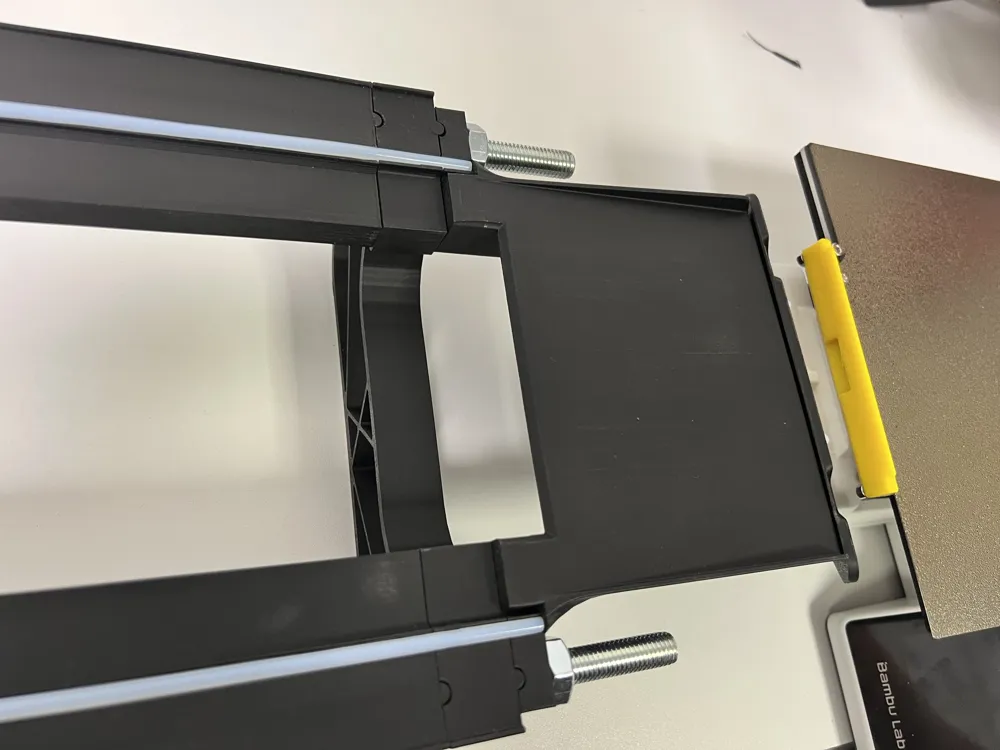

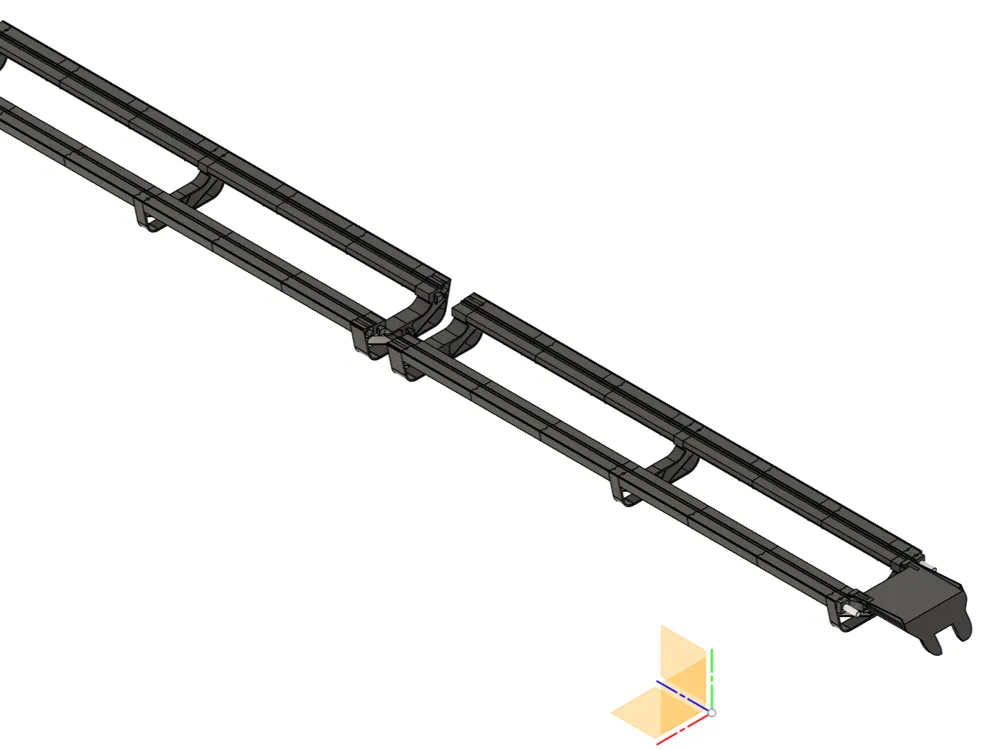

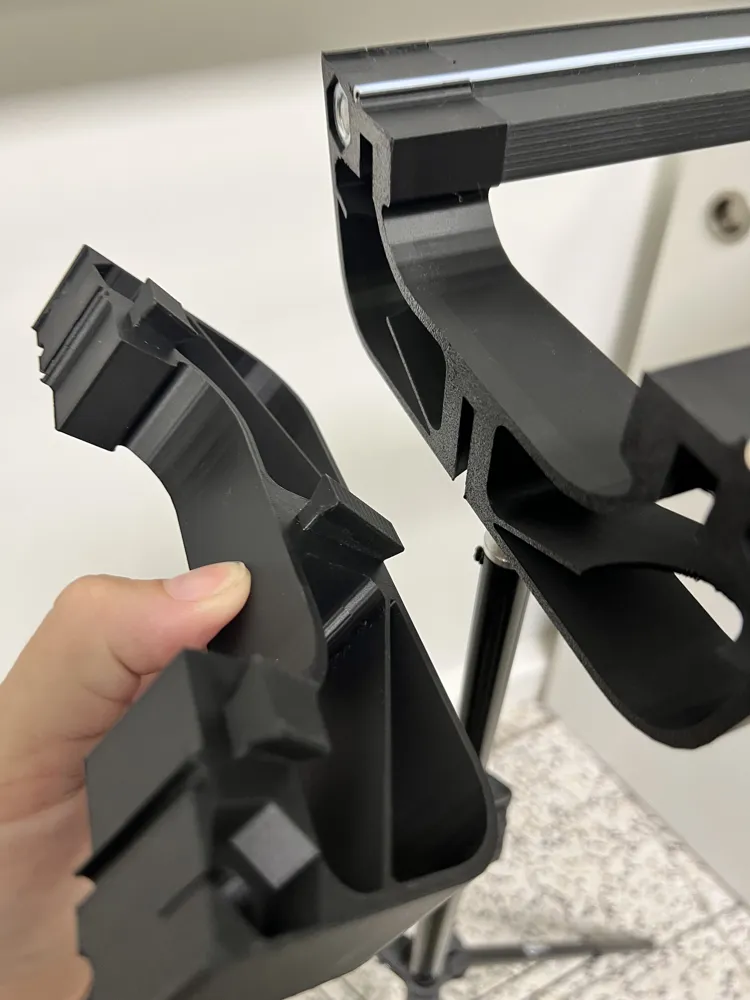

When using the Swap-Mod, I often encountered the limits of my workspace I therefore designed a Swap-Mod ramp which, self-supported by camera tripods, can be quickly attached to the printer when needed

Please note: Depending on the component and plate weight, the full 1 or 2 meters cannot always be pushed smoothly, and succeeding plates may slide onto previous buildplates With my components, this was never a problem and also better than the 'falling into boxes' alternative

You will also need the following for building it

2x 1 meter threaded rod M10

4x M10 nut

2x 1 meter PTFE tube

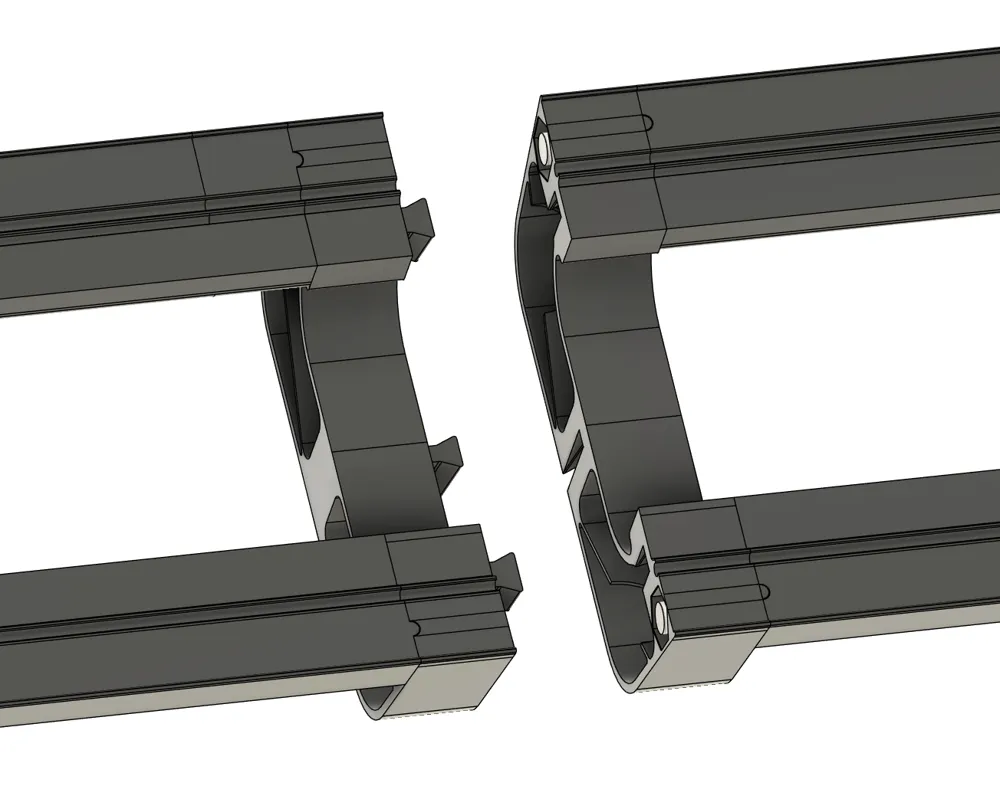

The same applies for the one-meter extension
