Rotating bookshelf wall anchor

Print Profile(1)

All
X1 Carbon
H2S
H2D
P1S
A1
X1E
H2D Pro
X1
P1P
P2S
H2C
X2D
A2L

0.2mm layer, 4 walls, 20% infill
0.2mm layer, 4 walls, 20% infill
Designer
3.3 h
2 plates

Open in Bambu Studio
Boost
4
6
0
0
2
1
Released

Description

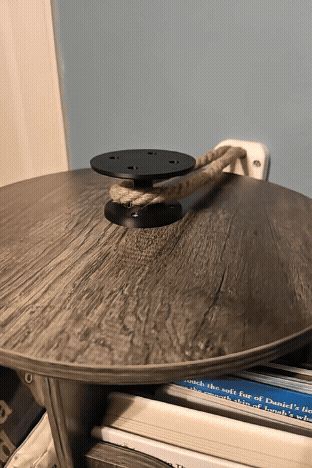

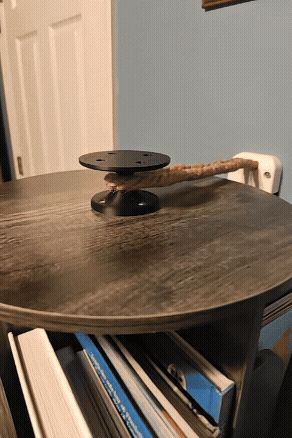

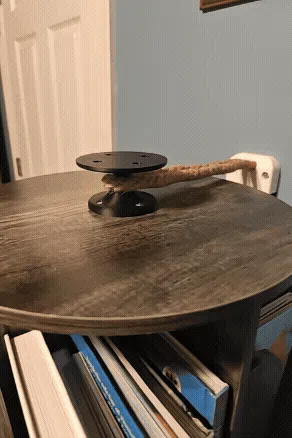

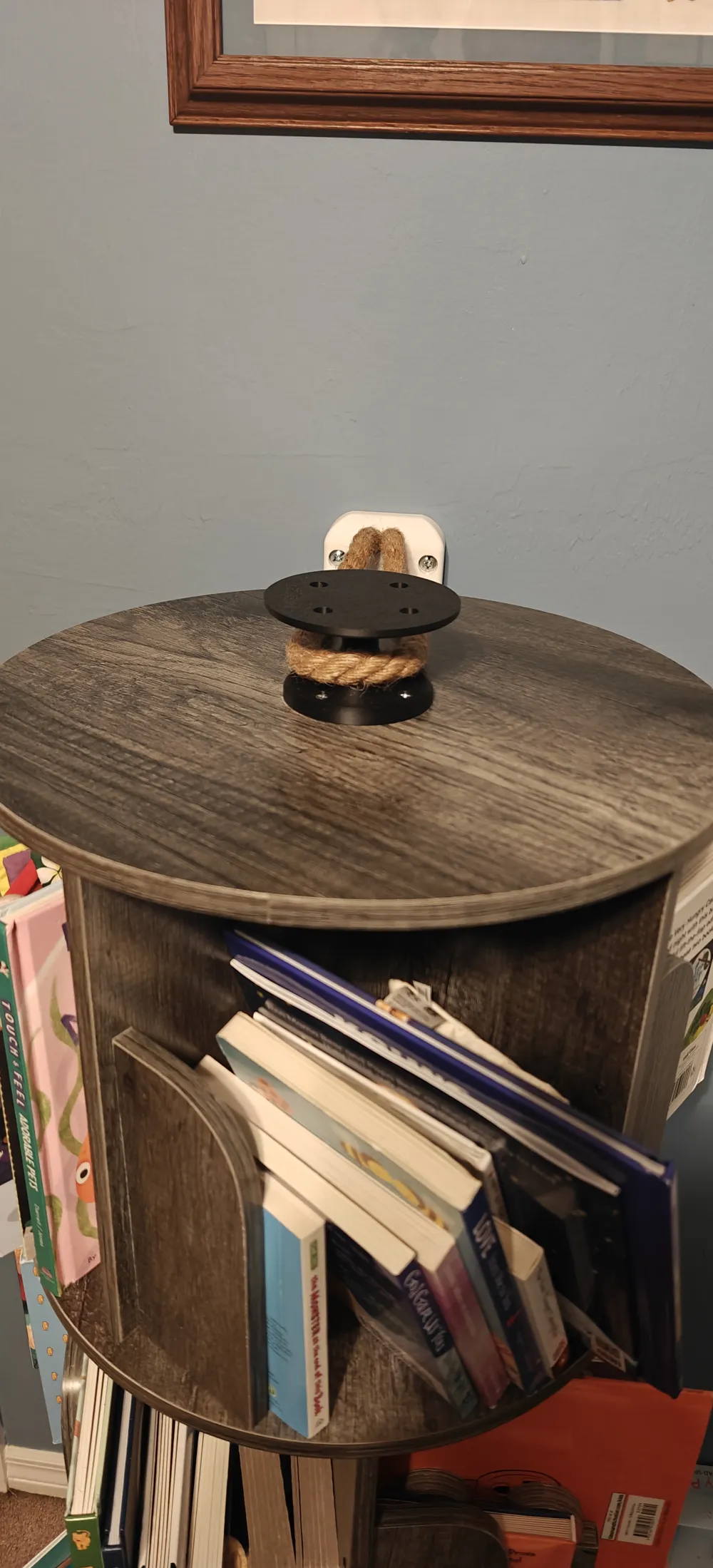

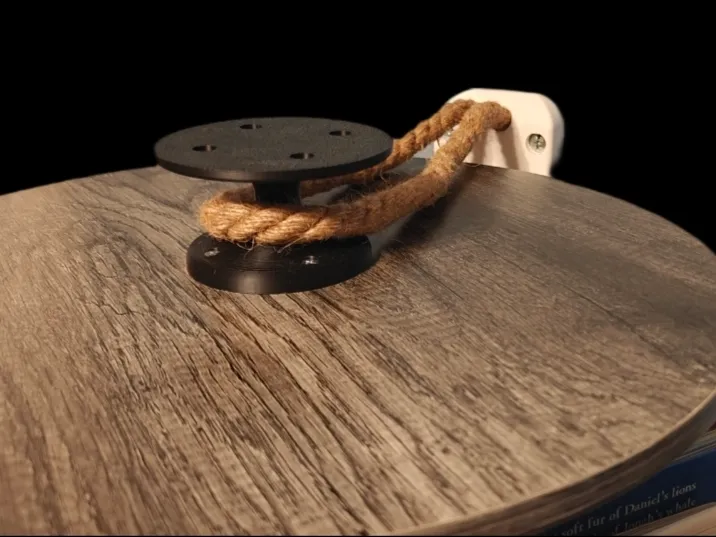

I had to find a way to anchor the rotating bookshelf in my baby's room and couldn't find anything. We had some jute rope and I came up with this really quick to solve the safety issue for baby climbing. I wanted to keep it simple, no bearings or complex mounting clamp. The rope I used and designed for is around 13mm diameter and is a pretty tight tapered fit. Uses a knot(s) tied below to set limit for securing. The upper component is designed to be super glued into place and isn't taking any of the load but just guiding and retaining the rope.

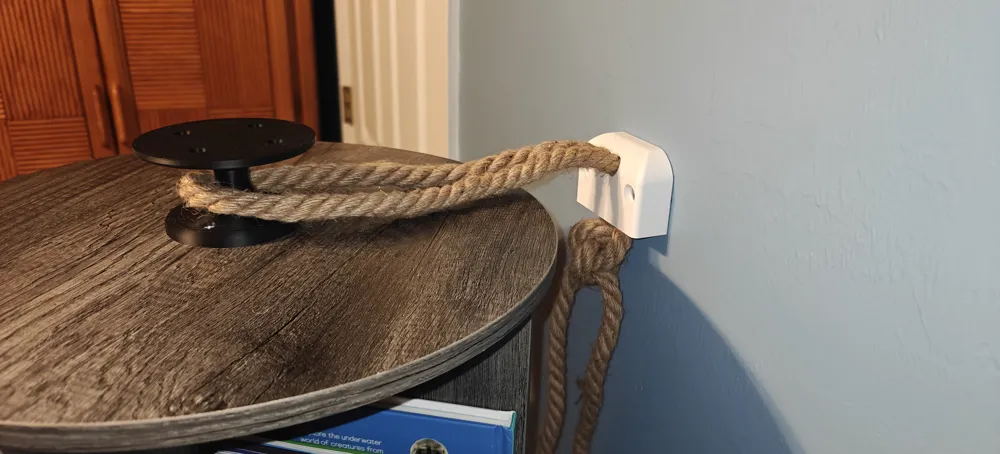

Since the wall mount holes are horizontal and would only ever be able to hit a single stud, I designed this instead to use two ¼"-20 snap toggles instead. The screws used on the bookshelf portion were #8 wood screws.
