Hex Connect iPhone 17 - 17 Pro - 17 Air Cases

These are iPhone 17, 17 Pro, and 17 Air cases made to work with Hex Connect mounts. The Apple logo may not line up with the Hex Connect cutout because the Magsafe coil is centered in the phone, whereas the logo may not be. I also prefer to mount the phone close to it's center of mass.

Made to be printed in rigid plastics, PLA, ABS, PETG, and ASA should all work fine.

Let me know what Hex Connect mount (tripod? car mount? etc.) you'd like to see next!

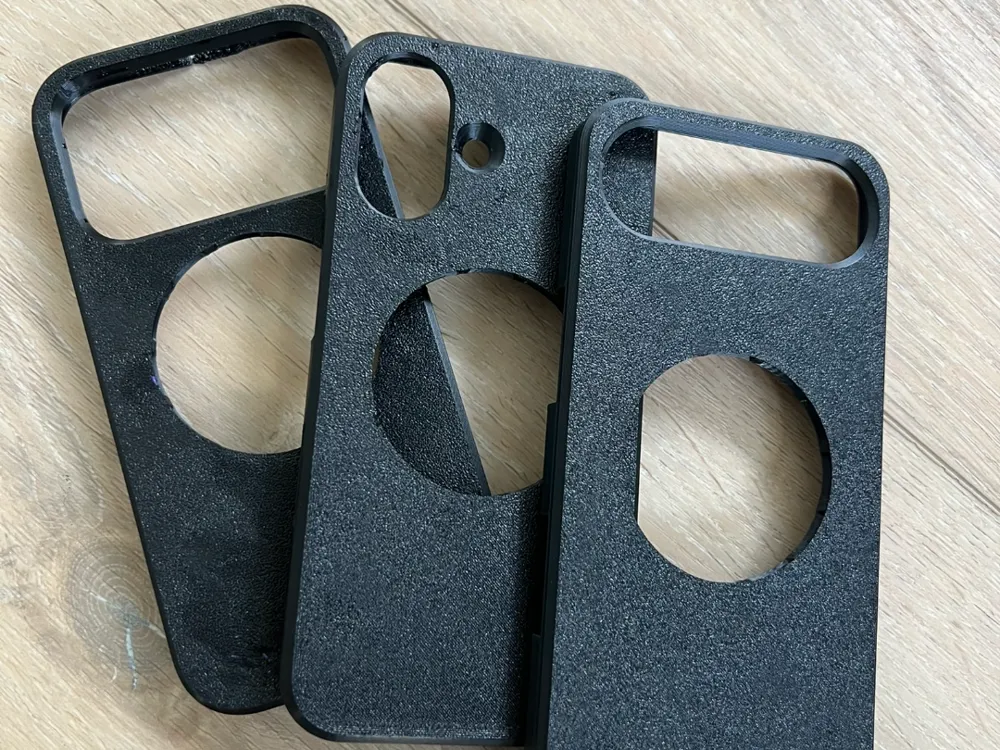

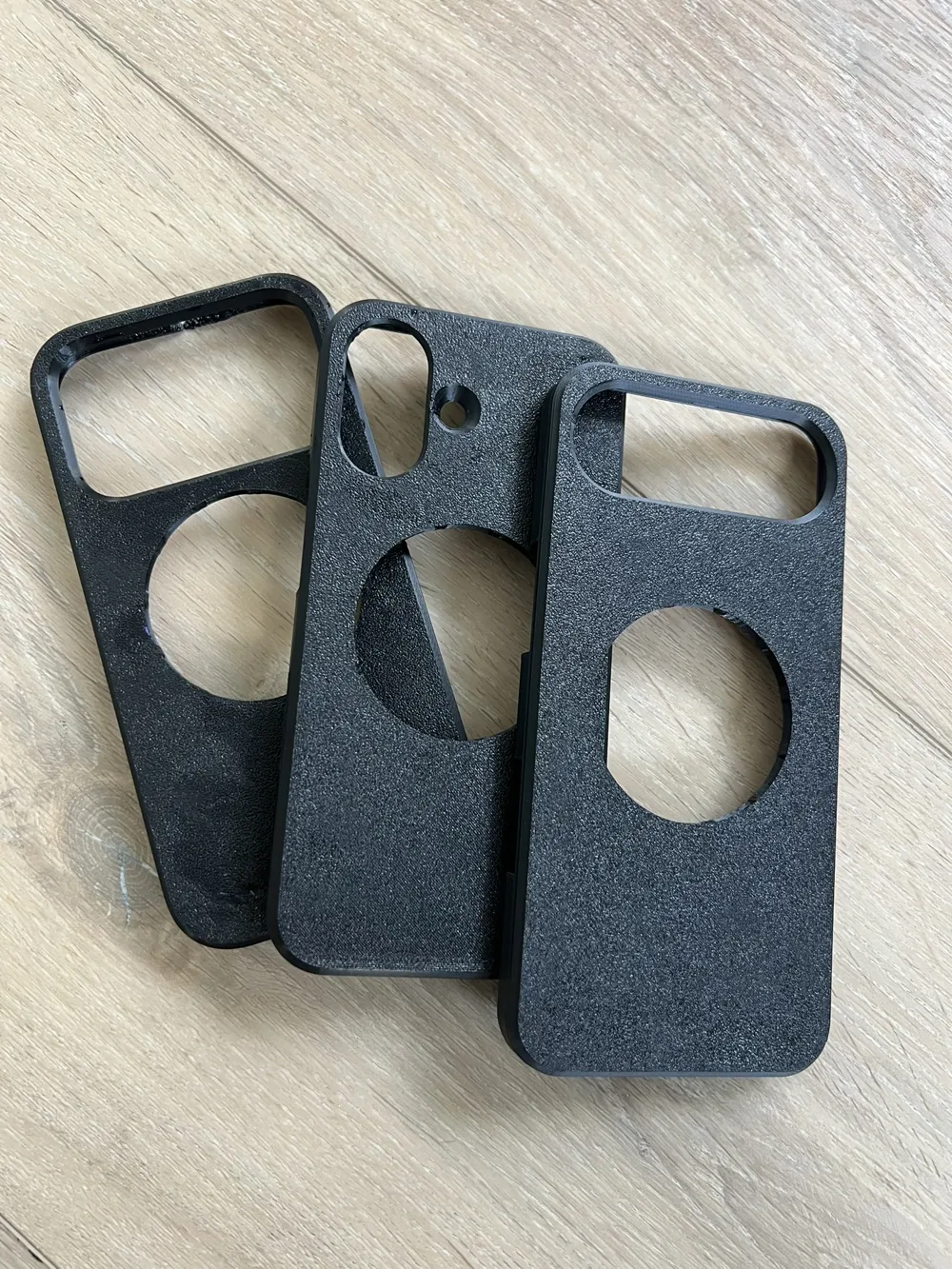

The three provided variants are:

1. Standard with Magsafe - Connects to the standard Hex Connect connector. Has a recess for mounting a thin Magsafe metal sticker with ID of 45mm and OD of 55mm.
2. Standard without Magsafe - Connects to the standard Hex Connect connector without the Magsafe recess.
3. XL - Connects to the XL Hex Connect connector. It's too thick for proper Magsafe functionality so no magsafe recess included.

Standard vs XL pros and cons:

Standard:

• Pros
  • Thin enough for proper Magsafe support (2 mm)
  • Slimmer case is more convenient for everyday use
  • Allows use with Magsafe mounts using a case-mounted metal ring
  • Probably stronger than you would expect :)
• Cons
  • Not as strong as XL

XL:

• Pros
  • Strongest connection for high-intensity activities
• Cons
  • Thicker case is less convenient for everyday use

  • Not Magsafe compatible



Visit this link for the Hex Connect base design files and for a list of all compatible Hex Connect accessories and cases: https://makerworld.com/en/models/1834578-hex-connect-base-design-files#profileId-1959313

For Hex Connect LLM support, refer your preferred chatbot to these instructions: https://pastebin.com/k16wtSSJ, then ask it whatever questions you have. If you have any questions it can't answer, or any requests for new Hex Connect designs, feel free to send me a chat message.
