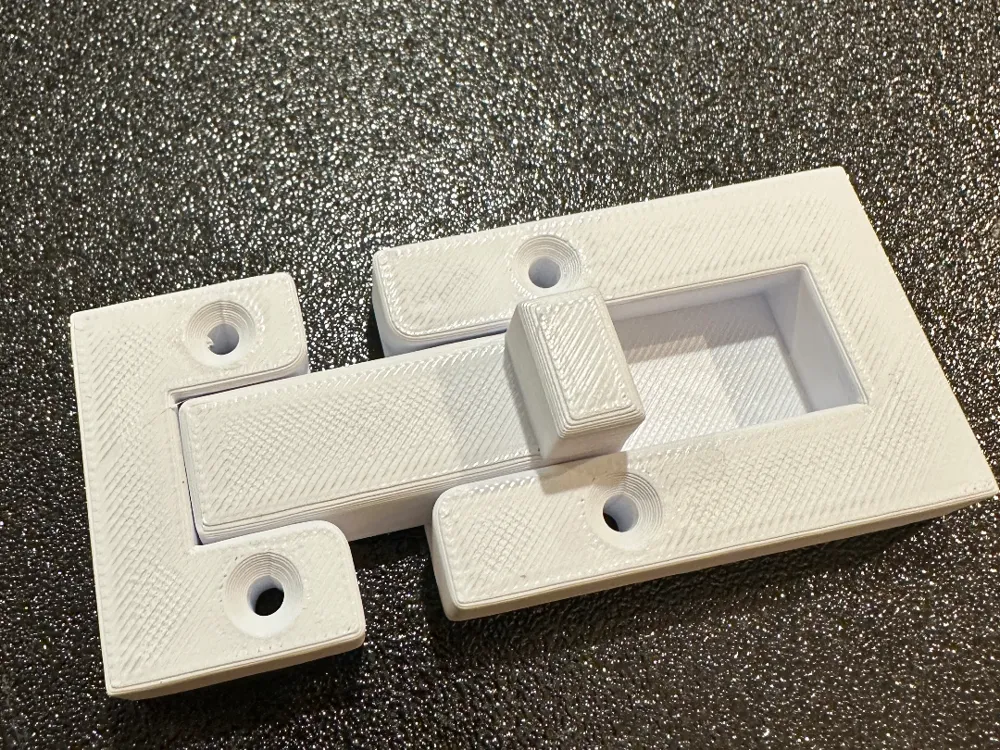

Magnetic Latch – 3D Printed Latch with Automatic Function
Description

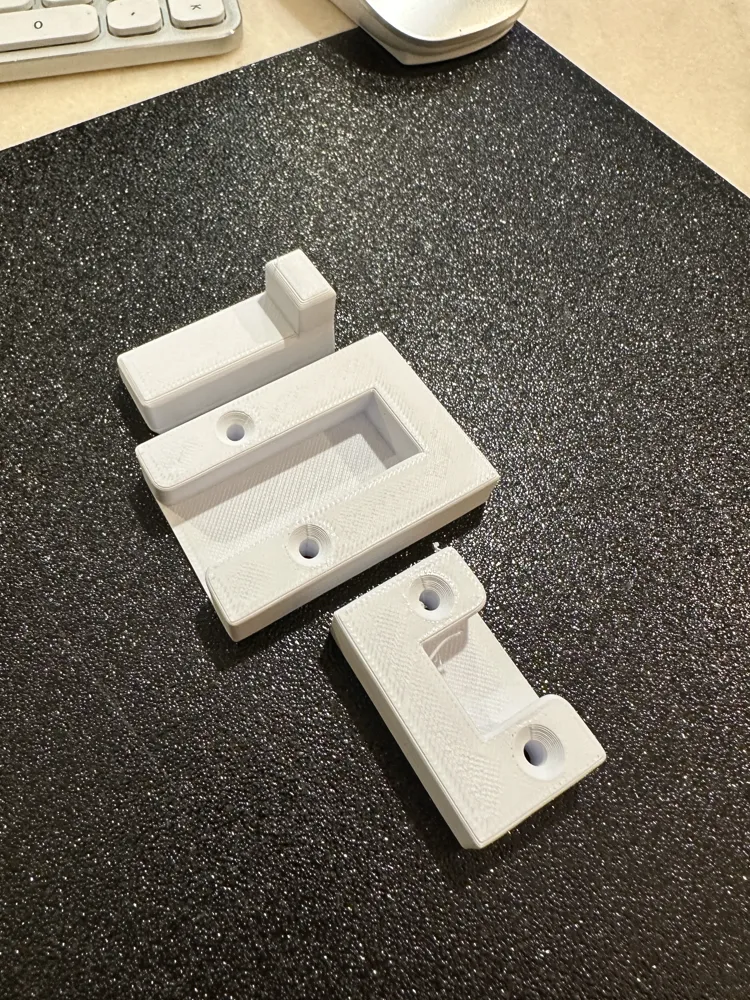

This latch consists of three 3D printed parts:
- Latch bolt (movable sliding element)
- Latch holder (guides the bolt)
- Latch receiver (counterpart into which the bolt engages)
Recesses for magnets (5 × 5 mm) are integrated into the parts. This allows the latch bolt to automatically engage left or right and stay securely in position.
Ideal for doors, flaps, boxes, or cabinets where a simple yet reliable latch is needed.
Print Settings
- Material: PLA for indoor, PETG/ASA for higher load or outdoor
- Layer height: 0.2 mm recommended
- Infill: 20–30%
- Support structures: not necessary
- Orientation: flat on the print bed
Special feature: Magnet insertion during printing

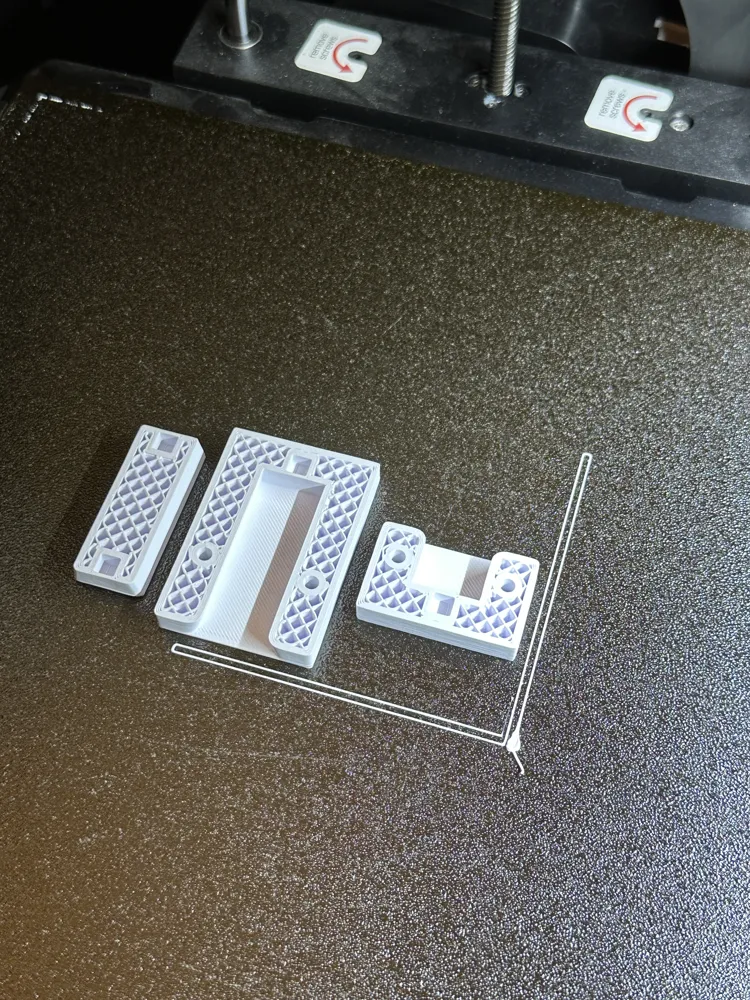

- Pause printing after Layer 37 and Layer 44

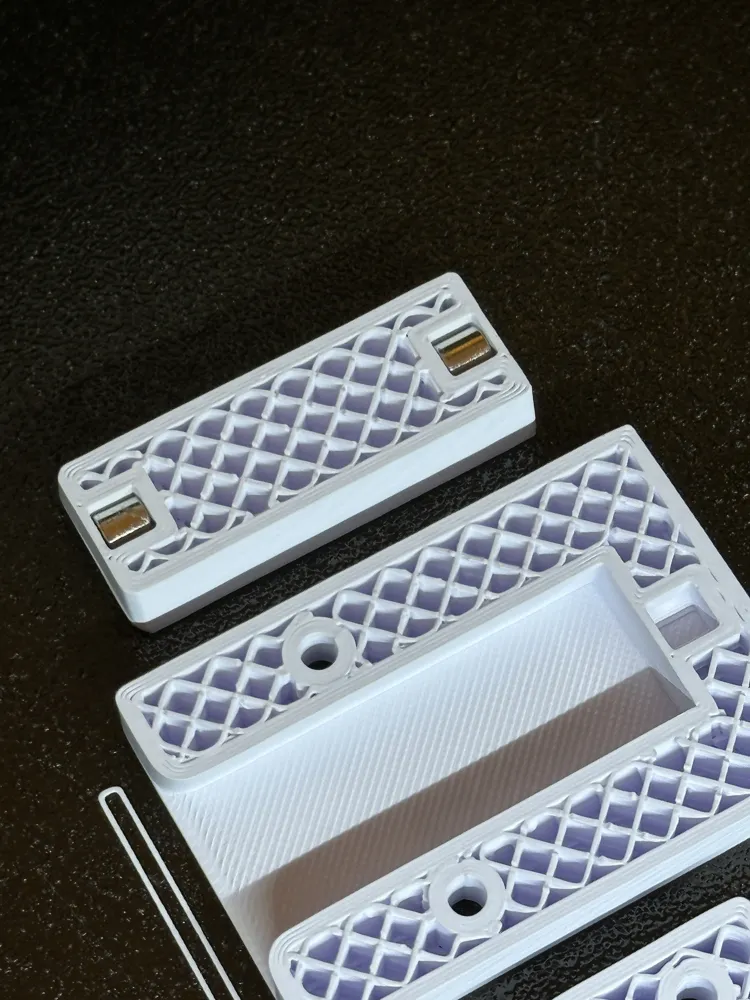

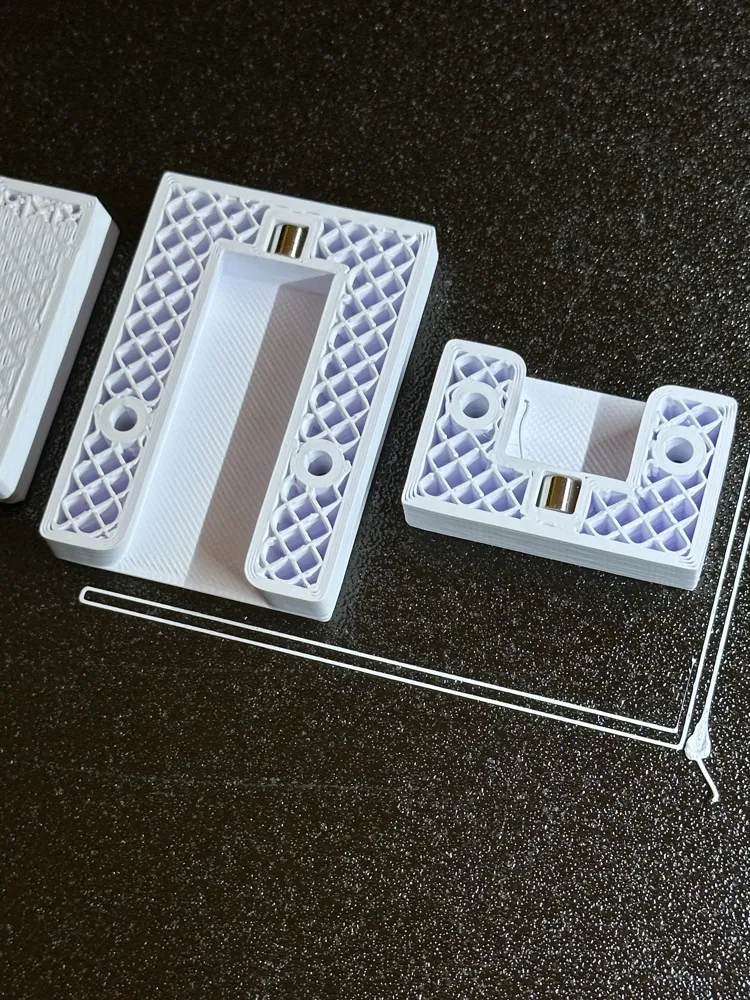

- Insert magnets (5 mm diameter × 5 mm length) into the recesses
- Resume printing – the magnets will be directly embedded
Assembly
- Attach the latch holder and latch receiver to the desired surface
- Slide in the latch bolt
- Done – the magnetic latch is immediately ready for use
