Bass Cube - Simple Full Range Bookshelf Speakers
Print Profile(1)
Description
Boost Me (for free)
If you would like to see more models like this, please consider giving me a boost!

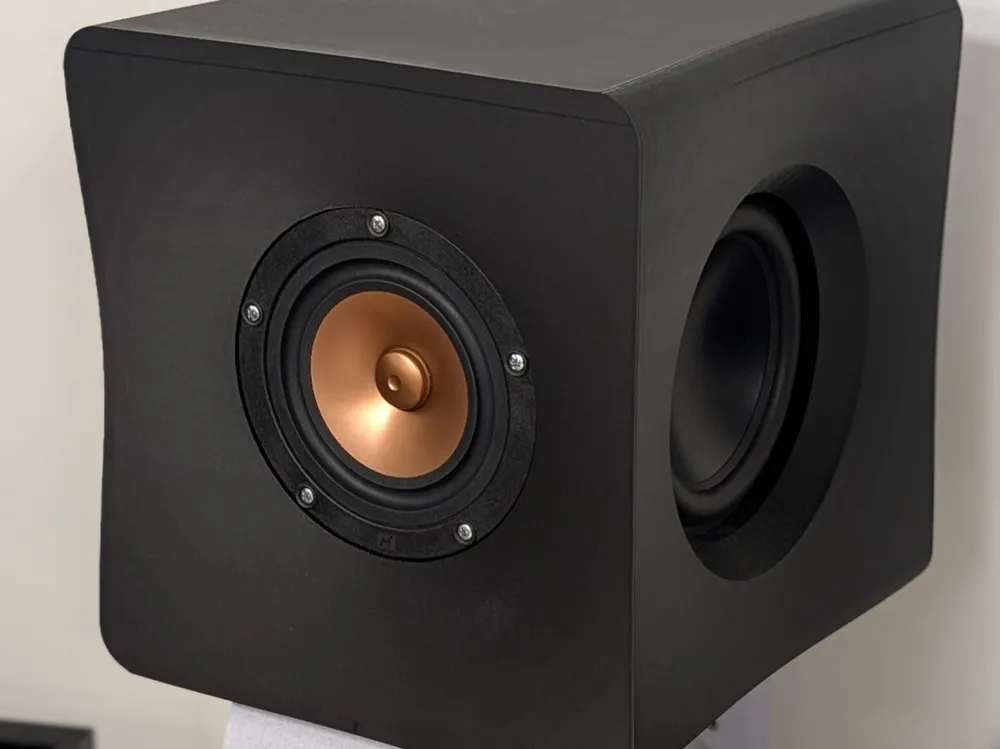

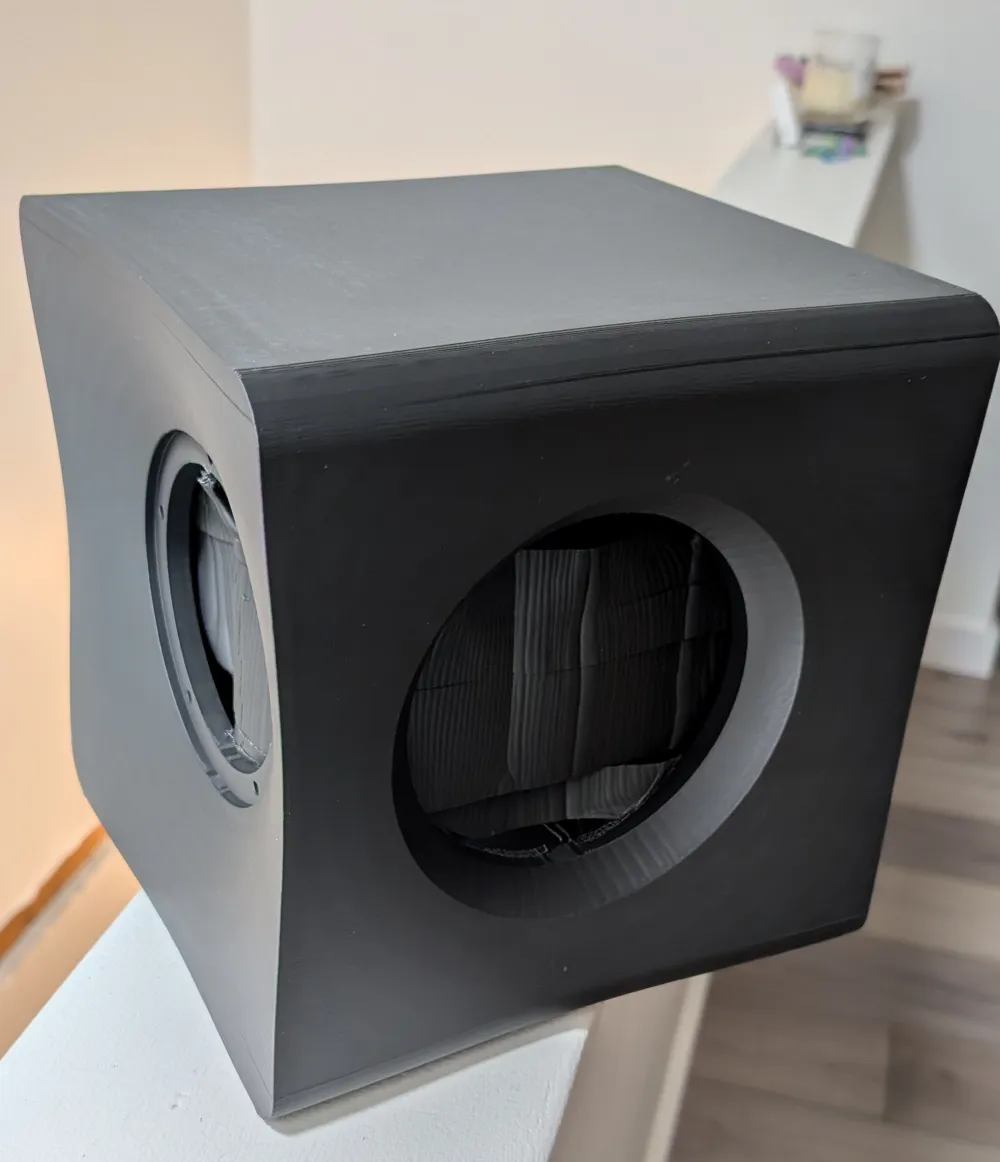

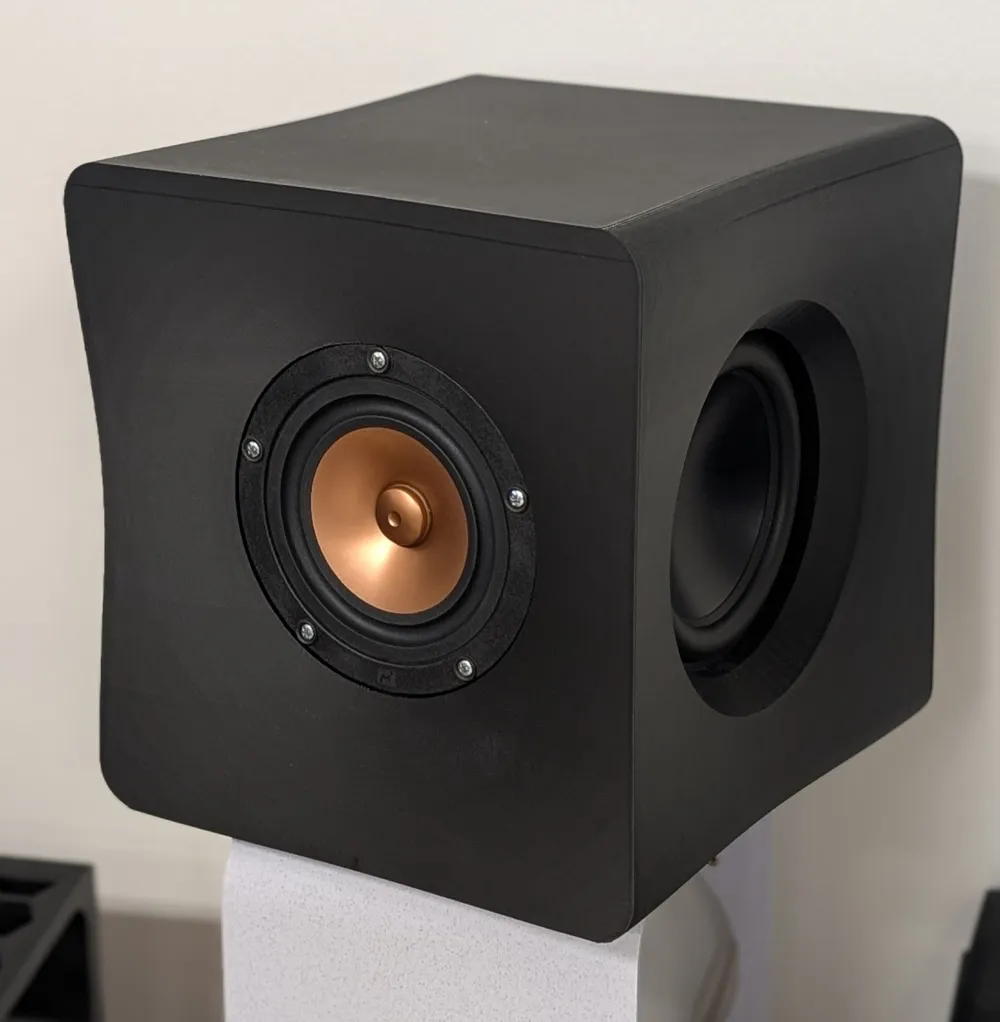

Full range bookshelf speakers in a simple design that does not require any crossover. This uses the Mark Audio Pluvia 7.2HD full range driver along with 2x Dayton ND140-PR passive radiators. With some EQ adjustments I've been able to get mine fairly flat down to ~45Hz (at the cost of some efficiency). I'm currently driving these with a Fosi V3 stereo class-D amp and a Topping DX1 DAC and it's my nicest sounding desk setup so far.

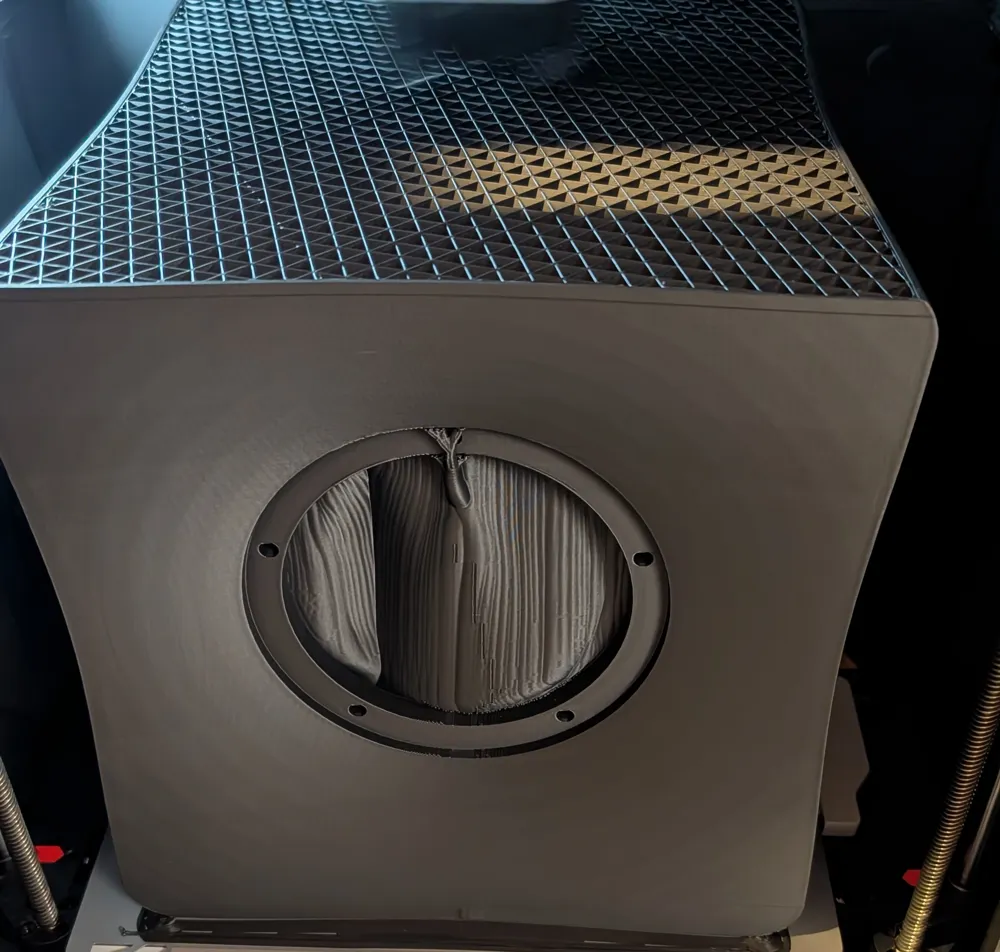

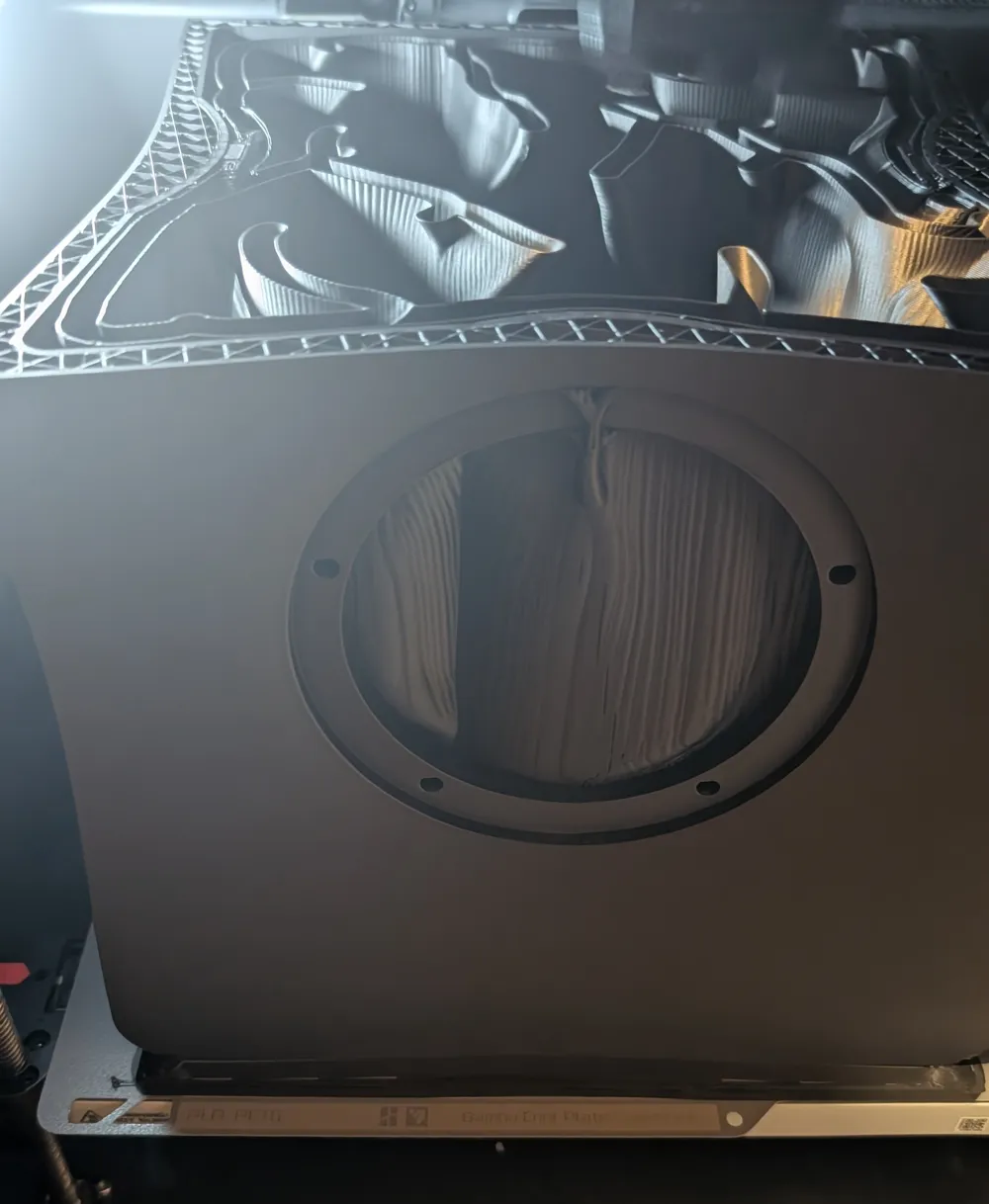

I printed mine using the Supertack build plate since parts this large can have warp or adheision issues even with PLA. I recommend printing this with a freshly cleaned bed and if you're not using Supertack, definitely use some adhesive.
Parts List:
Mark Audio Pluvia Seven HD 4" Full Range Driver (Chrome or Gold)
Dayton Audio ND140-PR 5-1/4" Aluminum Cone Passive Radiator
Mini 5-way Binding Posts
https://www.amazon.com/gp/product/B077ZLG2J4/ref=ppx_yo_dt_b_asin_title_o09_s01?ie=UTF8&psc=1
M3 heat press inserts:
https://www.mcmaster.com/products/heat-sets/thread-size~m3/
Some form of damping material. (for example: https://www.parts-express.com/Acousta-Stuf-Polyfill-1-lb.-Bag-260-317?quantity=1)
