🚀 Xinyi SK120s Adjustable Power Supply Enclosure Model
A 3D printed enclosure specifically designed for the Xinyi SK120s module, supporting Type-C/DC5.5 input, integrating PD decoy, WiFi module expansion, and temperature sensing functions, suitable for electronics enthusiasts and DIY makers.
📁 Model File Description
- plate 1 display model (not printable): Used for overall structure and assembly reference; it is recommended to view first to understand component layout.
- plate 2 printable model: Contains all actually printable parts, ready for production.
🔧 Structural Design and Assembly Guide

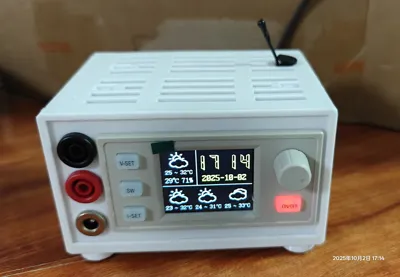

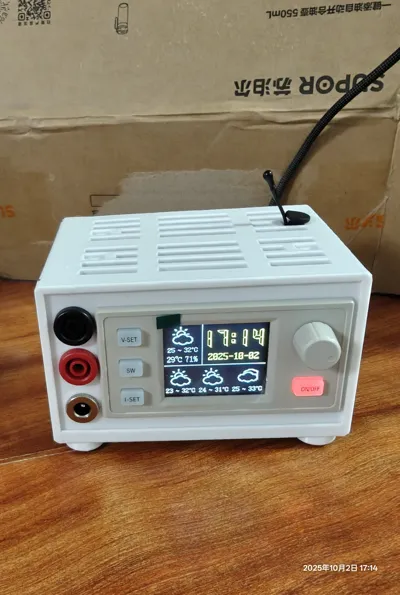

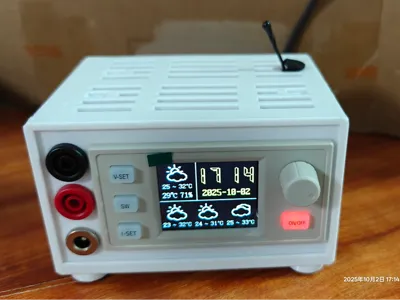

Front Panel
- Features a slide-out design, secured with 4 M2.6×6×5 self-tapping screws on the sides for easy installation.

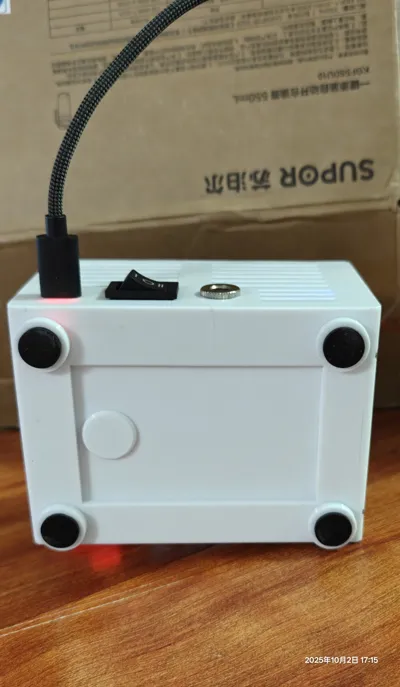

Bottom Design
- Features a 10mm hole and 4 M3 screw holes.
- Flexible expansion: Can accommodate a lithium battery or embed 4 12mm diameter, 3mm thick round anti-slip pads.
- Assembly method: Secured with M3×4×5 knurled nuts + M3×5×6 flat-head screws.

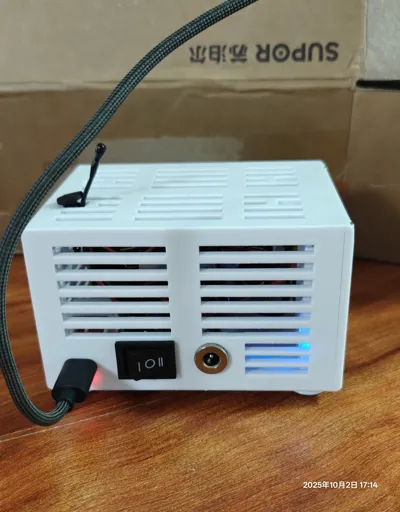

Power Input Module
- Controlled by a 15×21mm 3-position 6-pin rocker switch, supporting Type-C and DC5.5 dual power inputs.
- Type-C PD decoy function: Adjustable via DIP switch, allowing direct power supply from a mobile phone charger (keywords: PD decoy DIP switch adjustment).
- Note: It is recommended to reinforce the PD decoy's fixed cover with glue (suggestions for better fixing solutions are welcome).
Extended Functions

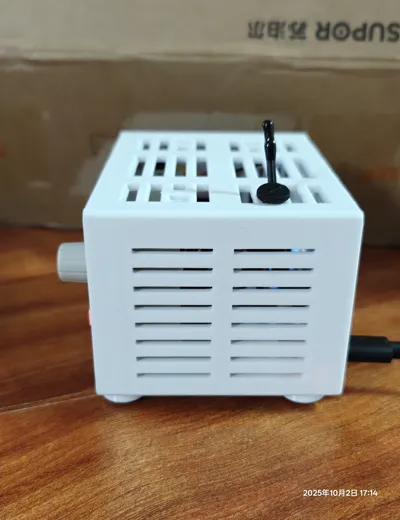

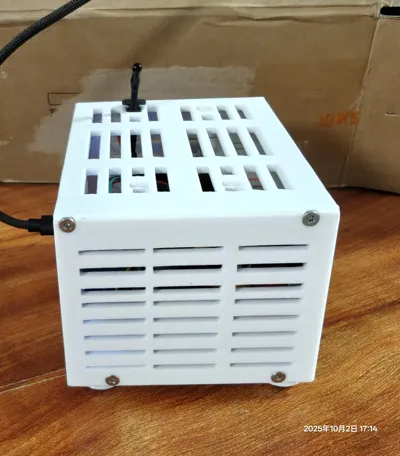

- Side cover: Reserved space for WiFi module installation, facilitating IoT function expansion.

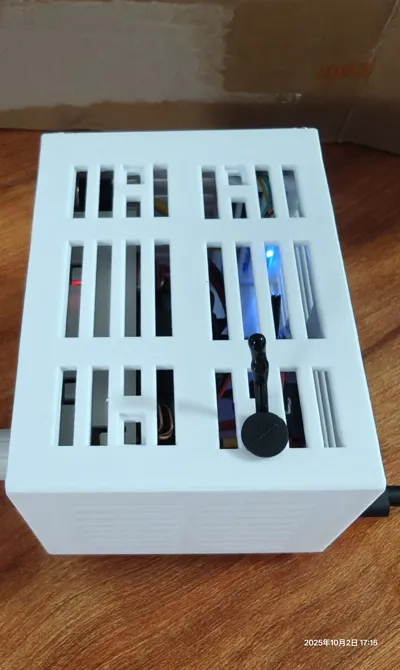

- Top: Dedicated cutout for temperature sensor installation, allowing for real-time temperature monitoring.
💡 Usage Suggestions and Open Source Protocol
- This model is open-source and shared; any form of use, modification, and re-creation is welcome.
- If you have made interesting modifications based on this model, we eagerly await your sharing.
- Most importantly: have fun!
