A1 Panda Knomi Extruder Cover

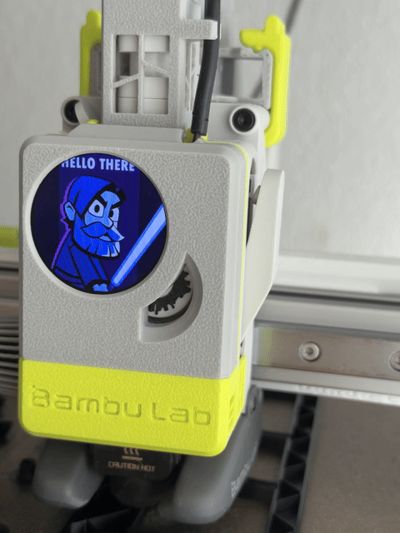

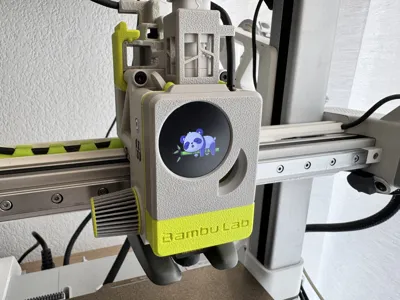

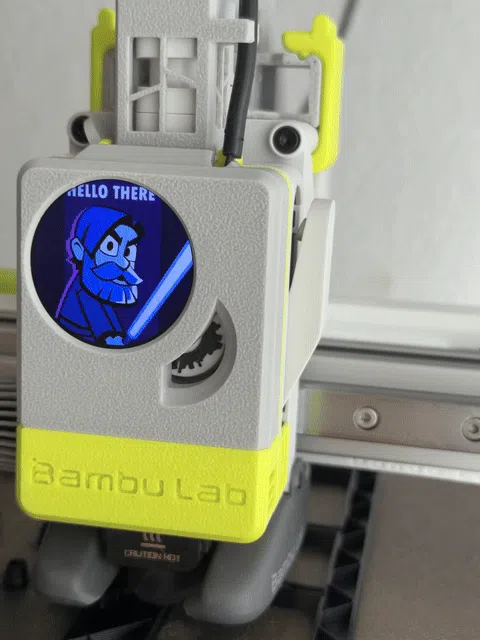

The only print head cover for the Bambu Lab A1 and A1 mini, which combines both the Biqu Panda Knomi screen and a window for the extrusion wheel

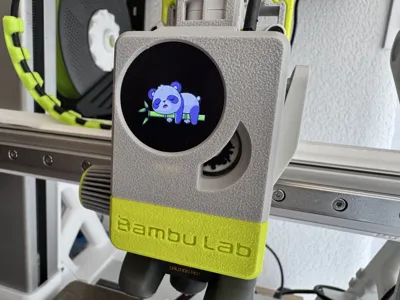

I didn't want to lose the nice option of keeping an eye on the extrusion wheel, which is why I designed this cover with a half-moon window, providing access to the extruder wheel
I recommend replacing the wheel with a thinner printed wheel (3.65mm recommended, compared to 4.25mm for the original) like this one

https://makerworld.com/fr/models/1849306-roue-d-extrudeur-city#profileId-1976570

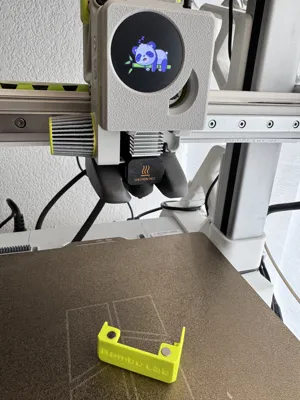

The cover is printed completely flat to maintain its maximum quality


3-part model

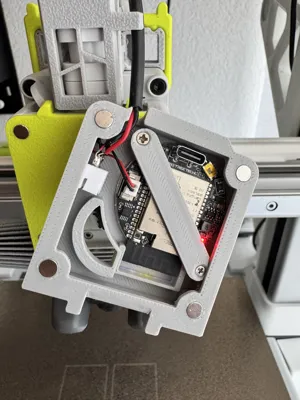

-The back plate attaches to the body, remains in place, and accommodates 4 magnets of 5 x 2mm,
-The main body accommodates the Biqu Panda Knomi screen and is held by 2 M2 x 4mm screws
-The Hotend cover with Bambu Lab logo requires 4 magnets of 6 x 3 mm

Printing is done with no supports

also find the A1 print head kit here : https://makerworld.com/fr/models/1849199-a1-extruder-kit#profileId-1976450

Requires 8 magnets of 5 x 2 mm, 4 magnets of 6 x 3 mm, and 2 M2 screws

Thank you

EDIT : I made a modification to the rear attachment of the Panda Knomi, which was blocked by the edge of the main cover.
The modification corrects this problem, you will find it in the 2nd print profile
