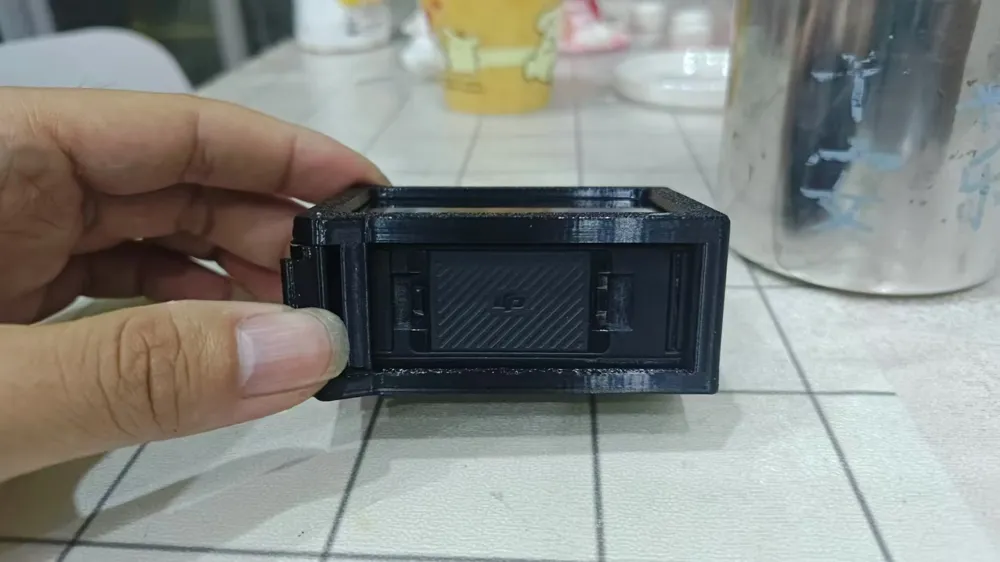

DJI Action 3 Camera Cage
Print Profile(1)
Description

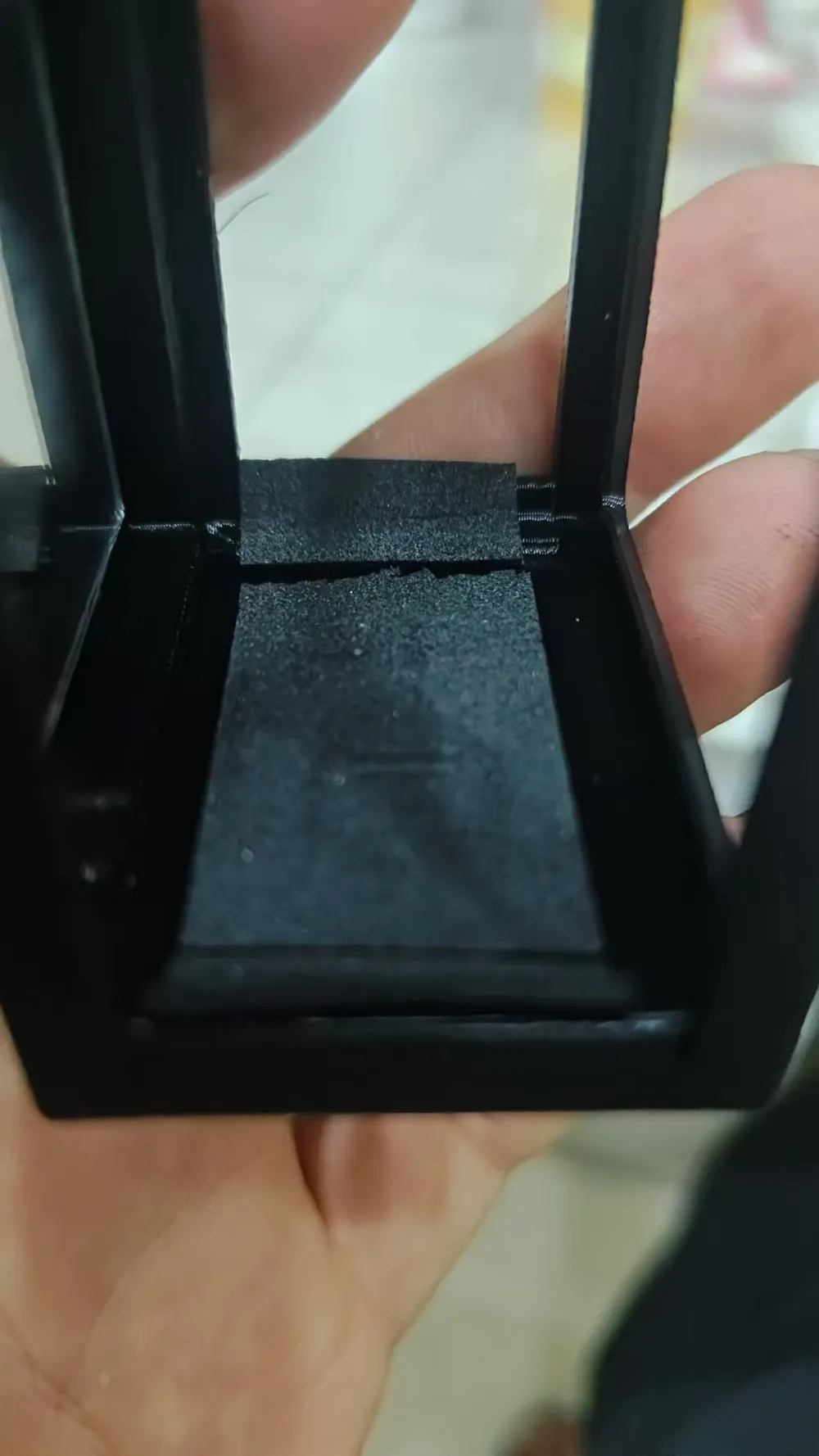

This is the camera cage I designed. Most on MakerWorld are made of TPU flexible material, but I only have PETG on hand. There is some allowance left inside the cavity for filling with 1MM single-sided foam tape. If not available, you can use 3 layers of electrical tape instead.
Additionally, a 1.0mm metal rod is needed (the design aperture is 1.5mm, but due to printing accuracy issues, only 1.0mm can be inserted). I used pure metal paper clips from a stationery store, straightened and cut with pliers.
Additionally, a 1.0mm metal rod is needed (the design aperture is 1.5mm, but due to printing accuracy issues, only 1.0mm can be inserted). I used pure metal paper clips from a stationery store, straightened and cut with pliers.
Additionally, a 1.0mm metal rod is needed (the design aperture is 1.5mm, but due to printing accuracy issues, only 1.0mm can be inserted). I used pure metal paper clips from a stationery store, straightened and cut with pliers.

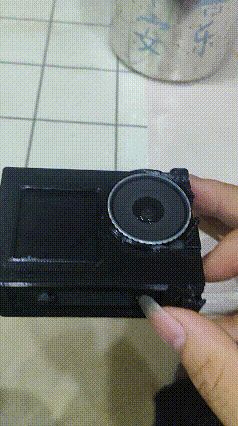

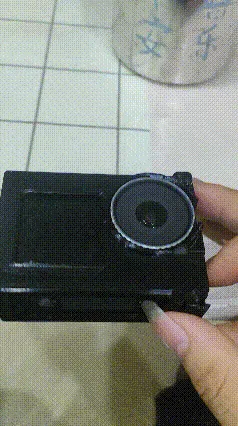

There's also an animated image showing how to use the quick-release buckle. Do not force it, it's designed to prevent accidental release; forcing it will break it. You need to push up with your thumb against the corner of the metal shaft below, then use your index finger to detach it.
