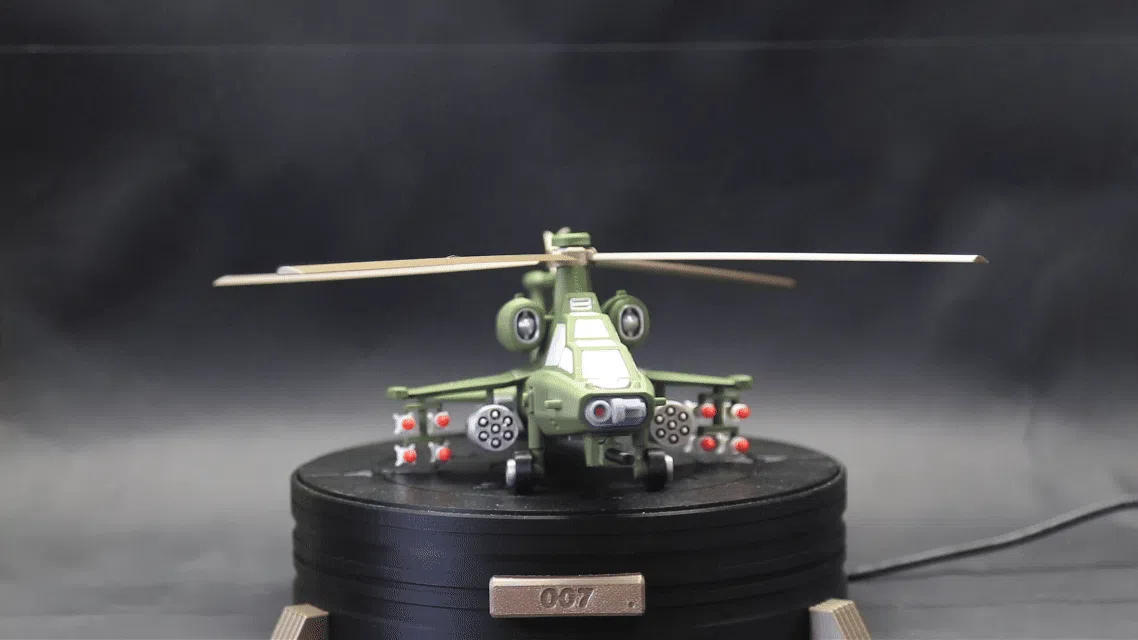

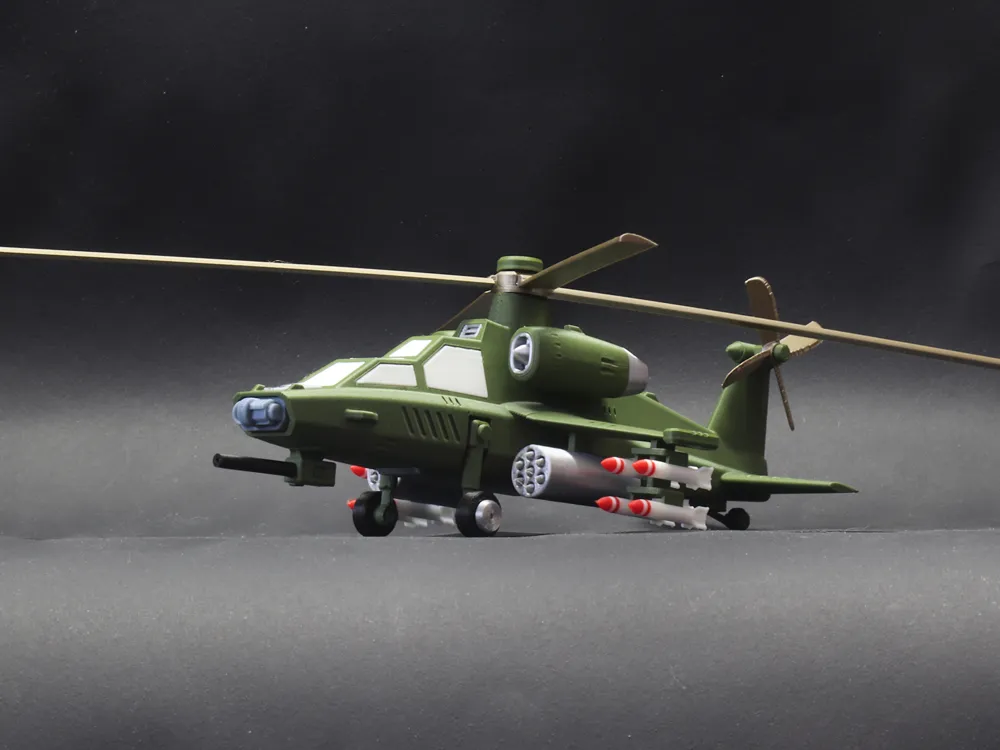

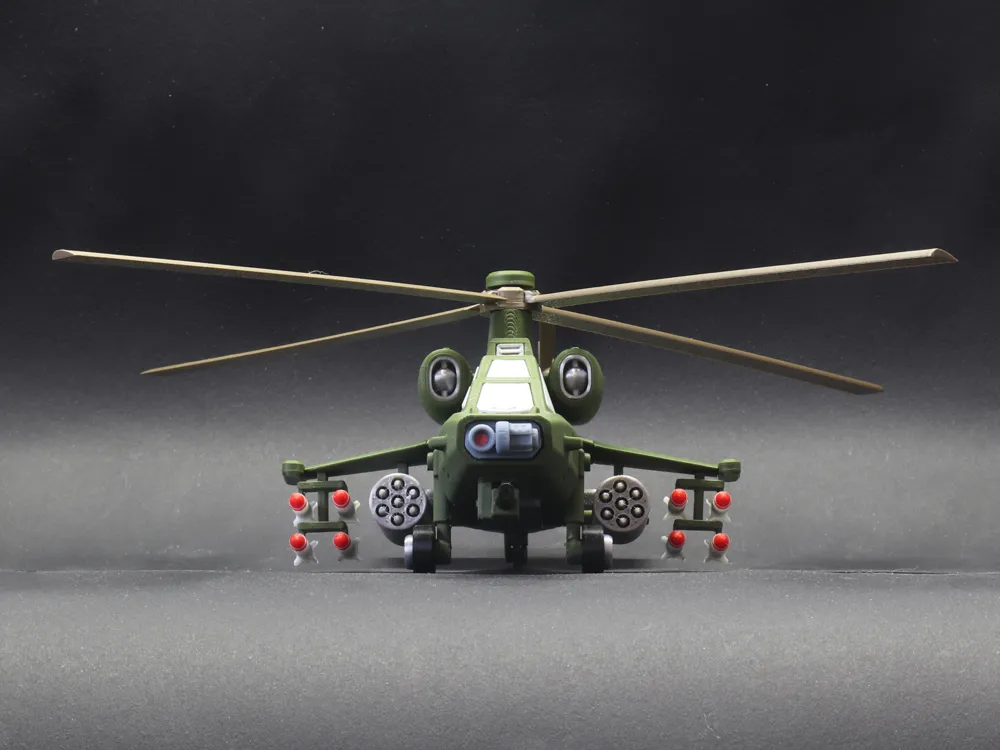

TF-06 Osprey Armed Helicopter Army Aviation Version (pre-plated, no hardware needed)

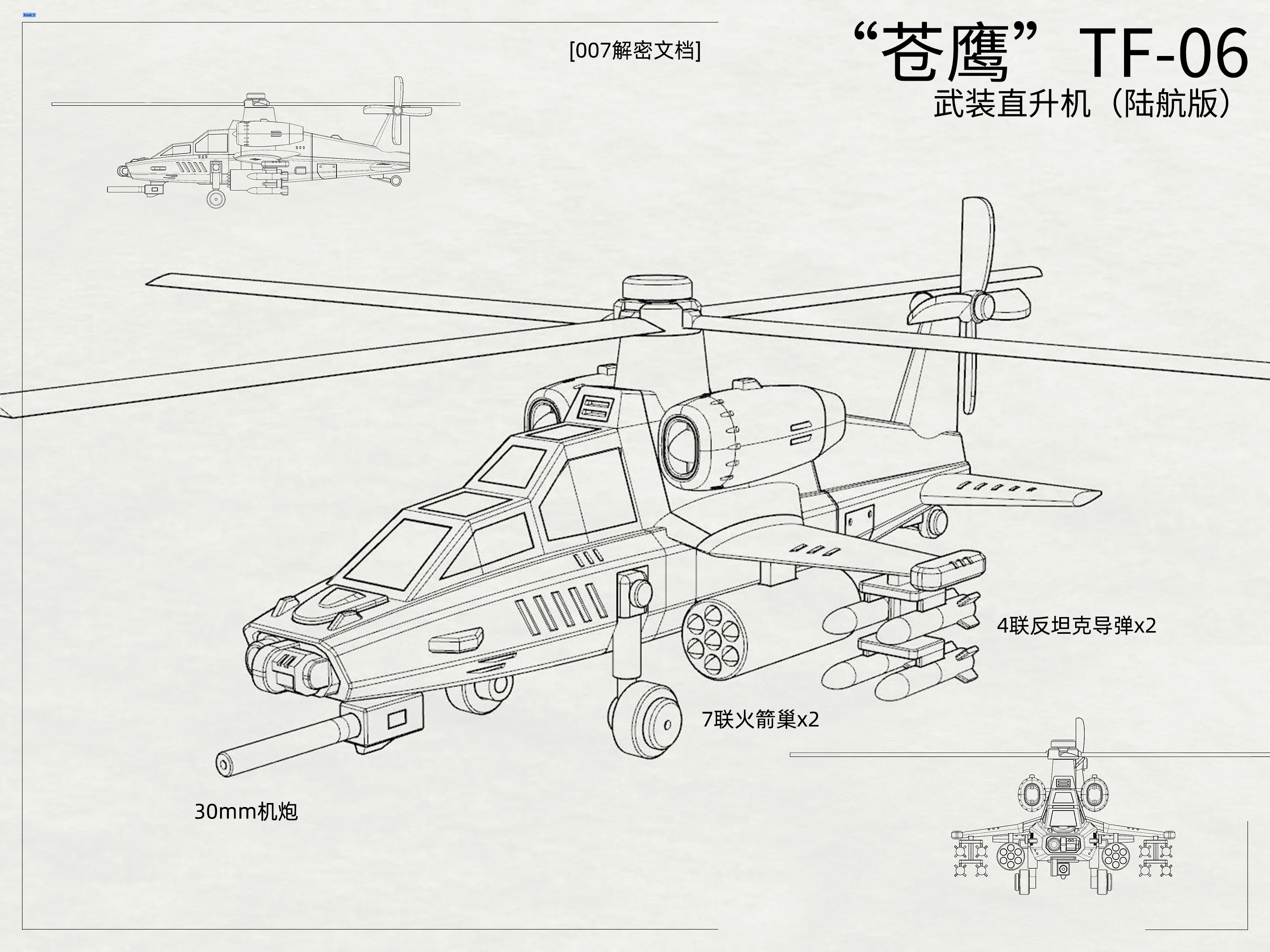

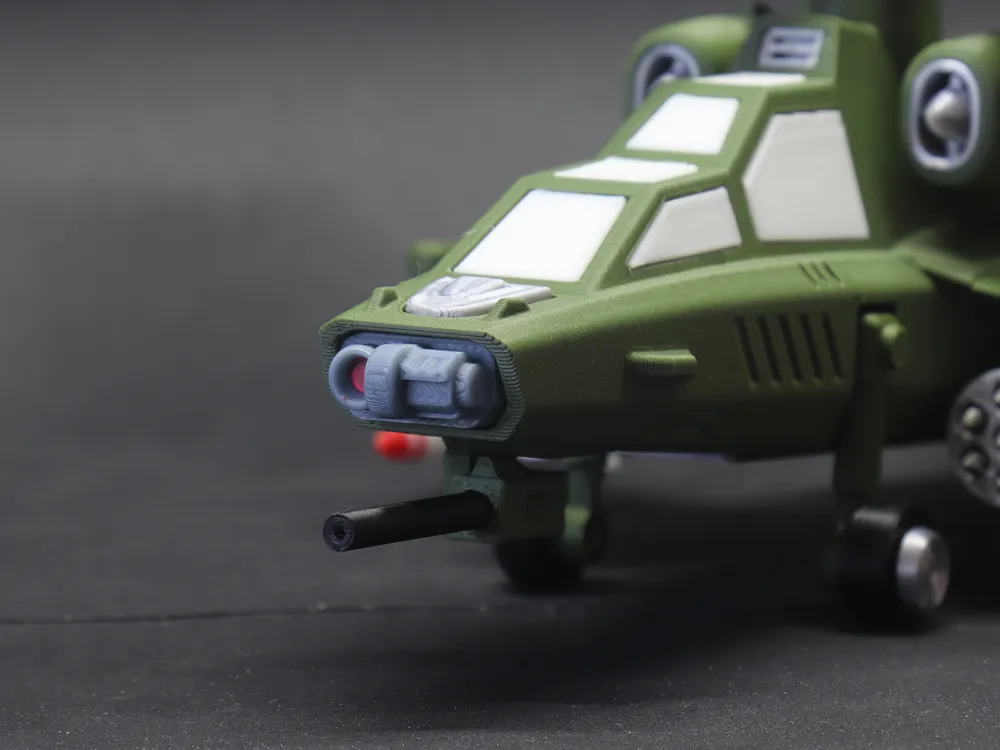

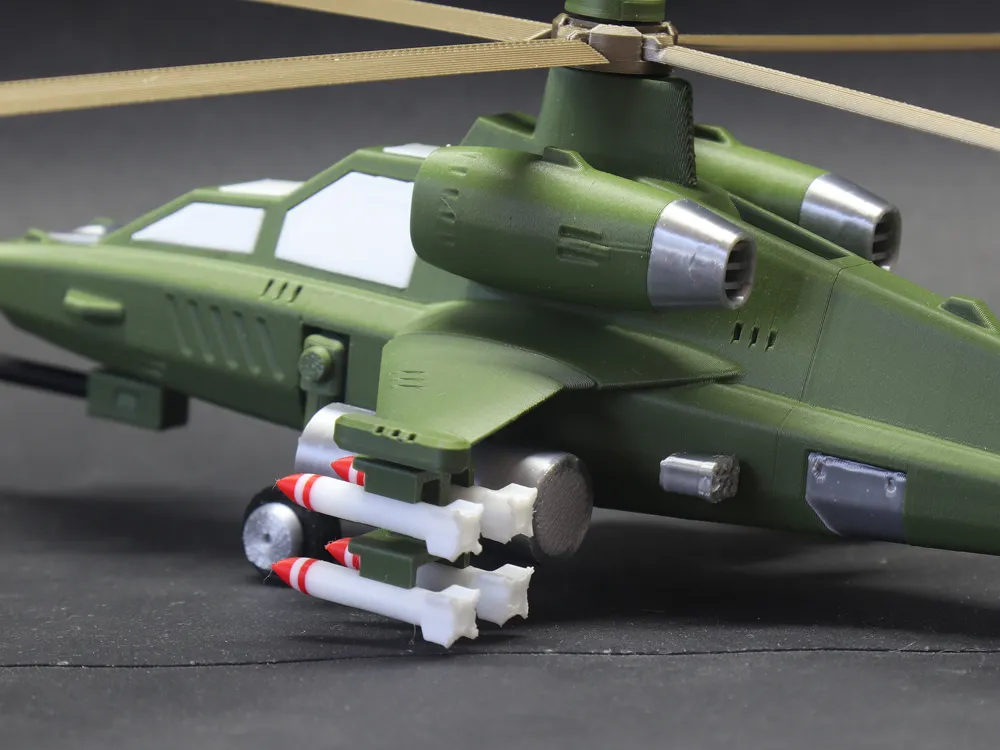

This is one of the aircraft from my original weapon vehicle trilogy's air combat series, code-named TF-06, Chinese name "Cang Ying". It is an army-specific armed helicopter from a parallel universe, primarily designed for ground fire support, reconnaissance, and assault missions. It is equipped with a 30mm cannon and can carry a total of 8 anti-tank missiles and 2 rocket pods under its left and right wings. The aircraft has an operational range of nearly 500 kilometers. The fuselage features a traditional rear-triangular fixed landing gear configuration for easy maintenance. (The above are my performance parameter settings for this aircraft, for entertainment purposes only, haha).

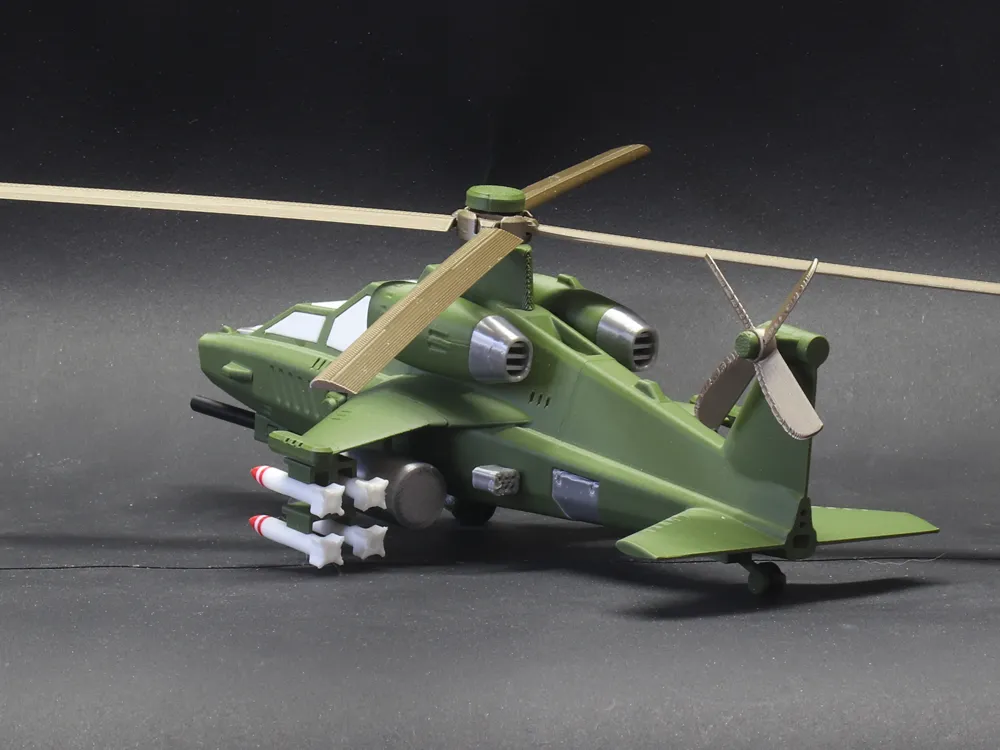

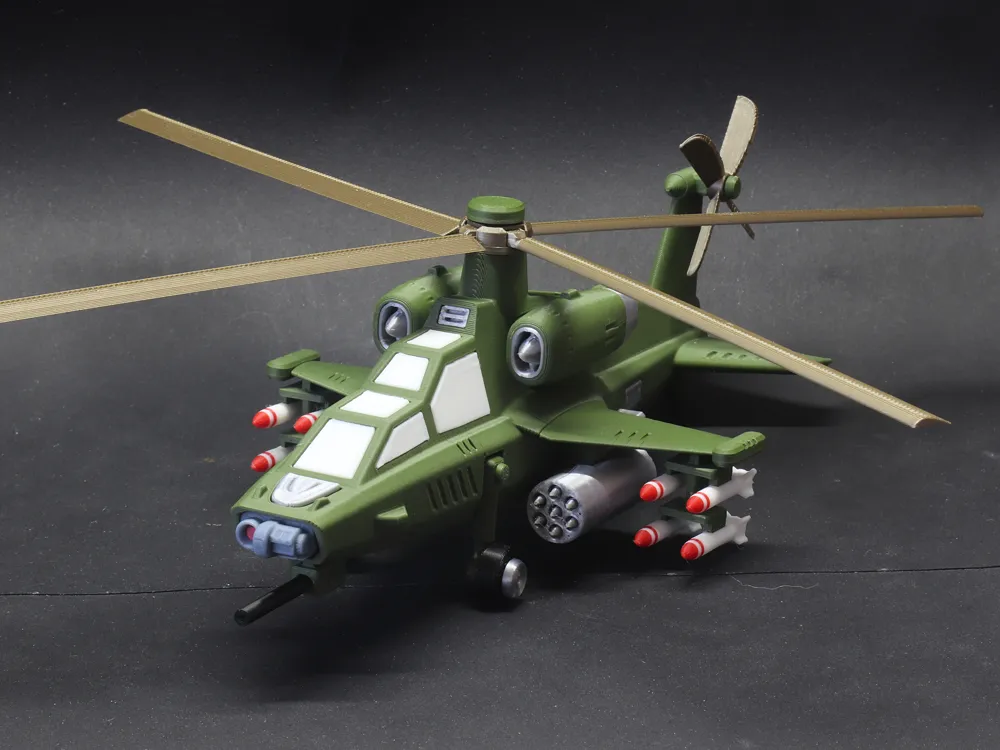

Model dimensions: fuselage length 184mm, width 105mm, height 73mm. The overall propeller diameter is 258mm. It has been split, and all parts are printable.

Tools used

• Tweezers
• Needle-nose pliers
• Glue

Notes

• The propeller of this model cannot rotate freely, as designing it to be rotatable would compromise the overall proportions, so aesthetics were prioritized
• The model parts are small, so please be careful when removing them from the 3D Printer to avoid loss or breakage
• All parts, except for the tires and propeller, require glue for assembly

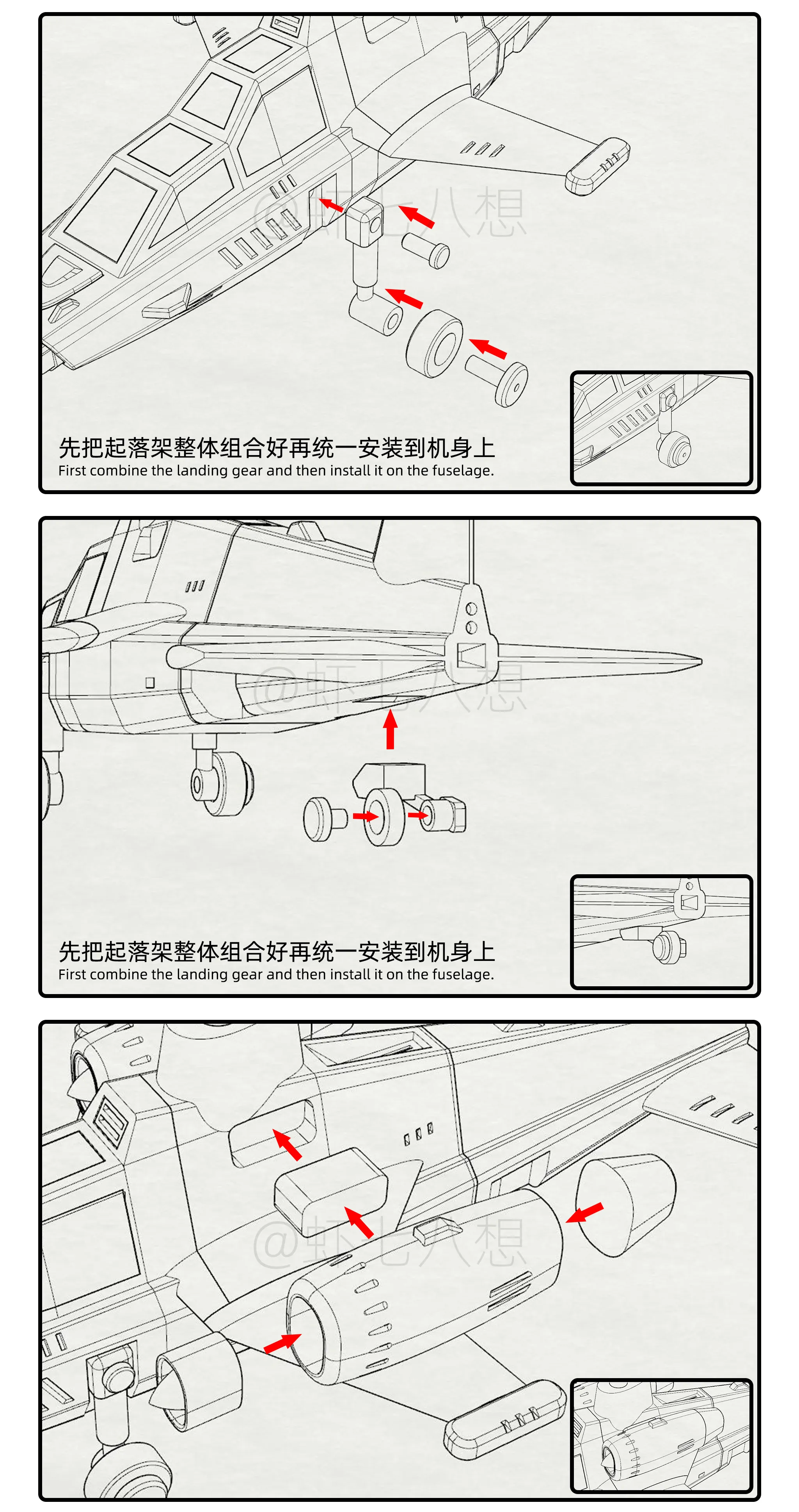

• The rear landing gear axle is quite thin, so please be careful during installation
• Before printing, please clean the build plate, ensure the filament is properly dried, and perform flow rate calibration

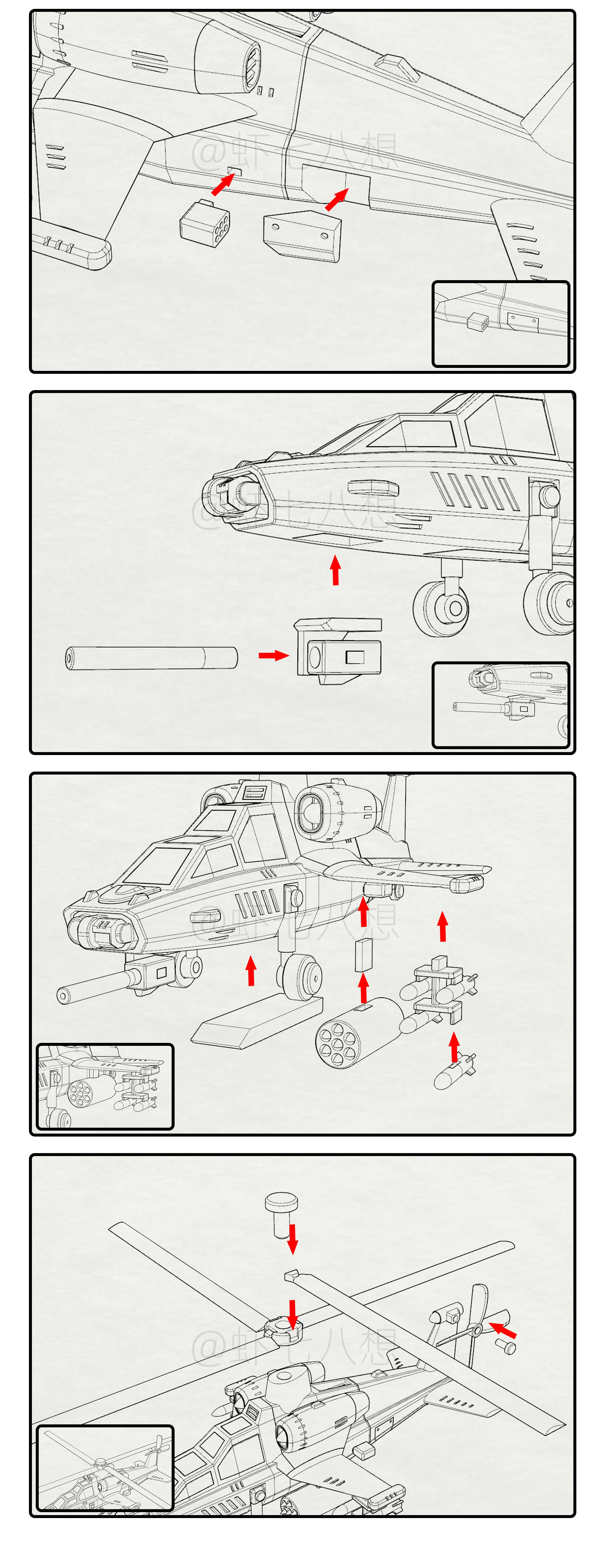

• This model has many parts, please assemble according to the instructions
