Laptop cooling stand - compatible with Xiaomi air purifier, 14-inch laptops can use it (mini also compatible)

Some friends asked me to add a fixed buckle to prevent left and right movement, always willing to listen to advice

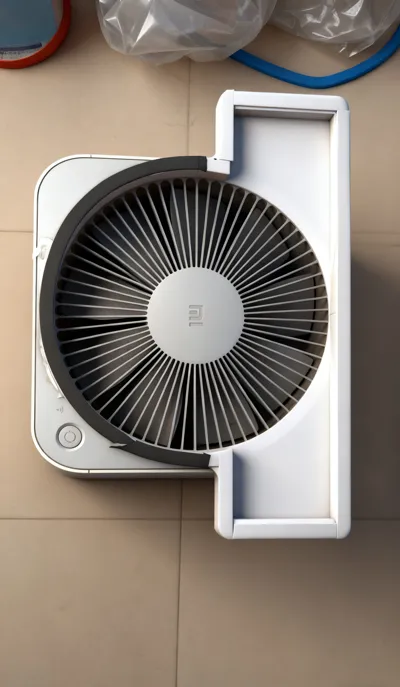

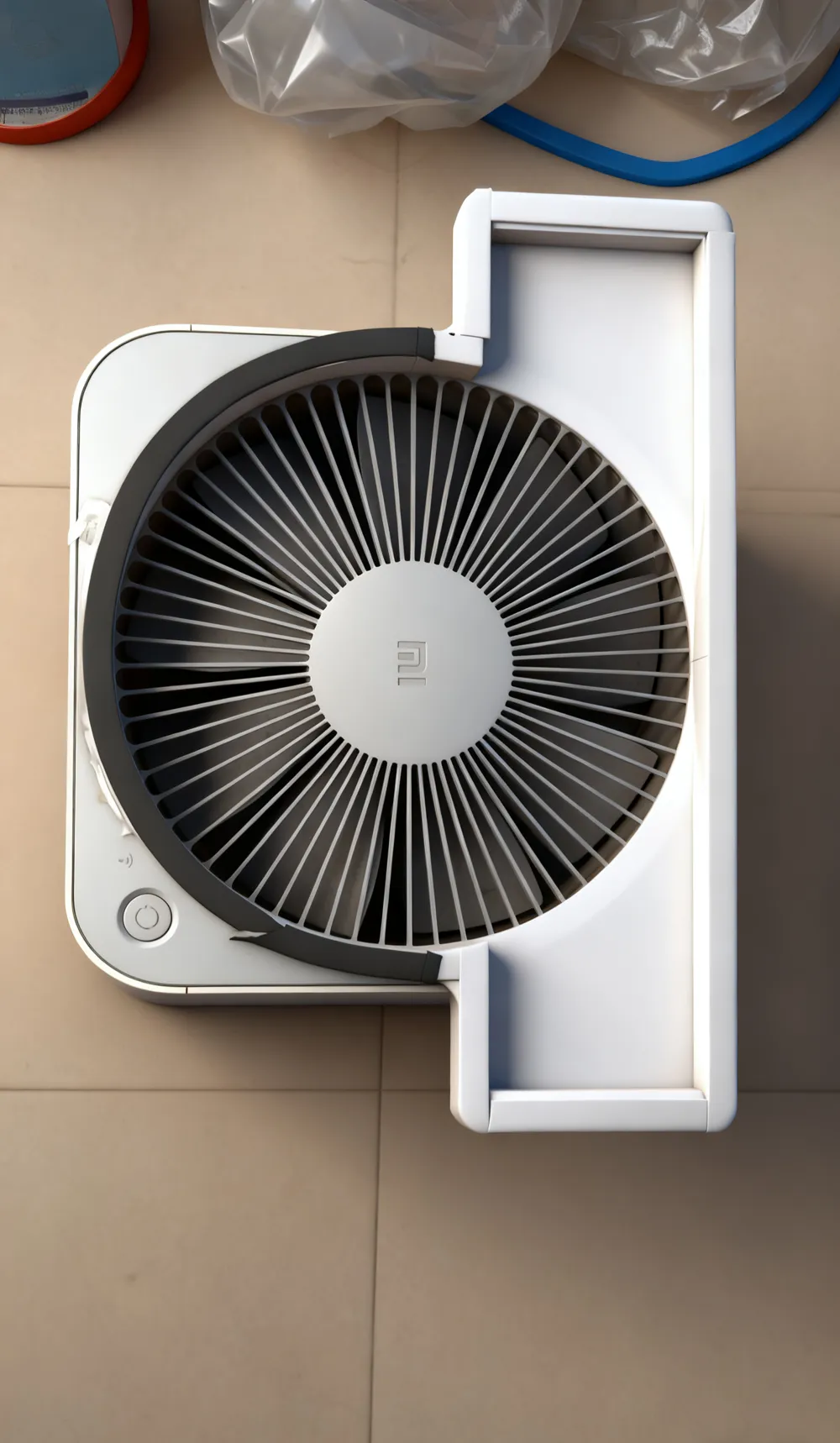

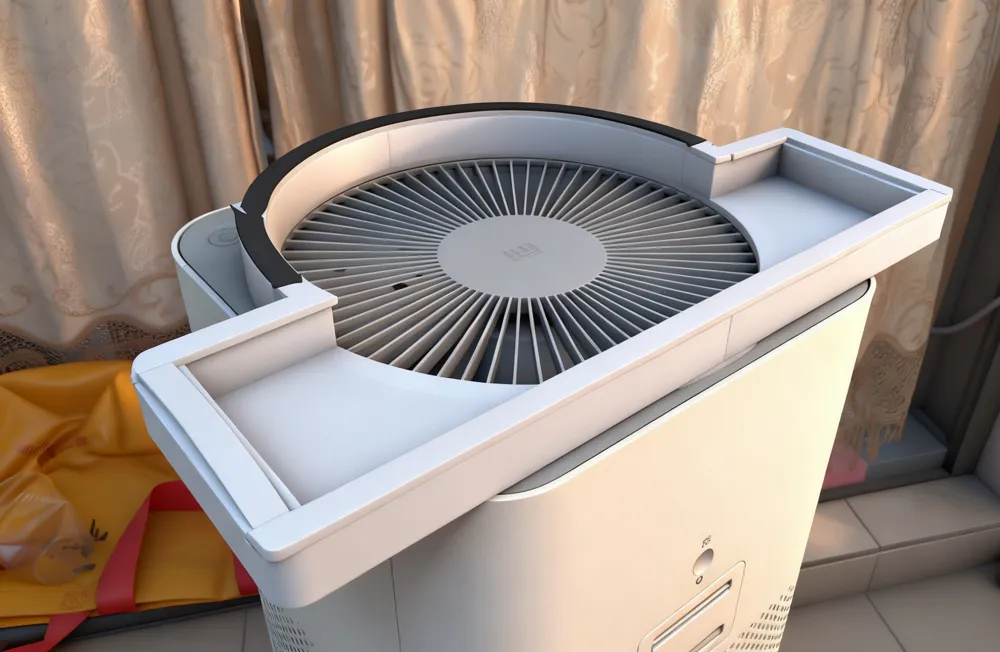

With buckle fixing, it supports Xiaomi Air Purifier 1st generation, 2nd generation, and 2S

It is recommended to use PLA, the assembly tolerance is based on the filament, I printed it with an A1 mini, and it just needed a hammer to tap it in,

If using PETG, the buckle might be a bit loose due to sinkage rate issues, you can fine-tune the retraction during printing, but printing it directly is also fine

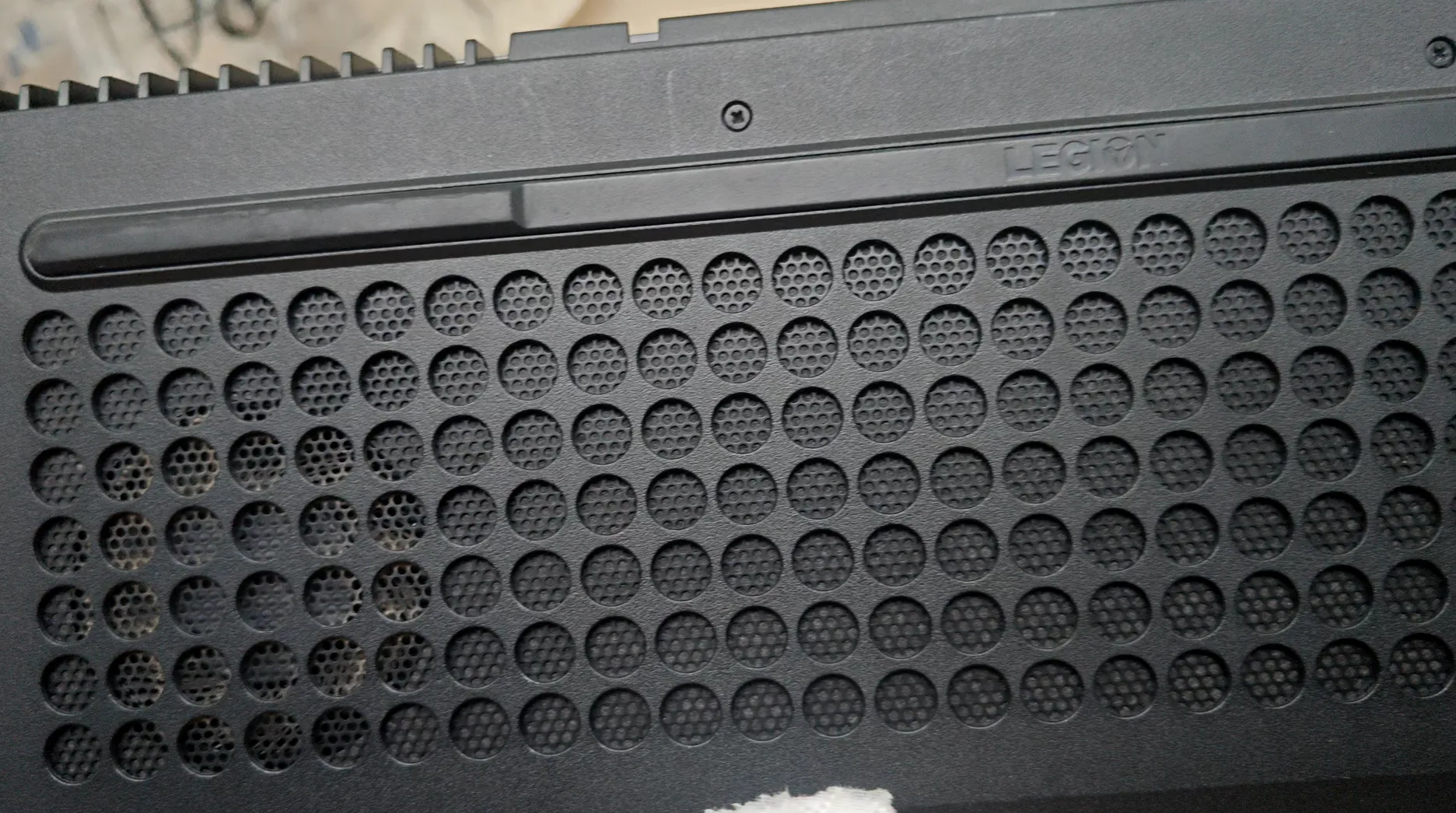

Can you believe it? This is a computer that has been running for several years, over 20,000 hours, never turned off, and has very little dust behind it

I've never opened it up to clean the dust, and some of the dust on it is from when I took my laptop home for Chinese New Year to play games

I've always used my Legion gaming laptop as a desktop computer, so I designed this stand at that time

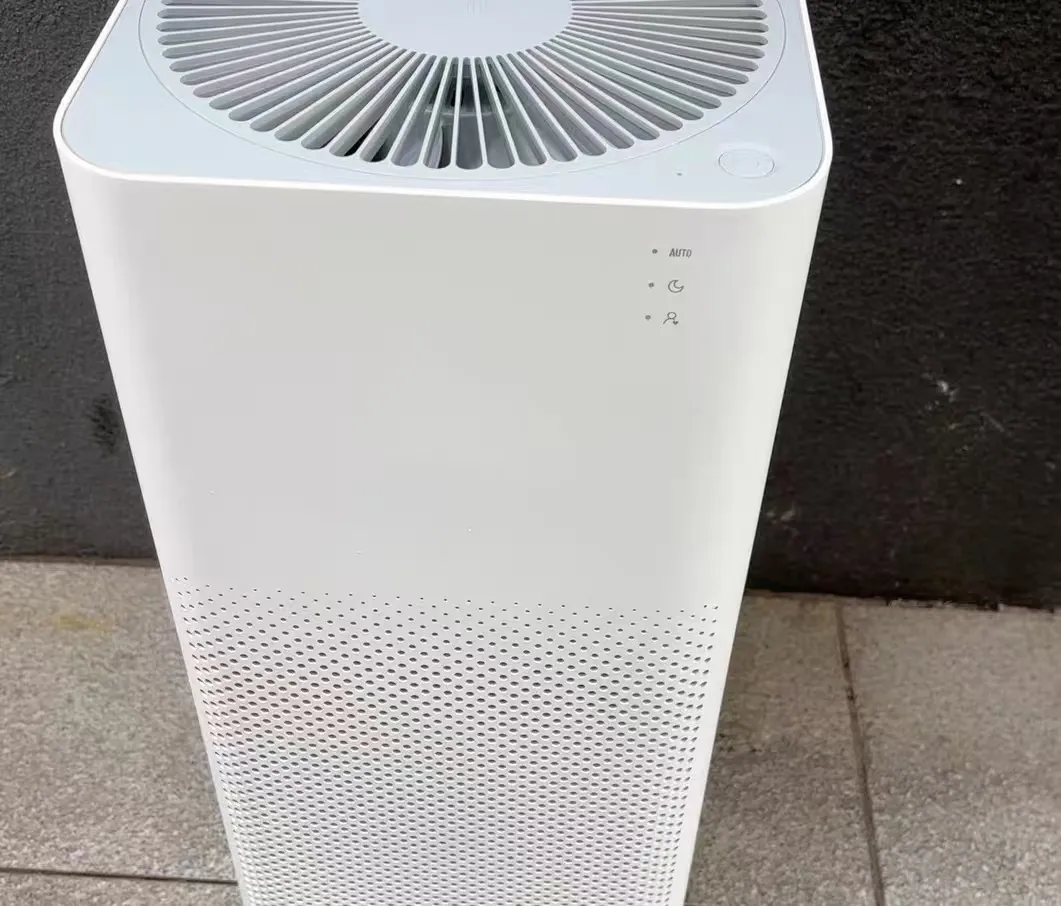

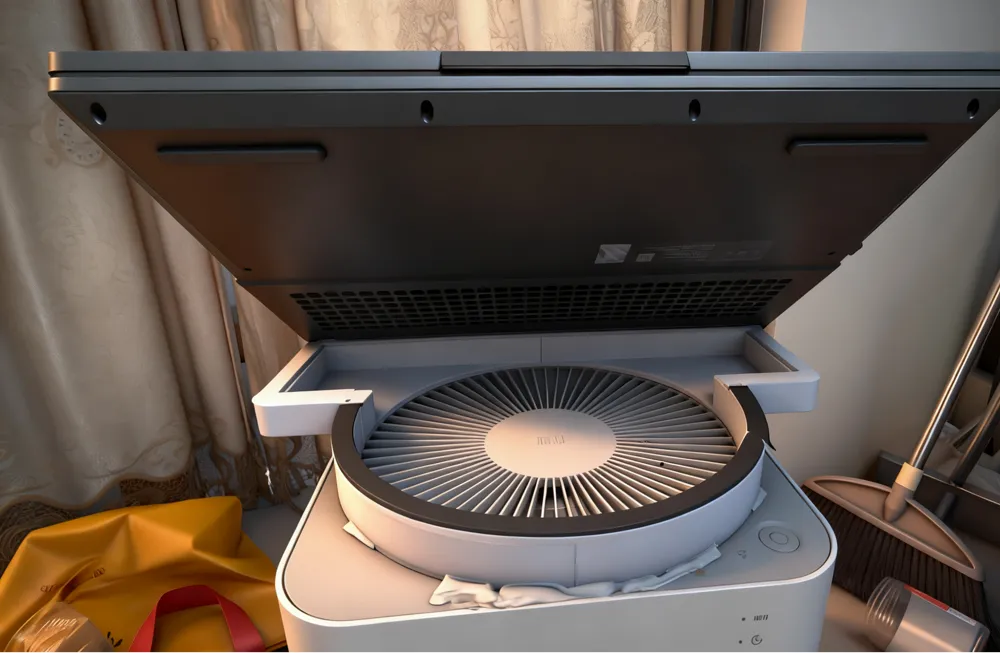

It sits on top of a Xiaomi air purifier, this Xiaomi air purifier was bought for 50 yuan from a second-hand market

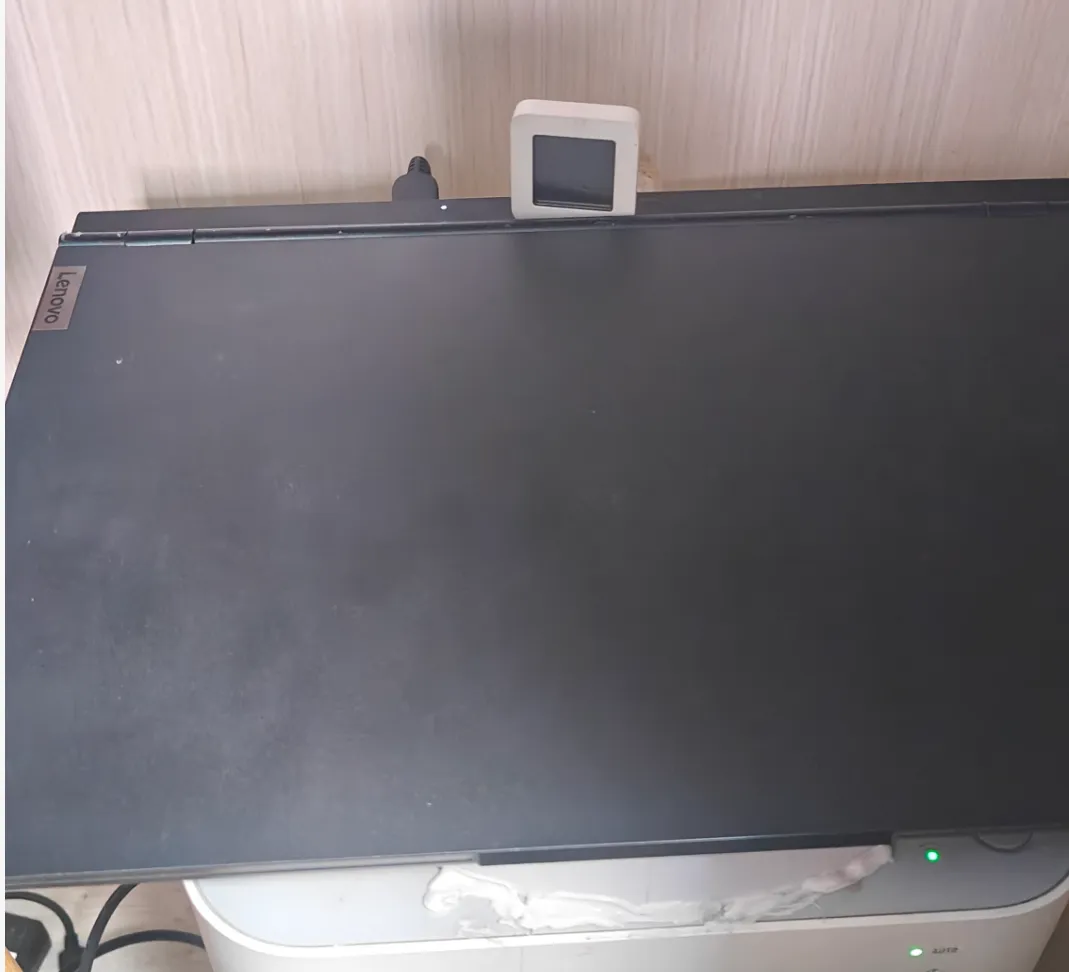

The advantage of using Xiaomi is that it can be linked with a thermometer, automatically adjusting to high fan speed when the temperature is high

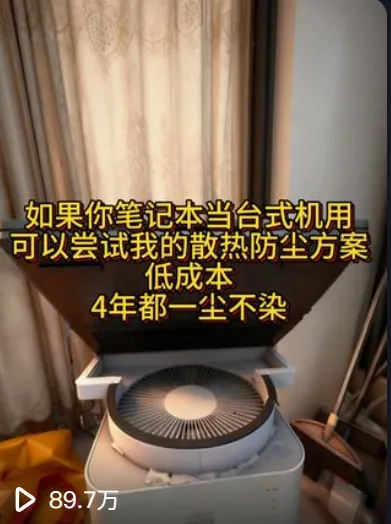

If you use your laptop as a desktop with an external monitor, you deserve this setup

The cooling and dustproof effects are very powerful

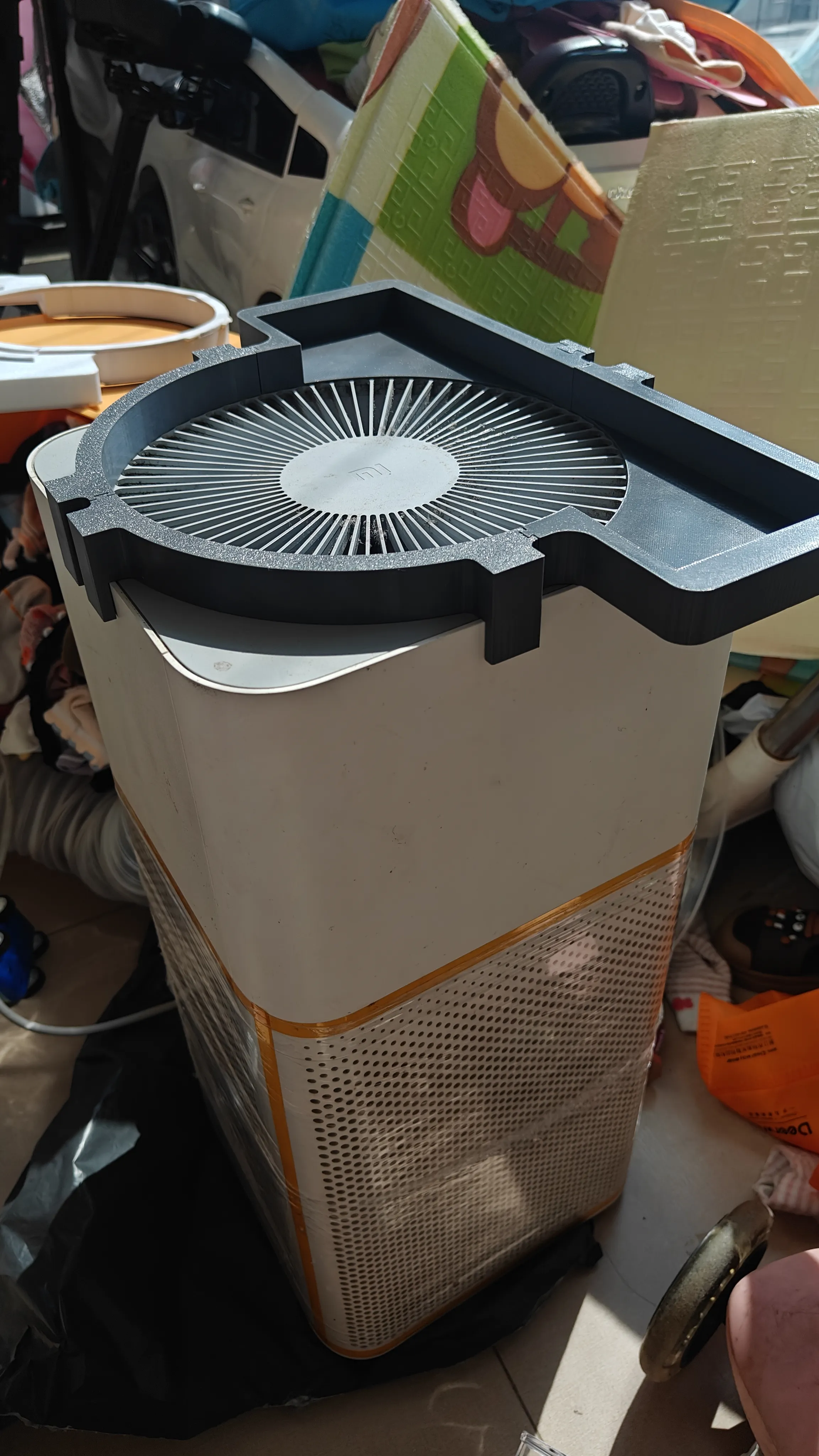

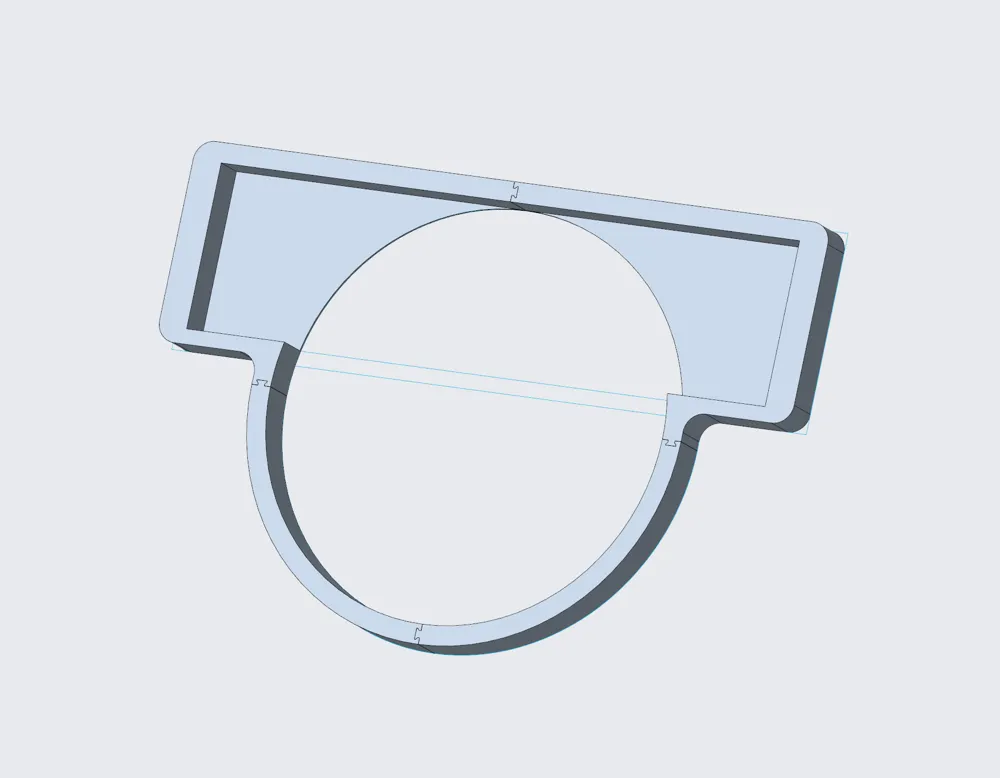

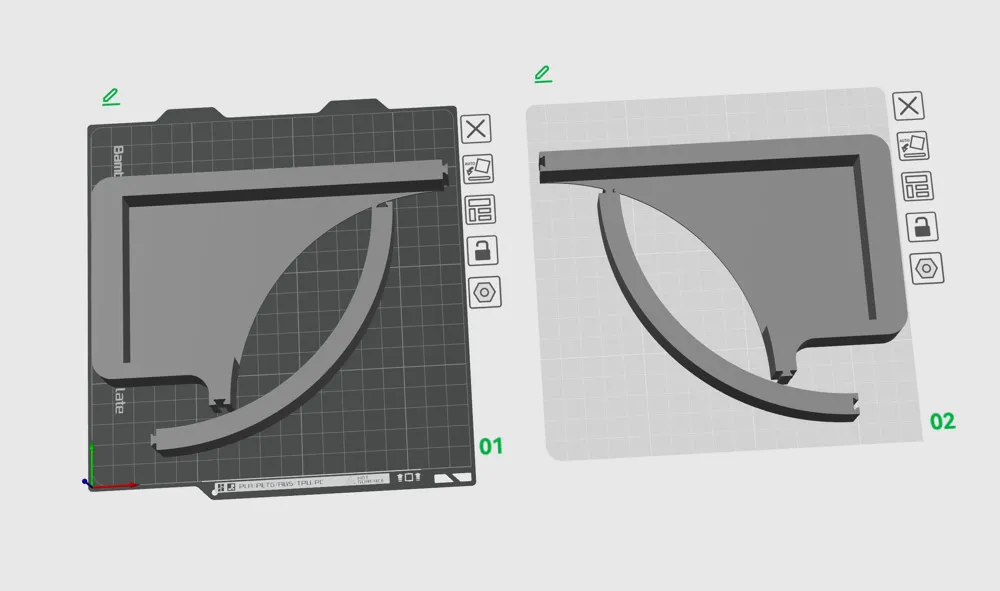

The model has been split for separate printing, even small 3D printers can print it

The sealing foam tape is 10mm wide and typically 2mm thick, you can get it for free with Taobao red packets

Because older Lenovo models had a step, the black area needs to be 1mm higher than the white area

Newer machines are completely flat, so this operation is not needed

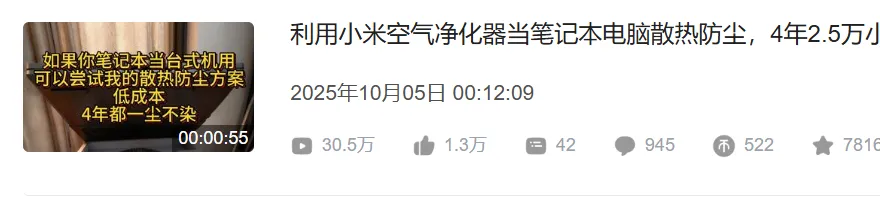

I never expected such a small item to get over a million views across the entire internet
