Curved Router Fence

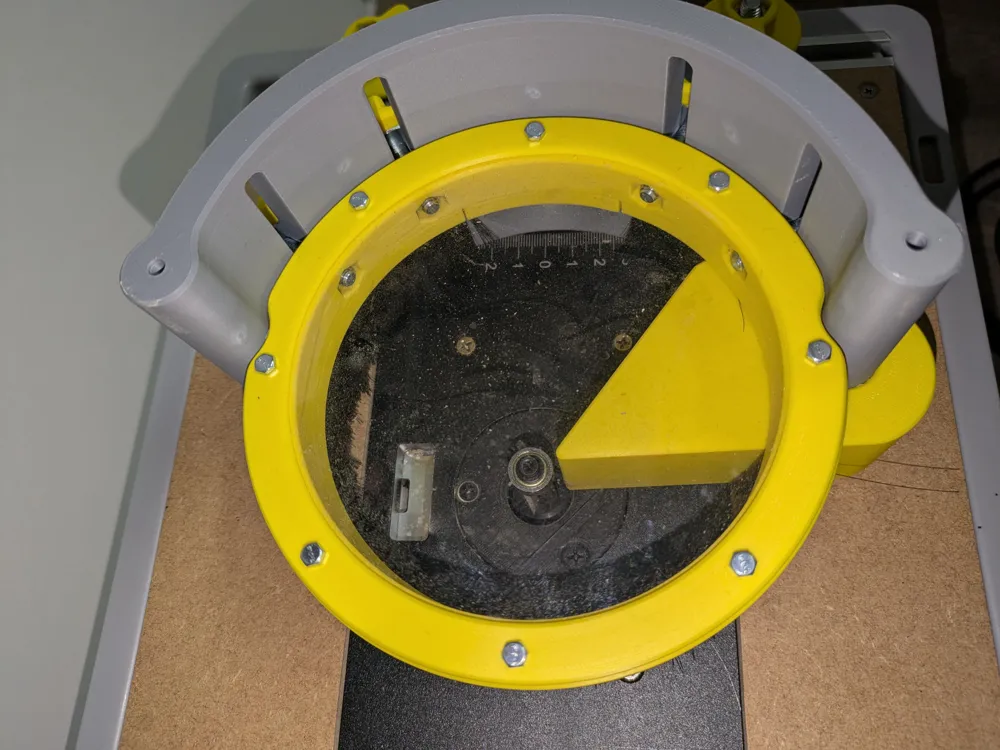

For my new router table, I still need dust extraction for chamfering / radius machining The device not only provides extraction (via osVACneo DN32 connection) but also primarily serves for safety In German-speaking countries, there is the term “curved routing fence” Such devices are available, for example, from Festool, but they also cost a bit

The function is quite well explained using a wooden version in this YouTube video:

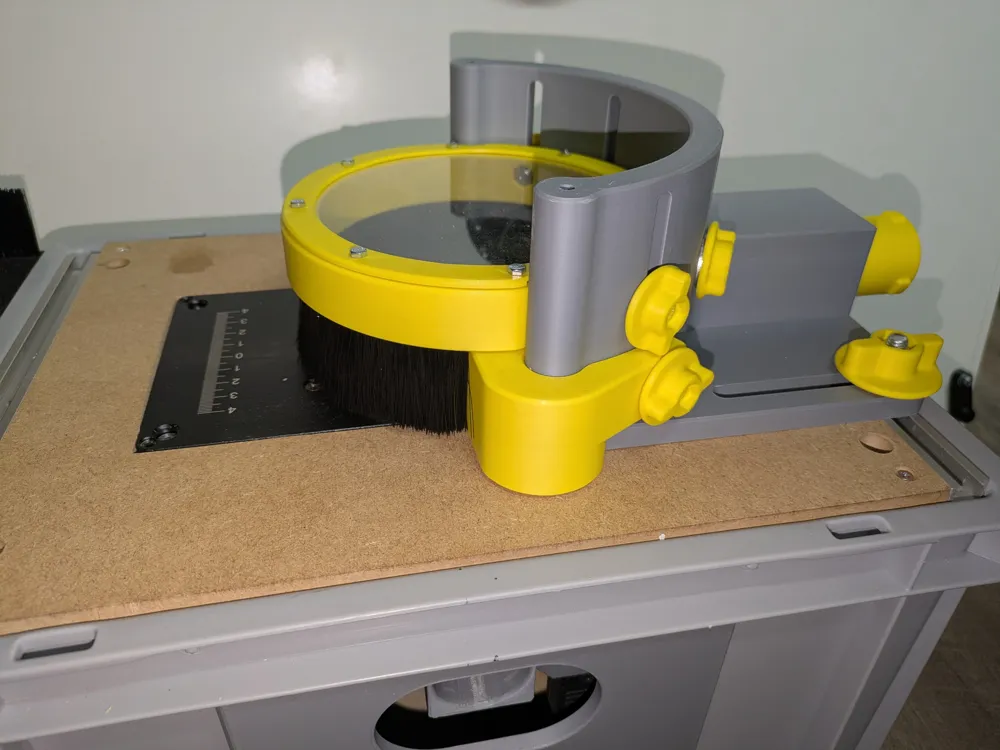

There are simple devices (Example 1, Example 2), but these are designed for direct bolting to the insert plate or the table On my setup, an M8 C-rail runs along the insert plate, to which I wanted to attach the device Additionally, I wanted to remain flexible in case a different stop is ever needed

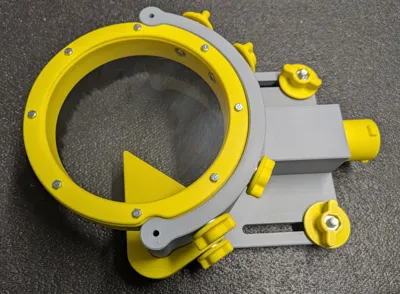

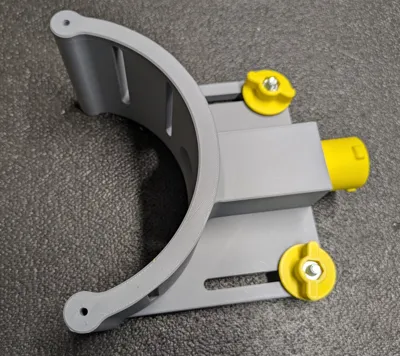

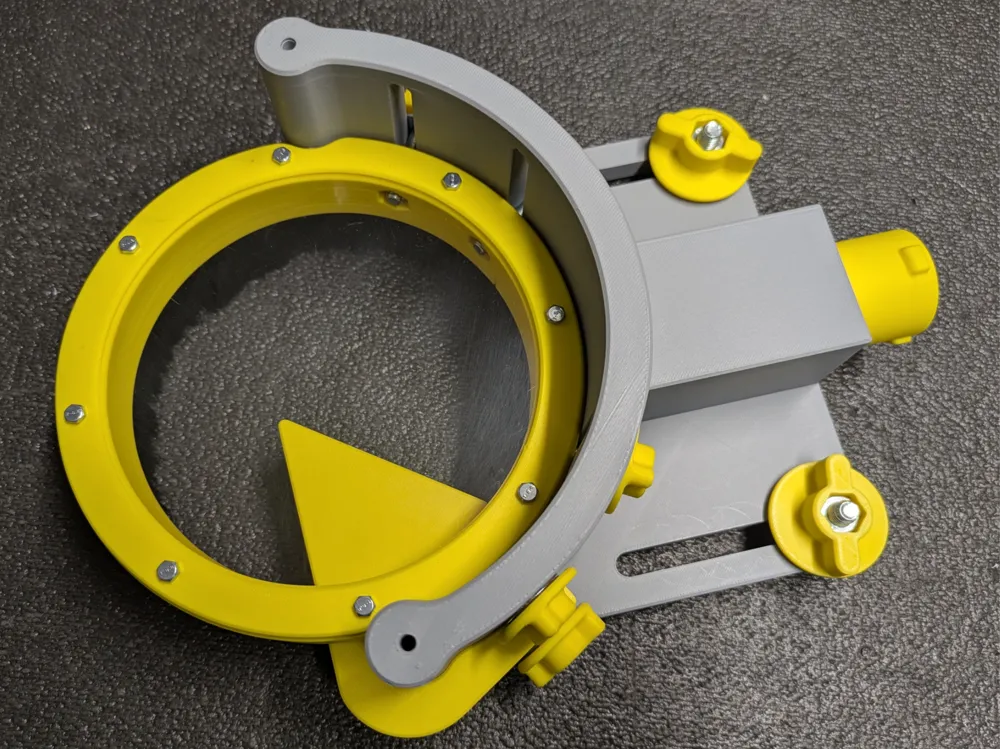

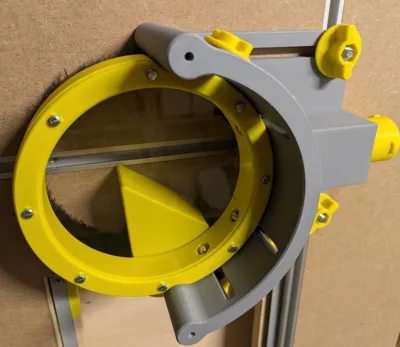

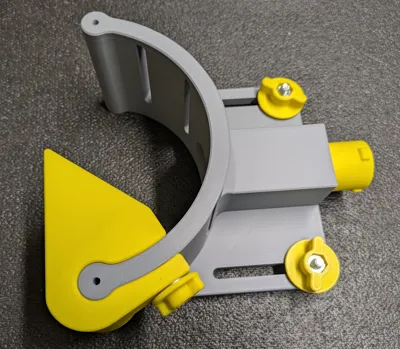

The yellow fence is height adjustable and can be positioned against the guide bearing of a round-over / chamfer bit This allows the workpiece to be safely guided into the cutter without kickback

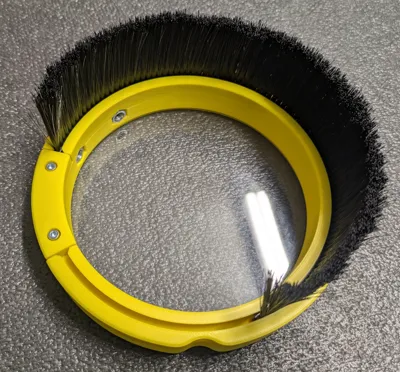

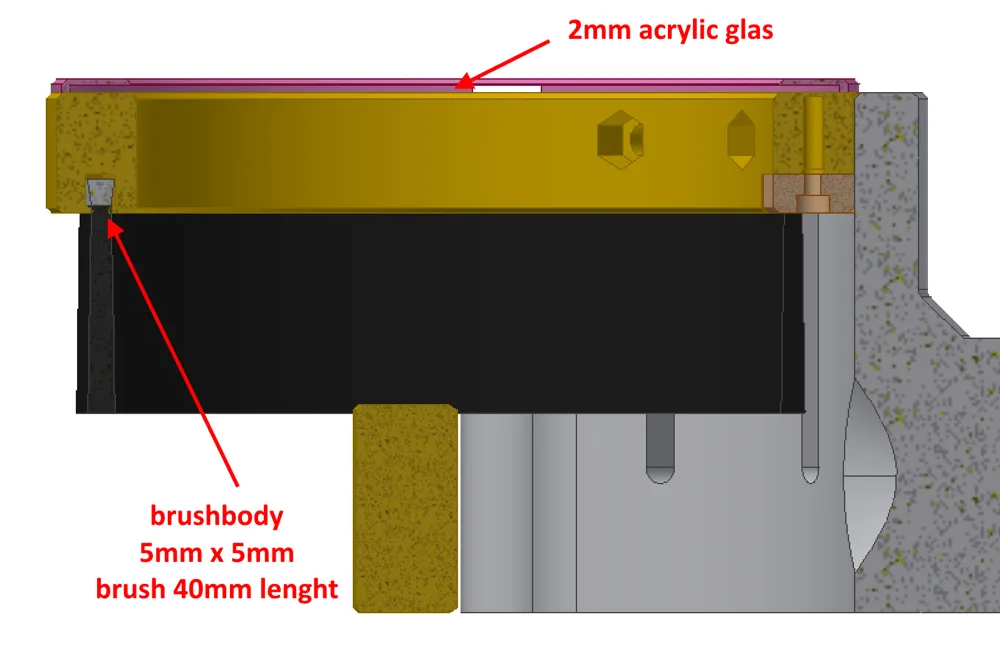

The yellow hood is also height adjustable A 2mm acrylic glass pane is installed on top, allowing a safe view of the routing process from above A groove for 5x5mm brush strips is provided on the underside The brush is simply inserted and secured against slipping out with a small block The brush increases the extraction performance

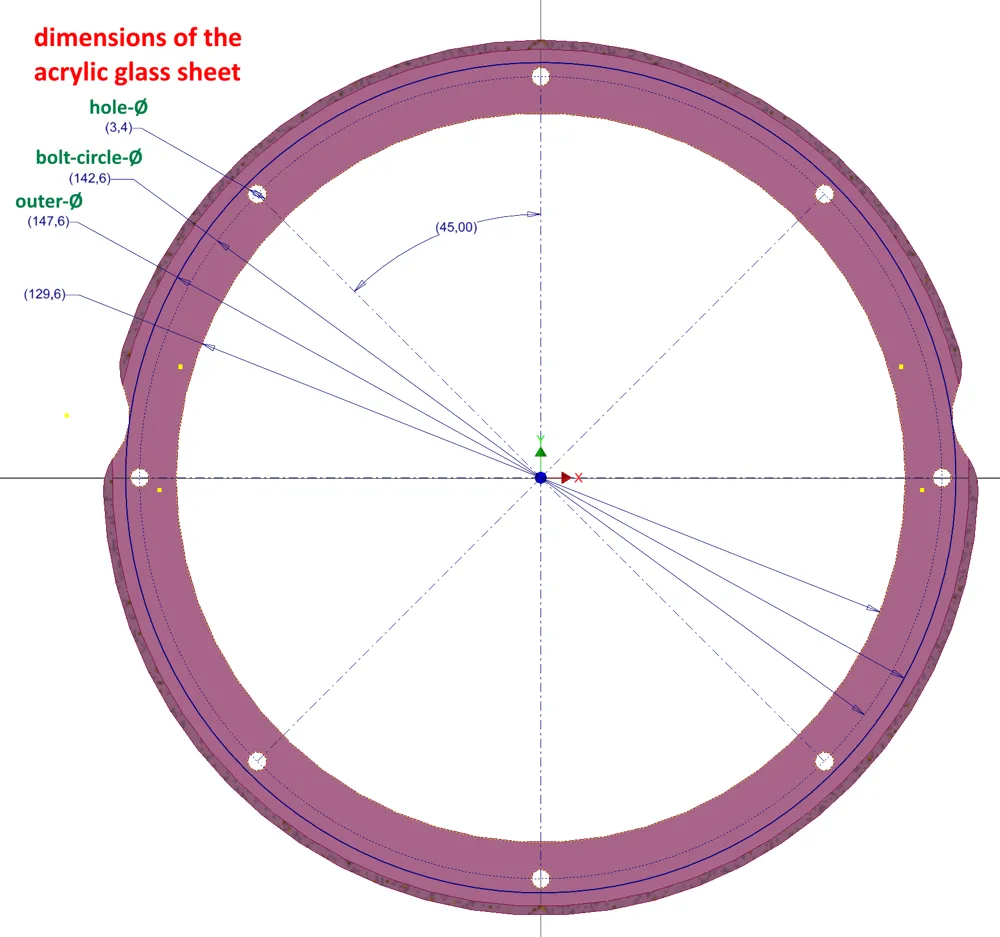

In addition to the 2mm acrylic glass pane (rough cut with a utility knife, round contour with a disc sander), you will need:

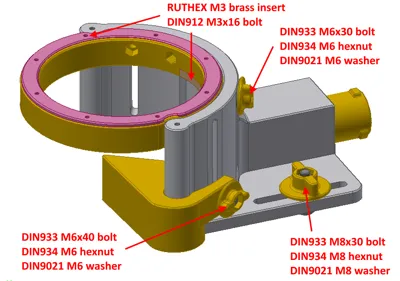

• 4 DIN933 M6x30 screws
• 1 DIN933 M6x40 screw
• 5 DIN934 M6 hex nuts
• 5 DIN9021 M6 washers
• 2 DIN933 M8x30 screws
• 2 DIN934 M8 hex nuts
• 2 DIN9021 M8 washers
• 10 DIN912 M3x16 hex socket screws
• 10 Ruthex M3 heat-set inserts
• Brush with body 5mm x 5mm and brush length 40mm (flexible brush body!)
