Single Action 6 Shooter Rubber Band Gun

This 6 shooter is a real single action rubber band gun. Just as much the bane of younger siblings today as it was in the old west. A no-glue screw together build this is an easy project with a great bang for your buck.

Build Guide:
https://props3d.pro/projects/single-action-army-rubber-band-gun/


See more builds and Props:
https://www.youtube.com/c/Props3D/


Support keeping P3D Free and get early access and exclusive content:
https://patreon.com/props3d/


Join me and fellow prop makers on Discord:
https://discord.gg/NGWhc6a3Gv

Non-3D Printed Parts
4 - 19mm 1/8in rods for hammer/rocker/magazine/trigger
1 - M3 nut for grip
1 - M3X16 cap screw for grip
3 - M3X12mm cap screws for frame
3 - M3X4~6mm cap screws for handle
3 - Size 16 rubber band to tension hammer (goes around hammer and band catch, give it a few turns)
1 - Small loom size band to tension trigger

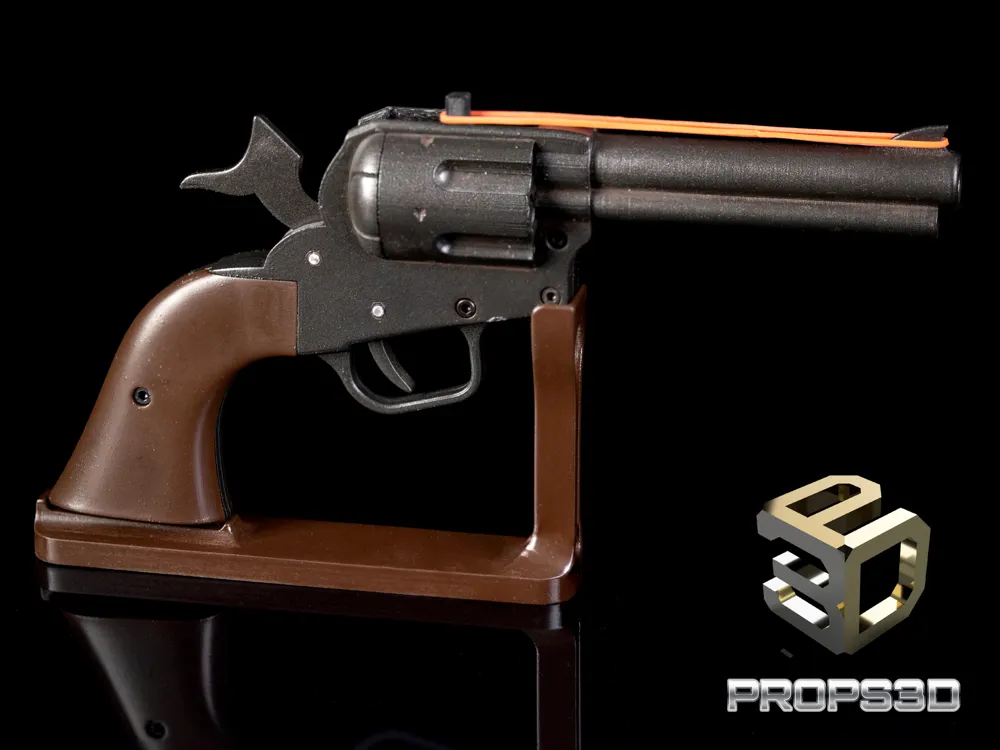

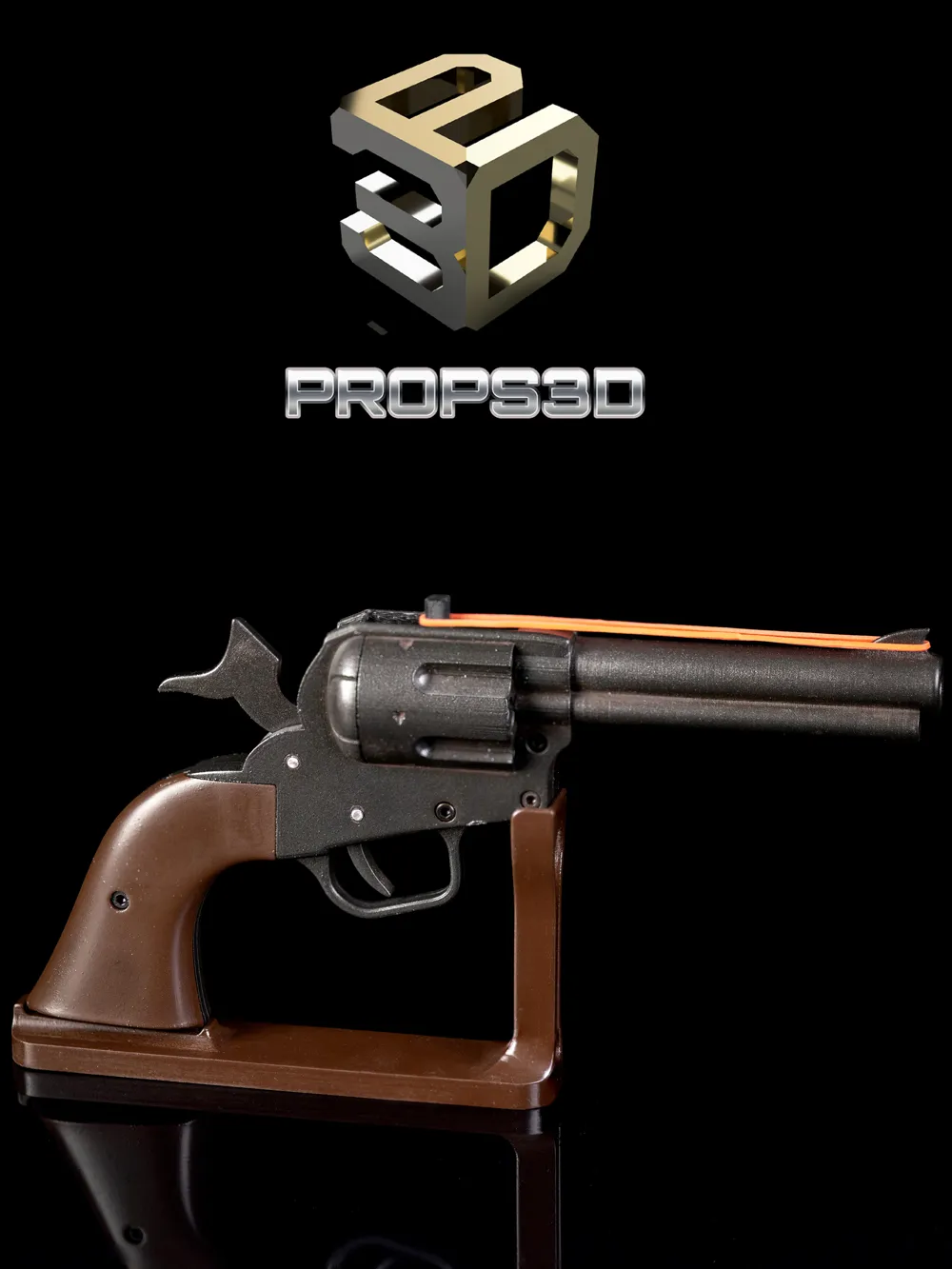

Fully functional 6 shooter Rubber band gun. Hammer cocks and action works, hammer hits a block to release a band, just like the real thing! So close to scale you can fit real grips on it!

Comes with 3 interchangeable barrel sizes. Each barrel type comes with 2 options: Screw attachable orange plug (child proof), or slide on orange plug. These may or may not be required in your area or for kids safety. But I'm giving you as many options as possible :)

Full disassembly for service, just needs M3 screws, NO gluing required! ...ok, you have to glue the cylinders on but that's only so you can change their color.

You will need cheap 1/4 welding/soft steel/brass rod for the pins comes with pin sizer, just put the rod in the sizer and cut on the line for a perfect fit!
