Hinge mount for 5 mm and 3 mm glass
Print Profile(2)
Description

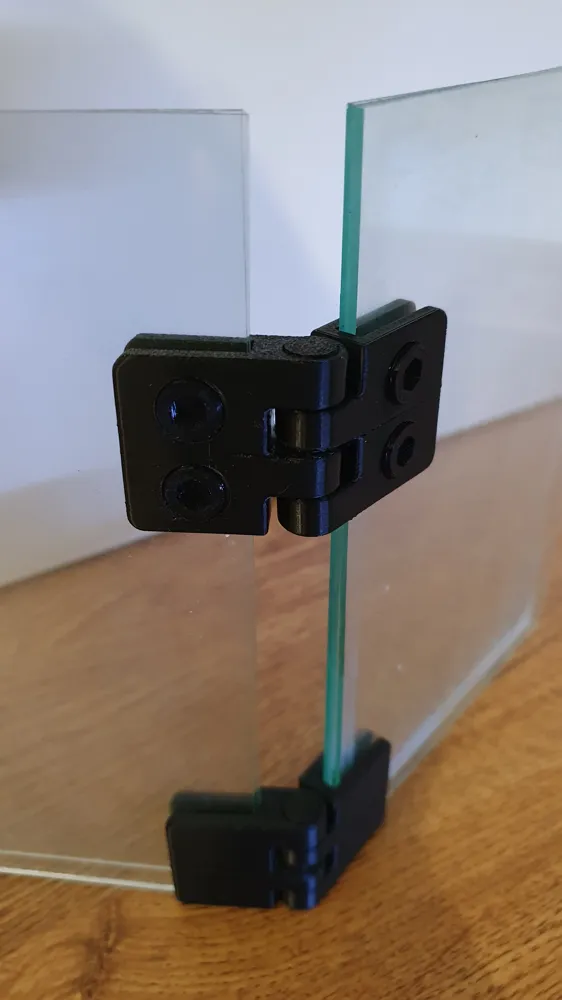

A practical and durable hinge mount for glass panels with a thickness of 5 mm or 3 mm, designed for use in display cases, aquariums, cabinets, enclosures, or furniture doors.

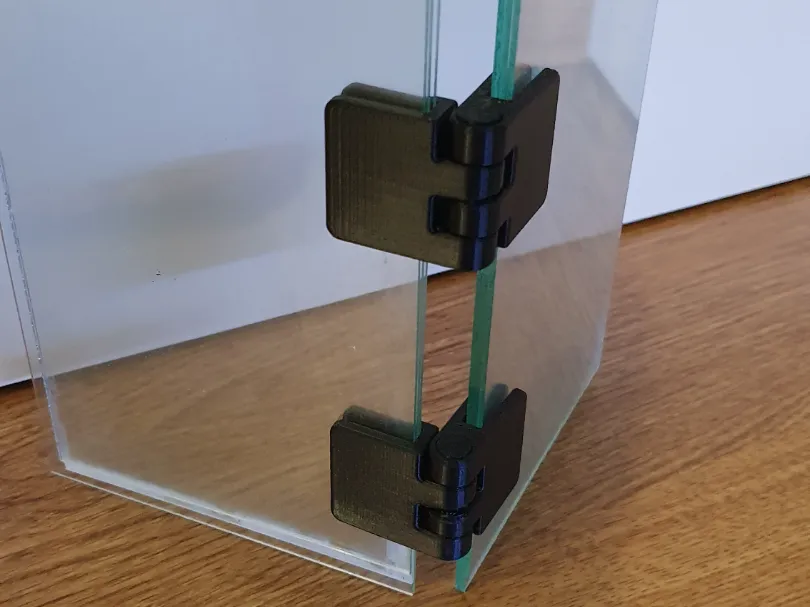

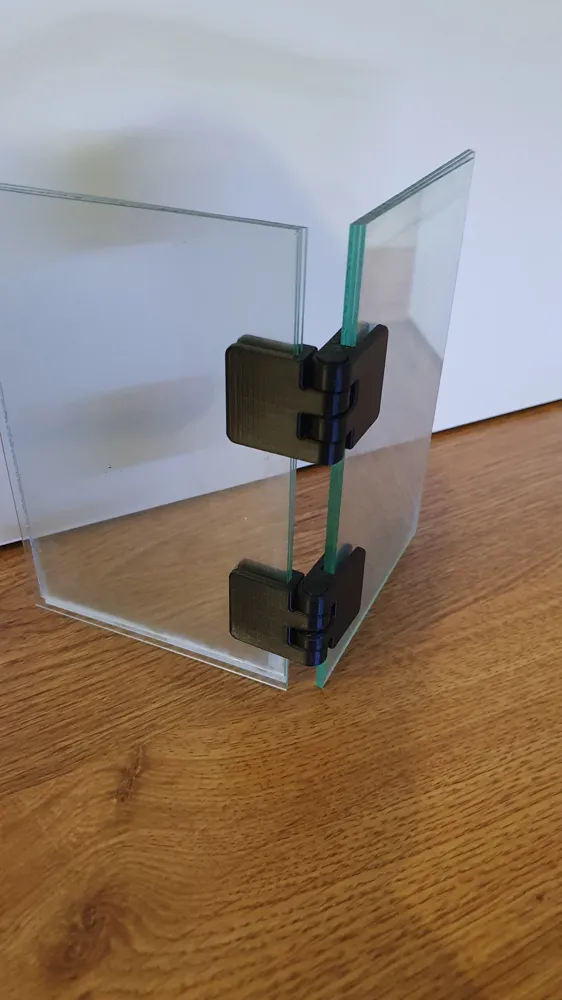

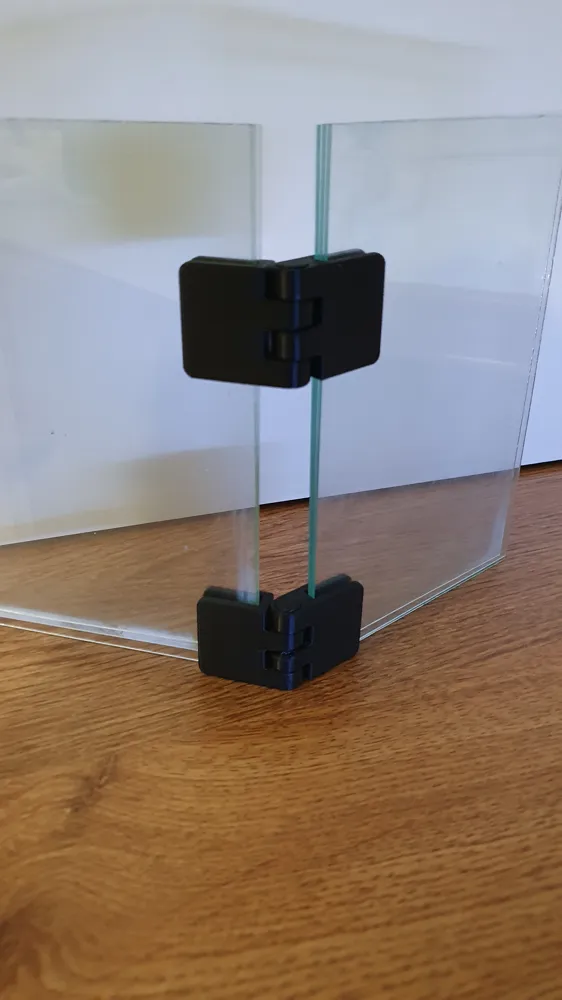

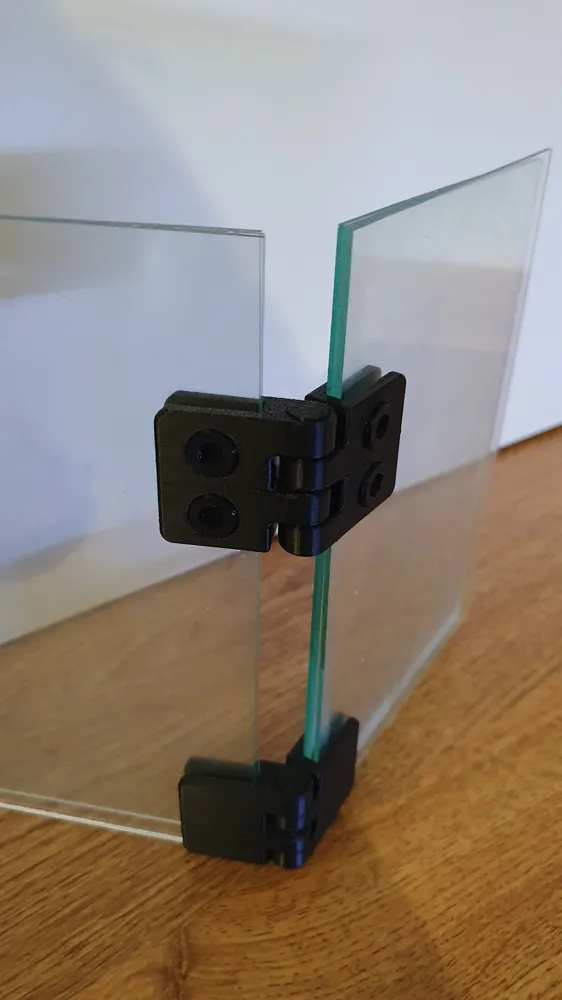

This model provides a secure and aesthetic connection between two glass or acrylic sheets, with adjustable assembly using socket head screws (hex bolts).

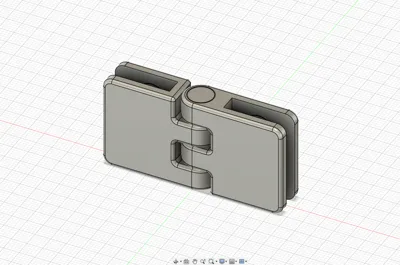

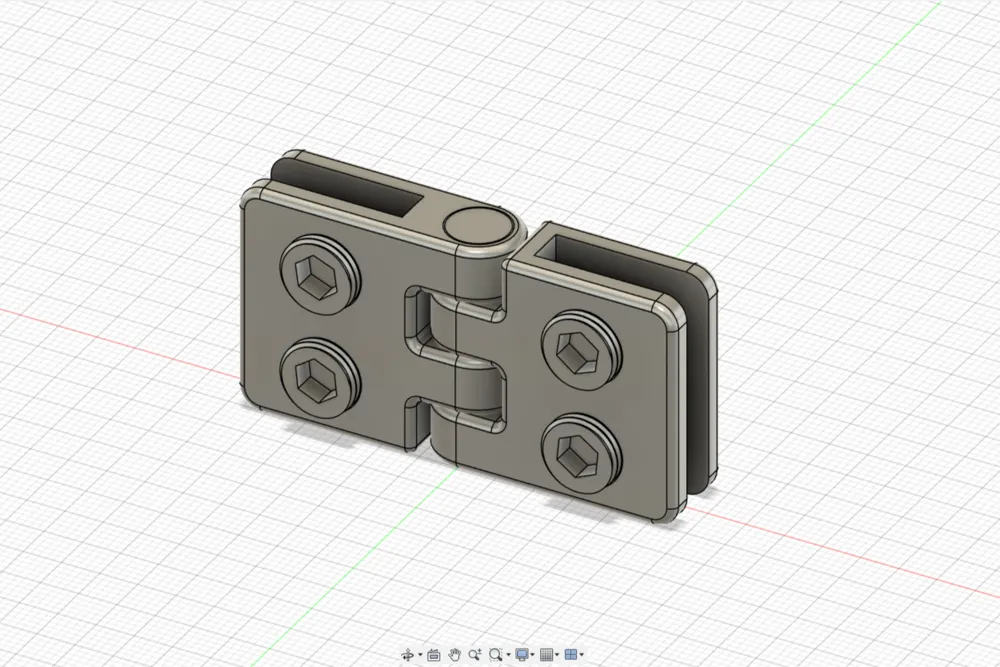

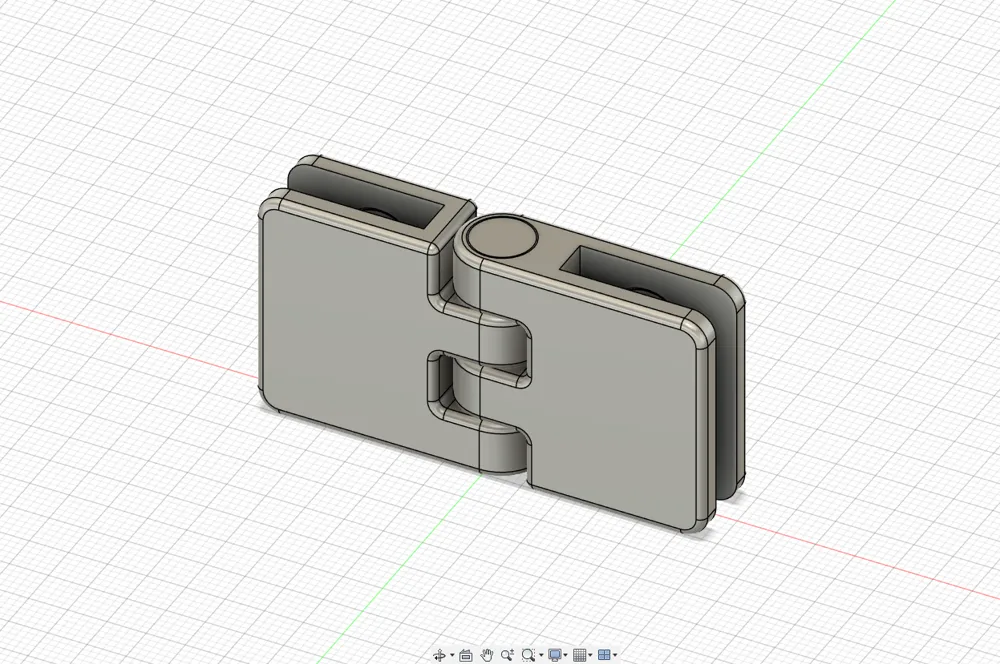

The hinge consists of two symmetrical parts with glass channels and recesses for screws and nuts, ensuring a strong connection without the need for glue.
Assembly requires only a 5 mm Allen key (hex 5).

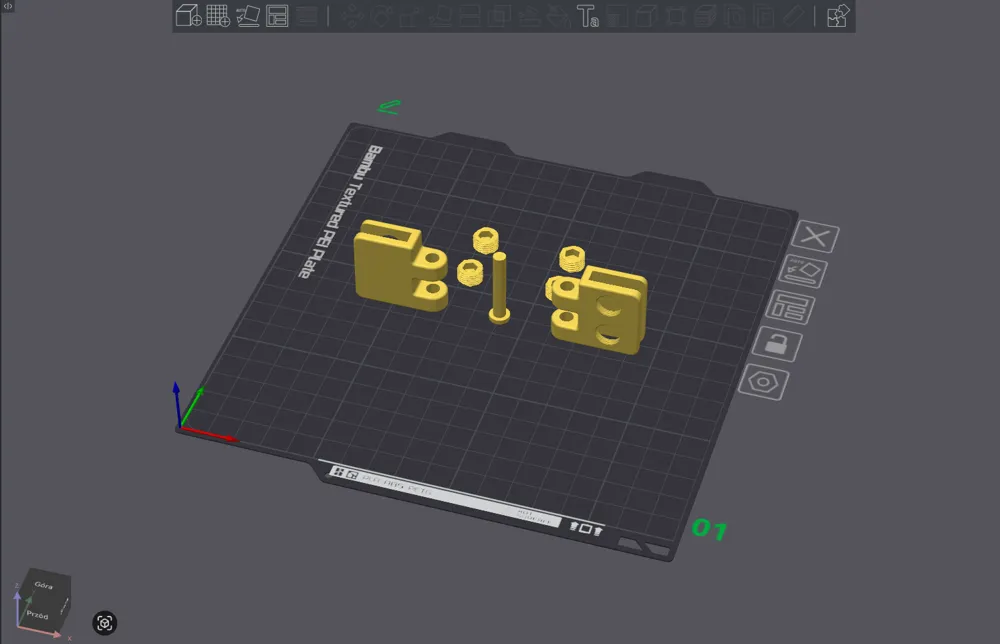

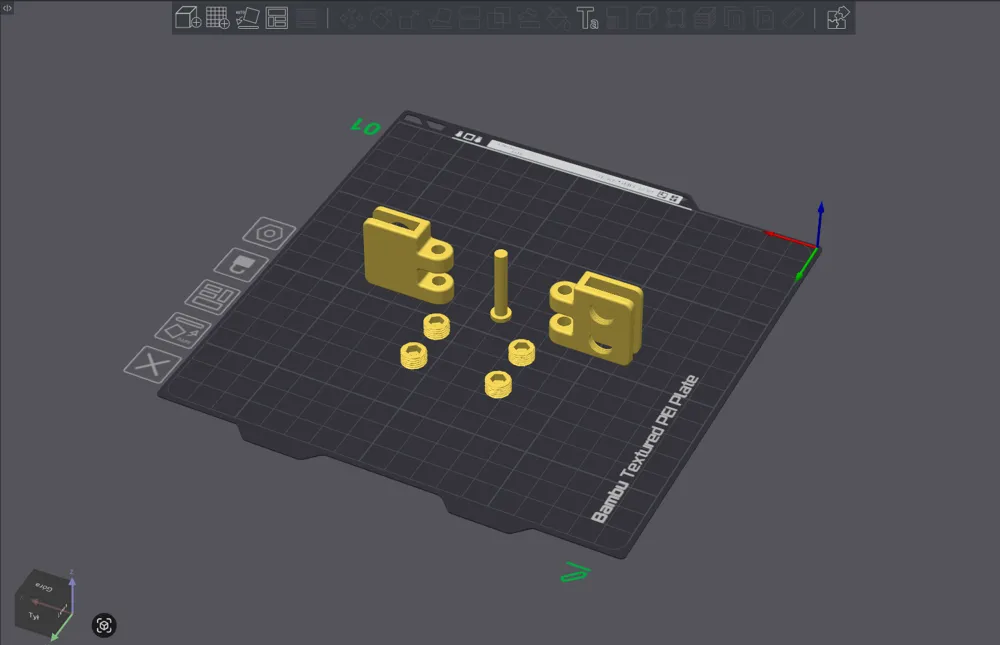

Optimized for 3D printing (FDM) — recommended materials: PETG or ABS for greater durability.
⚙️ Features:
- Fits glass or acrylic sheets of 5 mm or 3 mm
- Assembly using a 5 mm Allen key
- Functional and aesthetic design
- Compatible with M3/M4 screws
- Fully 3D printable
- Scalable and easy to modify
