toothpick crossbow
Print Profile(2)
Description
This toy has a certain power, please use it with caution.
This model requires a piece of kite string, or string about 1.0mm thick. It also requires a paperclip, straightened and cut with pliers to about 9-10mm to act as the trigger axle.
The bow arms and crossbow body parts need to be fixed with glue. Be careful not to block the holes.

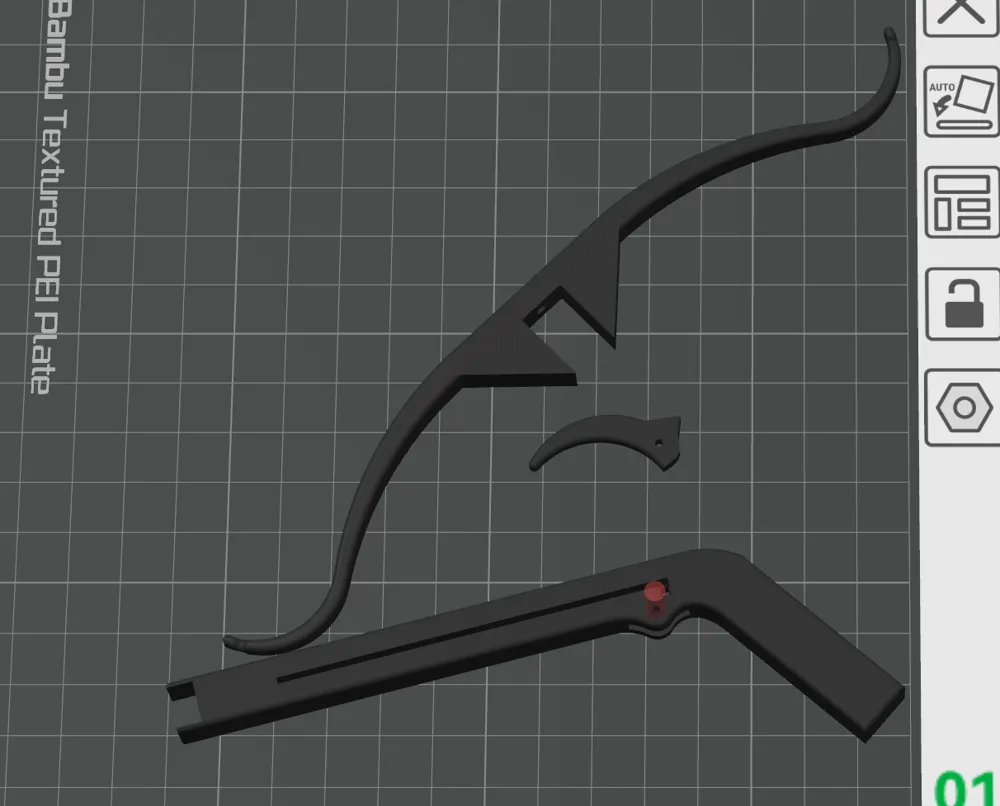

Additionally, if not printed directly using my print profile, support blockers should be added to the trigger hole of the crossbow body, or support should not be enabled for the crossbow body. Otherwise, the side of the trigger hole that contacts the build plate will be blocked by supports, making it impossible to open.
The bow arms and trigger must be printed with 100% infill, otherwise there won't be enough elasticity and they will break easily.
