Stethoscope Desk Clamp Holder

Stethoscope Desk Clamp Holder

Keep your stethoscope safe, clean, and always within reach with this sturdy desk clamp holder. Designed for busy medical professionals, this holder securely attaches to your desk, freeing up space and preventing your valuable equipment from getting tangled or falling.

Key Features

• Secure Clamp: Attaches firmly to any desk or shelf up to 4 cm thick.
• Stable & Strong: Designed to be printed in an orientation that maximizes strength, ensuring it won't snap under pressure.
• Optional Security Clips: Includes two small clips that can be slotted into the main body. These clips help to gently hold the stethoscope tubing in place, but the holder is fully functional without them.
• Easy to Print: Optimized for straightforward printing and support removal.

Printing Instructions

Important: The print orientation is key to the strength of this model.

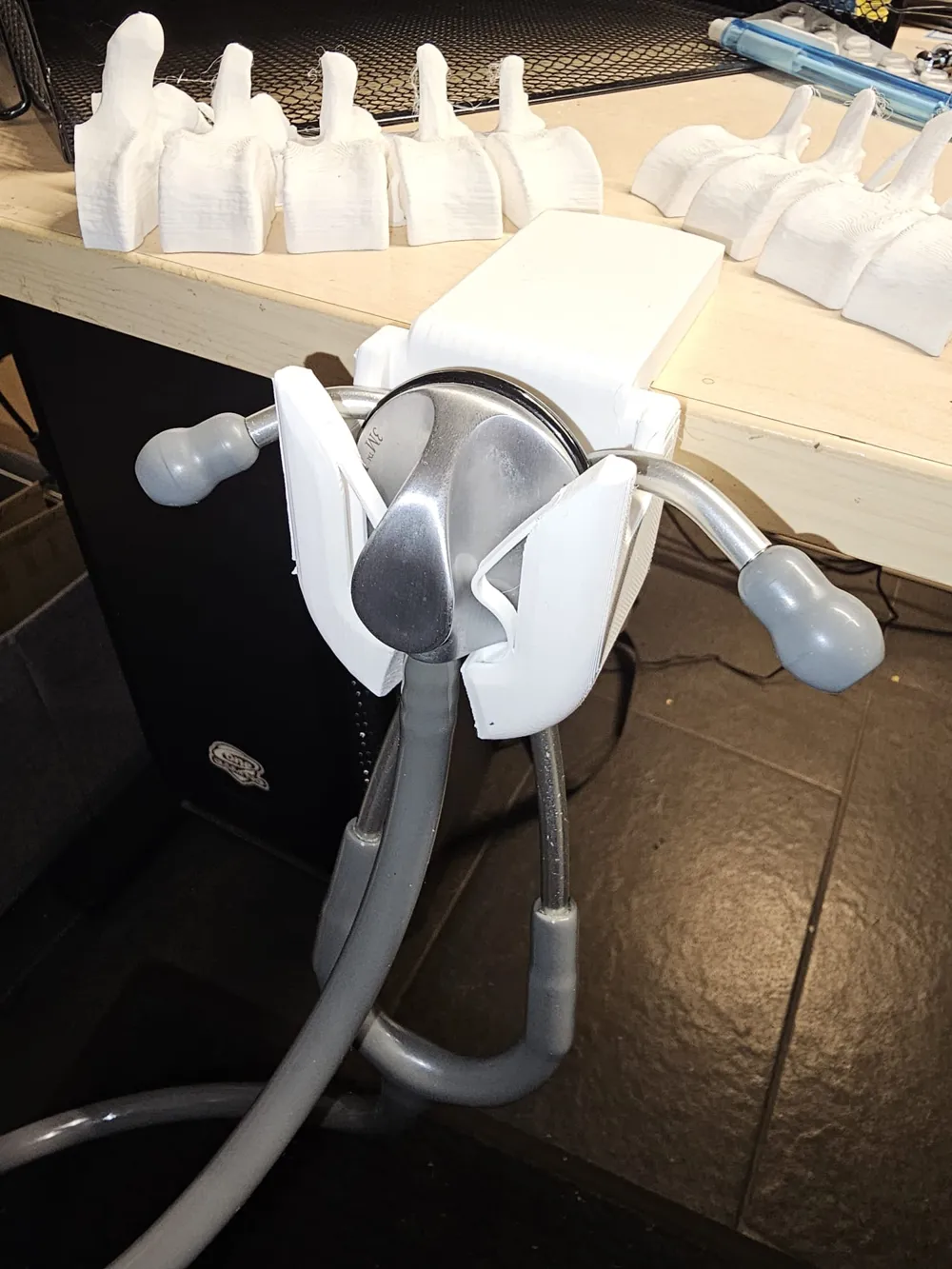

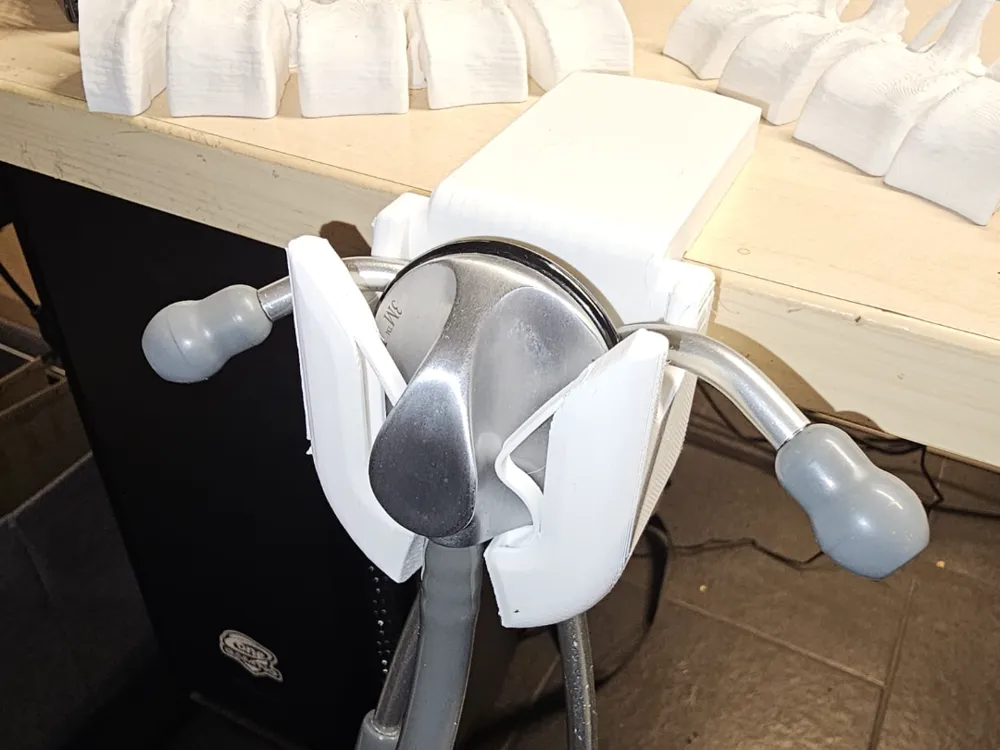

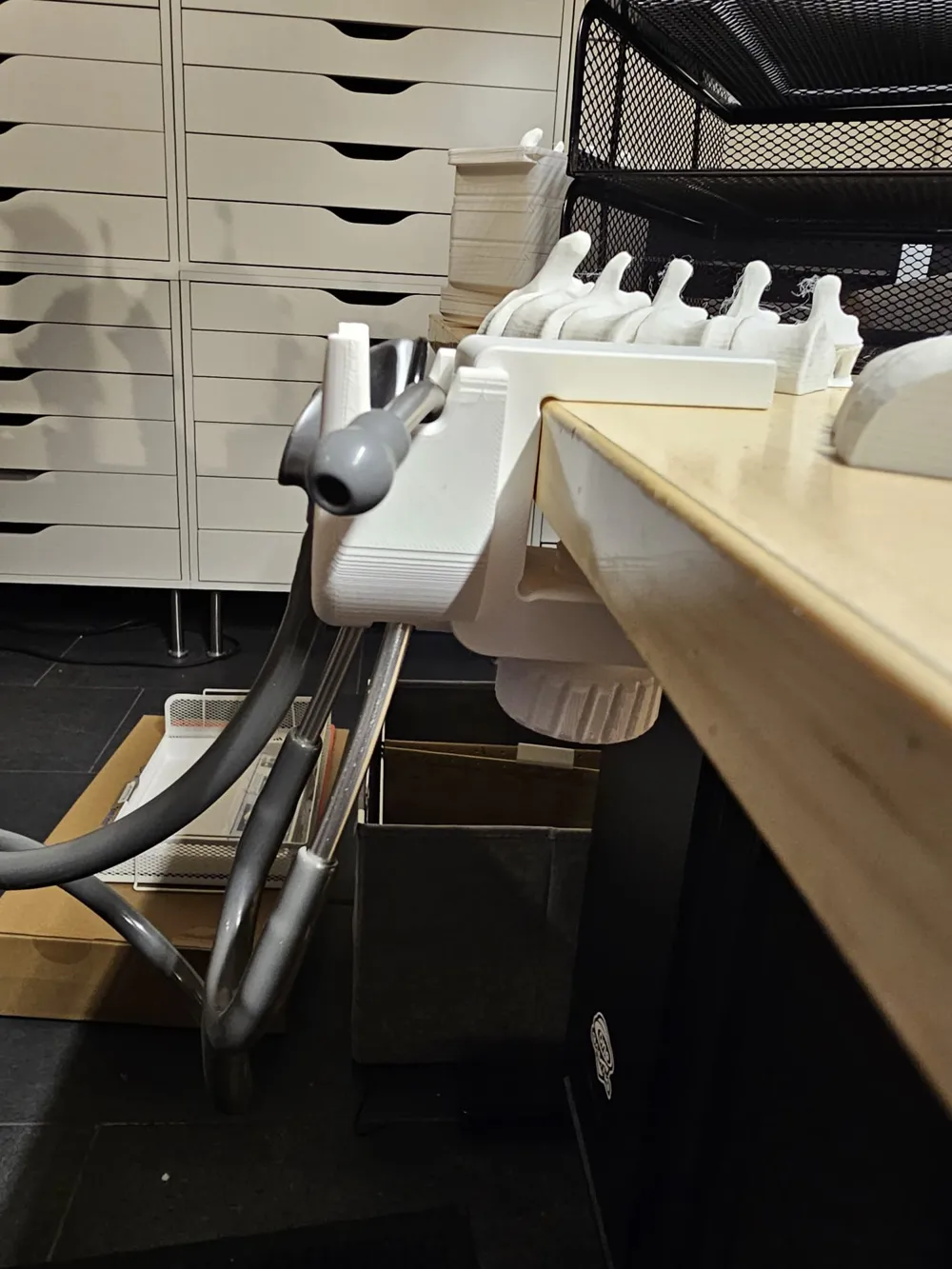

• Print Orientation: Please print the main clamp body lying on its side, as shown in the pictures. This aligns the layer lines for maximum durability and clamping force.
• Supports: Supports are needed for the overhangs on the clamp and the holder section. They are designed to be minimal and easy to remove.
• Material: PLA, PETG, or ABS will work perfectly.
• Resolution: 0.2mm layer height is recommended.
• Infill: 15-25%
• Walls/Perimeters: Use 3-4 walls for the best strength.

Assembly

Assembly is quick and easy:

1. After printing, carefully remove all support material.
2. If you wish to use the security clips, simply slot them into the corresponding holes on the main holder. They should be a snug fit.
3. Clamp it to your desk and enjoy your newly organized workspace!
