Customizable Fan mount plates for 10 Inch Rack
Print Profile(2)
Description
Customizable Fan mount plates for 10 Inch Rack V2
V2: Big update, added parameters for all the pattern types & added fan spiral pattern + Hicks hexagon pattern
Got a 10" server rack that’s running hot? A stash of random fans collecting dust? You’re in luck.
This Fan Mount Generator gives you a mostly secure way (no promises on safety) to slap those fans onto your 10-inch rack.
From teeny-tiny 40mm breezers to absolute unit 200mm behemoths of doom; if you’ve got it, we can mount it.
Believe in teamwork? We’ve got you covered with 1x, 2x, 3x, and 4x side-by-side setups for the smaller fan sizes.
Because why settle for one when you can have a squad?
Compulsively poke spinny things? Same. That’s why we offer a variety of cover types to keep your fingers intact and your dignity preserved.

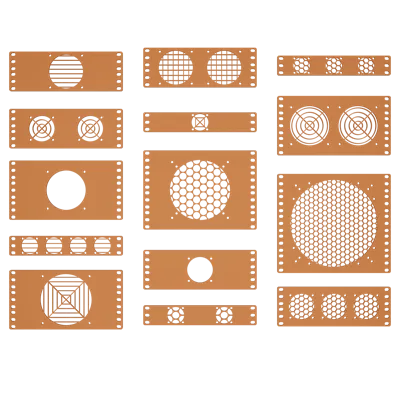

Supported fan configurations
| Fan Size | Configurations Available | U size |
|---|---|---|
| 40mm | 1x, 2x ,3x, 4x | 1U |
| 60mm | 1x, 2x, 3x | 2U |
| 70mm | 1x, 2x, 3x | 2U |
| 80mm | 1x, 2x | 2U |
| 92mm | 1x, 2x | 3U |
| 120mm | 1x | 3U |
| 140mm | 1x (supports 120 & 140 hole spacings) | 4U |
| 200mm | 1x (various hole spacings) | 5U |

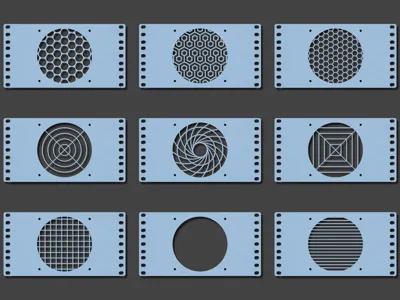

Supported Patterns

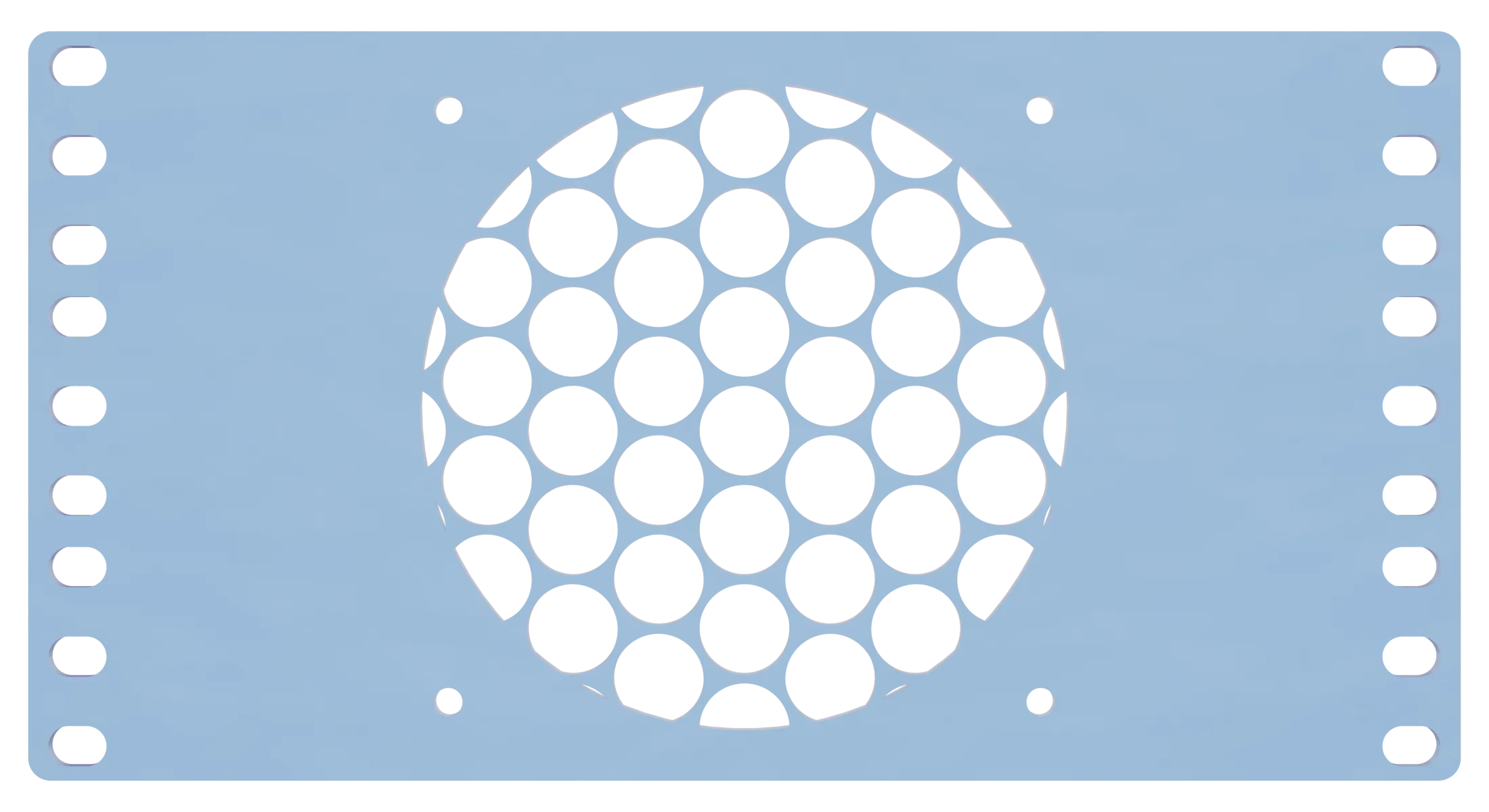

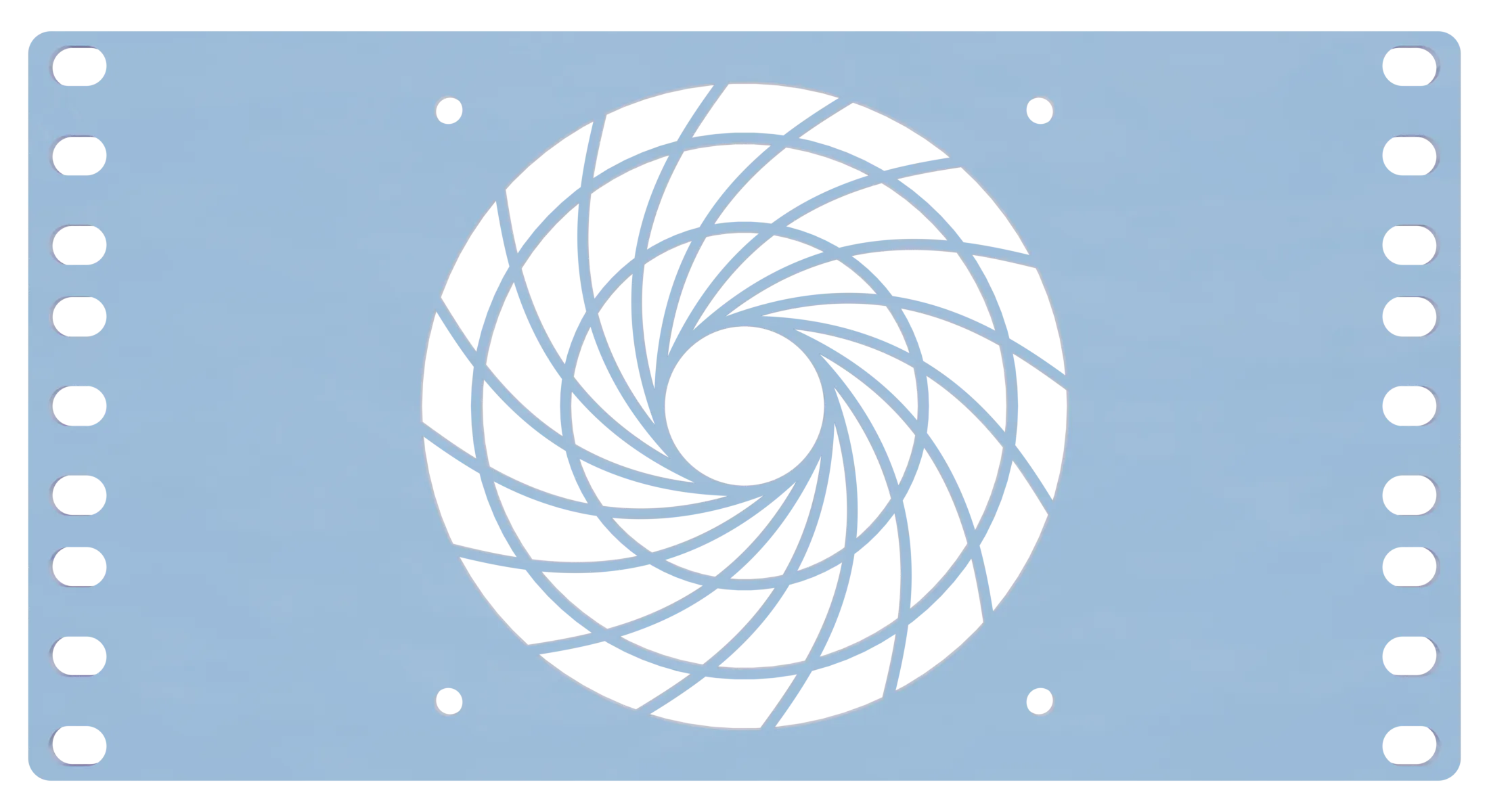

Fan Spiral  | Hole  |

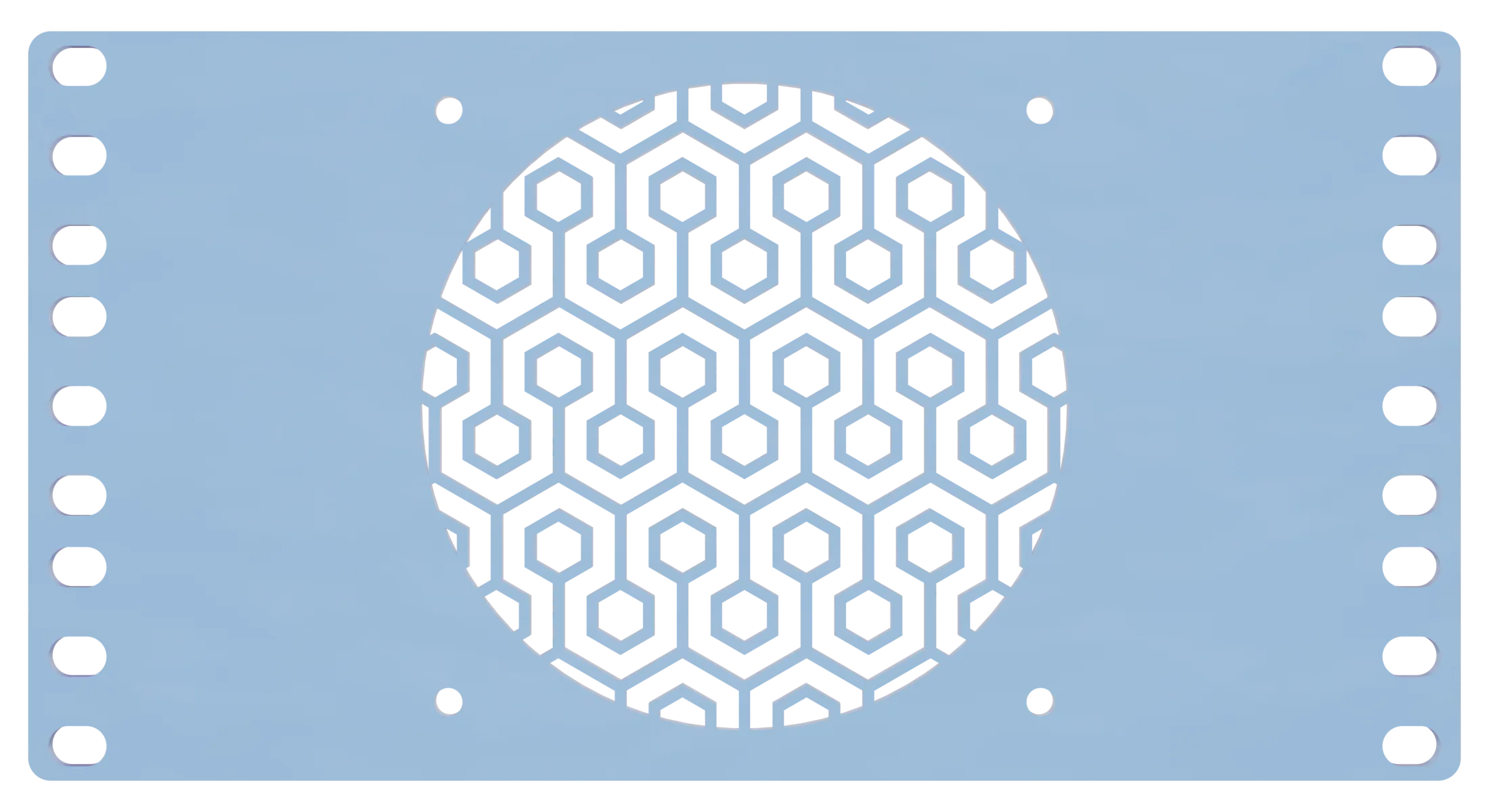

Hicks hexagons  | Hex  |

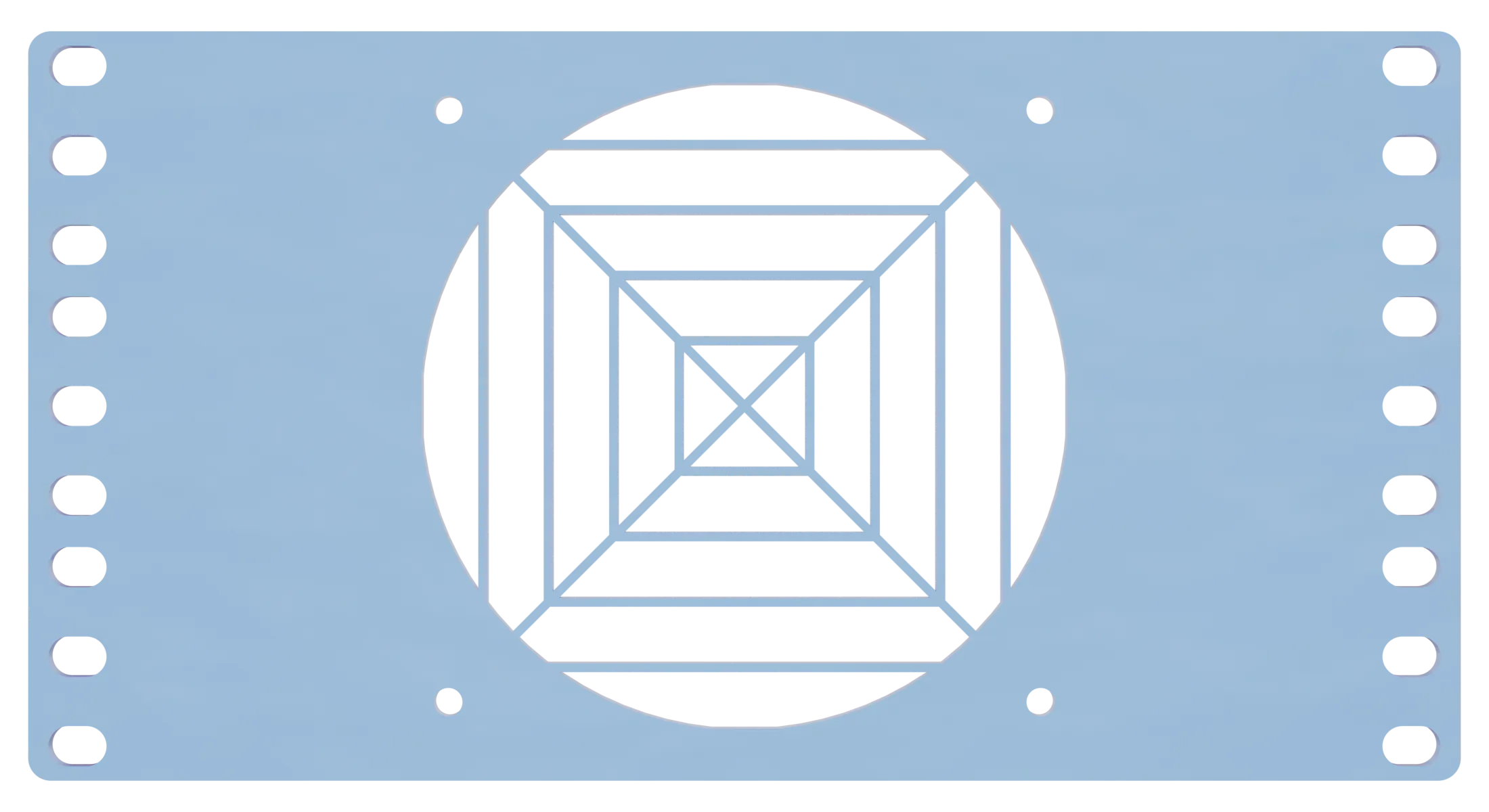

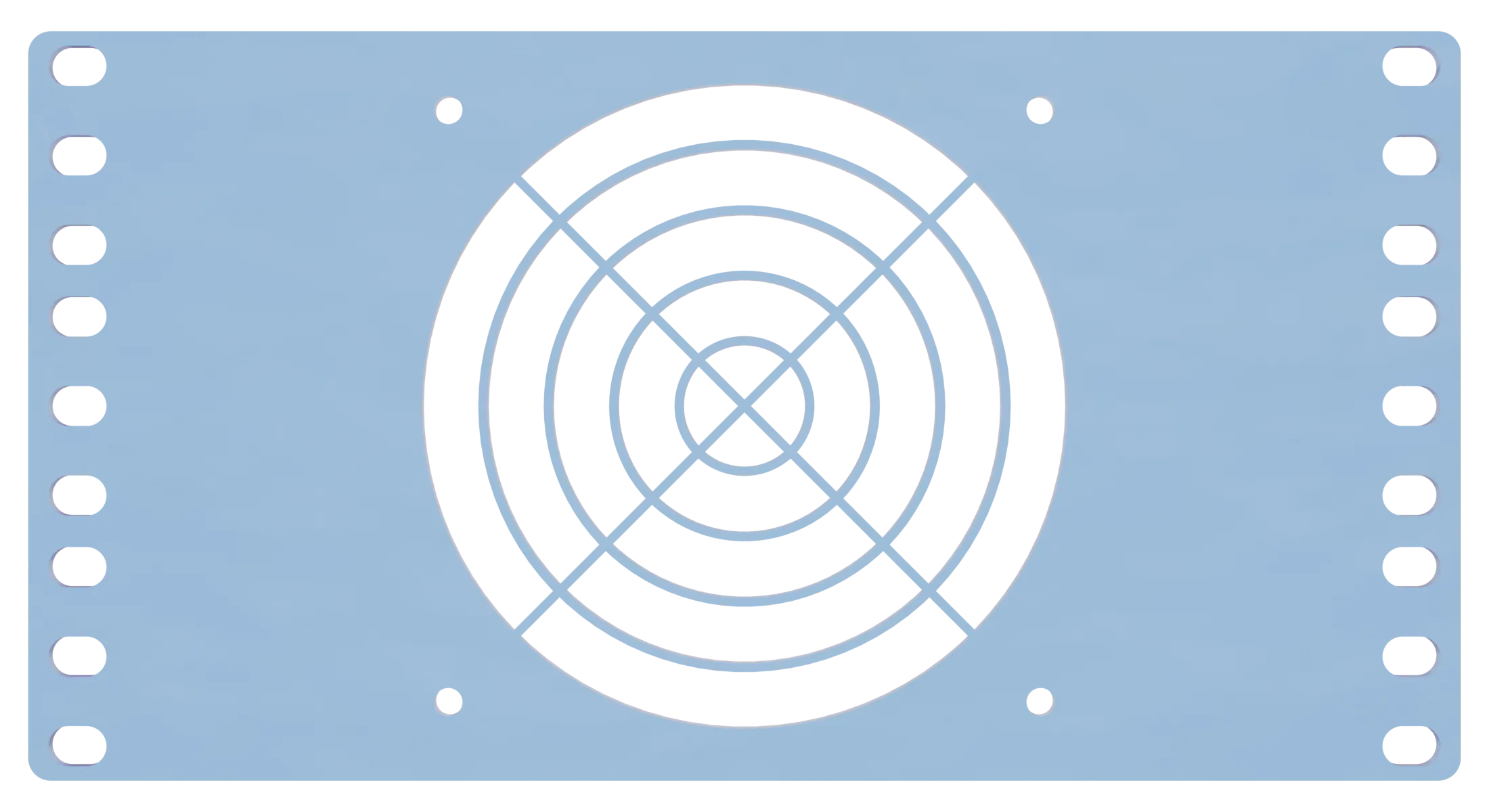

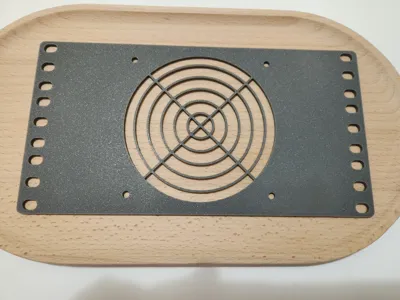

Crosshair  | Squares  |

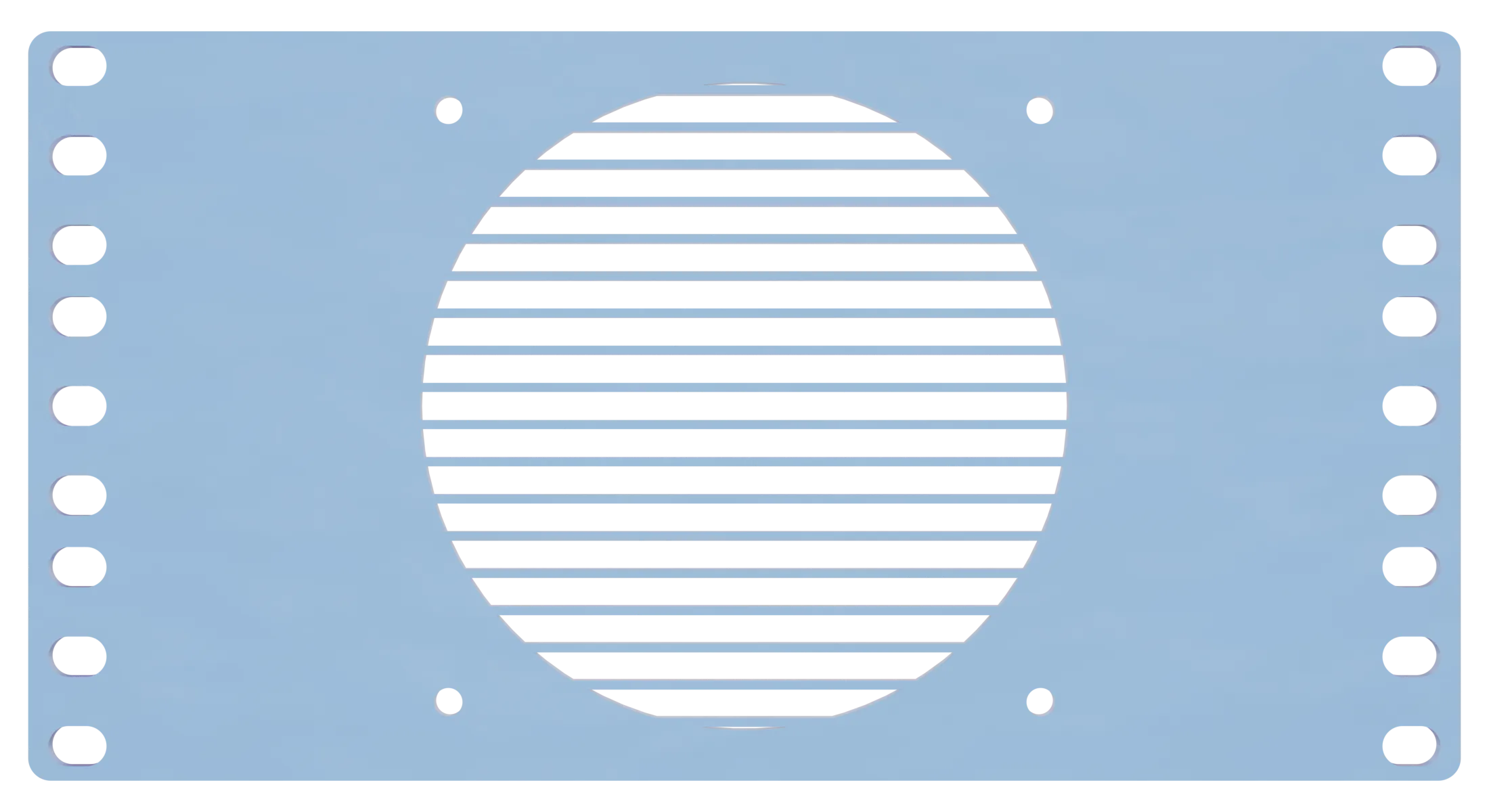

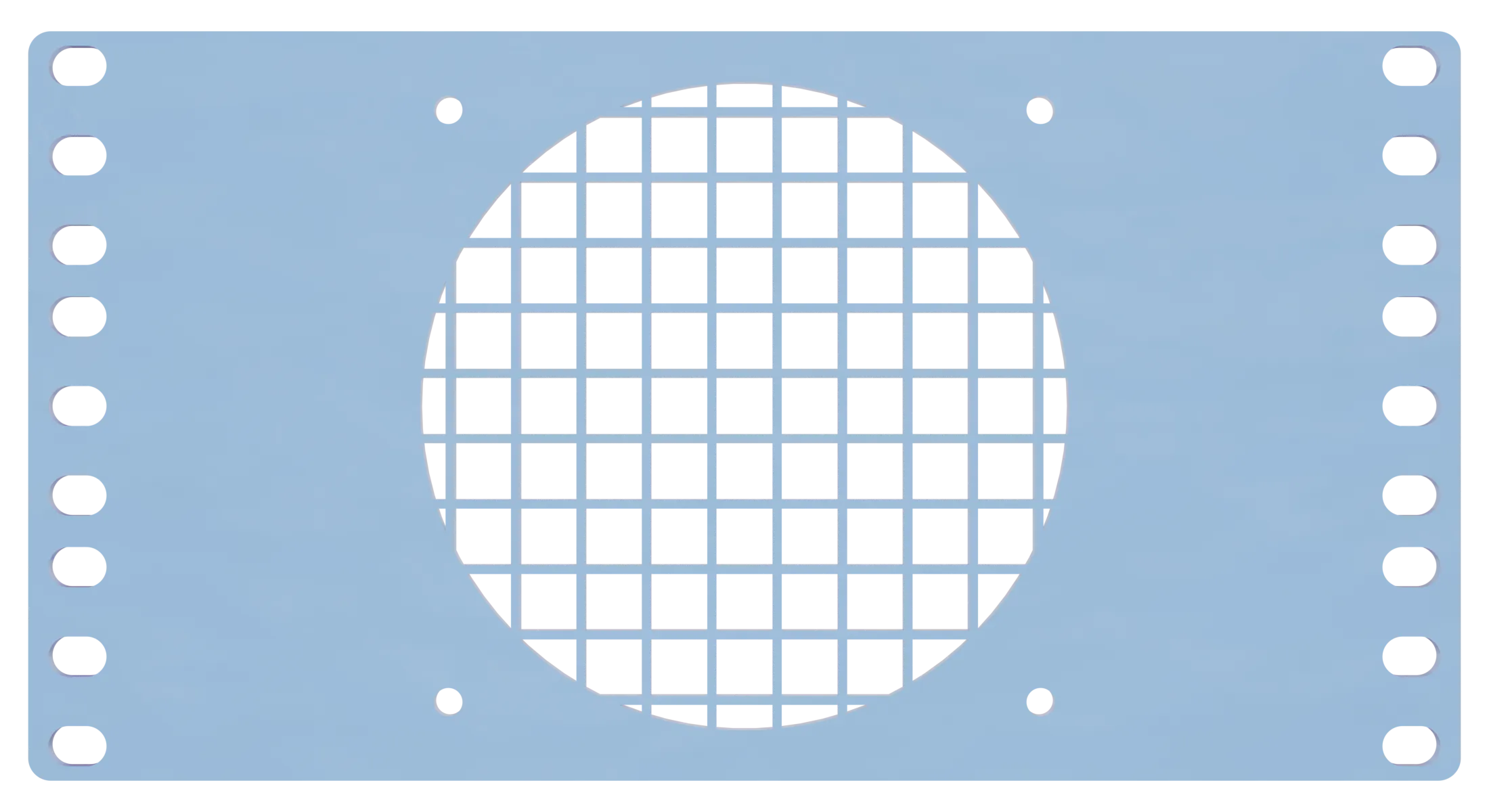

Lines  | Grid  |
Dots  | If you want more just tell me |
Changelog
V2: added spiral fan & hicks hexagon pattern Optimized by a lot all the patterns Added pattern specific parameters |
| V1: Initial Release |
