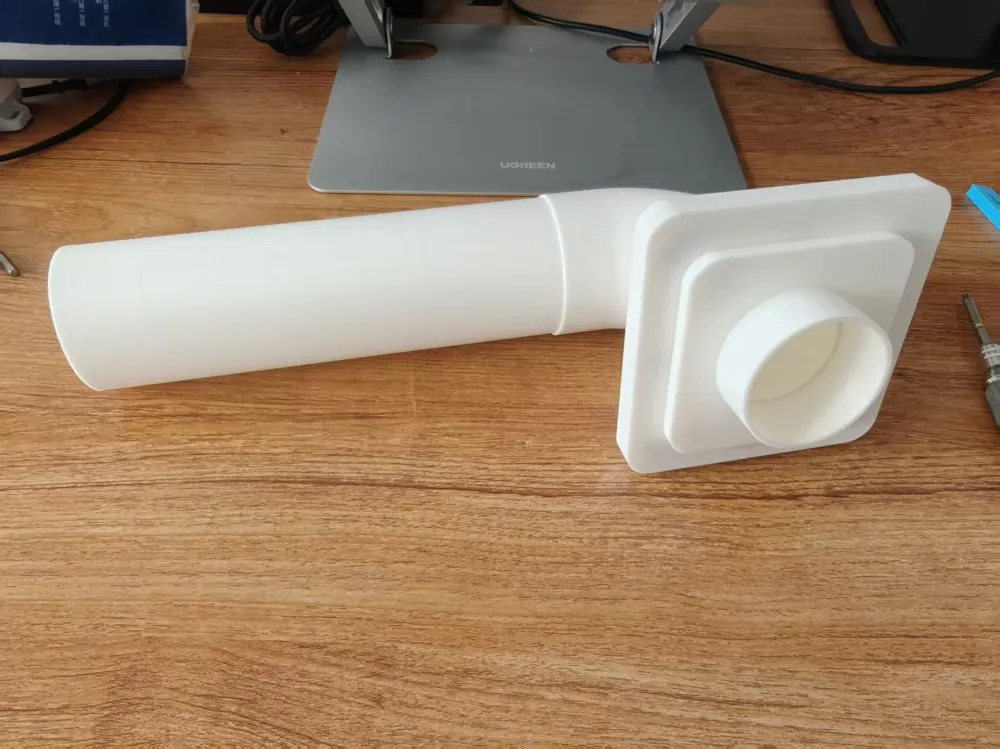

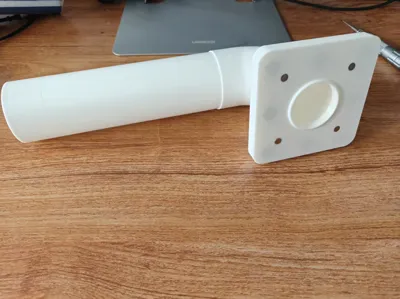

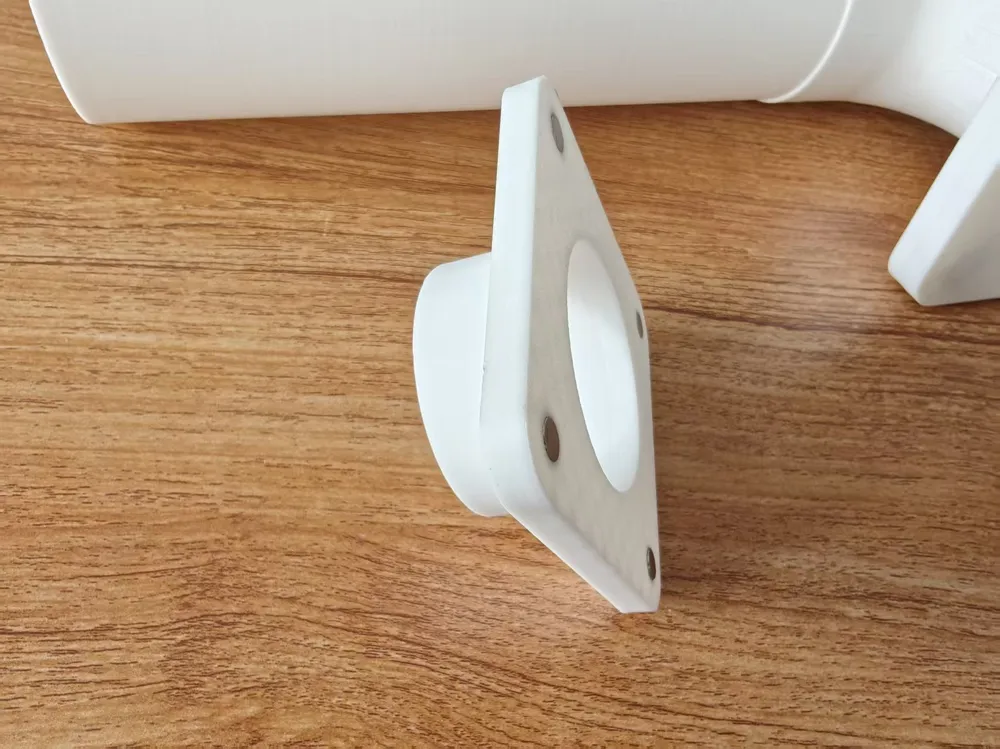

Magnetic drill-free screen window exhaust port 50mm
Print Profile(1)
Description

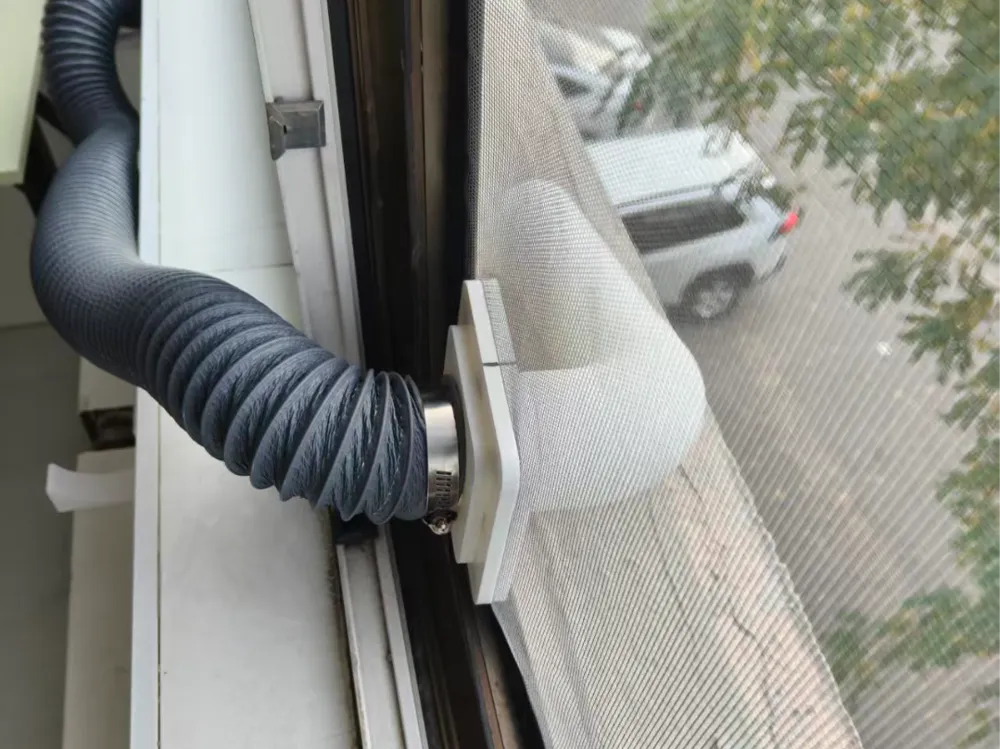

During printing, 3D printers can produce certain odors and harmful gases. This model was designed by me to facilitate the use of 3D printing at home. It can exhaust the waste gases produced during 3D printing out of the room through a screen window, without the need for drilling.

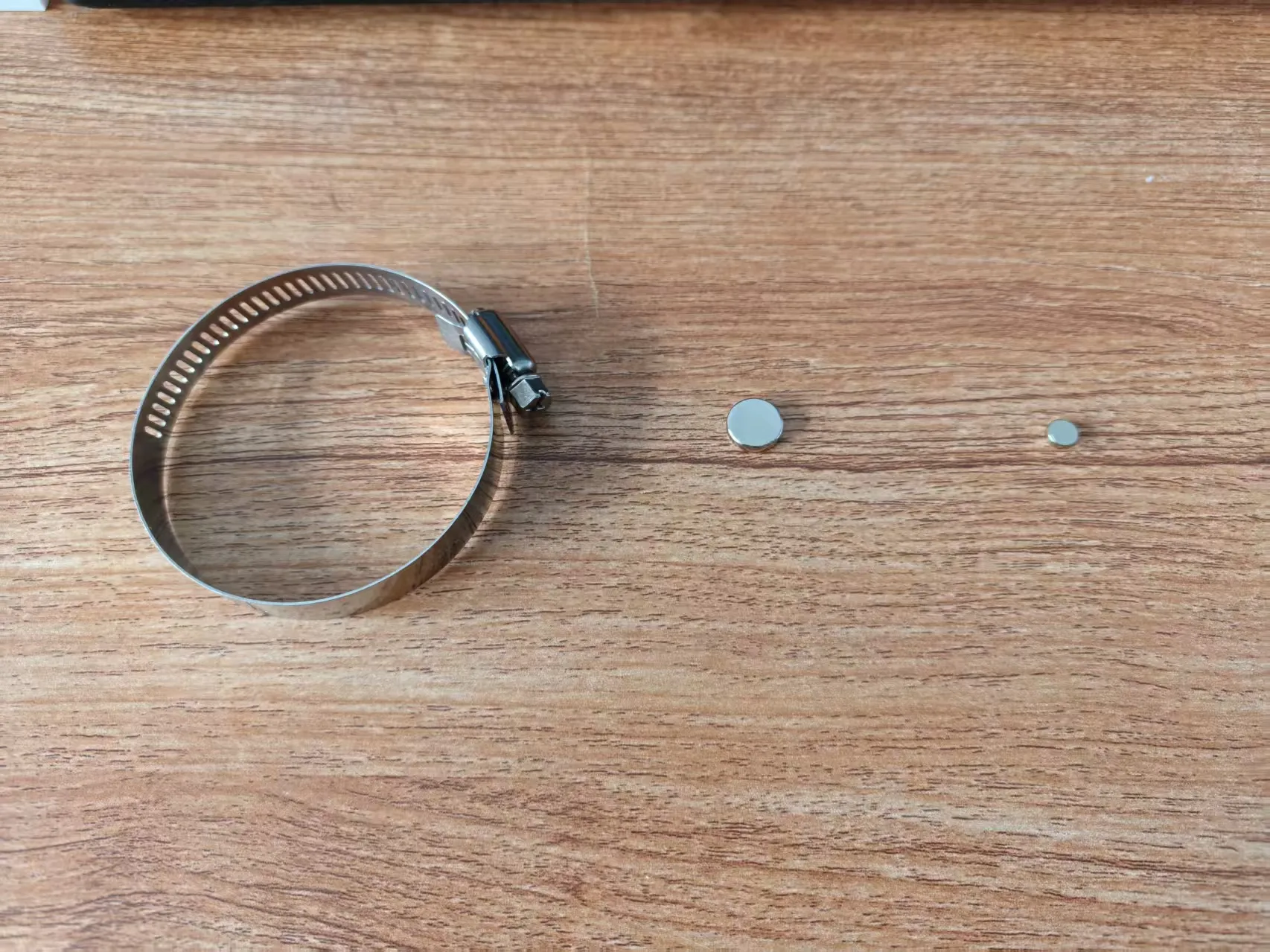

Some non-printed parts are used in the model, and the parameters are as follows:

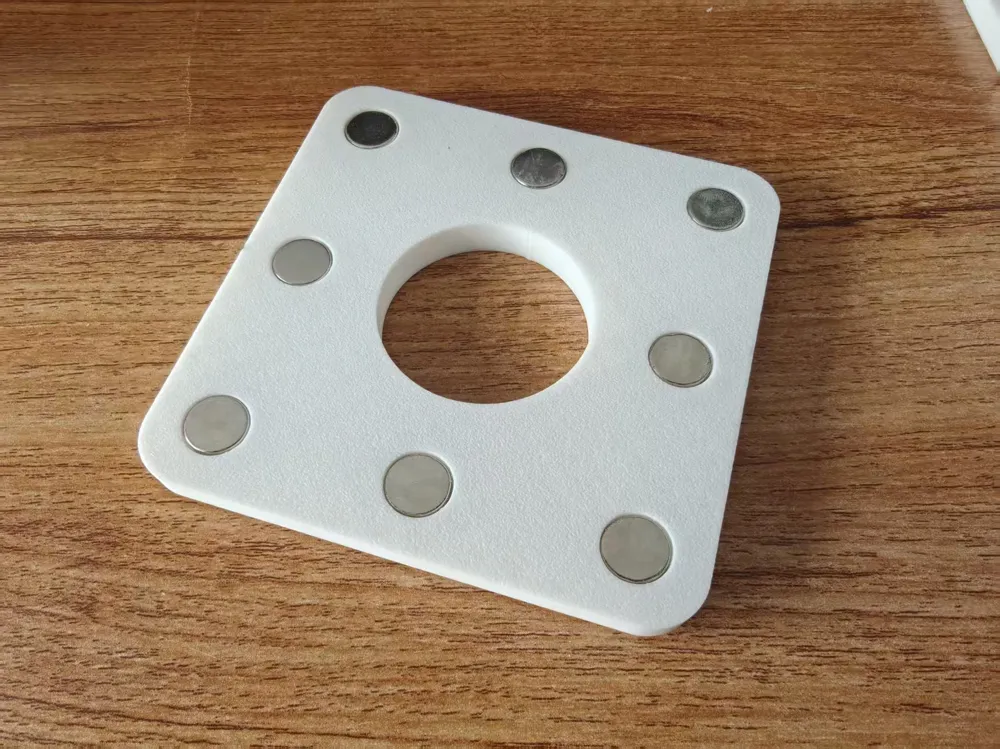

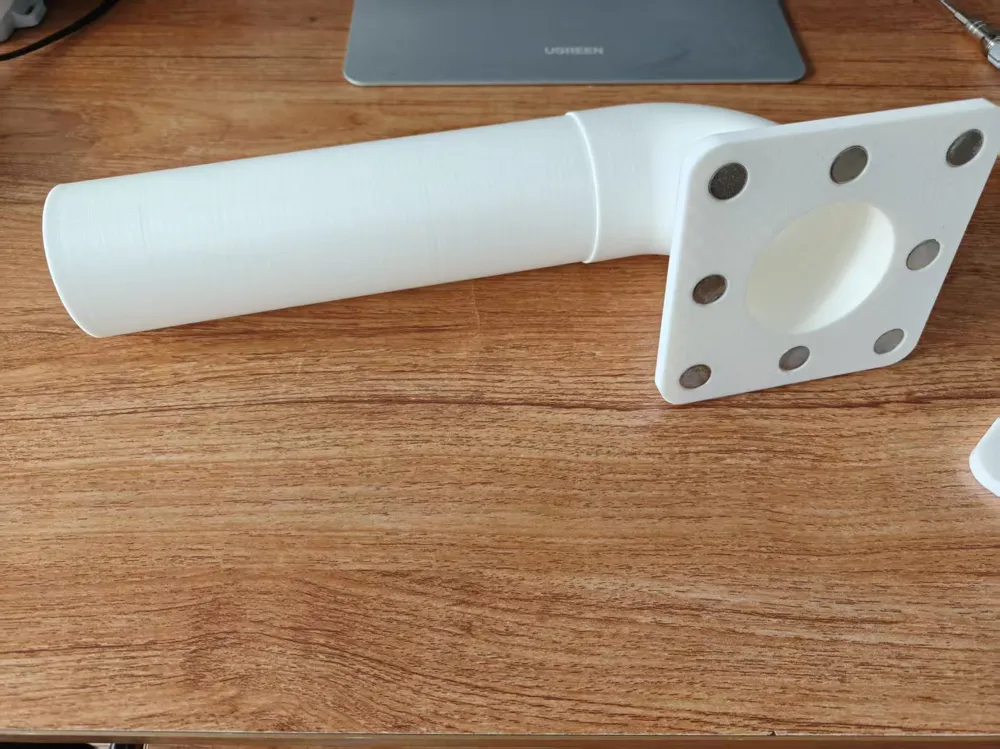

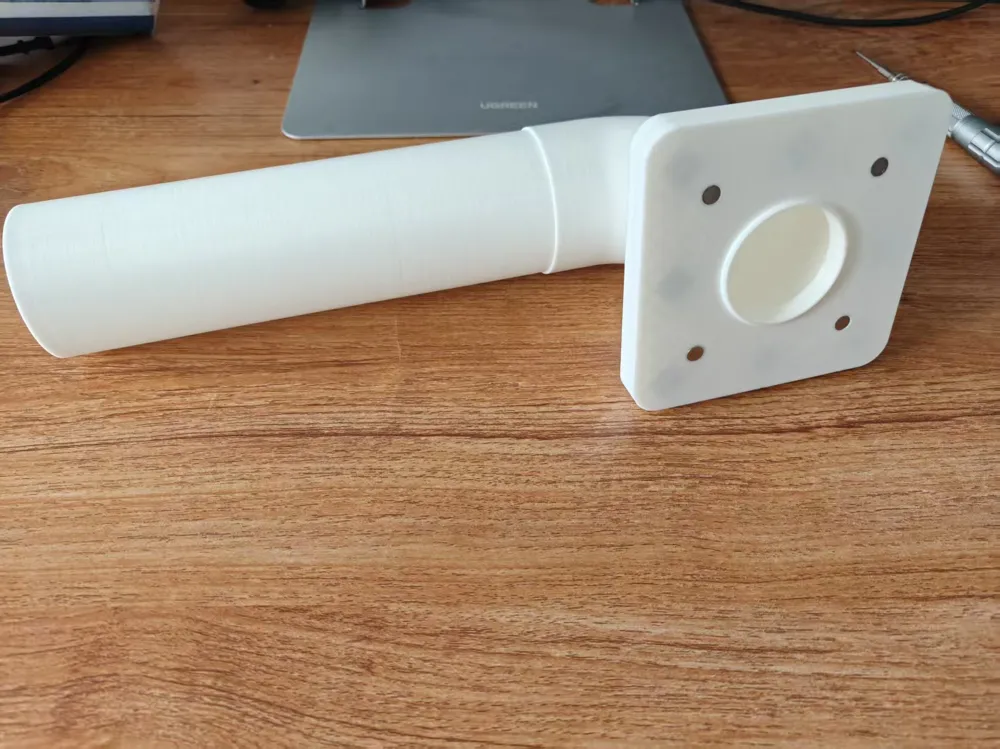

1. Magnets with a diameter of 12mm and a thickness of 3mm, 16 pieces;

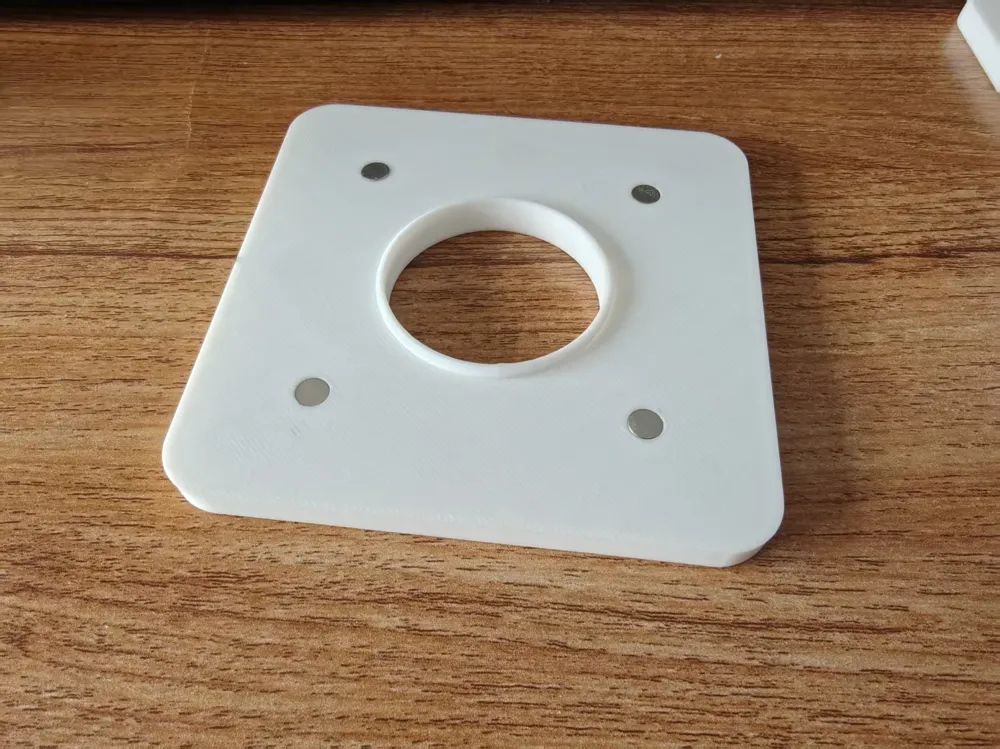

2. Magnets with a diameter of 5mm and a thickness of 3mm, 8 pieces;

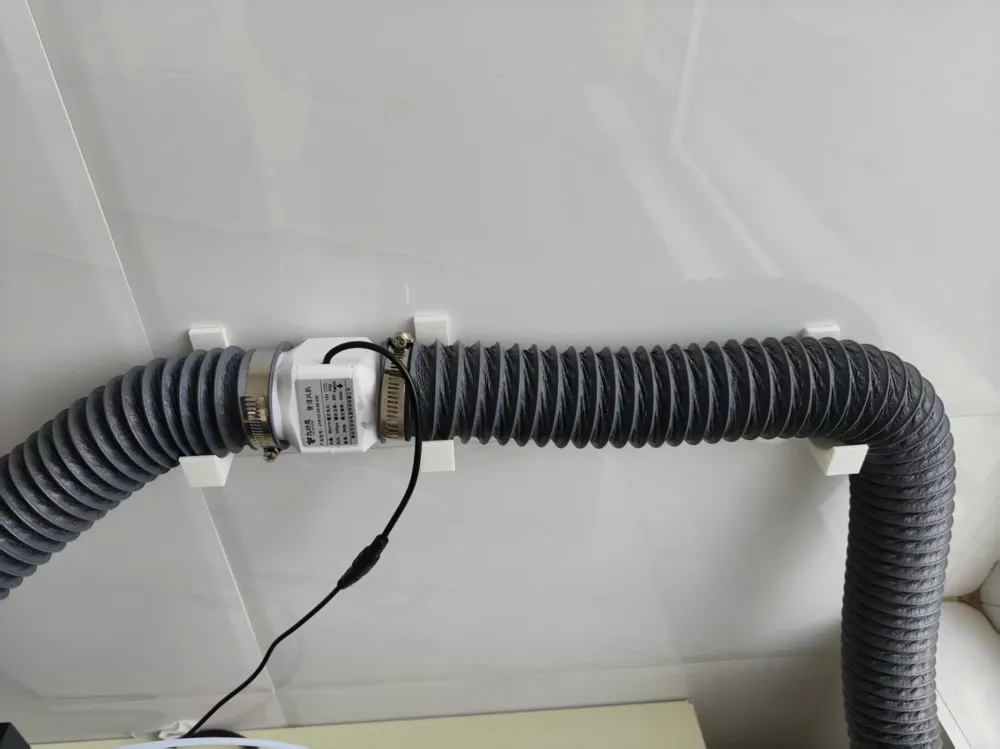

3. Nylon exhaust duct with an inner diameter of 50mm, use a length according to your actual situation;

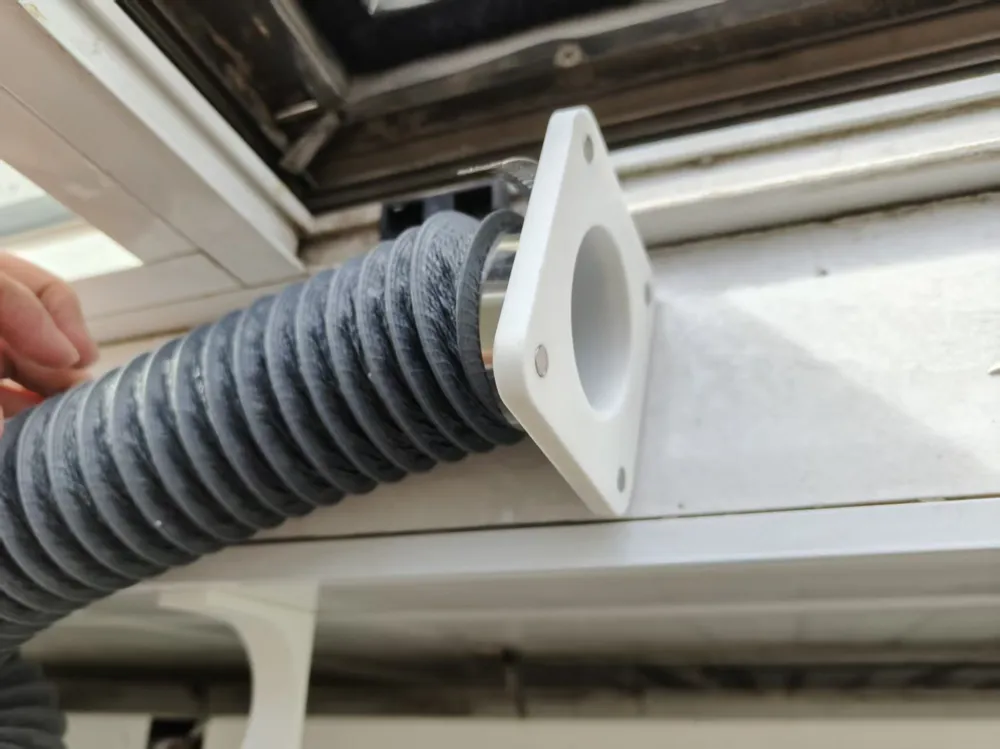

4. A hose clamp used to fix the exhaust duct to the printed part;
5. A 50mm exhaust fan, choose according to the required exhaust volume.
Pay attention to the installation direction when installing the magnets!
Pay attention to the installation direction when installing the magnets!
Pay attention to the installation direction when installing the magnets!
Important things are said three times.
