Titan Dynamics Micro Talon

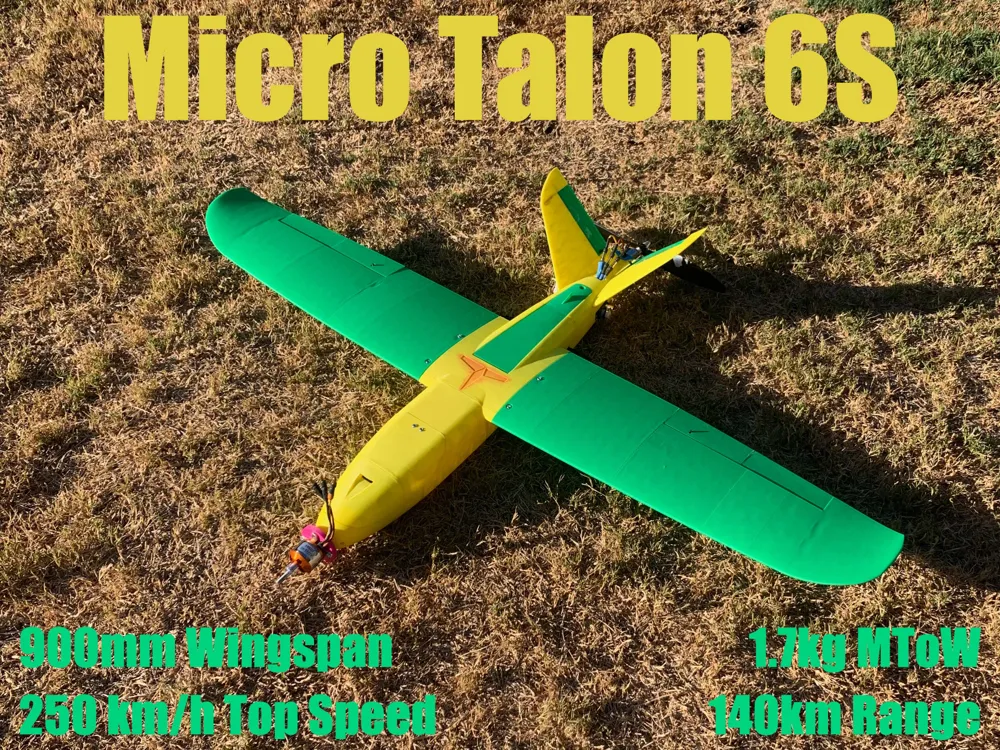

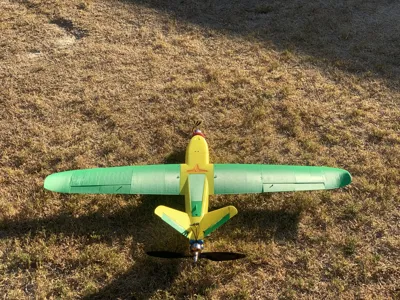

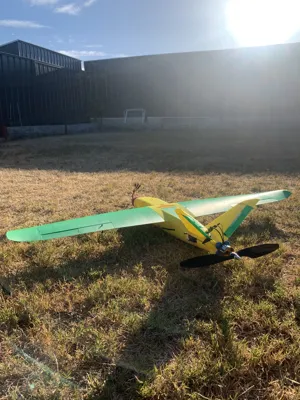

Introducing the Titan Micro Talon: A lightweight, long range-able, ultra-portable 900mm wingspan FPV platform. Featuring a flight envelope ranging from high speed acrobatics to high efficiency cruise. Whether it’s flying around the park or shooting for a mountain peak, the Micro

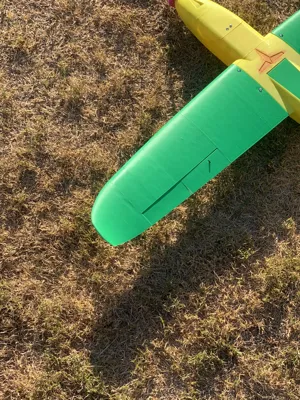

Talon is the tool for the job. The fuselage features a magnetic front canopy along with a hinged rear hatch with ample cooling and room for the electronics and battery. The wings and tail feature flush mounted servos for the flaperons and tailerons. The Micro Talon is capable of
140km max range and 2+ hours of flight time when using a 7000mah 4S2P 18650 paired with a T-motor F90 (1300kv) and 7x5 prop. With higher kv 6S setups, a top speed of 250km/h is easily attainable.
Printable on smaller 180x180x180mm printers fully support-less. If you’re just getting started
with 3D printed planes, this is the one for you!
Good for all levels of flying.
Great for first 3D printed FPV aircraft as it is cheap and customisable
General Stats:
• Wingspan: 900mm
• Wing area: 1136cm2
• Maximum take-off Weight: 1.7kg
• Efficiency: 0.56 Wh/km
• Cruise speed: 70-95kph
• Recommended prop diameter: 7 inches
Aerodynamic Properties:
• Root airfoil: NACA 3410
• Tip airfoil: NACA 3410
• Root chord: 150mm
• Tip chord: 61mm
• Average Chord: 111mm
• Root incidence: 3°
• Tip incidence: 0°
• Aspect ratio: 7.09
• Max L/D: 11.5
• Dihedral: 0°
• Sweep: 3°
Spars needed:
(1) 8x500 (main wing spar)
(1) 4x420 (secondary wing spar)
(4) 2x200 (wingtip support + aileron hinge)
(2) 2x120 (vtail hinge)

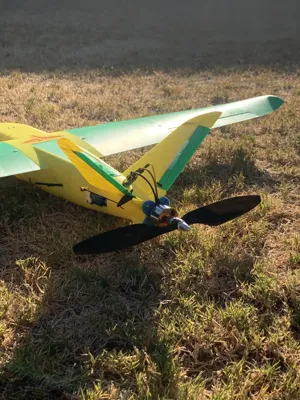

Recommended motor & prop:
16-19mm mounting pattern
Ideal motor: TMotor F90 1300kv. Other motors lighter than 70g can be used. 2212 and 2216 are too big! Aim for 2203-2506 size
5-7 inch propeller (we used 7x5)
Recommended electronics:
TBS crossfire / ELRS
5.8ghz analog or digital video (19x19 camera)
Matek F405-WMN / WTE flight controller or similar
Matek M8Q-5883 GPS/Compass or similar
35a BLHeli ESC
(4) Emax ES08MAII servos
Battery: Anything from a 2000mah 4S/6S Lipo to 4S1P 4,200mah Li-Ion
Misc:
Polymaker Polylite prefoamed LWPLA
Polycarbonate or other high-temp filament for the motor mount
Medium CA glue
180x180x180 minimum size print bed
Control horns (this one).
M3 threaded inserts (max 6mm height)
M3 bolts of various sizes
6x3mm magnets
