MJX 14303 Wheel Mudguards

!!!! Major Update! Based on actual testing, the following updates have been made:

1. Increased the strength of the rear fender

2. Improved the issue of the rear fender affecting shock absorber travel

3. Improved the connection hole position of the rear fender, corrected the problem of the original fender not aligning with the tire centerline

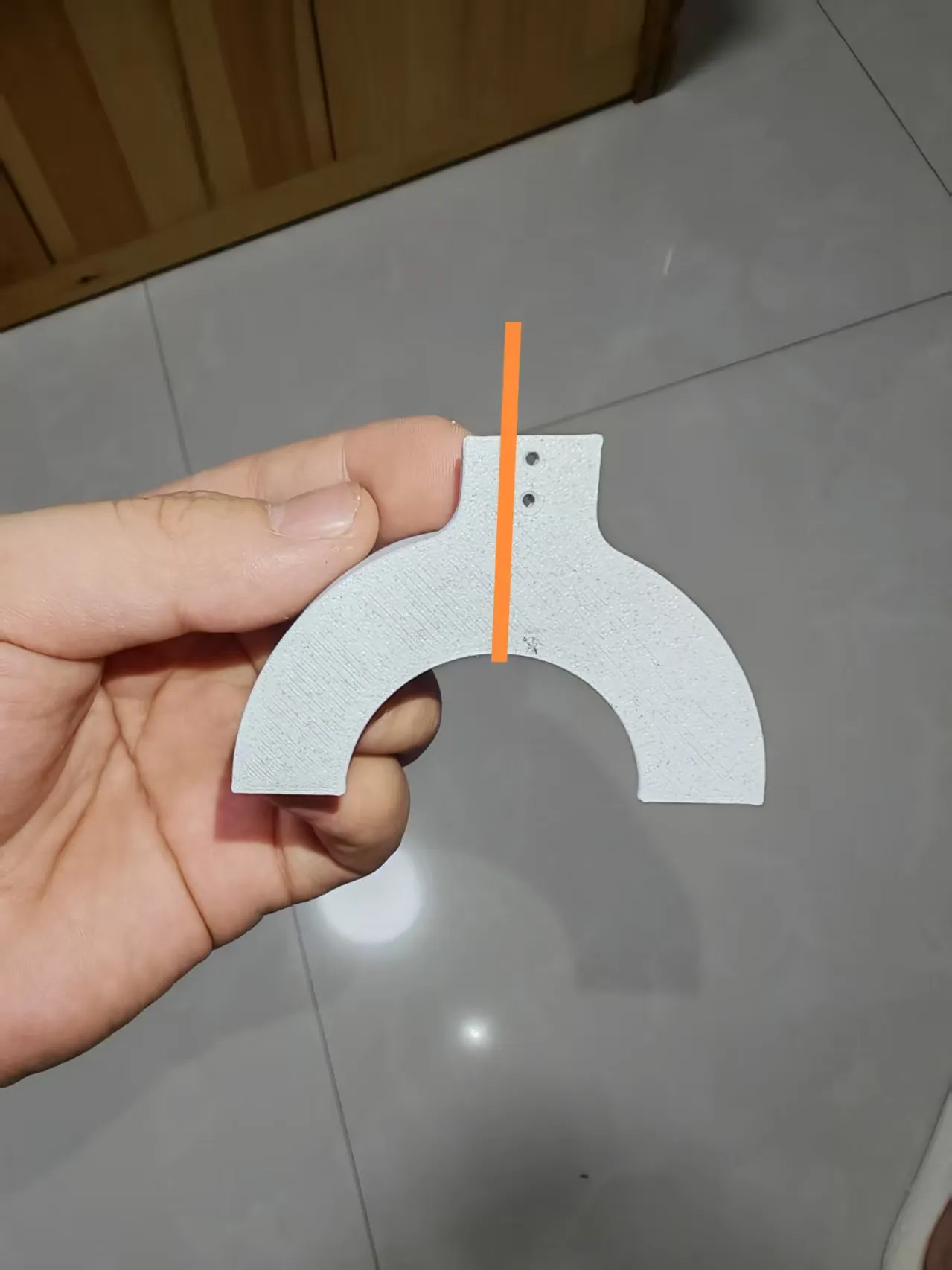

Note: After the update, the rear fenders need to be distinguished as left and right, as shown in the figure, if the screw hole is to the right of the centerline, it is for the left rear wheel, and vice versa for the right rear wheel

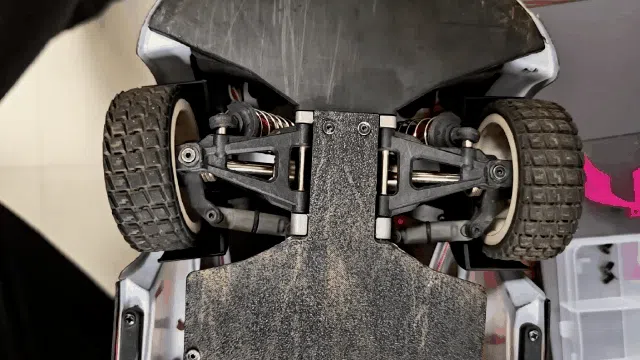

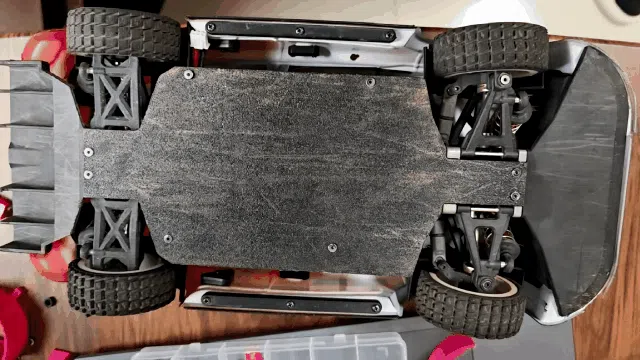

Meijiaxin 14303 wheel fender, the front fender can follow the steering

M2X8 self-tapping screws are required (can be longer, not shorter)

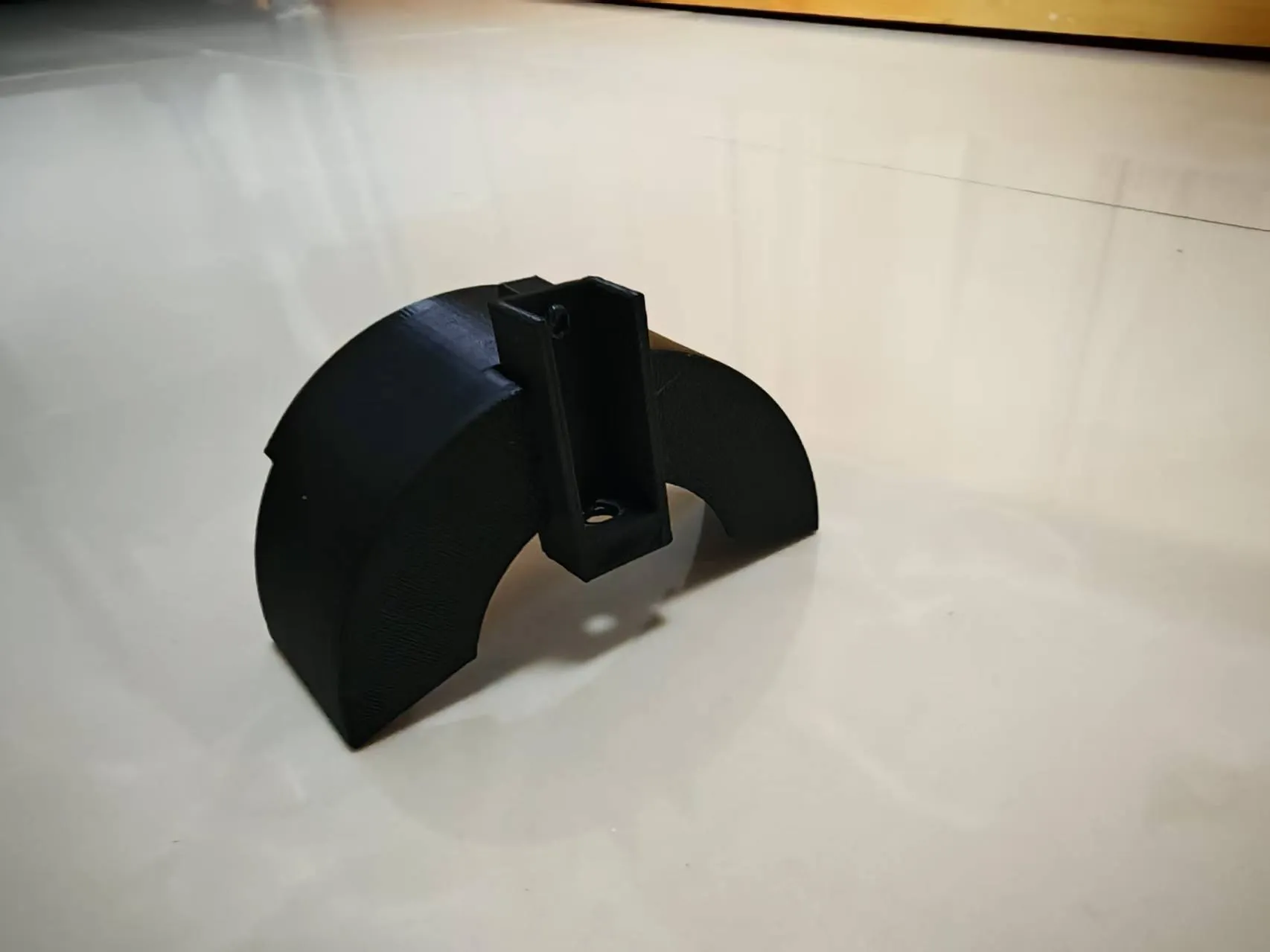

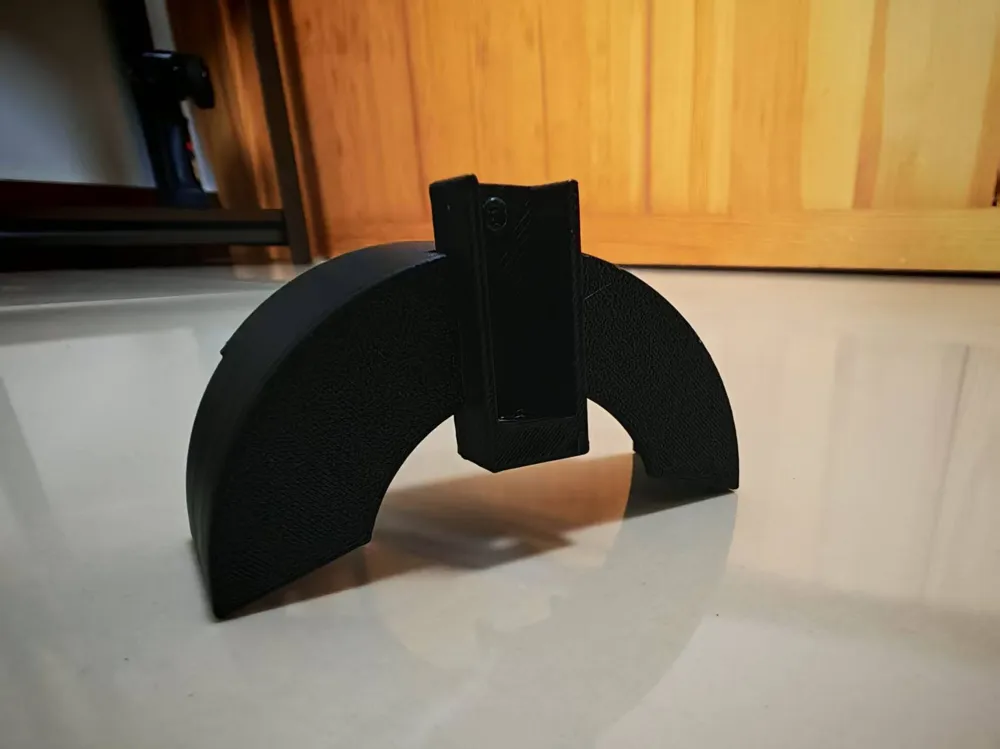

Front wheel: Connect the front fender and the front wheel connector from the top of the fender with screws, with the connector slot facing outwards

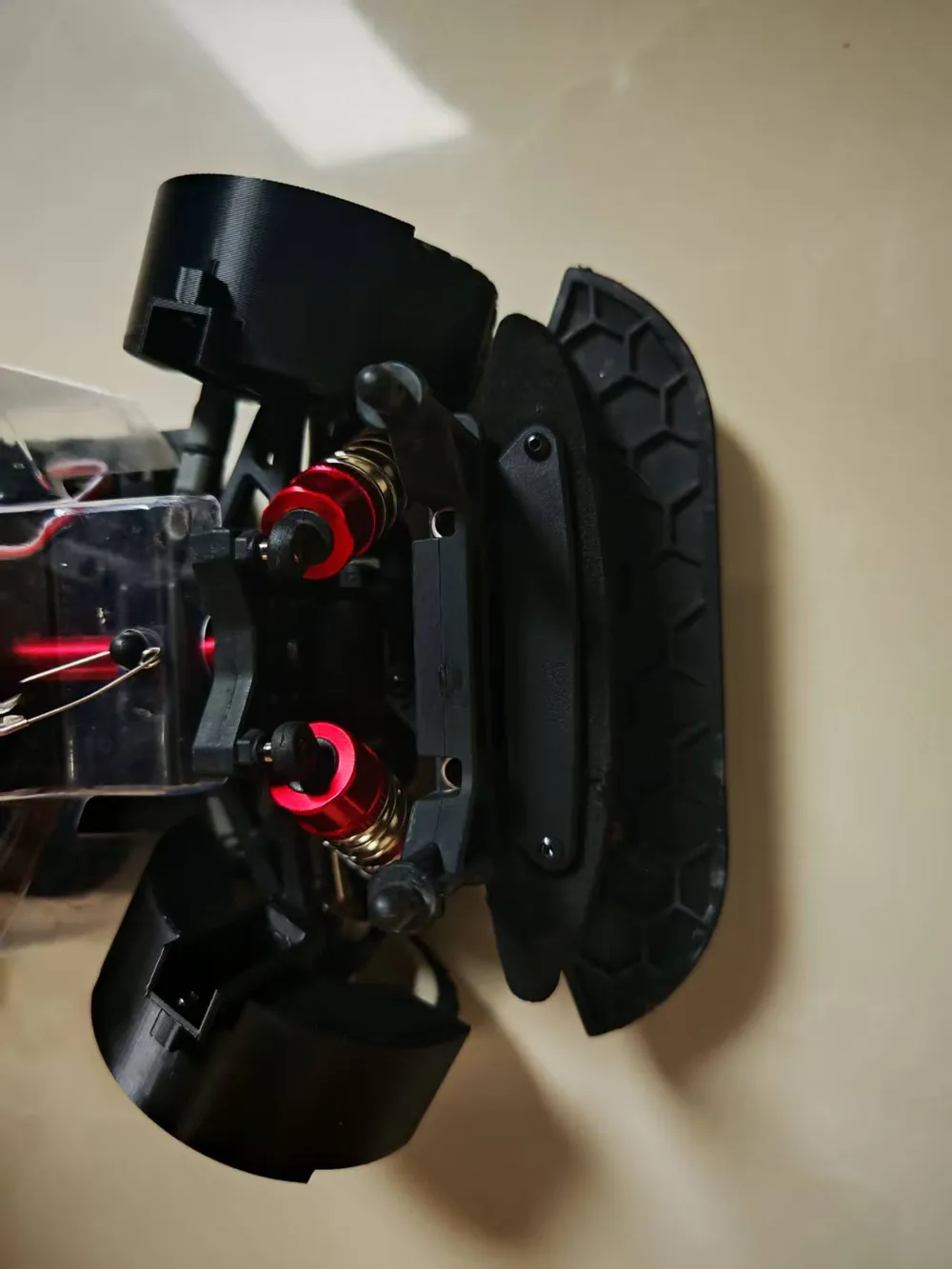

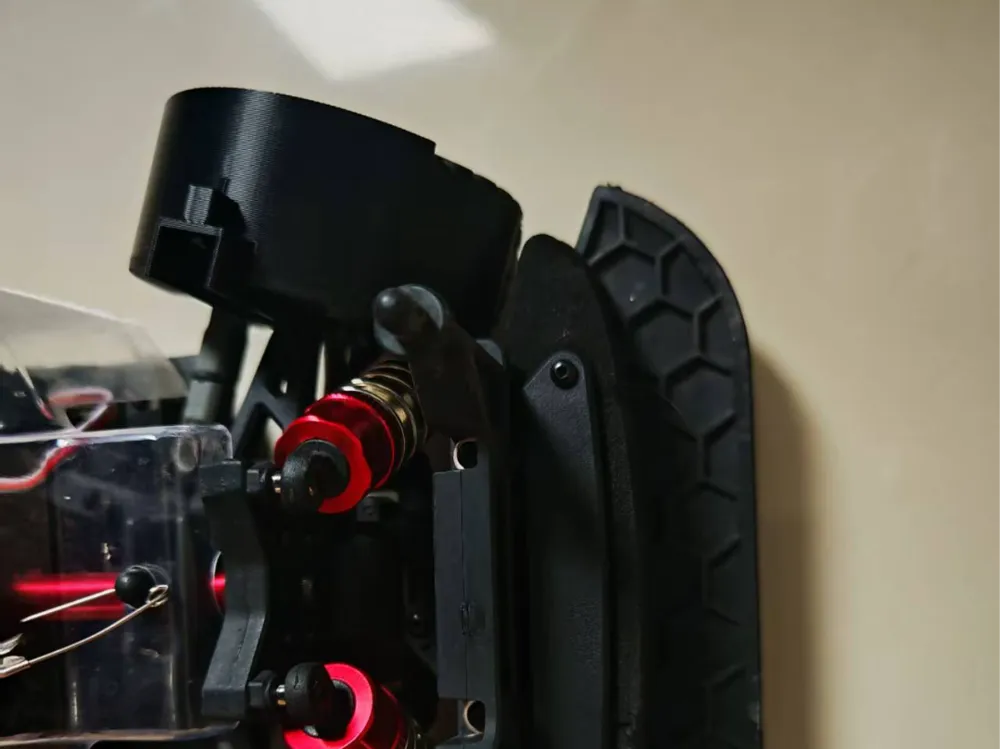

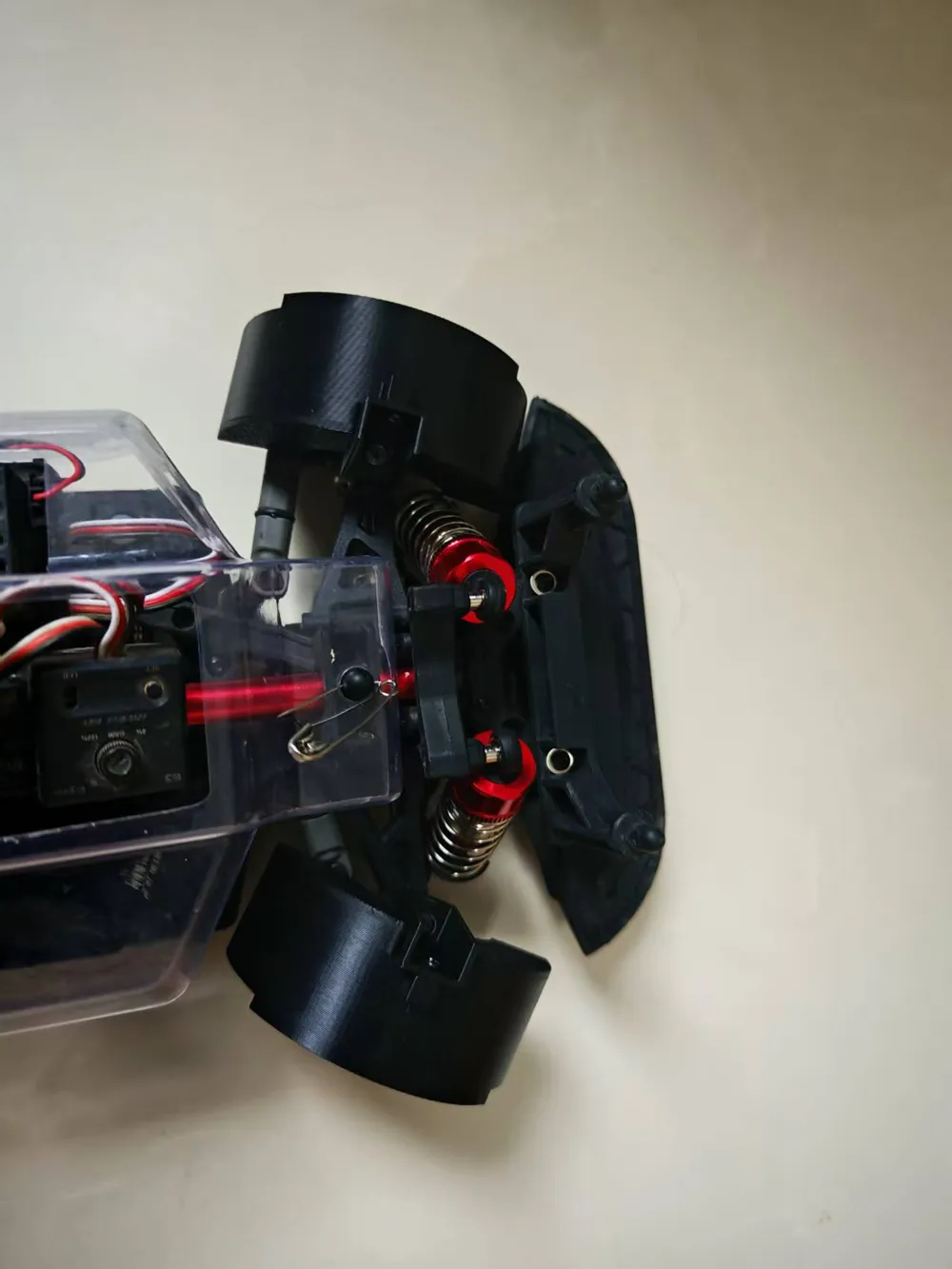

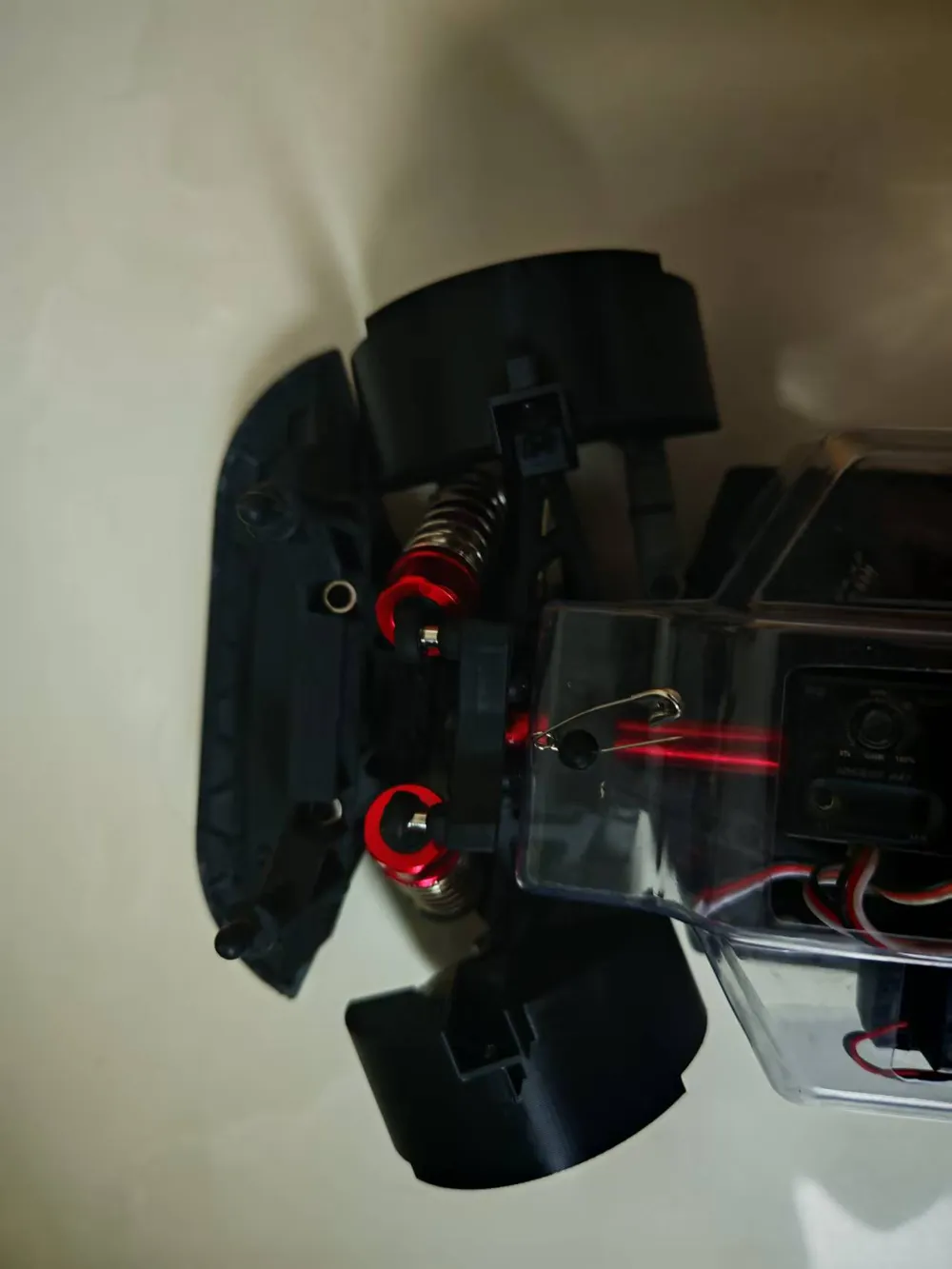

Then fix it using the original screws on the car body, as shown in the figure

Rear wheel:

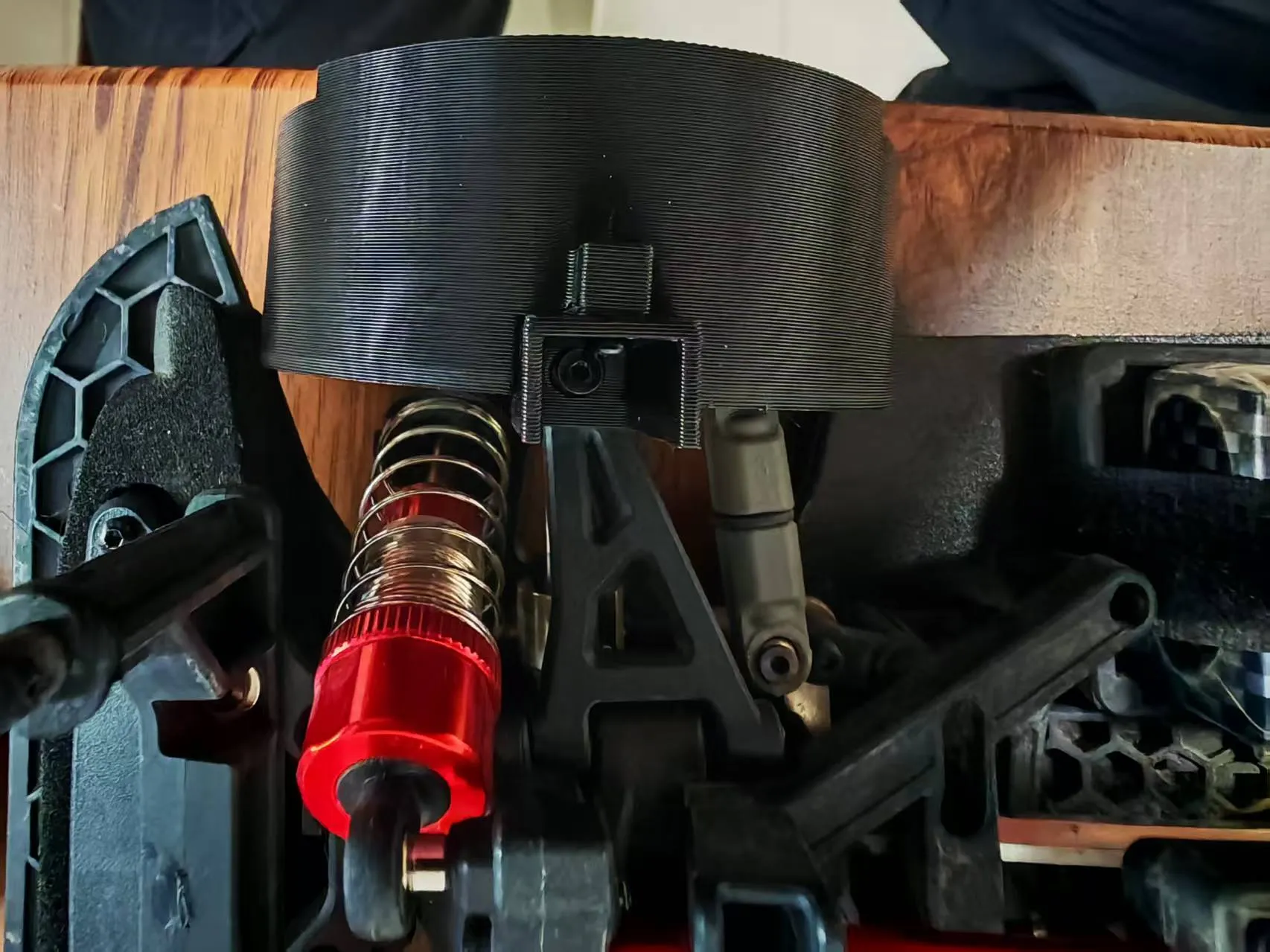

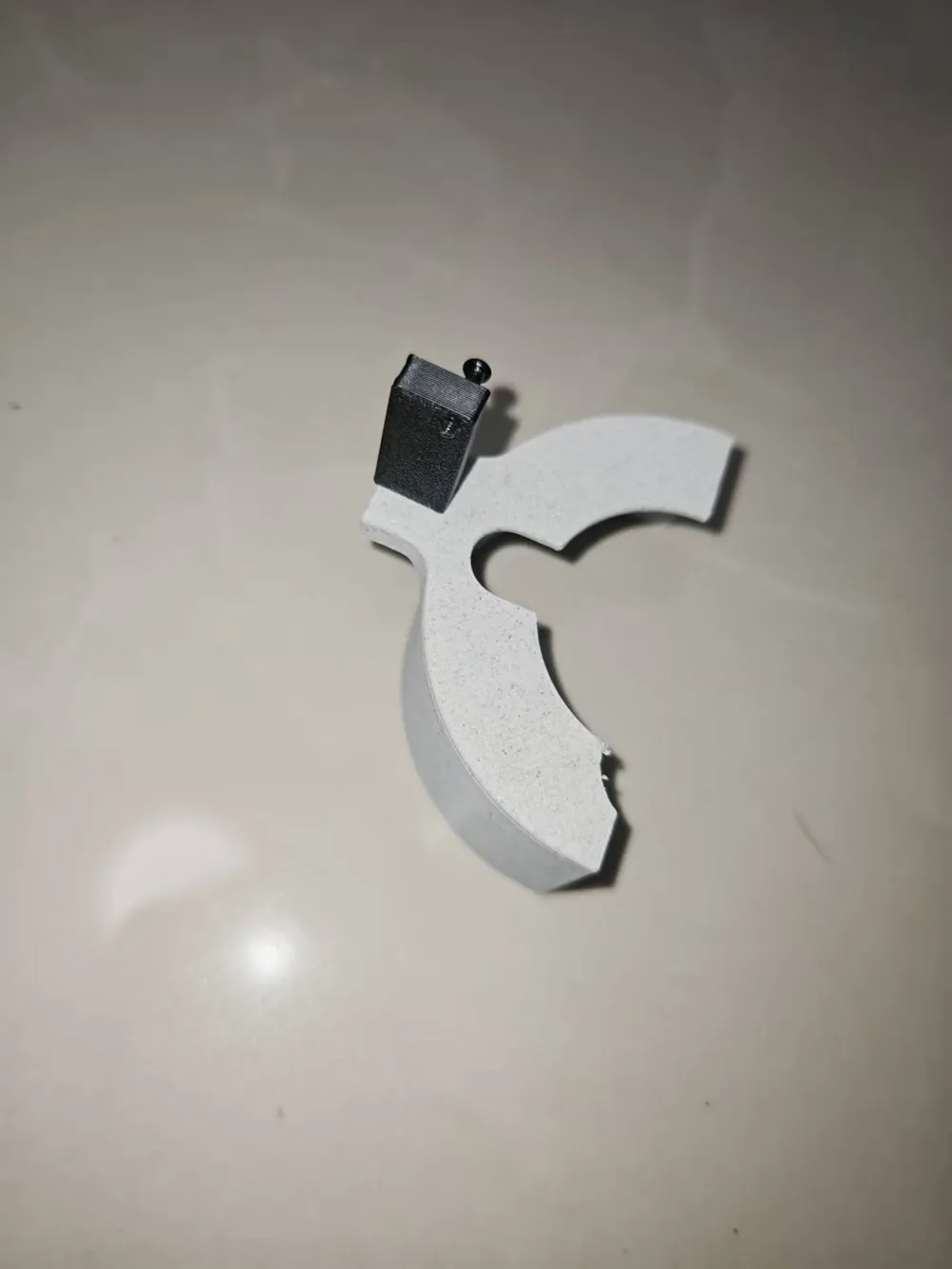

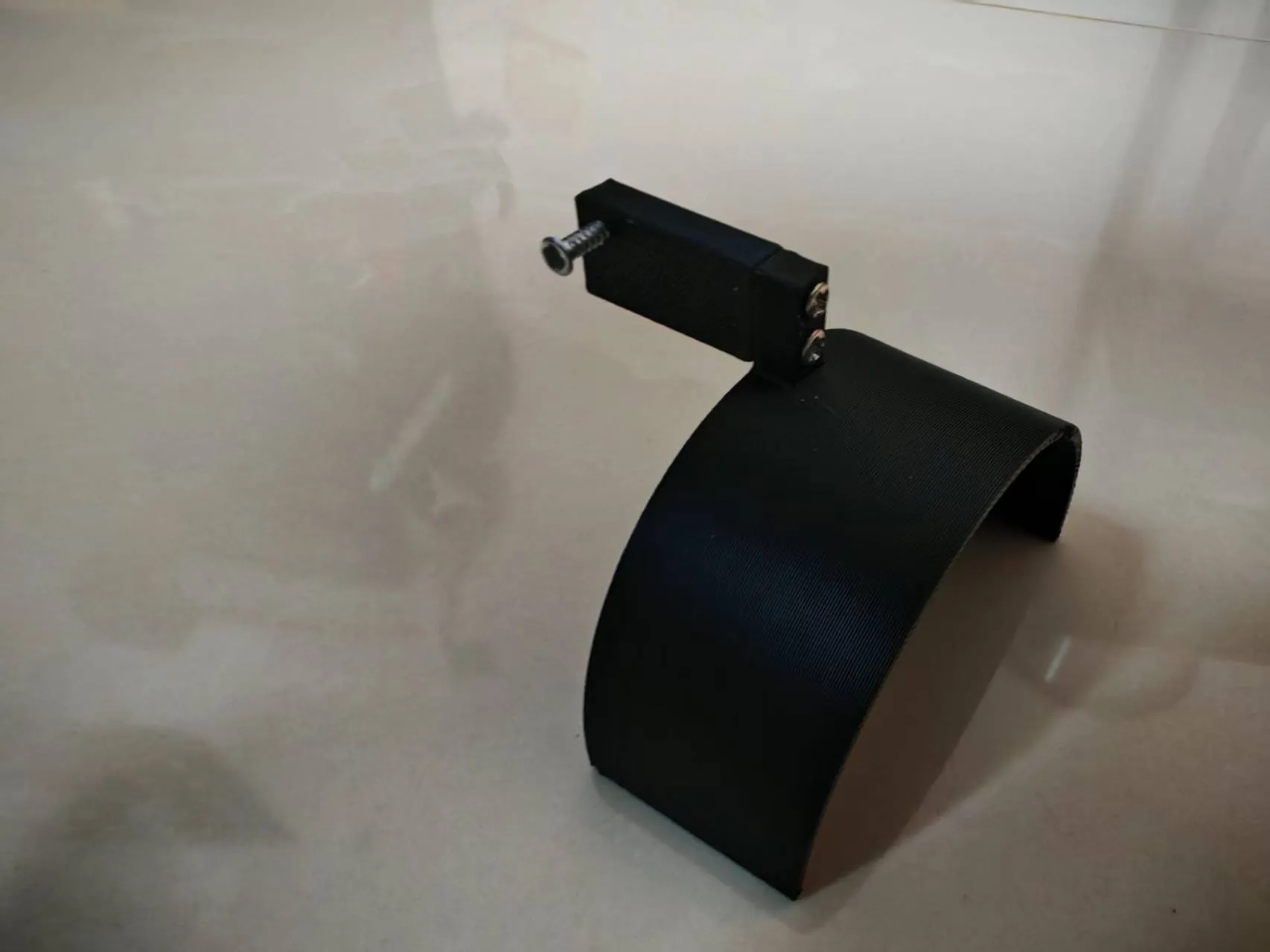

Fix the fender and connector with two screws, as shown in the figure, note that the M2 hole at the end of the connector is in the upper half

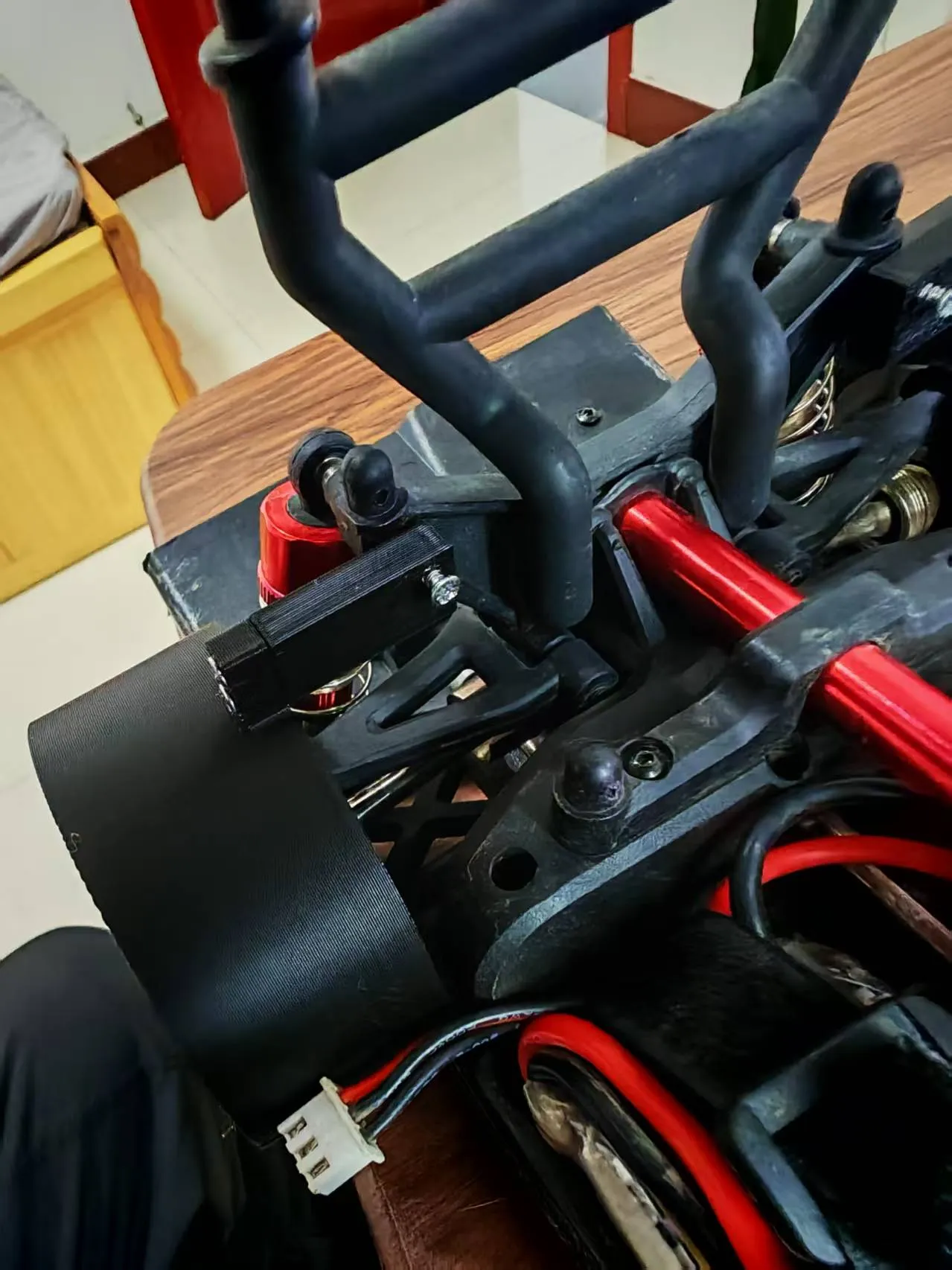

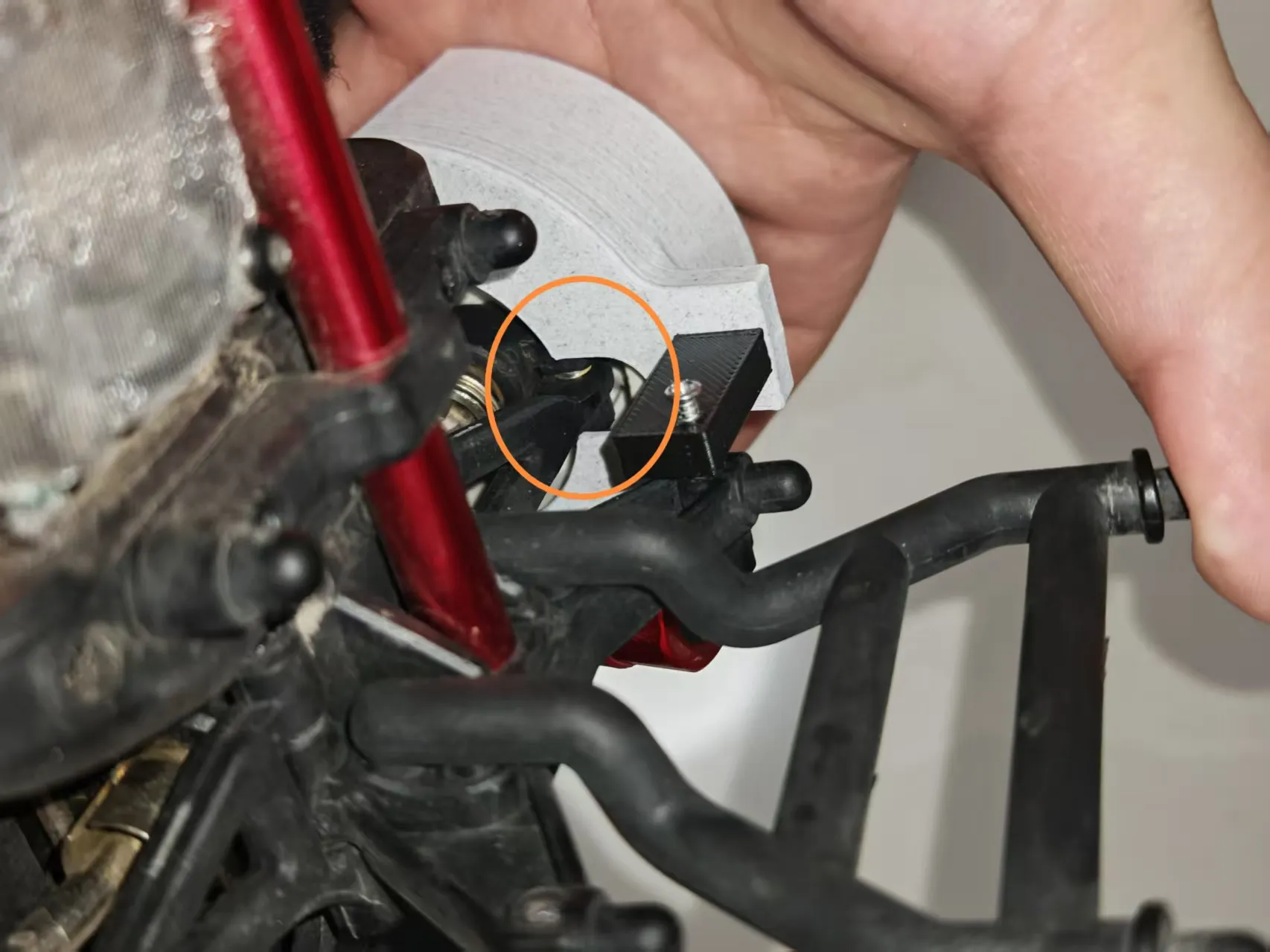

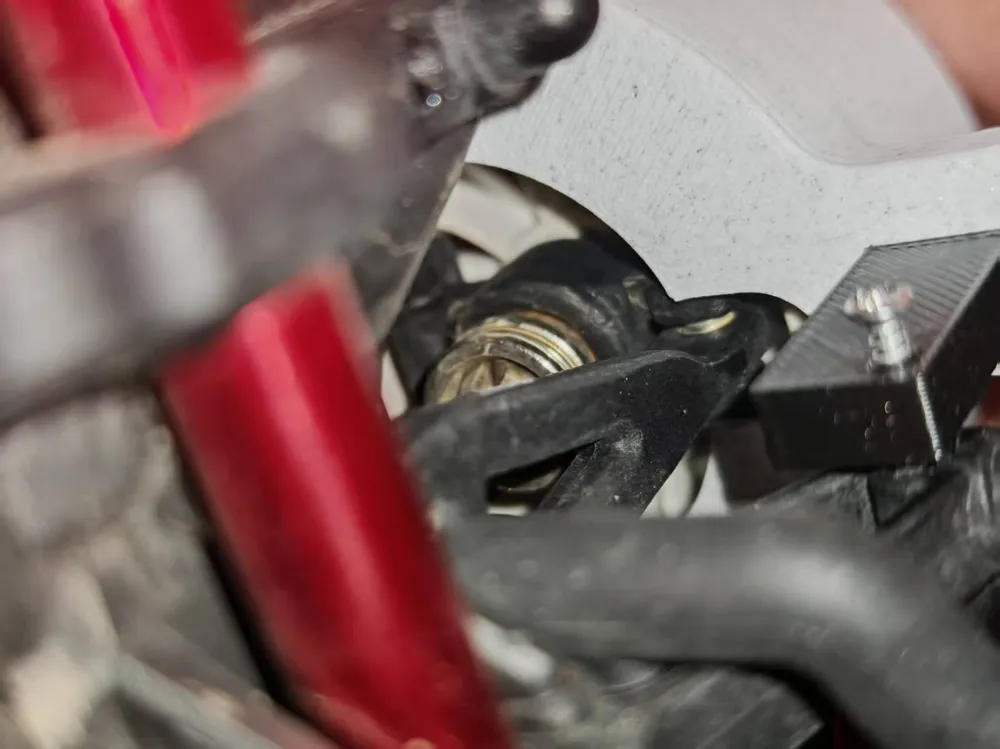

Then secure it in the original holes on the car body using M2 screws, as shown in the figure
