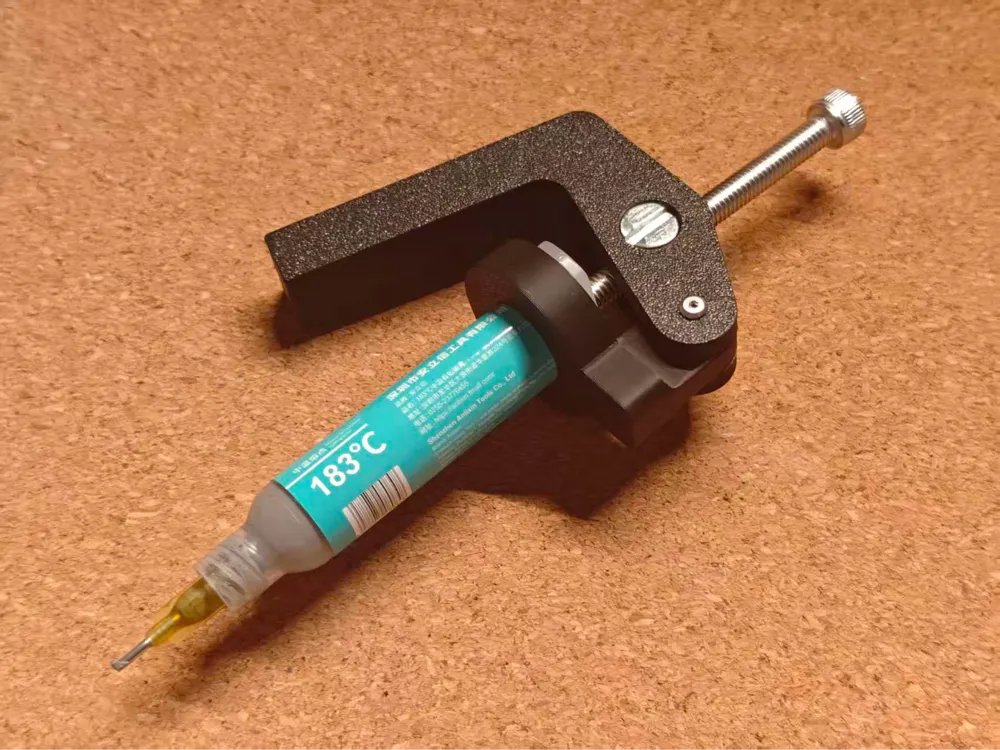

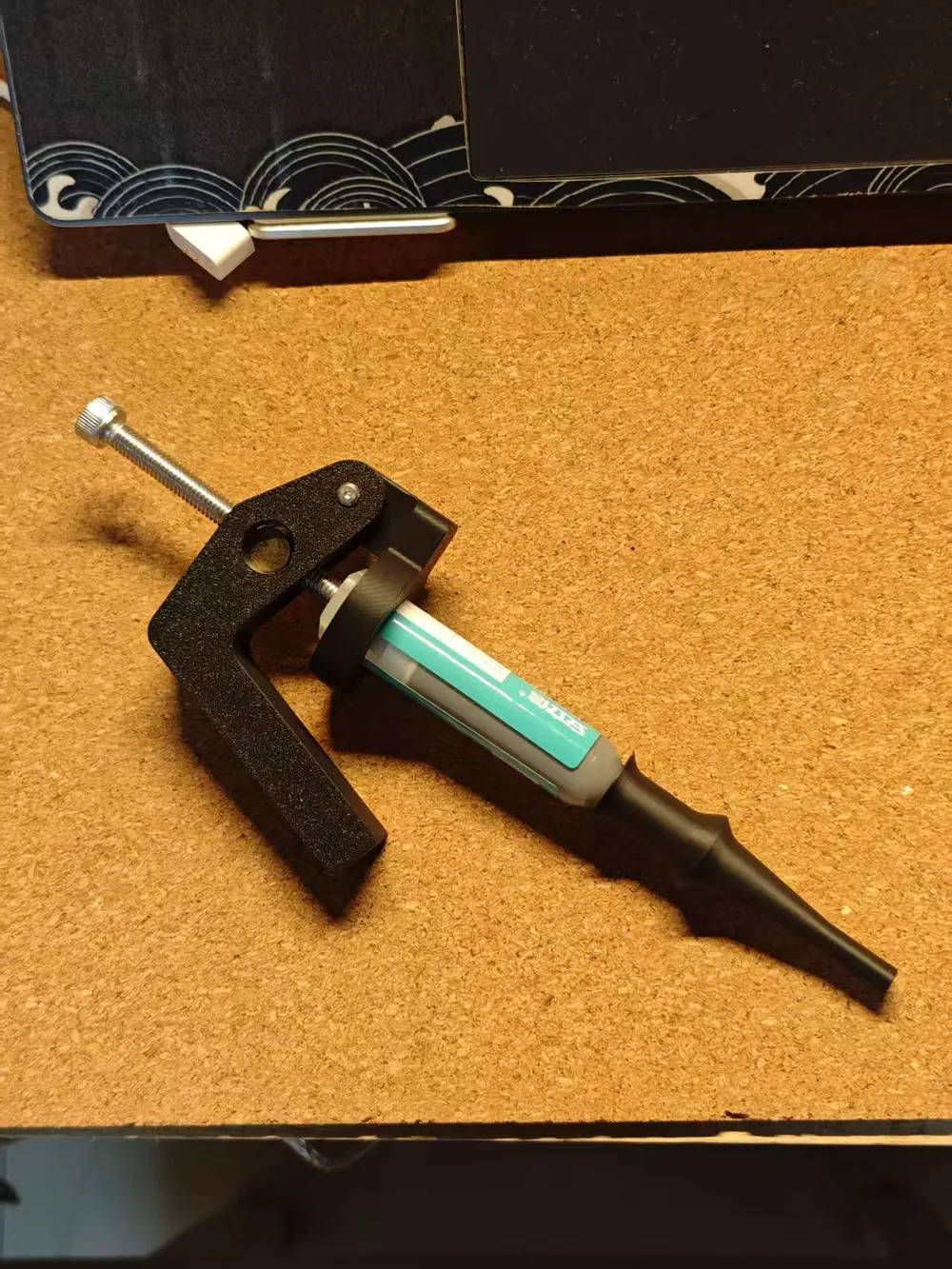

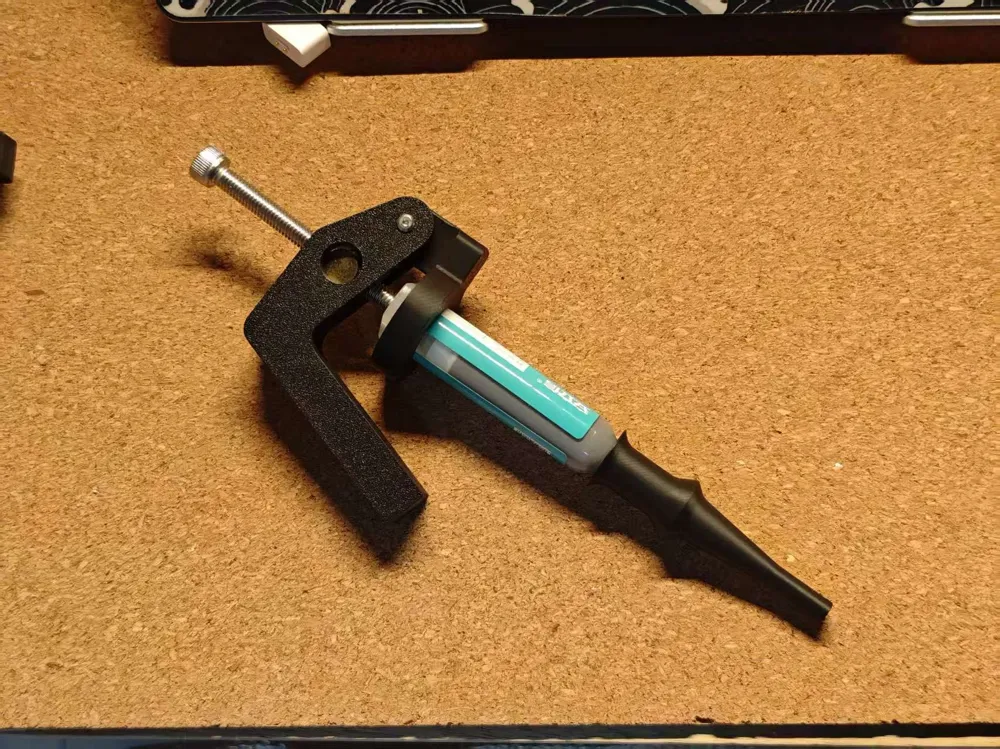

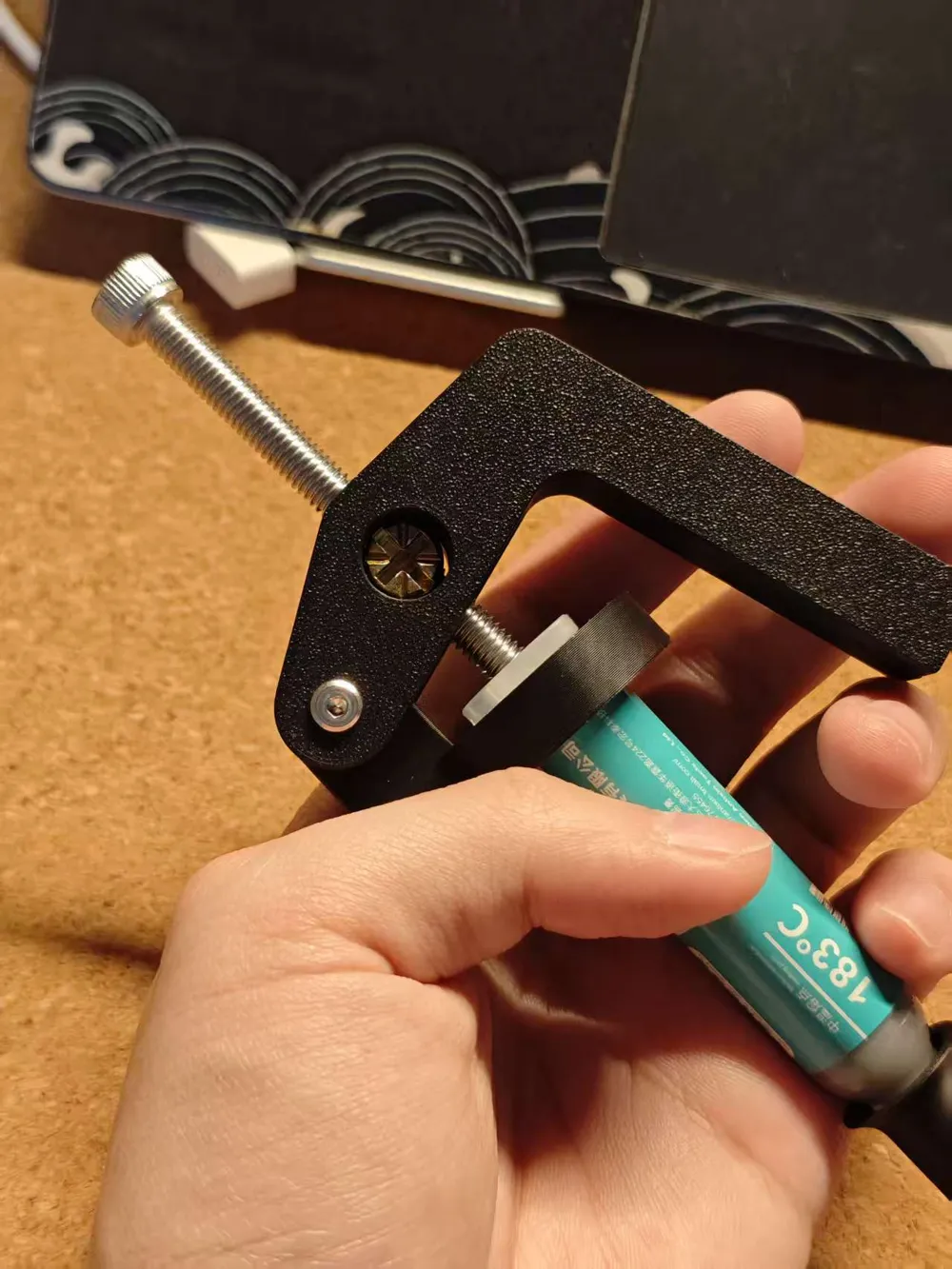

Multi-size Compatible and Customizable - Solder Paste Extruder - Booster - Extrusion Aid

Solder paste assist extruder with customizable parameters, theoretically compatible with all sizes of solder paste and flux

You can customize the length of the handle and the diameter of the sleeve to match different sizes of solder paste

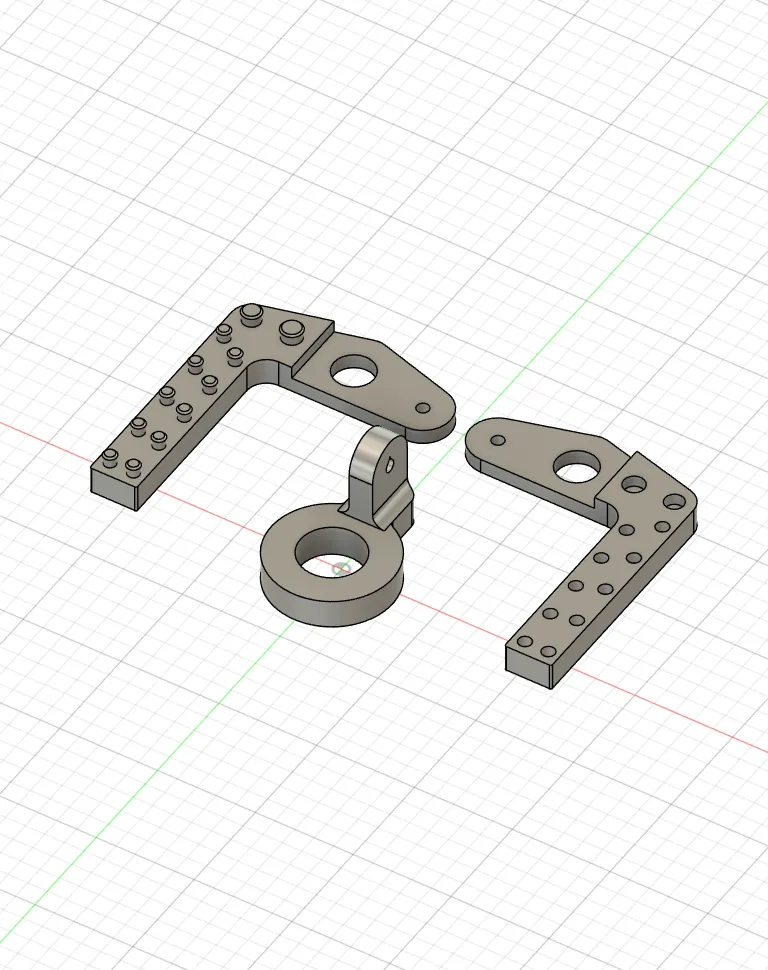

The handle part is printed in separate pieces, offering high strength that is difficult to break, avoiding supports, and resulting in good surface quality

For detailed assembly steps, please refer to: Hardware-free - Any Size Customizable Model - Syringe Solder Paste/Solder Flux Assist Extruder Booster

For durability, hardware parts are required for important areas:

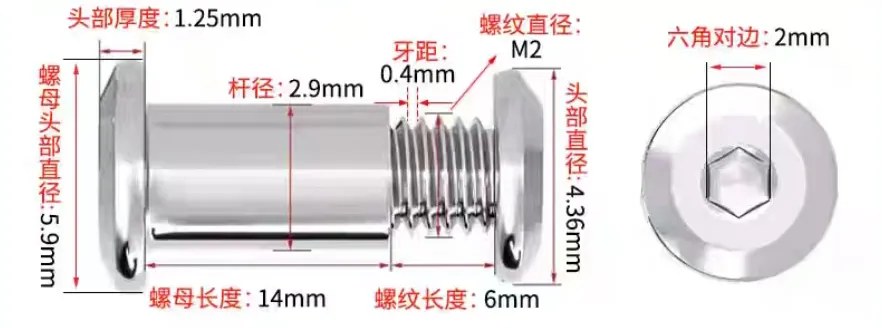

1. M2*14 sex bolts

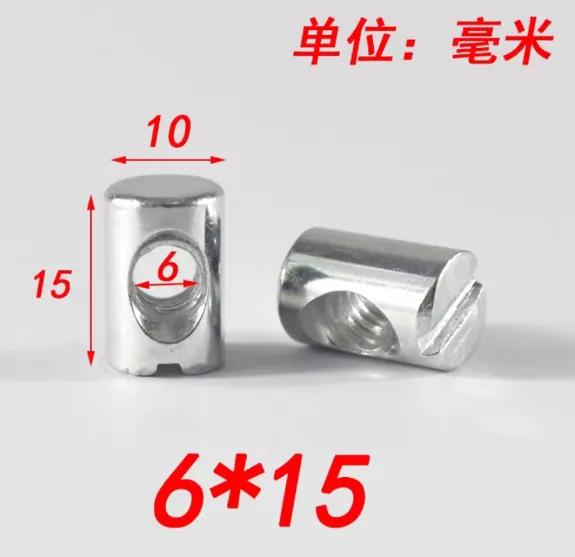

2. M6*15 hammer head nut

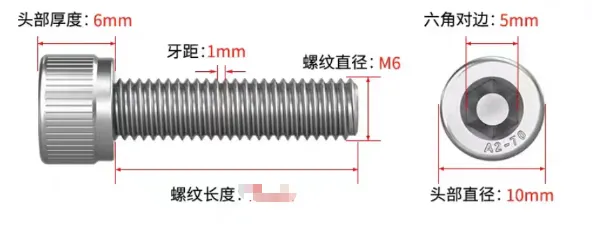

3. M6 bolt, Note, measure the length of your solder paste and buy a bolt of that length plus 20mm

4. M6 low-profile dome nut
