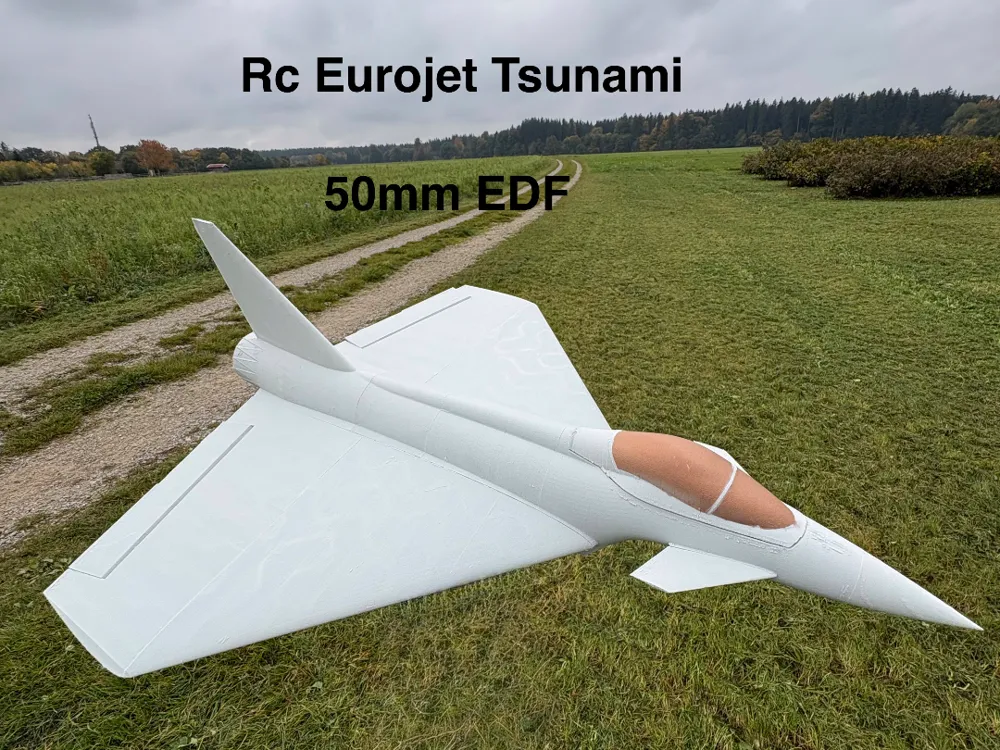

Rc Eurojet Tsunami 50mm EDF
Print Profile(1)
Bill of Materials
Description
Membership
Do you want to sell physical prints of my models? The commercial membership grants a license for this
Boost Me (for free)

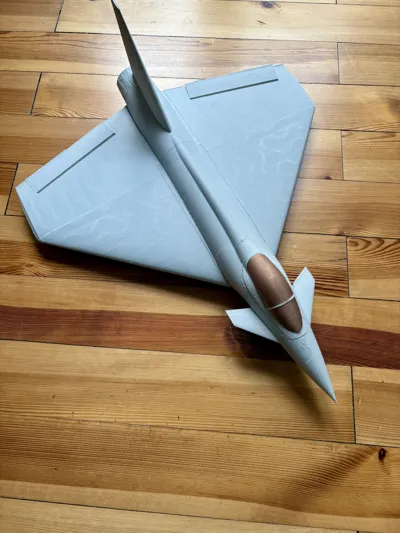

A compact, powerful R/C jet, inspired by the Eurofighter, F16, and F35, but with an independent design!
A model that is both easy to build and agile in the air. With a thrust-to-weight ratio of up to 1.5:1, the jet delivers an impressive flight experience – precise, stable, and with real power for its size!
Highlights:

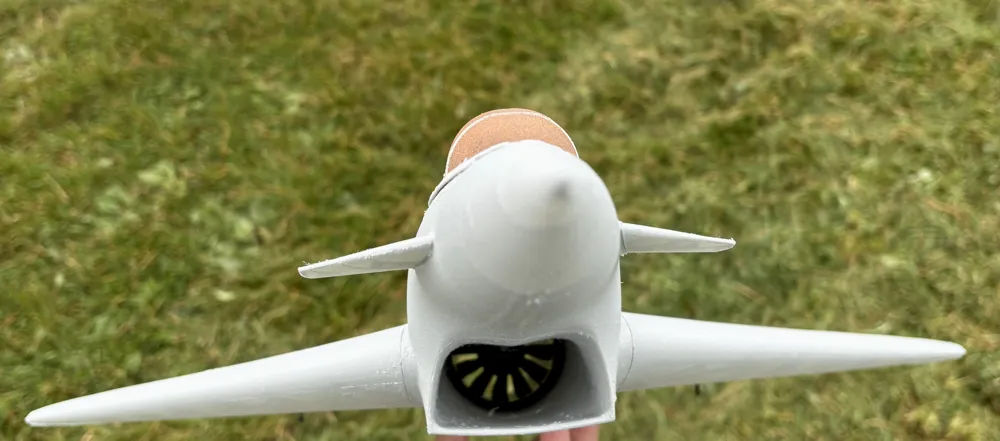

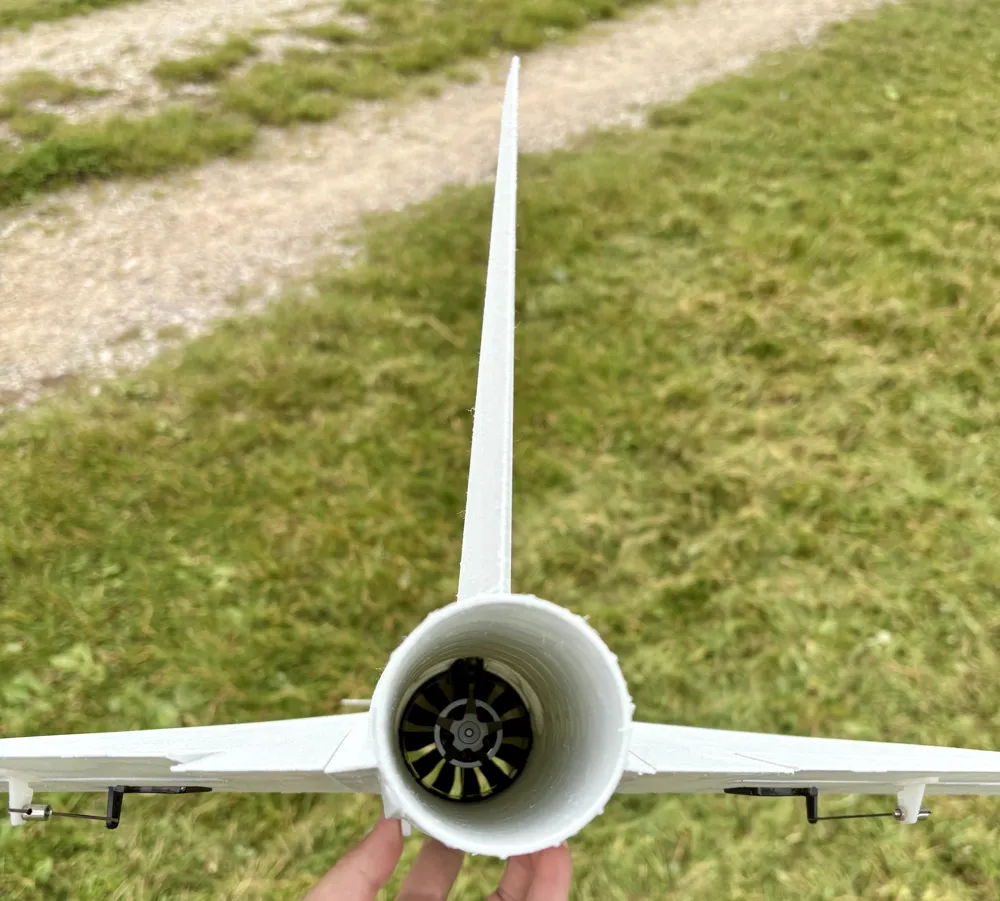

- 50 mm EDF for efficient thrust at low weight
- Wingspan: 510mm
- Length: 620 mm

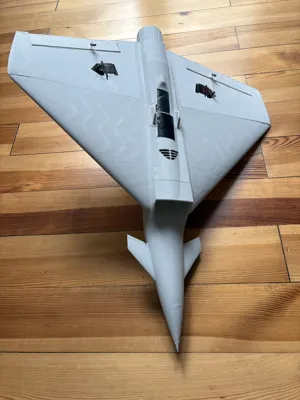

- Control surfaces: combined elevons (ailerons + elevators)
- All-Up Weight (AUW): approx 530g (200g printed)
- Thrust: approx 750–900 g
- Magnetically held canopy with 2× 8×2 mm magnets
- Only about 220 g of filament consumption for all printed parts
Recommended Materials:
- LW PLA/ASA AERO for fuselage and wings – lightweight, stable, and perfect for jets
- PLA or PETG for connectors
- TPU for hinges – flexible
- Additionally, a 20cm long 1 mm rigid metal wire is needed for the linkages
- Fiberglass reinforced tape

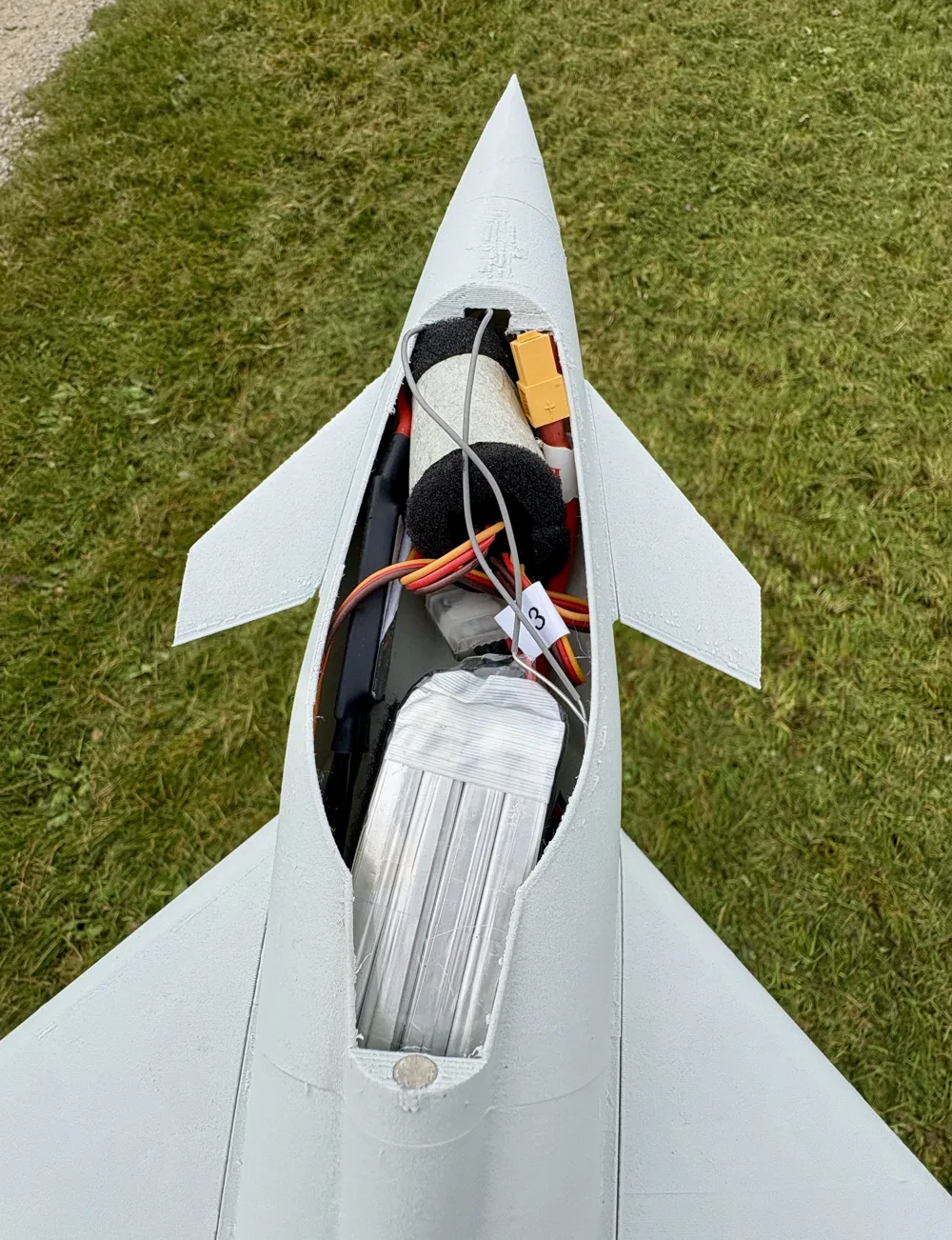

Electronics & Components:
- 50 mm EDF (https://shorturl.at/RuD8l)
- 40 A ESC (https://shorturl.at/hX89Y)
- 2 × 9 g servos
- 4S LiPo battery (1300–1600 mAh)
- CA glue
- Velcro strap for battery
- 2 x control horns for the linkages
- 2 8x2mm magnets
The jet is ideal for anyone looking for a lightweight, fast, and efficient jet project that delivers maximum performance with minimal material use. Despite its compact size, it flies stably, responds directly, and looks truly elegant – a real fun flyer for jet fans and EDF beginners alike!
Have fun building and flying!
