ESP32 S NODEMCU BREADBOARD
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
61
176
4
1
174
113
Released
Description

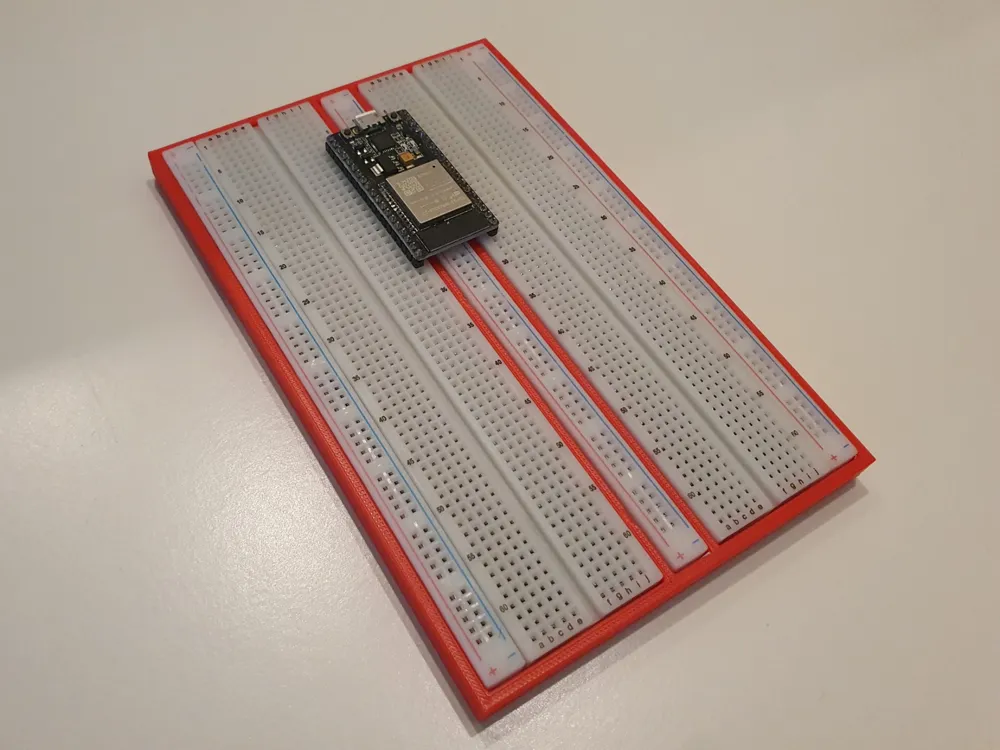

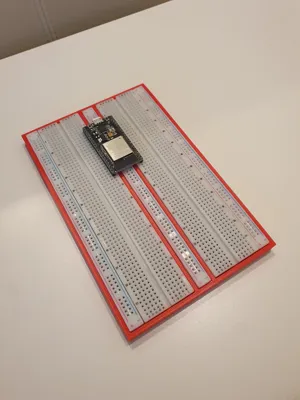

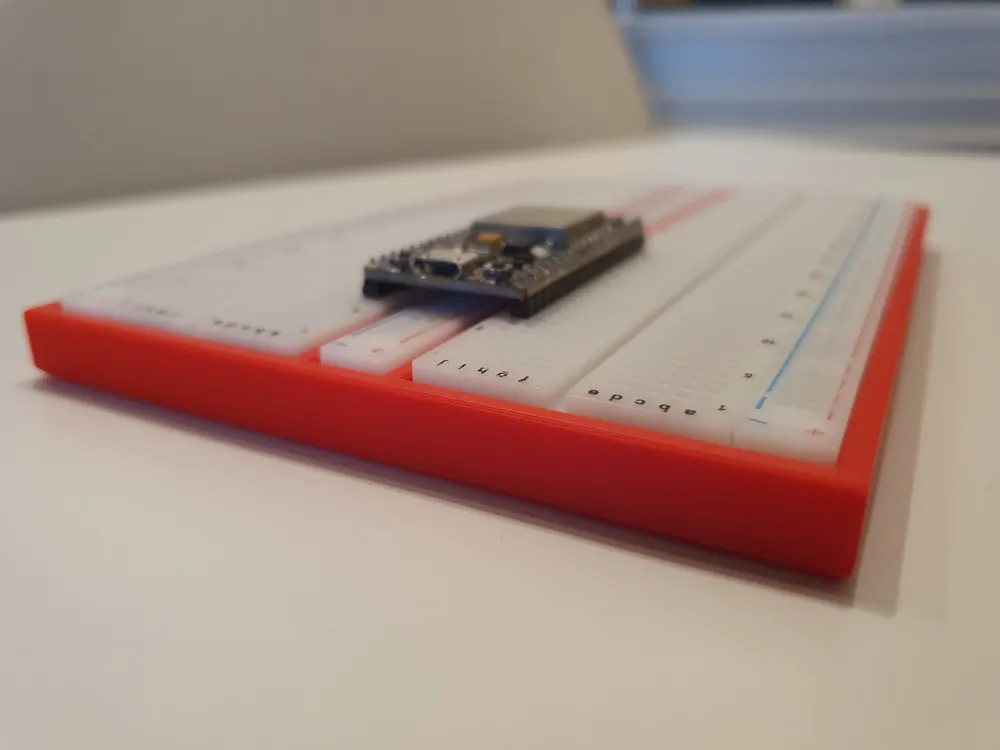

ESP32 S NODEMCU Breadboard, i tried a few, but could not get one that fit the ESP32 S NODEMCU exactly, so I made one., with power rails down the middle as well. Gives the maximum amount of pins either side of the MCU. Middle power rail is a bit tight, recommend snipping the lugs off before fitting, the other parts fit no problem.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
