Gree Central Air Conditioner Air Outlet Air Guide

       This model can be installed on the air outlet of a Gree central air conditioner to direct the airflow downwards instead of forwards.

The actual installation dimensions of the model are: length 579mm, height 109.6mm. It is suitable for air outlets of this size.

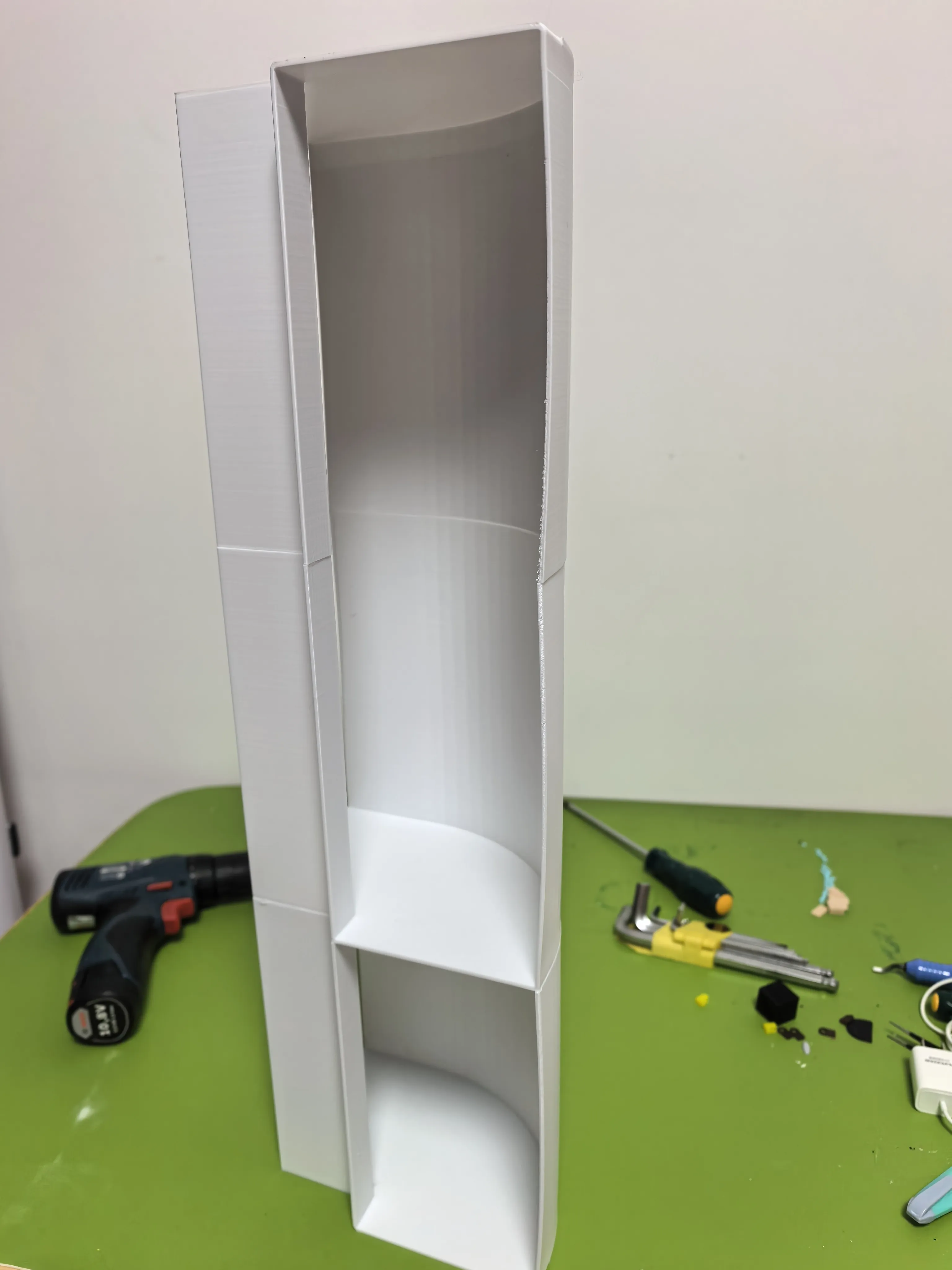

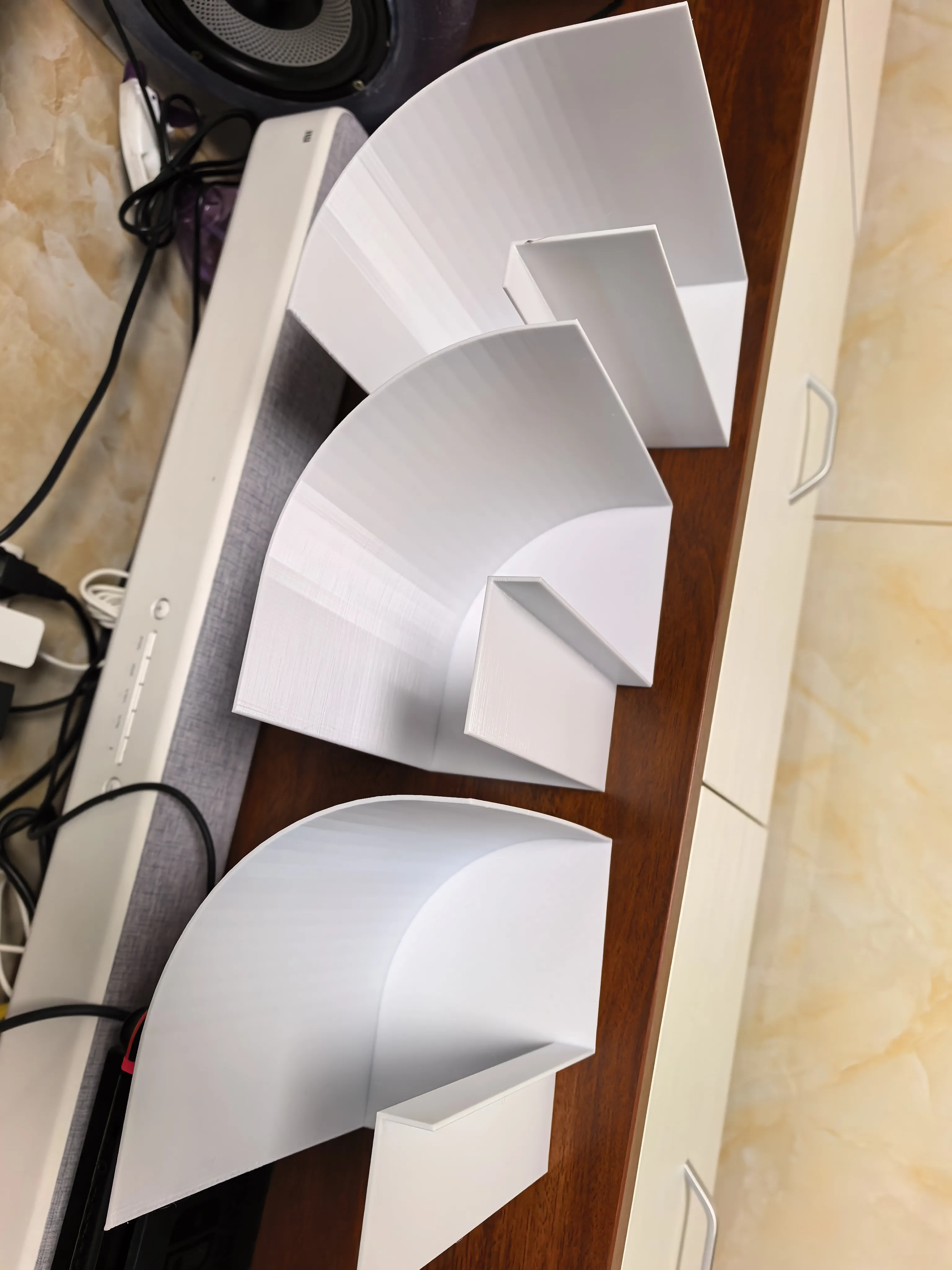

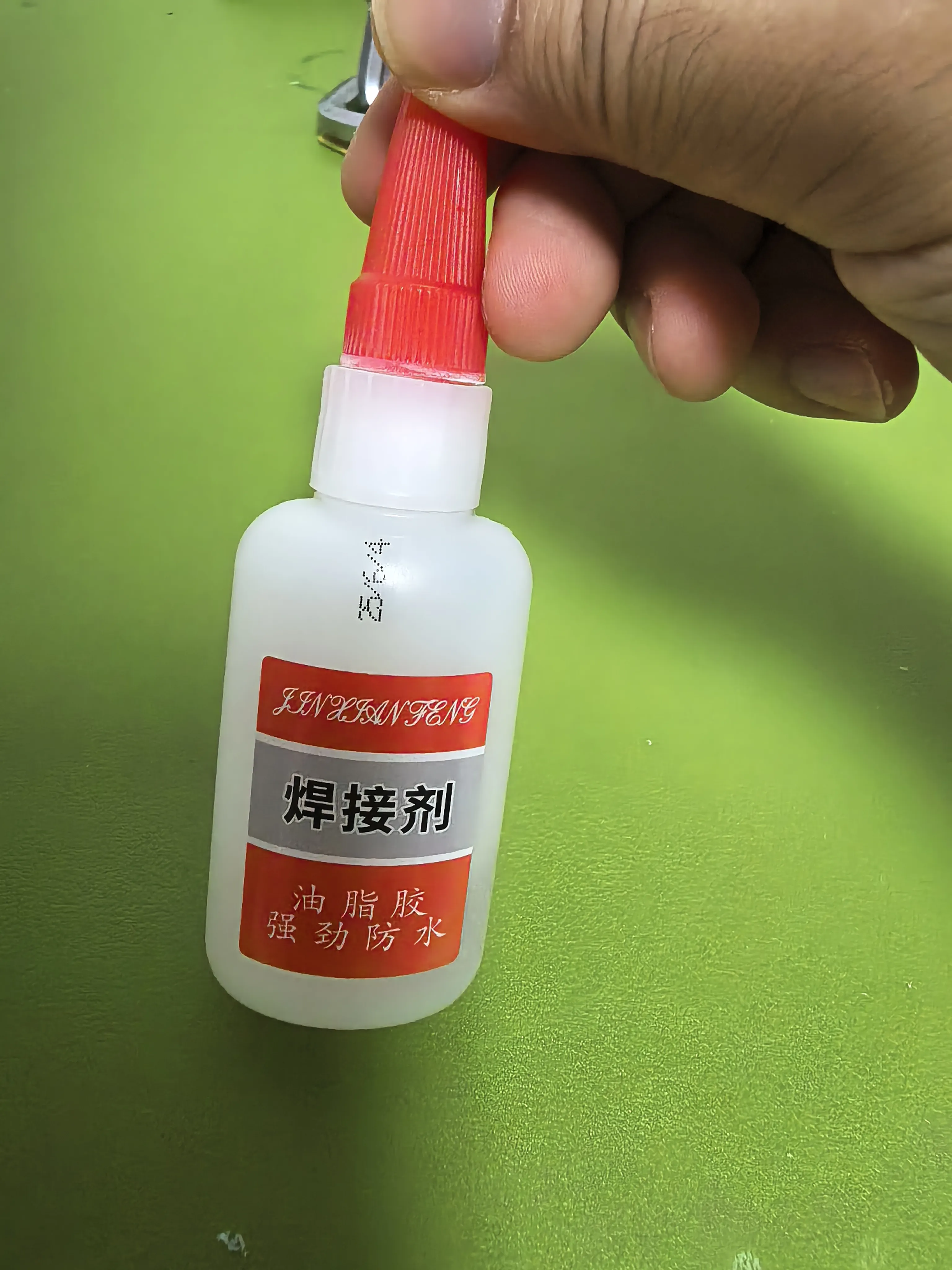

       Due to its length, it is printed in 3 sections. I printed it on an A1, using PETG material. The print parameters are my own PETG print parameters, and everyone can adjust them according to their own materials. After printing is completed and securely glued, it can be installed.

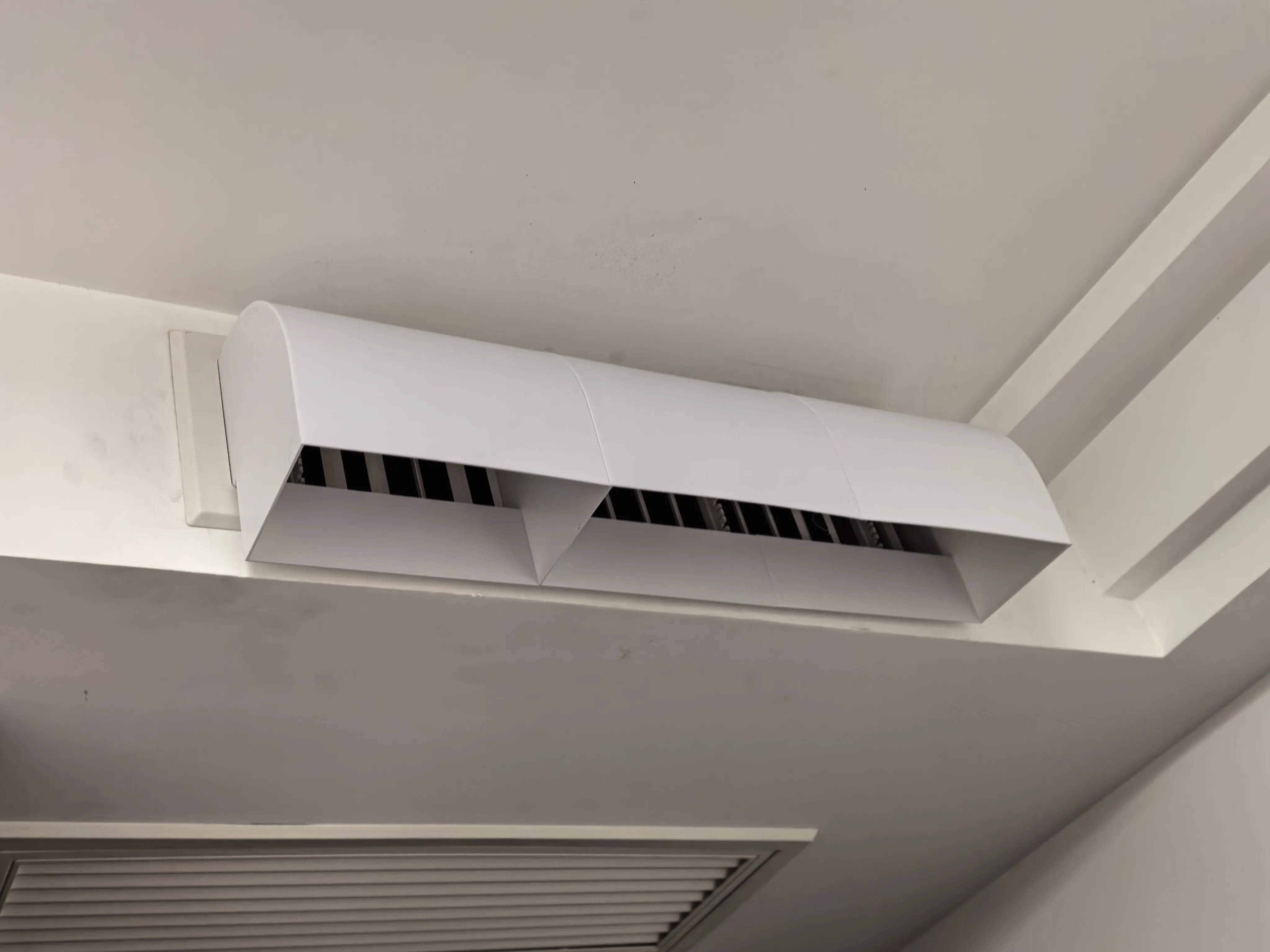

       Installation simply involves removing the long air guide strip from the original air outlet and then directly snapping the printed part into place.
