Mini Bench Vise (with replaceable jaws)
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
3.1 h
1 plate
Functional Efficiency and 2-Color No-AMS Optimization
2.7 h
2 plates
Open in Bambu Studio
Boost
2394
5818
406
139
4.9 k
2.6 k
Released
Description
Content has been automatically translated.

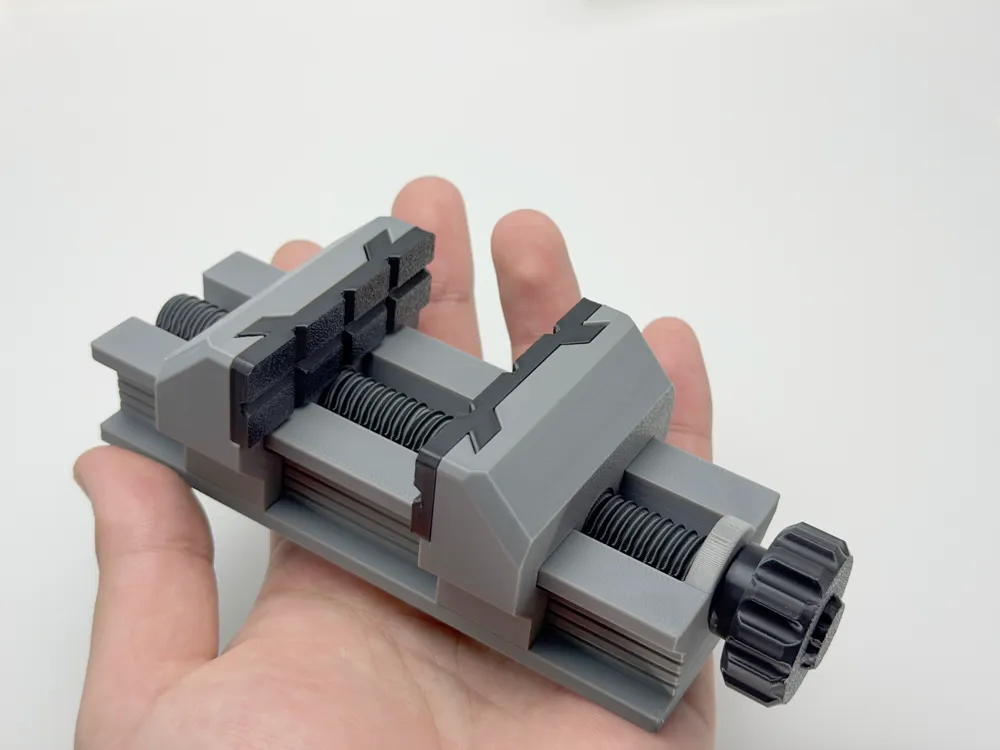

A small, minimalist, aesthetically pleasing, practical, and smooth small bench vise

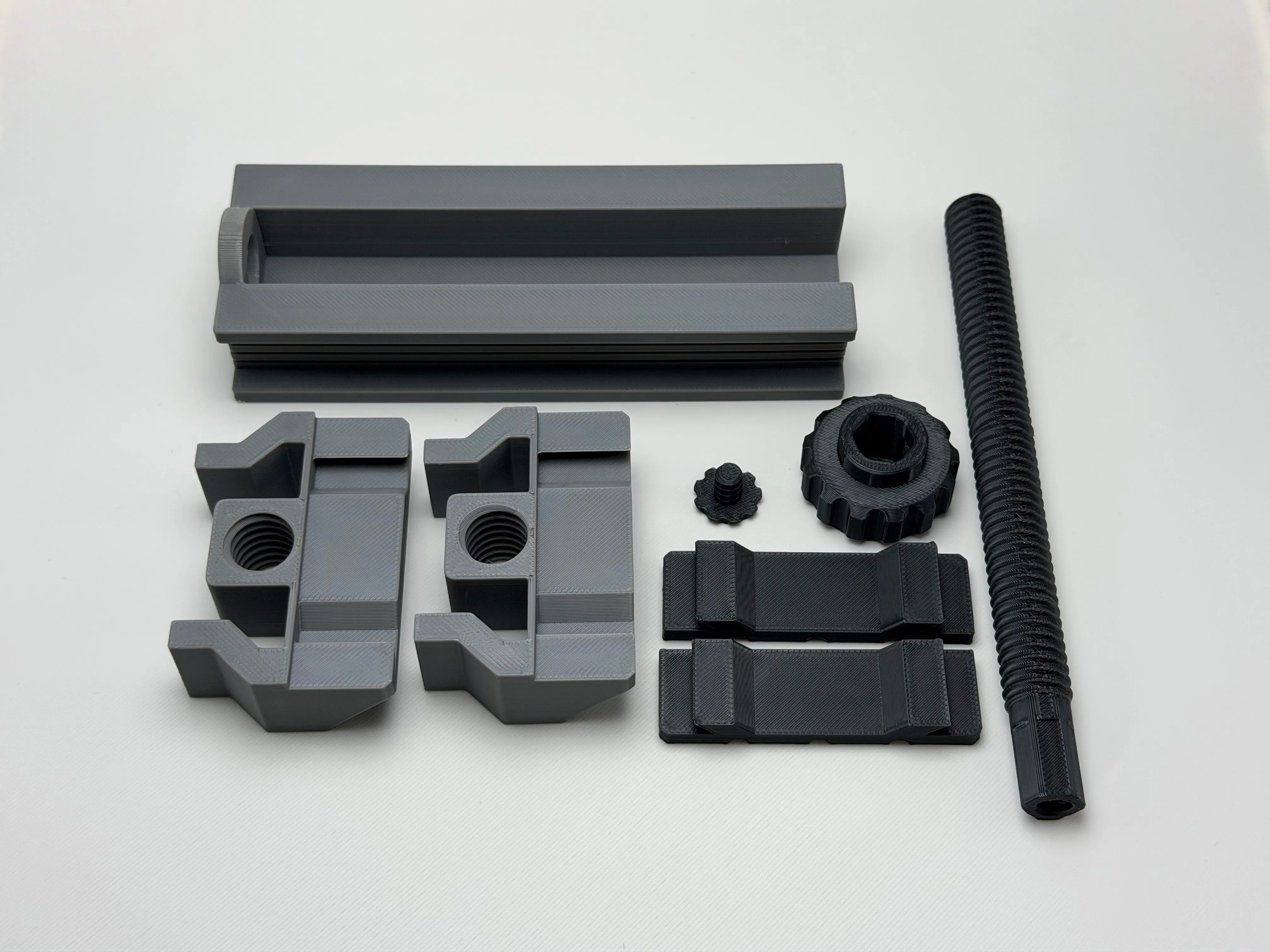

- It features replaceable clamping jaws, smooth rails, a perfectly sturdy left-and-right handed screw, and perfect knob fixing screws
- And printing it only requires 90g of filament usage, no supports
- I believe it can become the most practical small tool on your workbench
- And it can be assembled and used without any hardware
- It does not require supports for printing
- Perfect tolerances, tested many times, smooth and convenient to use
Assembly Notes:
- The two sliders are symmetrical, if you cannot screw it in, you can try screwing it from the other side of the screw rod
- The screw rod is a left-and-right handed screw, with the middle thread change point as the center, you need to screw the left and right sliders symmetrically to the middle, before installing them onto the rails
