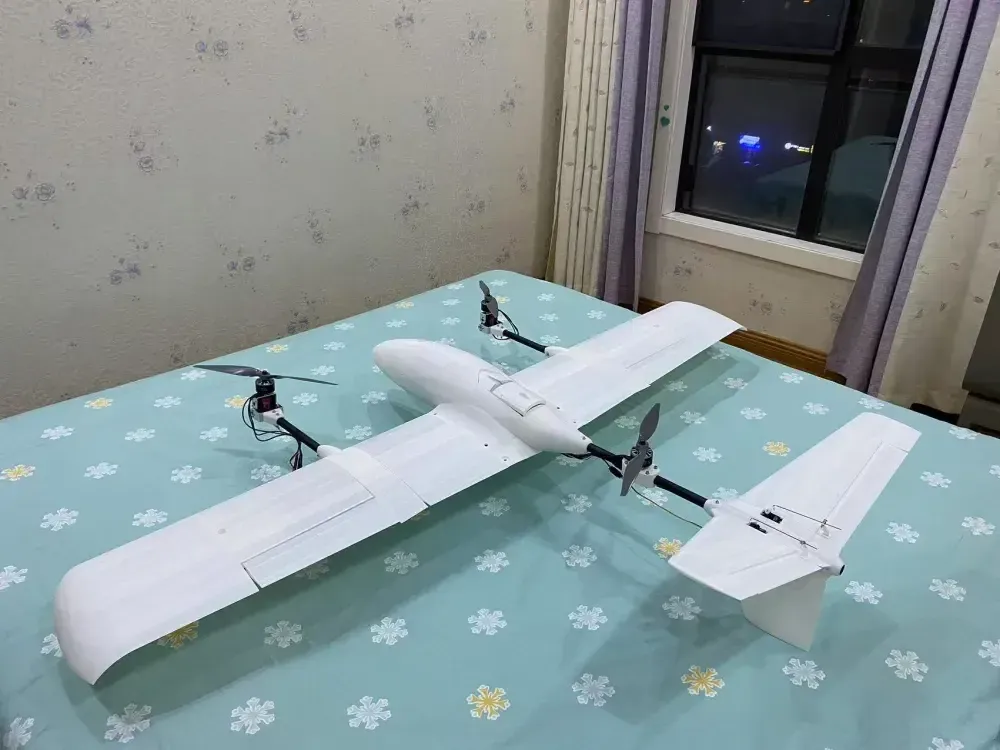

Titan Viper Y3 VTOL Fixed Wing
Print Profile(1)
Description
Boost Me (for free)
Bill of Materials:
Carbon tubes:
16x230mm (2 pieces)
16x600mm (1 piece)
10x1000mm (2 pieces)
8x500mm (2 pieces)
3x400mm (2 pieces)
3x100mm (4 pieces)
2x280mm (4 pieces) can be replaced by filament string
Motors:
GT 3115 640kv (3 pieces)
Propellers:
12*6 (3 pieces, note: two clockwise, one counter-clockwise)
VTOL Servos:
Dual-axis digital servo 20KG (2 pieces) with 2 large and 2 small U-brackets
EMAX ES08MA II 12g/ 1.8kg/10sec Metal Gear Micro Servo (4 pieces)
Flight Controller:
SpeedyBee F405 wing mini GPS:BZ-251
ESCs:
Hobbywing 60-80A ESC XT60 (3 pieces)
Battery:
6s 5000mah
Other materials:
XT60 parallel cable one male to three female
10cm DuPont male to male
One motor extension cable approximately 18AWG 160cm
Servo extension cables 1m*4, 50cm*2
M3 threaded inserts 40 pieces (maximum height 6mm)
M3 bolts and lock nuts of various sizes
6x3mm magnets
