POPNAS No. 9 - HP800G4DM - 6-bay
Print Profile(0)
Description
POPNAS Nine Machine-HP800G4DM-4x3.5+2x2.5 total 6 drive bays
HP800G3DM is also compatible. Dimensions compatible with small hosts measuring 180x185x35
BOM list

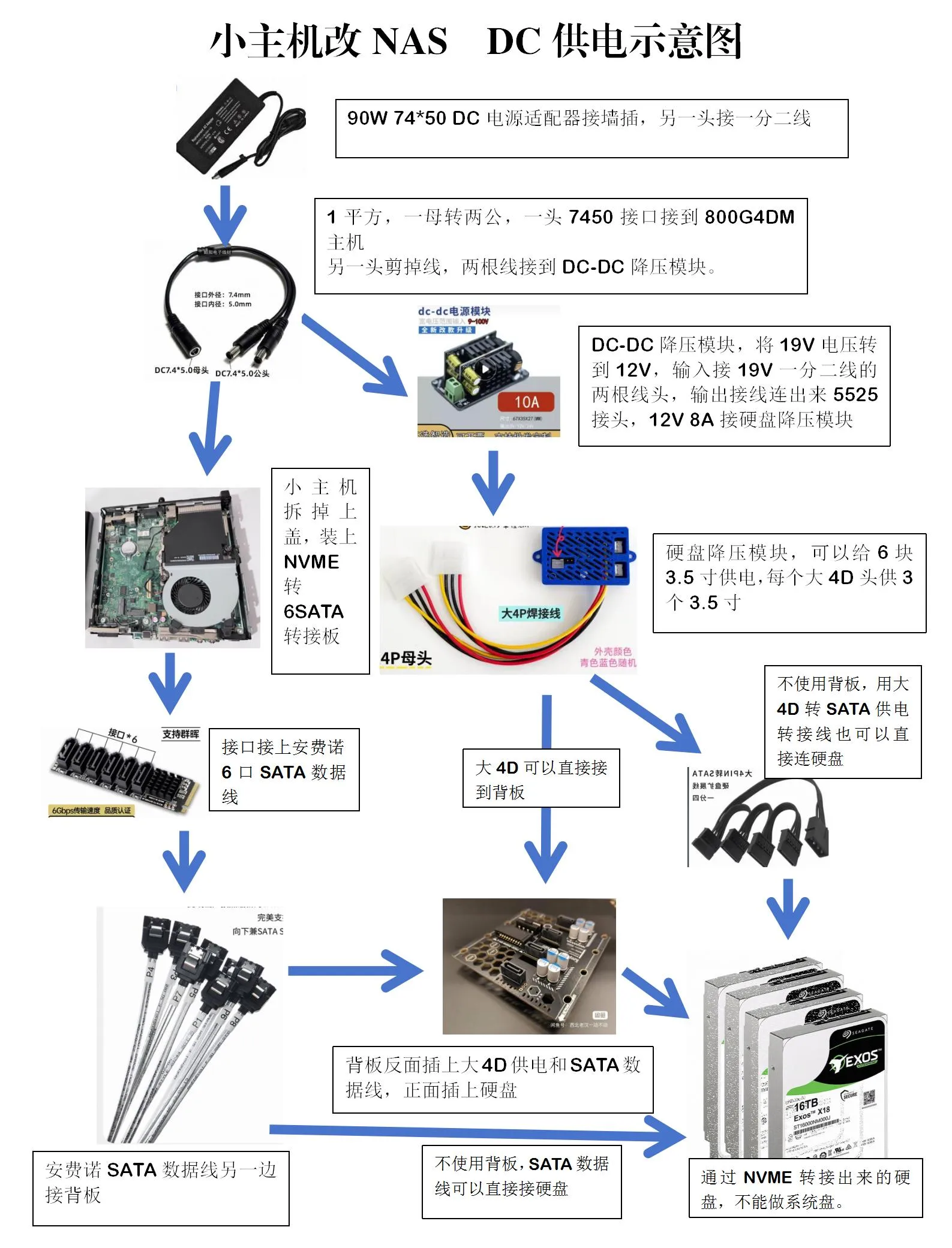

1. HP 800G4DM host with top cover removed, HP 90W 7450 power adapter
2. One M.2 NVME to SATA x6 port adapter board
3. Amphenol six-port straight-to-right-angle connector x1 length 50mm
4. 7450 specification supports 19V with a 1 mm² 1-to-2 cable, one straight connector to two right-angle connectors
5. Xiaohuangyu "Technology Changes Life" NAS hard drive backplane large 4-pin synchronized DC power to SATA power. Requires two large 4-pin D-type with fan ports and cases
6. DC-DC buck module, input wide range 4V-100V, output 12V 8A. https://e.tb.cn/h.SlOtEX6o1EWX9og?tk=x8jmfVQLfHb CZ057
7. Screws for backplane installation and hard drive cage fixation are M3x10
8. If using an ITX DC-powered motherboard, use M3x14 screws for motherboard fixation
9. Interstellar Snail B model backplane x1. One large 4-pin D-type or two large 4-pin D-type are fine
10. Inspur 3.5-inch hard drive tray x4
11. Space is compact, built-in fans only support 12015, external fans support 12025
12. Rear baffle mounting screws are M3x12
13. One large 4-pin D-type to 2SATA power cable
14. Need to purchase 5525 interface and connecting cables for connecting to the DC-DC buck module
Optional: PWM fan speed control, connect between the fan power supply and the fan
Testers welcome~
