Resistor Color Code Chart

This model is created by Make My Sign
Make Your Model

Print Profile(1)

All
A1 mini
P1P
H2S
A1
X1 Carbon
P1S
H2D
H2D Pro
P2S
X1
X1E
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
3.2 h
1 plate

Open in Bambu Studio
Boost
7
37
0
0
8
3
Released

Description

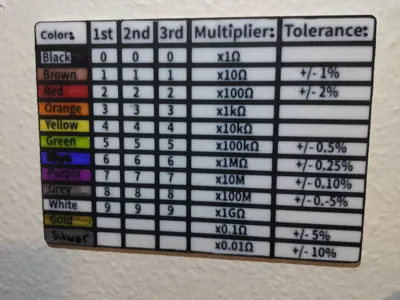

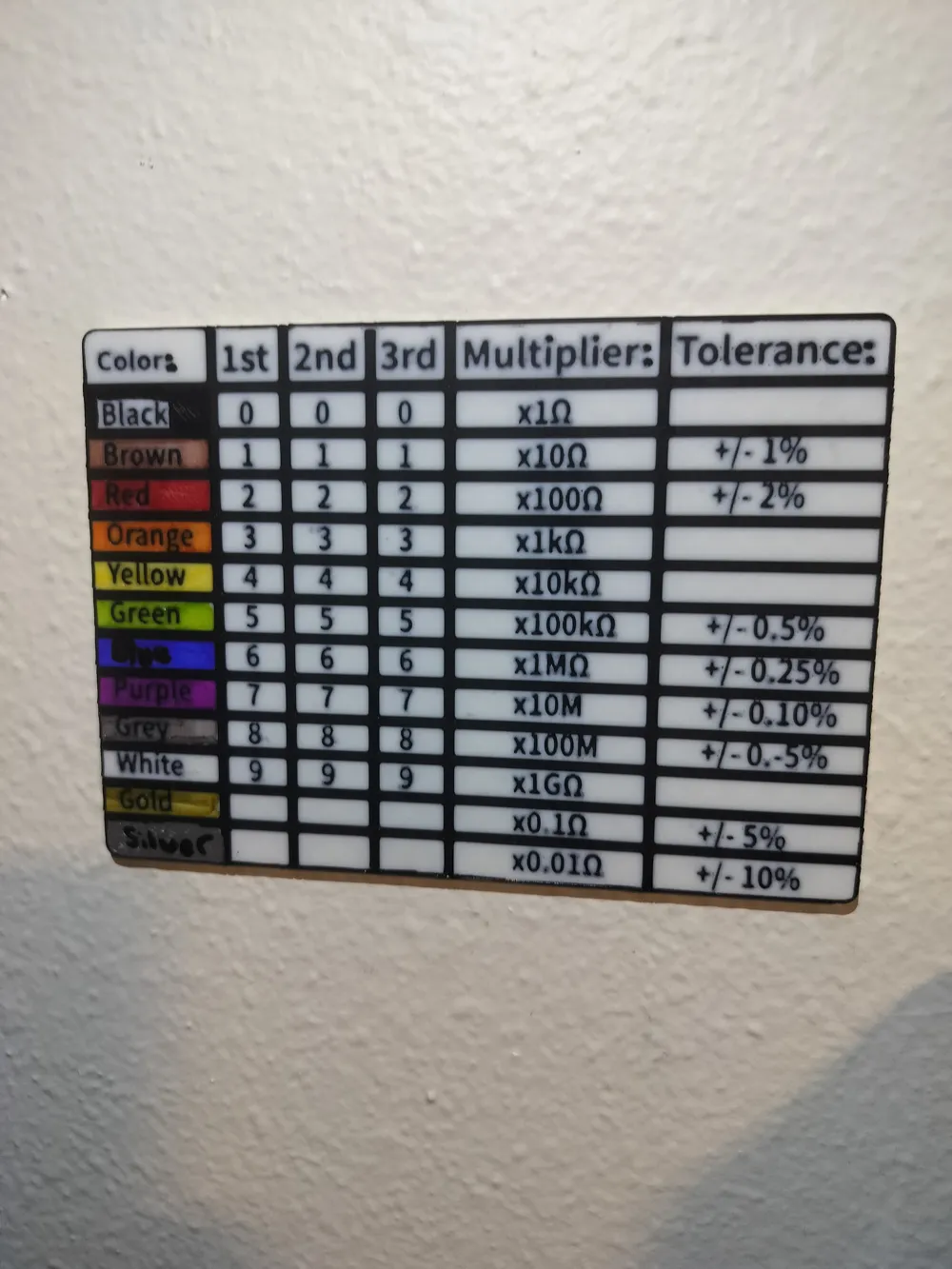

This is just a resistor color band chart to use as a reference when reading resistors for electrical work.

I can never remember the colors and got tired of googling it so I just designed a chart.

I print it on a smooth plate and upside down,

I decided to just color in the chart after the fact with marker to save on filament.

The word silver is printed on there as well but the marker I used covered up everything so I had to re write it.
