Backdraft Valve for Ventilation Pipe Ø100 mm
IP Report
GIF
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
52
166
22
7
248
155
Released
Description

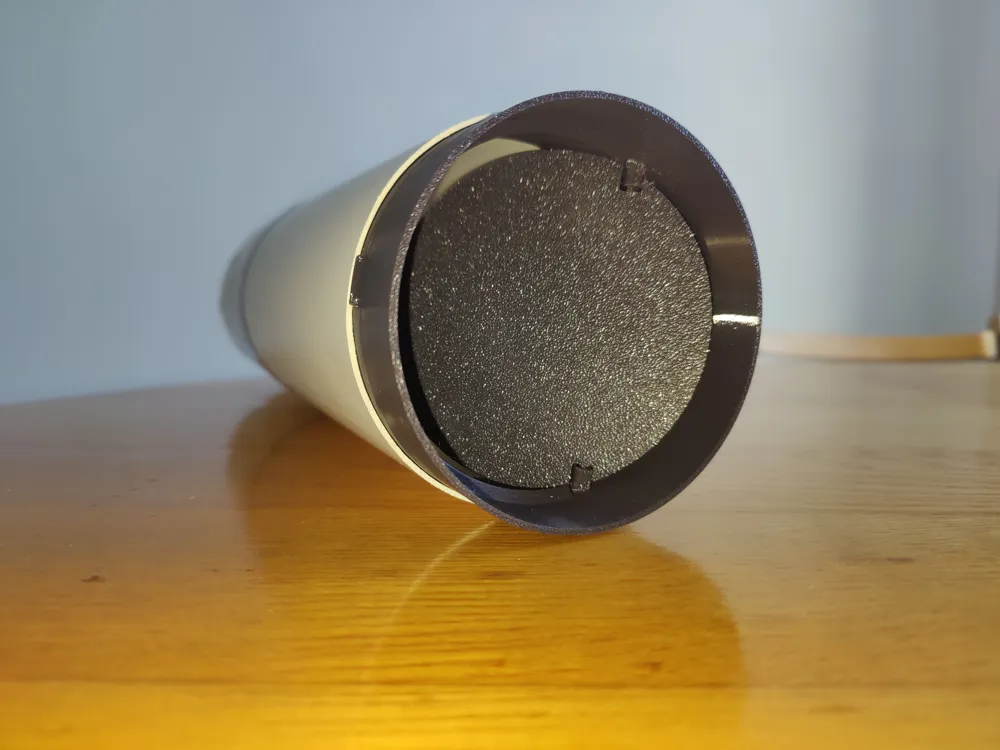

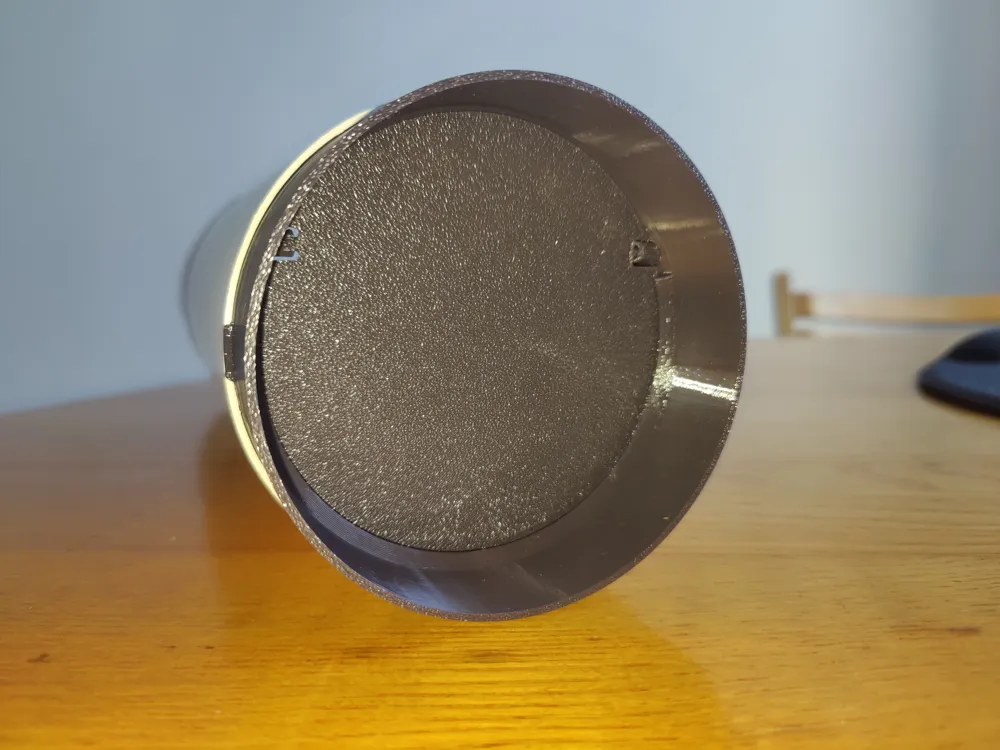

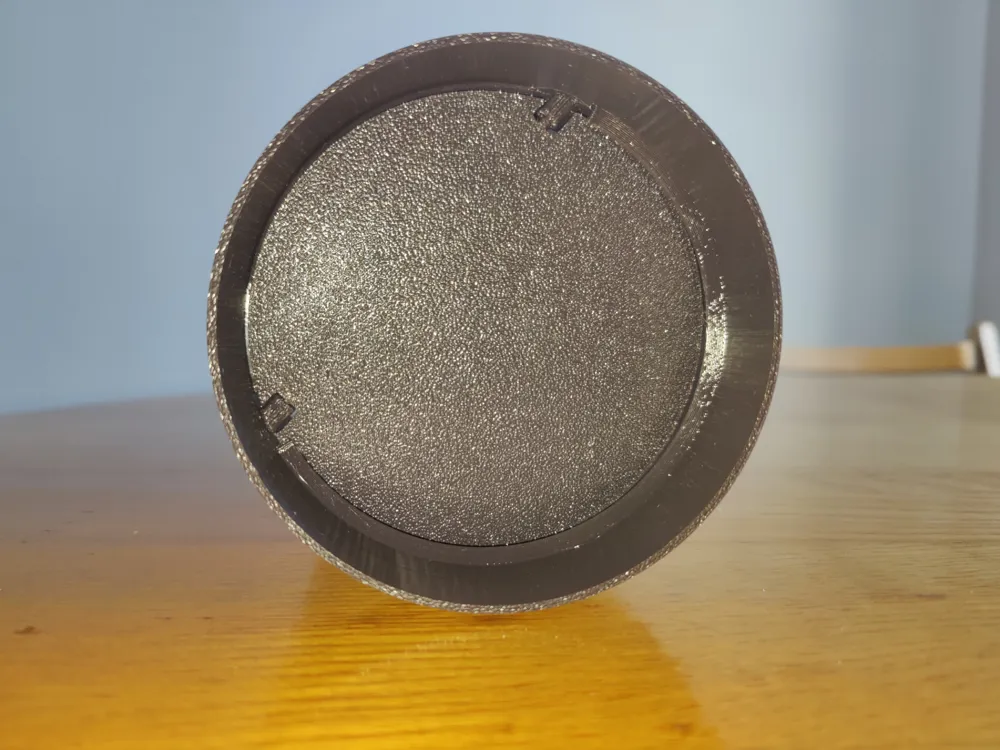

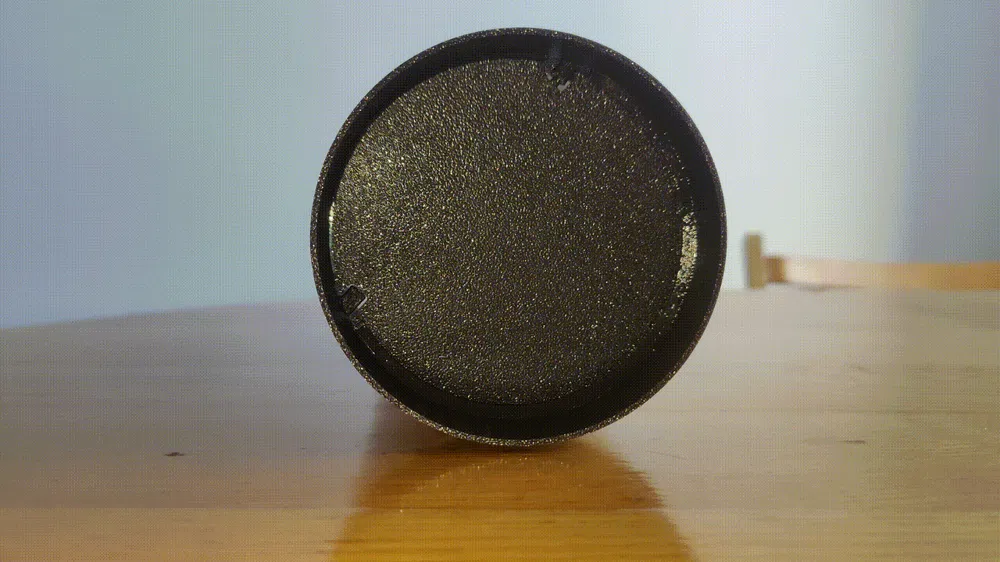

A 3D model of a backdraft valve designed for Ø100 mm ventilation pipes.
Prevents reverse airflow, cold air, and odors from coming back through the ventilation system.
Boost Me (for free)
Boost me if you like my design! Thank you! :)
Features:
- Fits standard Ø100 mm ventilation ducts.
- Requires minimum supports — only 2 small ones.
- For different pipe diameters, simply rescale the model before printing.
- Optimized for FDM printing.
Printing Recommendations:
- Material: PLA / PETG (PETG recommended for humid environments).
- Infill: 20%, layer height 0.2 mm.
- Only 2 small supports needed near the hinge axis.
Installation:
- Press-fit into the pipe for a snug connection.
- If needed, you can secure it with a small self-drilling screw for extra stability.
- Apply a thin layer of sealant if airtightness is required.
