Project Box 100mm x 70mm x 60mm, top cover options
IP Report
Print Profile(2)
0.16mm layer, 2 walls, 15% infill
Designer
4.1 h
3 plates
30mm Tall Main Box, 0.2mm layer, 2 walls, 15% infill
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
7
23
2
0
23
9
Released
Description

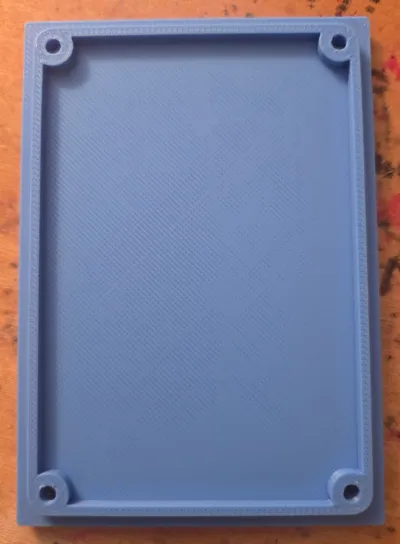

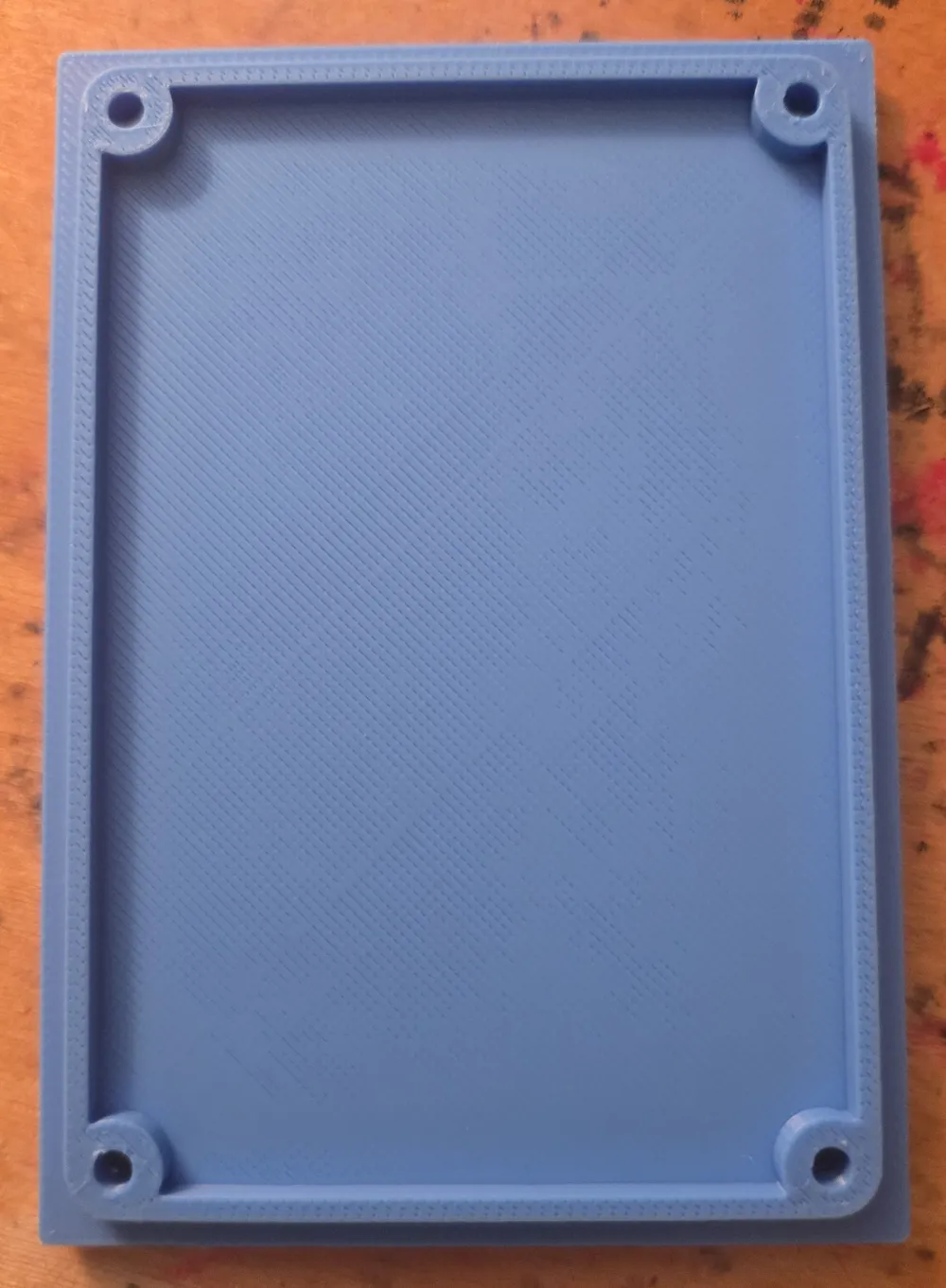

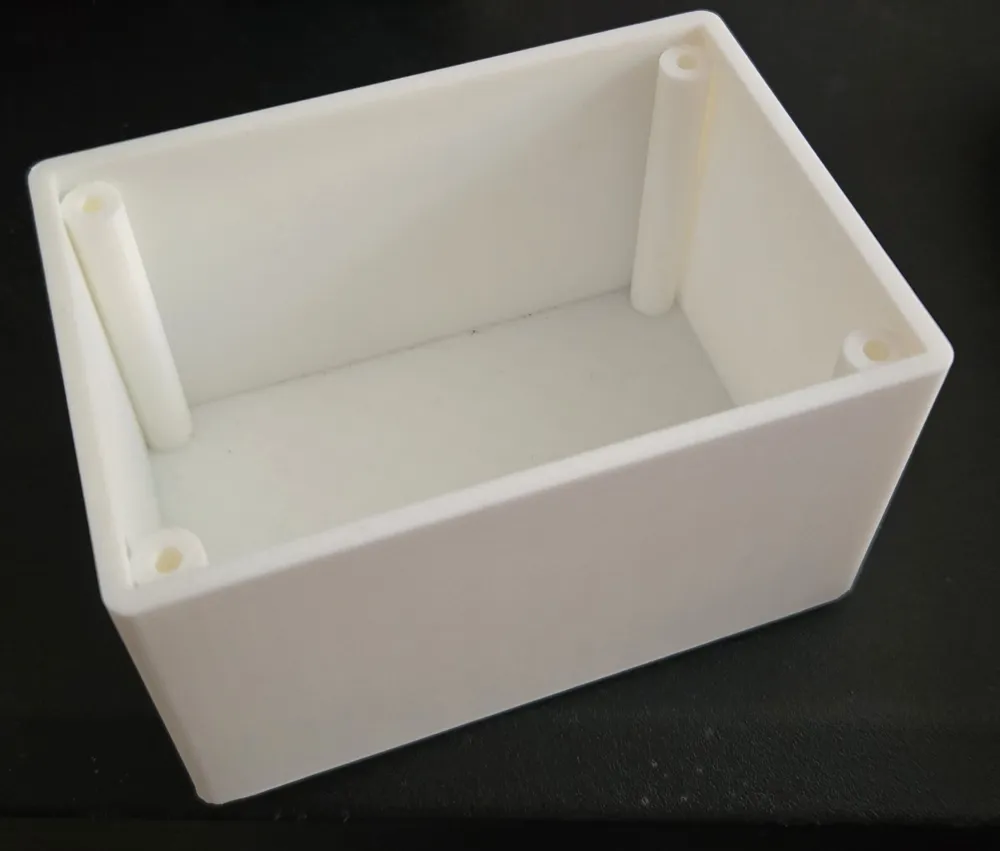

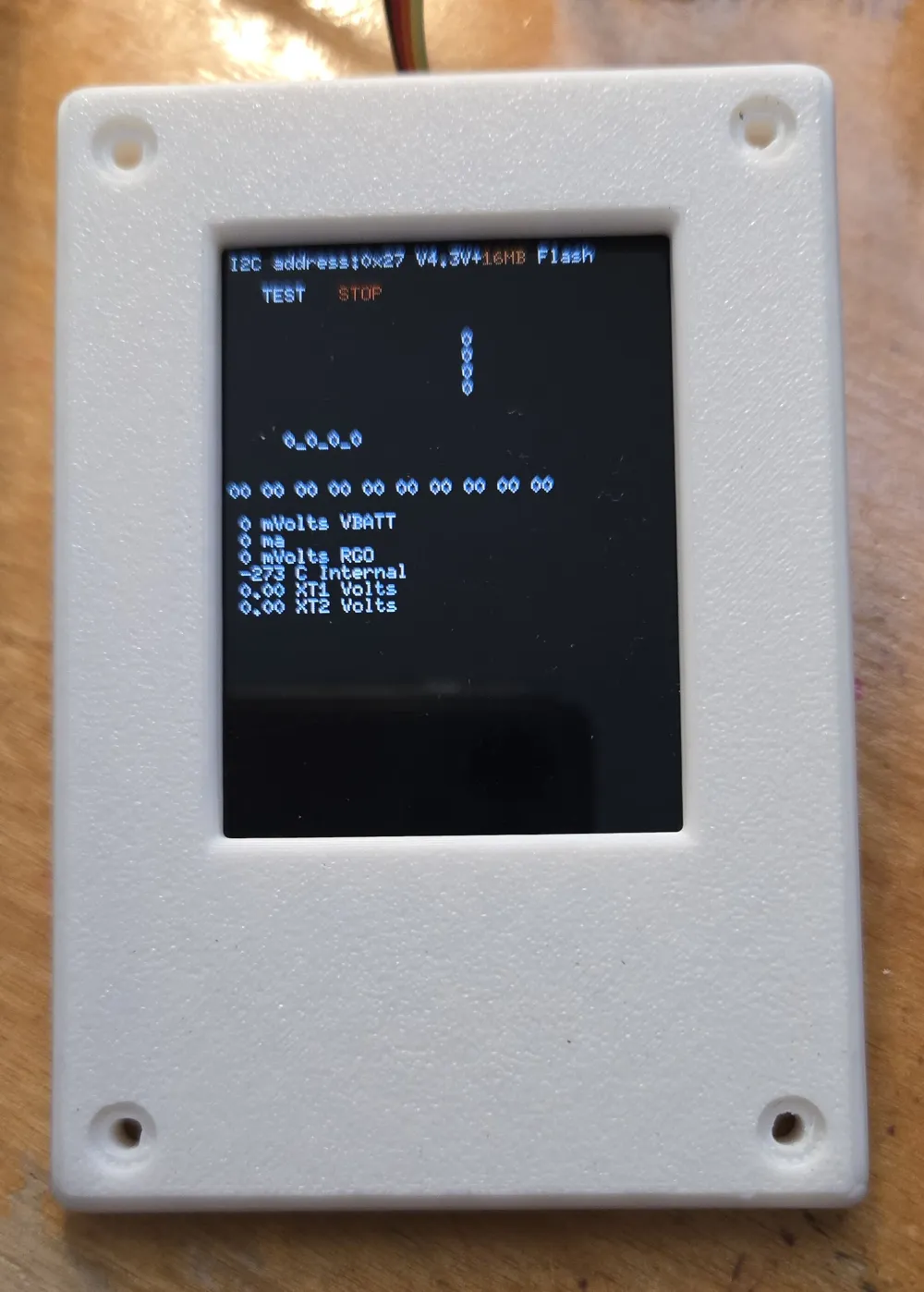

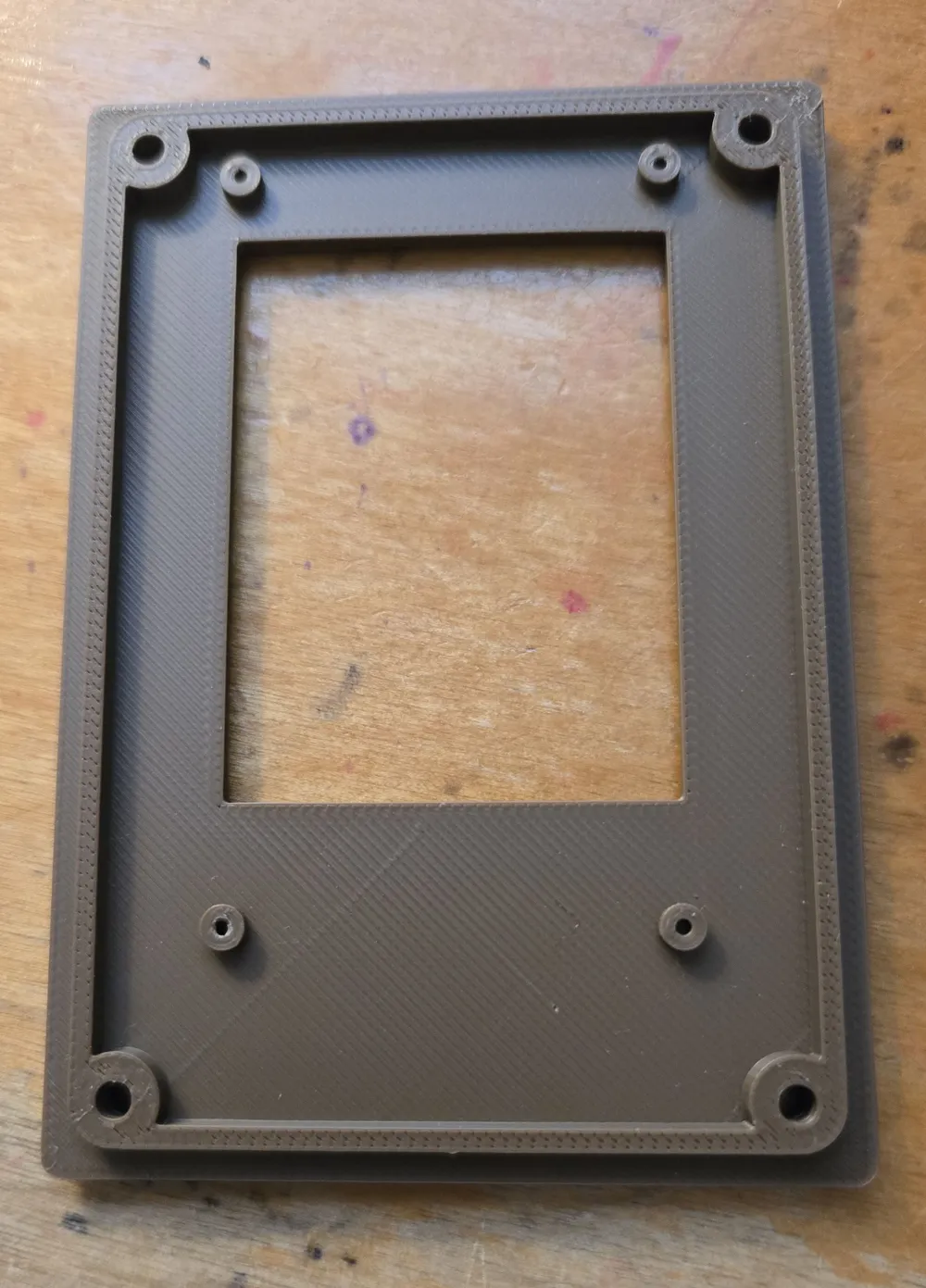

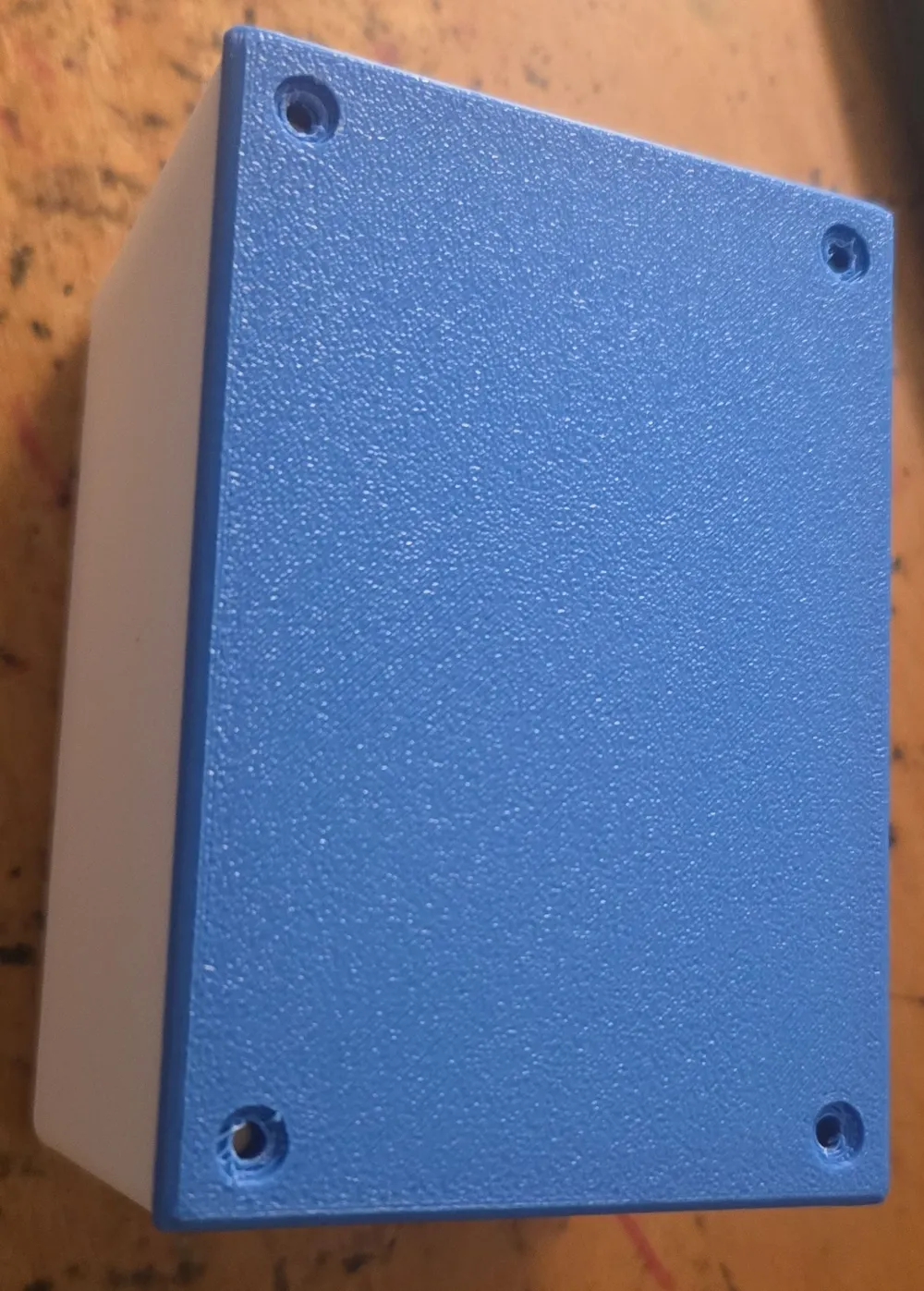

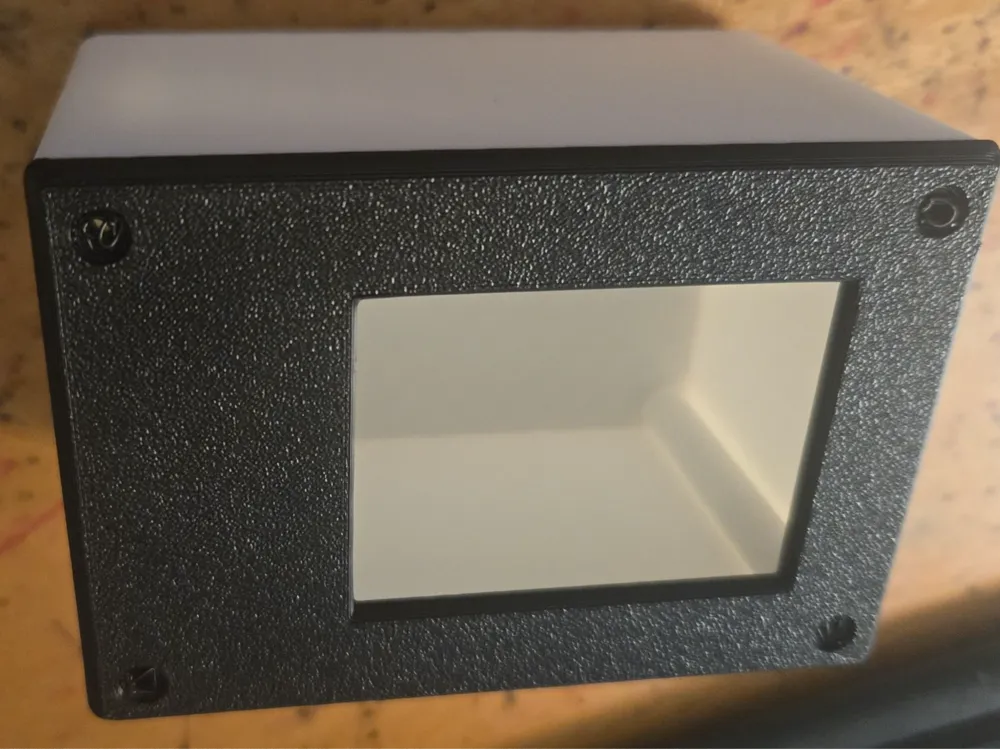

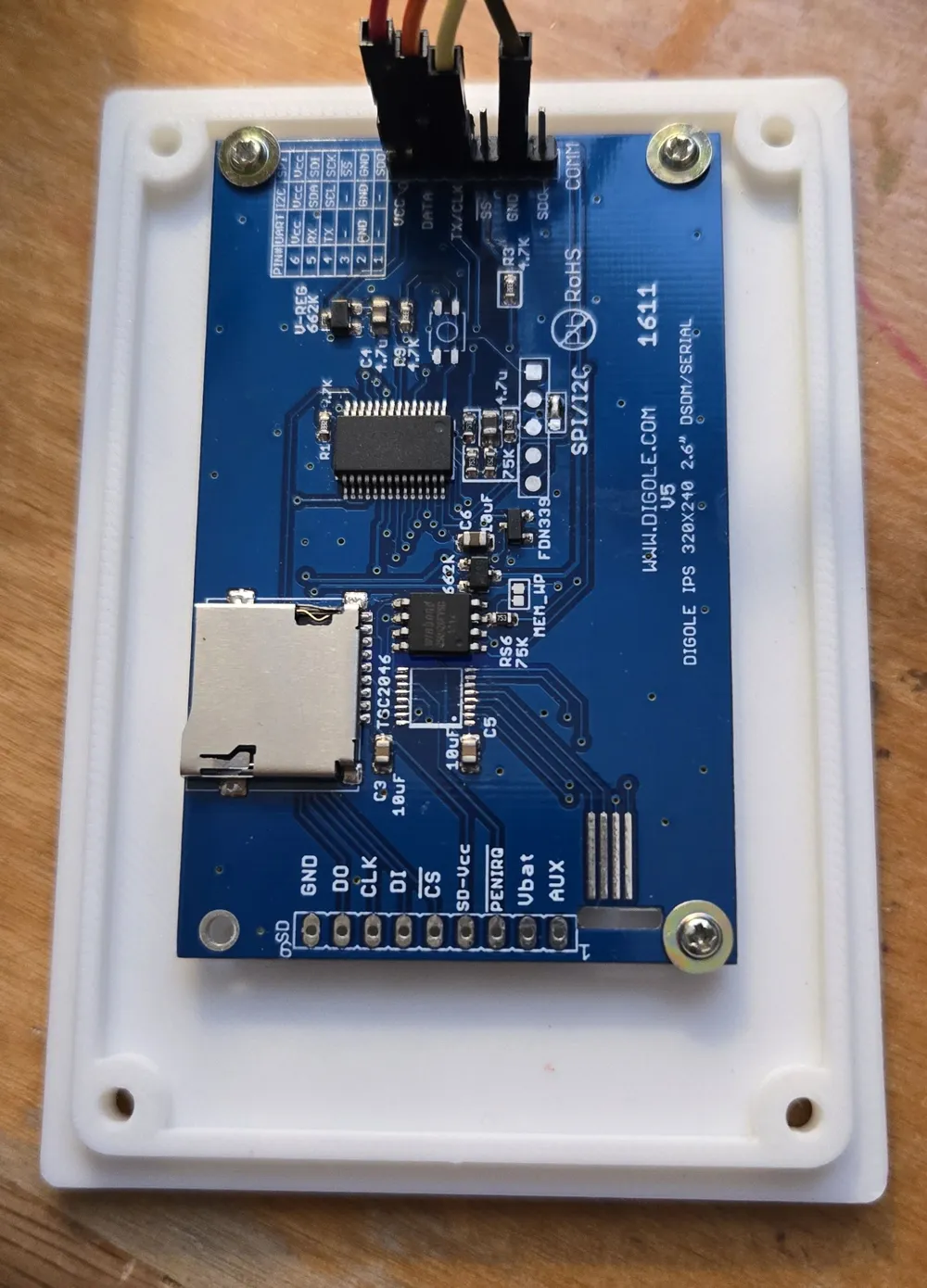

General Purpose project box, focused on electronic projects. The windowed top is designed to work with a Dig-ole 2.6" lcd screen. The box screw posts will accept M3x0.5mm screws, the display accepts M2x0.4mm screws. Use supports option for the lids for cleaner holes. 100mm length, 70mm wide, 60mm deep. Good for electronic projects!
Update: Box post holes optimized for M3 self-tapping screws. The Window top post holes received a negative hole offset to allow the M2 screws to actually be used. Be sure to use the latest update to see these changes.
