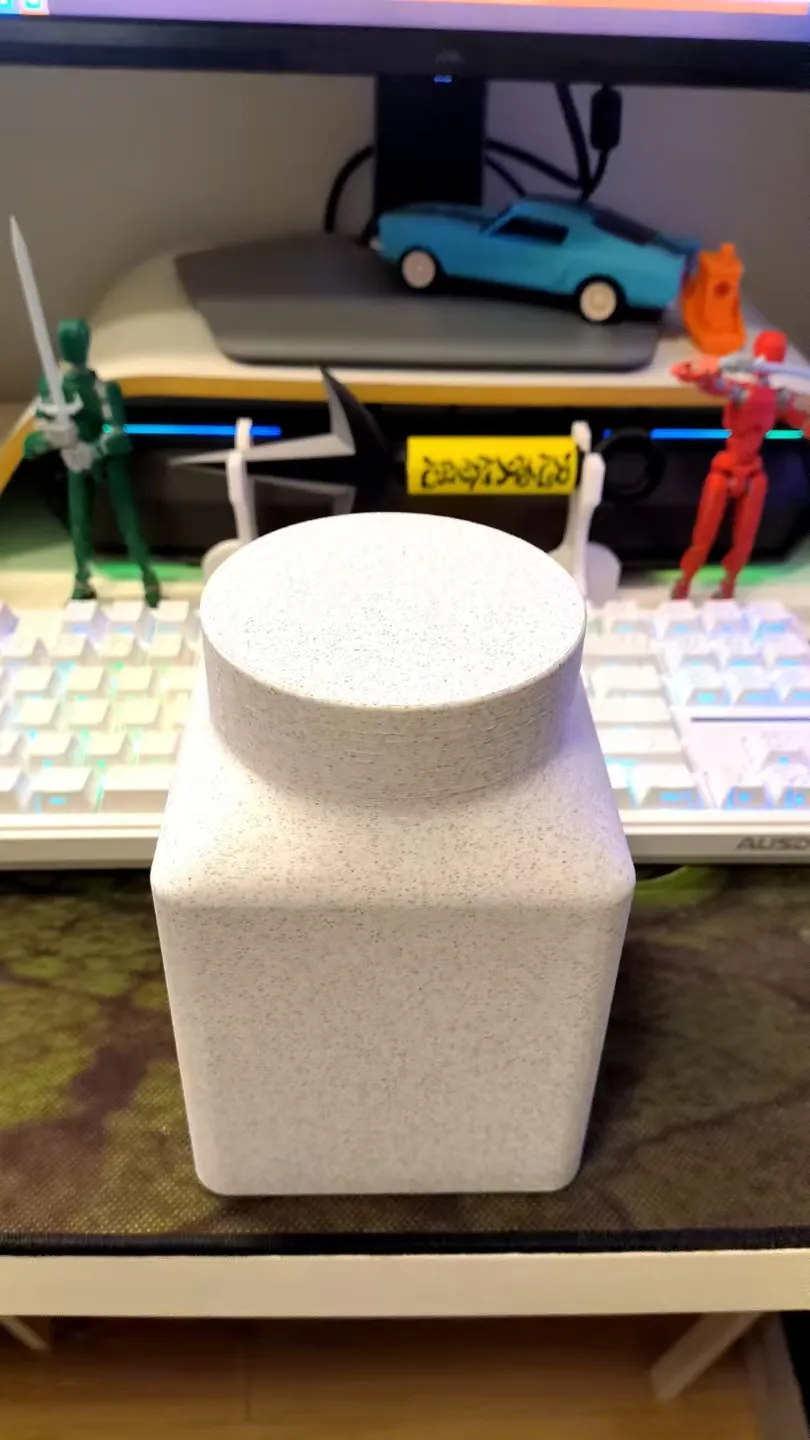

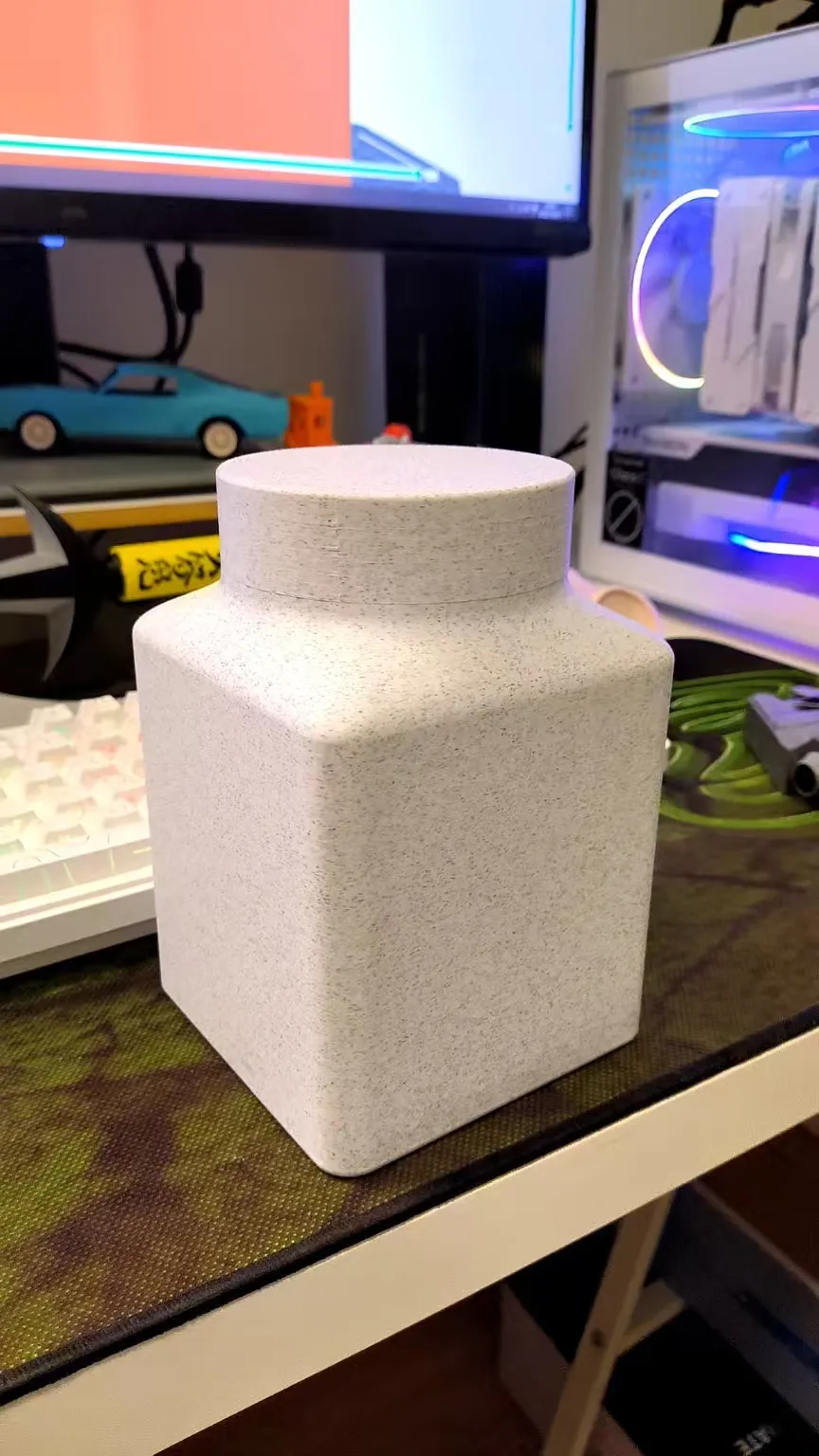

sealed jar with 1 liter capacity

Sharing a sealed jar

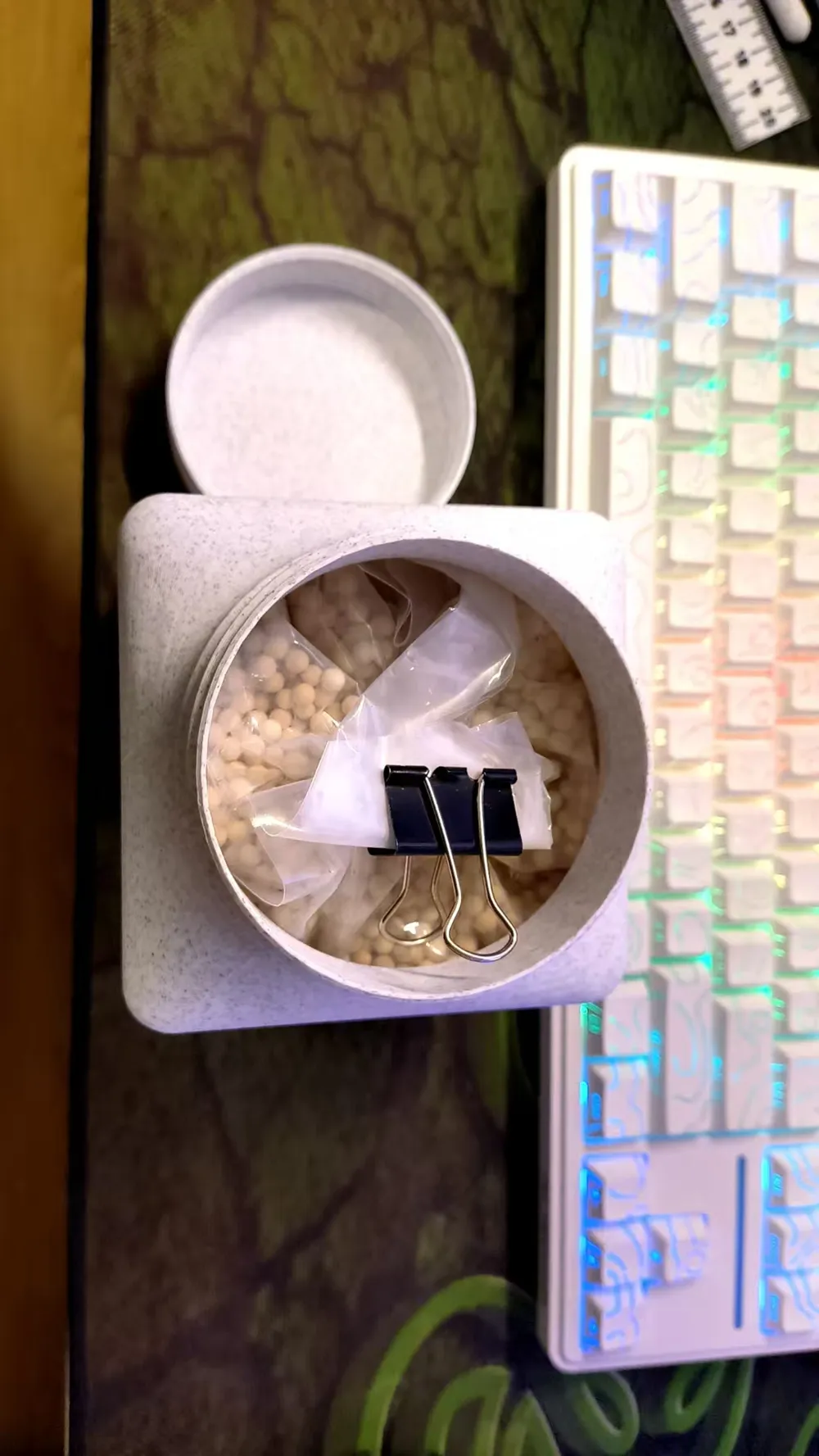

The reason is I bought 1KG molecular sieve desiccant, and I need to store it sealed. But I searched for models in the community and couldn't find a jar this large

Features of this sealed jar are as follows:

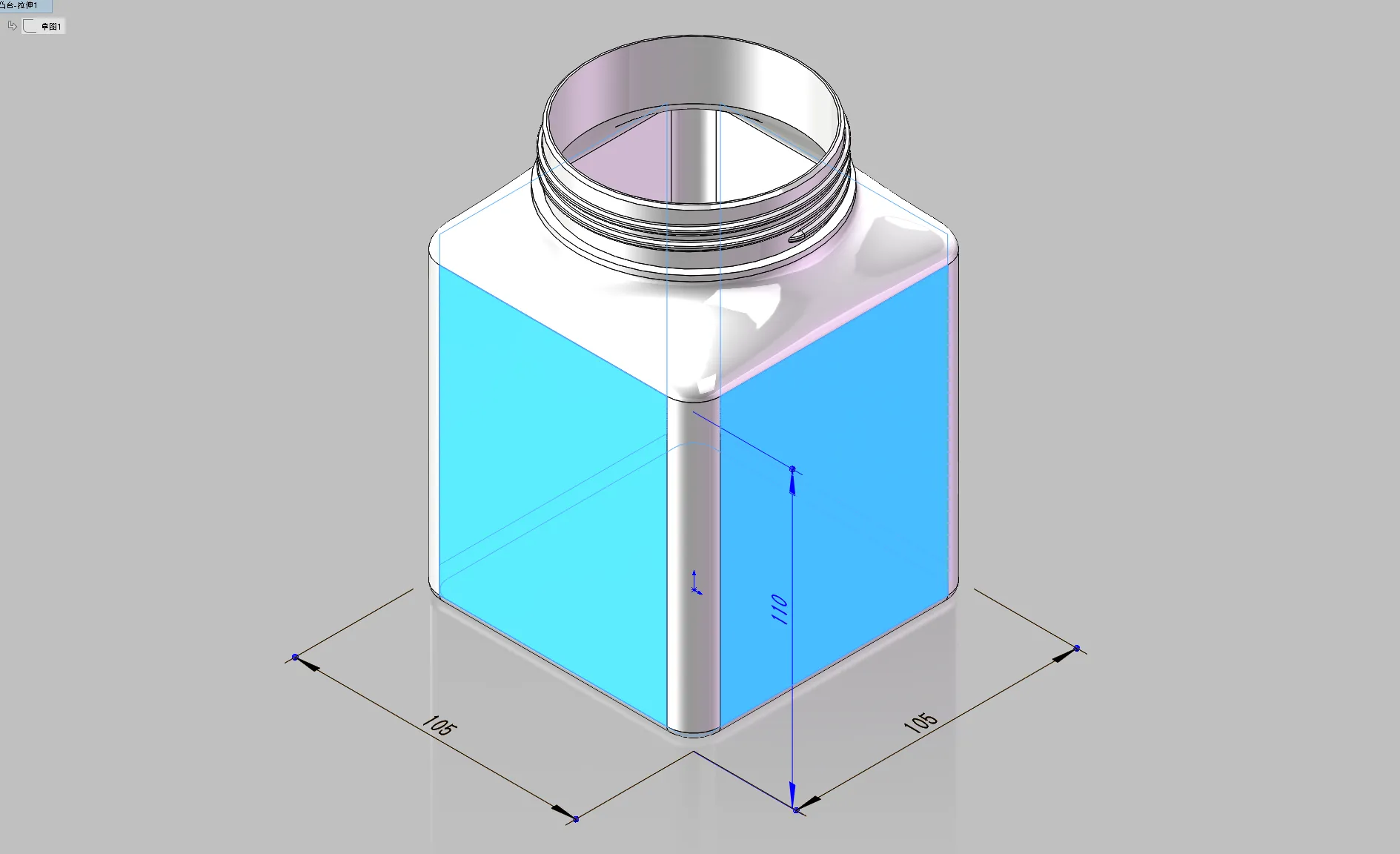

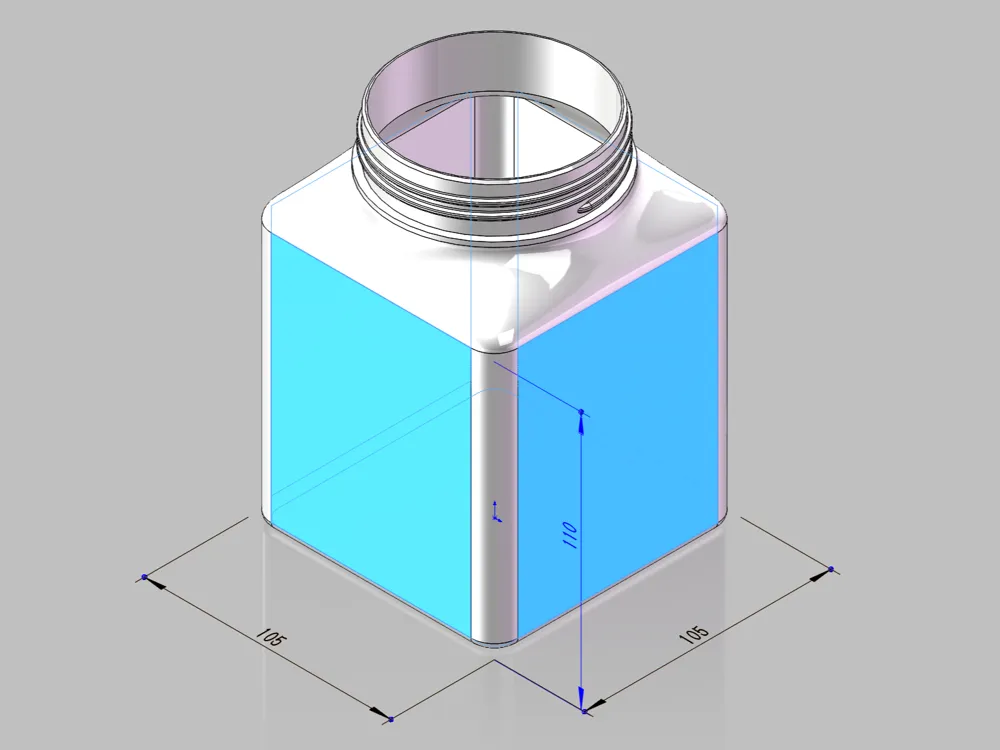

1 The sealed jar has a volume of approximately 1 liter, the jar wall thickness is 1.6mm, the jar dimensions are as shown below, and the jar mouth diameter is 80mm. Theoretically, I believe the smaller the mouth diameter, the better the sealing effect, but on the other hand, it would be inconvenient to put things in and take them out

2 The threads use specialized container threads to enhance the sealing effect. However, I think the effect would be even better if a rubber sealing ring were added at the mouth of the bottle

3 I did not make anti-slip texture on the lid, as I think it's unnecessary. I don't want to disrupt the overall minimalist style

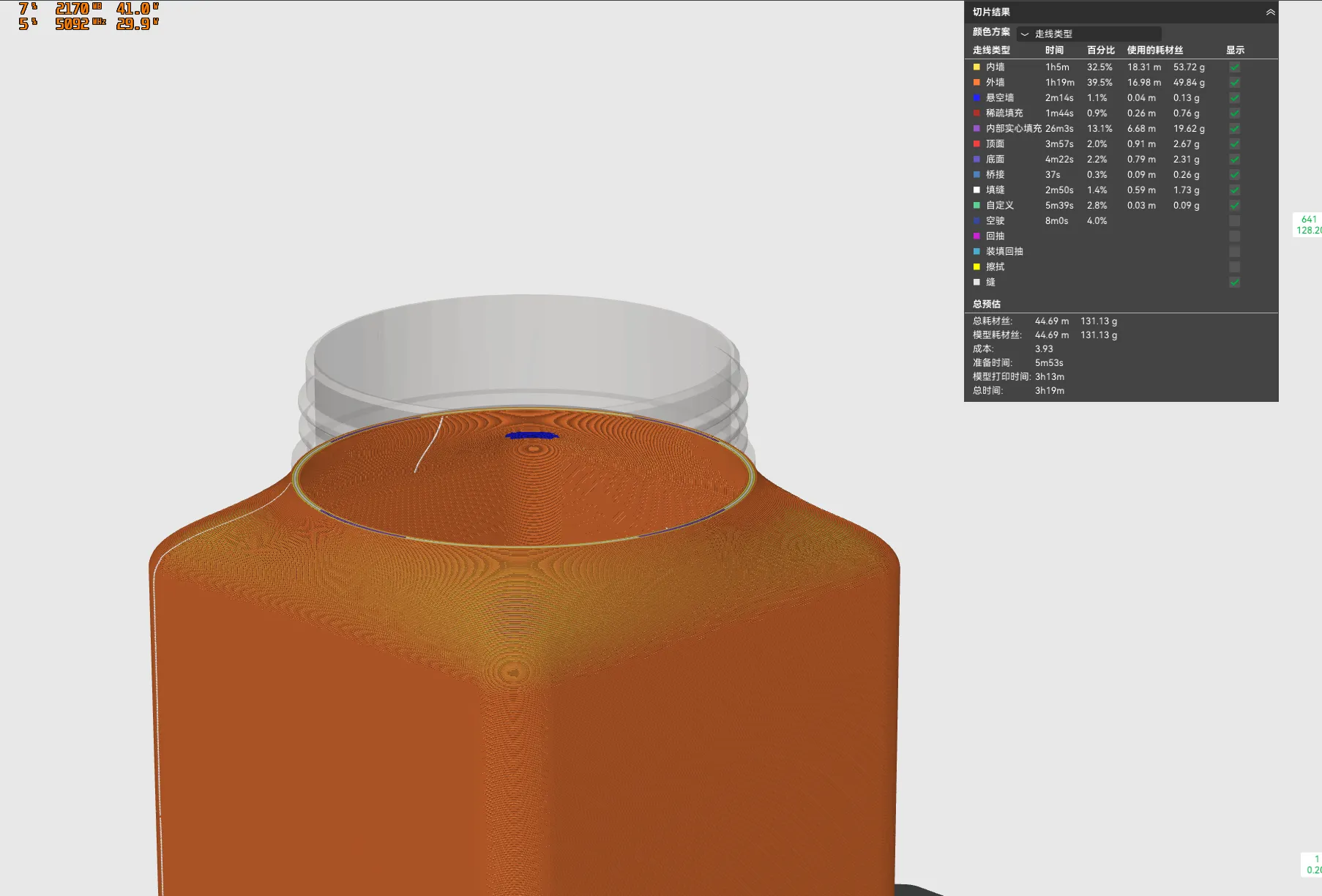

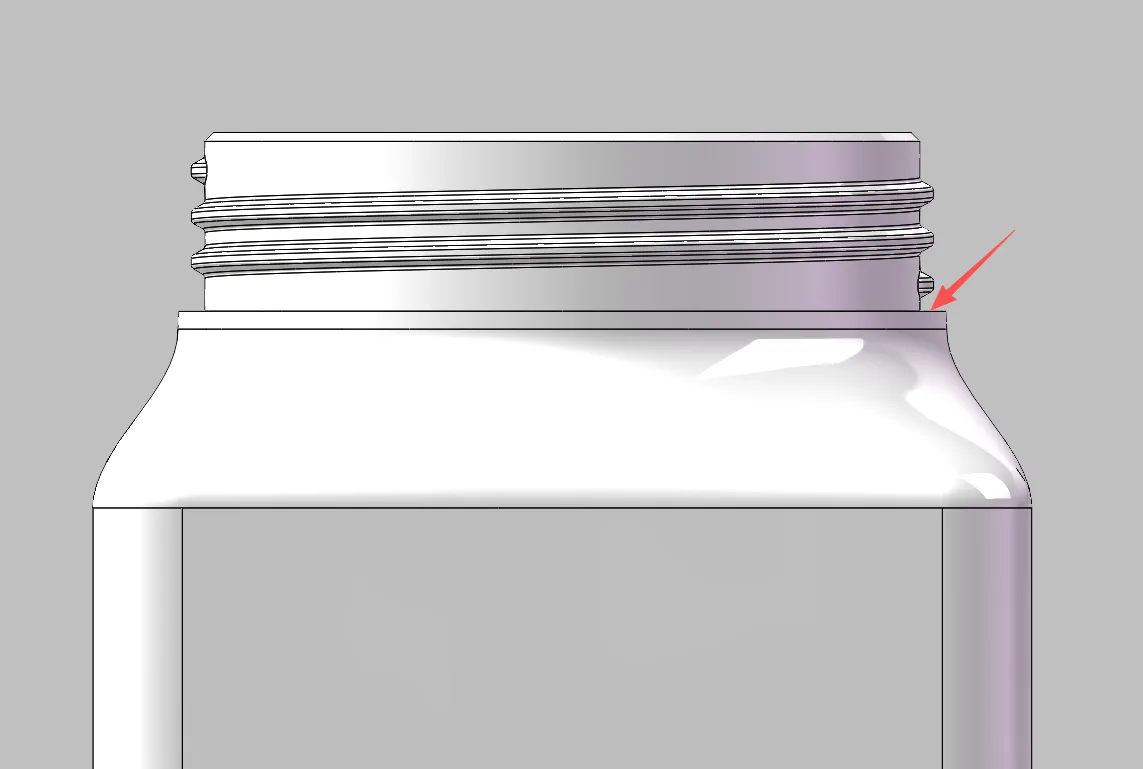

4 Be sure to dry the filament before printing, and clean the build plate!!! printing requires no supports, and produces no waste. However, there will be a small overhang wall during the process, as shown below

If you need a larger size, you can leave a comment below. If this helps you, please give a free boost
