Bathroom organizer v2

Hello everyone,

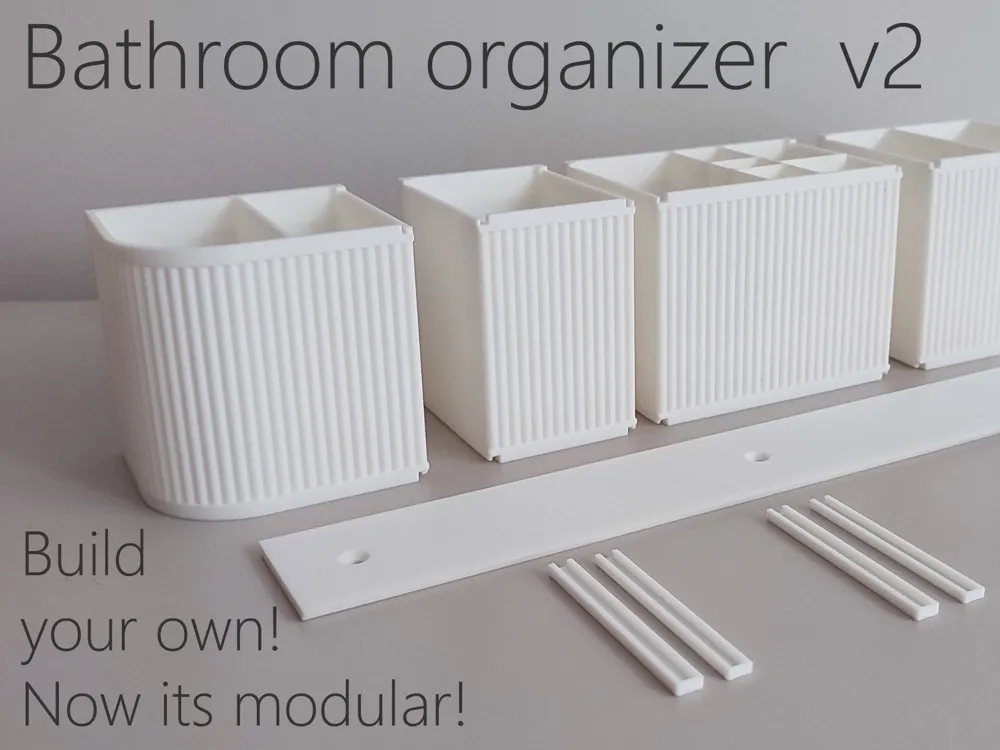

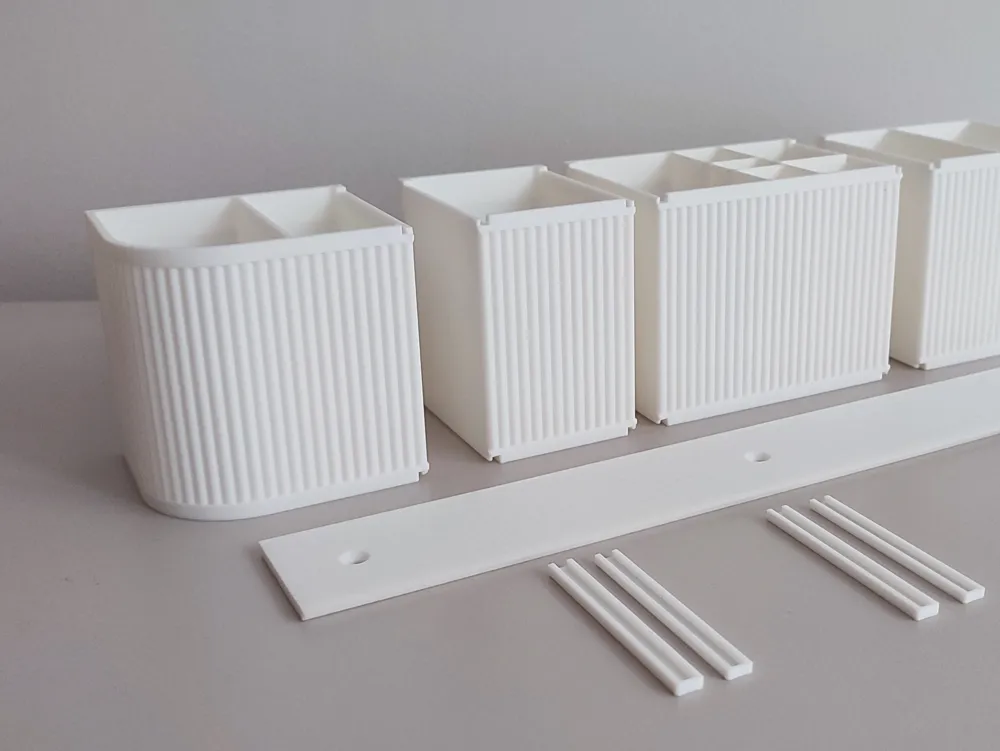

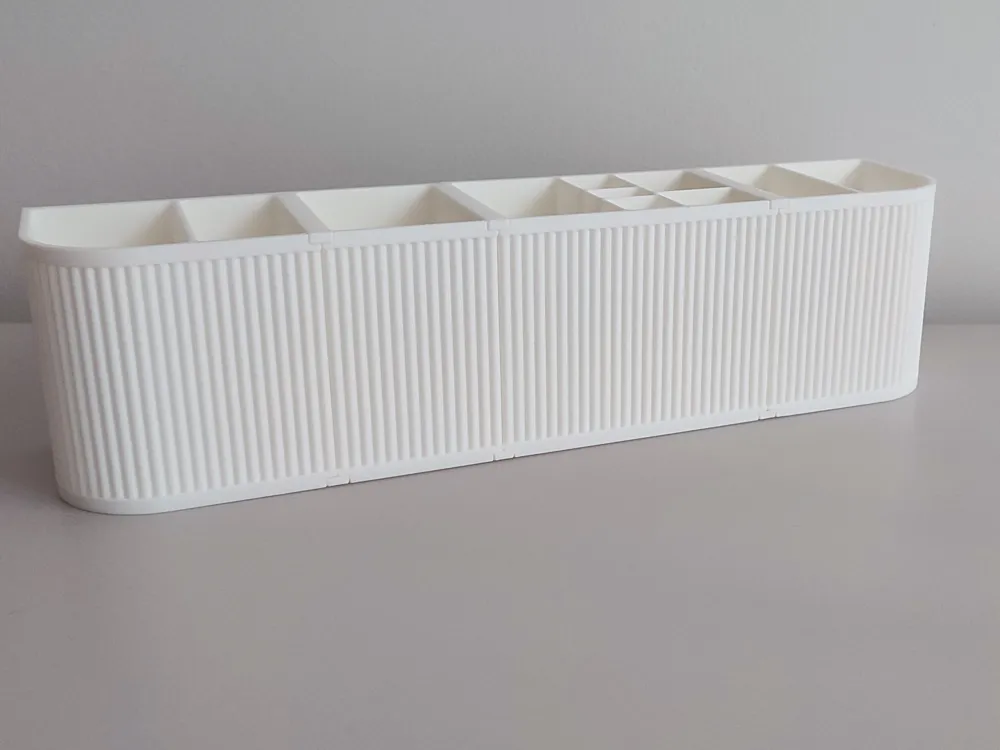

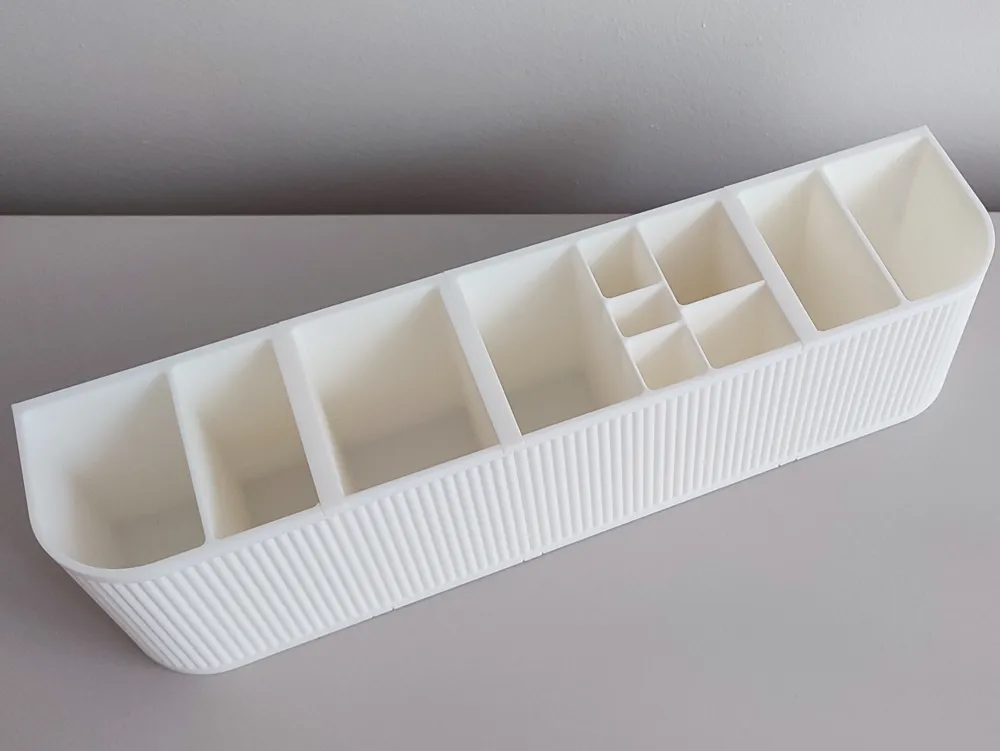

Here is the second iteration of my bathroom organizer. Now it's larger and modular, so everyone can create their custom set.

The idea is simple:

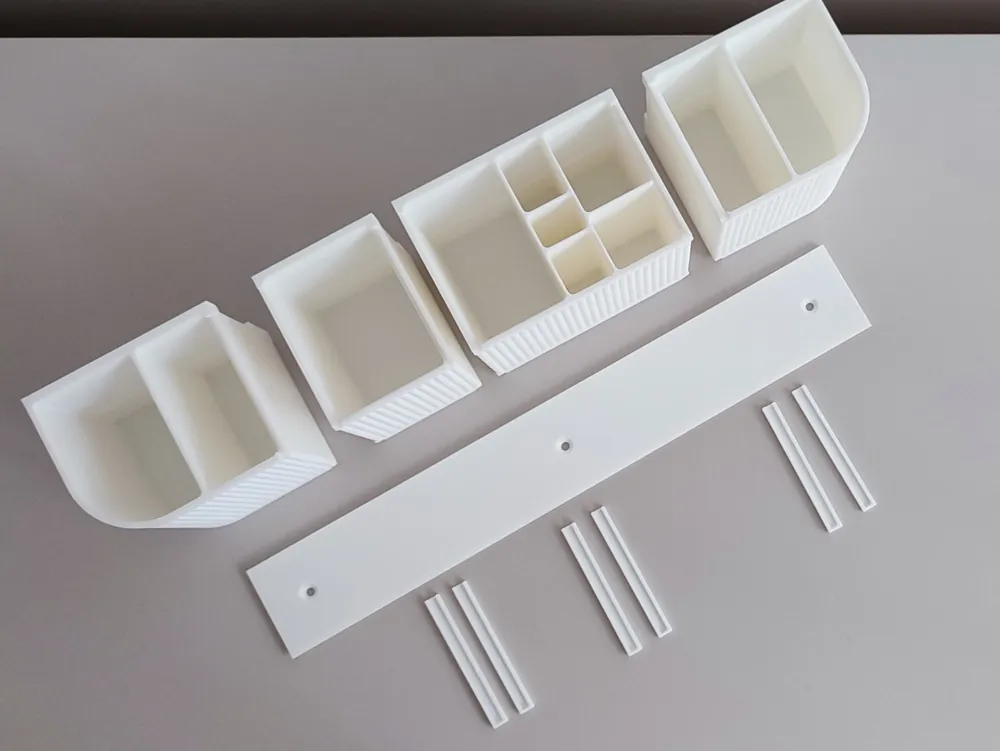

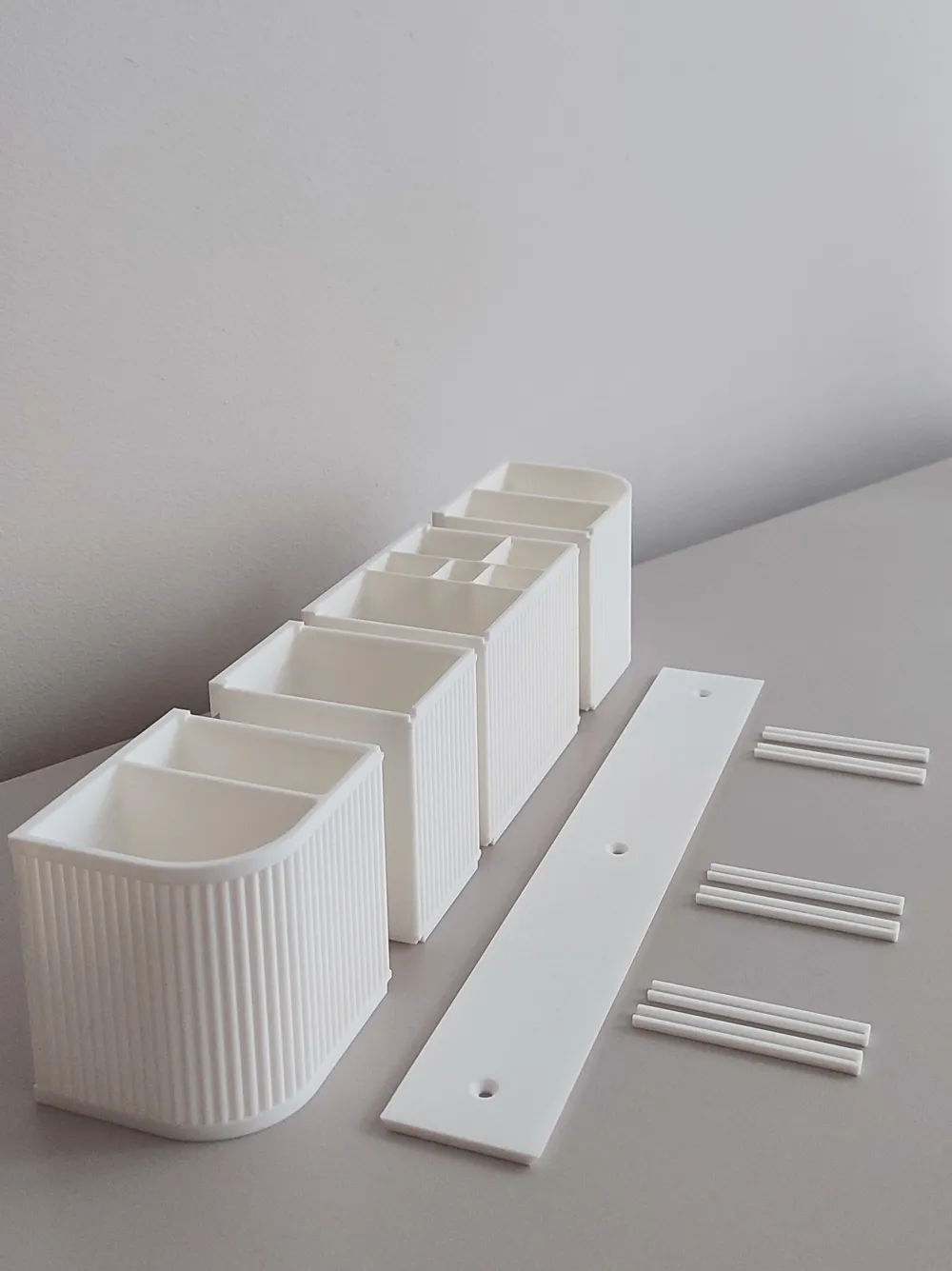

• print the containers you like,
• check the length of the rail you need for your set,
• mount it on the wall or inside the door of your bathroom cabinet,

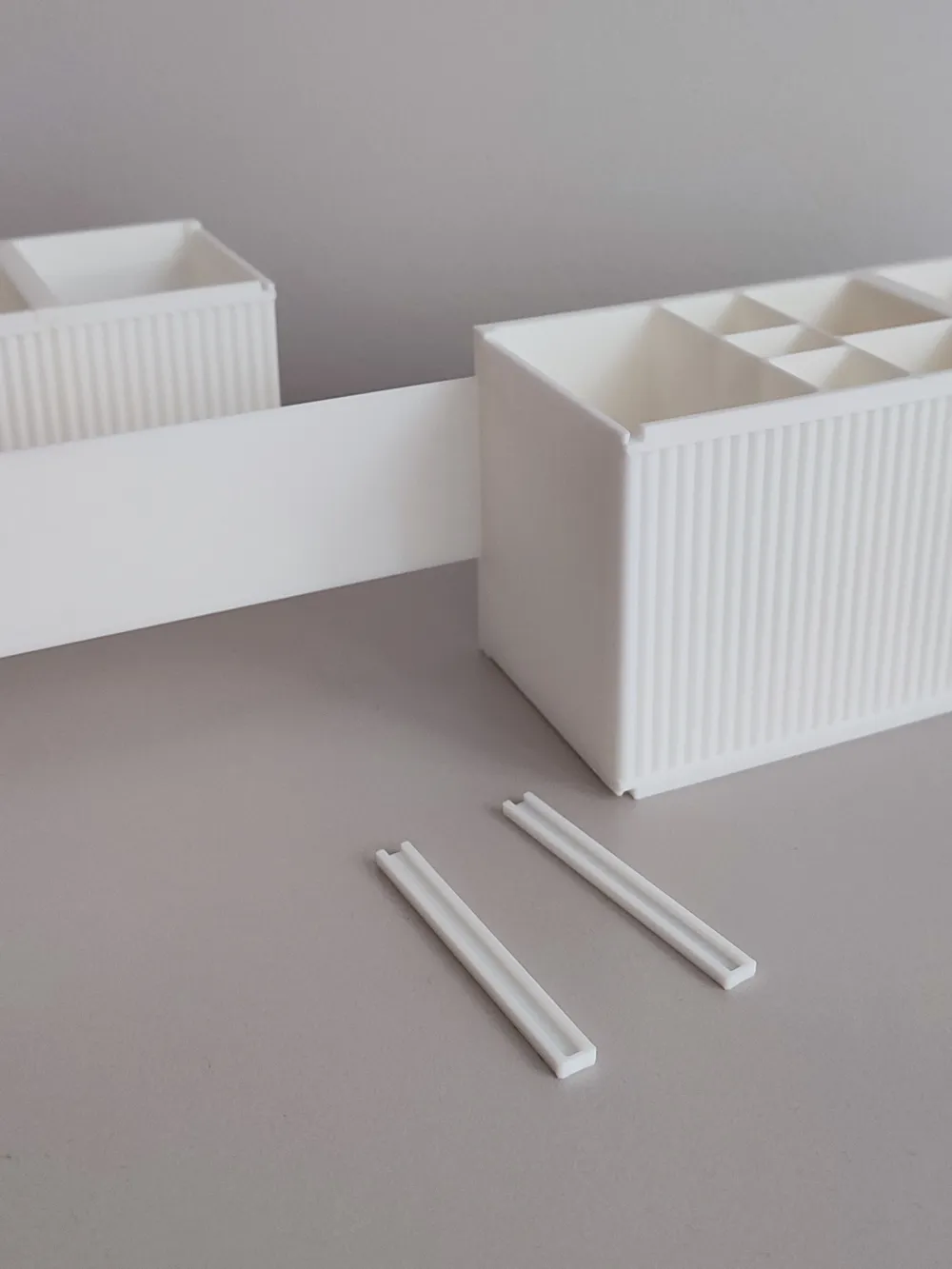

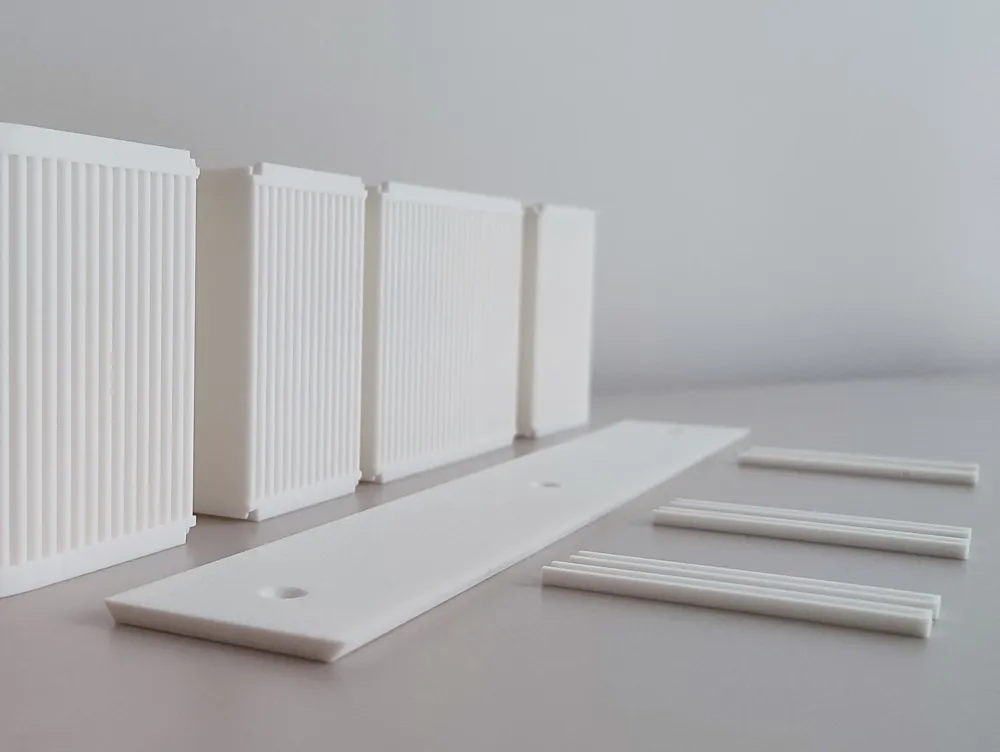

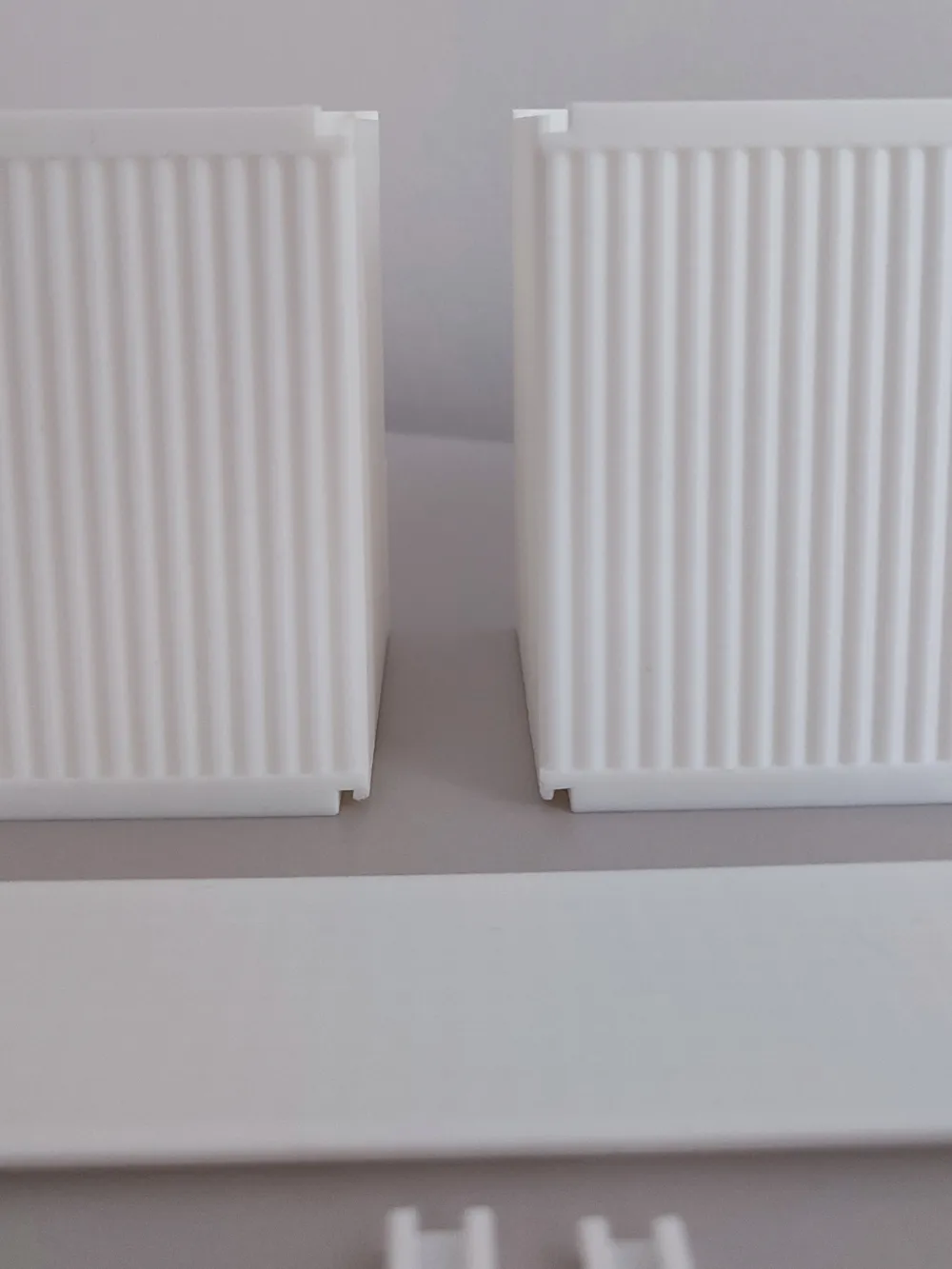

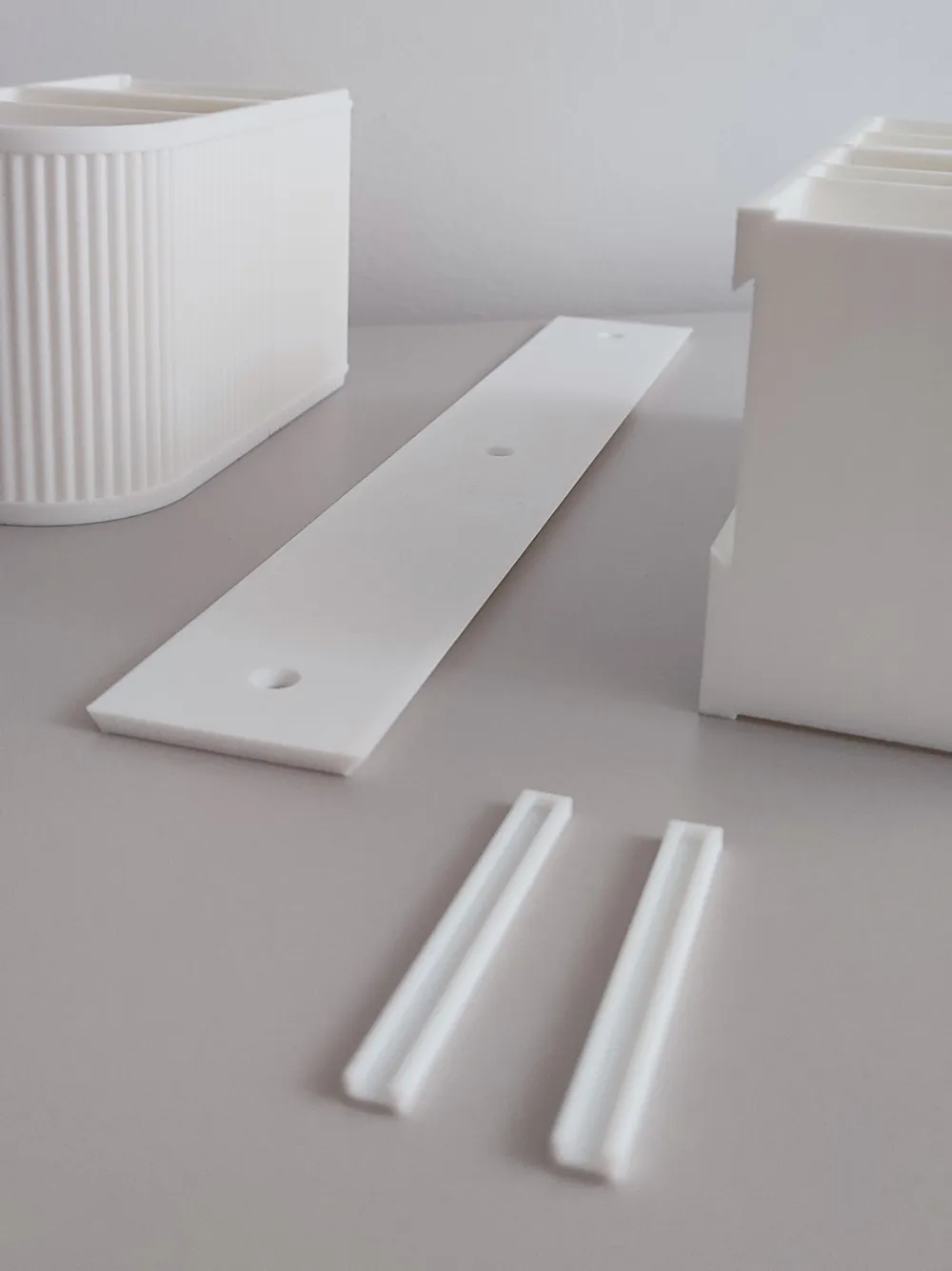

• fasten everything together with connectors. (Be aware that connectors - top and bottom - have different geometry!)


I'm planning to design more containers, dedicated to specific bathroom accessories. Please share your suggestions! :)


Build plates have the container dimensions listed in their title, but here’s a quick summary of each one (width x depth x height):

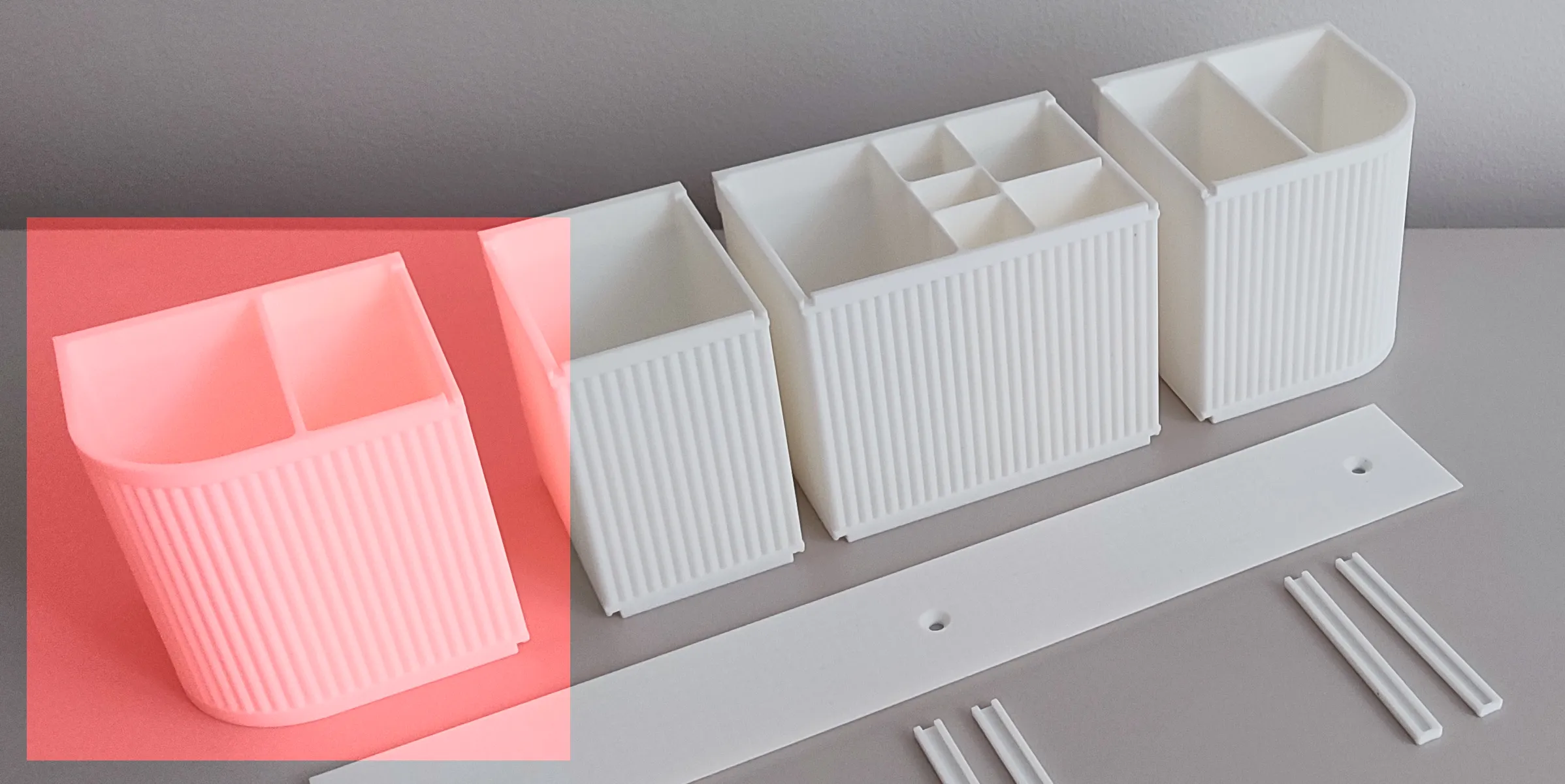

1) Left end - (80x70x80mm) - plate 1 & 2  (two versions: with or without end cut)

     41x63mm + 30x63mm (internally)

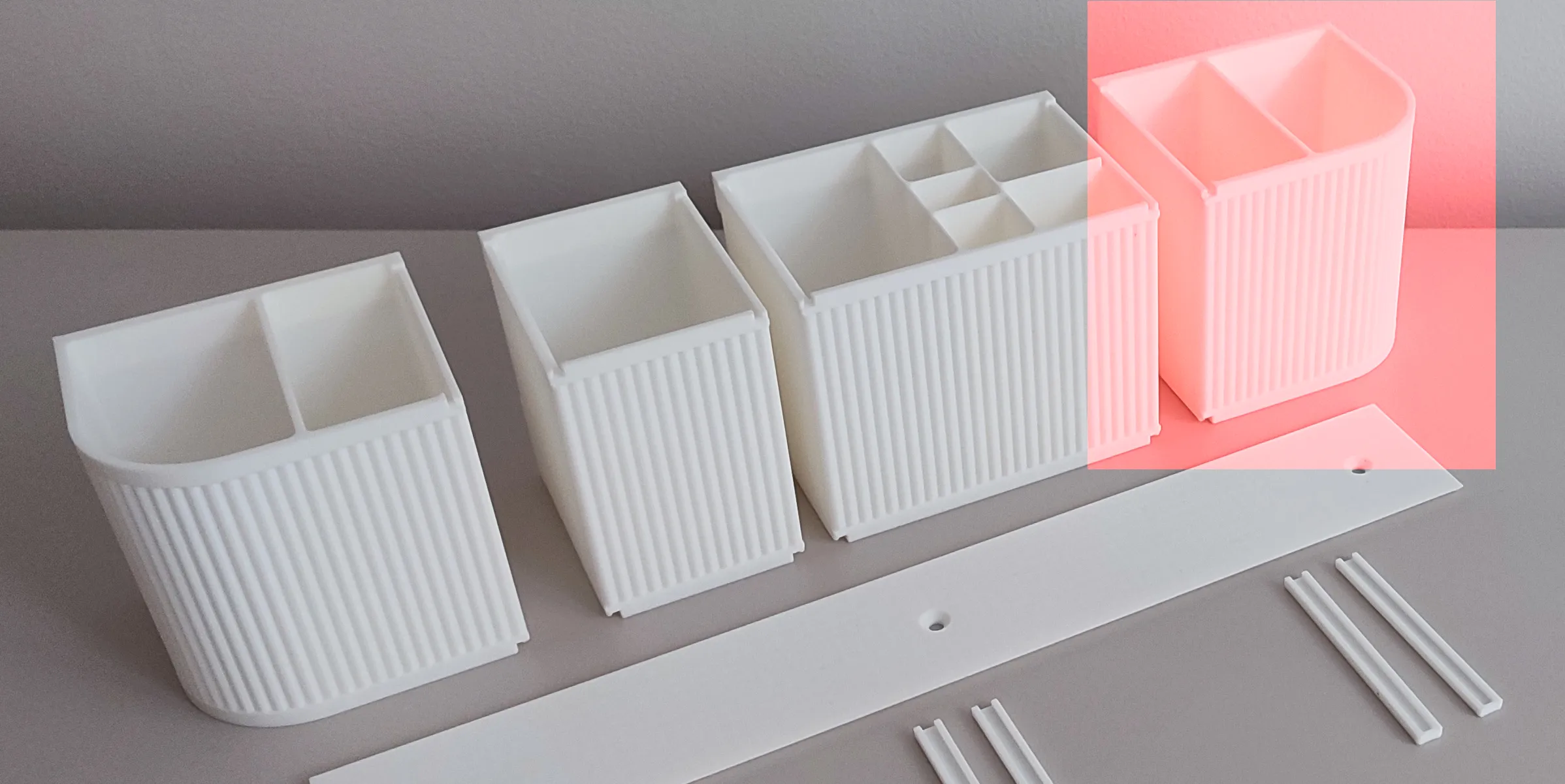

2) Right end (80x70x80mm) - plate 1 & 2  (two versions: with or without end cut)

     41x63mm + 30x63mm (internally)

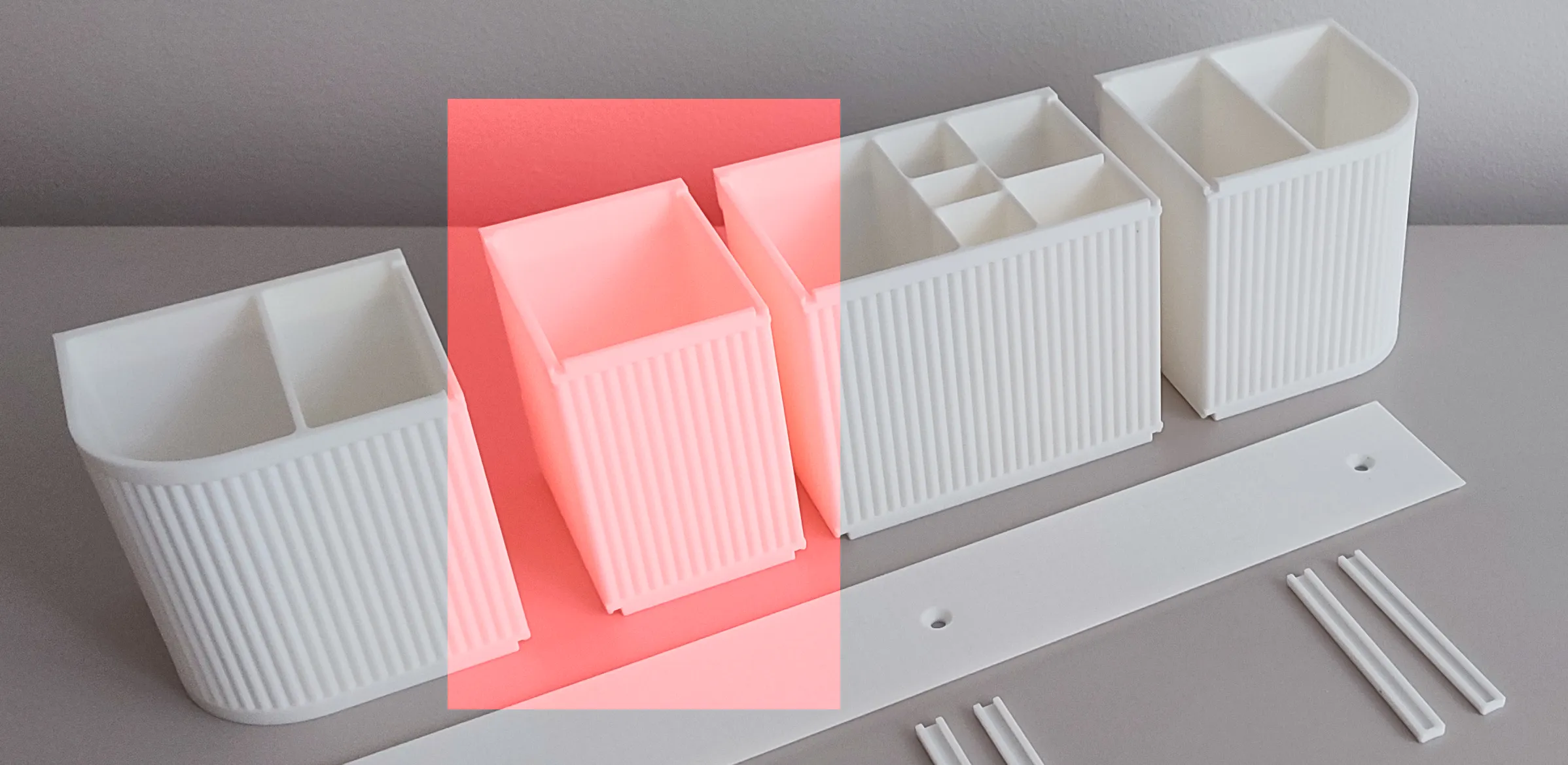

3) Small central container (54x70x80) - plate 4

     47x64mm (internally)

4) Large central container (100x70x80) - plate 5

     93x64mm (internally)

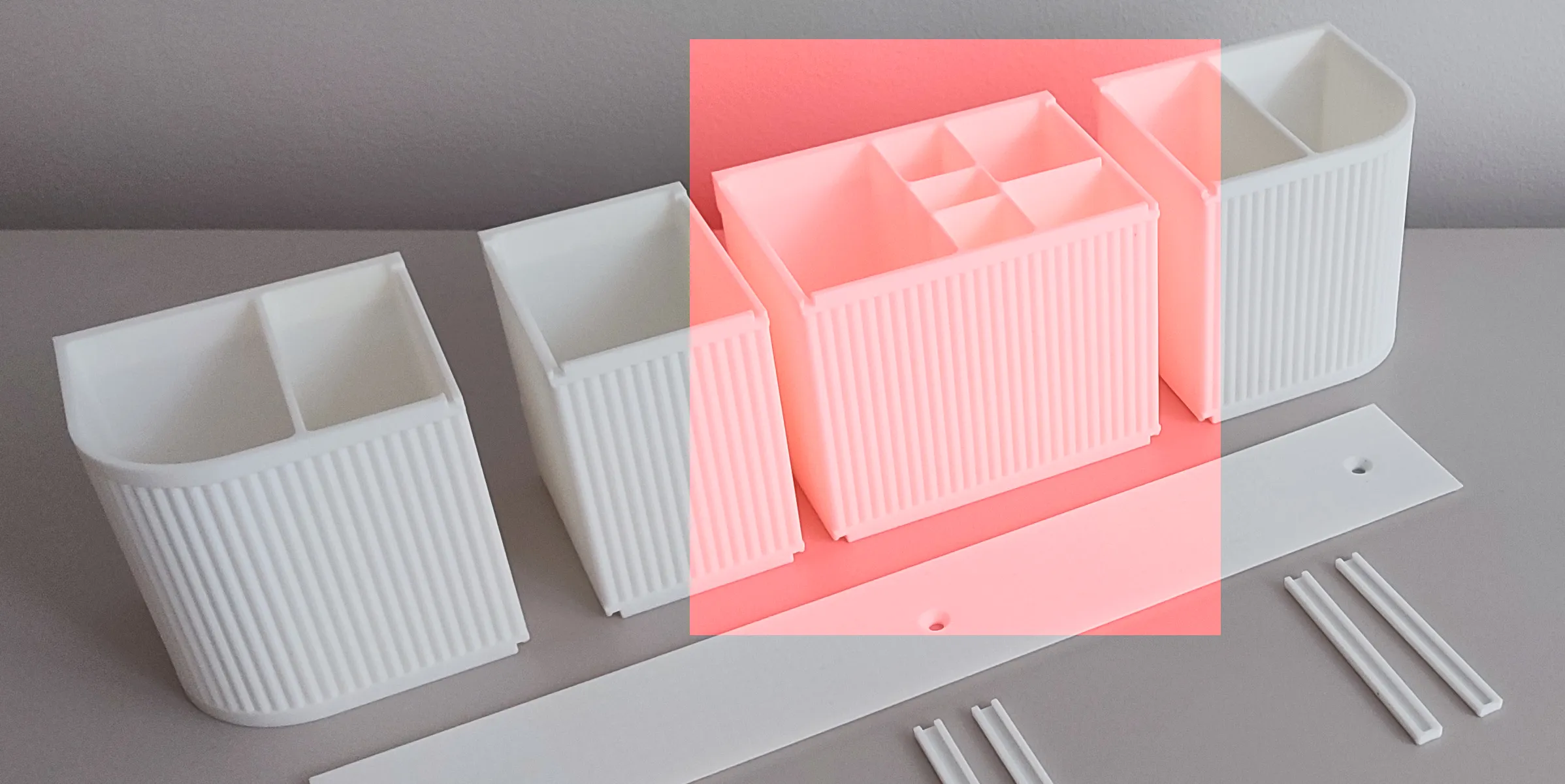

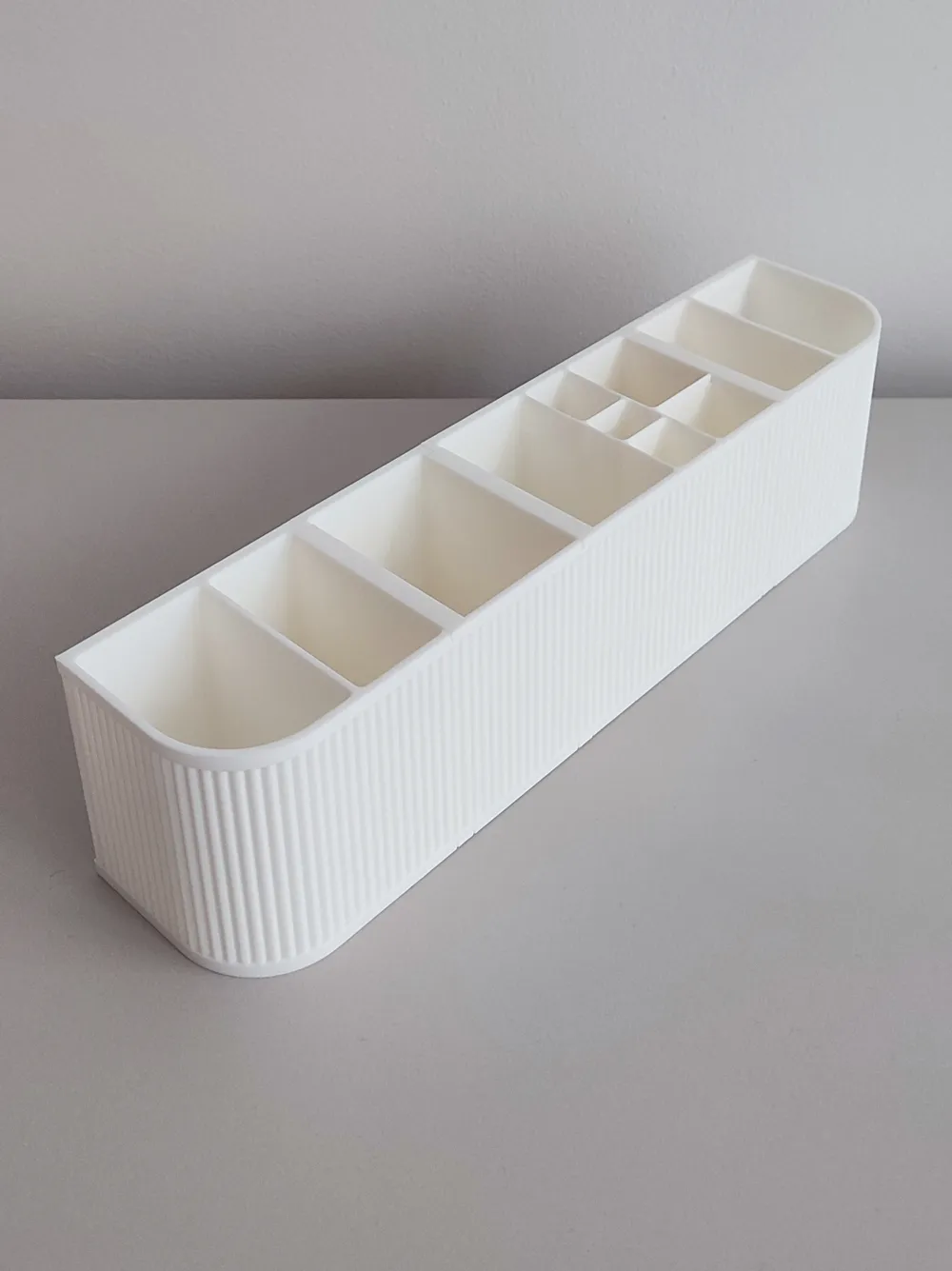

5) Central container with divider (100x70x80) - plate 3

     39x64mm + 20x20mm + 20x15mm + 20x25mm + 30x25mm + 30x37mm (internally)

Please plan your mounting carefully and choose the correct version of the end elements.
Do you have space to slide the elements onto the rail from both sides?
If so, you don’t need the version with the end cut — just make the rail slightly shorter than your full set. Print profile has a few lenghts available (100,150,200,250,300mm)

Enjoy!
