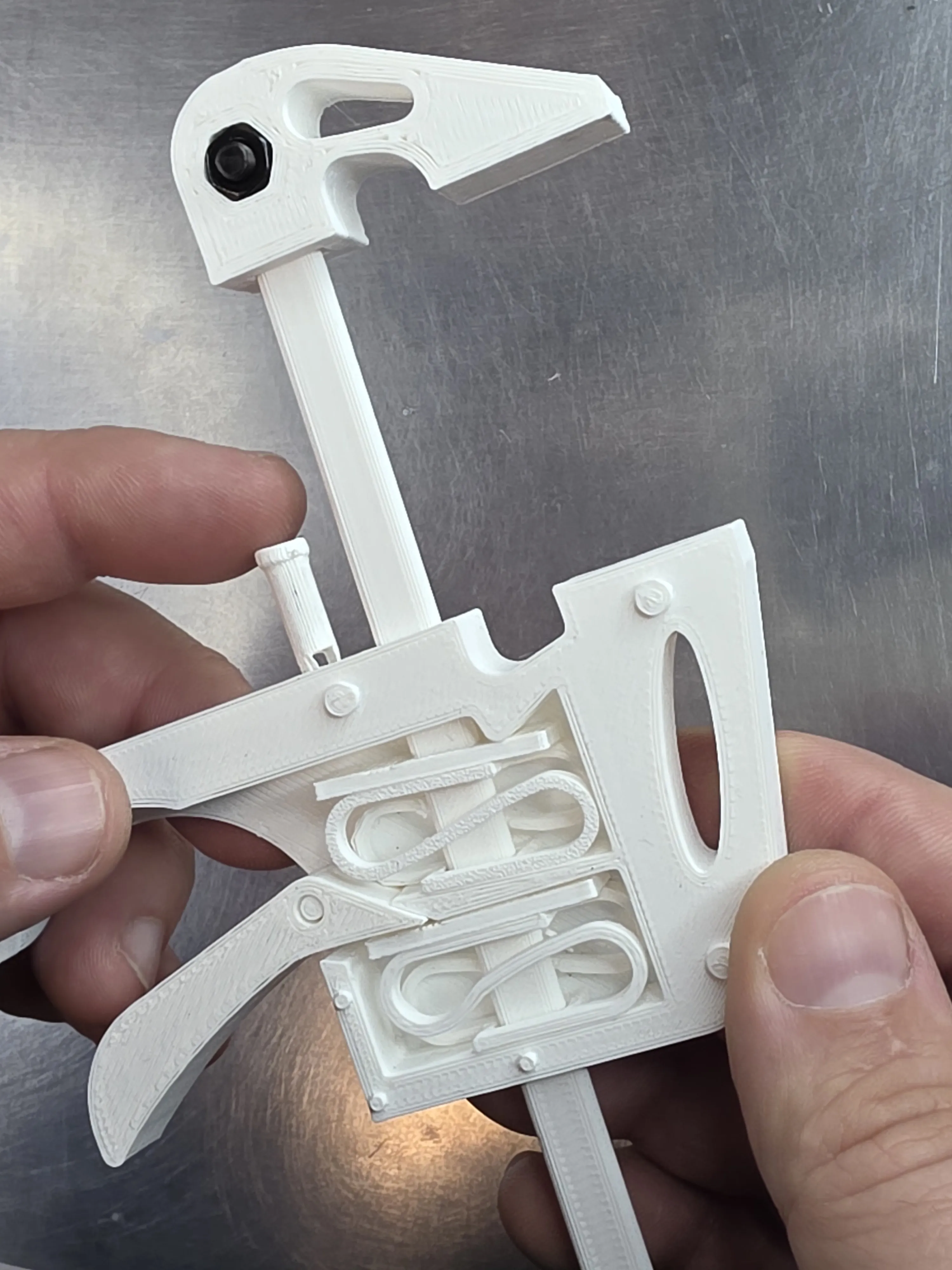

Ratcheting Clamp

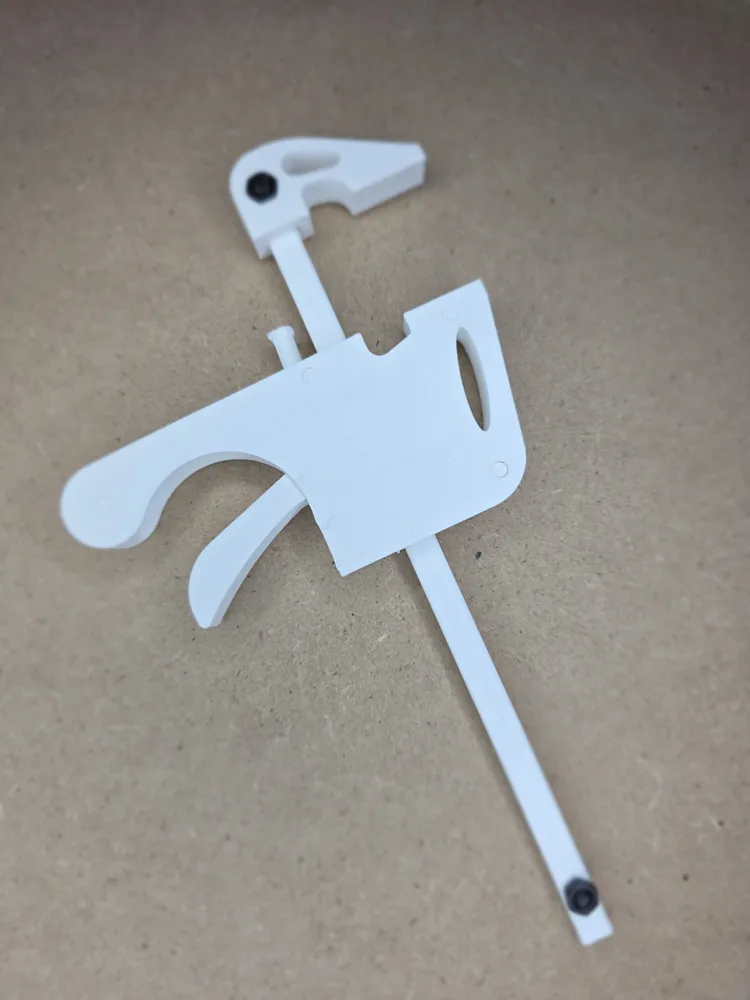

This 3D-printed ratcheting clamp is designed for quick and secure attachment to a workbench or tabletop.
It provides a strong grip using a ratchet-style mechanism that locks in place with each squeeze, making it ideal for holding parts, guiding tools, or securing materials during assembly or gluing.

The design is composed of multiple parts that can be easily printed and assembled without the need for special tools.
All pieces fit together smoothly, and once assembled, the clamp offers a sturdy, reliable hold with a comfortable handle and quick-release lever.

After the description below, you’ll find step-by-step photos showing the assembly process to make it as simple as possible.

👉 Perfect for makers, woodworkers, and DIY enthusiasts looking for a practical, printable workshop tool.

🧩 Assembly Instructions

Parts required:

• body (x1)
• top (x1)
• bar (x1)
• spring (x2)
• block (x2)
• button (x1)
• trigger (x1)
• Screw M4 x 15 (x1)
• Screw M4 x 5 (x1)
• bolt M4 (x2)

Assembly steps:

1. Prepare all parts
   Clean the printed parts from any stringing or rough edges to ensure smooth movement.

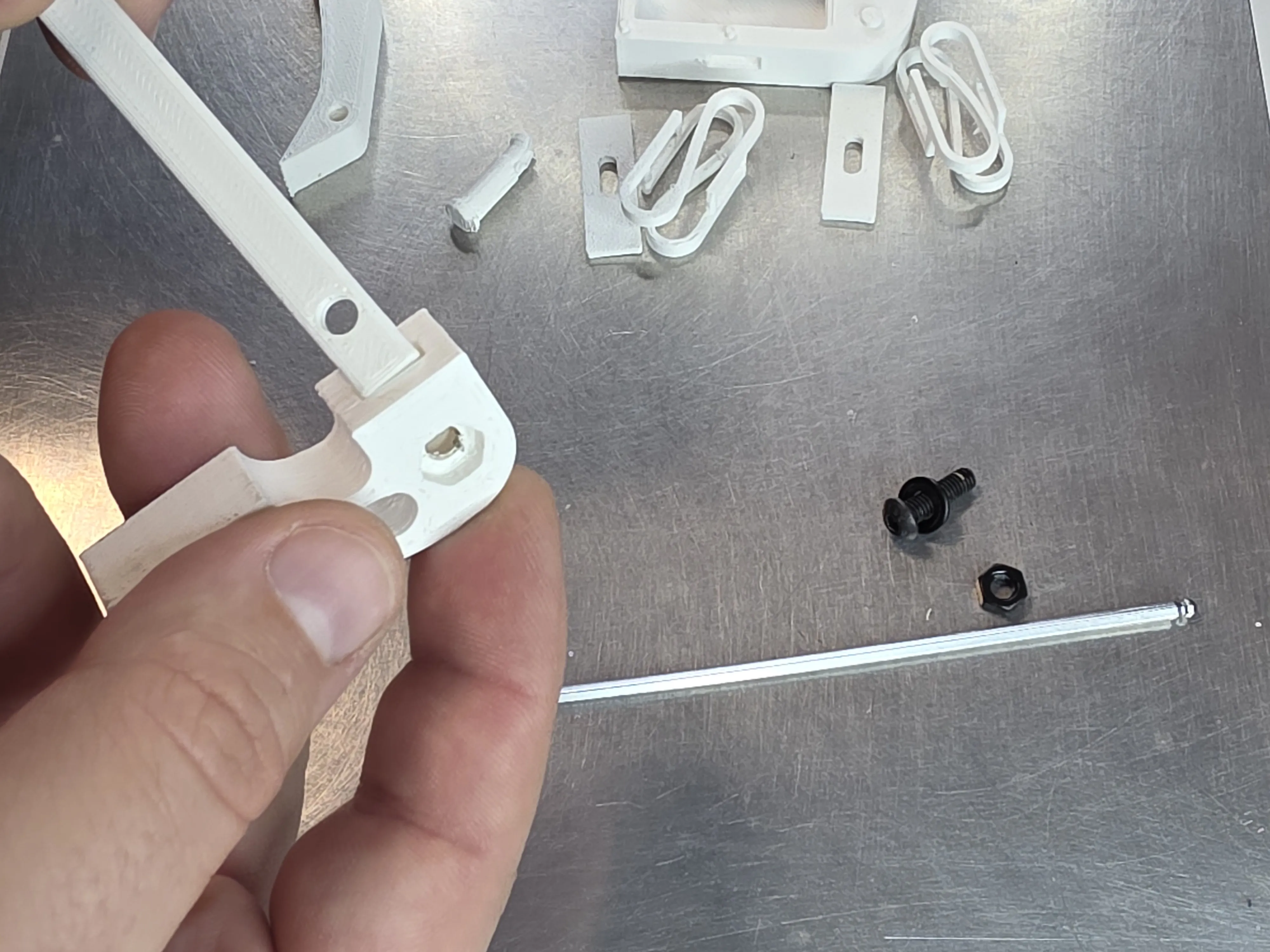

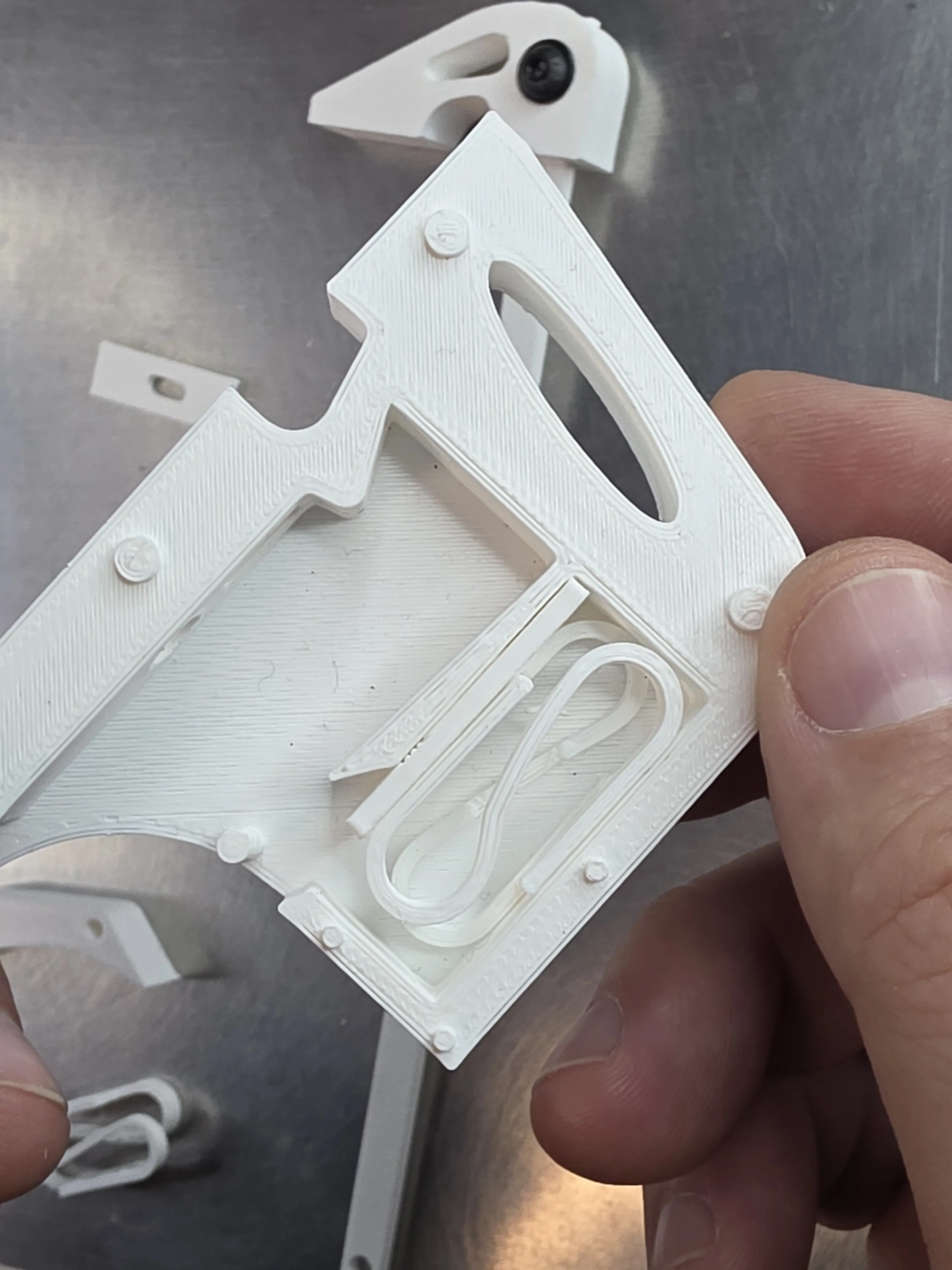

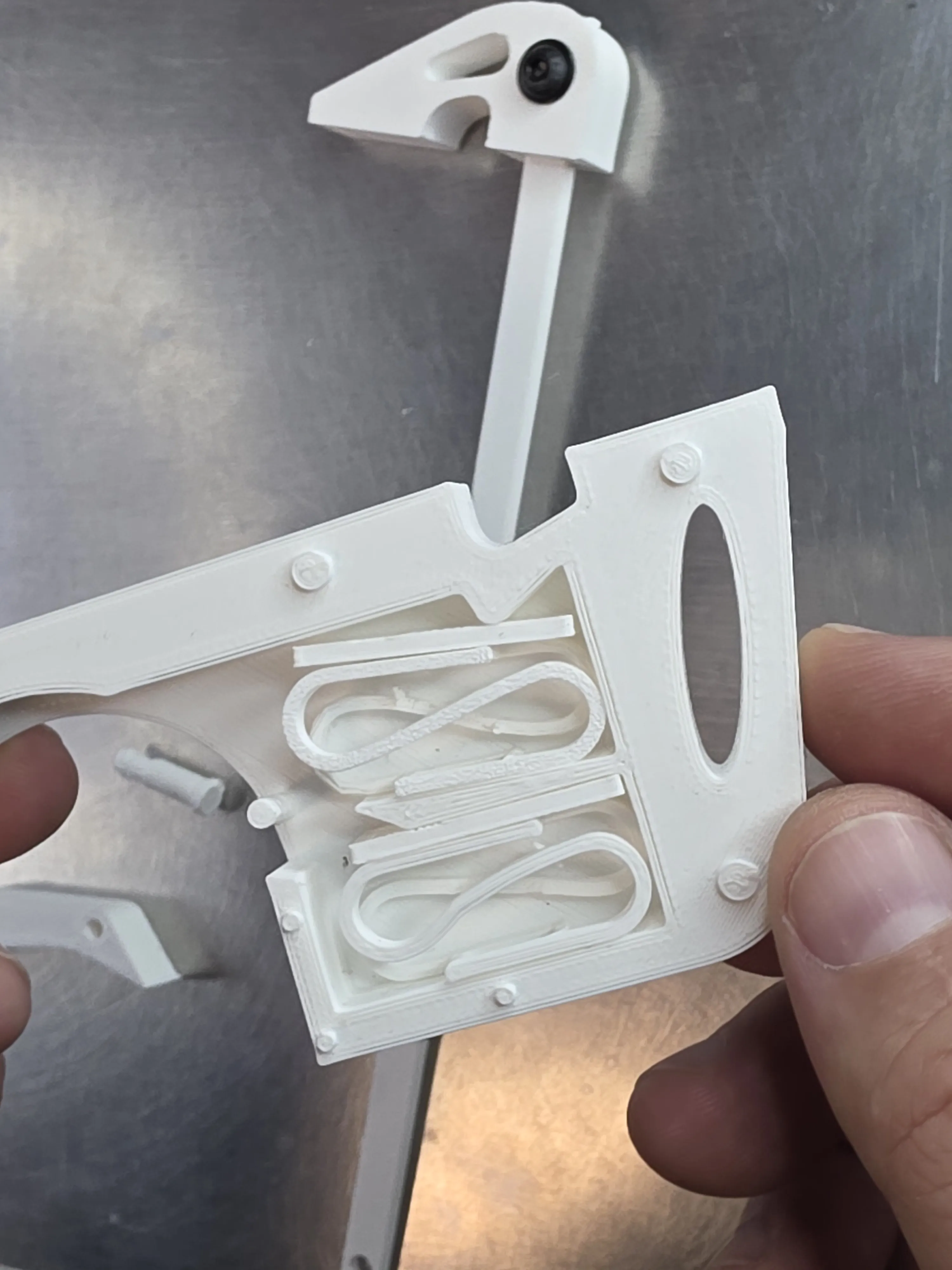

2. Insert the ratchet arm
   Slide the ratchet arm into the main body slot until it fits snugly. Make sure the teeth face the locking direction.

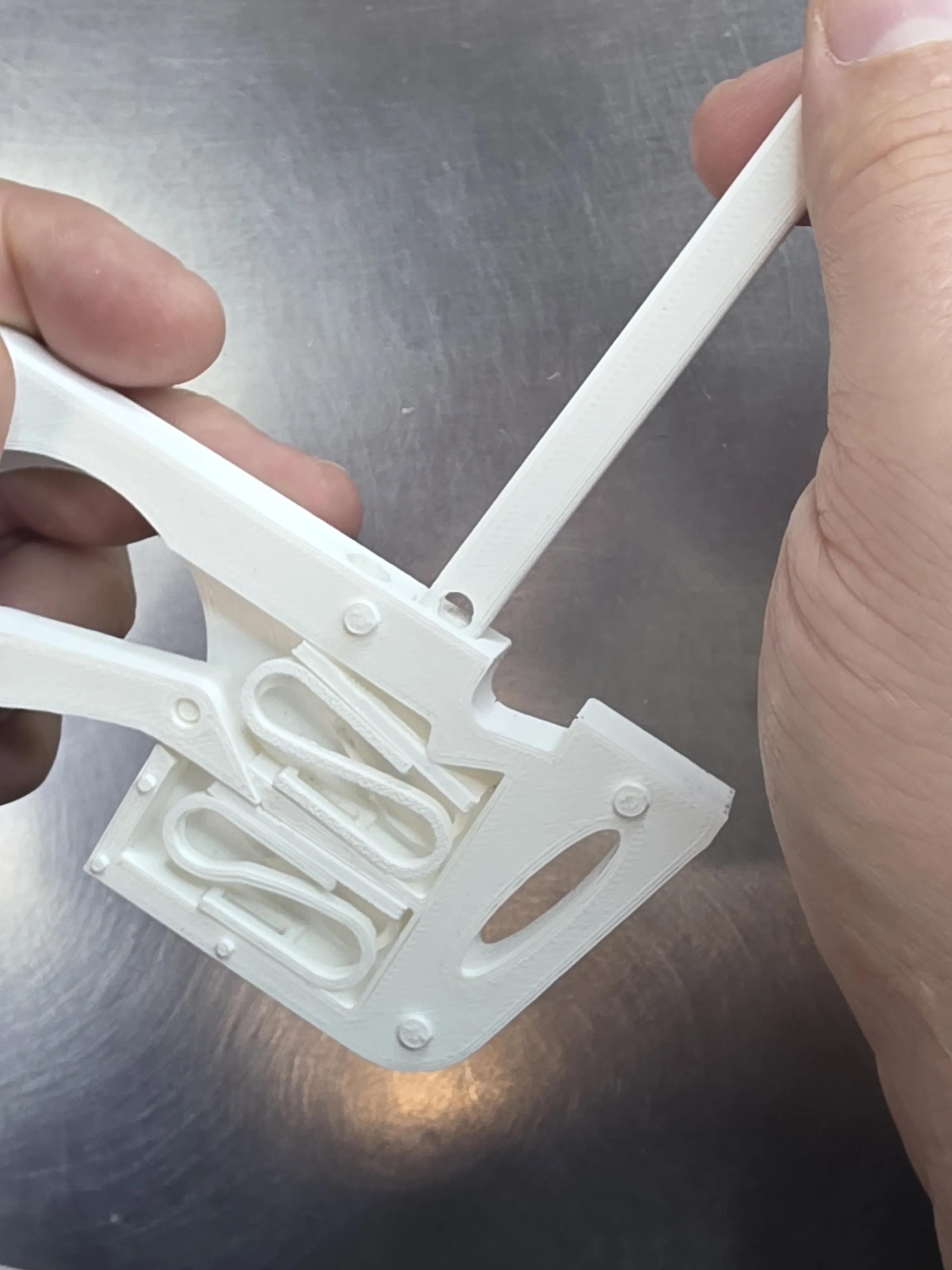

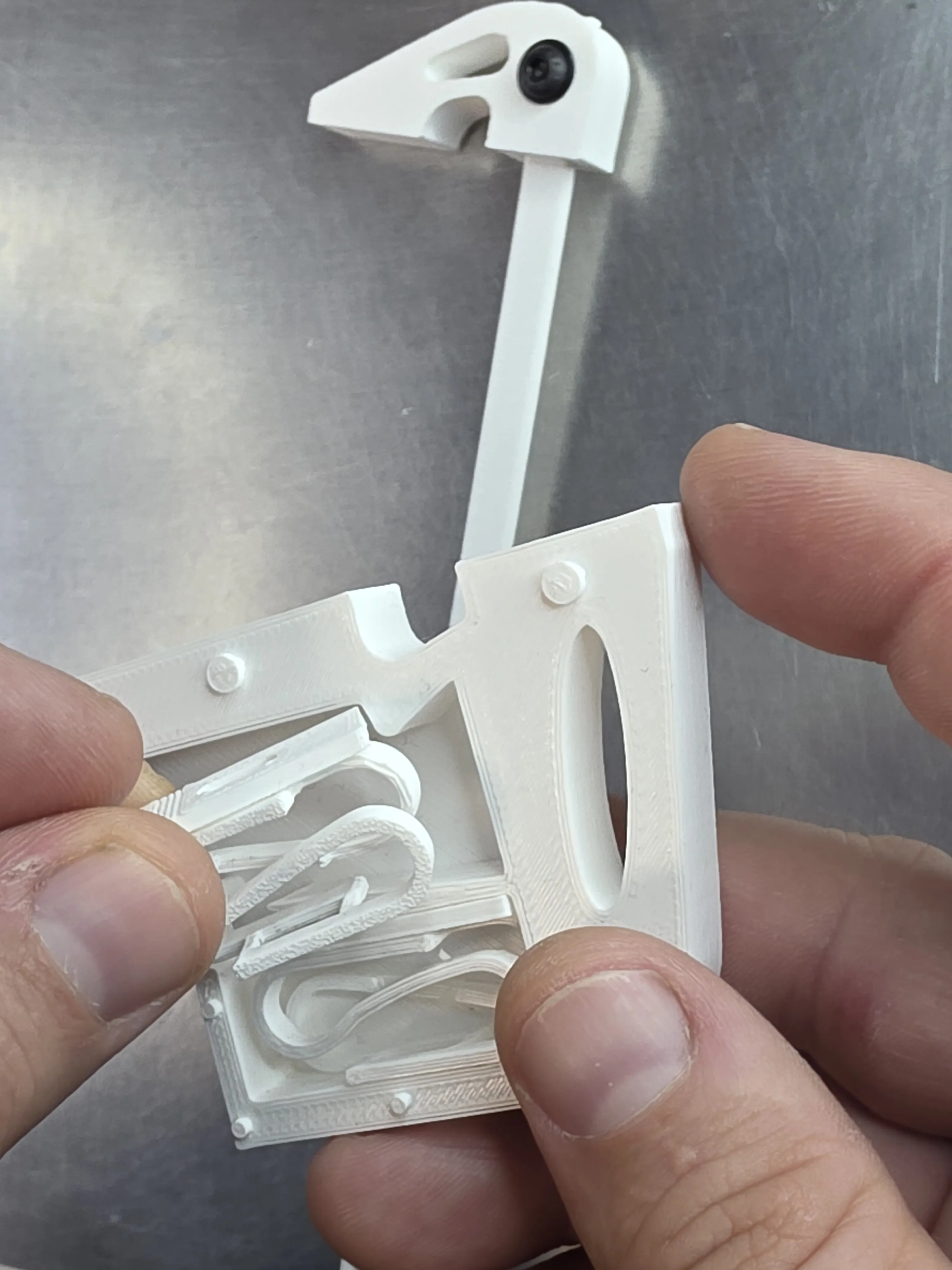

3. Attach the handle
   Align the handle’s pivot hole with the main body and insert the pin or printed axle. Check that the handle moves freely.

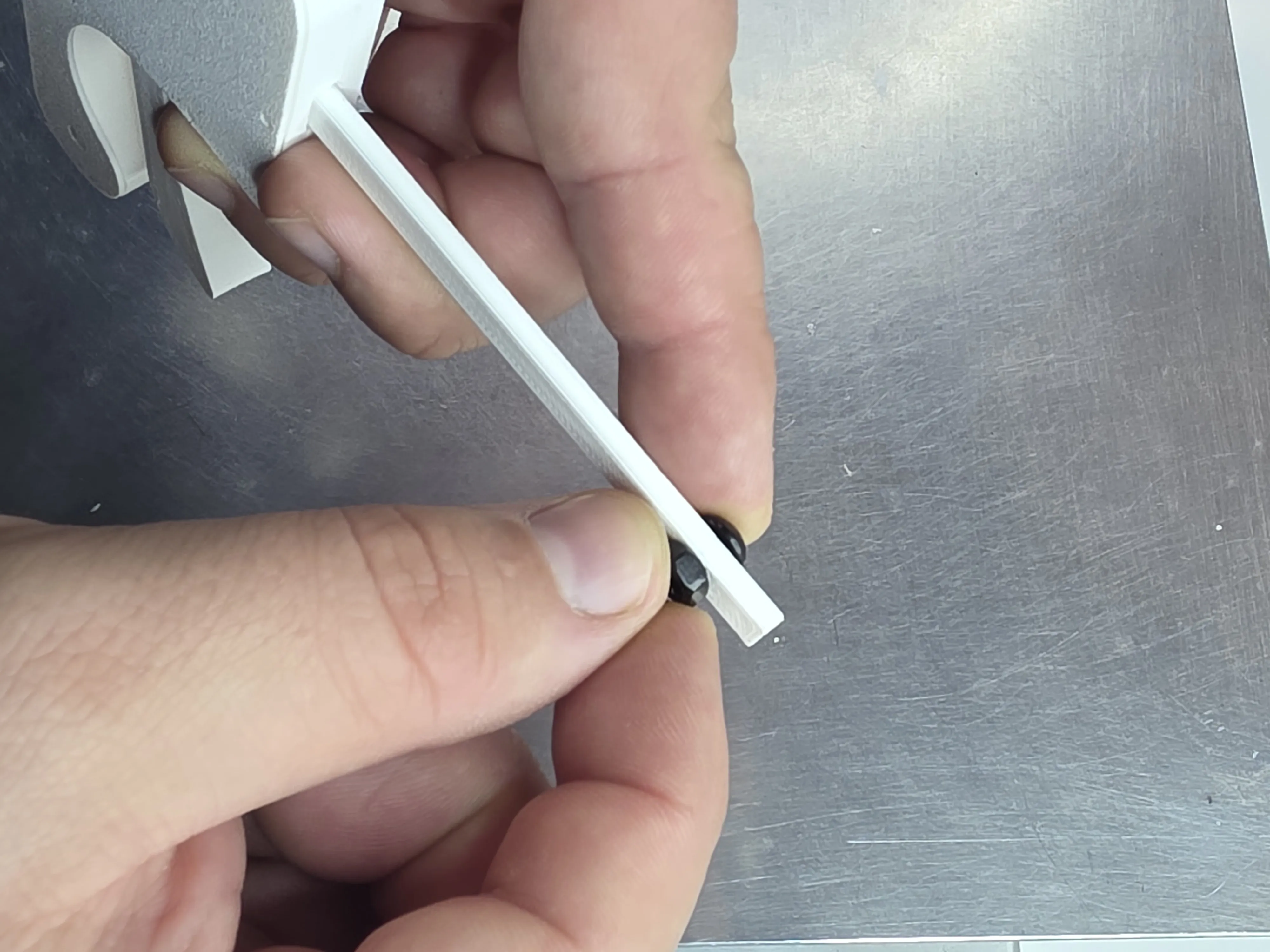

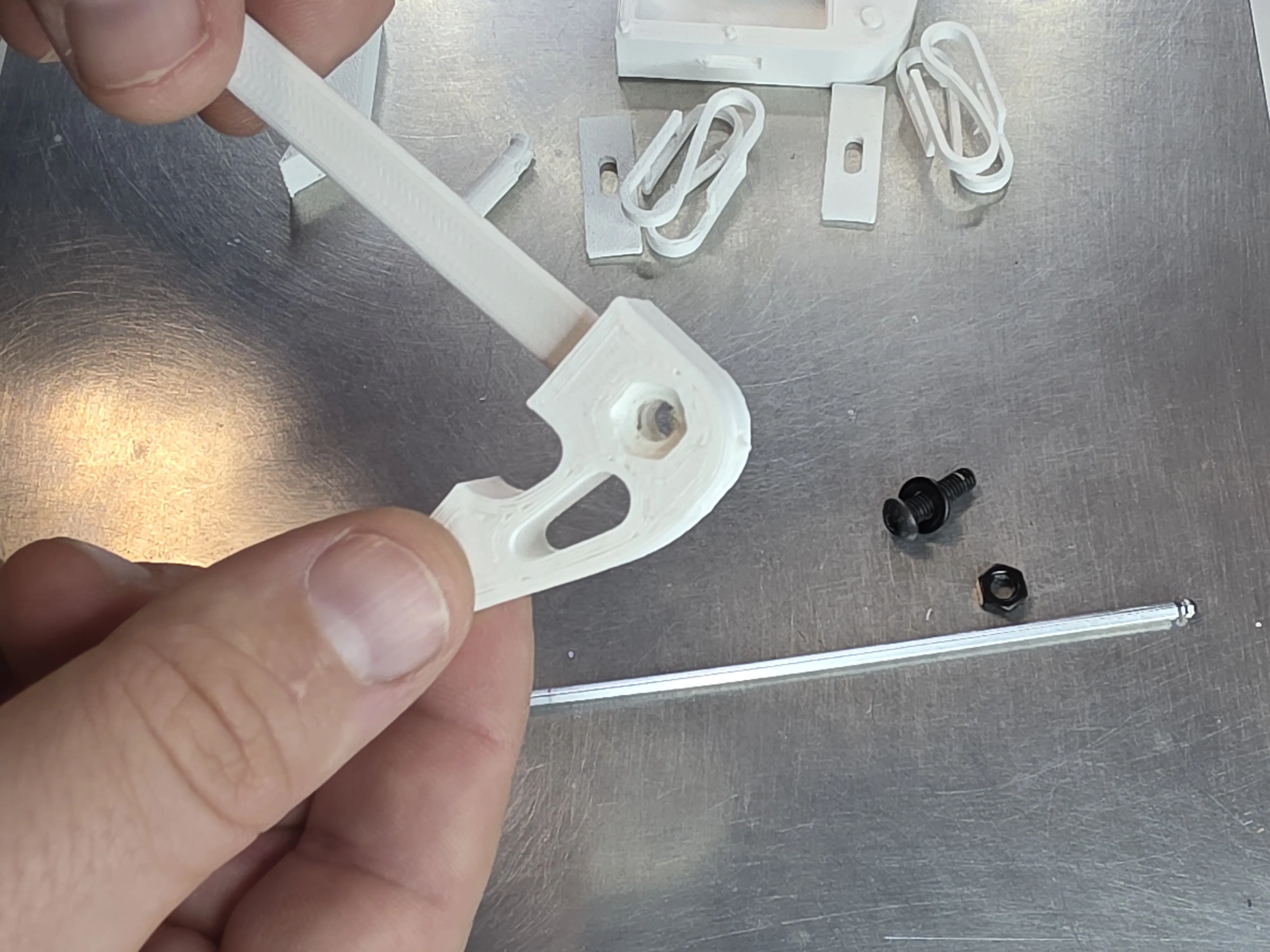

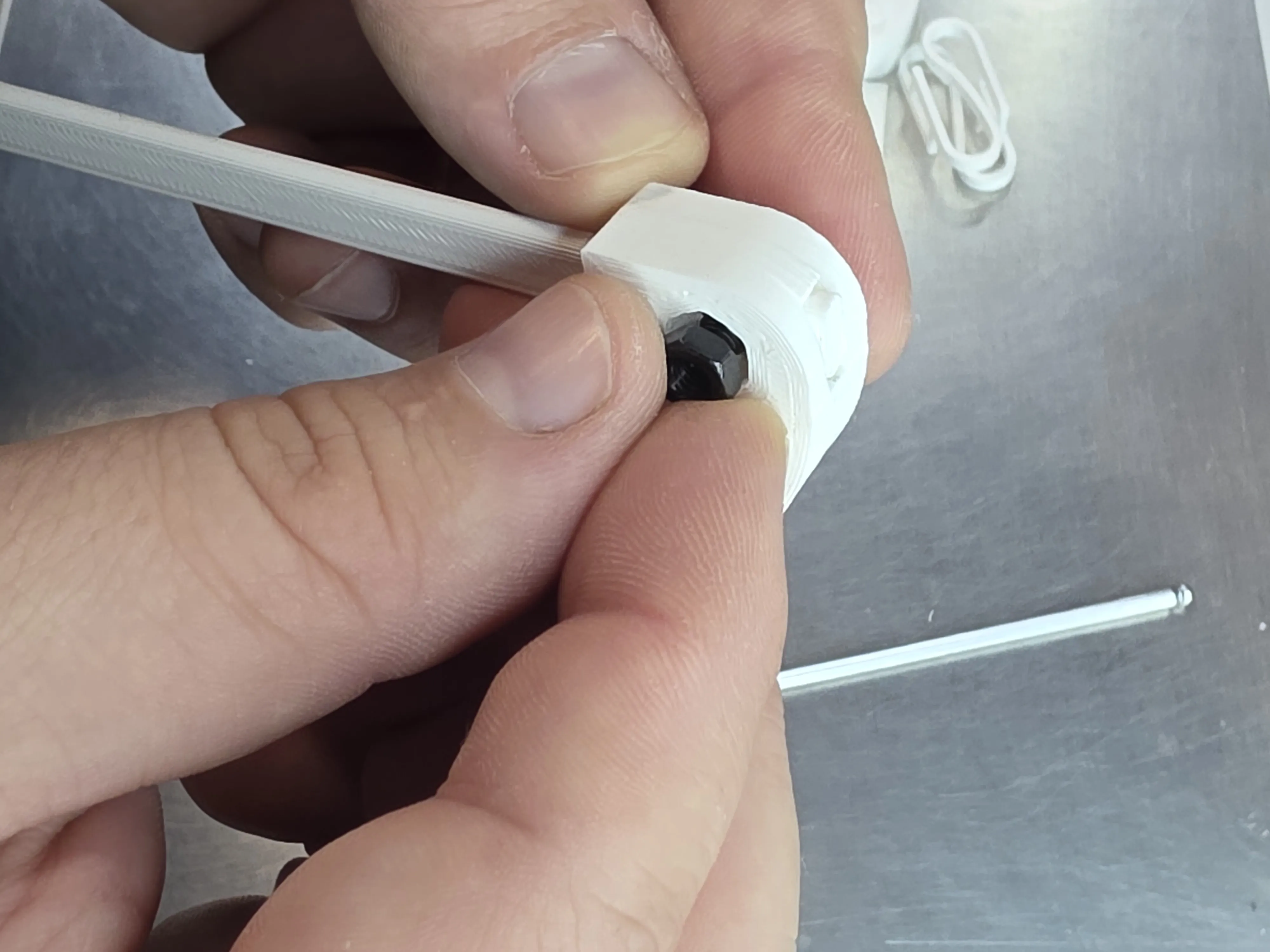

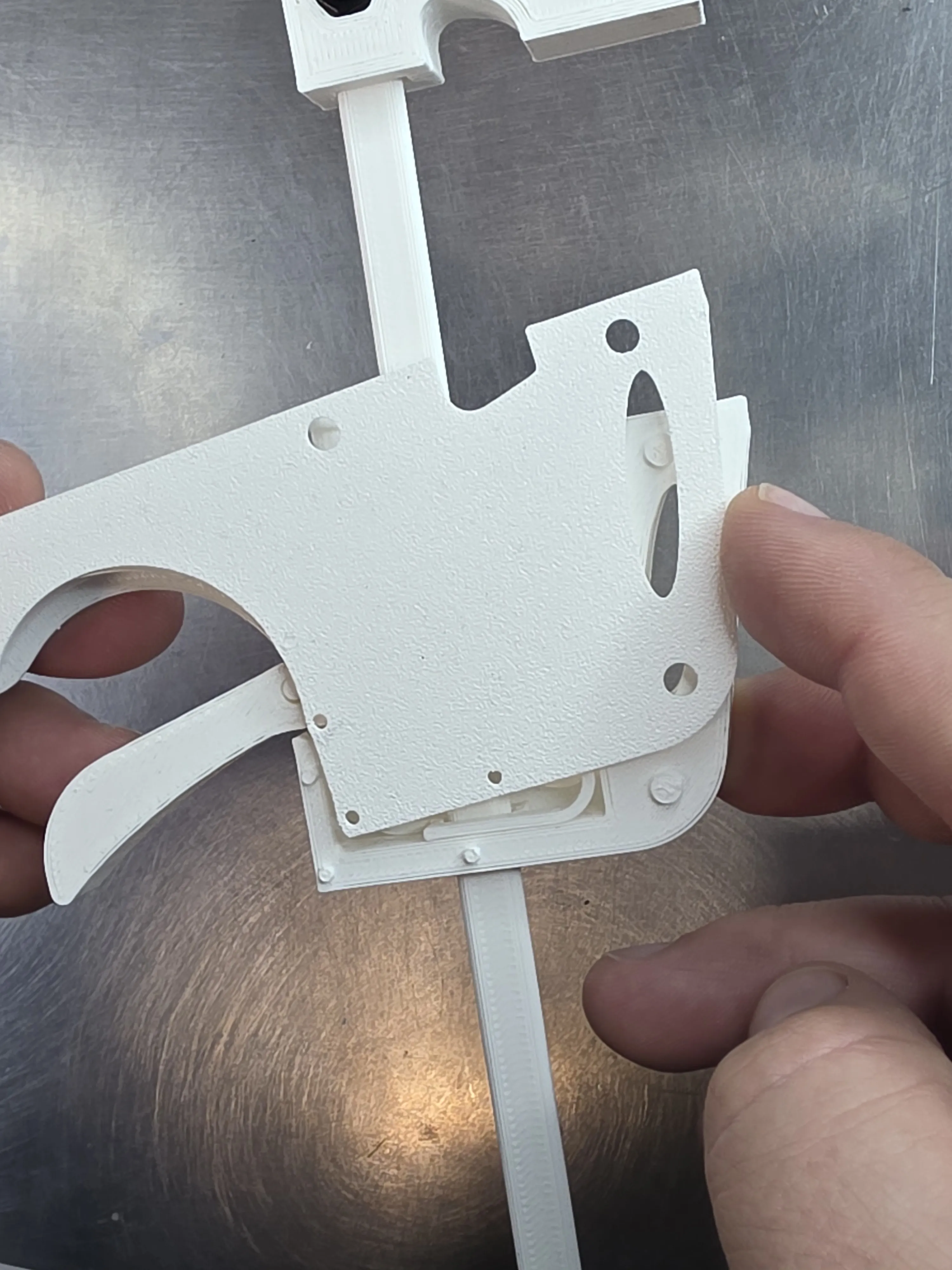

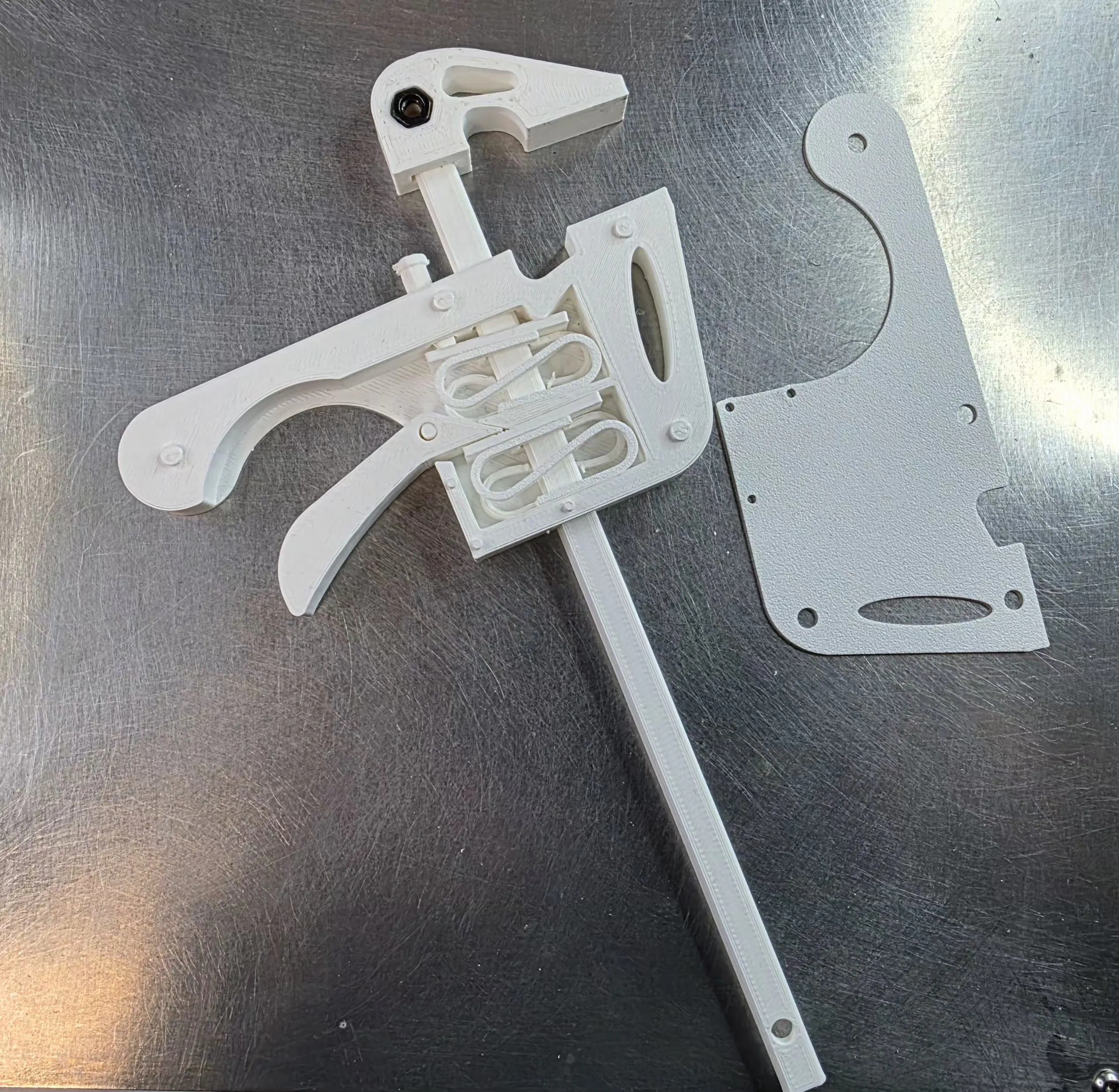

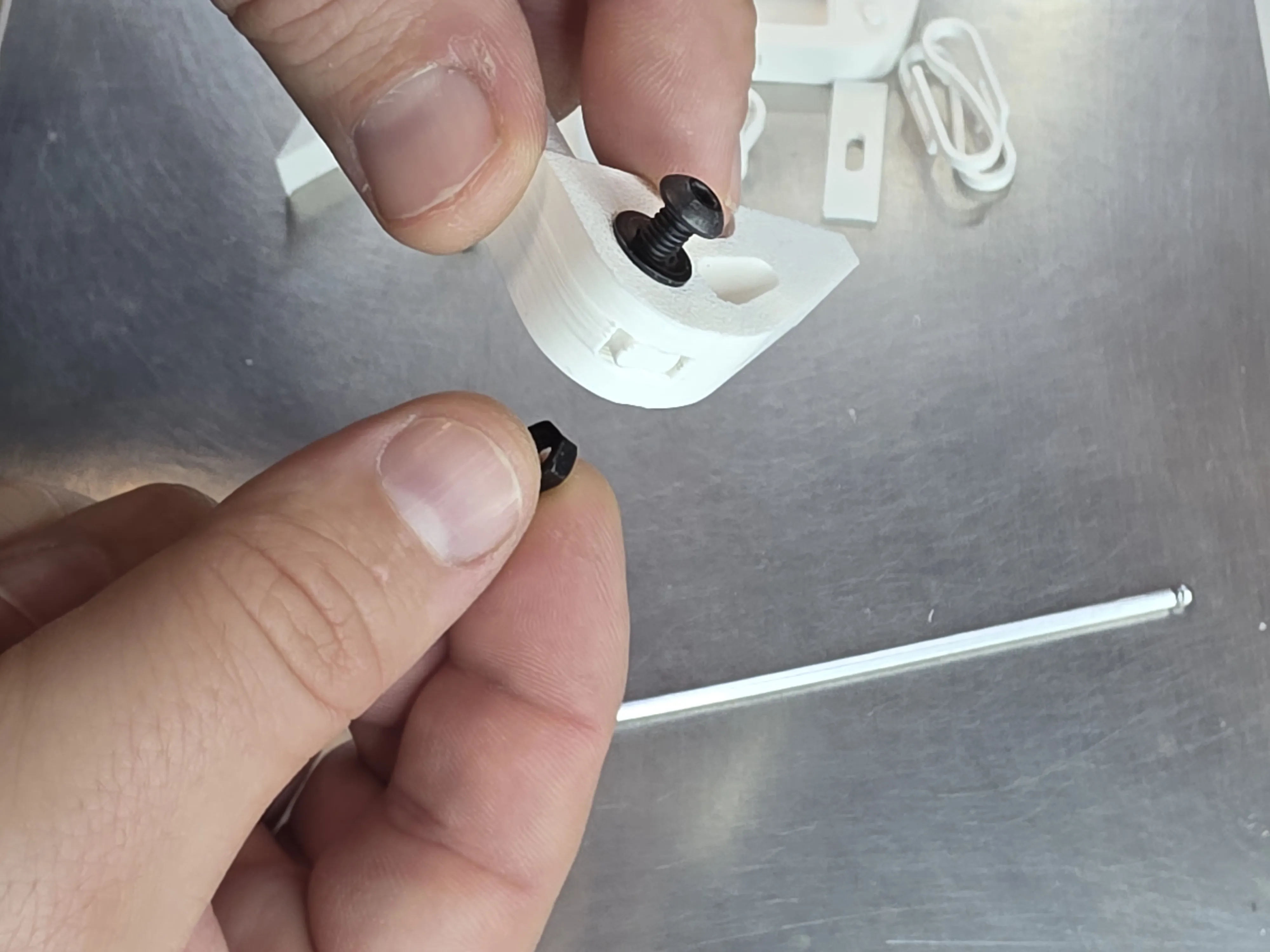

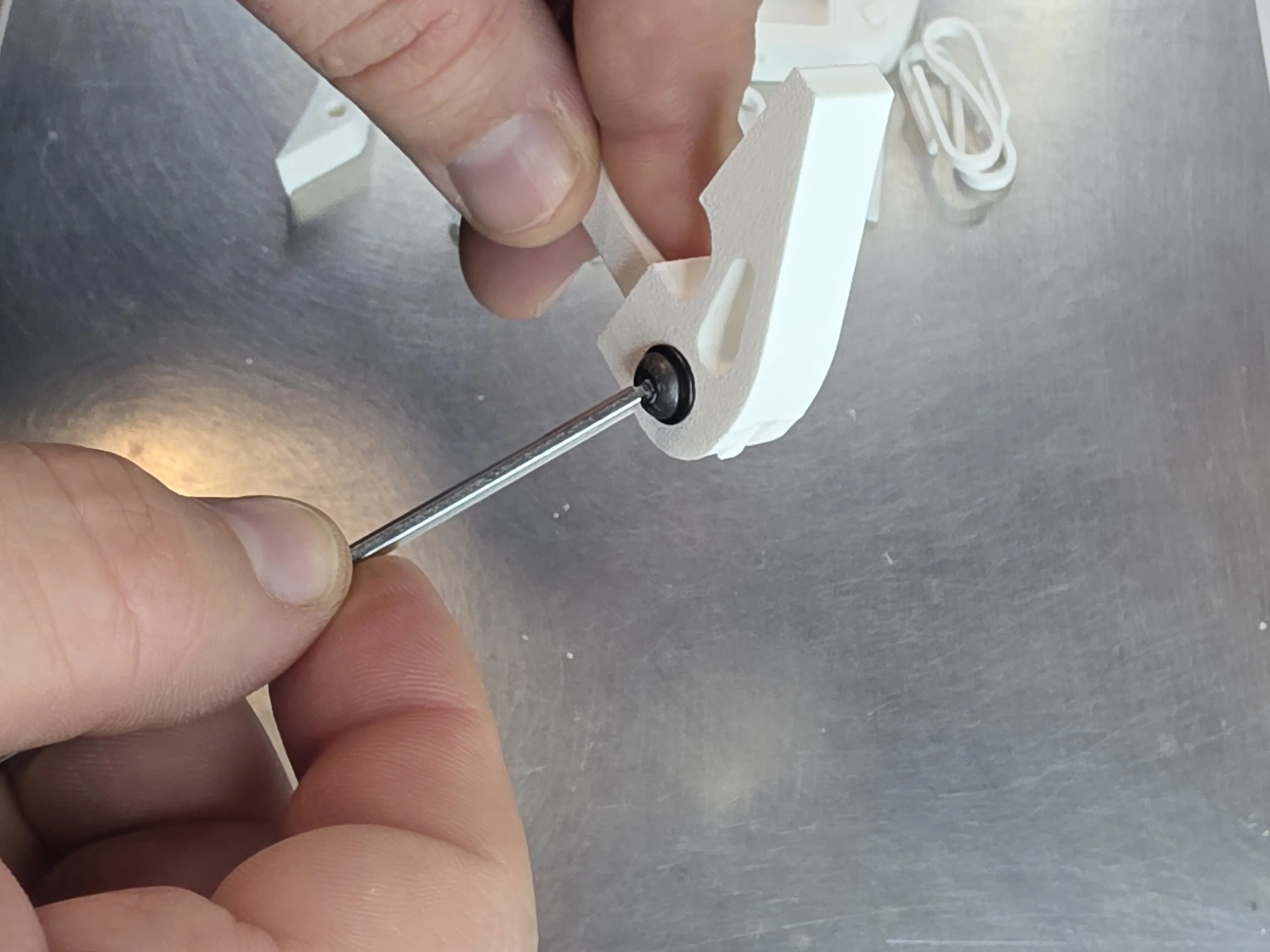

4. Mount the upper jaw
   Secure the jaw piece on top using the bolt or pin provided in the design. It should press down firmly on the work surface when the handle is squeezed.

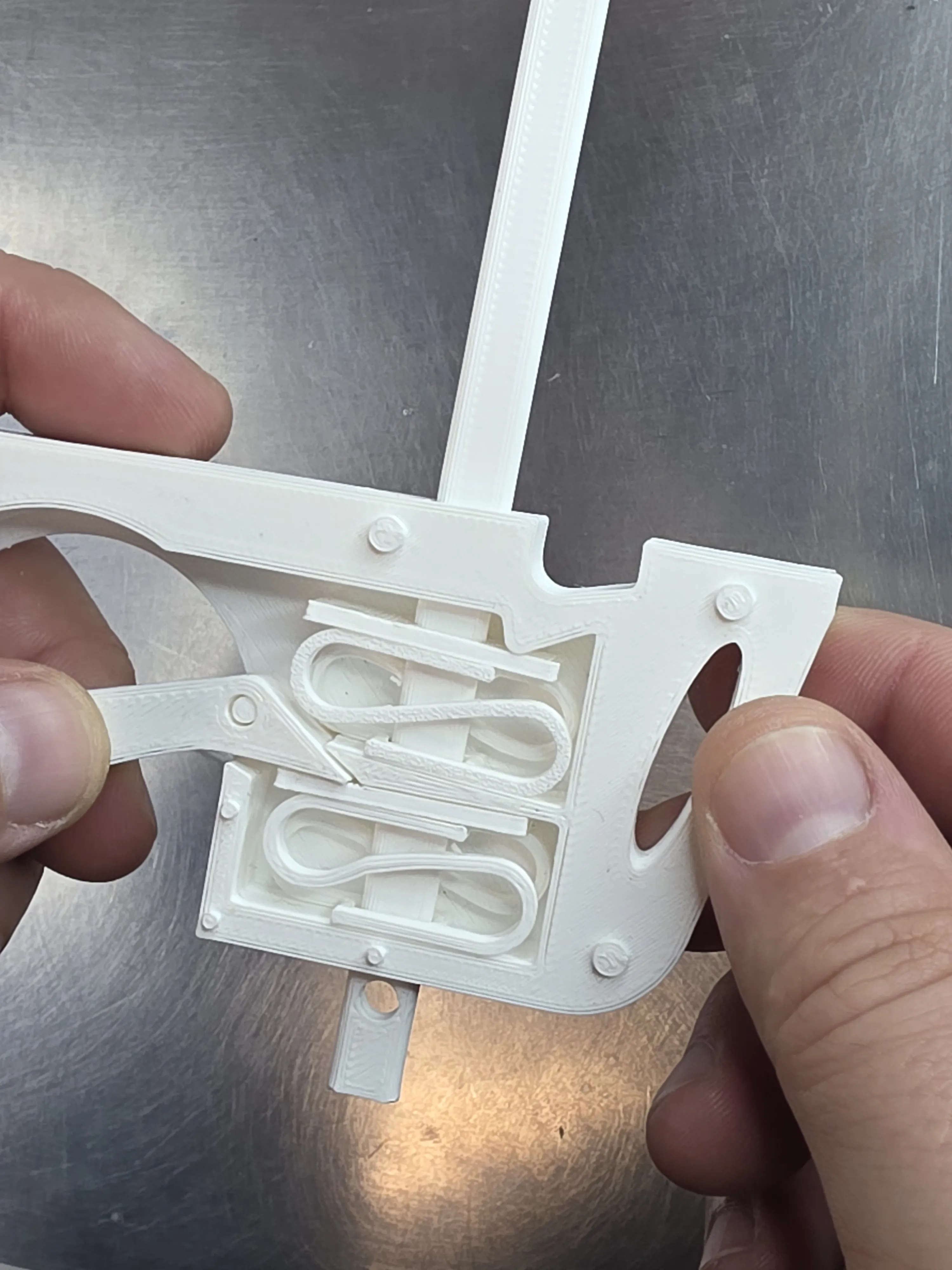

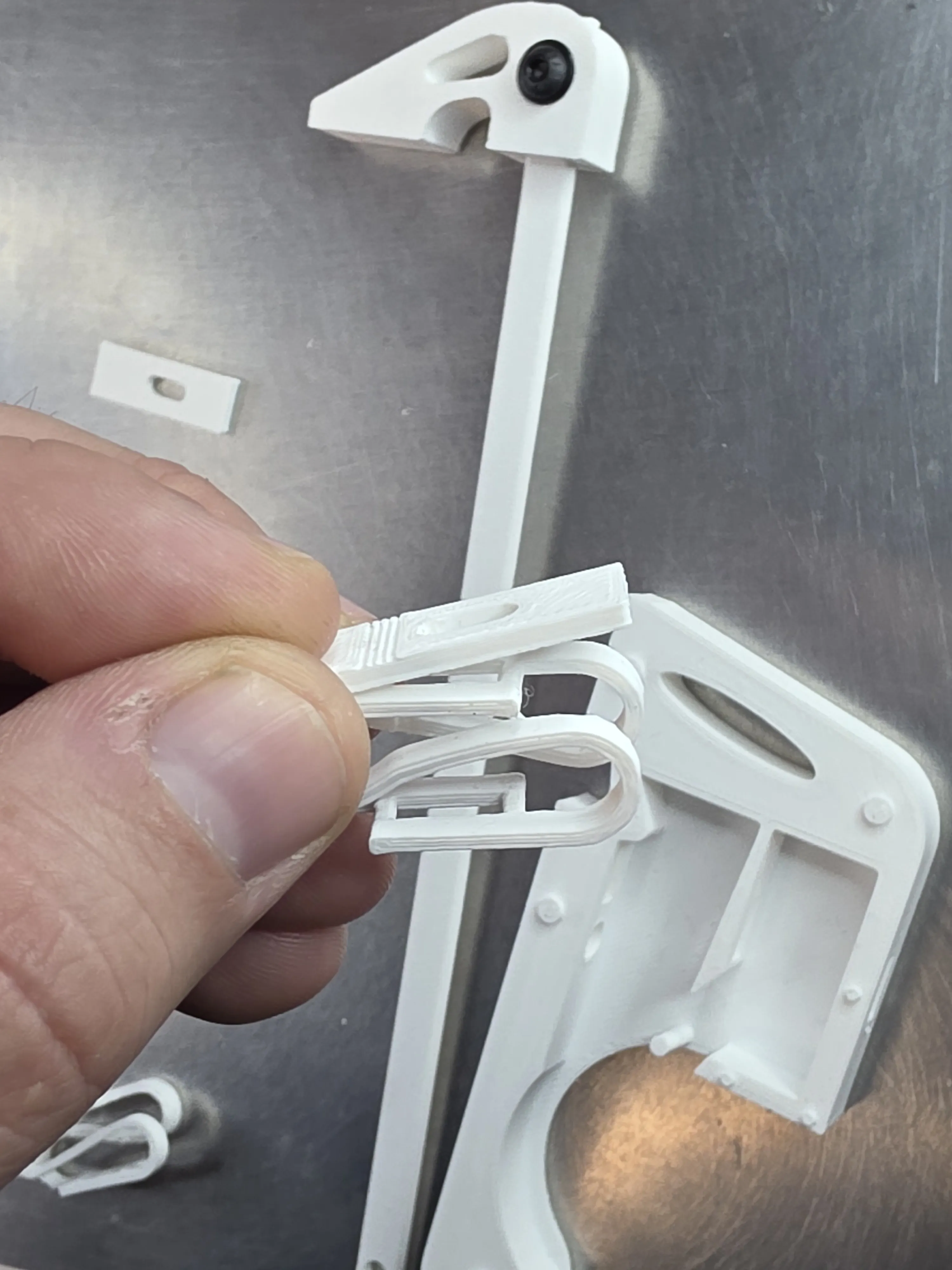

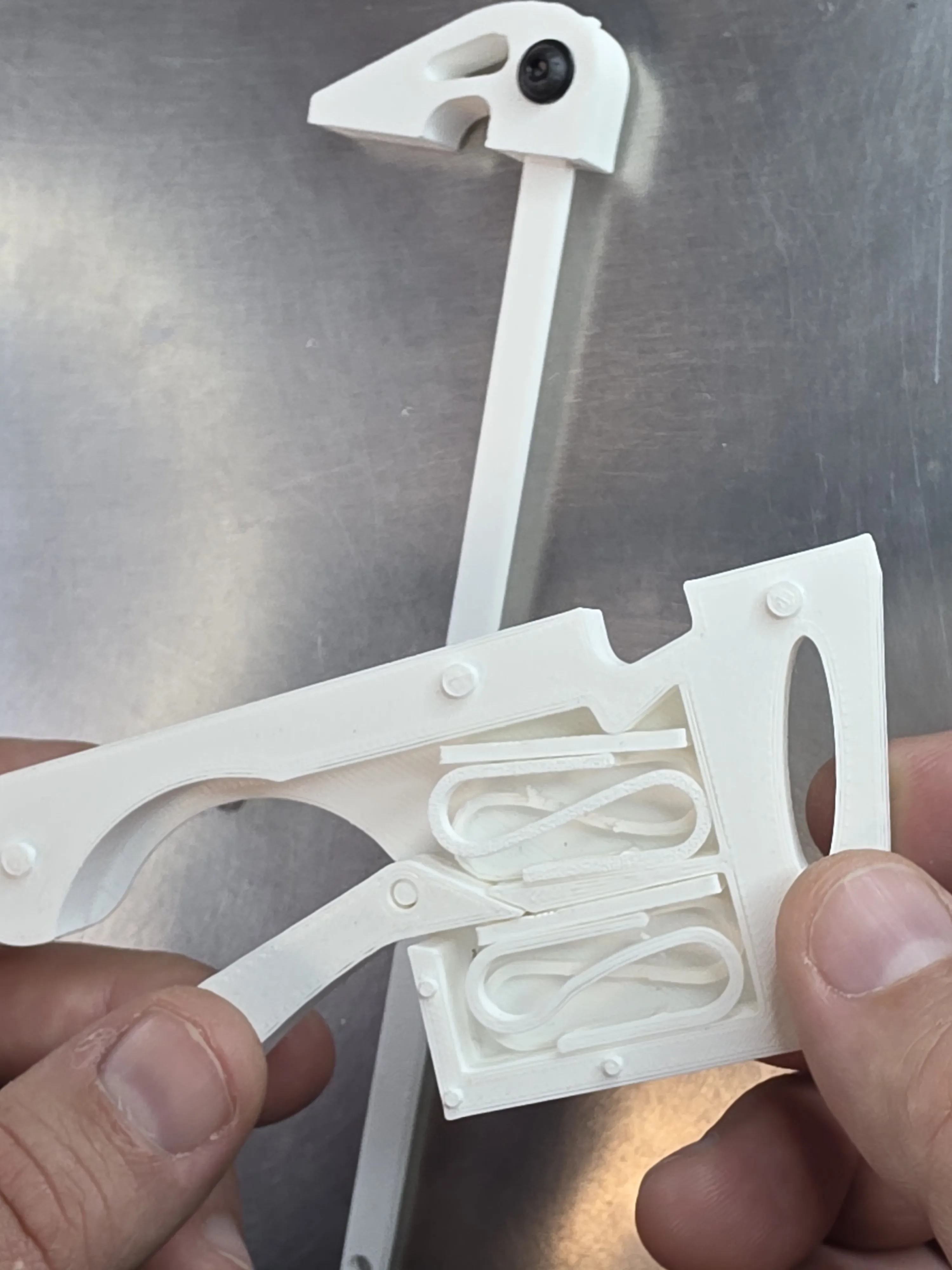

5. Install the release lever
   Position the small release lever so it can lift the ratchet arm teeth when pressed. Test that the mechanism releases smoothly.



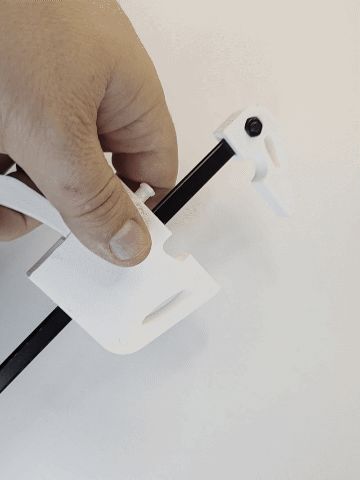

6. Final test

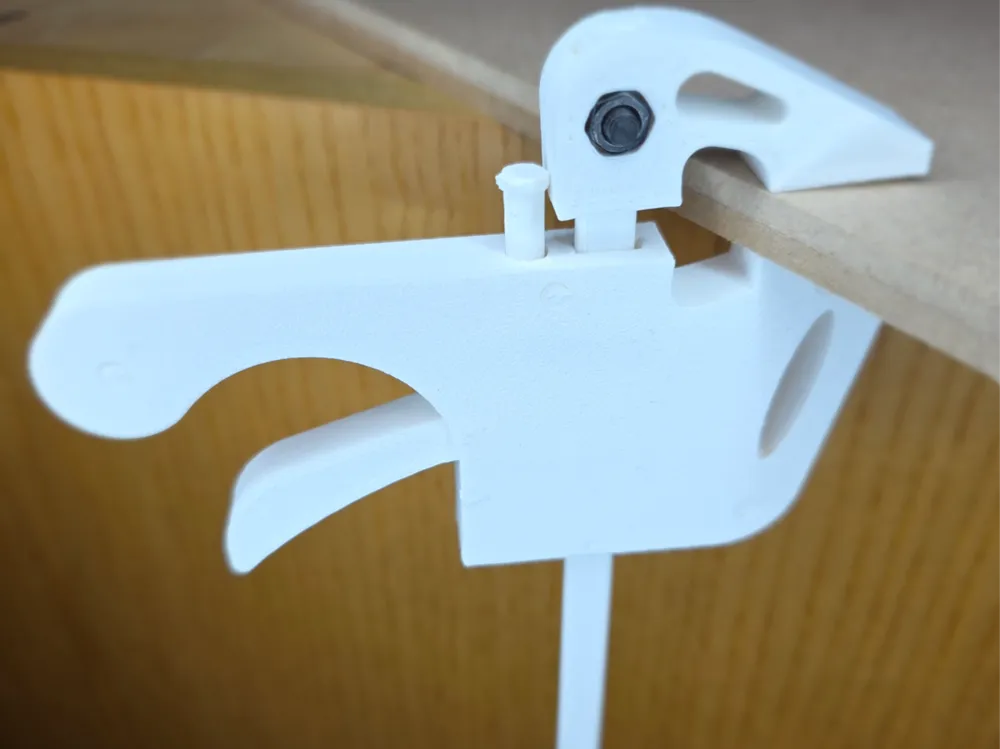

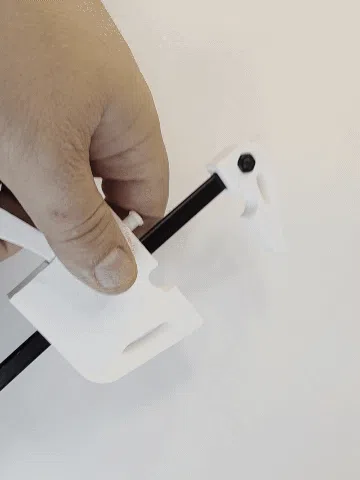

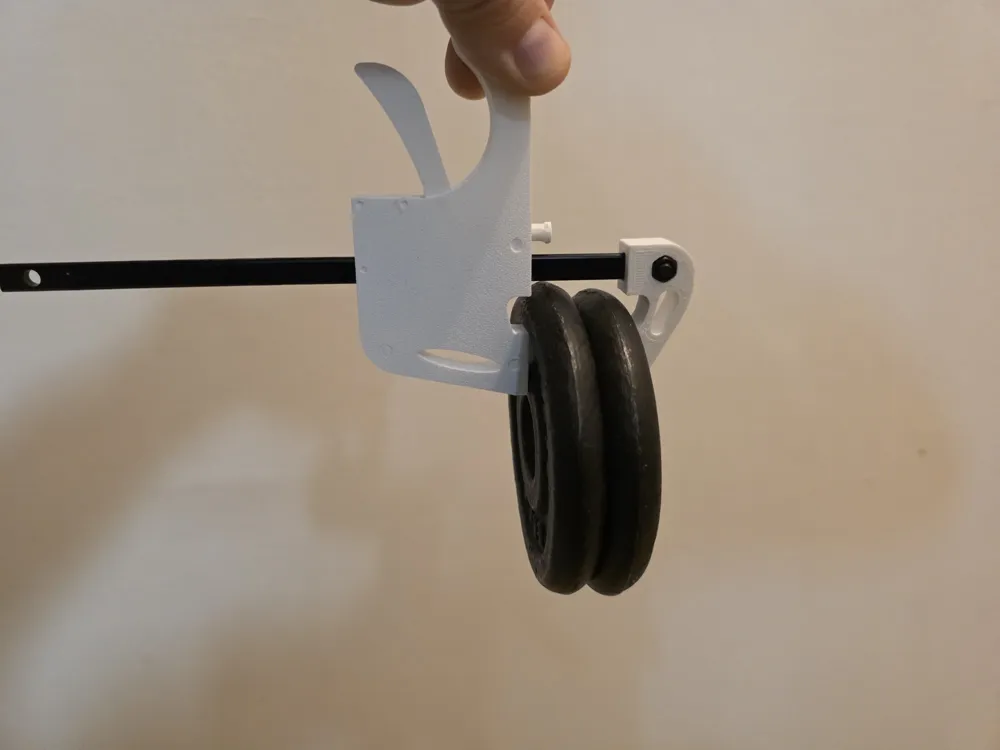

   Attach the clamp to a tabletop or board and squeeze the handle to engage the ratchet. Use the release lever to open it again.
   Adjust if needed for smoother motion.
