MSI Claw 8 AI+ Kickstand ULTIMATE FIX

NEW AND IMPROVED “FIXED” KICKSTAND NOW AVAILABLE SEE ALTERNATIVE PRINT PROFILE

THIS IS THE ULIMTATE KICK STAND FIX FOR YOUR MSI CLAW 8 AI+

First some credit where it's due. This model is a combination of other models

• MSI Claw name tag insert for GIOPUEY Case Remixed by Timmy Vanthoor MakerWorld: Download Free 3D Models
• Steam Deck Foldable kickstand - print in place Remixed by KaciMaci MakerWorld: Download Free 3D Models
• Digital Files – Mechanism - I highly recommend you subscribe to their newsletter to give credit for their models.

You will need:

• Two springs (I borrowed them from a pen)
• A version of this case (amazon or aliexpress)

Assembly process:

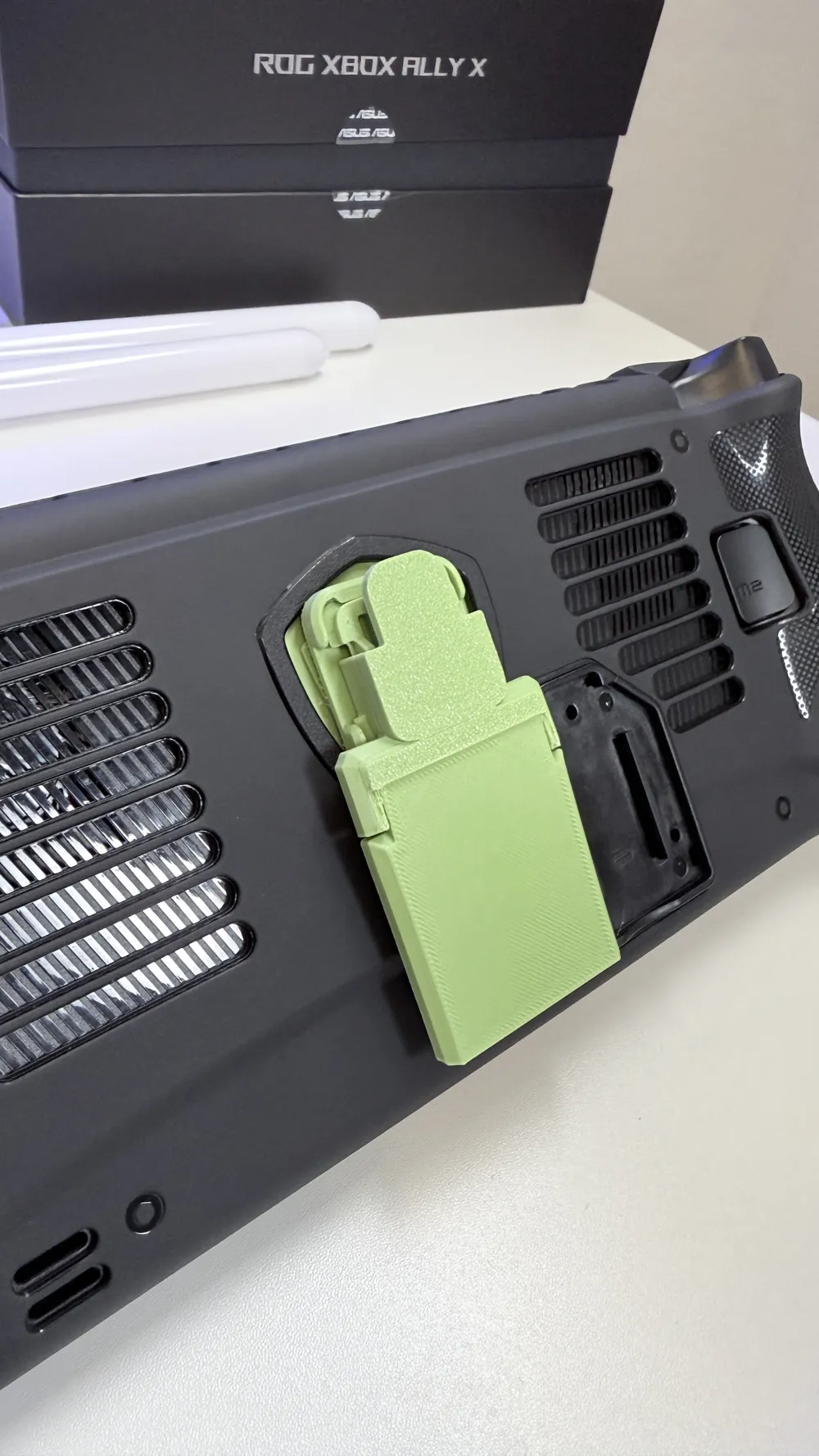

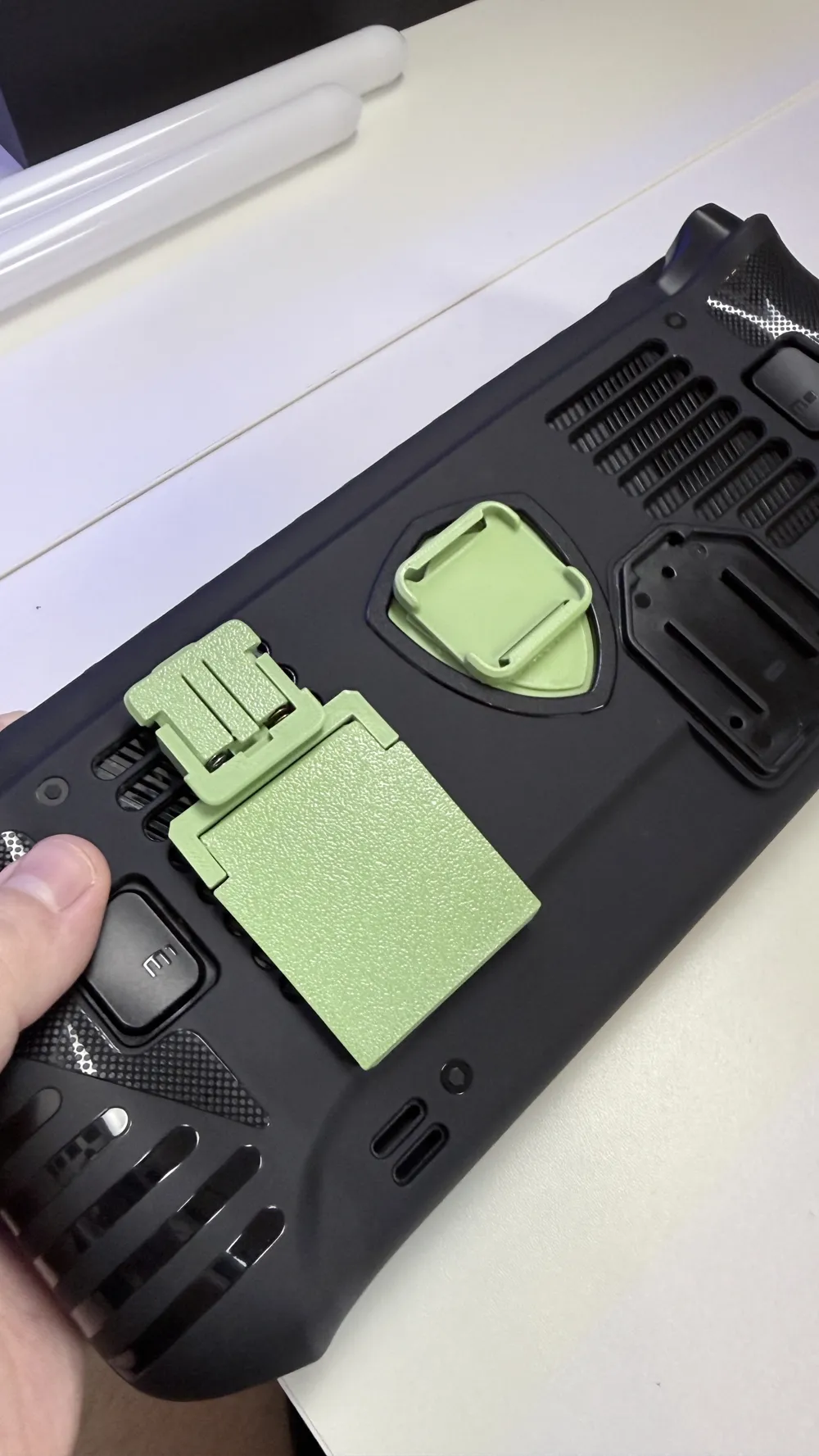

1. Take the badge with the mechanism adapter and place it inside the case then place your claw on top of it.

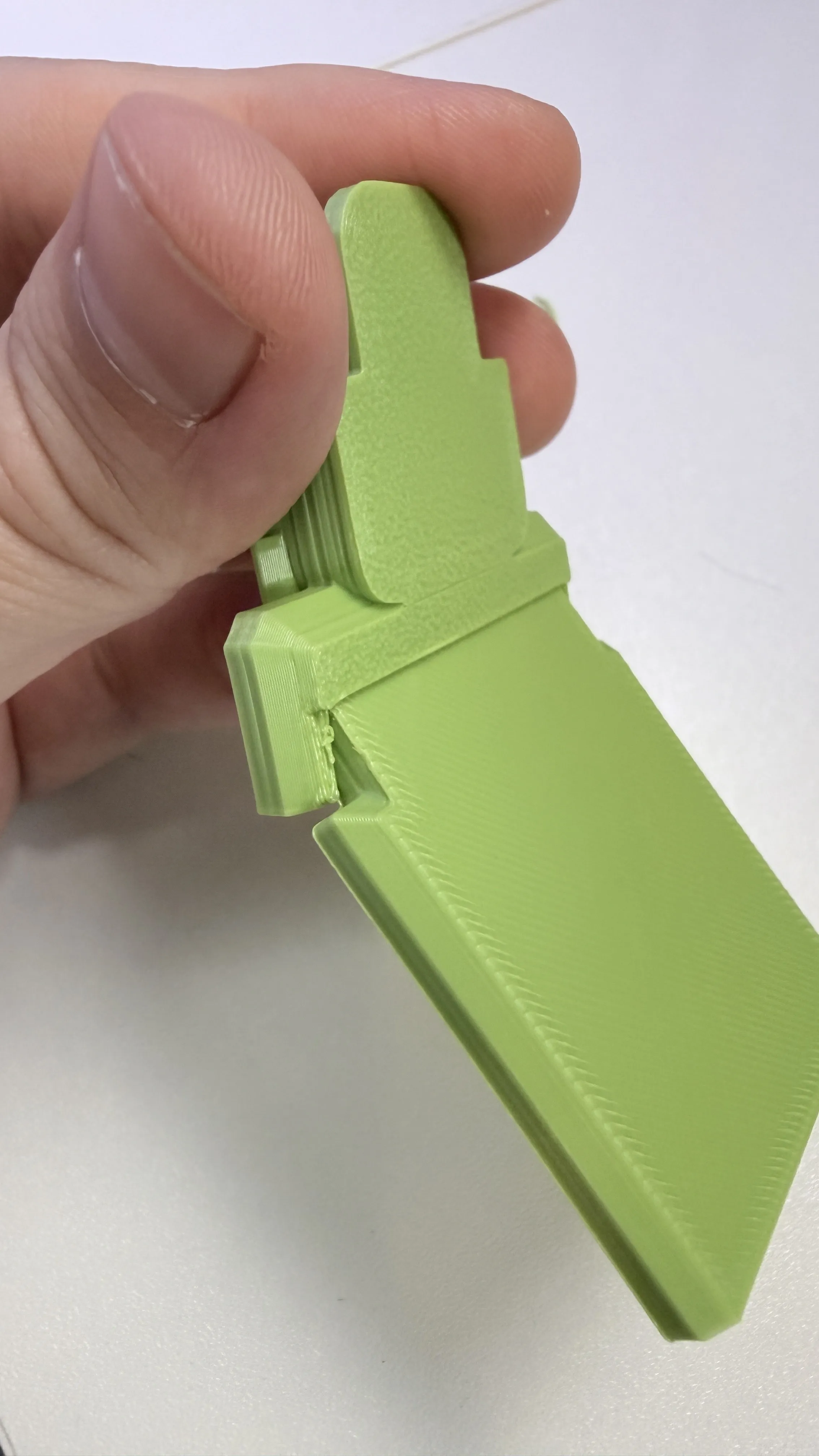

2. Insert the stand into the lever. One end has a notch to insert it, it may take quite a bit of force, that tension is needed though to make it sturdy. If it won't go it, you may need to cut away some excess on the notch.

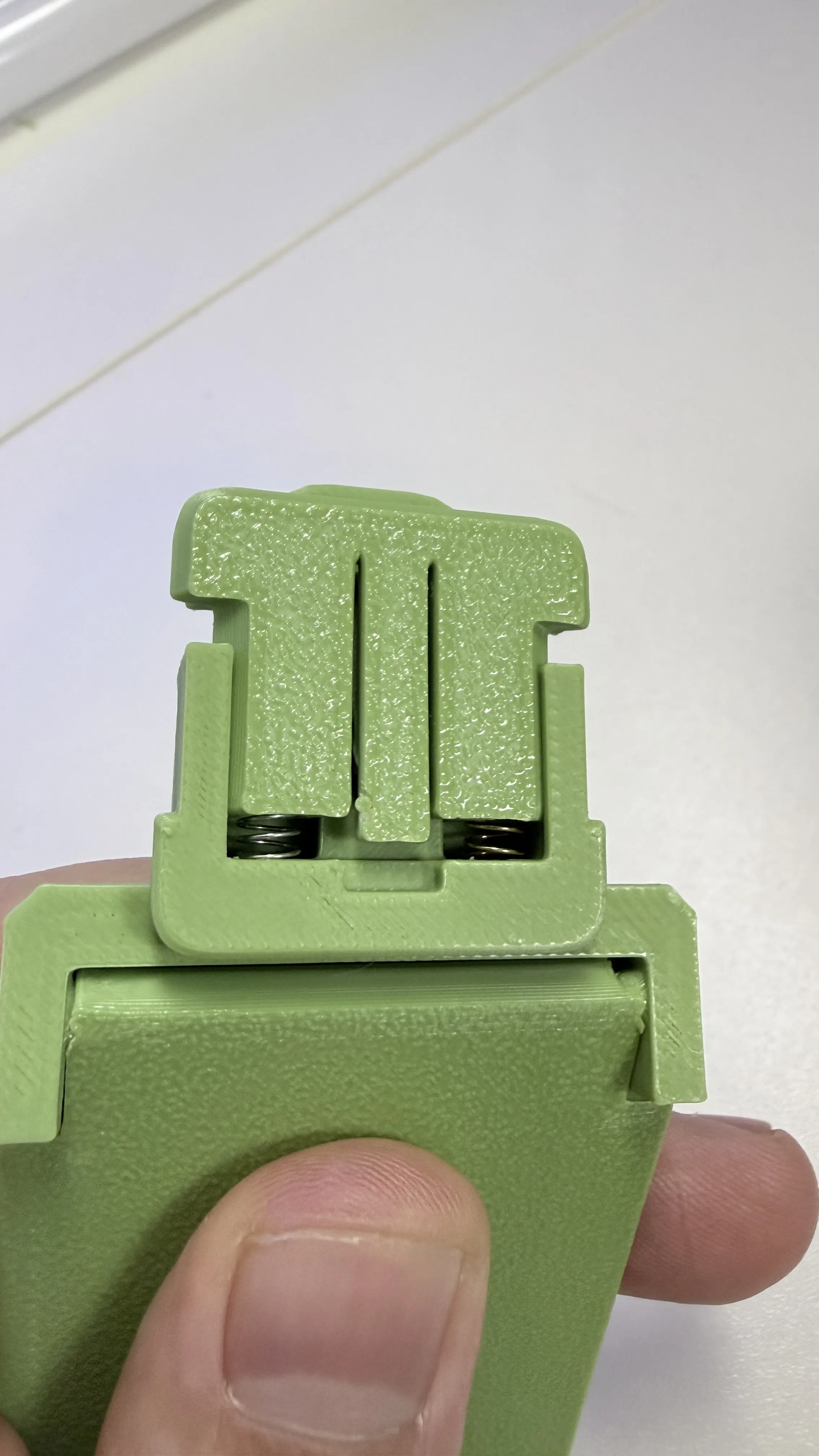

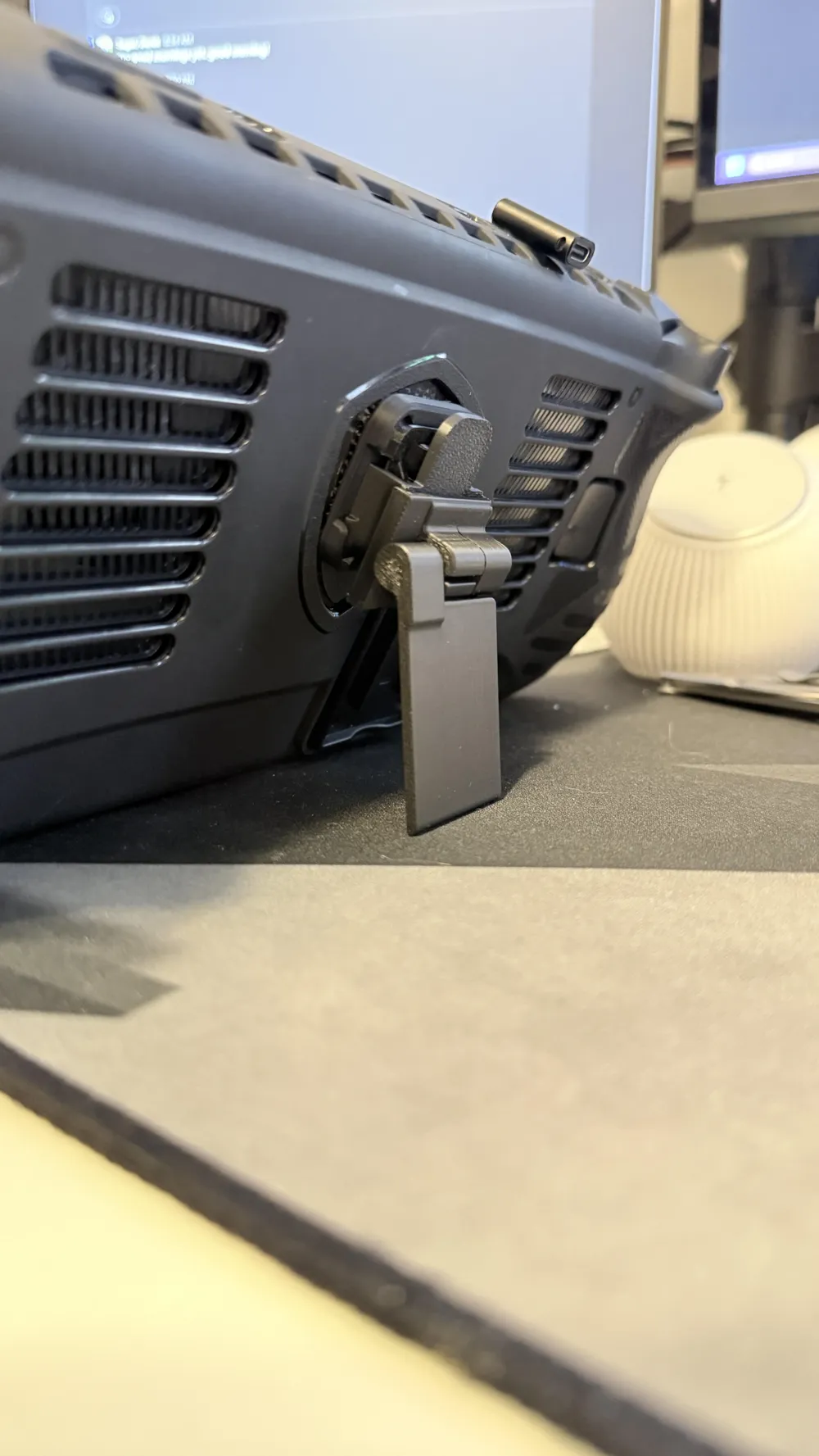

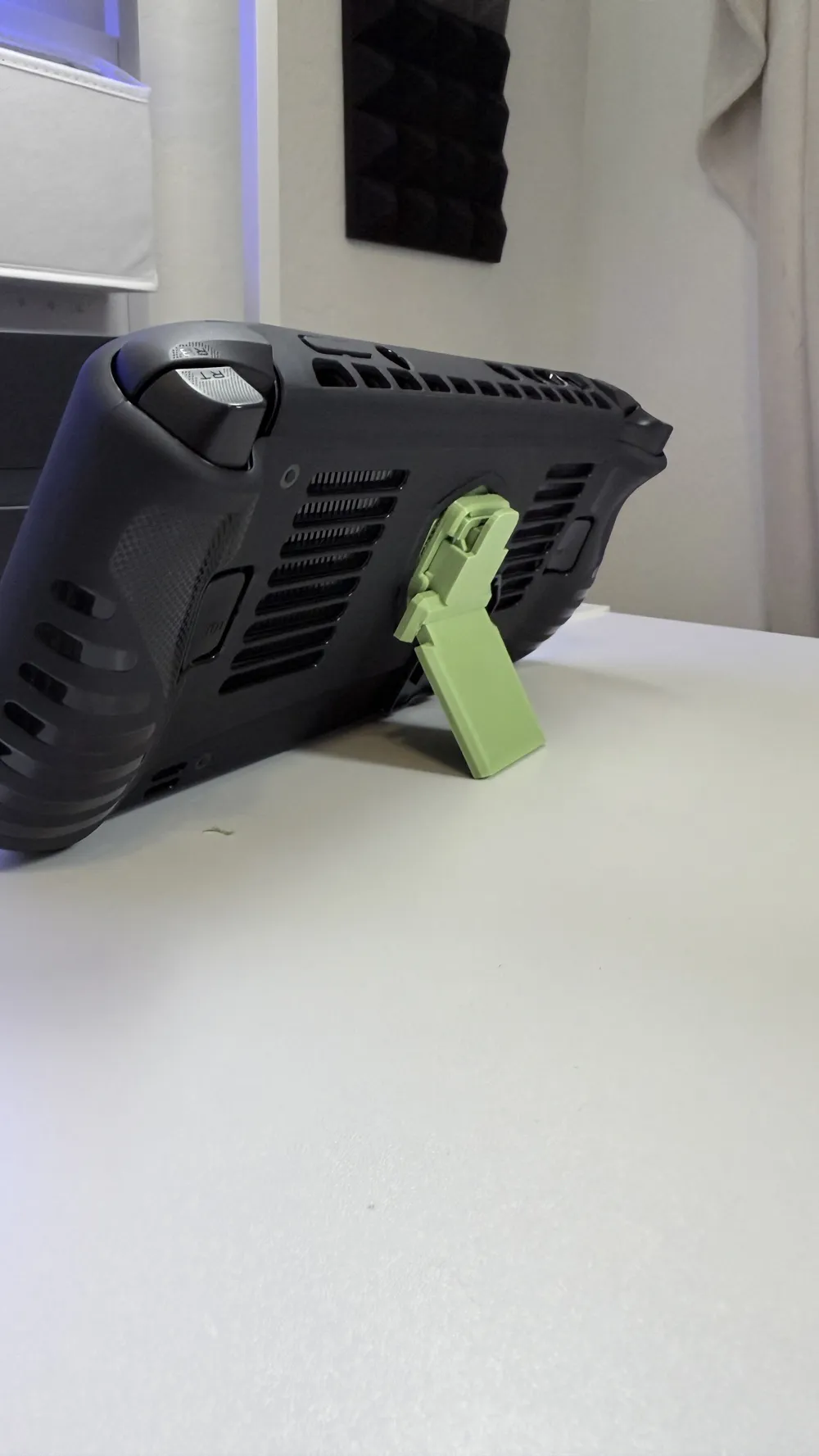

3. Insert the springs into the mechanism and slide it into the other end. See photo for final look.

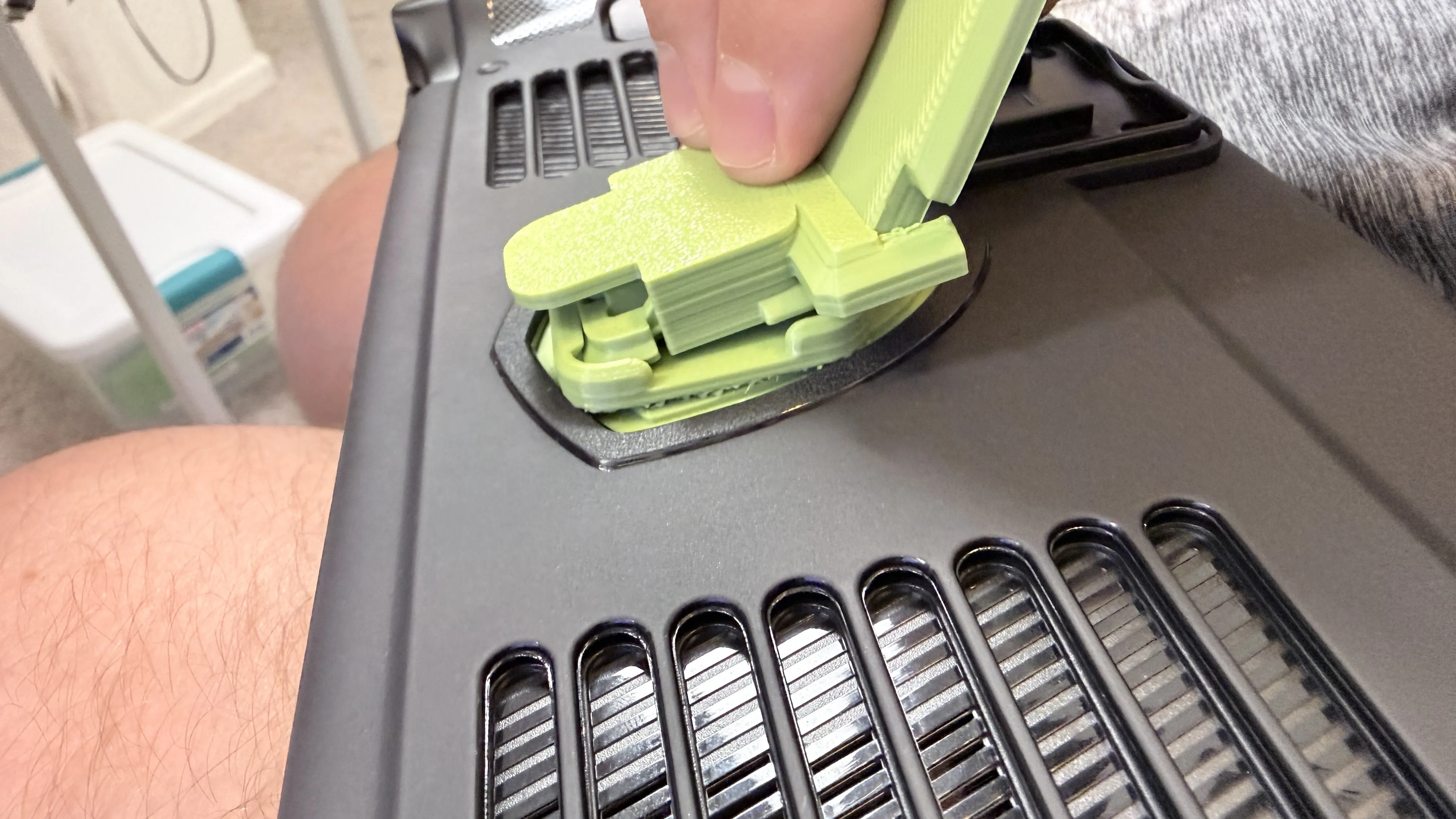

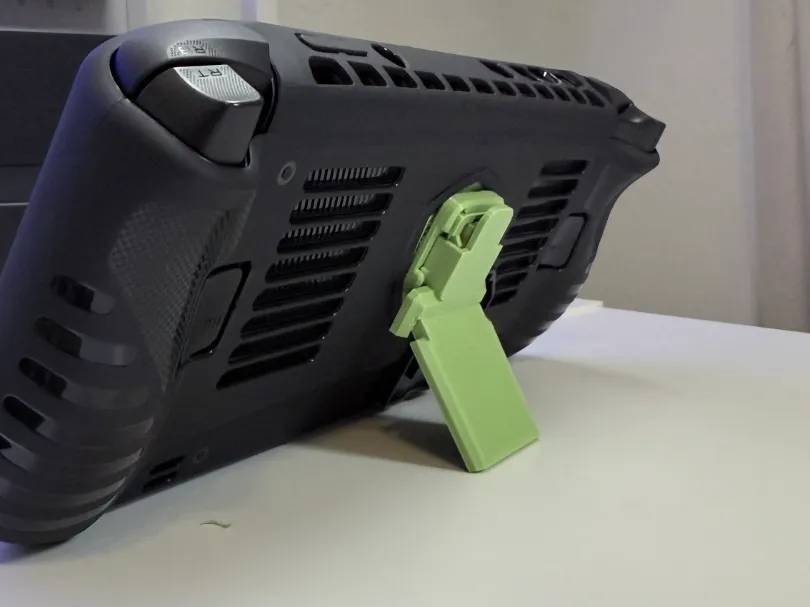

4. You're done! It now just slips into the mechanism attachment using the spring pressure system.





   Feel free to BOOST ME!
