dressyspider

cover



Base & Insert


Base


Basic Insert



Printing (Bambu Studio profile used) • Material: PLA tested and working for me; no issues with heat from a freshly brewed mug. PETG is also a good choice for heat and moisture resistance. • Layer height: 0.20 mm profile • Walls: 3 • Top/Bottom: 3 top layers, 3 bottom layers, concentric surface pattern • Infill: 8% rectilinear • Supports: required for the front connector nub only  • Enable Support = On, Type = tree(auto), Threshold angle = 30°  • Remove small overhangs = On, Critical regions only = Off  • Top Z distance = 0.20 mm, Bottom Z distance = 0.20 mm  • Interface layers = 2, Top interface spacing = 0.50 mm  • Support/object XY distance = 0.35 mm, Independent support layer height = On  • Tree parameters: branch distance 5 mm, branch diameter 2 mm, branch angle 45°, branch diameter angle 5° • Adhesion: no raft; Brim type Auto, brim width 5 mm, brim-object gap 0.10 mm if needed • Speeds: initial layer 50 mm/s (infill 105); outer wall 200; inner wall 300; sparse infill 270; internal solid infill 250; top surface 200; supports 150; support interface 80; travel 500 • Other toggles: Detect narrow internal solid infill = On; Ensure vertical shell thickness = Enabled; Detect floating vertical shells = On; Prime tower Off unless using multi-material

PLA - 0.2mm layer, 3 walls, 8% infill

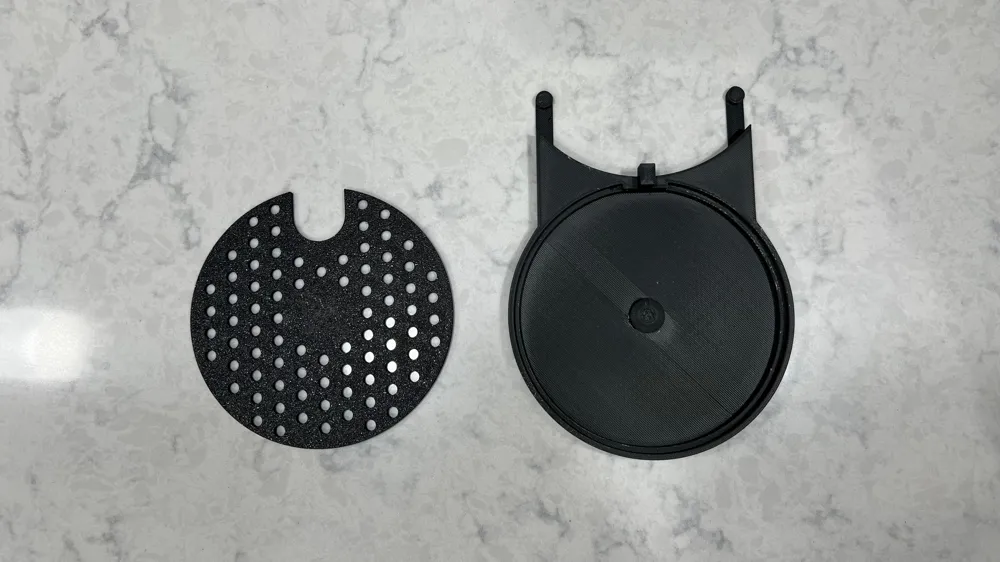

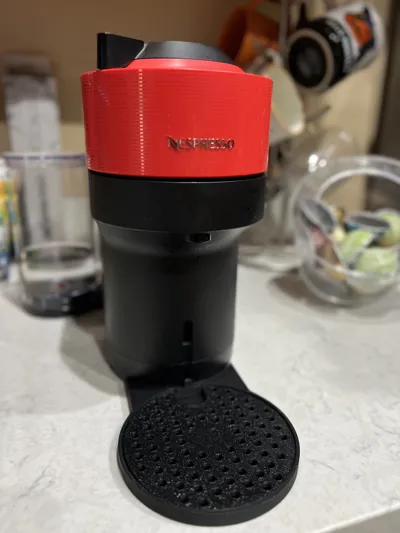

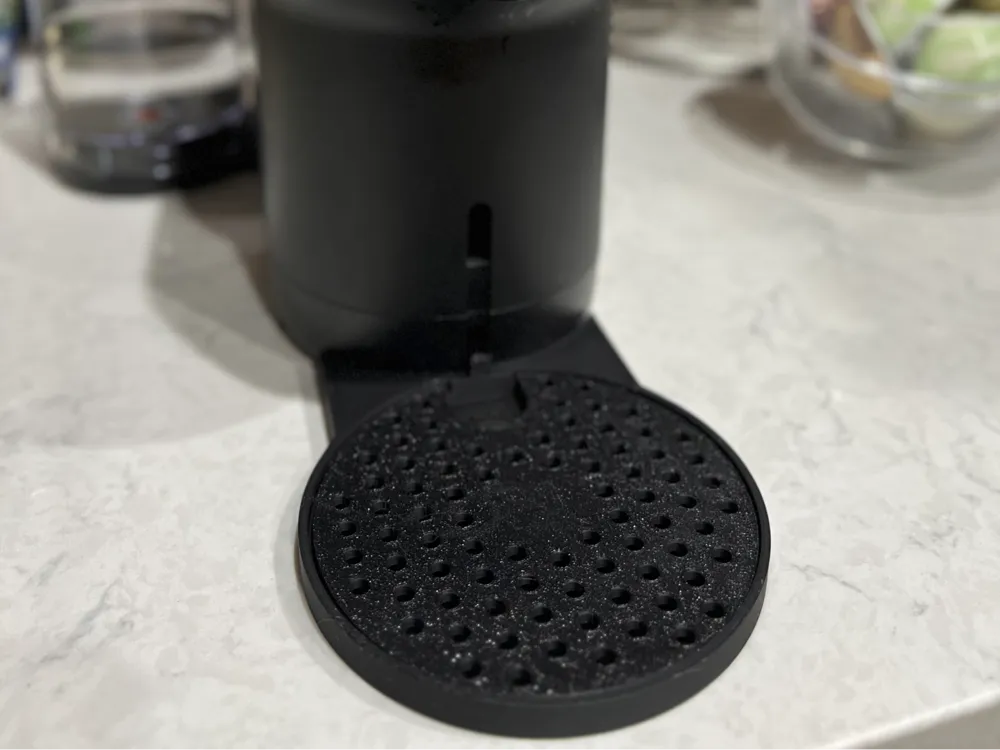

Extended drip tray base for the Nespresso Vertuo Pop+ (approx. 125 mm wide, larger than stock).&nbsp;Includes the base and a standard drainage insert. The tray locks to the machine using a notch + two pegs for a secure, wobble-free fit. The insert has perforations that route spills into the tray.&nbsp;<h3>Files included</h3><ul><li>3MF (multi-plate project):<ul><li> Plate 1: Base + Standard Insert (combined)</li><li> Plate 2: Base (solo)</li><li> Plate 3: Standard Insert (solo)</li></ul></li><li>STL: Base STL: Standard Insert</li></ul><h3> </h3><h3>Optional</h3><ul><li><a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1911827-vertuo-pop-ams-insert-pack-logos-and-icons#profileId-2050242">Multi-color companion Inserts with custom art/logos.</a> </li></ul><h3> </h3><h3>Notes</h3><ul><li>Designed for the Vertuo Pop+</li><li>Not affiliated with Nespresso. Trademarks belong to their owners</li></ul>&nbsp;<h3>Changelog</h3><ul><li>v1.0: Initial release (base and standard insert)</li></ul>

Vertuo Pop+ Extended Drip Tray (125mm)

ASIA

Print Profile(1)

Description

Files included

Optional

Notes

Changelog
