Military Box / Military Box

Tactical Storage Boxes - Robust Modular System (Ammo Crate Style)

📦 Description:

Ready for any mission! These military-inspired storage boxes combine robust design with practical modularity. Whether you want to store tools, 3D printing accessories, electronics, or your airsoft gear – these ammo crate-style boxes keep things organized and protect your contents.

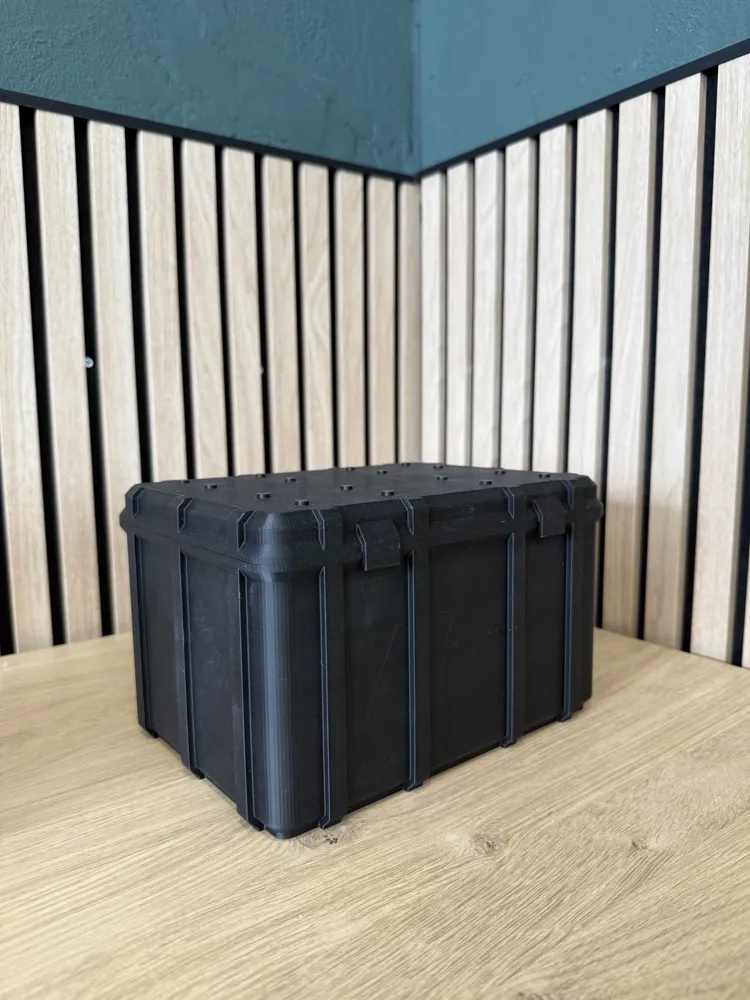

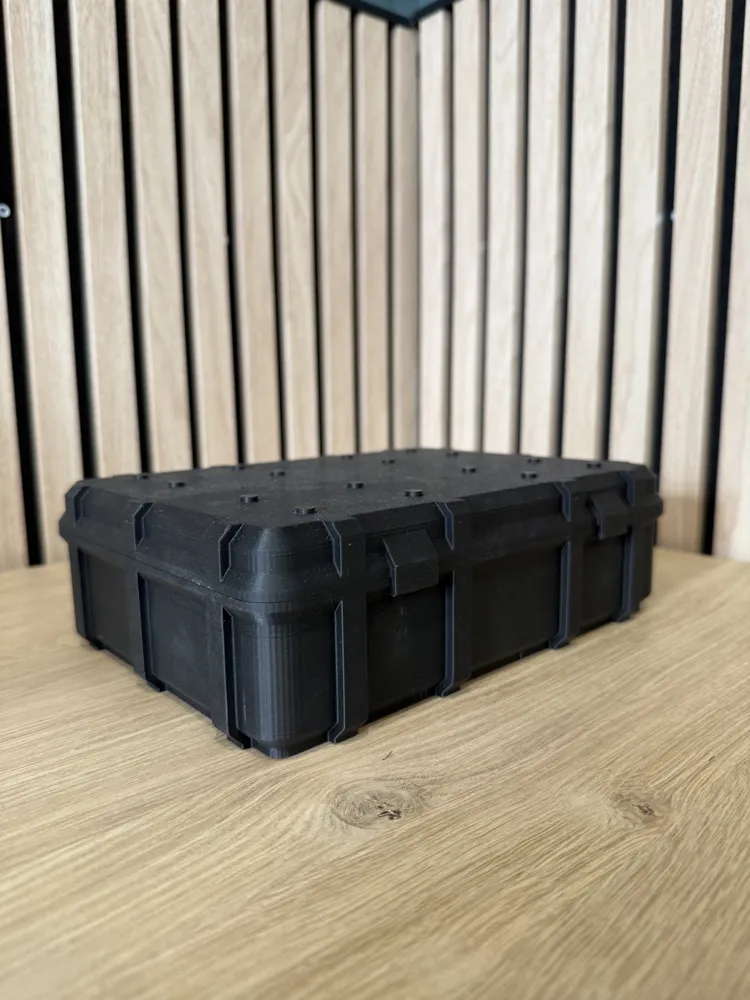

The design features stable, reinforced edges and iconic vertical ribs that give the model an authentic, "Rugged" aesthetic. The boxes are designed to be securely stackable, optimizing space utilization.

Highlights:

• Robust Design: Inspired by military transport cases for maximum durability.
• Stackable: The bottom is perfectly adapted to the top to ensure secure stacking.

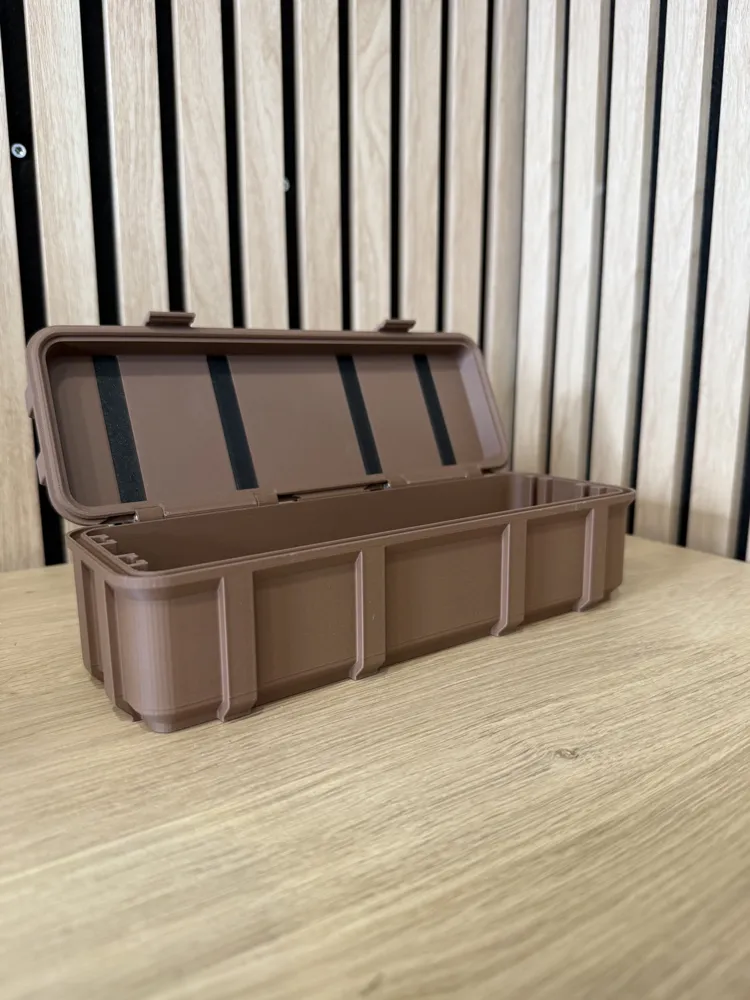

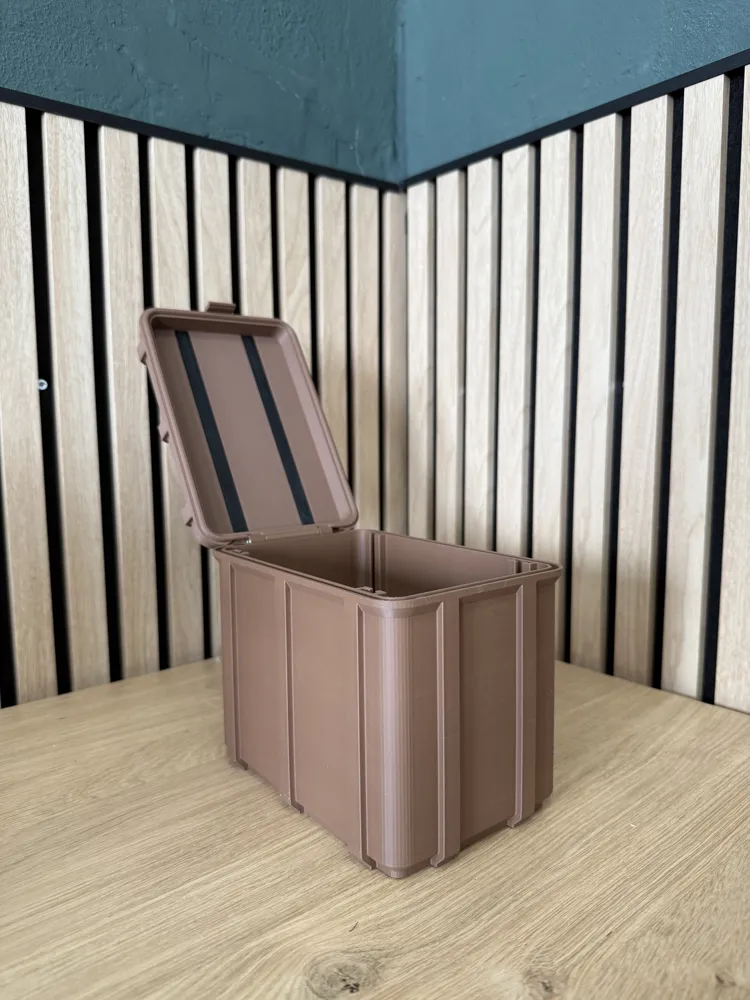

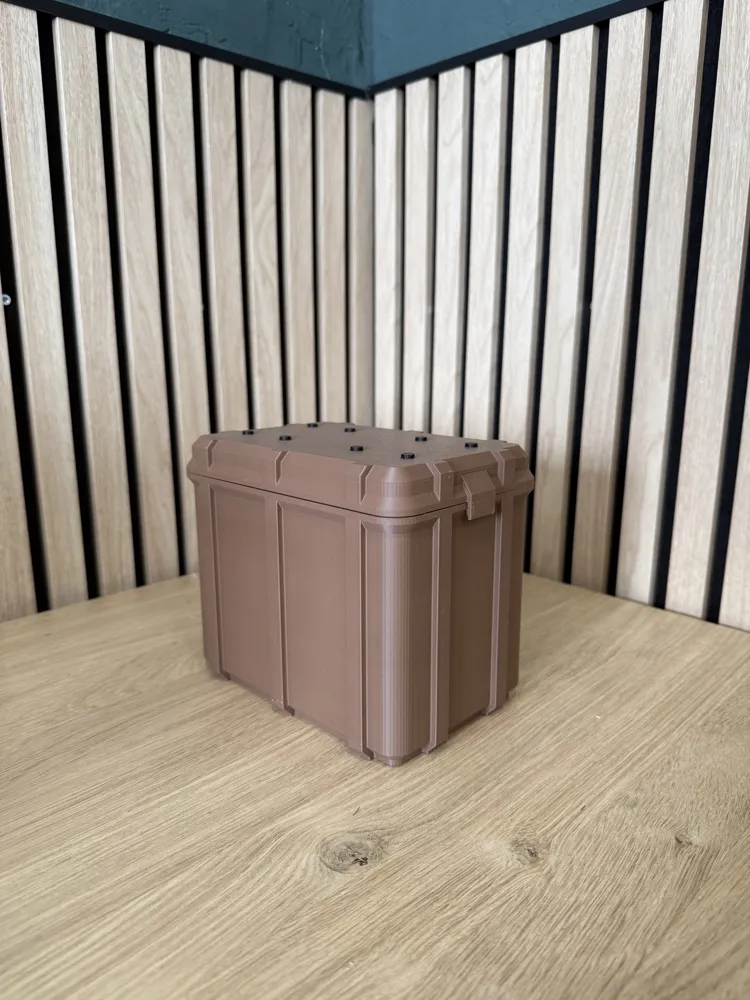

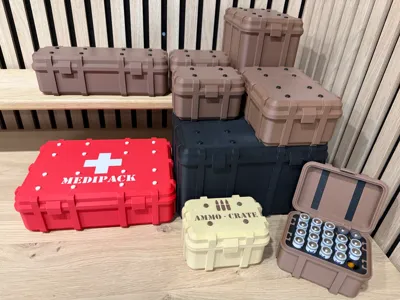

• Modular: Available in various sizes

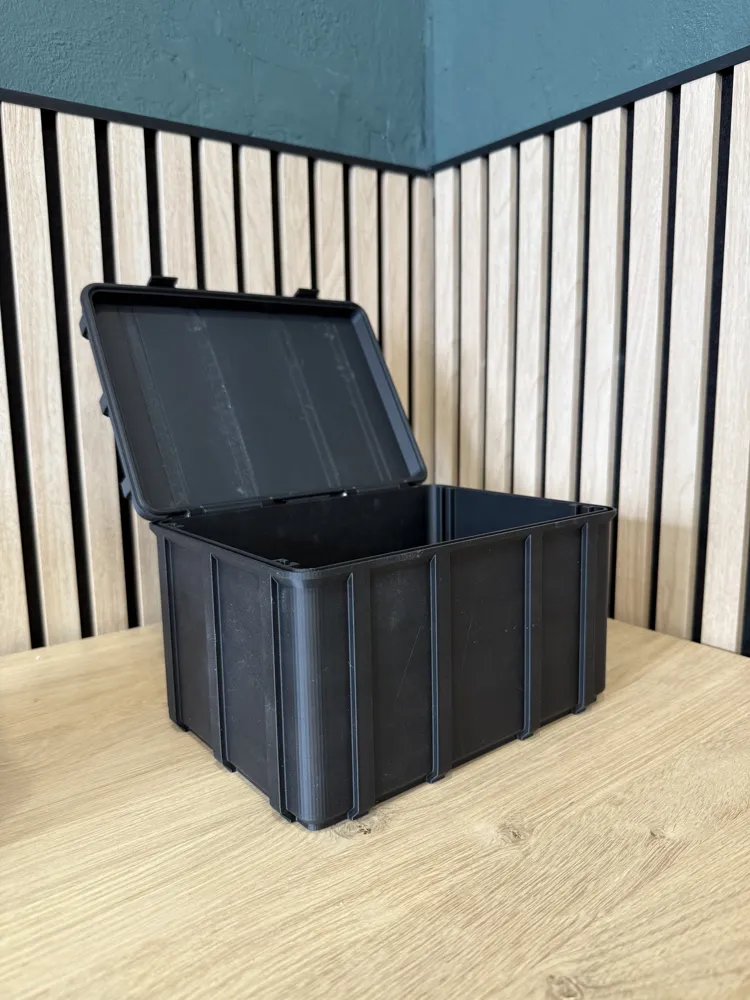

• Secure Closure: The snap closure/hinge mechanism ensures the box can be easily closed.

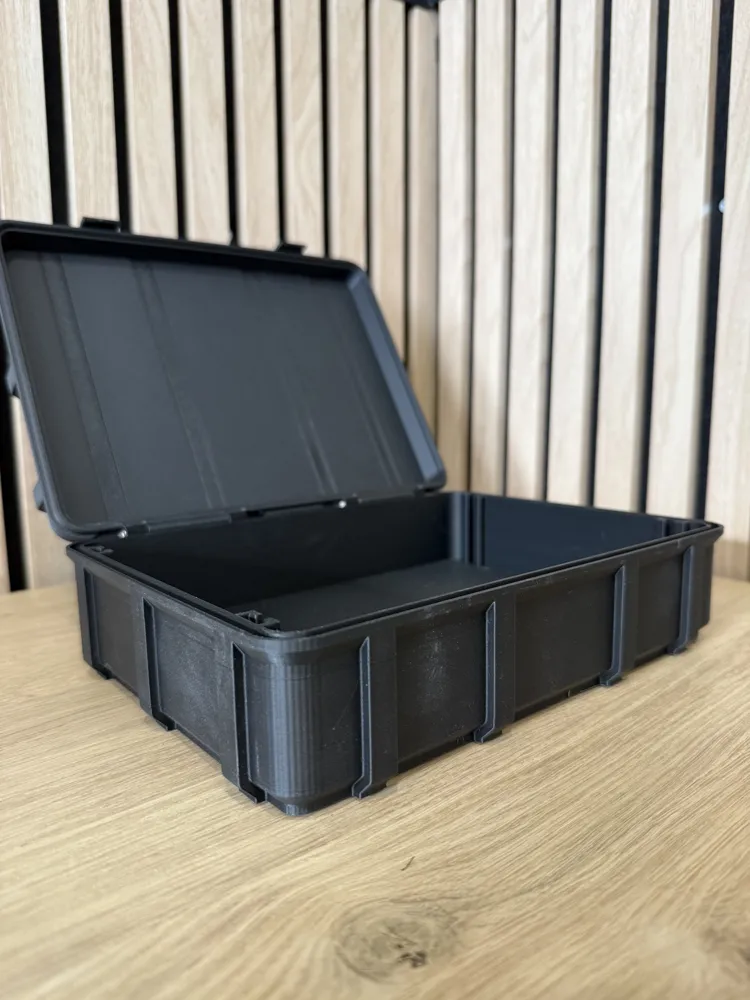

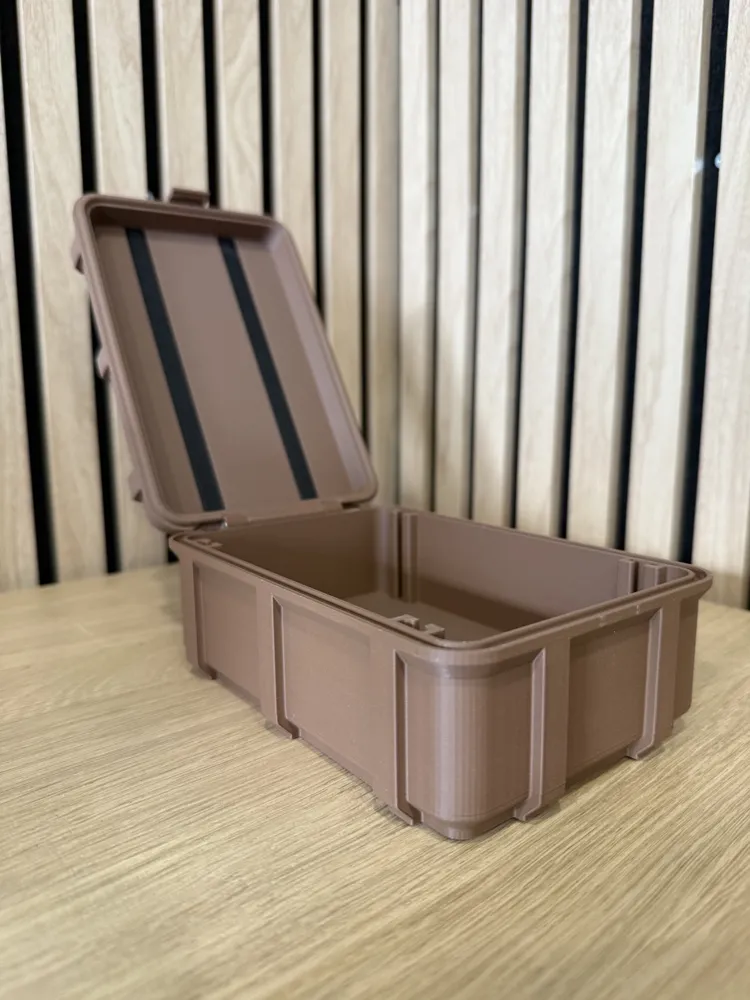

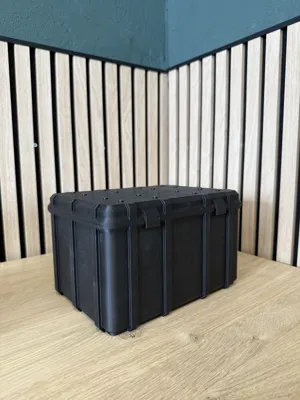

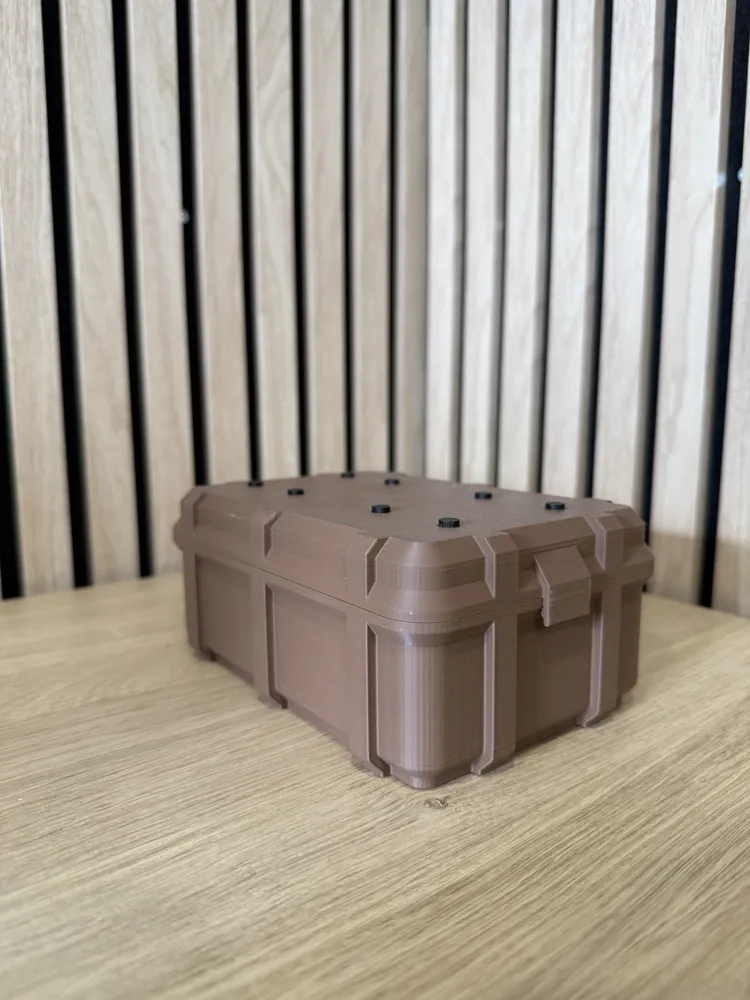

• Two-color Potential: Ideal for printing with AMS in shades like black, brown, olive green, or gray (as pictured: black and FDE/Coyote brown).

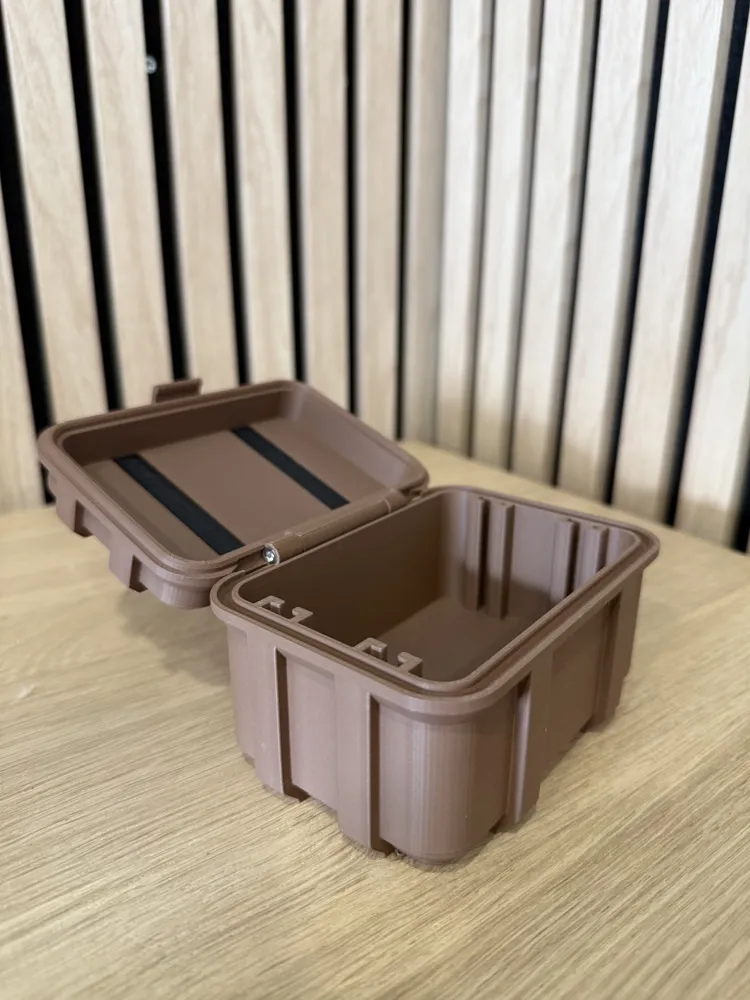

• Modular Inlay: The added side pockets allow for easy design of inlays to complete the box. Existing inlays can be found here.

Available Inlays:

• Battery Inlay
• SD Card Folder Inlay

⚙️ Print Details:

• Printing Method: FDM
• Material Recommendation: PLA, PETG, or ABS/ASA for increased robustness.
• Layer Height: 0.20 mm (for a good balance between detail and speed)
• Supports: Generally not required (minimal for lid if needed)
• Hardware: For the hinges/clasps, M3x16-22 are additionally required (small boxes need 2 screws, wide boxes need 4 screws) (screw head diameter 5mm ±0.05mm)

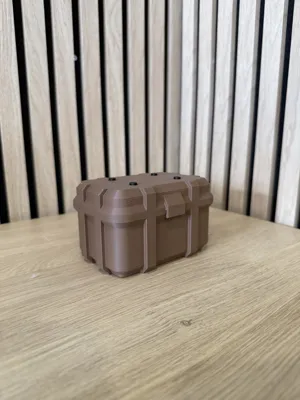

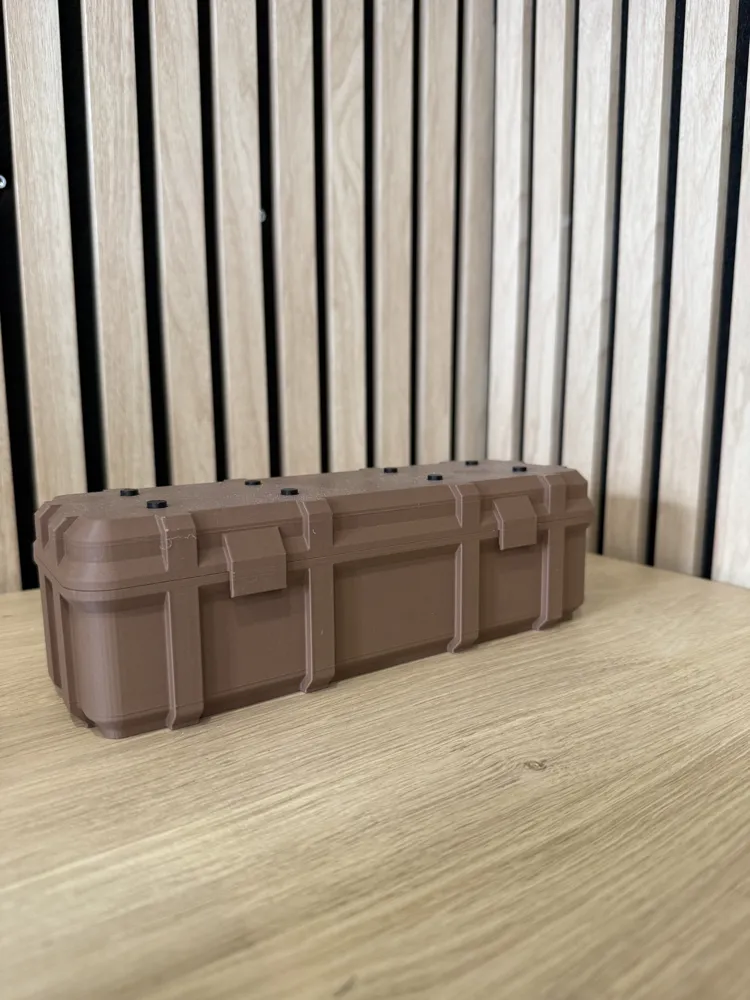

• Printer Compatibility: The small and long boxes can also be printed on the A1 mini. Everything else requires a larger print volume

🛠️ Assembly:

The model is designed so that the lid and body can be easily assembled after printing, and the screws are ready to be inserted
