Hybrid Pickleball Paddle v2
Print Profile(1)
Bill of Materials
- Aluminum Bar 1/8 x 1: https://amzn.to/3JmTAuq
- Paddle Grips x 1: https://amzn.to/4o4hQ3S
- Lightweight overgrip x 1: https://www.amazon.com/dp/B0C8KG3FDB
Description

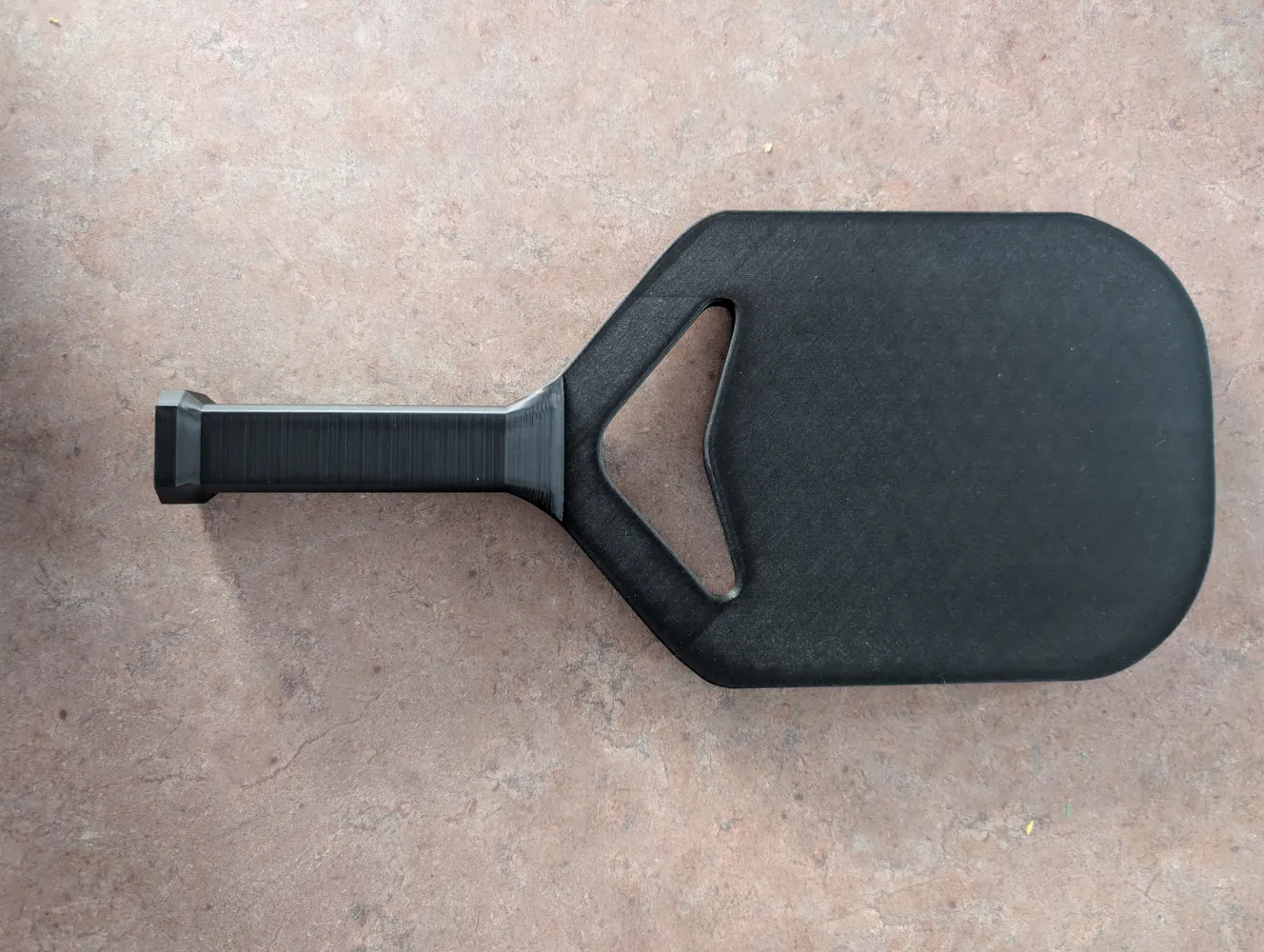

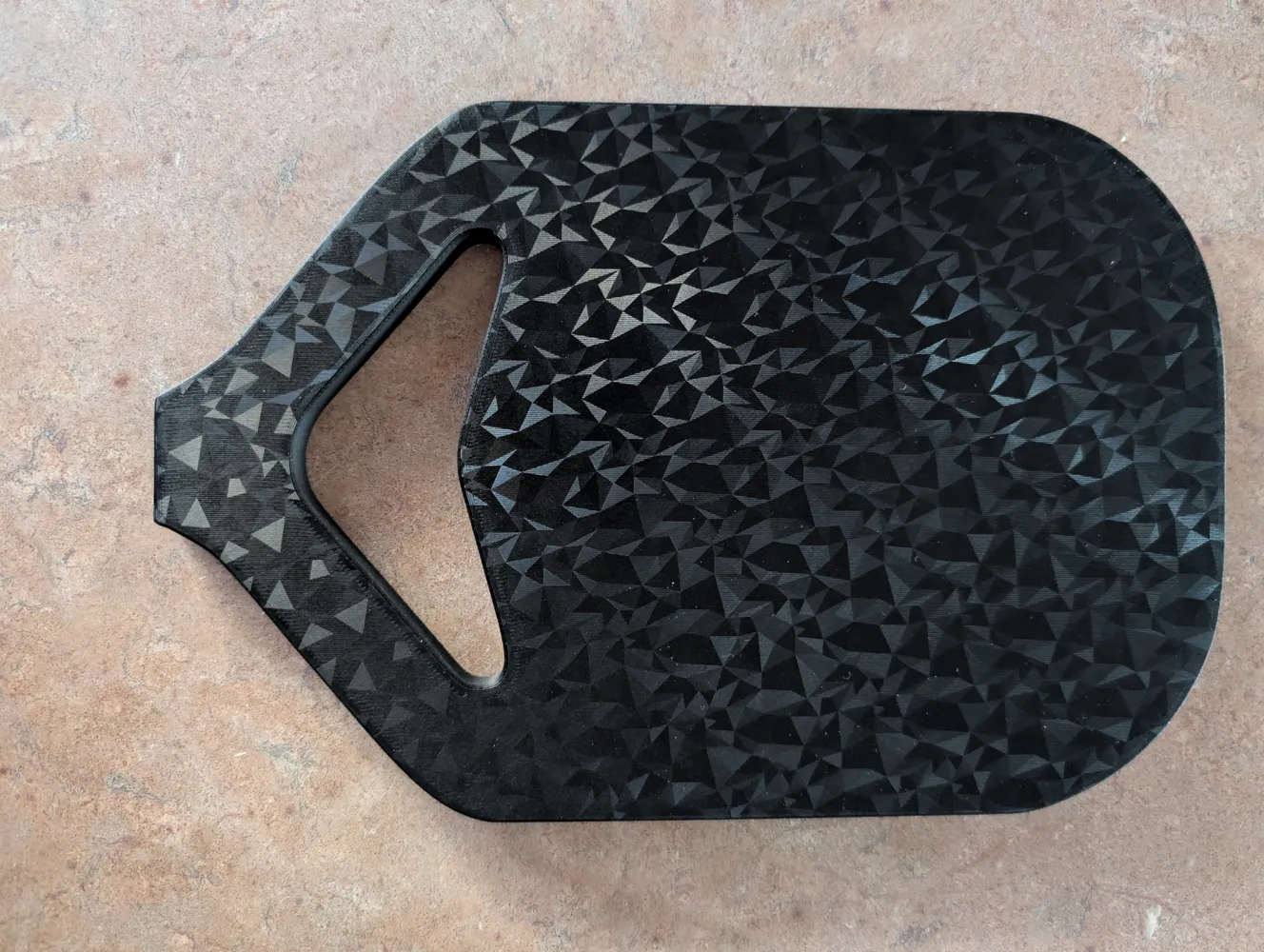

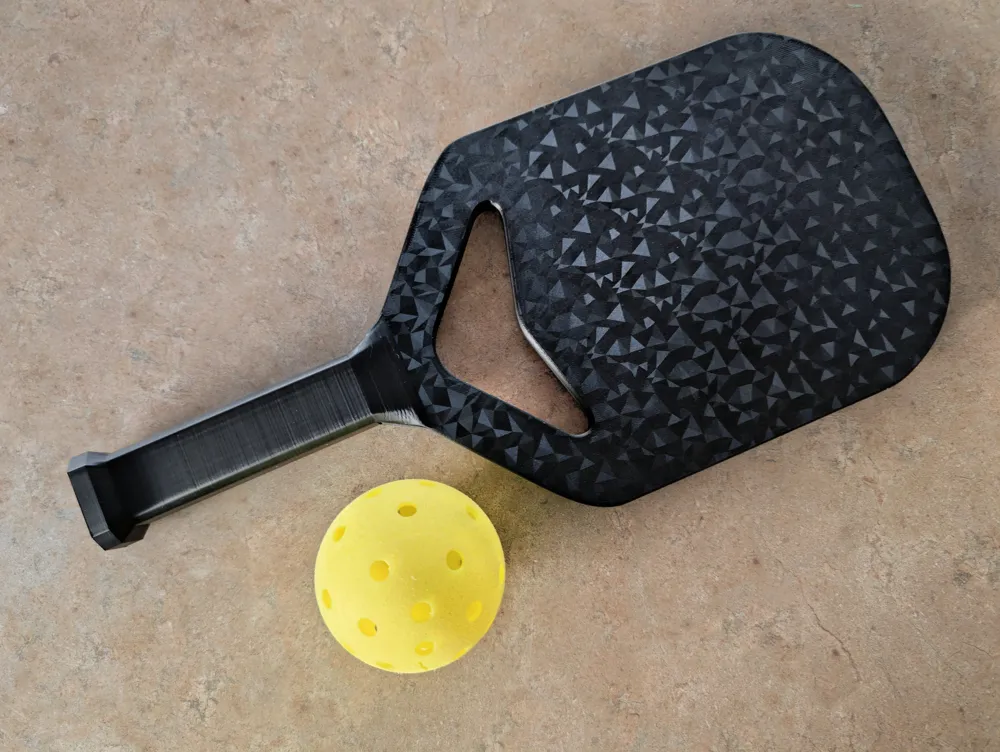

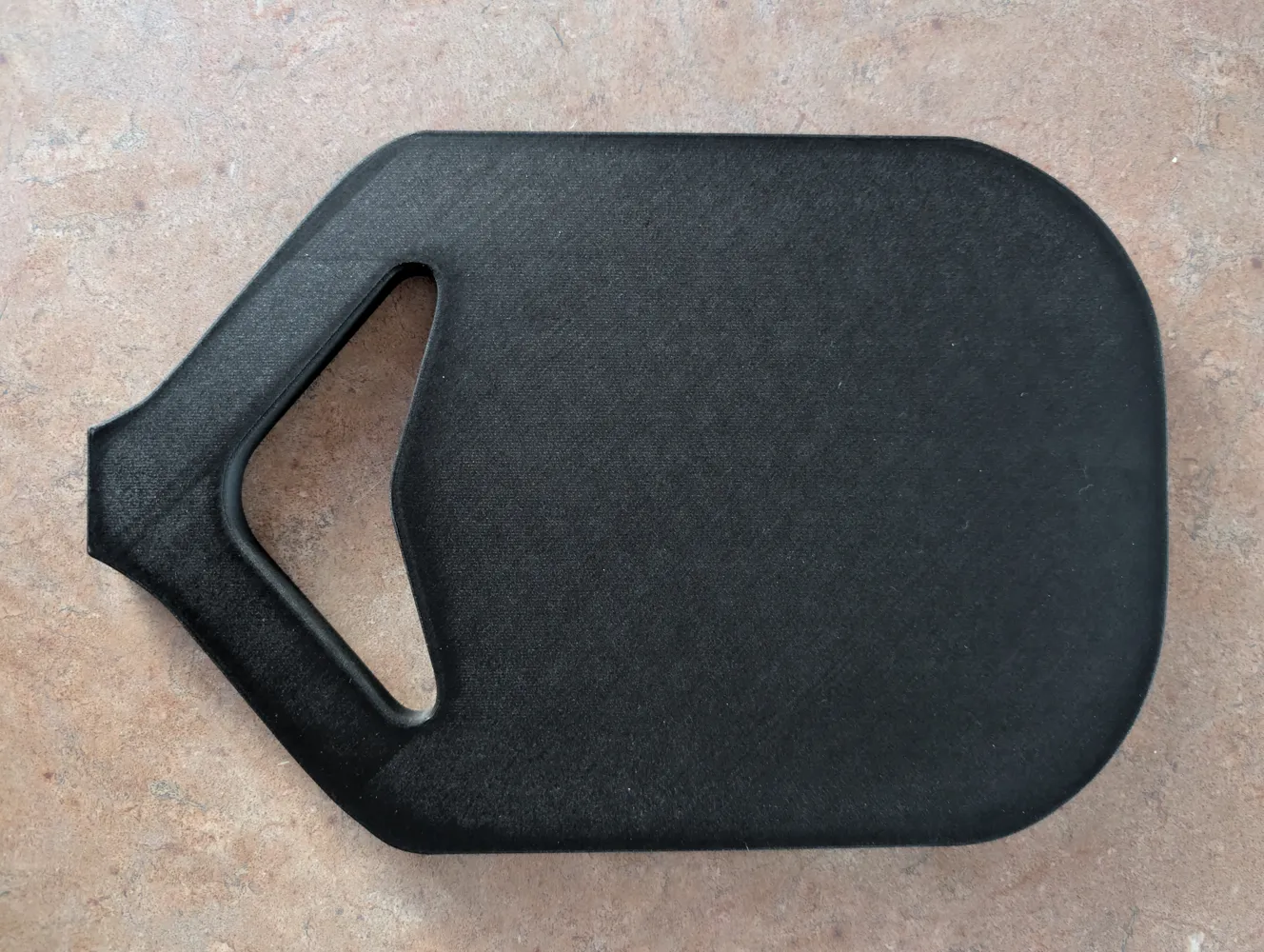

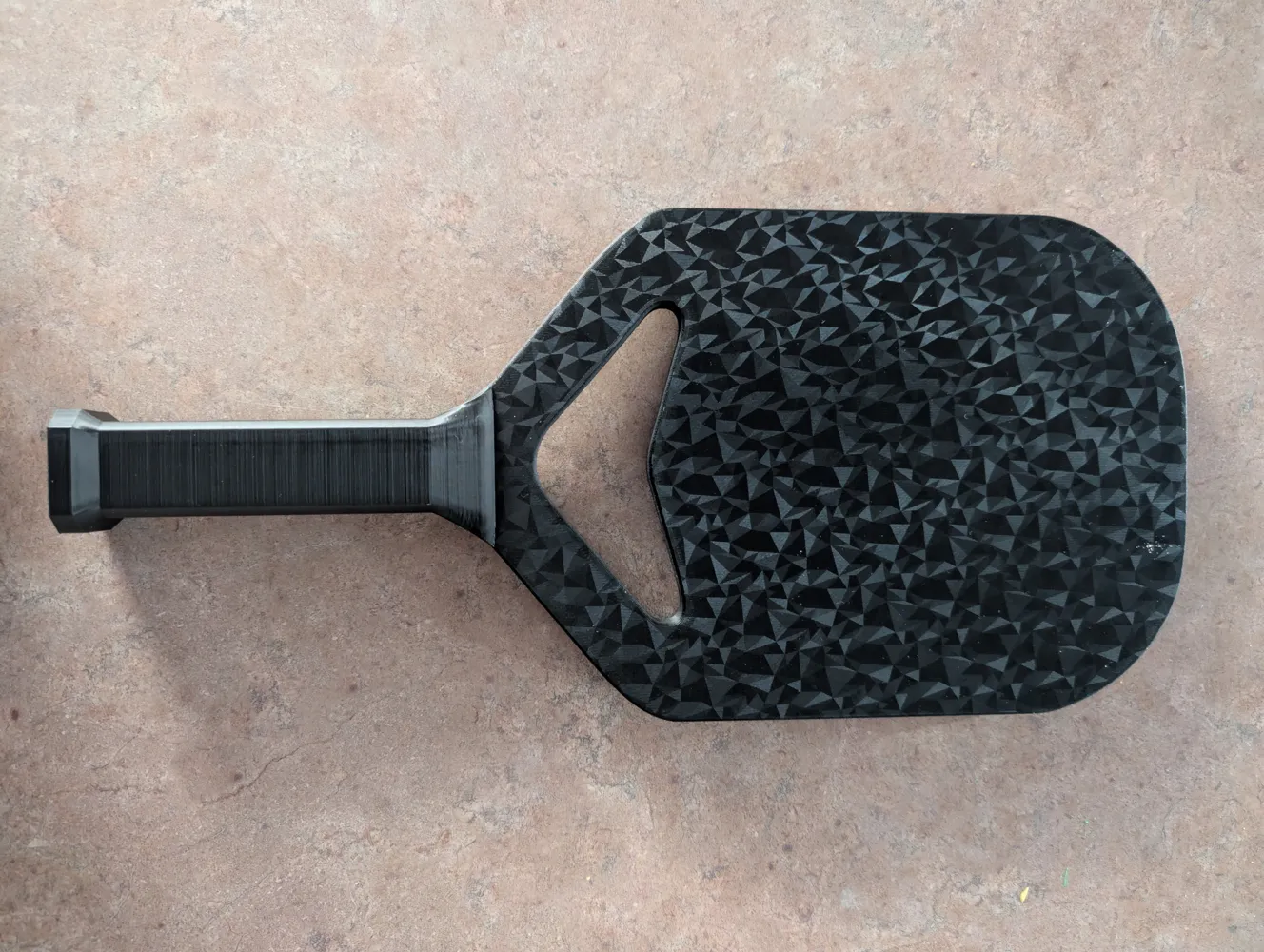

3D-Printed Hybrid Pickleball Paddle V2 | Lightweight • Durable • Easy to Print
This second-generation hybrid pickleball paddle has been completely redesigned for lighter weight, easier printing, faster assembly, and improved endurance. Built for makers and athletes alike, this paddle balances strength, control, and printability to deliver real-world performance straight off your 3D printer.
Key Features
- V2 Upgrade: Re-engineered internal structure for better strength-to-weight ratio (<200grams)
- Weight is centered toward the end of the paddle to deliver power better to the ball

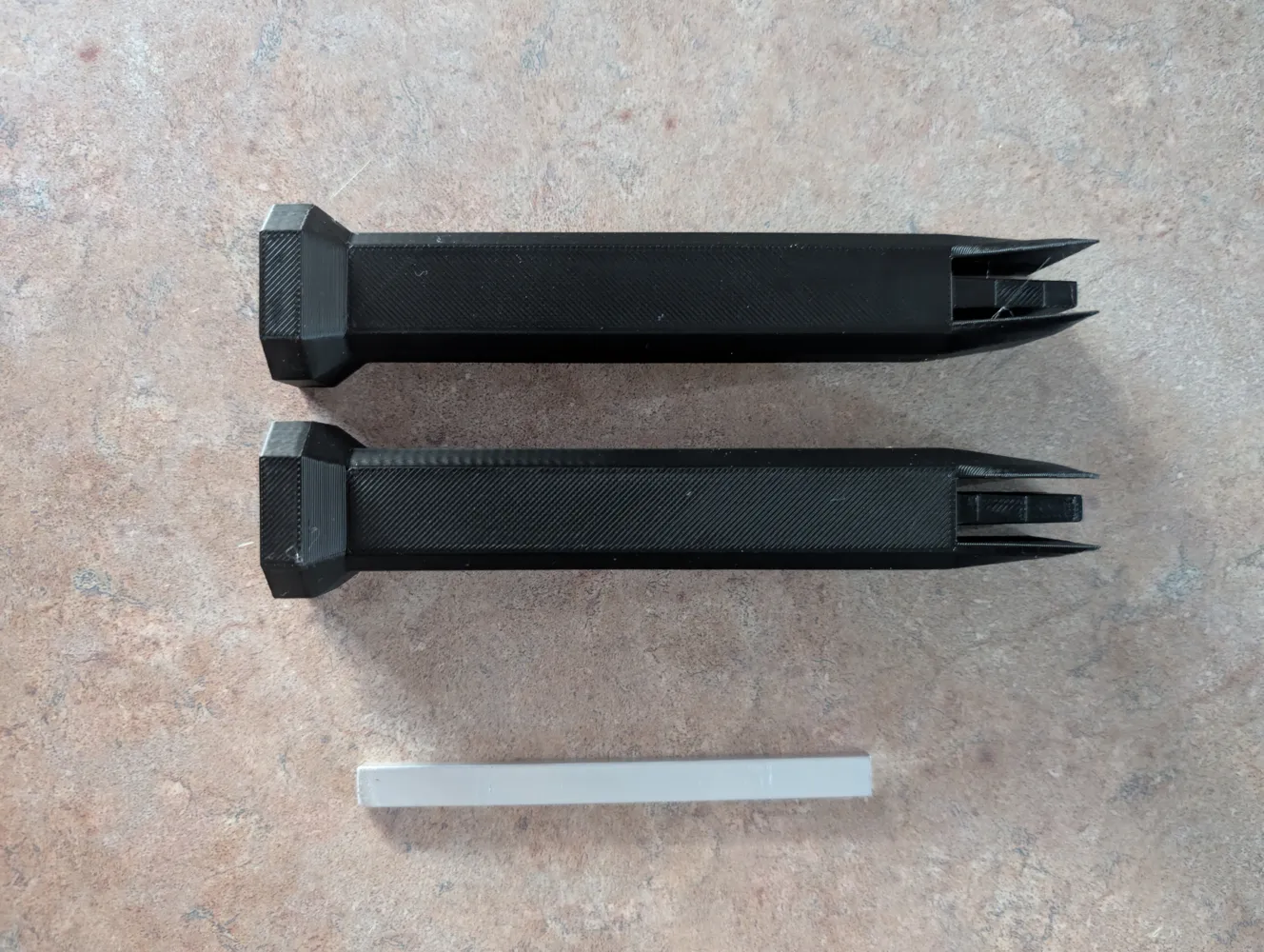

- Dual Handle Options: Choose between reinforced or standard handle designs for added durability or a lighter setup
- Material Testing: Currently testing PLA 2.0 (Sunlu) and PLA-CF (Bambu) versions for endurance on both the handle and paddle face
- Durability: Unit is performing reliably through ongoing playtesting and endurance trials
- 4 games currently played on new design
Assembly

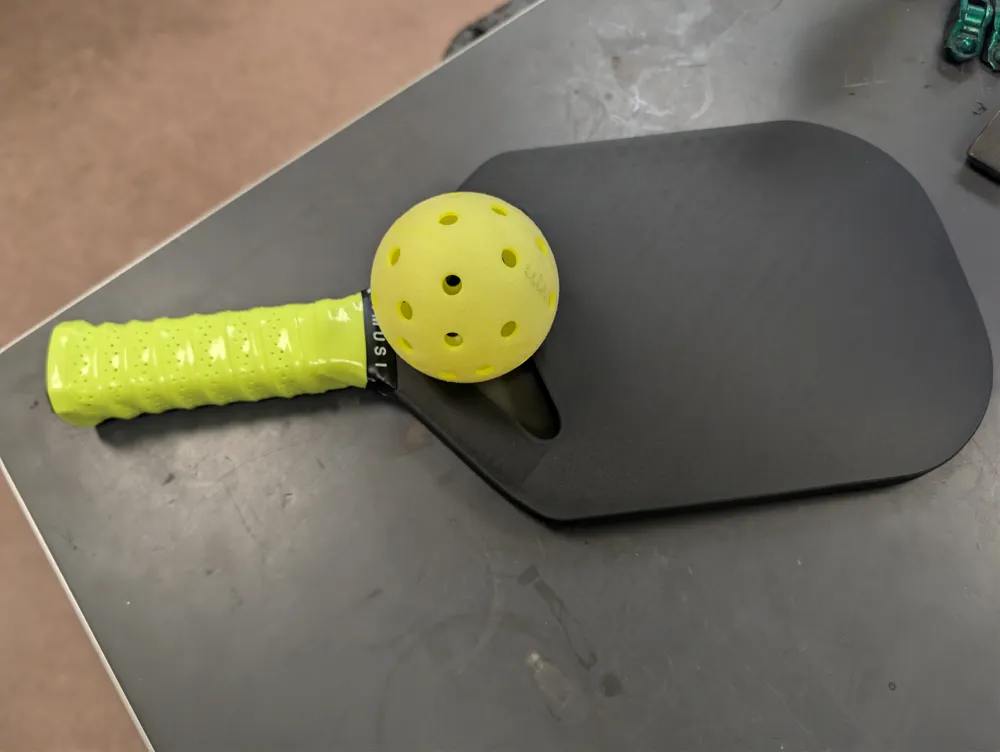

- Add a standard grip wrap or over grip of choice

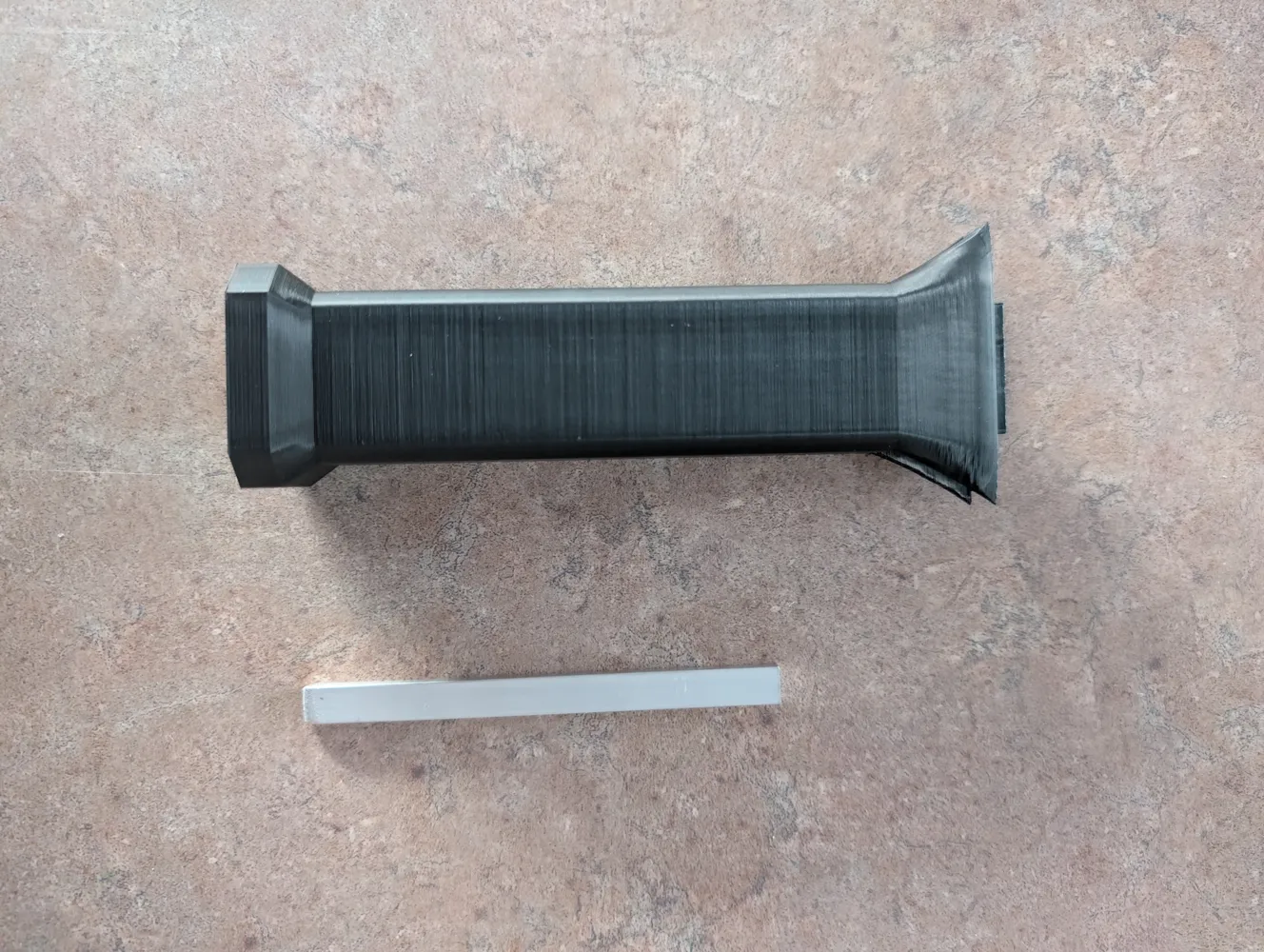

- Add an 3.9" inch aluminum bar in handle for increased strength
- Edge tape or guard recommended for long-term use
- Use adhesive of choice
Maker-engineered. Player-tested. Competition-inspired.
Print your own hybrid pickleball paddle and experience the blend of innovation, customization, and durability that defines this next-gen design.
Design falls within the USAPA guidelines for paddle design.
- Maximum combined length and width of 24 inches
- Maximum length of 17 inches
- No reflective surfaces
- Surface roughness <30 microns (smooth pei plate required)
- Core thickness ≤ ½ inch
- No rubber or synthetic rubber or moving parts
***Check out the XL Version here***
https://makerworld.com/en/models/2386360-hybrid-pickleball-paddle-v2-xl-version#profileId-2613657
