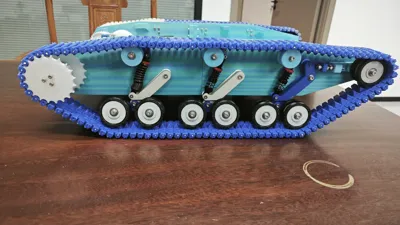

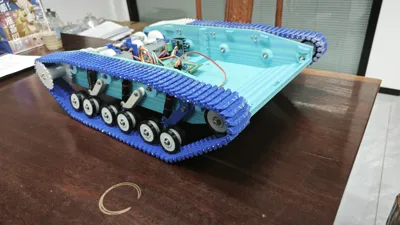

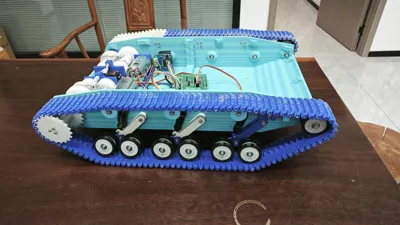

Second Generation Tank Track Platform

Installation methods and tutorials will be updated later

It has some difficulty, equipped with geared motors and a development platform

Compared to the first generation, many optimizations have been made

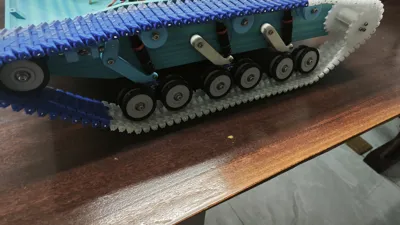

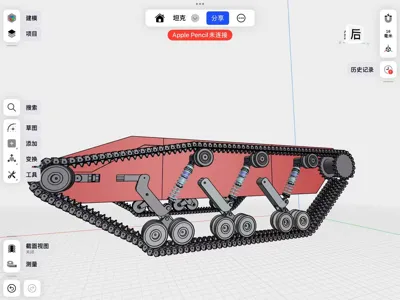

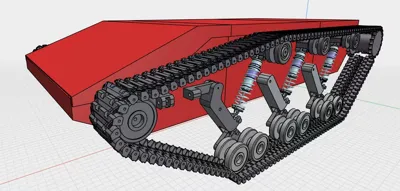

1. Increased shock absorber travel from 70mm to 110mm

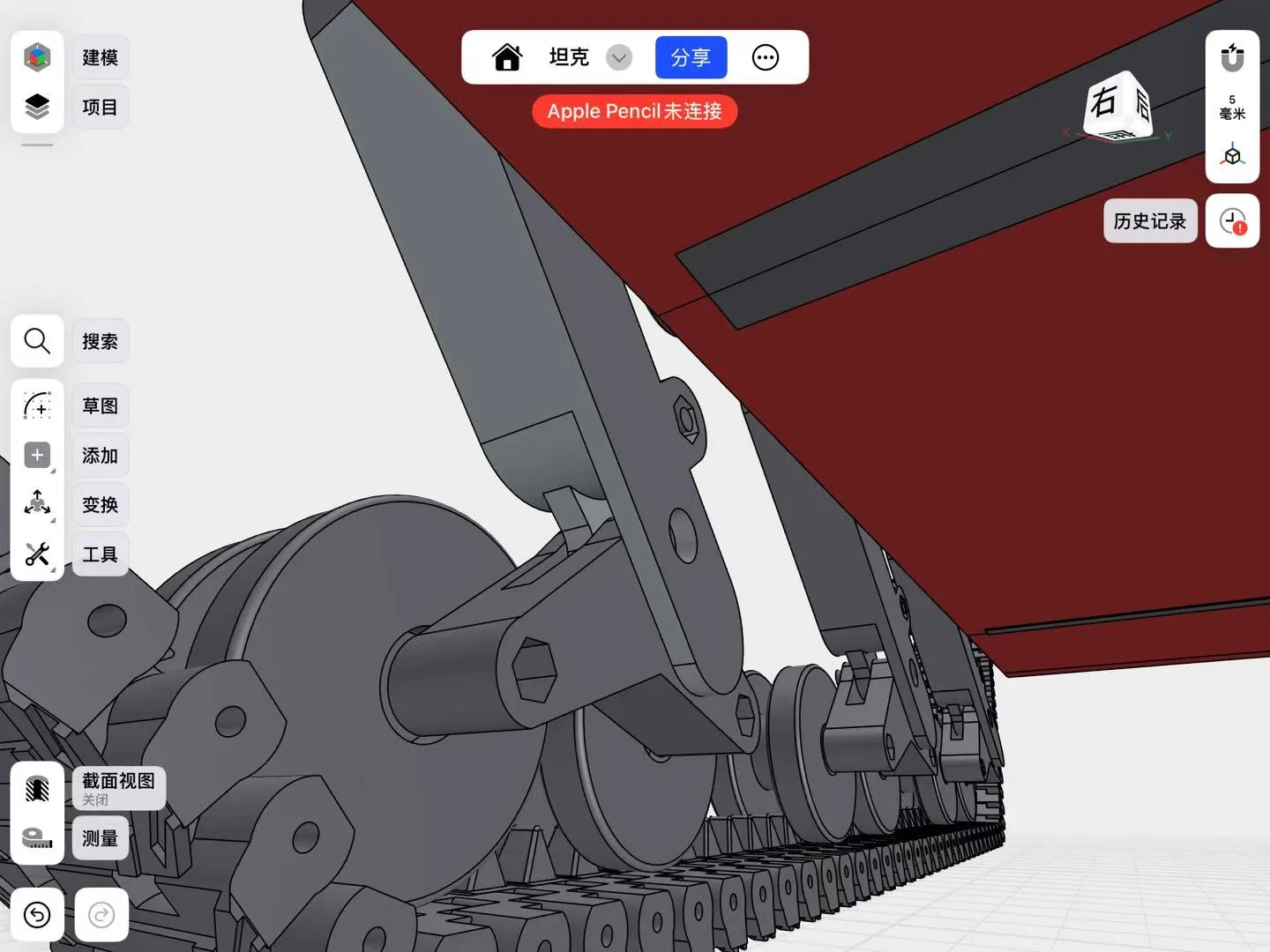

2. In the first generation, the vehicle tended to splay outwards; a new blocking device was set up to prevent deviation

It was segmented and printed in 3 sections, with M3*25 nuts used for tightening in the middle

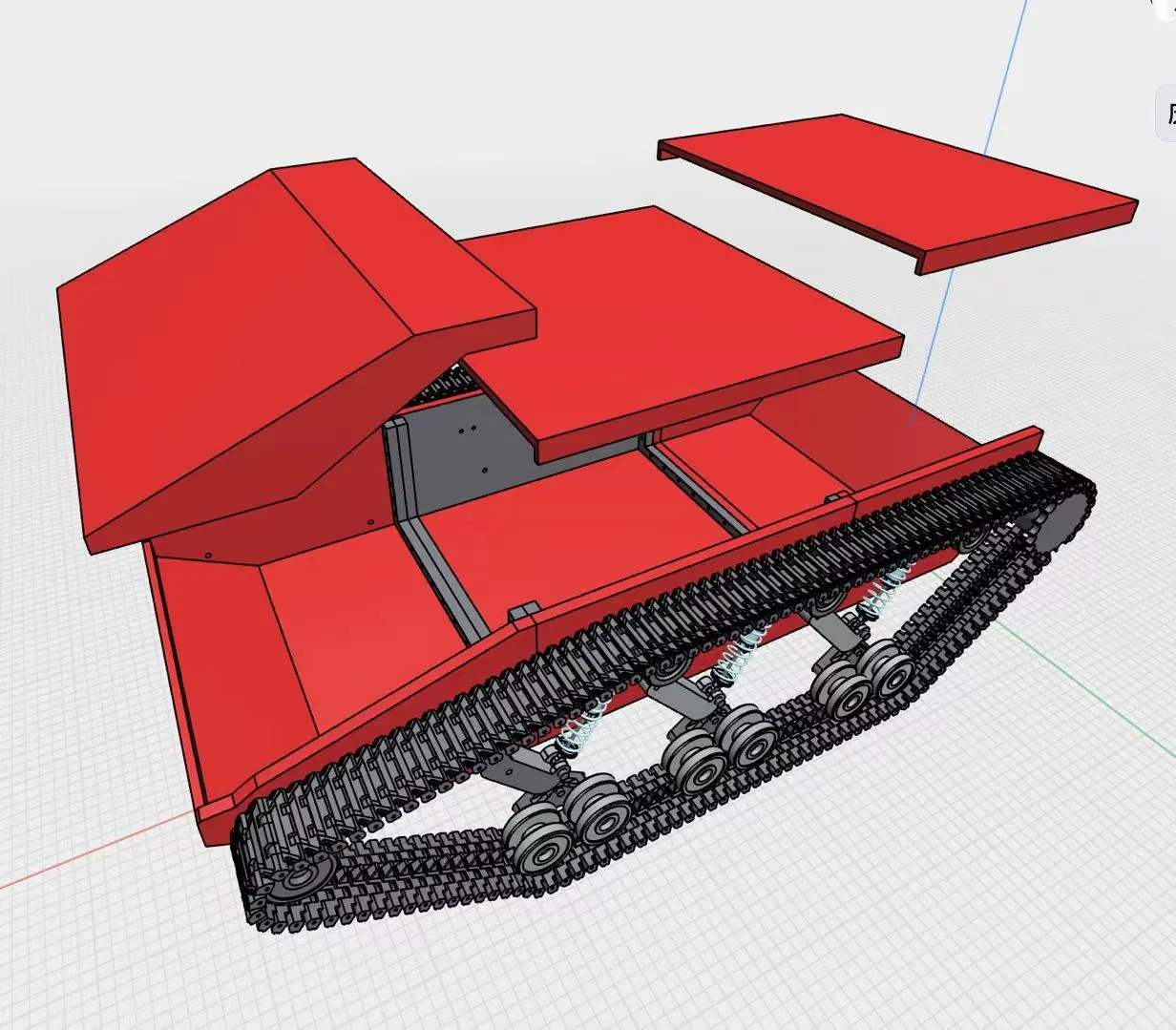

The exterior slopes backward, and a top cover was made

The back of the top cover has openings

The internal layout is still being drawn

The idea is to equip the platform with a T-shaped vehicle camera, material box, and a pitch platform to hold water bullets, which can be used as a launcher, reconnaissance vehicle, or fire support vehicle

Actually, the original intention of making this platform is that my father works in animal husbandry, which is very hard work

I wanted to make a platform to replace patrolling livestock, equipped with a camera for remote monitoring and a built-in large-capacity battery

So the shock absorption is external, leaving a large space inside

Some people say a wheeled one could also work, but in our hometown, there's a lot of weeds and muddy terrain, so tracks are better

I think once it's fully validated, it can be scaled up twice

CNC machining

Everyone's support is my motivation to continue

Please print more, see how it goes, test if it works, and give me feedback

I might disassemble the first generation and recycle its parts. The code and development version for the first generation will also be released later

It cost me about 800 to build

Actually, the cost can still be reduced

If you also like this project, we can communicate, develop, and learn together

All of this is self-taught, so some issues are gradually being resolved
