Gridfinity Fräserboxen 8mm

Gridfinity Box for 8mm Shank Router Bits

The box is two units (84mm) wide and seven units (49mm) high. The length is parametrically designed and freely selectable to accommodate different numbers of router bits. One router bit can be sorted per unit of length:

 (1x 42mm, 2x 84mm, …, 6x 252mm)

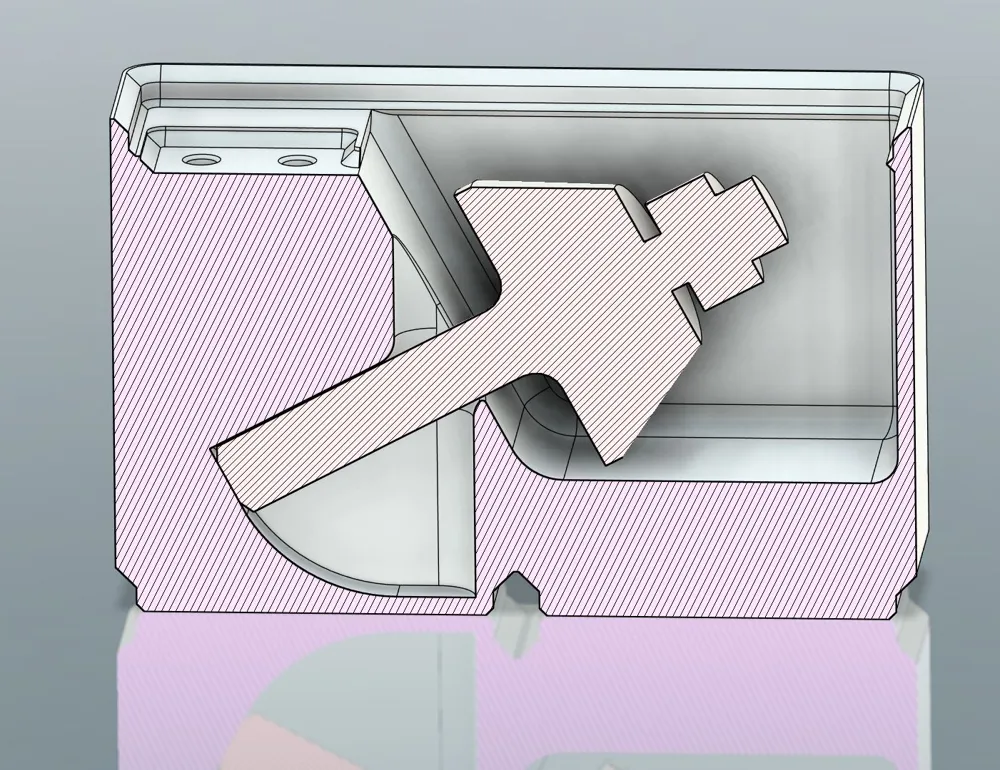

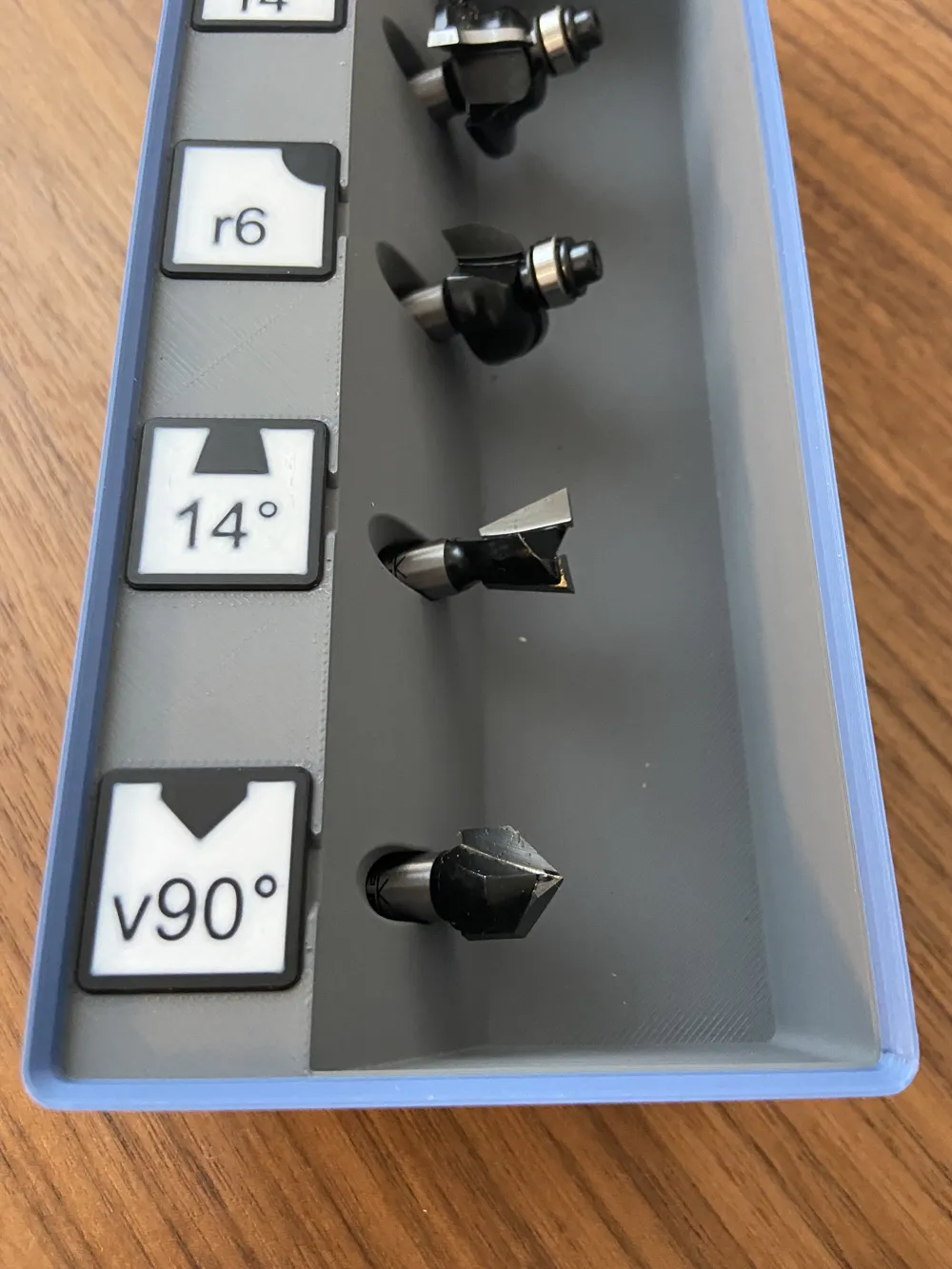

The internal geometry is specially designed for easy and safe handling of the router bits and simple identification when inserted. The individual slots can be labeled.

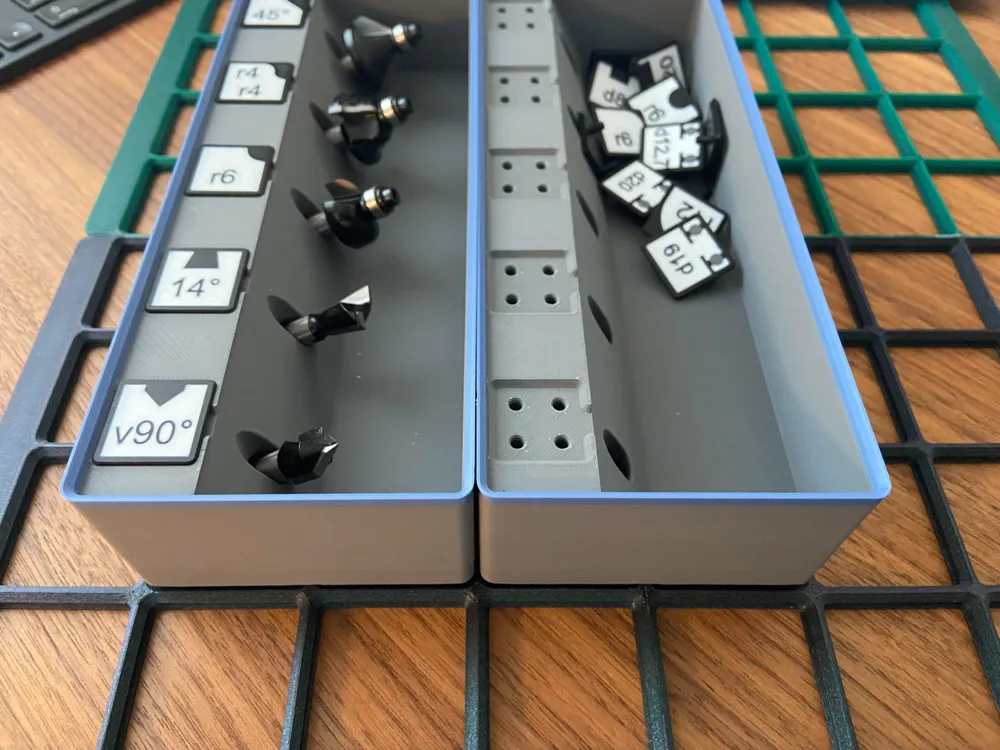

The labels can be inserted for vertical or horizontal use of the boxes in any orientation.

I offer two variants of the labels:

• 3D-printed specific labels for the most common router bit types (0.2mm nozzle required)
  https://makerworld.com/de/models/1918907-label-set-for-gridfinity-router-bit-box#profileId-2058857



• A universal variant can be fitted with self-printed adhesive labels



• There is also a suitable version of these boxes for 6mm router bits:
  https://makerworld.com/de/models/2082562-gridfinity-fraserboxen-6mm#profileId-2250606
