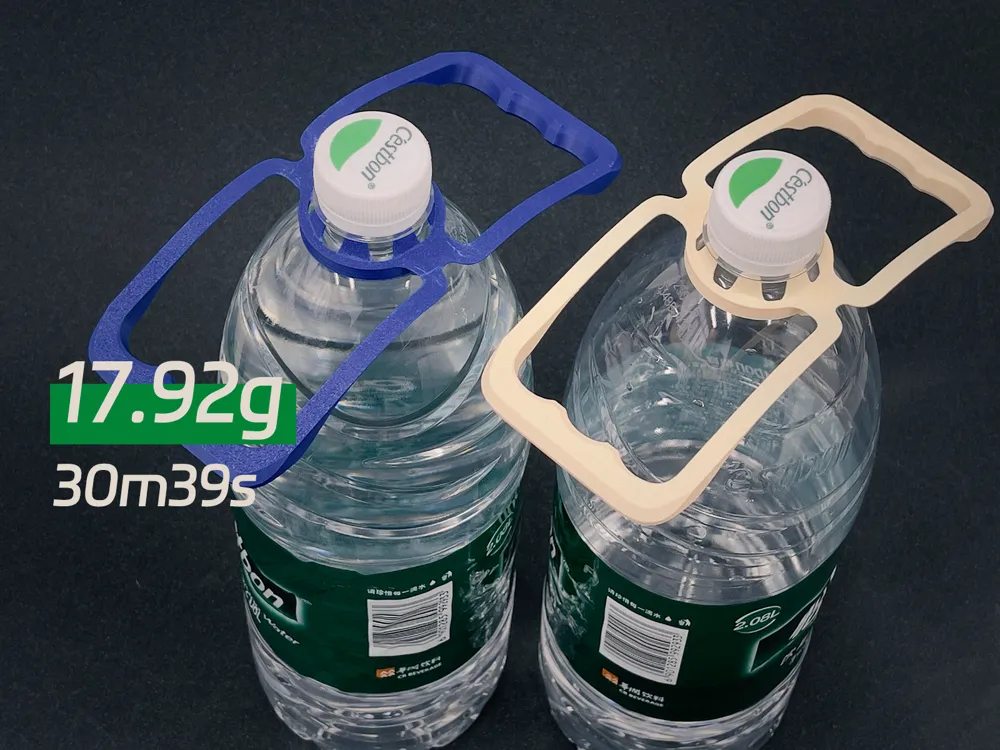

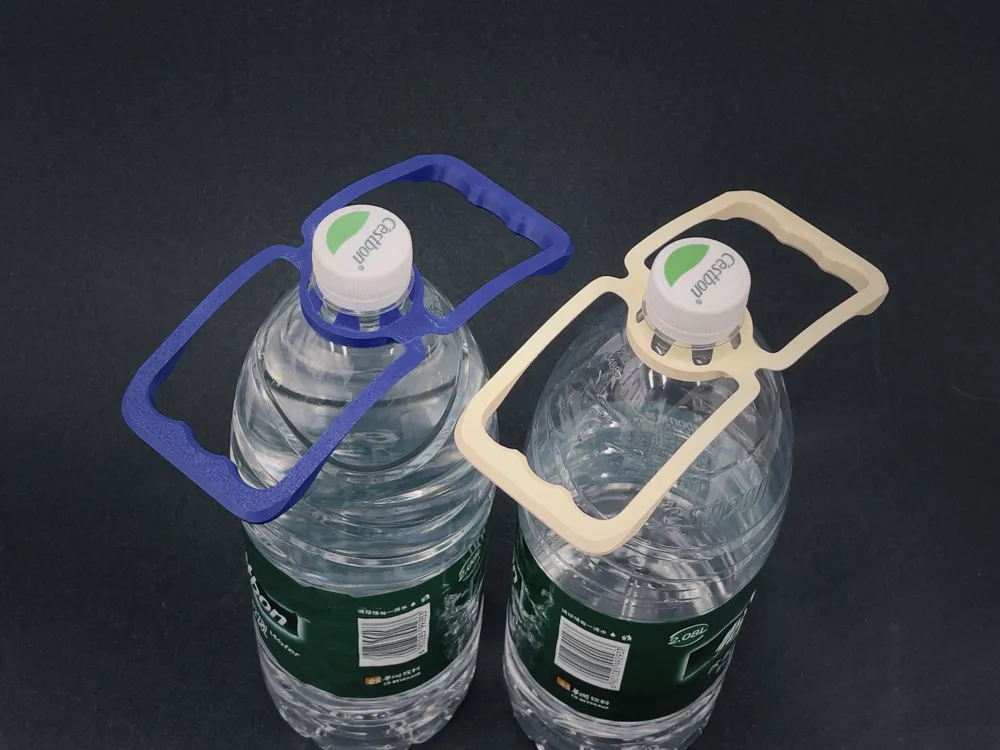

Handle for bottled mineral water bottles

This is the second model I've shared in the MW community

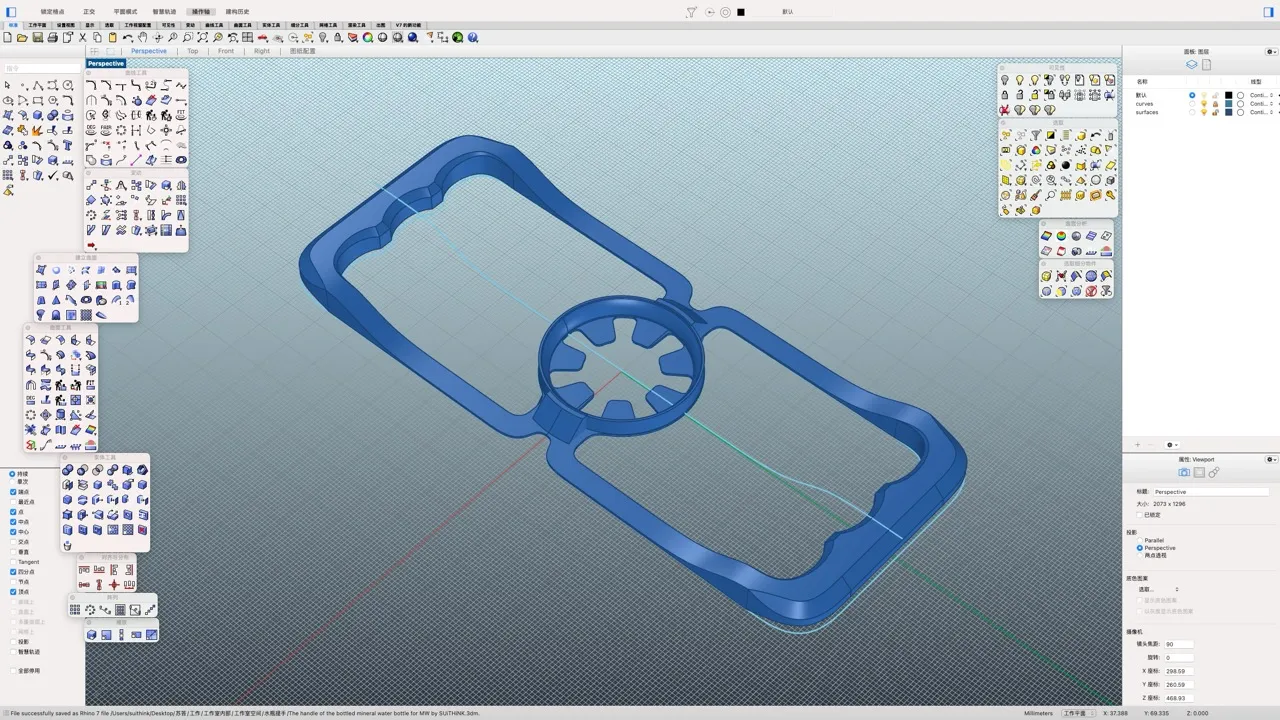

The reason is that I carry a bottle of purified water from home to my studio almost every day, but the original handle often breaks, so I wanted to make a comfortable handle myself. Without relying on existing models in the community, I used calipers to measure dimensions, drafted, tested, and repeatedly modified until I finally created a handle that I was quite satisfied with

This handle mainly has the following design points:

1. Completely based on flat printing design, with a very high printing success rate

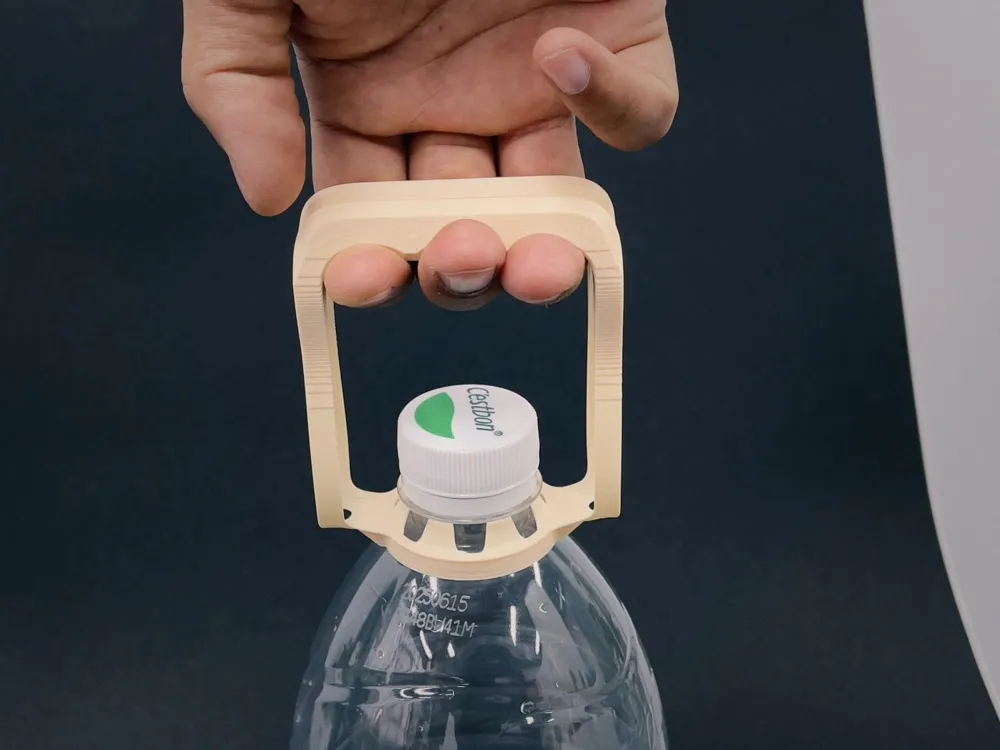

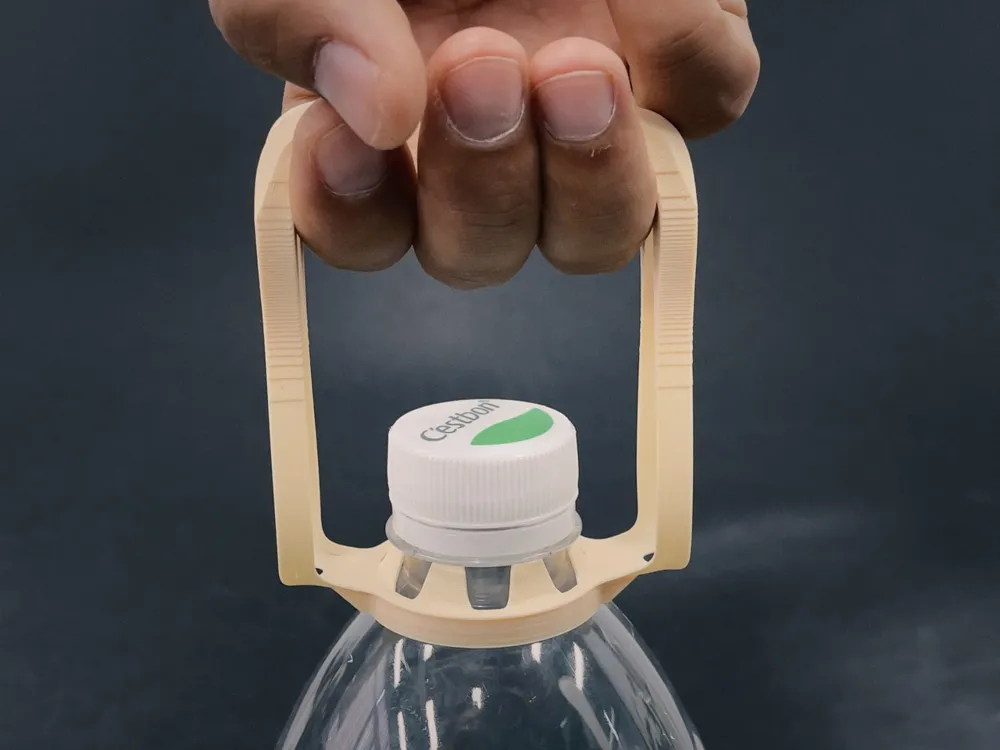

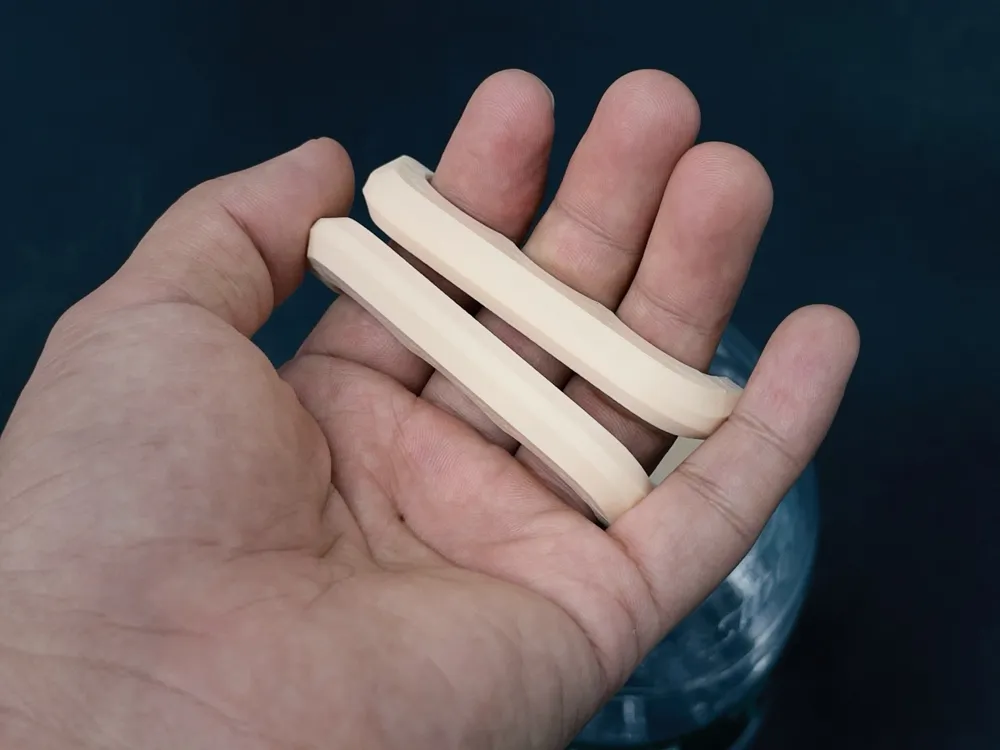

2. The handle part is wide and thick, not cutting into the hand

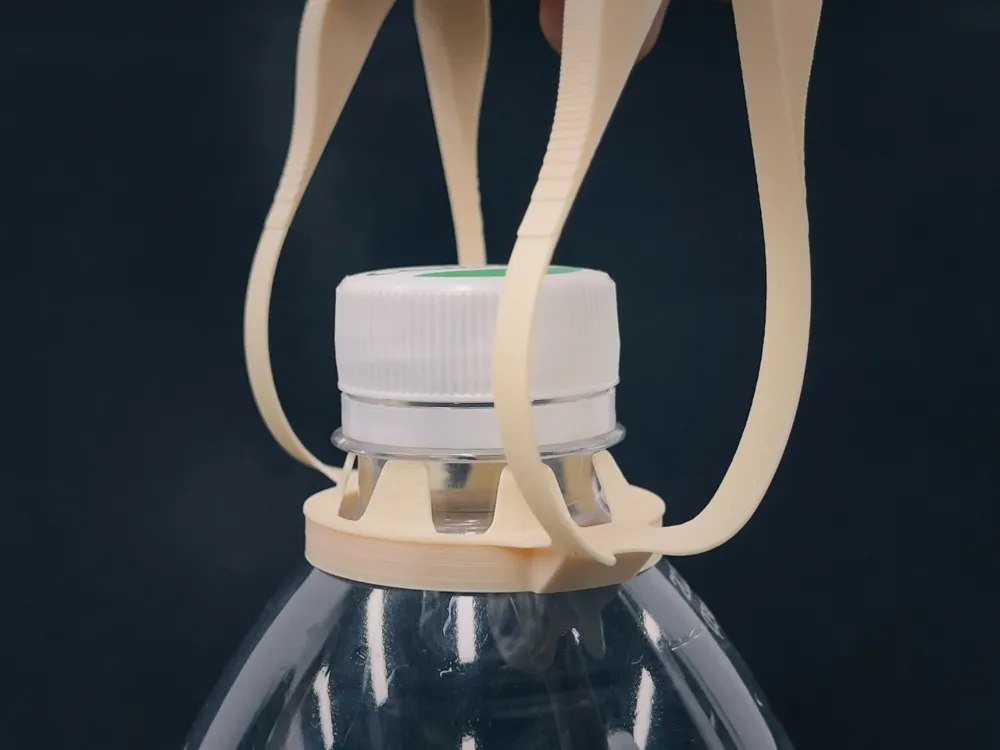

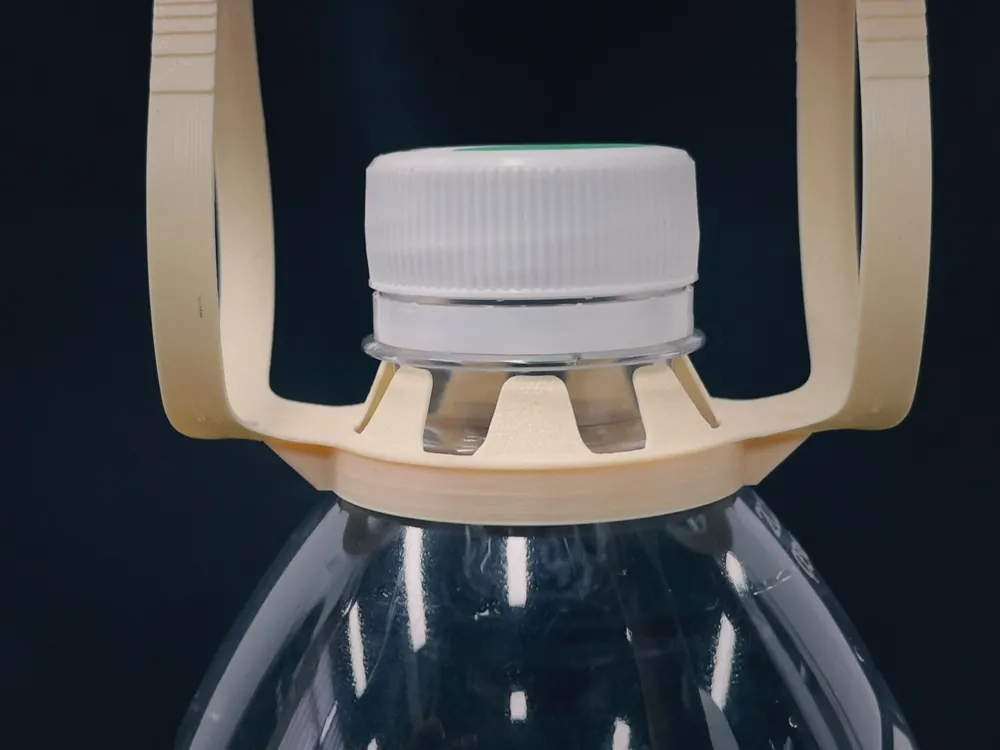

3. Dual strap design, which ensures a stable center of gravity when carrying and also improves damage tolerance

4. Excellent flexibility

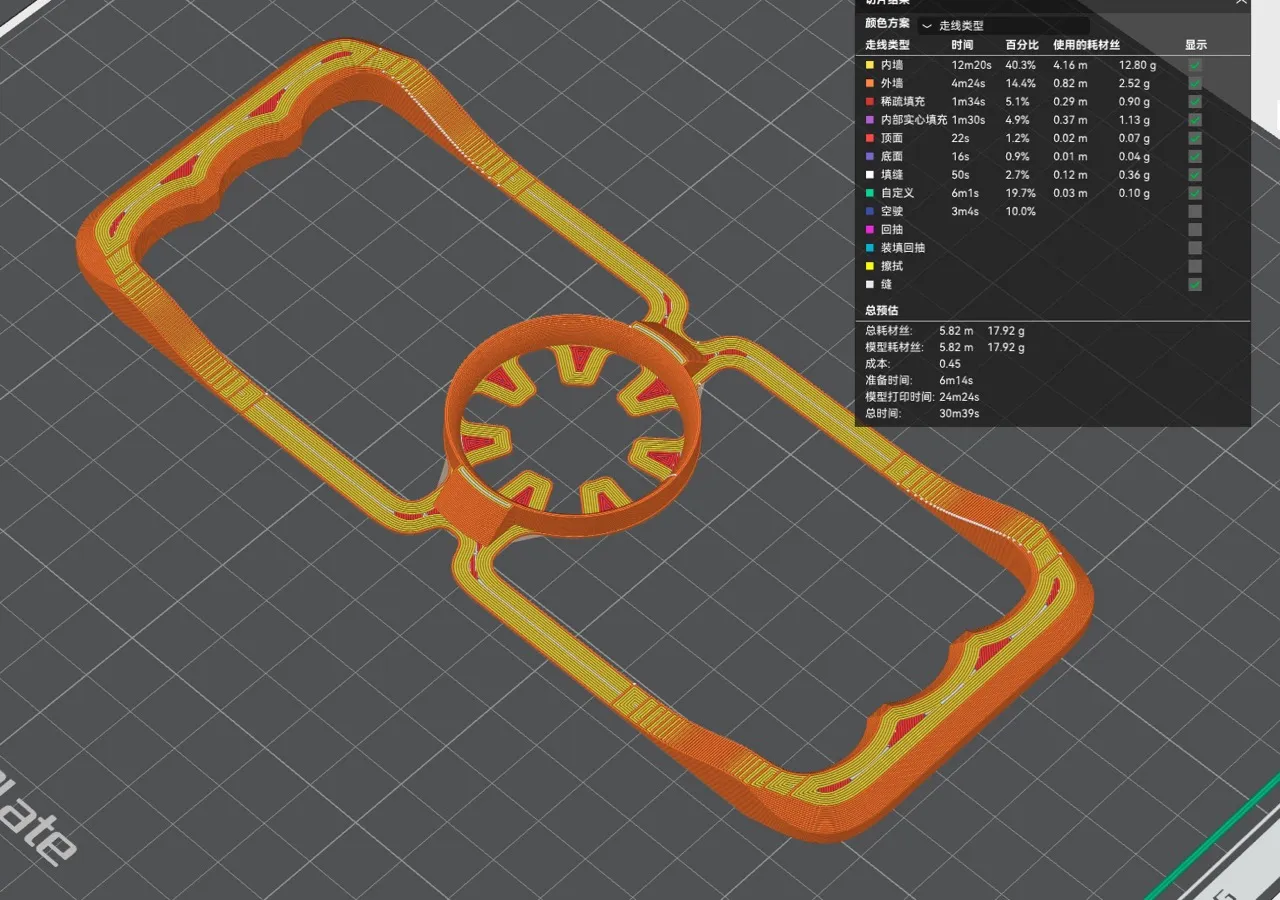

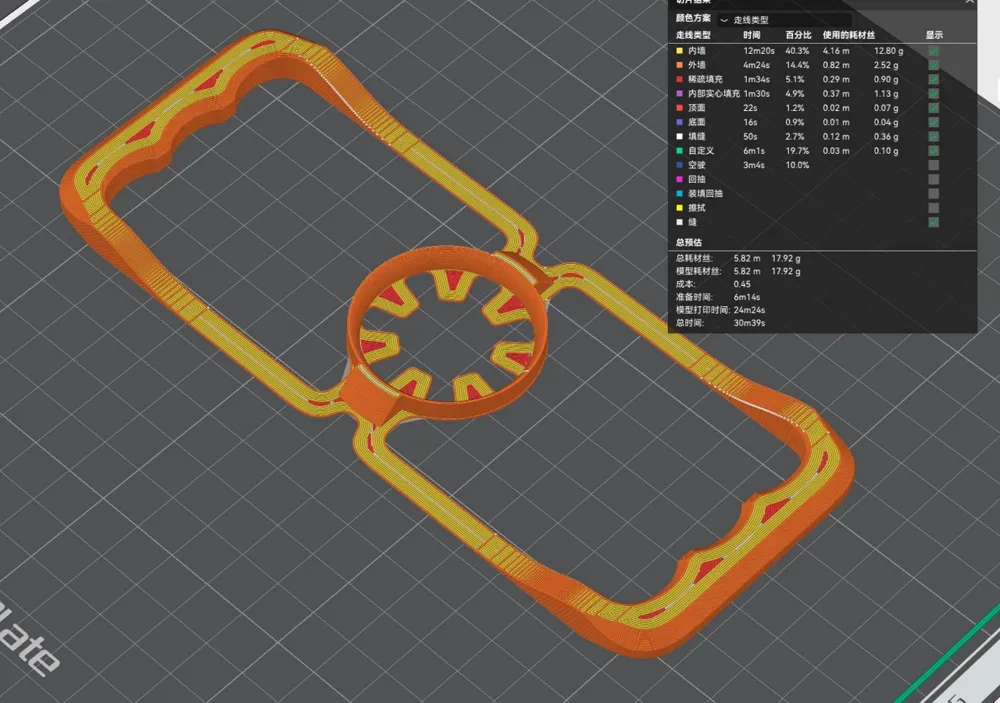

Printing suggestions:

1. Use TPU for AMS or PETG filament

2. Try not to modify the already set print parameters

3. If modifying parameters, please ensure that the wall count is not less than 5 and the layer height is not greater than 0.2 mm

⚠️ Note: Do not use on bumpy roads
